12bits 16 Bit I2C ADS1115 ADS1015 Module ADC 4 channel with Pro Gain Amplifier 2.0V to 5.5V for Arduino RPi
ADS1015 / 10pcs
$87.93
Sale price
$87.93
Regular price
$0.00
Skip to product information
12bits 16 Bit I2C ADS1115 ADS1015 Module ADC 4 channel with Pro Gain Amplifier 2.0V to 5.5V for Arduino RPi
$87.93
Sale price
$87.93
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Stlxy
Certification: NONE
Choice: yes
DIY Supplies: Electrical
Electronic: No
High-concerned chemical: none
Model Number: ADS1115 ADS1015
Origin: Mainland China
Semi-finishedproduct: No
semi_Choice: yes

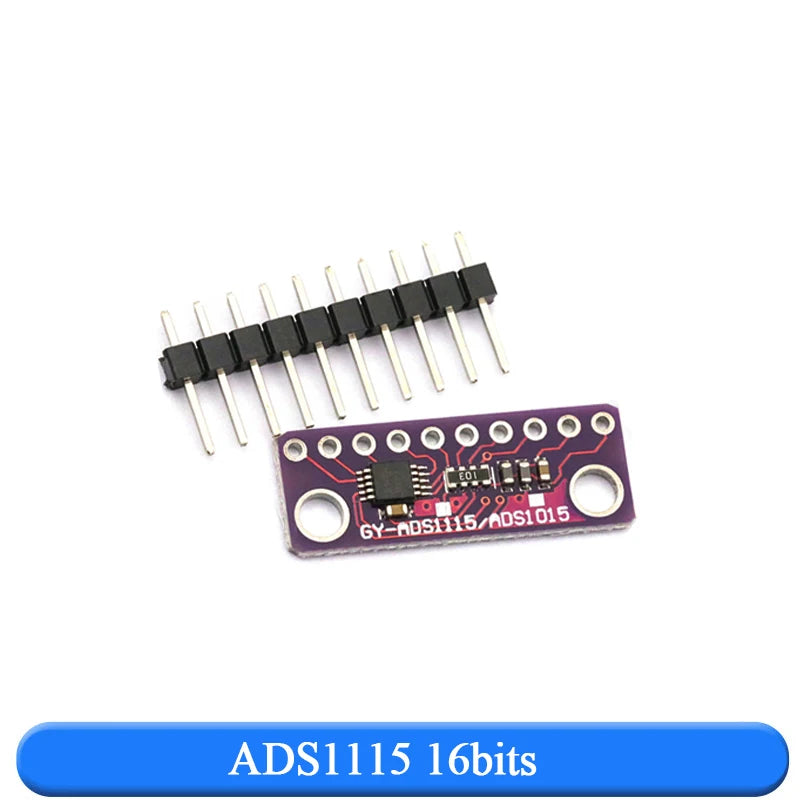

ADS1115 ultra-compact 16-precision ADC ADC module development board
ADS1115 ultra-compact 16-precision ADC ADC module development board
FEATURES DESCRIPTION
23 ULTRA-SMALL QFN PACKAGE: The ADS1113,ADS1114,and ADS1115 are
2mm × 1,5mm × 0,4mm precision analog-to-digital converters (ADCs) with 16
WIDE SUPPLY RANGE: 2.0V to 5.5V bits of resolution offered in an ultra-small,leadless
LOW CURRENT CONSUMPTION: QFN-10 package or an MSOP-10 package The ADS1113 / 4/5 are designed with precision,power,and.
Continuous Mode: Only 150A ease of implementation in mind The ADS1113 / 4/5.
Single-Shot Mode:. Auto Shut-Down feature an onboard reference and oscillator Data are
PROGRAMMABLE DATA RATE: transferred via an I2C-compatible serial interface; four
8SPS to 860SPS I2C slave addresses can be selected. The
INTERNAL LOW-DRIFT ADS1113 / 4/5 operate from a single power supply
VOLTAGE REFERENCE ranging from 2.0V to 5.5V.
INTERNAL OSCILLATOR The ADS1113 / 4/5 can perform conversions at rates
INTERNAL PGA up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS1115 that
I2C INTERFACE: Pin-Selectable Addresses offers input ranges from the supply to as low as
FOUR SINGLE-ENDED OR TWO ± 256mV,allowing both large and small signals to be
DIFFERENTIAL INPUTS (ADS1115) measured with high resolution. The ADS1115 also
features an input multiplexer (MUX) that provides two PROGRAMMABLE COMPARATOR differential or four single-ended inputs.
(ADS1114 and ADS1115)
The ADS1113 / 4/5 operate either in continuous
APPLICATIONS conversion mode or a single-shot mode that
PORTABLE INSTRUMENTATION automatically powers down after a conversion and greatly reduces current consumption during idle
CONSUMER GOODS periods. The ADS1113 / 4/5 are specified from -40 ° C
BATTERY MONITORING to + 125 ° C.

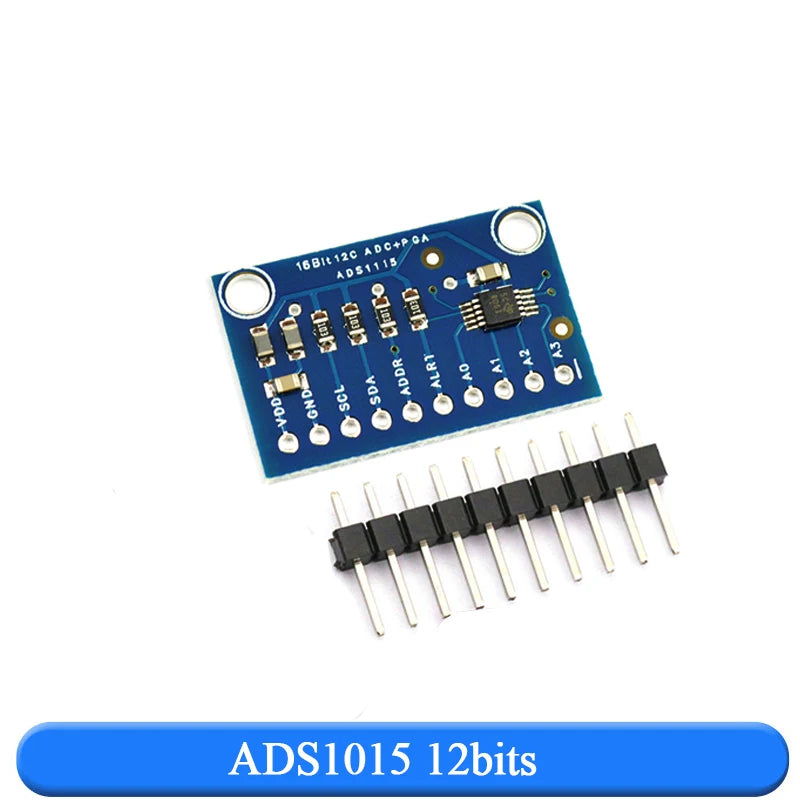

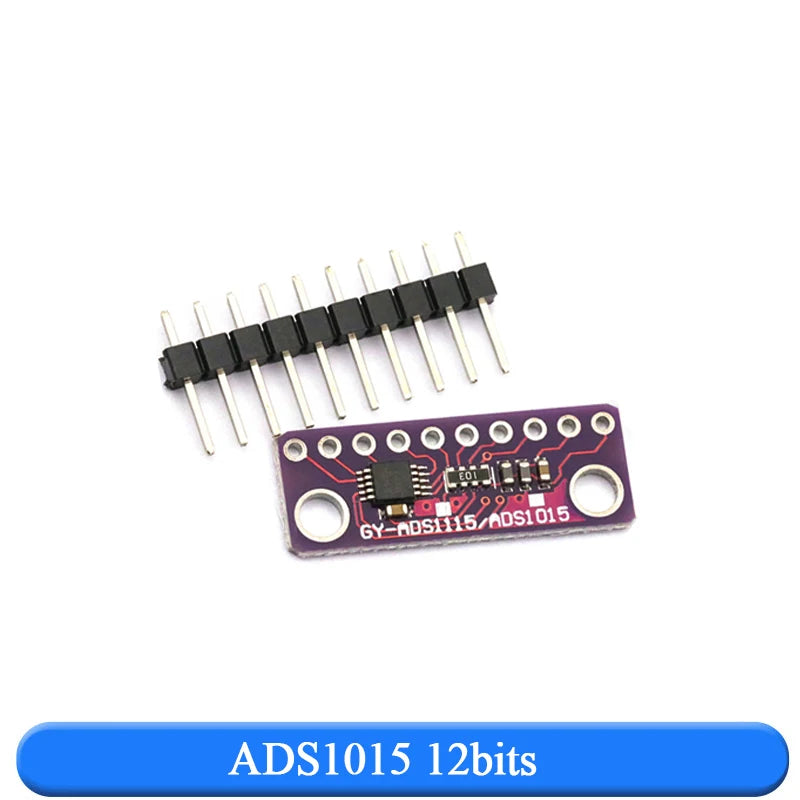

ADS1015
For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC,the ADS1015 provides 12-bit precision at 3300 samples/second over I2C. The chip can be configured as 4 single-ended input channels,or two differential channels. As a nice bonus,it even includes a programmable gain amplifier,up to x16,to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic,can measure a large range of signals and its super easy to use. It is a great general purpose 12 bit converter.
The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1015's connected on a single 2-wire I2C bus for 16 single ended inputs.
Package includes:
1PCS ADS1015 12 bit analog-to-digital converter ADC development board
