SPECIFICATIONS

Brand Name: udevqal

Choice: yes

Condition: New

Dissipation Power: standard

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Quantity: 1

Type: Module

is_customized: Yes

semi_Choice: yes

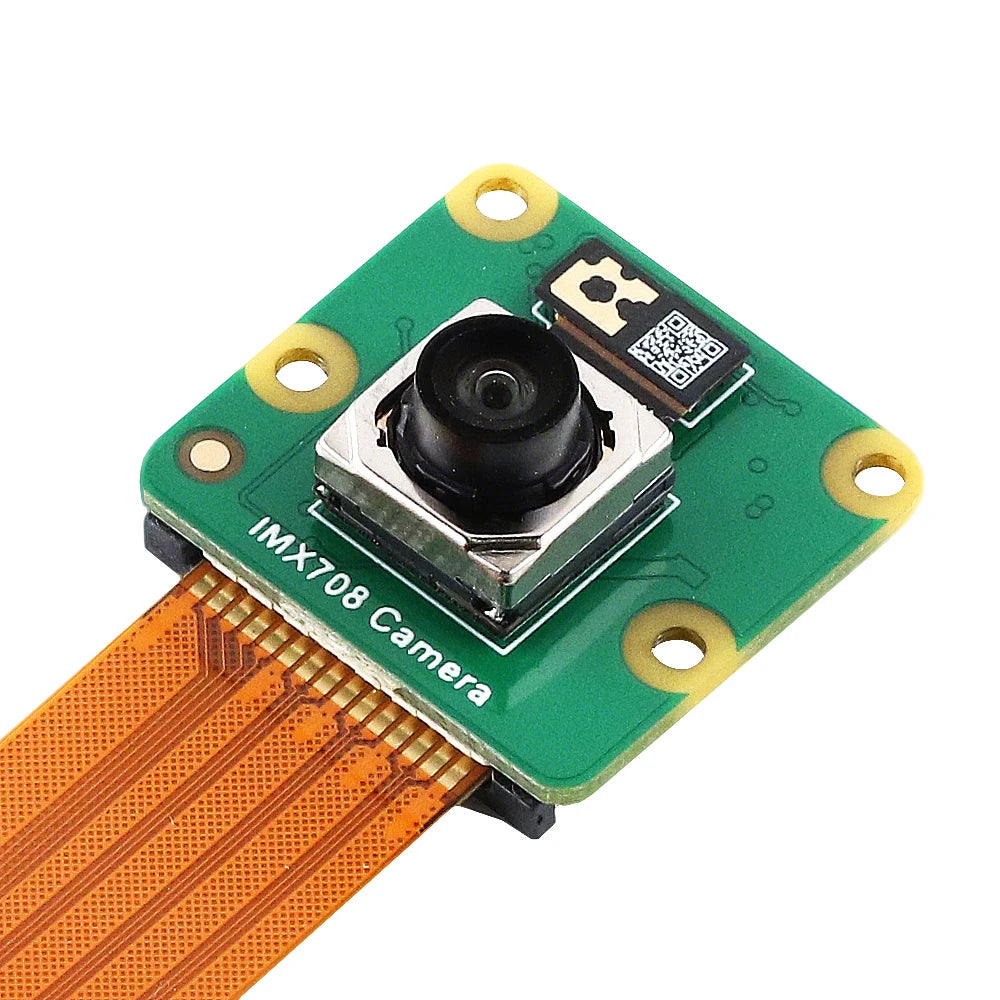

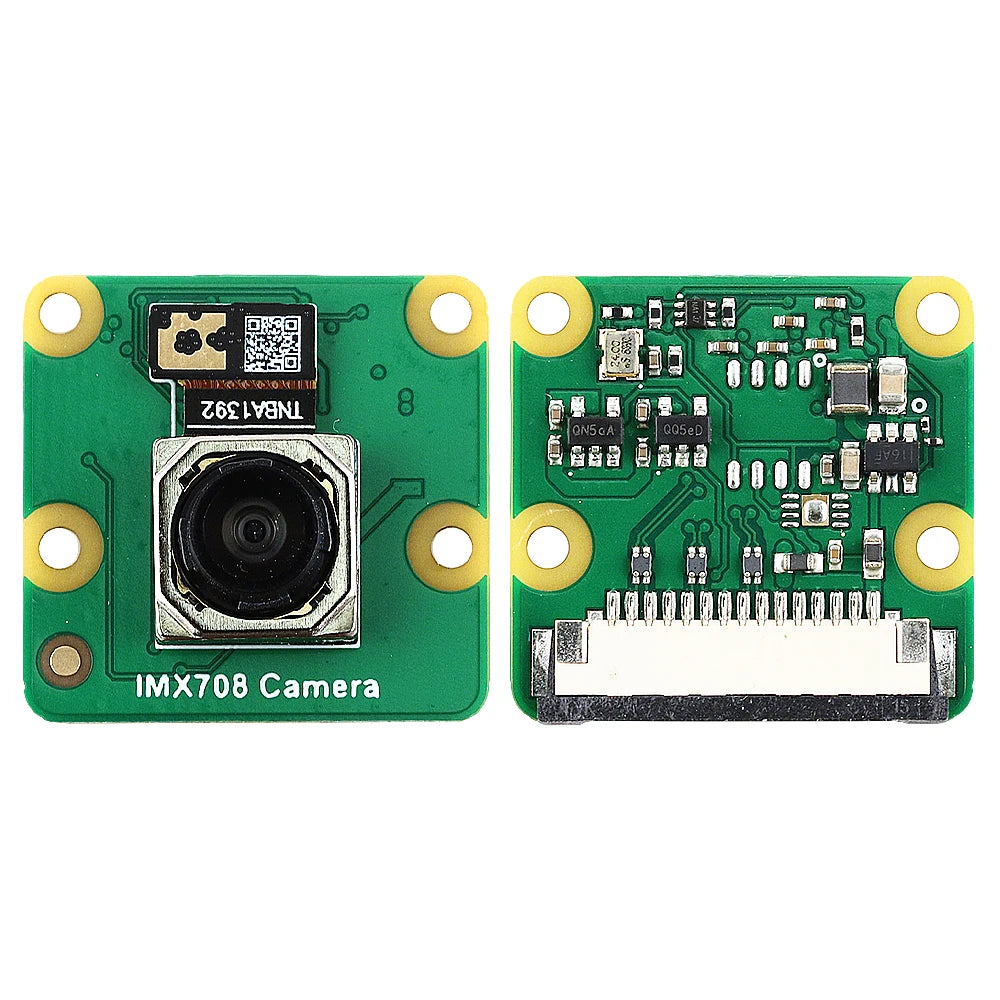

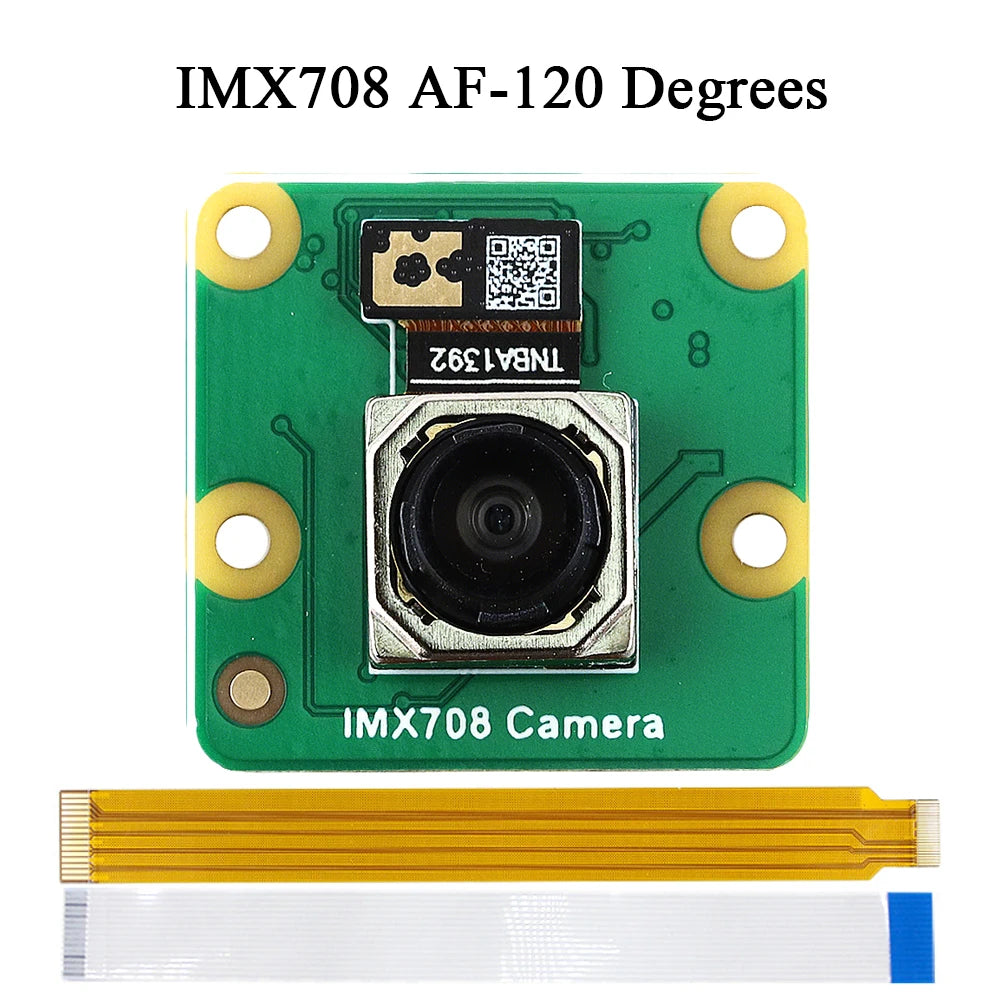

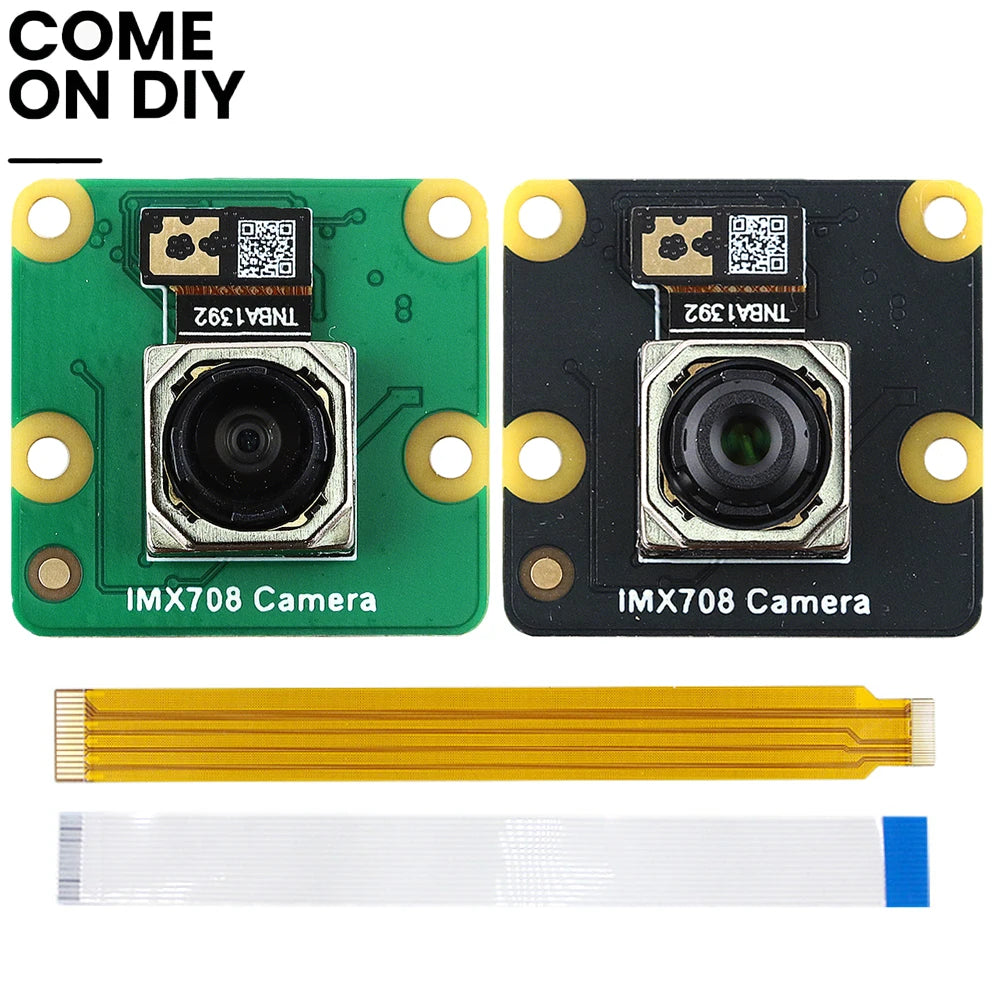

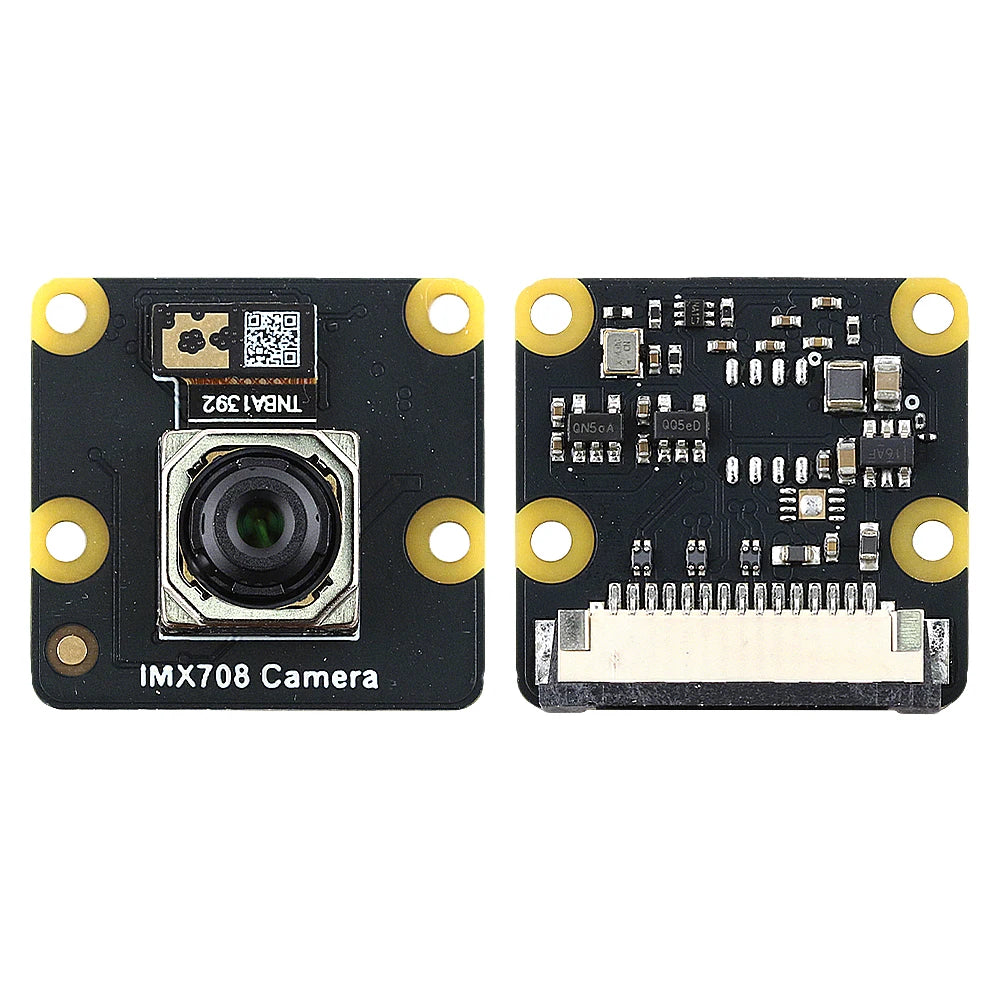

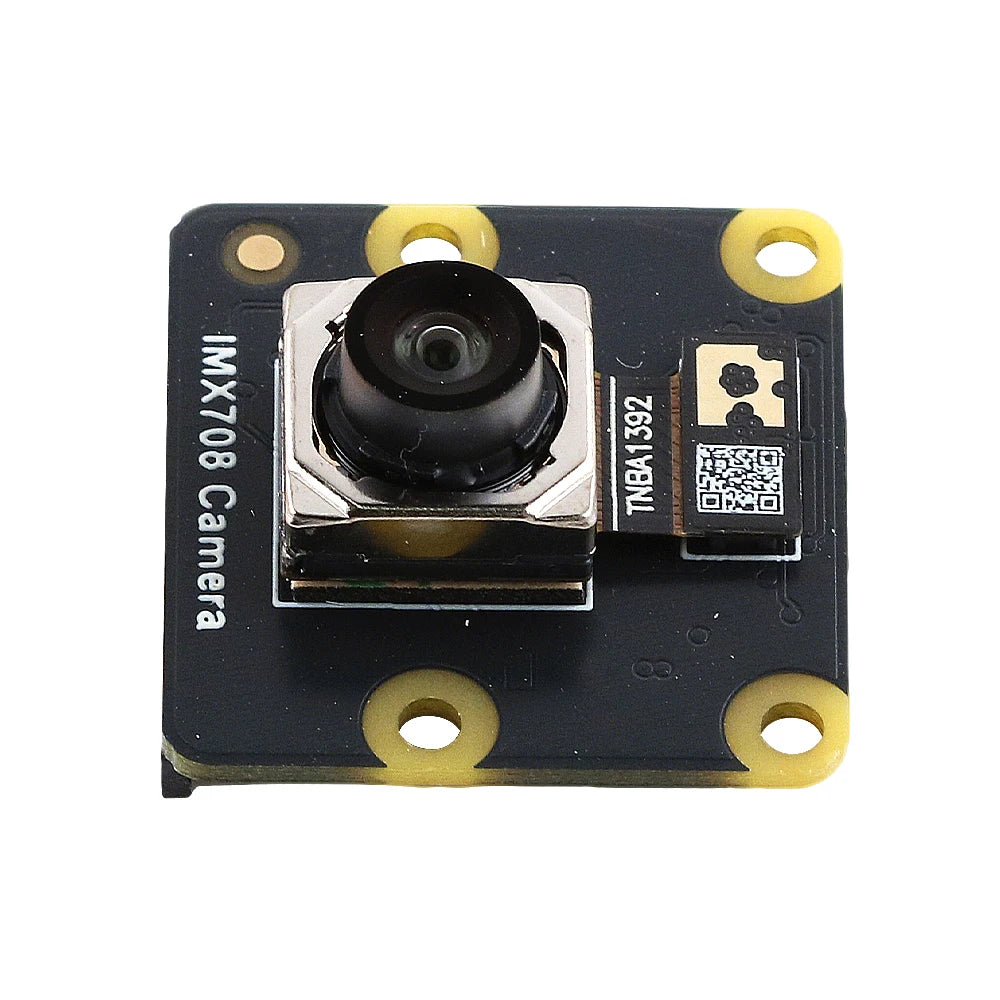

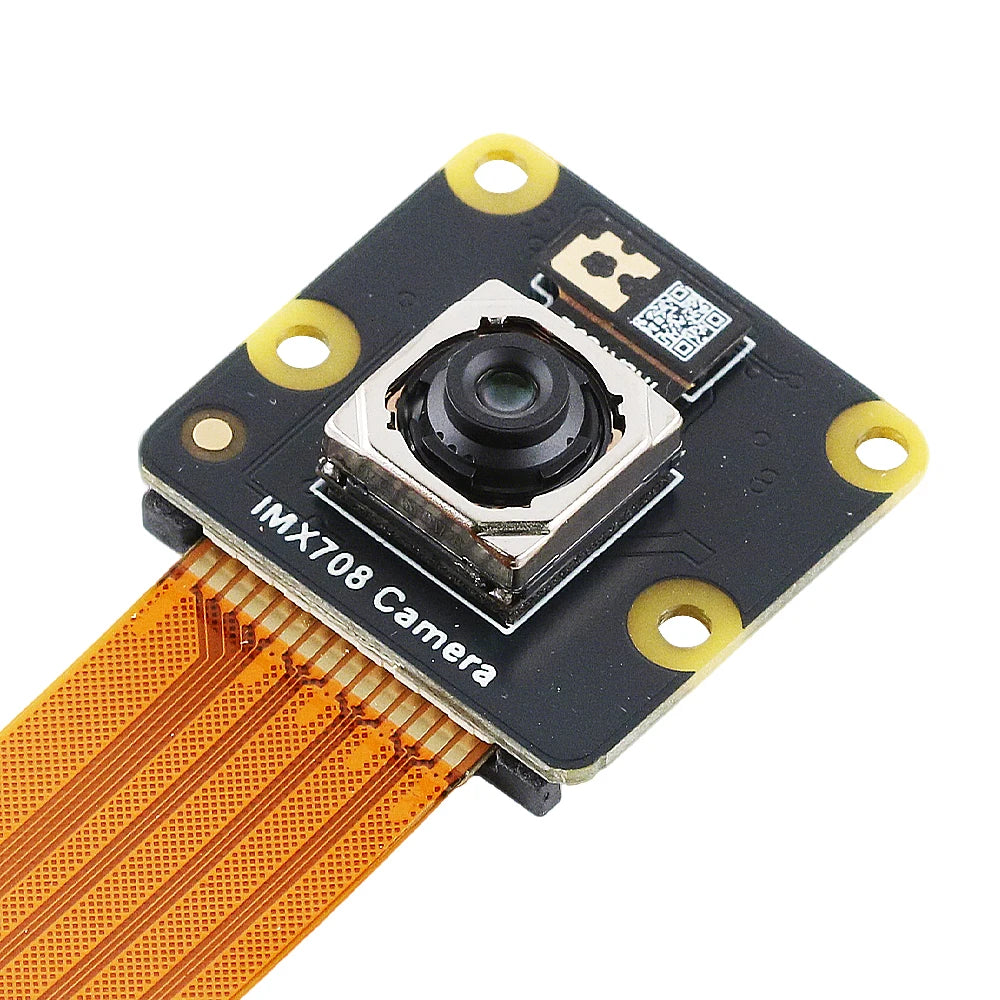

12MP IMX708 Camera Module Auto Focus Night Vision 75 120 Degree For Raspberry Pi 5 4 4B 3B+ ZERO 2 W CSI 22Pin 15Pin HD Webcam

CMOS Sensor : Sony 12MP IMX708

Image size : Diagonal 7.402 mm (Type 1/2.43)

Number of effective pixels: 4640 (H) × 2648 (V) approx. 12.29 Mpixels

Number of active pixels: 4608 (H) × 2592 (V) approx. 11.94 Mpixels

Chip size : 7.288 mm (H) × 4.930 mm (V)

Unit cell size : 1.40 µm (H) × 1.40 µm (V)

Frame Rate : 1080p50, 720p100, 480p120

Optical Format : 1/2.43" Focal Length : 4.74 mm

F/NO : 1.8

Angle of View : D= 75° H= 66° V= 41° TV-Distortion : <1%

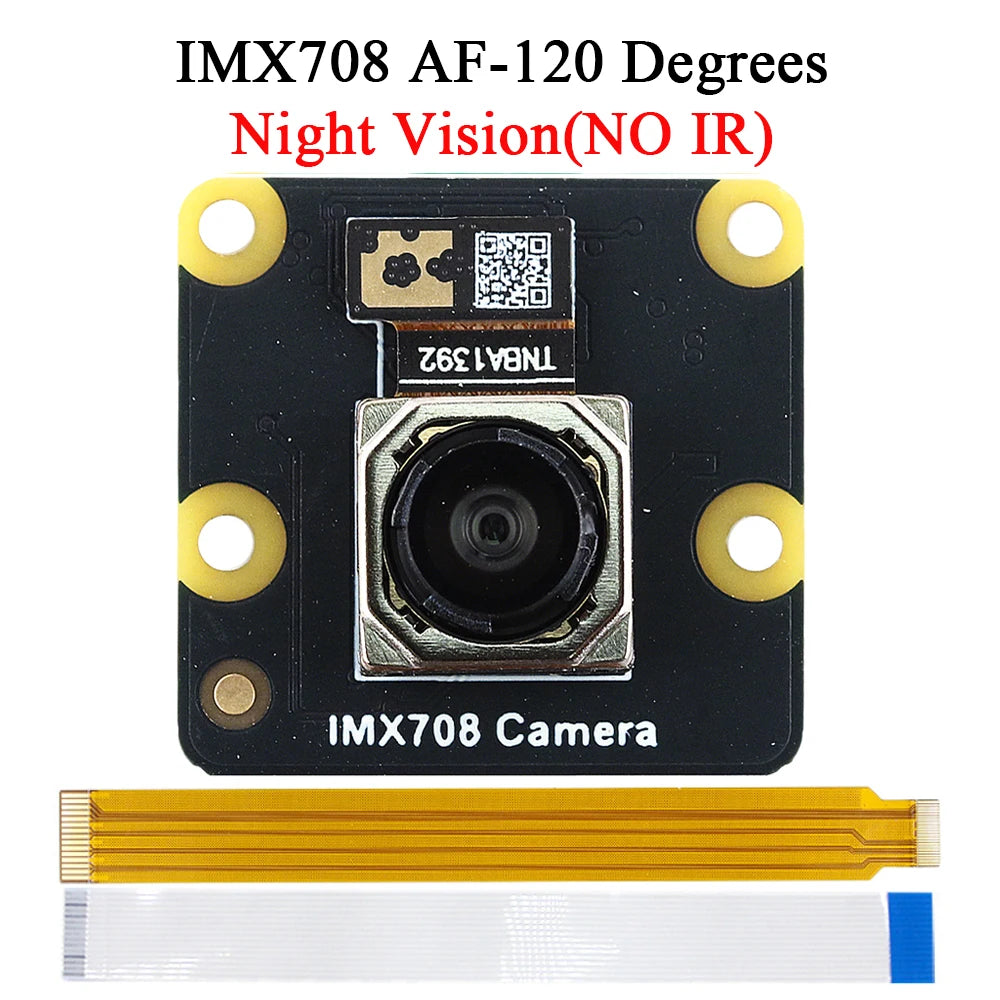

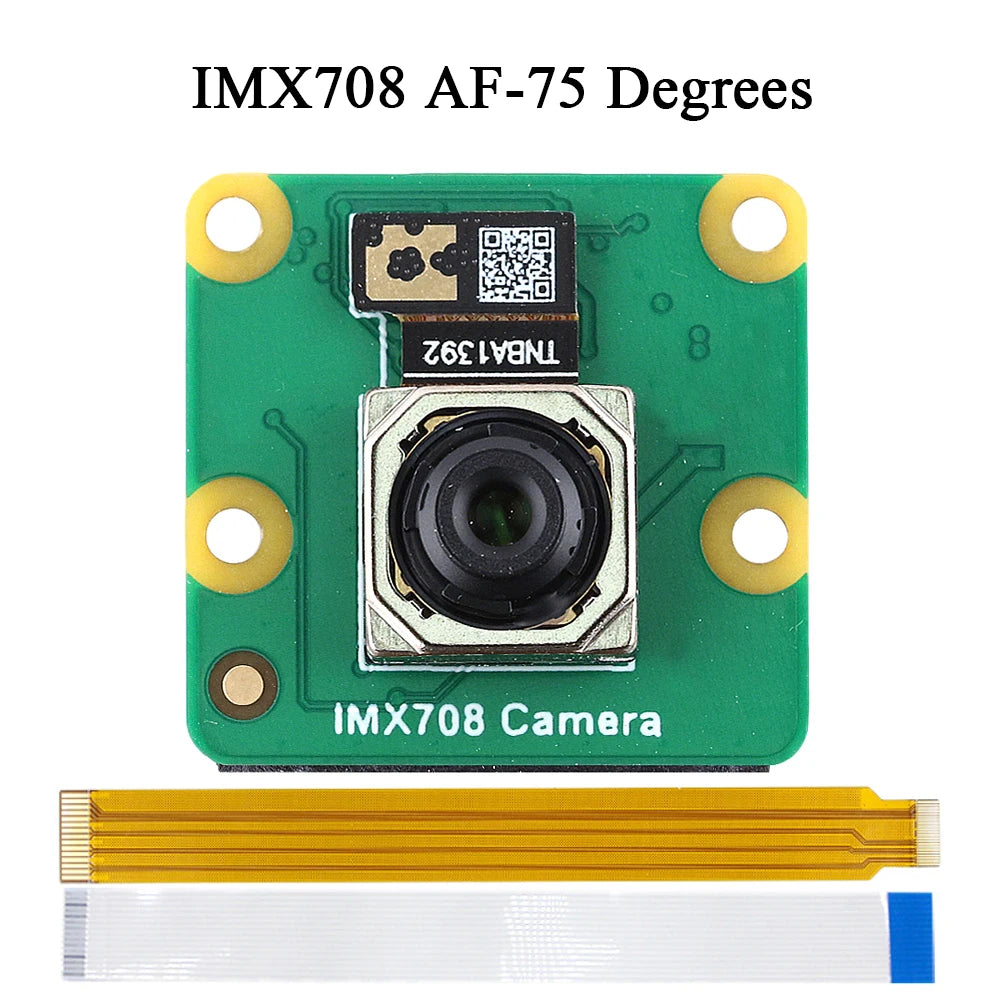

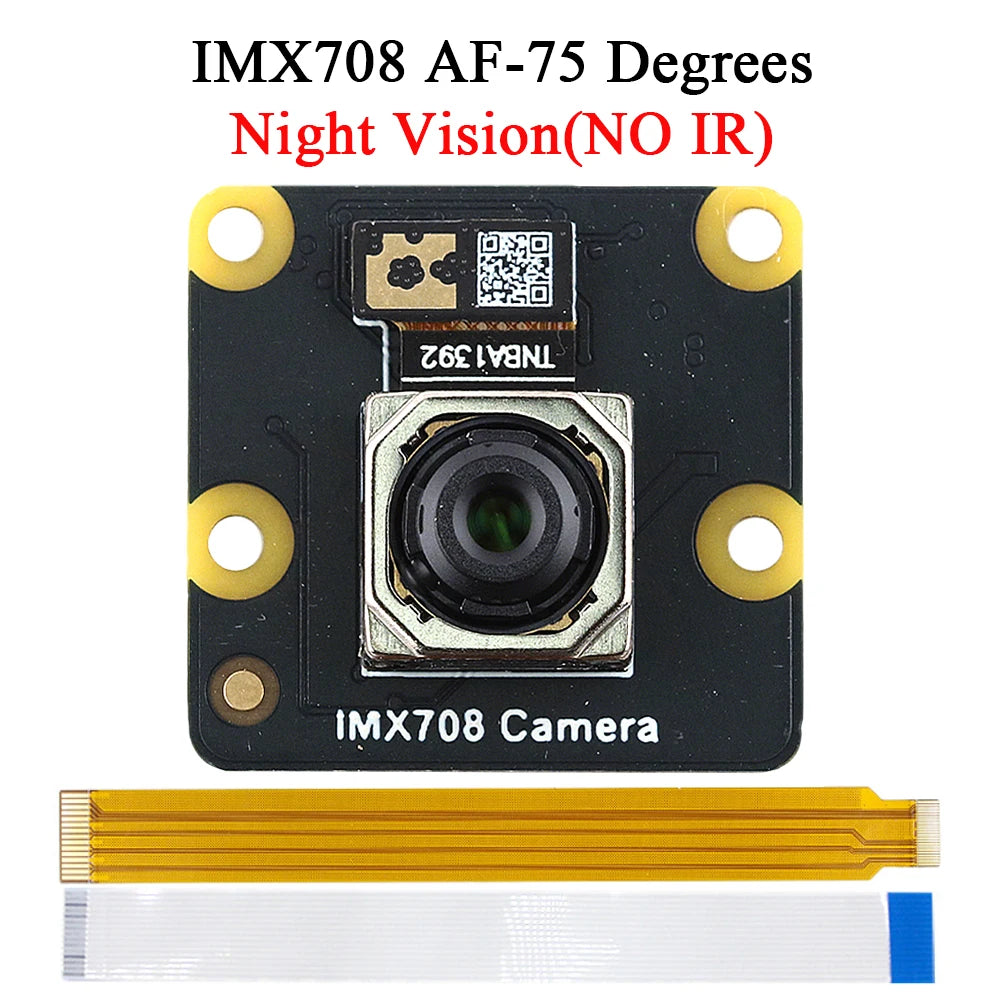

Lens: AF-75/AF-120

Relative Illuminance : 28%

Visible light Camera : IR=650/NO IR

Interface : 2-Lane MIPI

Dimensions : 25 mm × 23.862 mm

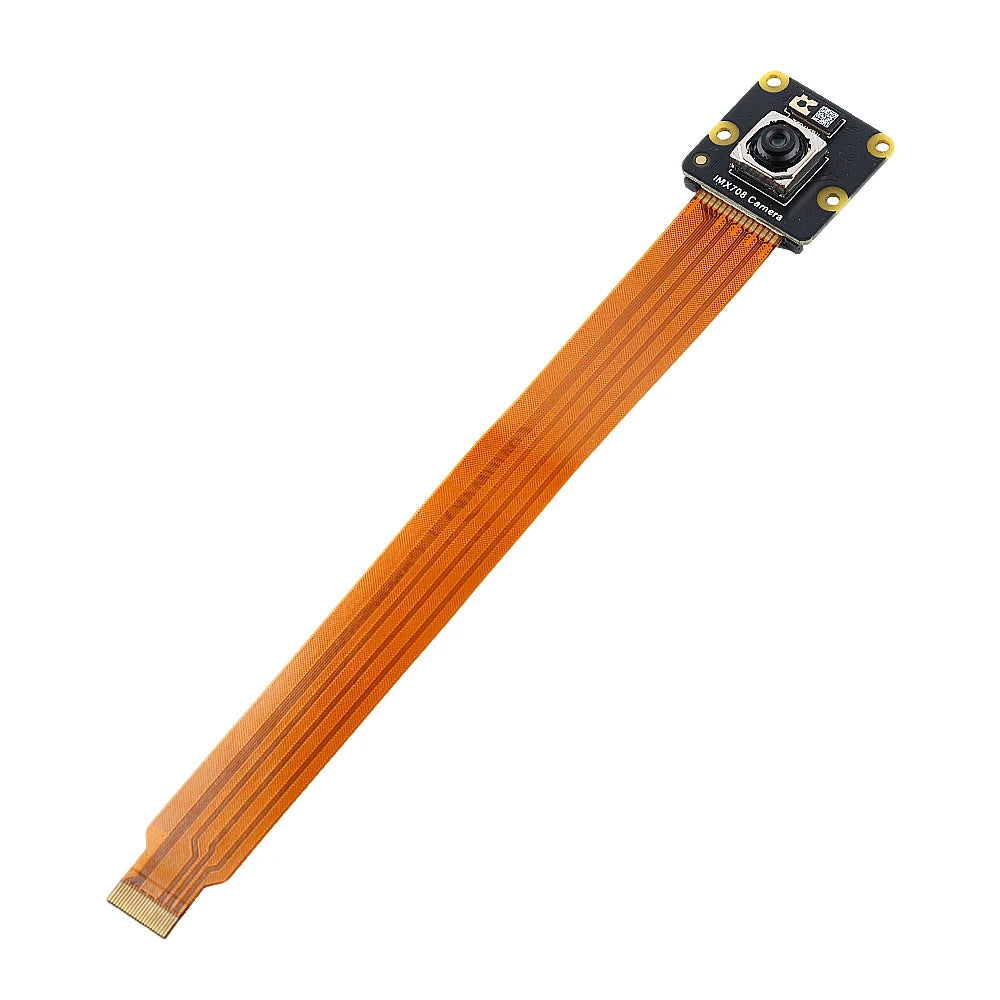

Ribbon cable length : 150 mm
