SPECIFICATIONS

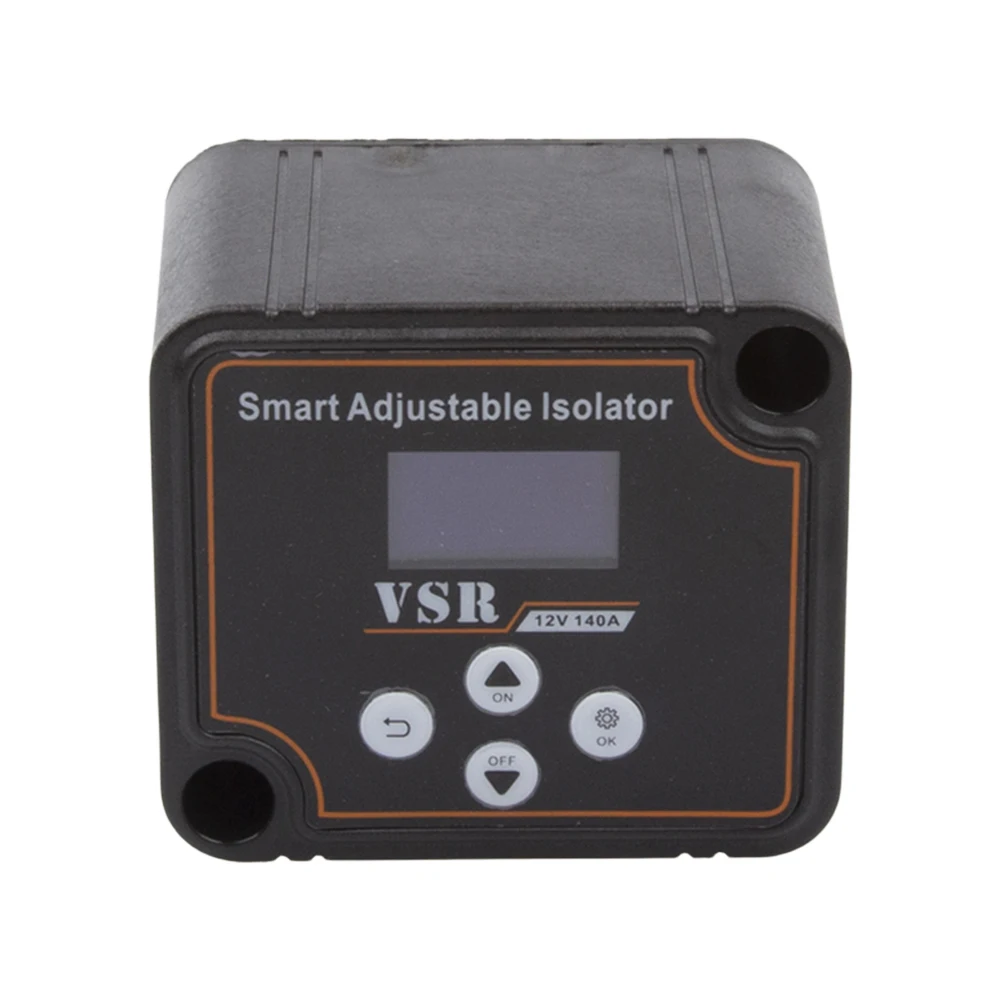

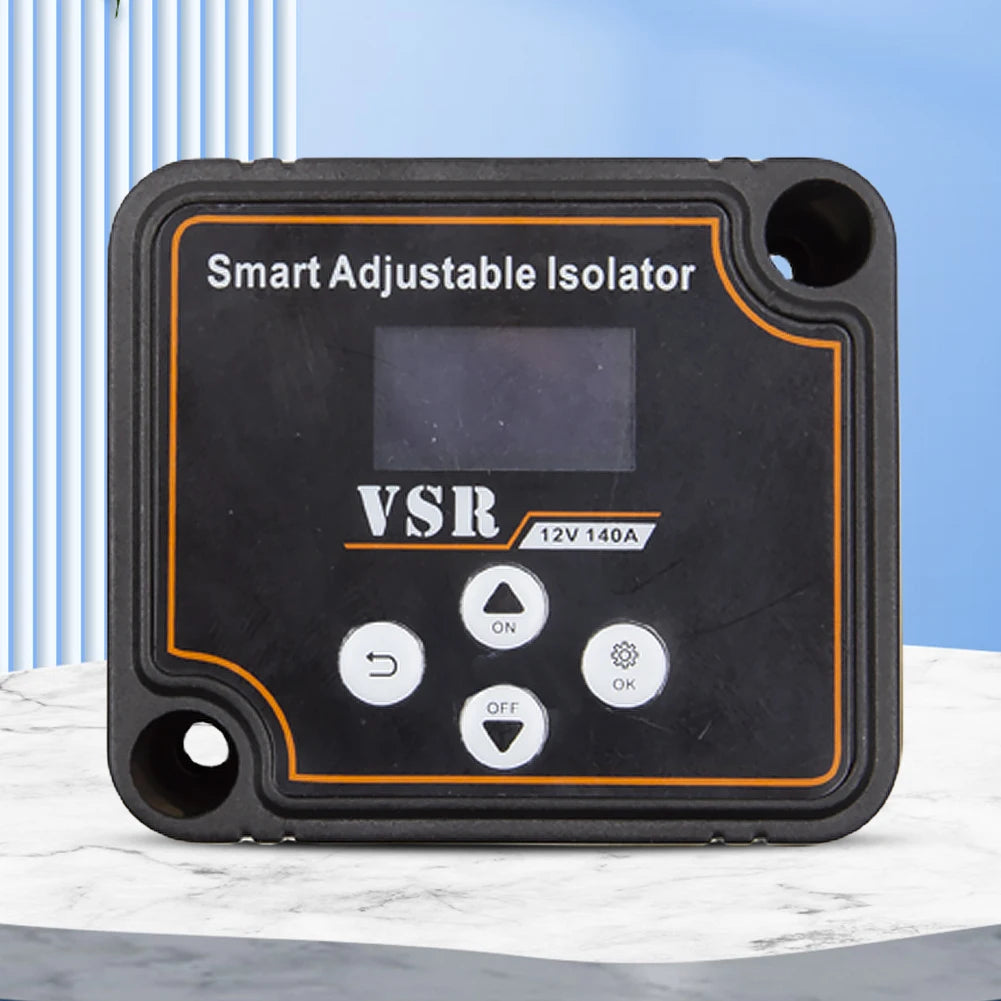

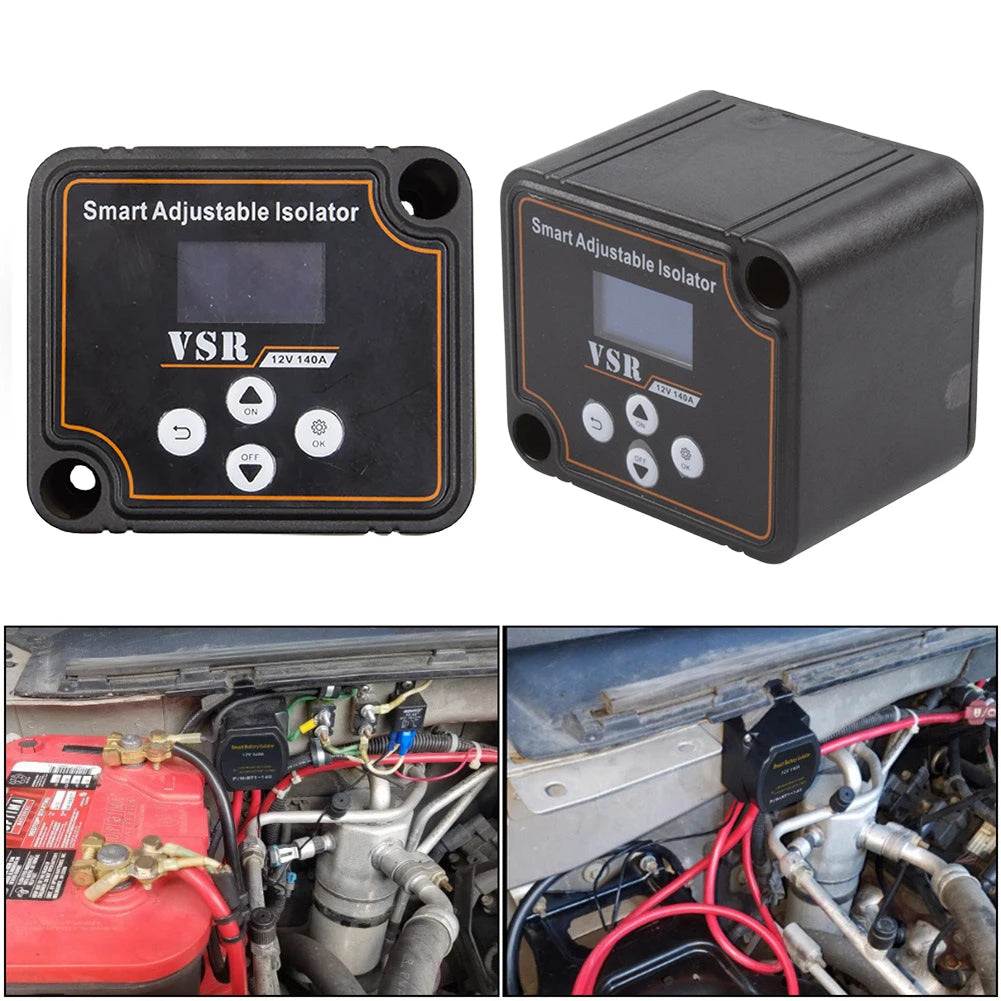

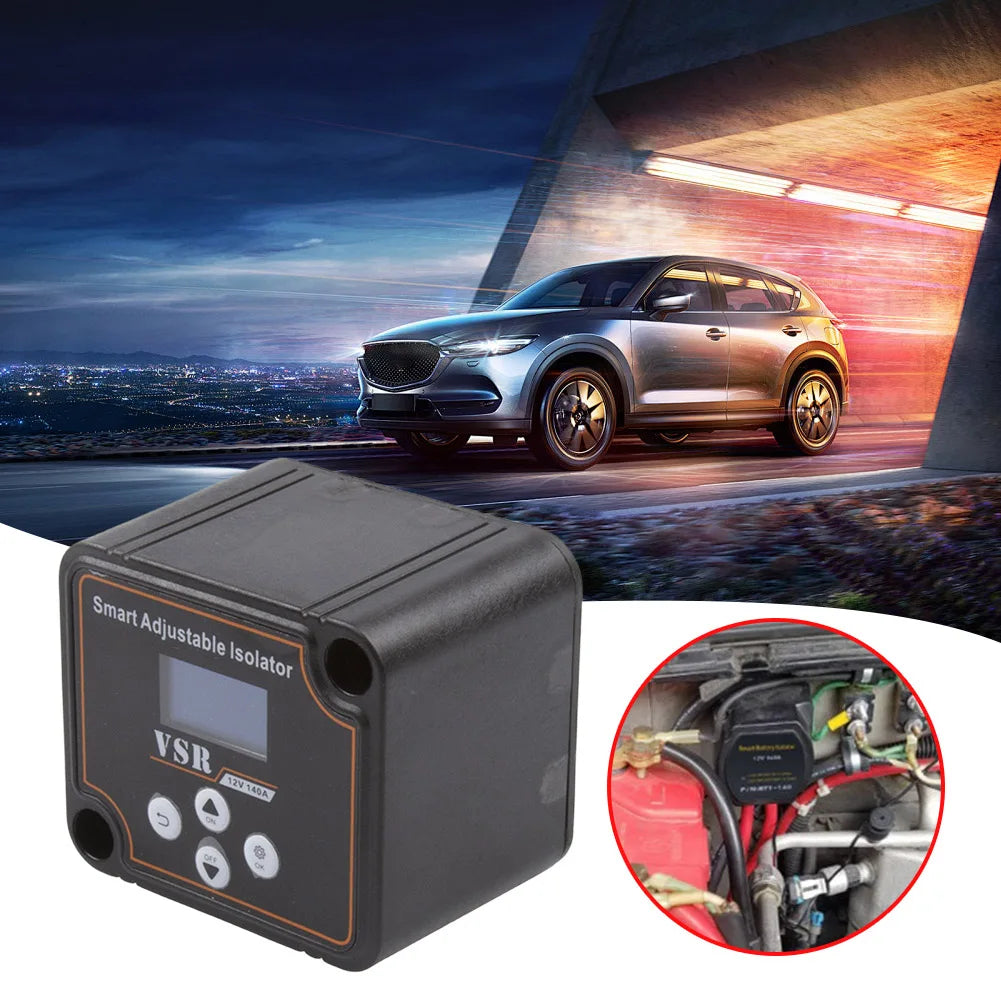

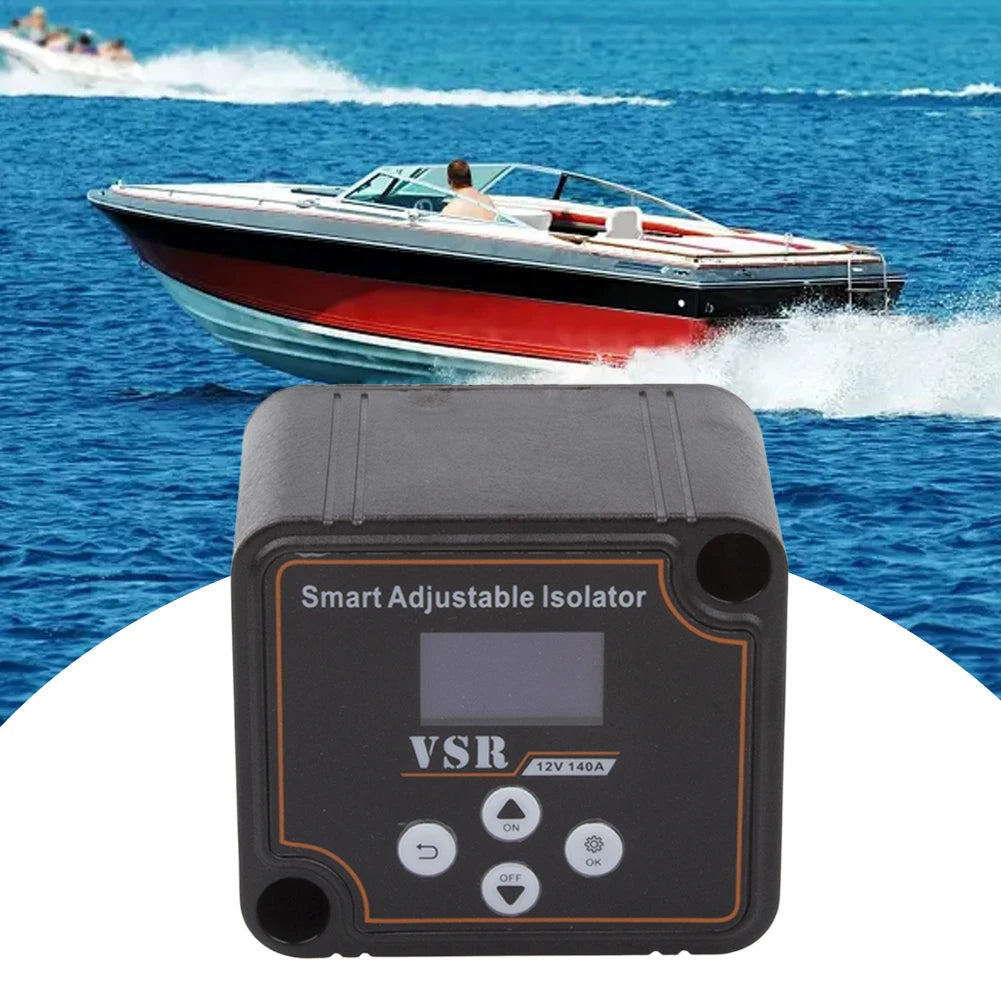

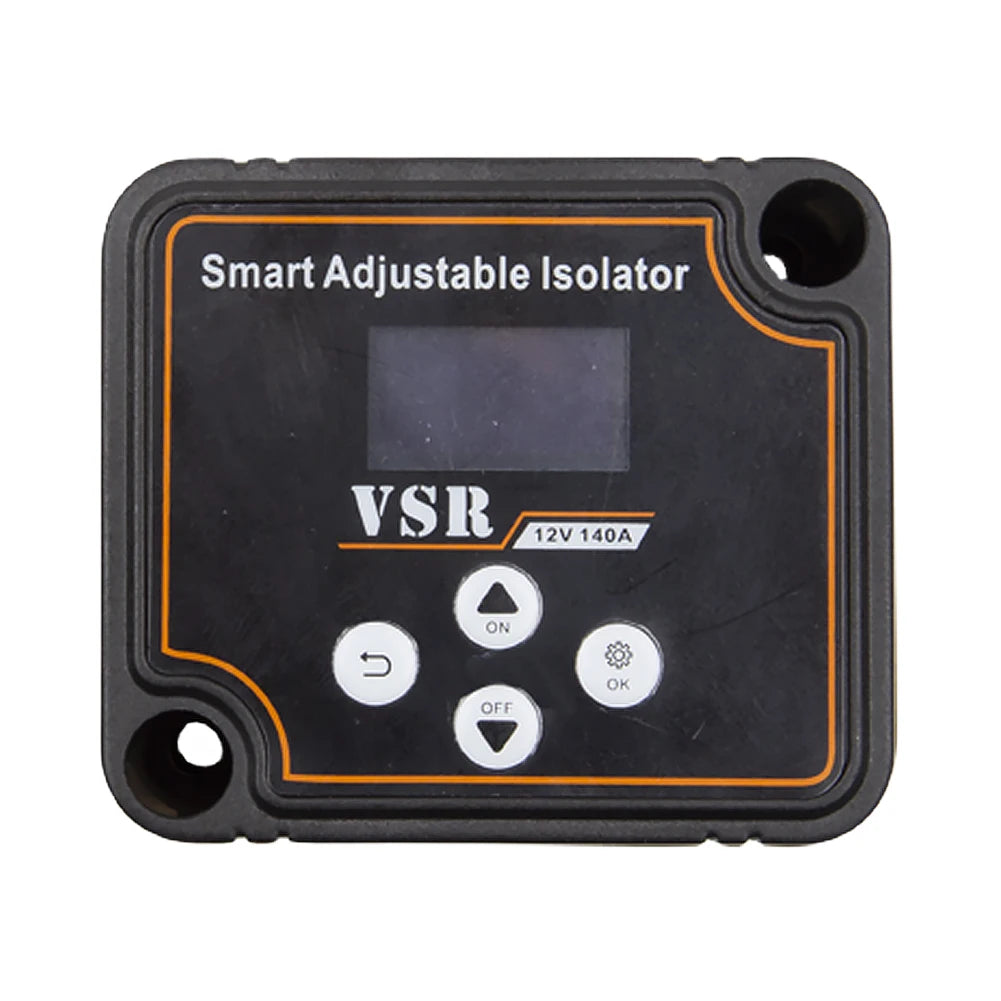

12V 140A Adjustable Dual Battery Isolator LCD Display Digital Voltage Sensitive Relay VSR for Off-Road Camper Yacht ATV UTV Boat

Feature:

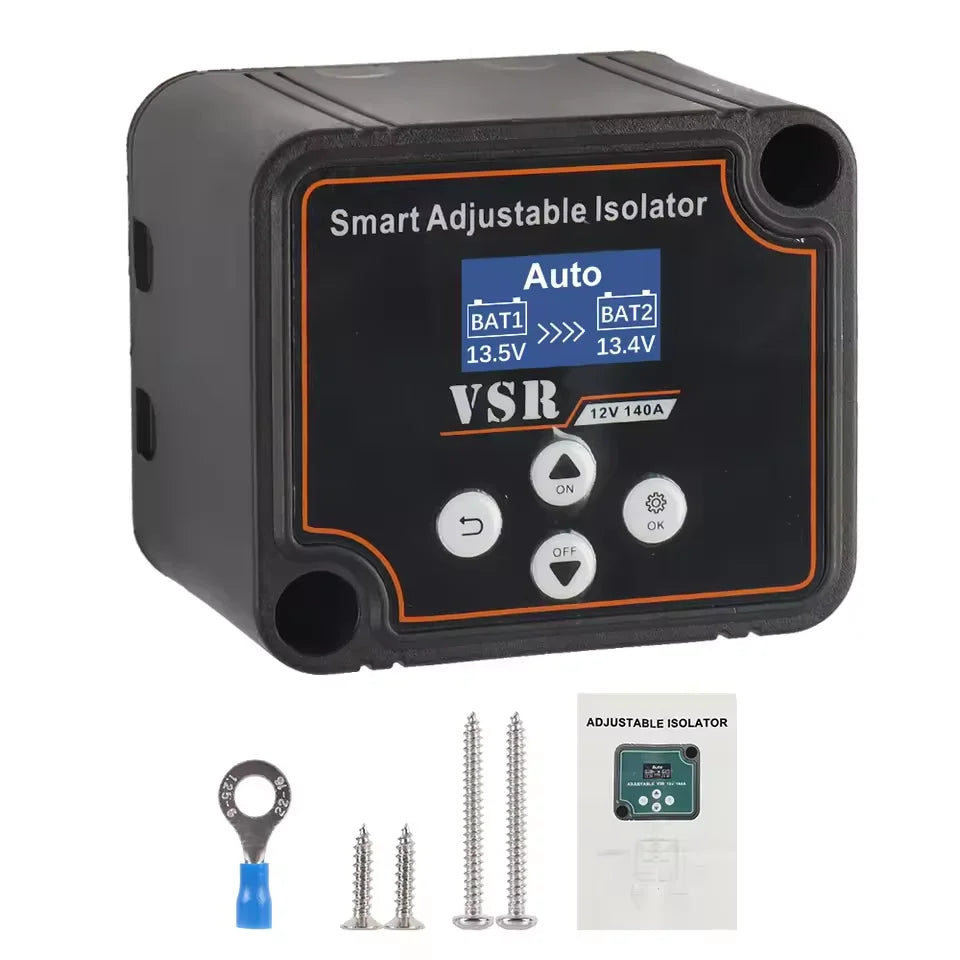

1. Intuitive LCD Display: The upgraded adjustable dual battery isolator comes with a built-in LCD screen that displays real-time voltage readings for BATT1 and BATT2, ranging from 4.5V to 20V, allowing for instant monitoring of your batteries' status.

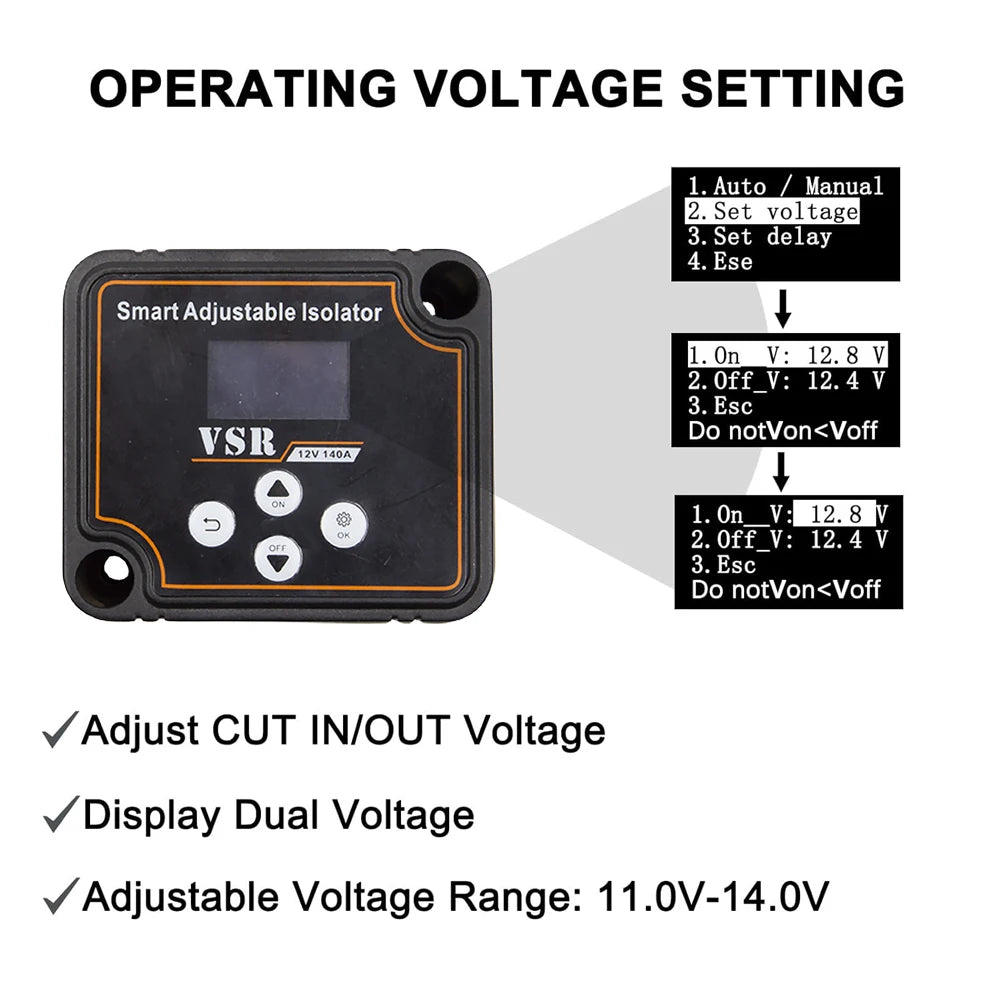

2. Customizable Voltage Control: Featuring an efficient voltage management system, the voltage sensitive relay allows you to adjust the CUT-IN/CUT-OUT voltages for different battery types. It offers a primary battery adjustable voltage range from 11.0V to 14.0V to suit your specific power needs.
3. Delay Functionality for Enhanced Life: The advanced dual battery smart isolator includes a newly added delay feature that prevents the frequent switching of the isolator due to unstable current, thus extending both the isolator and battery life. Delay time can be set from 3s to 60s, with a recommended delay of 15s.
4. Manual/Automatic Operational Modes: This third-generation voltage sensitive split charge relay integrates both automatic and manual modes, giving you the flexibility to switch between modes according to your requirements, whether for maintenance or specific power management.
5. Flexible & Protective Design: With the VSR car relay, safeguard your vehicle's batteries from excessive drain. Its state-of-the-art design not only offers adjustable settings to match your power demands but also protects against battery failure, ensuring reliable performance and peace of mind on the road.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

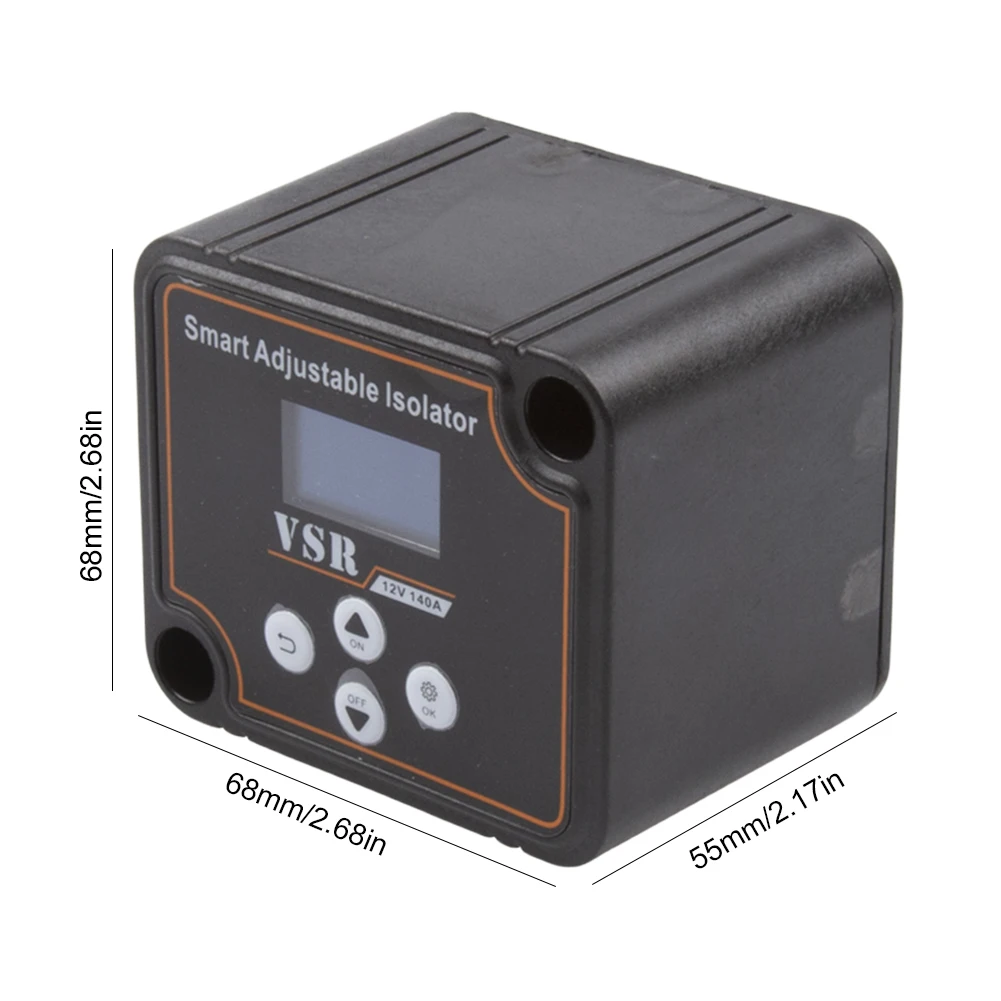

Please allow 1-2cm measuring deviation due to manual measurement.
