Speed(RPM)
Voltage
Gear Count5 wires
Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Color: black

Commutation: Brushless

Construction: Permanent Magnet

Continuous Current(A): 1800MA

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

Model Number: 42GP-4260

Origin: Mainland China

Output Power: 18.65-37.5（include18.65and37.5）,30W

Protect Feature: Drip-proof

Torque: 155kgf.cm

Type: Gear Motor

Usage: BOAT,Car,Fan,Home Appliance

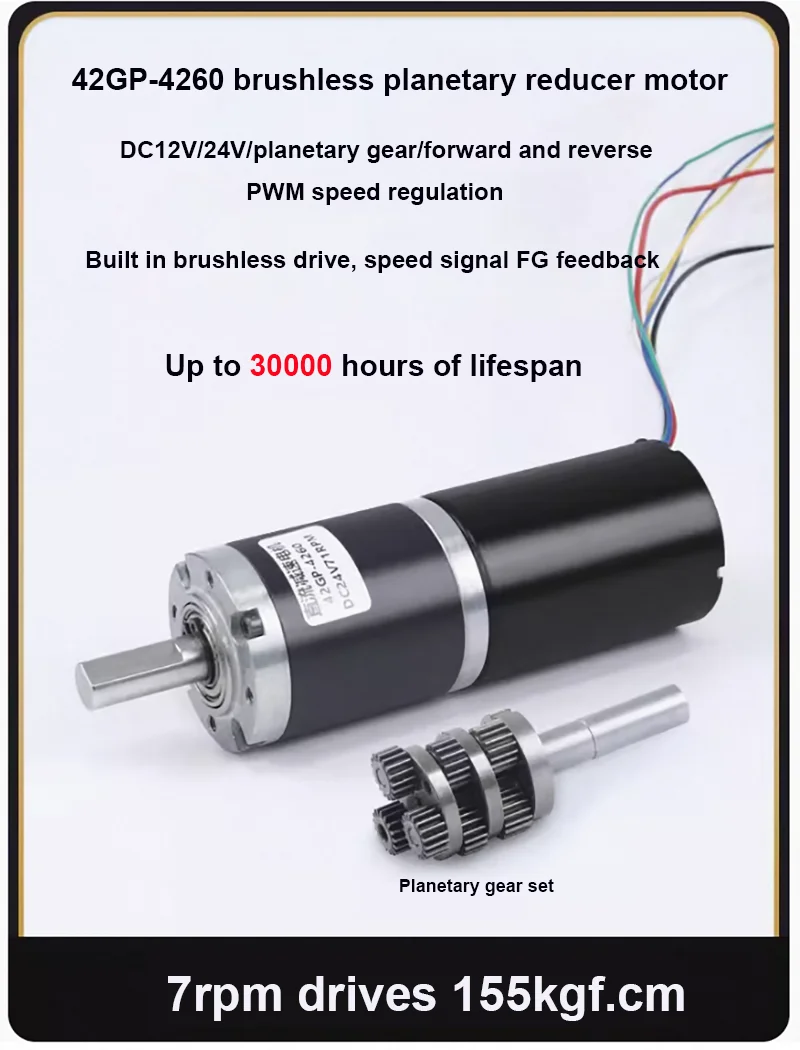

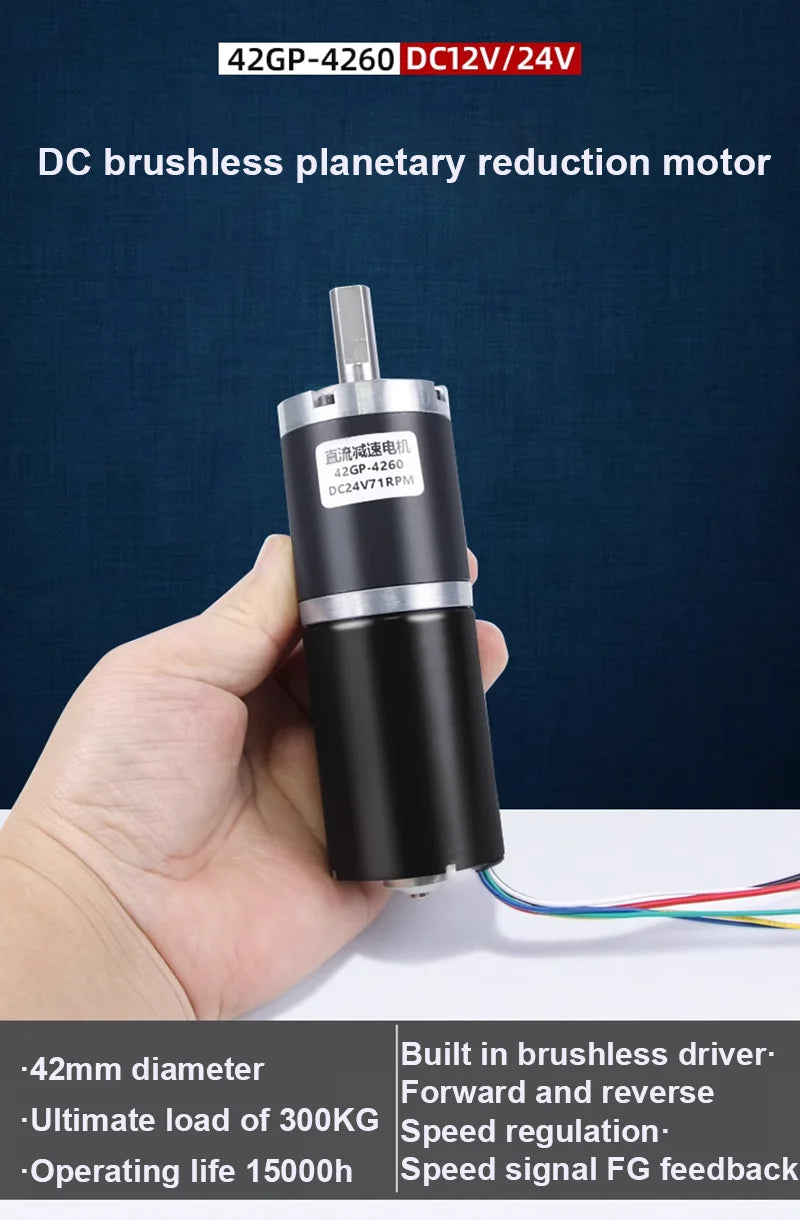

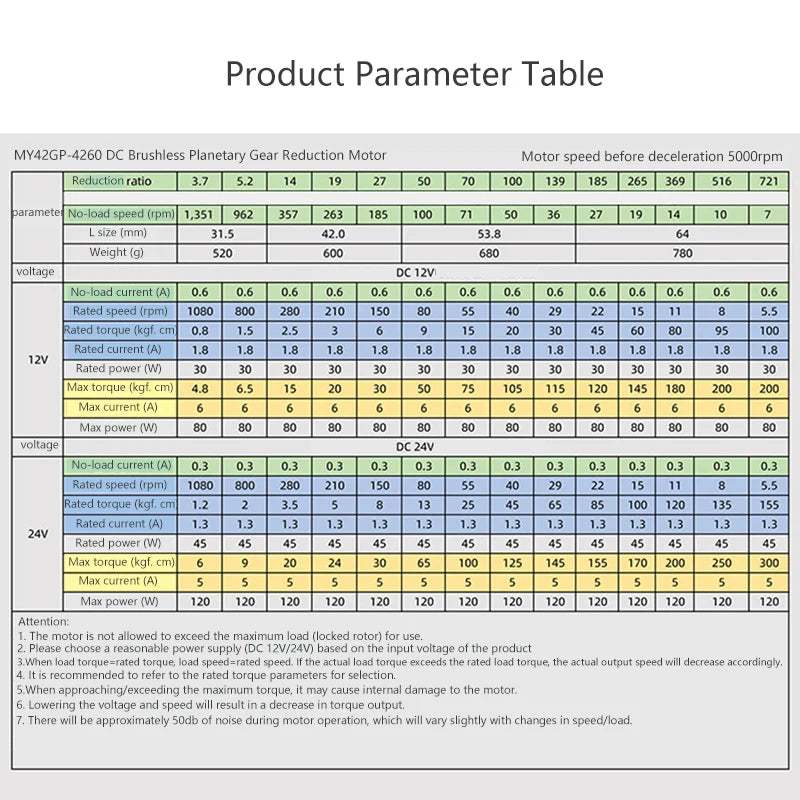

Product name: 42mm planetary brushless gear reduction motor

Model: 42GP-4260

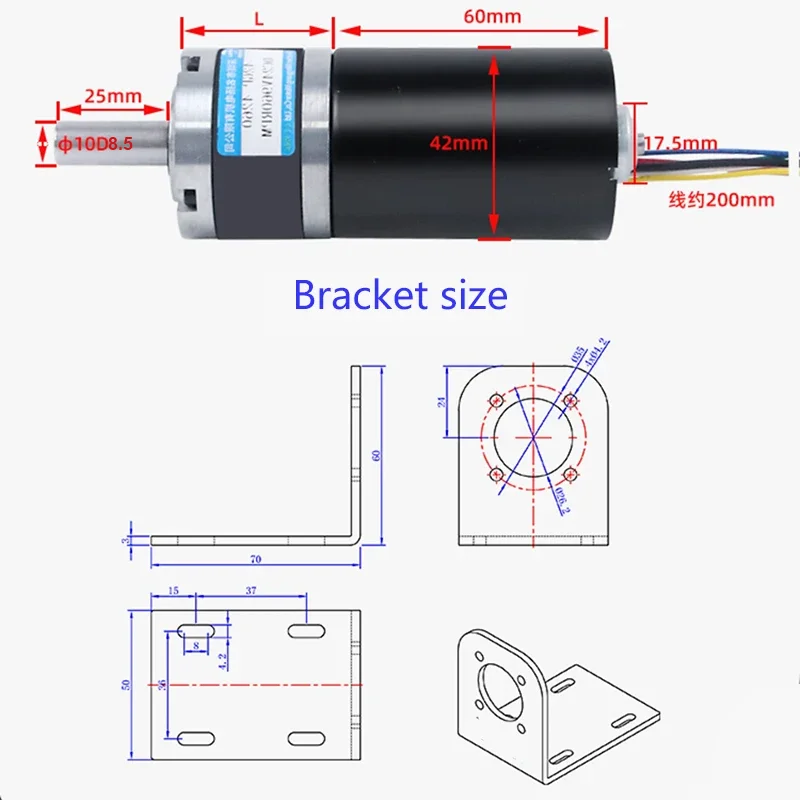

Motor diameter: 42mm

Output shaft diameter: 10mm/D8.5mm

Output shaft length: 25mm

Voltage: 12V/24V

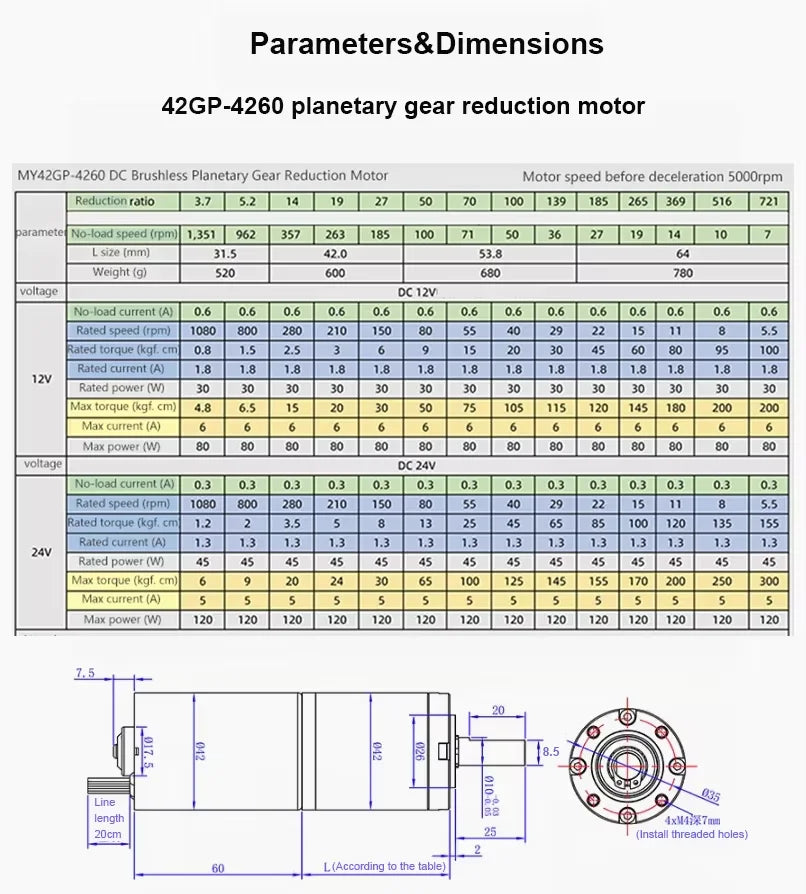

Idle speed: 7rpm-1351rpm

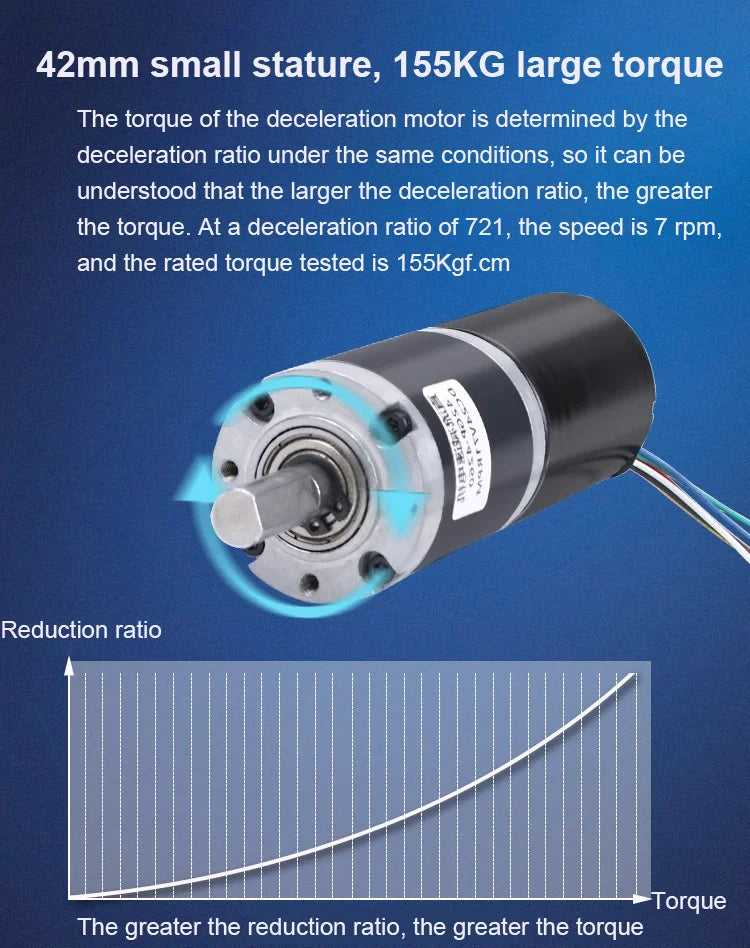

Rated torque: 0.8kgf.cm-155kgf.cm

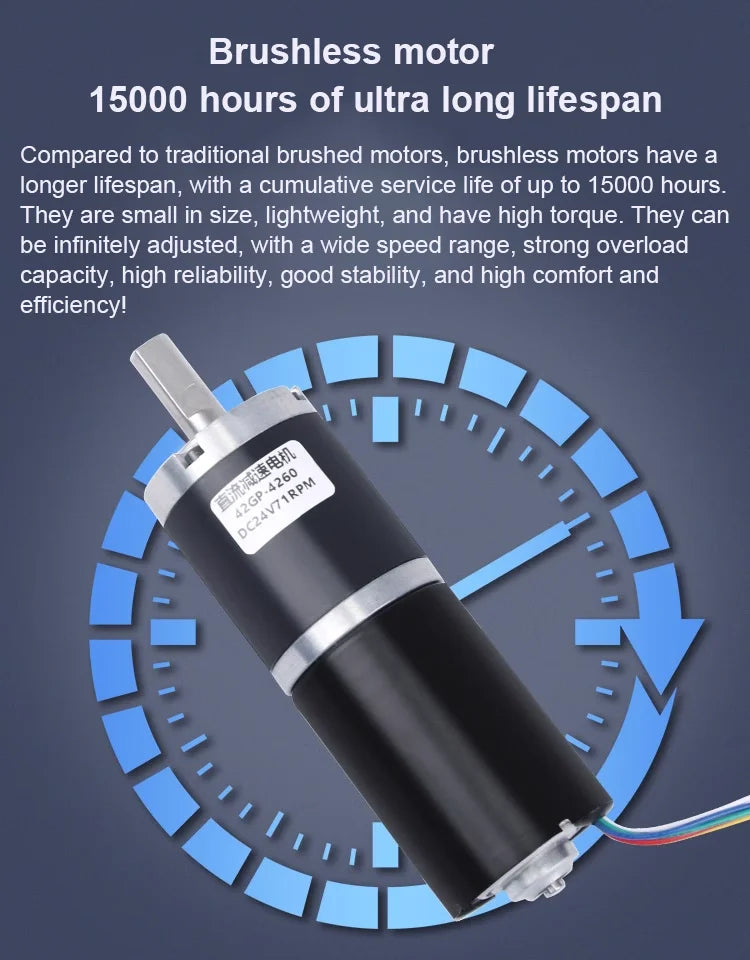

Working hours: 15000 hours

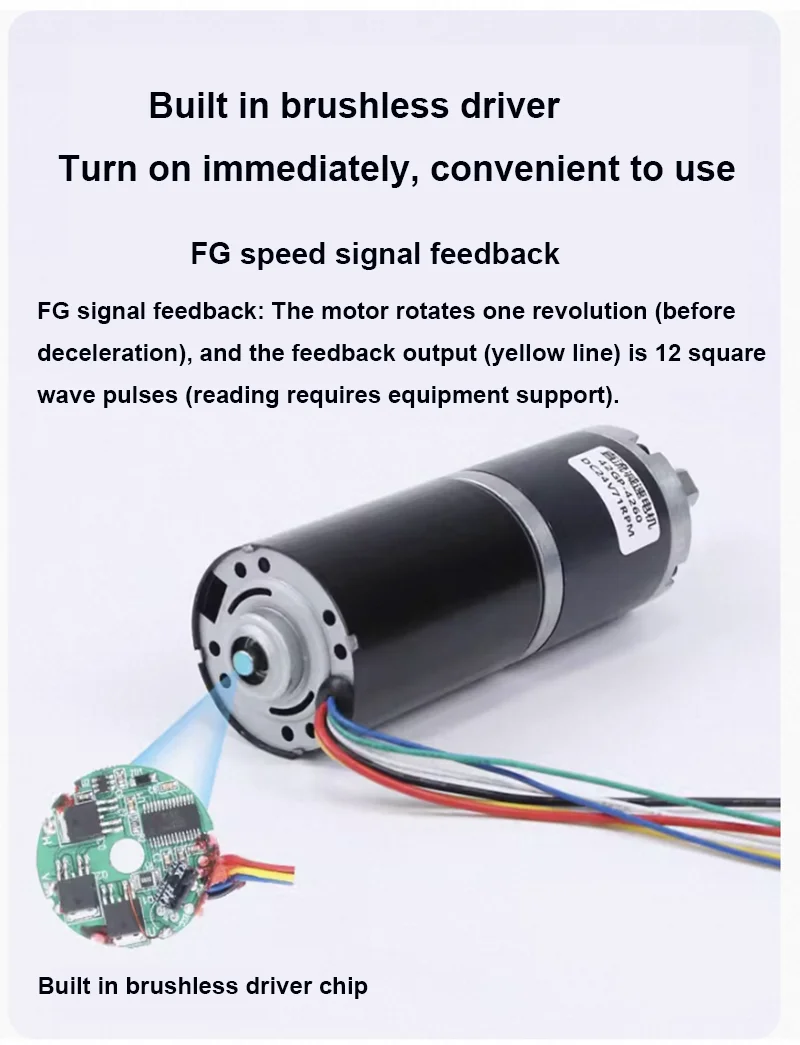

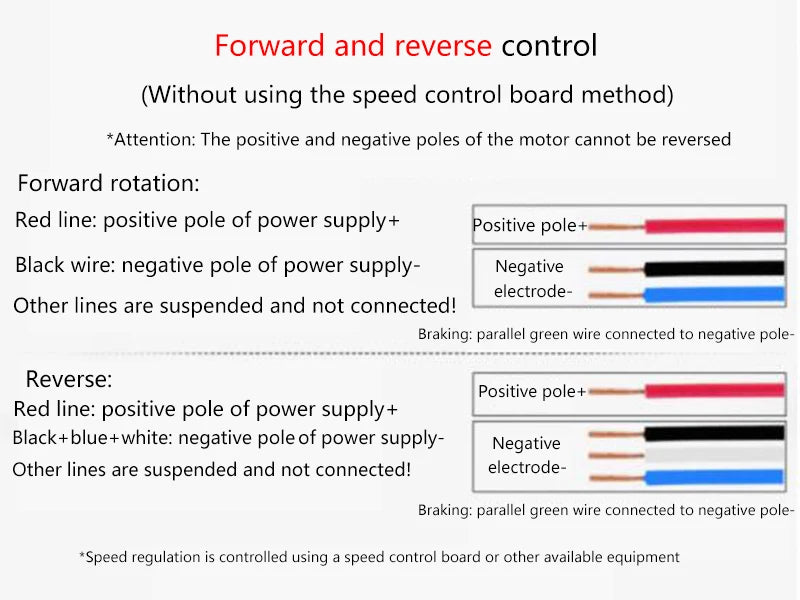

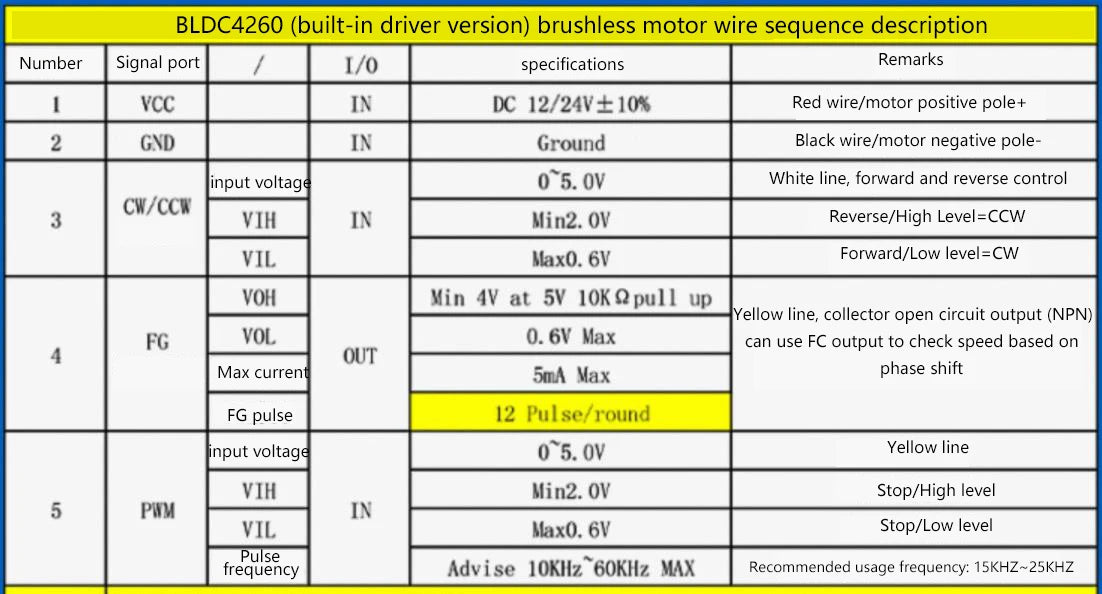

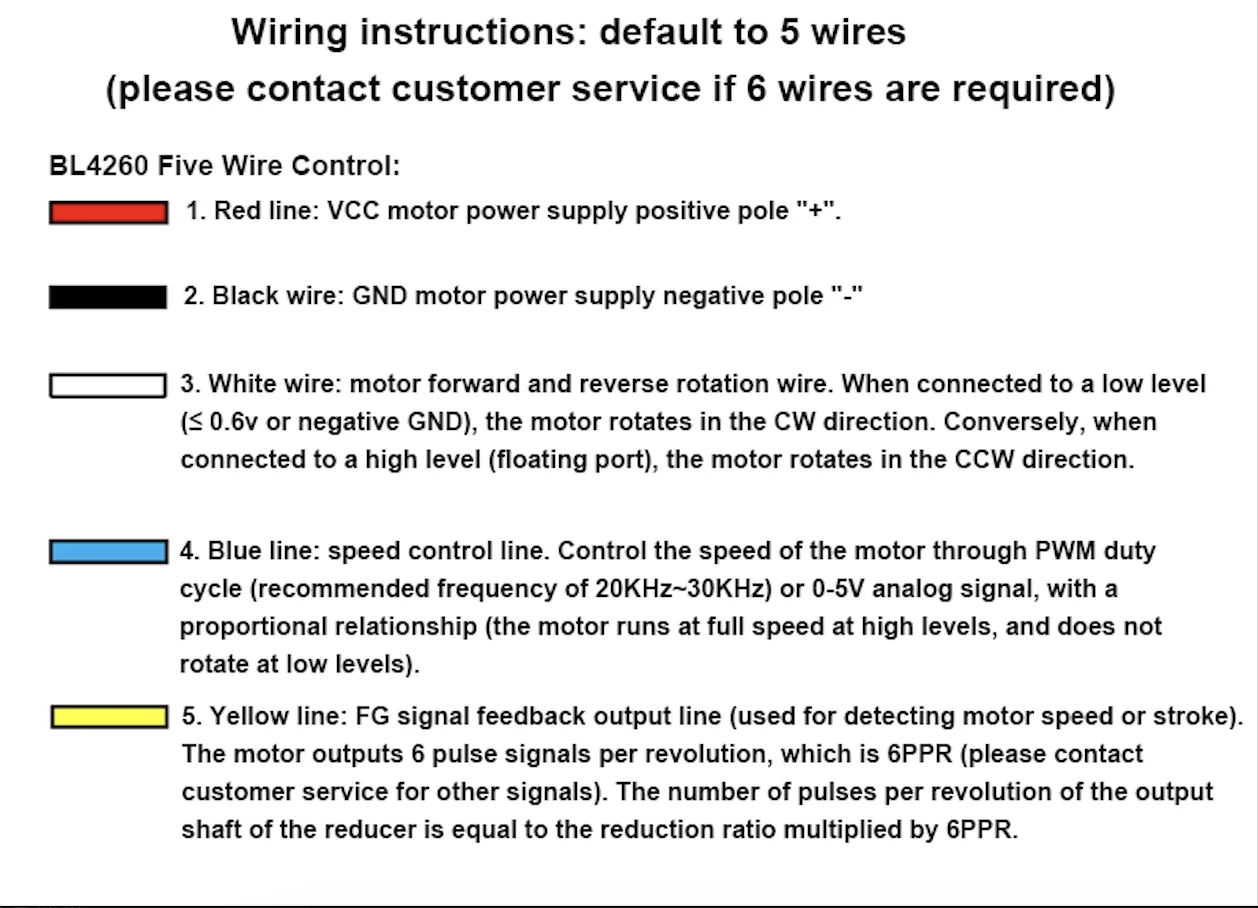

The default shipment for the motor is 5 wires

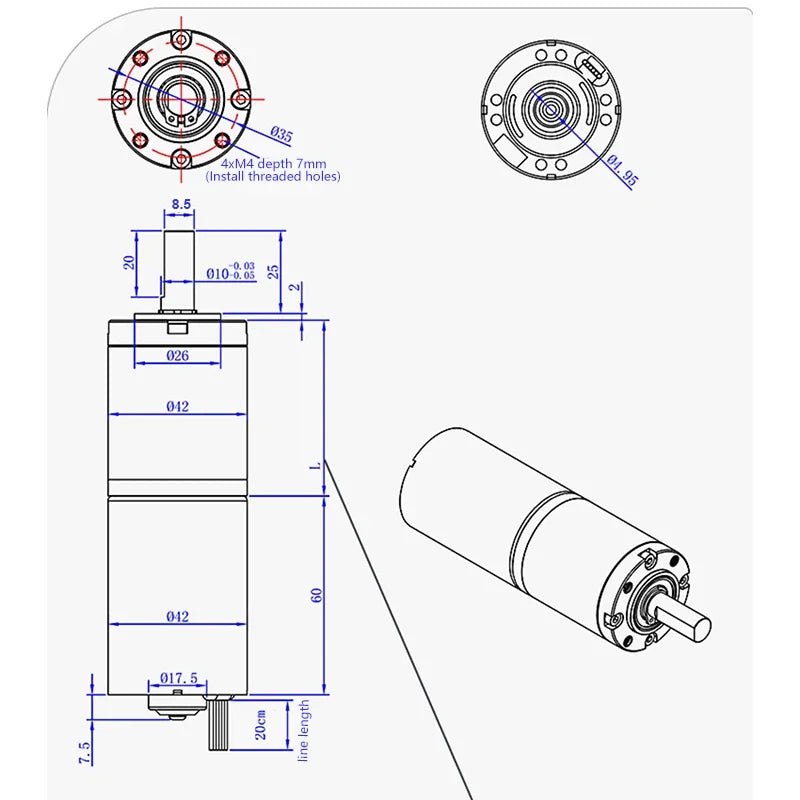

Product Size
