SPECIFICATIONS

400leds/m PCB Width: 5mm

480leds/m PCB Width: 8mm

Average Life (hrs): More Than 35000Hours

Brand Name: kerwollor

Certification: CCC,ce,FCC,LVD,ROHS,UL,CE,RoHs

Choice: yes

Color Temp(K): 2500K-6500K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 400/480leds

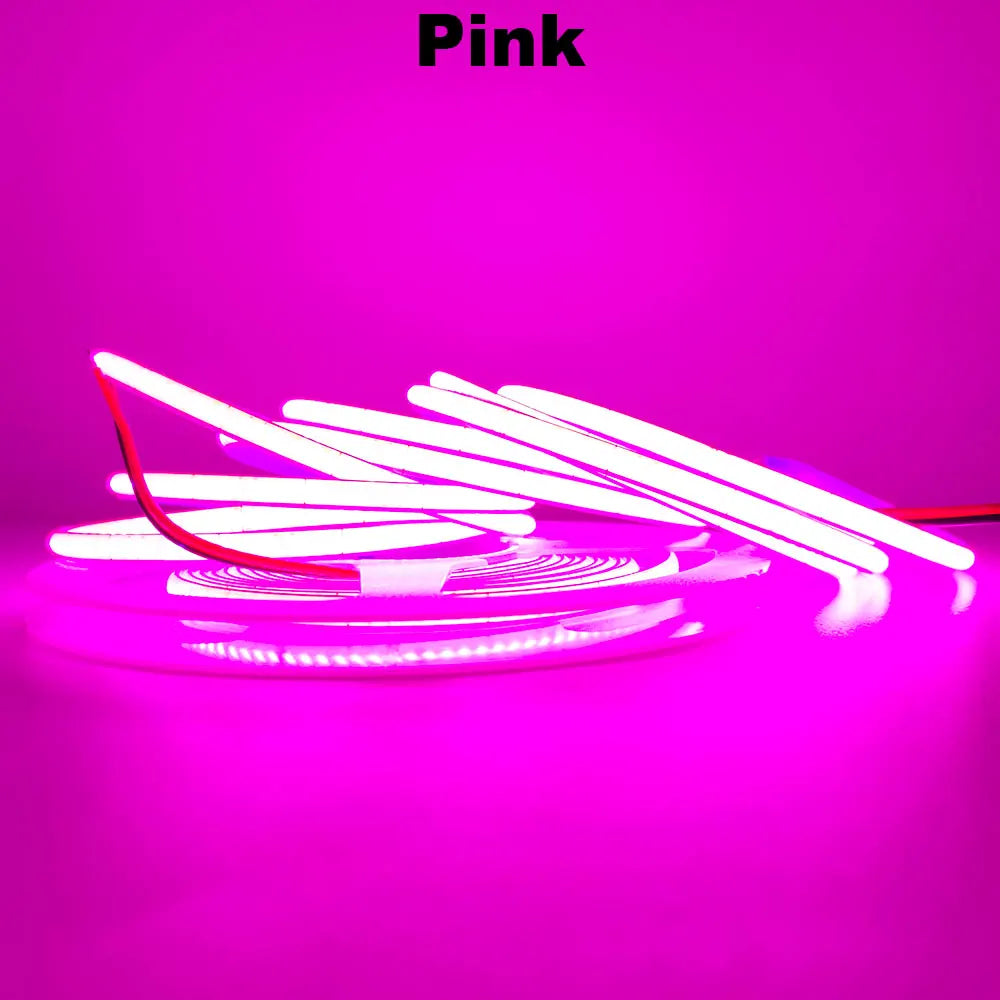

Lighting Color 1: Pink Lighting

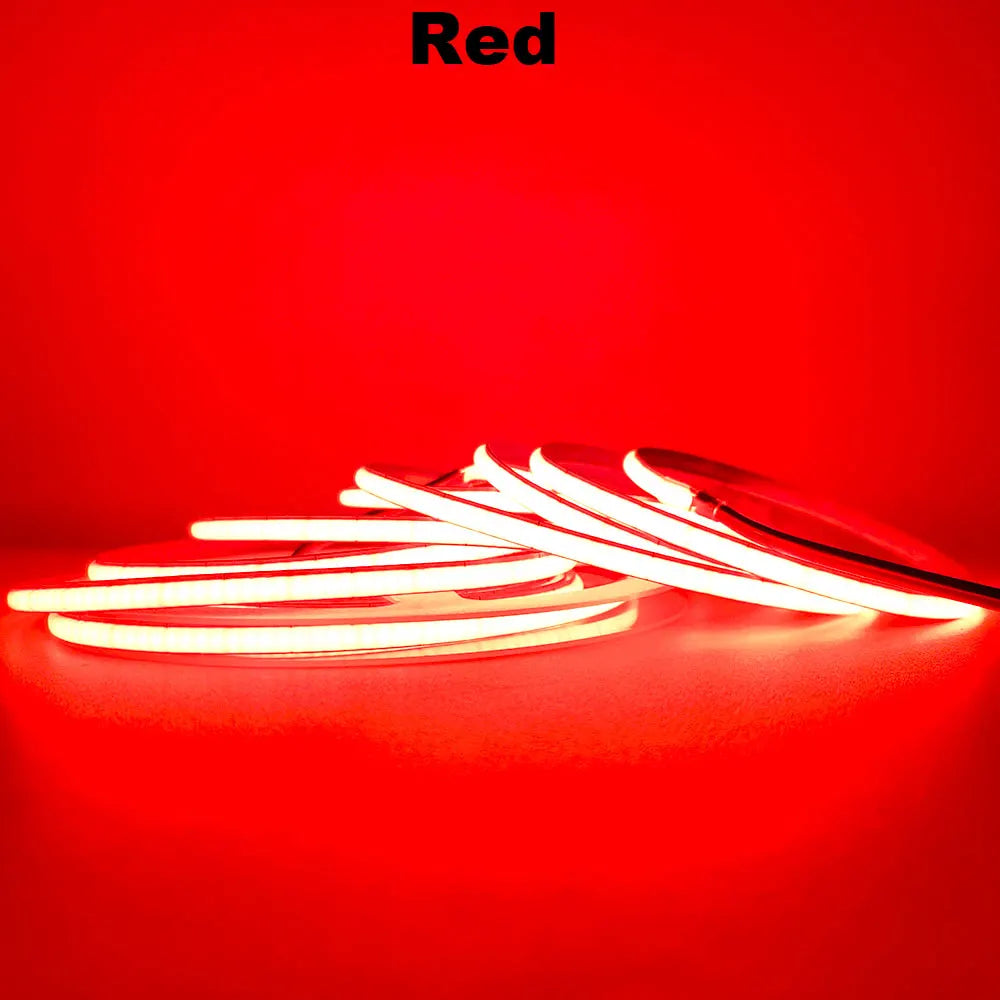

Lighting Color 2: Red Lighting

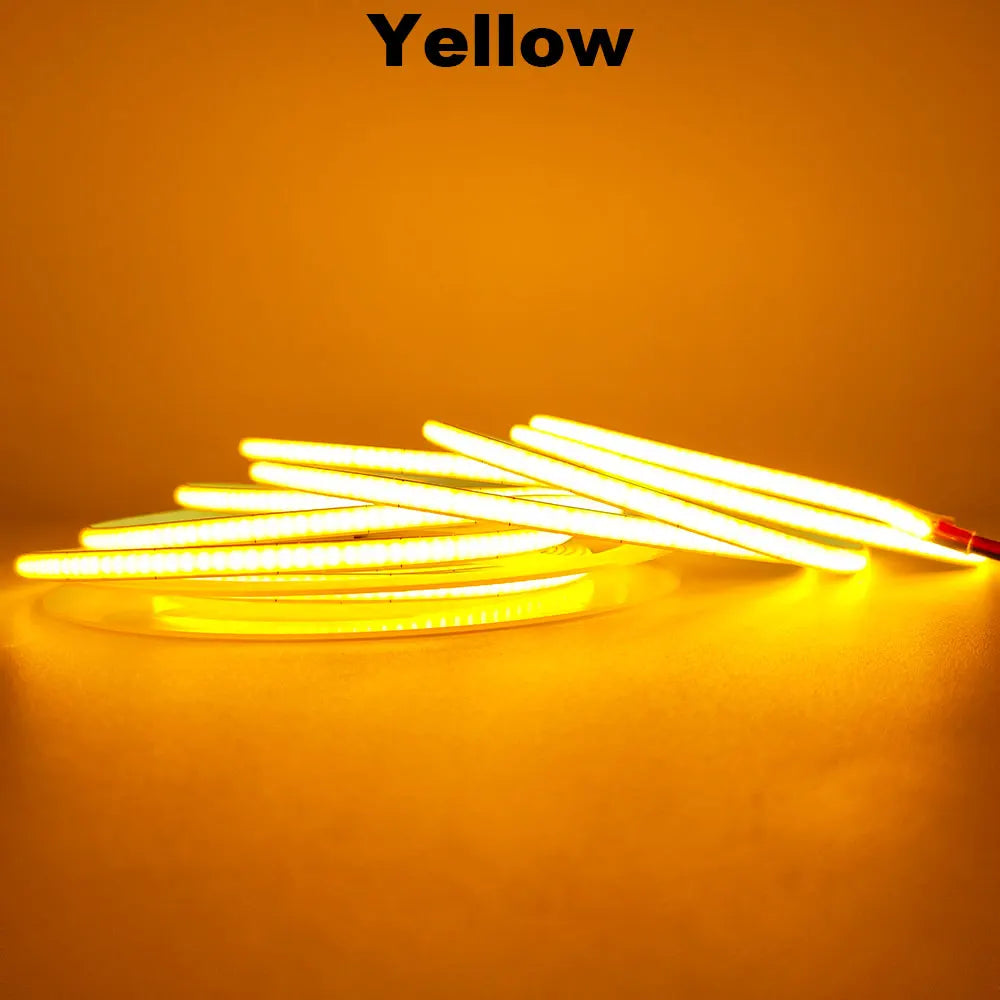

Lighting Color 3: Yellow Lighting

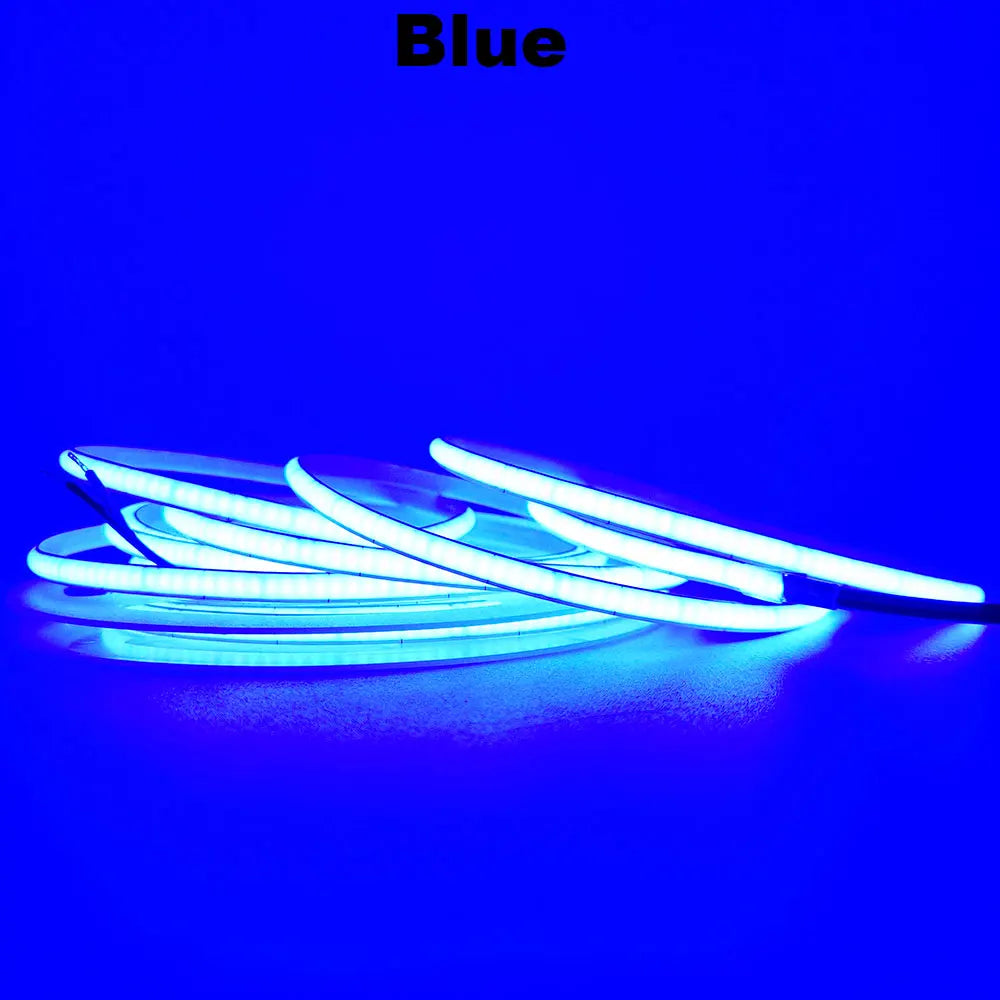

Lighting Color 4: Blue Lighting

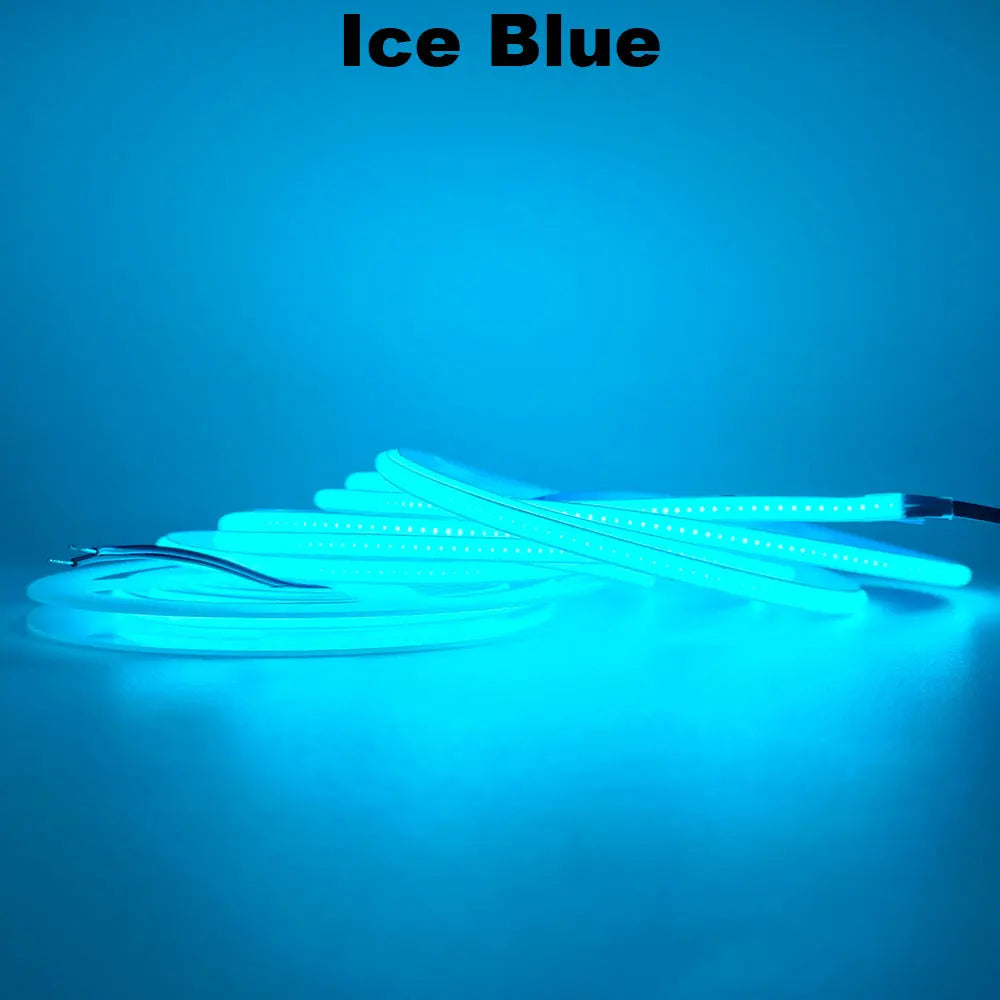

Lighting Color 5: Ice Blue Lighting

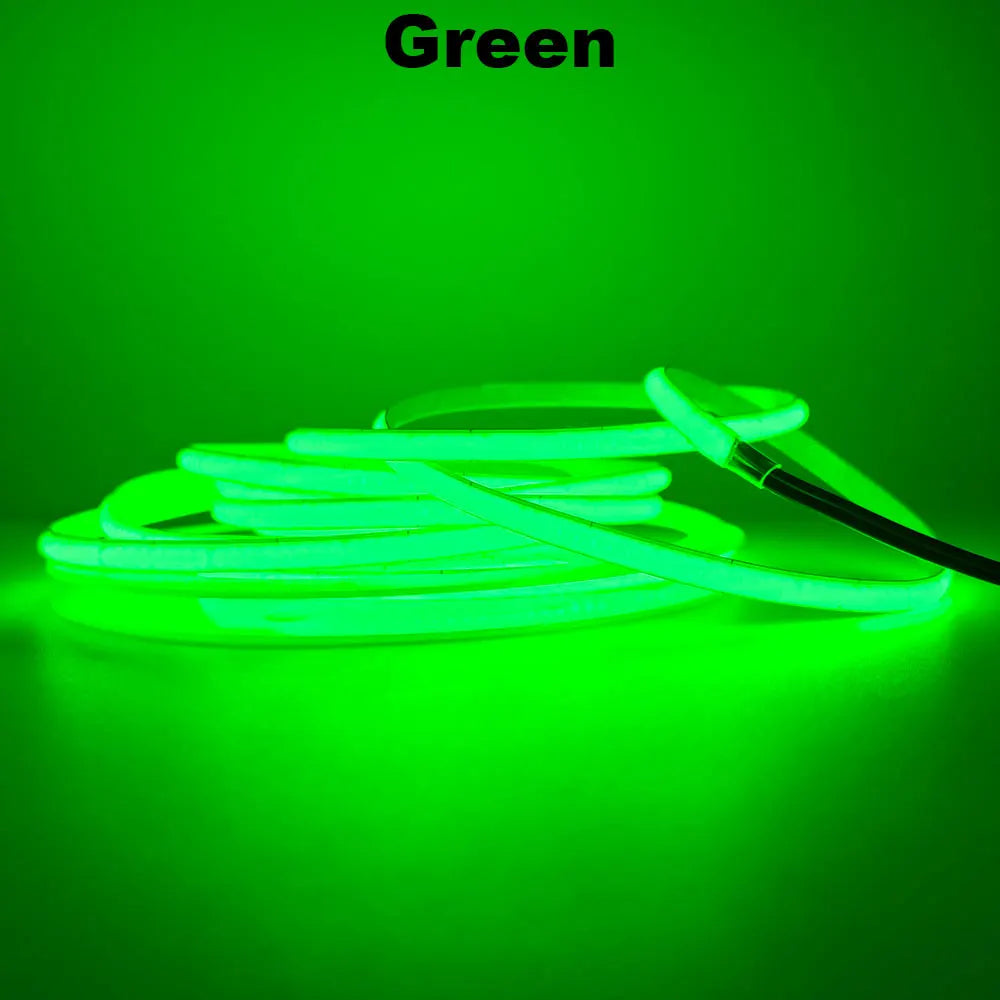

Lighting Color 6: Green Lighting

Lighting Color 7: White Lighting

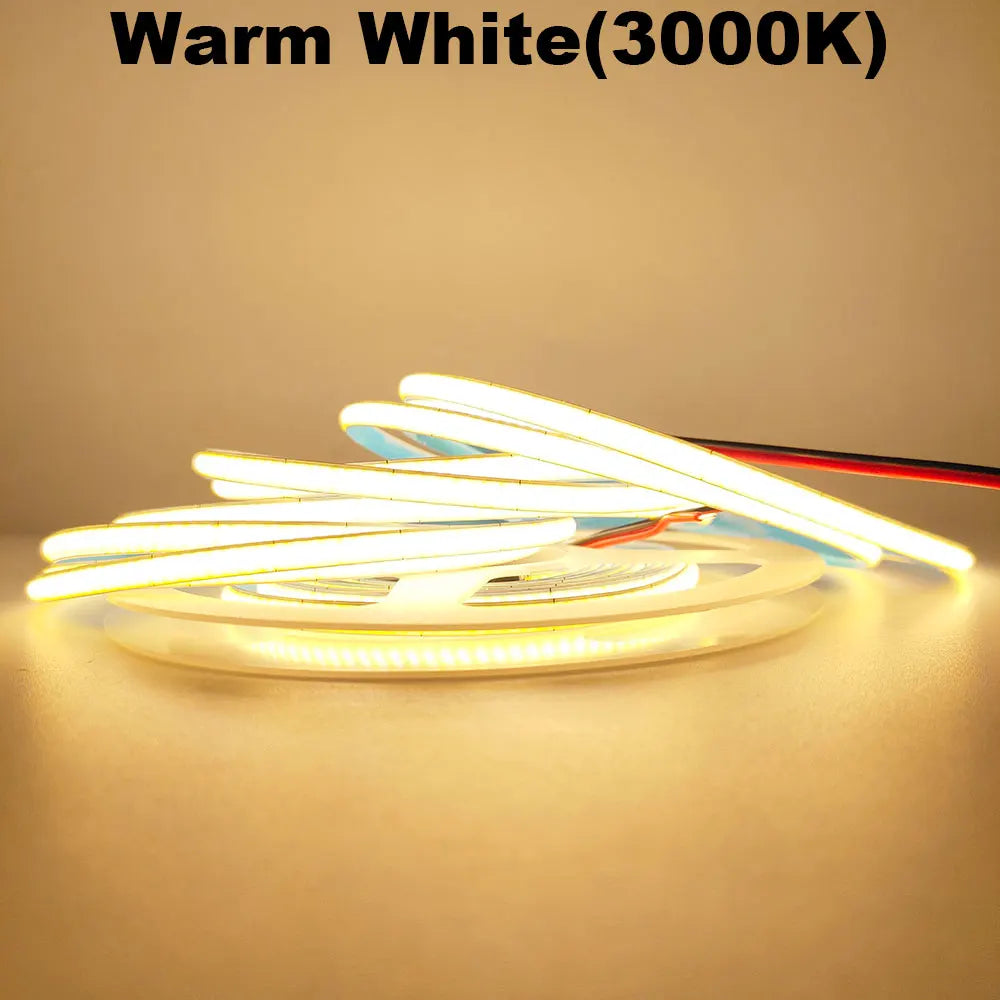

Lighting Color 8: Warm White Lighting

Lighting Color 9: Nature White Lighting

Luminous Flux: 249-2000

Model Number: LED light strip

Nominal Voltage: 12V

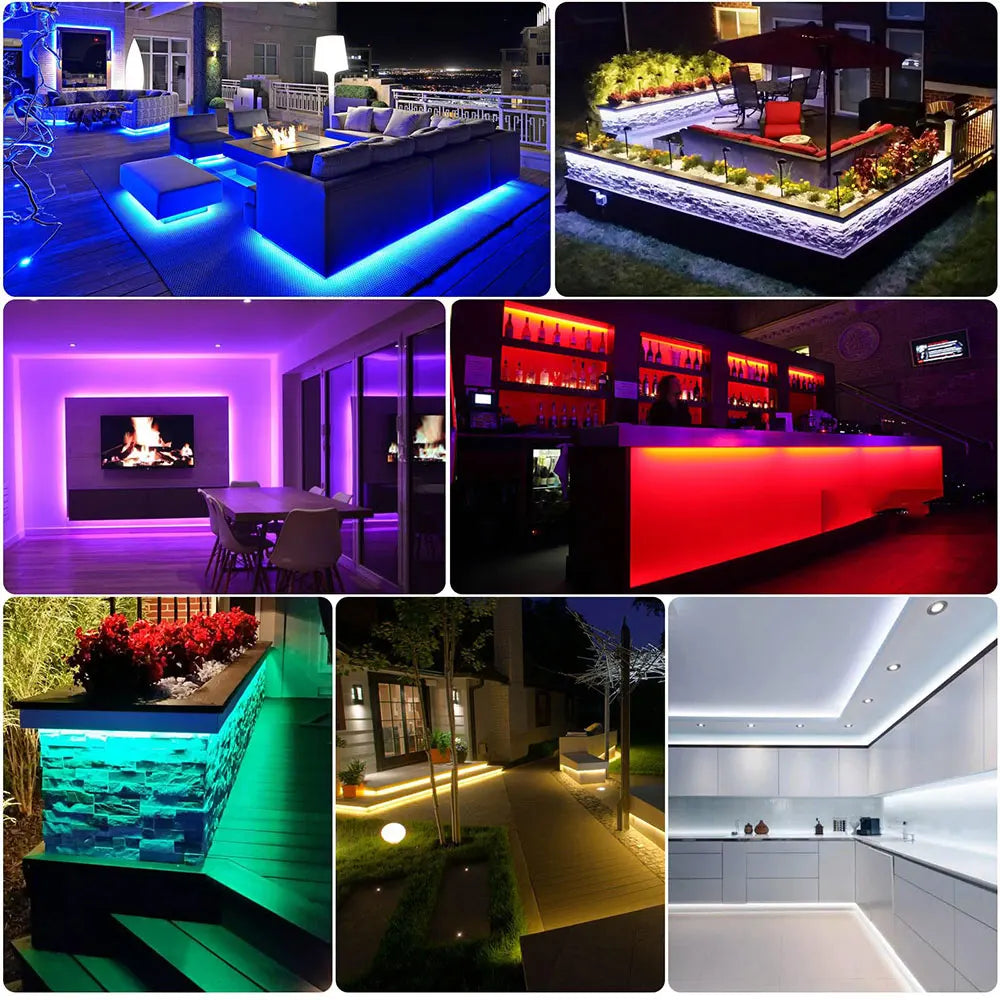

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 144

Strip type: COB

Voltage: 12V/24V

Waterproof: No

semi_Choice: yes

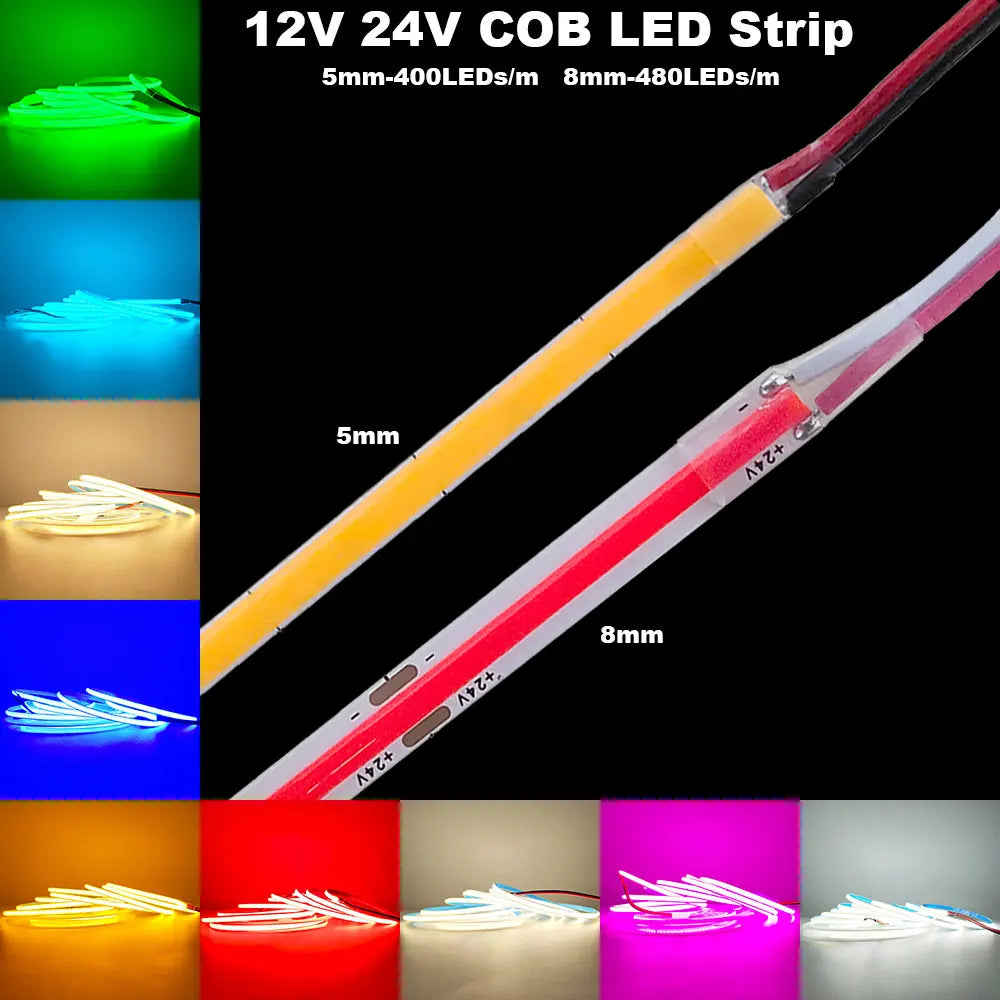

12V 24V COB LED Strip 5mm/8mm PCB 400/480LEDs/m Flexible Red/Green/Blue/Pink/Ice Blue/Yellow Led Strip For Home Decor LED Lights

The Price is Only COB LED Strip, Not Included Power Supply and LED Controller and Connectors.

Please Pay Attention:

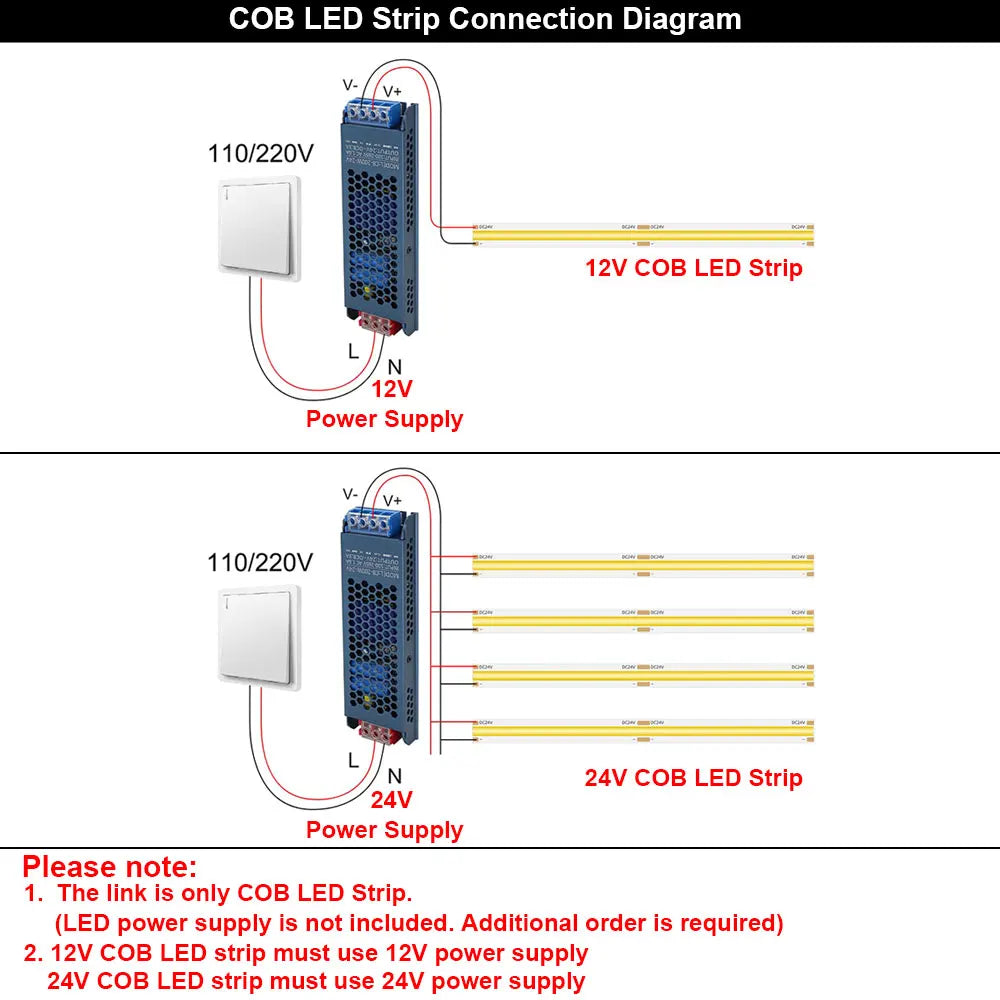

1.12V COB Led Strip Uses 12V Power Supply

   24V COB Led Strip Uses 24V Power Supply

2.The 2Pin Wire Connectors of COB LED Strip Included: Red: V+, Black: V-. Connect the 2pin wire to the power supply is ok.

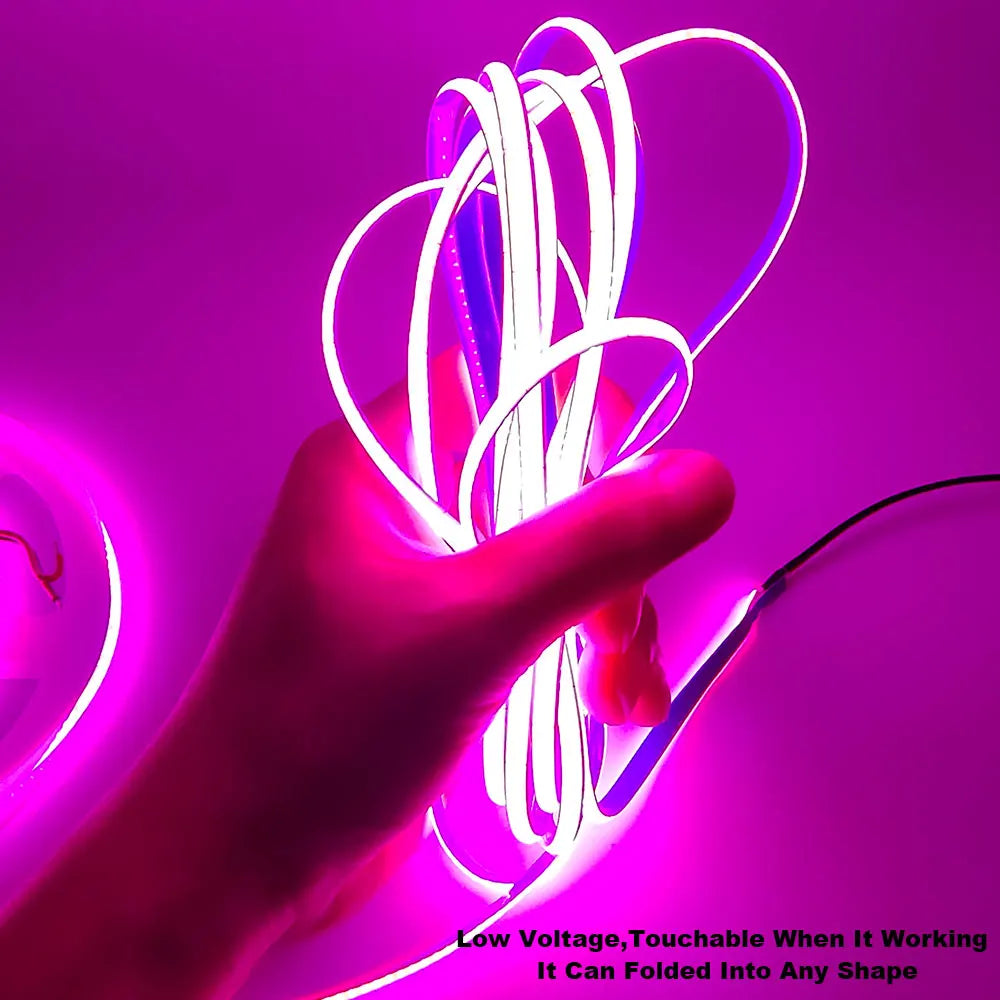

3.This COB LED Strip Can Be Cut at Each Shear Point To Create Custom Lengths, Do Not Bend COB  LED Strip Sharply.

4.Longer LED Strip Runs, Please Add More Power to 2 Pin Wire of Both Ends To Reduce Voltage Drop.

5. The COB LED Strip Has Adhesive Tape On The Back of PCB. Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.

6.Please do not Connect to 48V Or AC110-240V,It is Very dangerous.

7.This COB LED Strip Red Wire Connect to Power V+,Balck Wire Connect to Power V- , Please do not use led power and led controller 2in1,becuase 2in1 Power do not have V-,You can not light up the led strip.

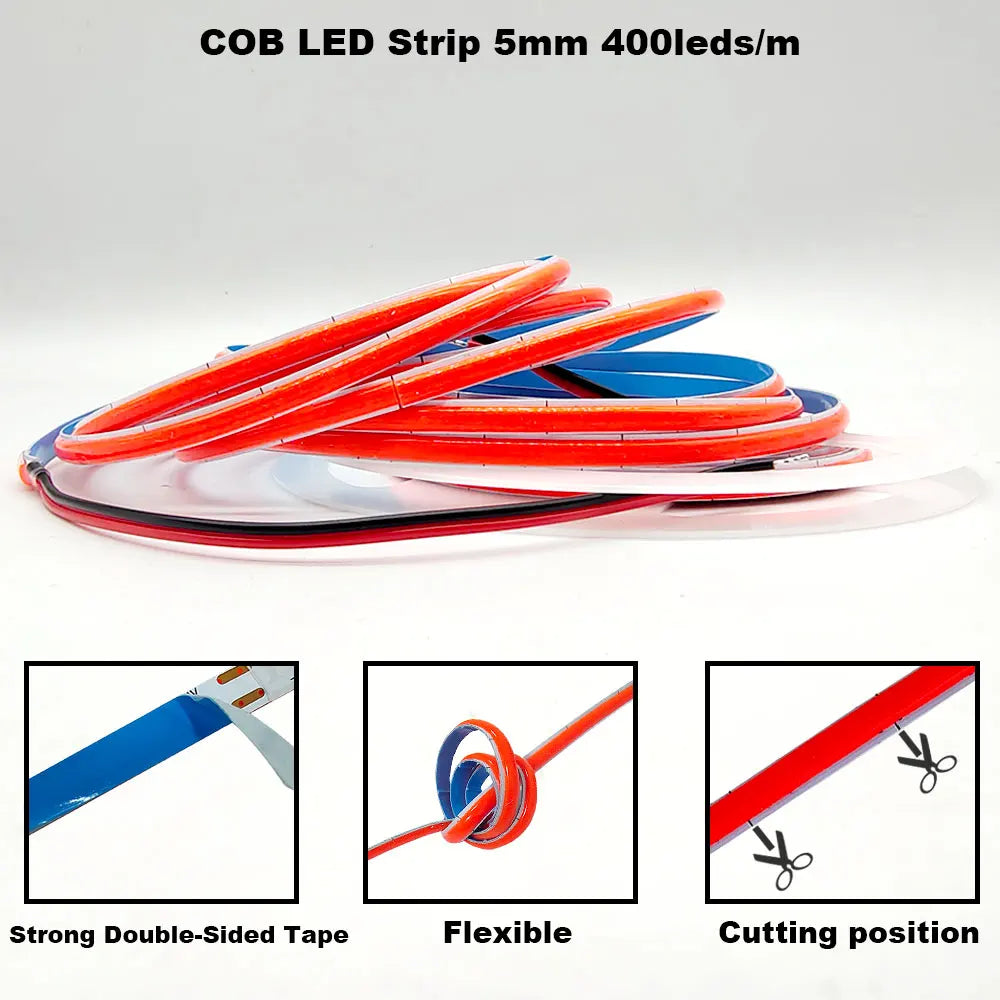

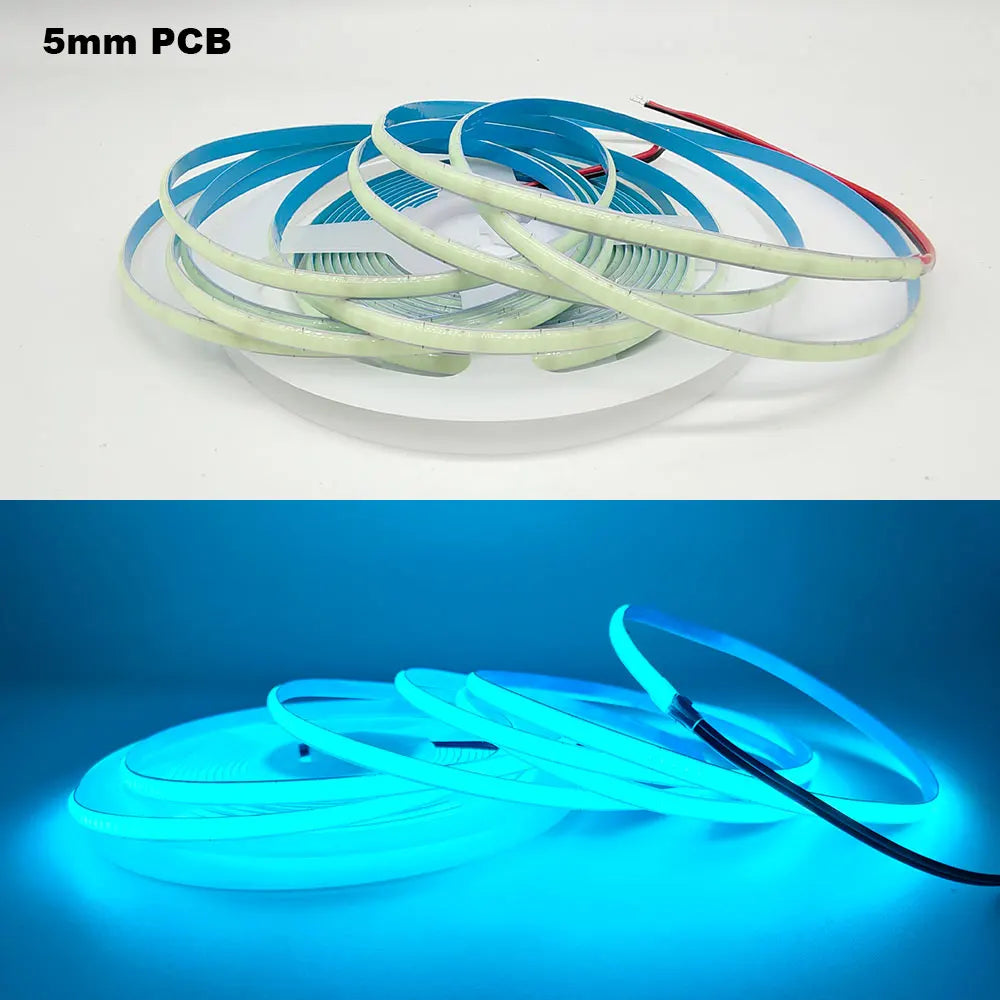

5mm PCB COB LED Strip 400leds/m :

Specification:

Input Voltage: DC12V /24V

Wattage: 400Leds/m-10W

FPCB width: 5mm

LED quantity: 400LEDs/M

Cutting length: DC12V LED Strip 400Leds/m- every 10mm
,   DC24V LED Strip 400Leds/m- every 20mm

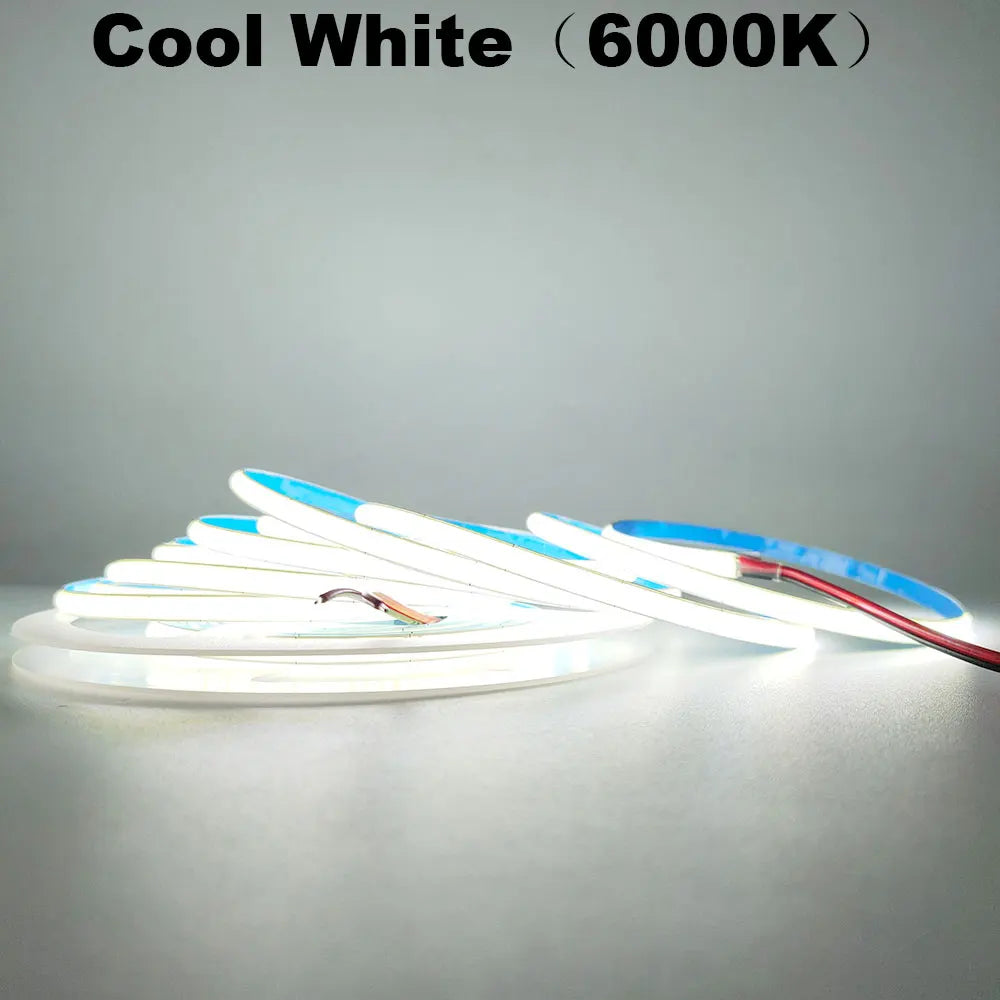

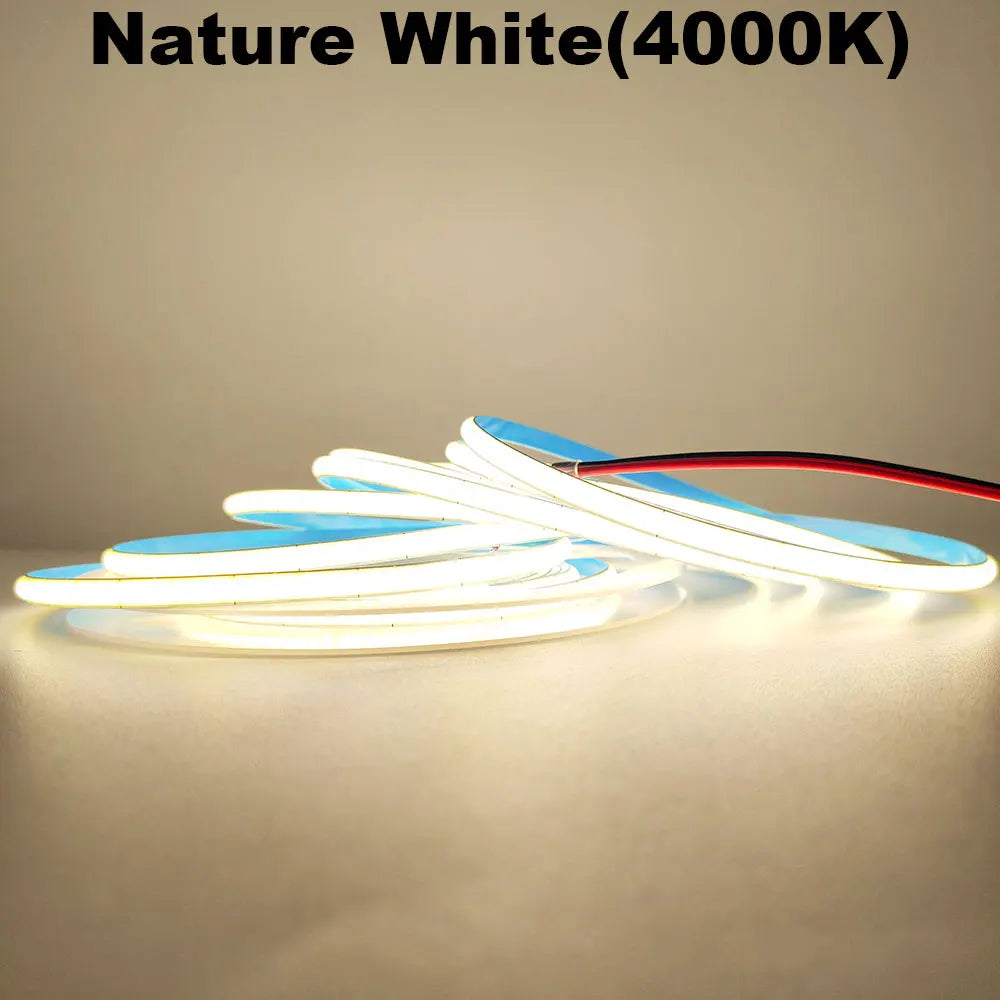

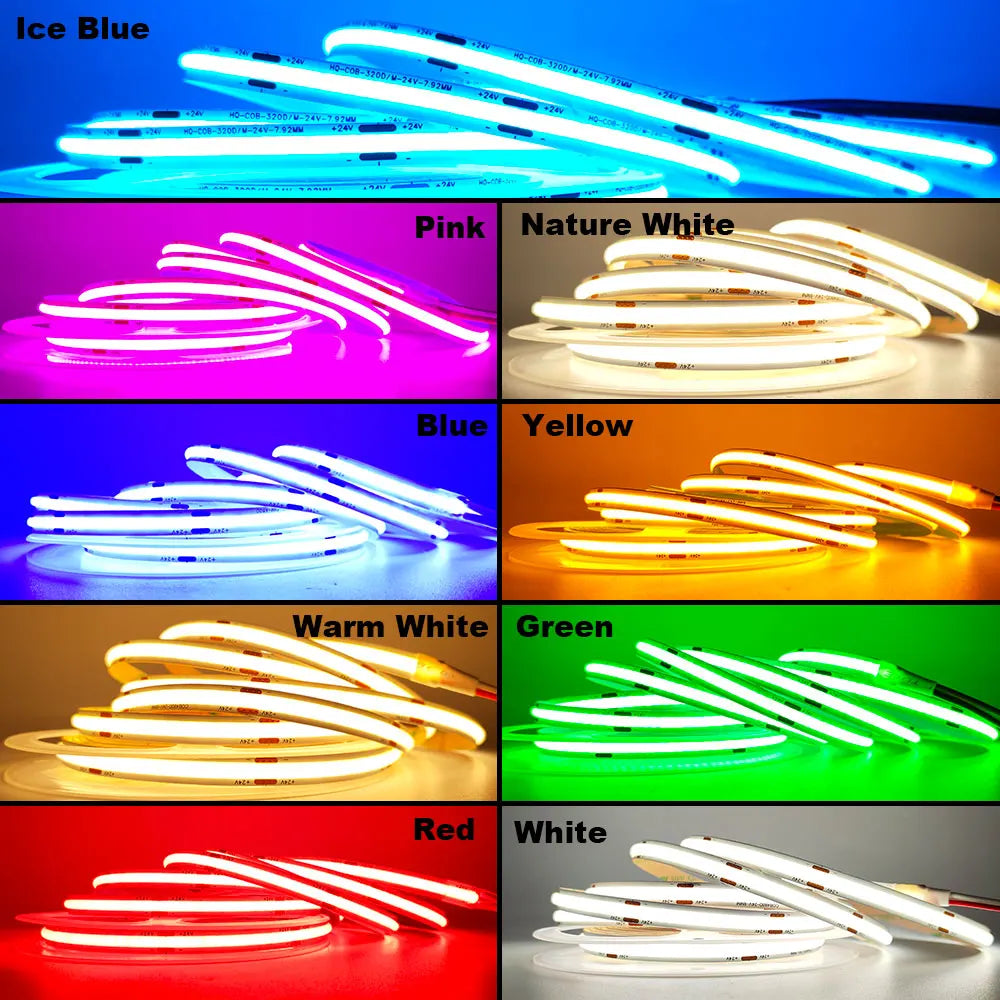

Color temperature: Yellow(2200-2400K),Warm White(3000-3200K), Nature White(4000-4200K), Cool White(6000-6500K), Red, Green, Blue, Ice Blue, Pink,

Color Rendering Index: Ra＞90

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°

Package:
1× FCOB LED strip（Power Supply is not included)

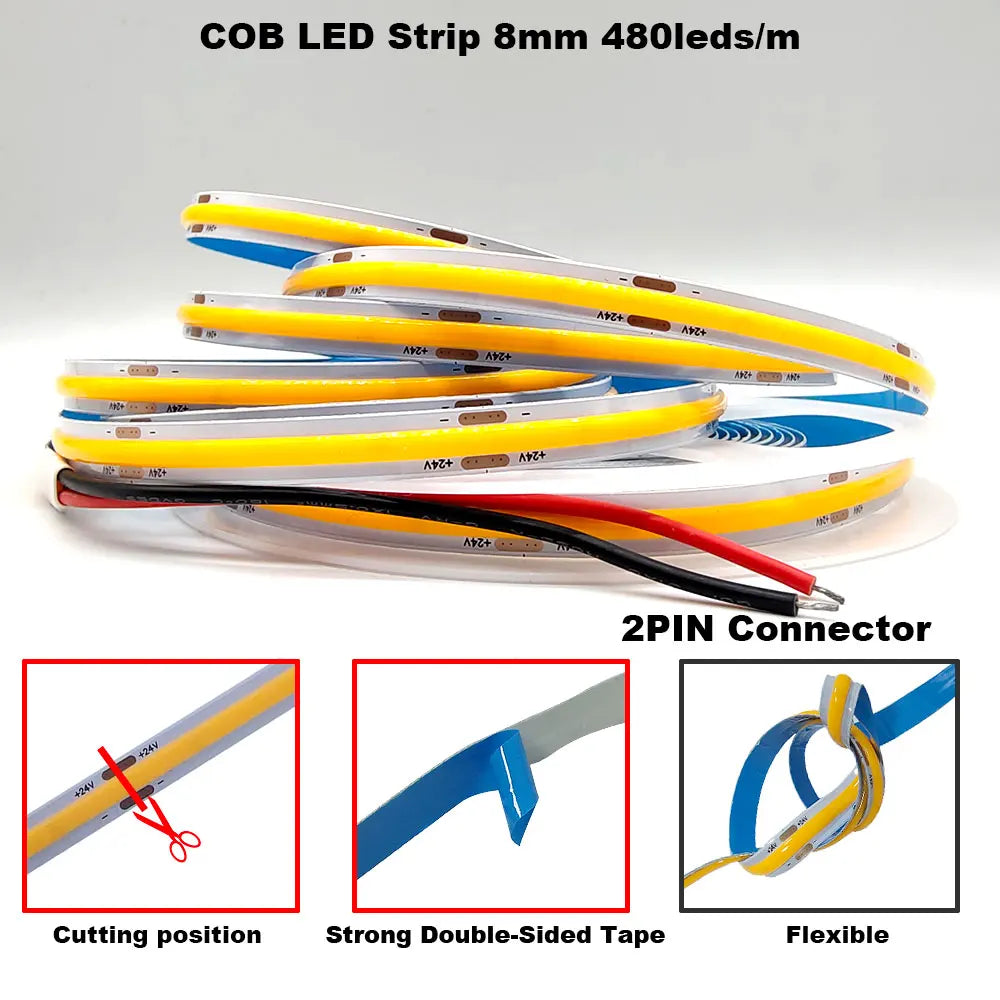

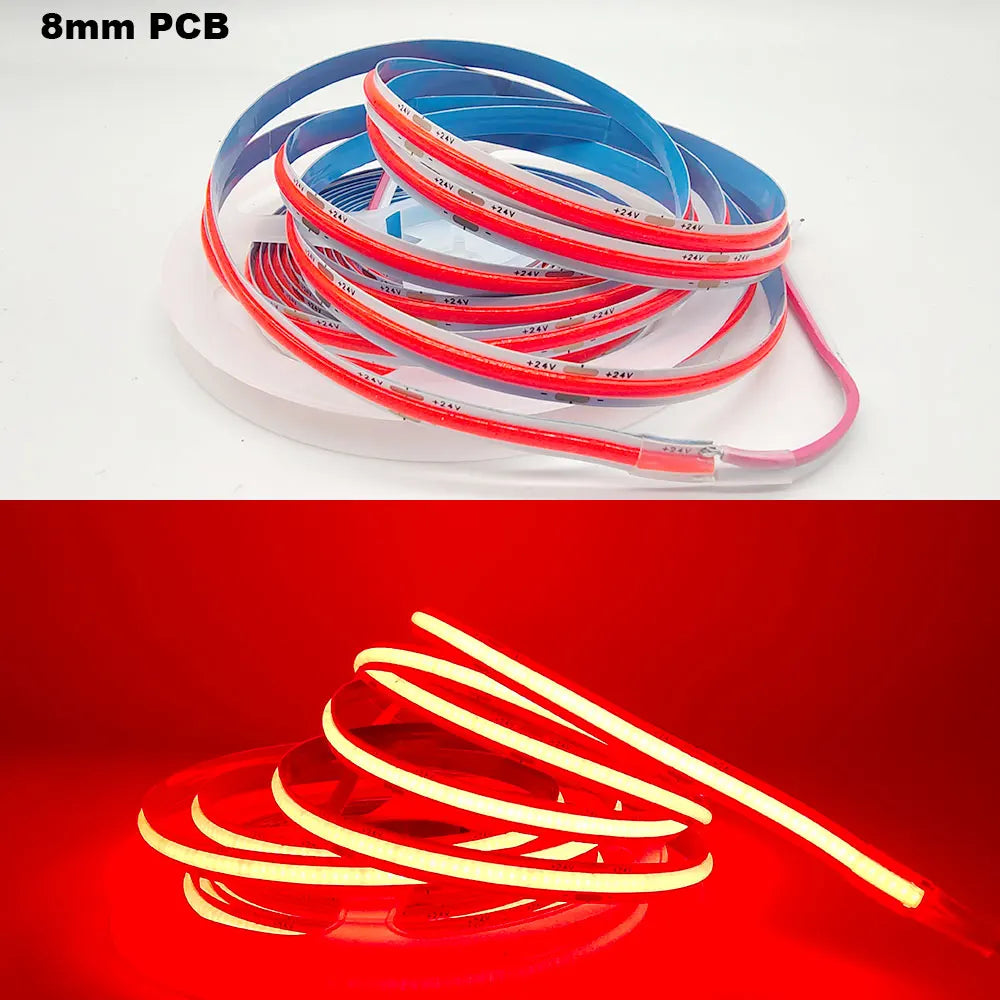

8mm PCB COB LED Strip 480leds/m :

Specification:

Input Voltage: DC12V /24V

Wattage: 480Leds/m-12W

FPCB width: 8mm

LED quantity: 480LEDs/M

Cutting length: DC12V LED Strip 480Leds/m- every 25mm
   ,  DC24V LED Strip 480Leds/m- every 50mm

Color temperature: Yellow(2200-2400K),Warm White(3000-3200K), Nature White(4000-4200K), Cool White(6000-6500K), Red, Green, Blue, Ice Blue, Pink,

Color Rendering Index: Ra＞90

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°

Package:
1× FCOB LED strip（Power Supply is not included)

How to Choose Power Supply?

First, Calculated The Whole LED Strip Lights Watts.
Theoretical Power, 400LEDs/m-10W/M, If You Buy 5m 400LEDs/m, So 10W/M*5m=50W.

Then, Choose the Right Power Supply.
If This LED Strip is Work with DC12V Power, So 50W / 12V = 4.2A ( At Least 5A or more ).
