SPECIFICATIONS

3V-15V DC Power Filter Board: EMI Noise Suppressor

Brand Name: DYKBmetered

Certification: NONE

Choice: yes

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Model Number: 3V-15V DC Power Filter Board

Origin: Mainland China

Output Voltage: DC 3V-15V 12V

Semi-finishedproduct: Yes

Size: power supply ripple

Style: 2mV Ripple Low Noise Power Purifier EMI Anti-Interference

Type: 2mV Ripple Low Noise Power Purifier EMI Anti-Interference

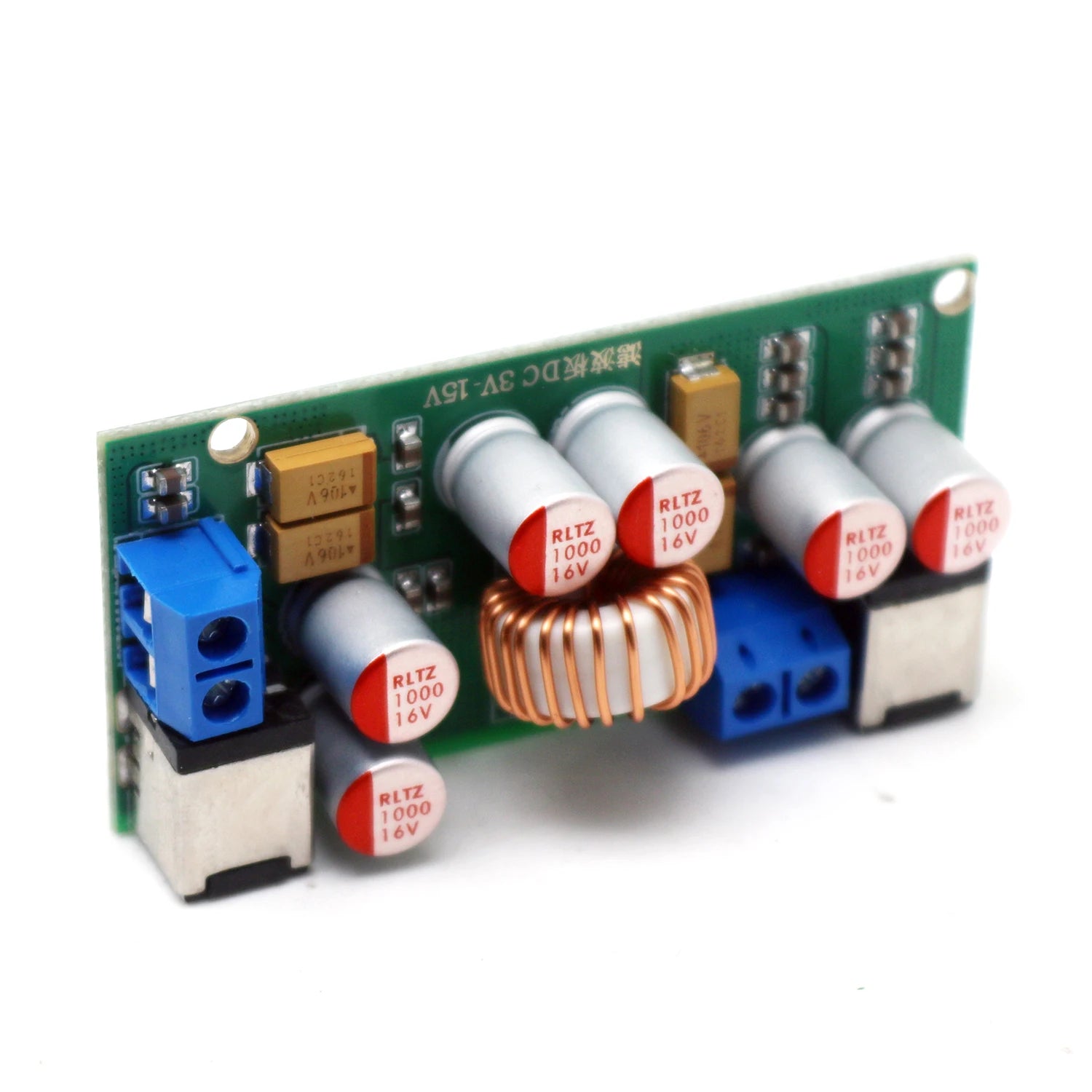

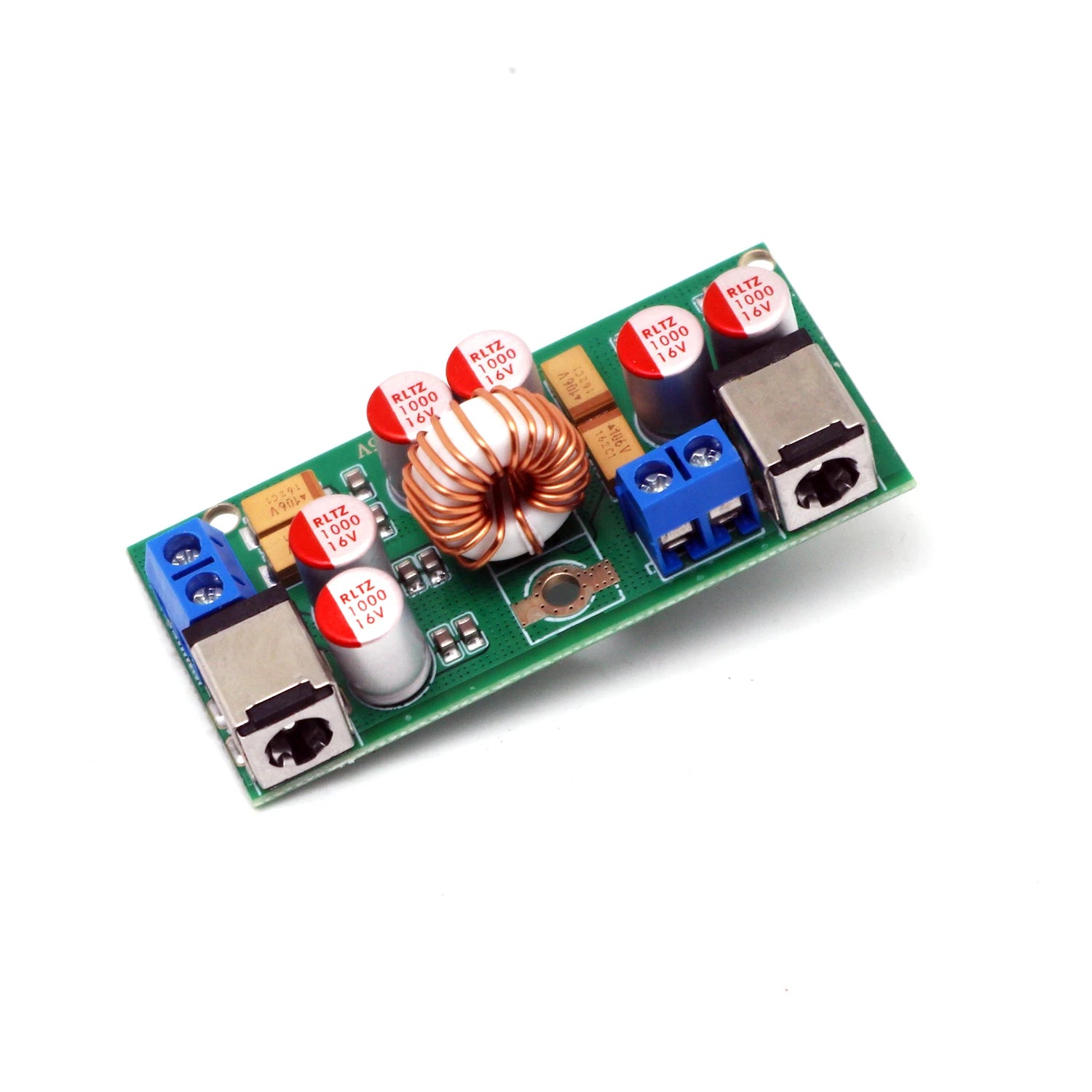

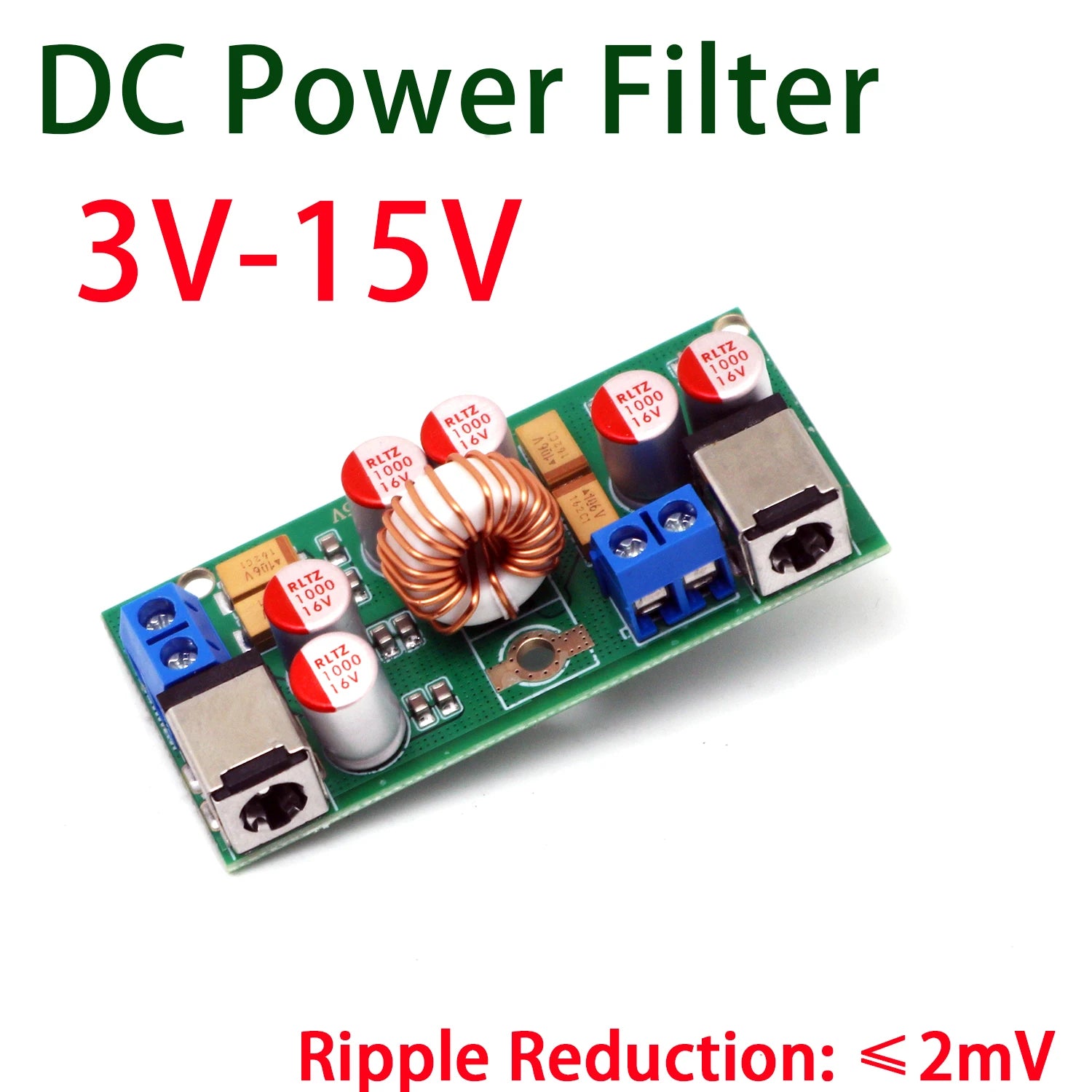

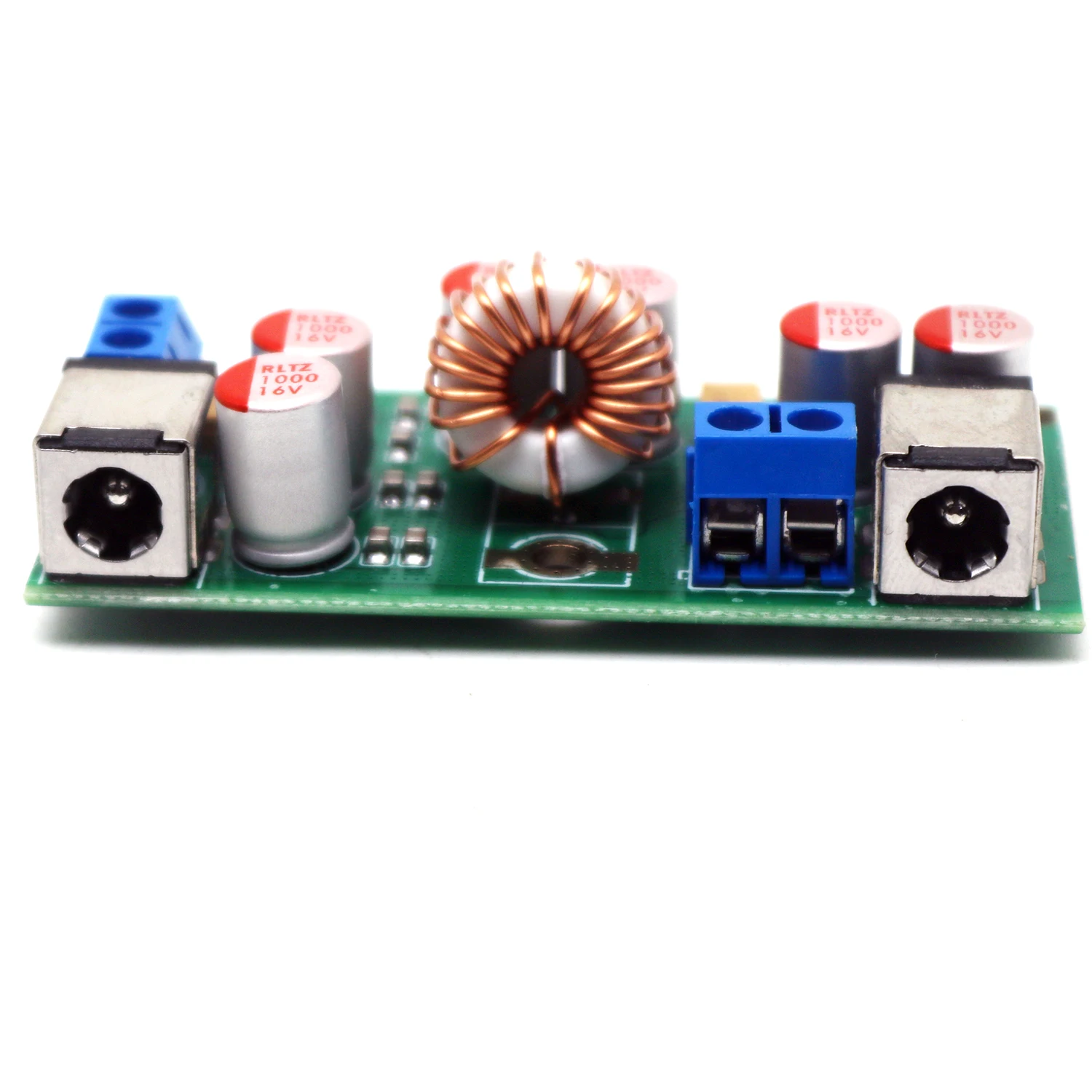

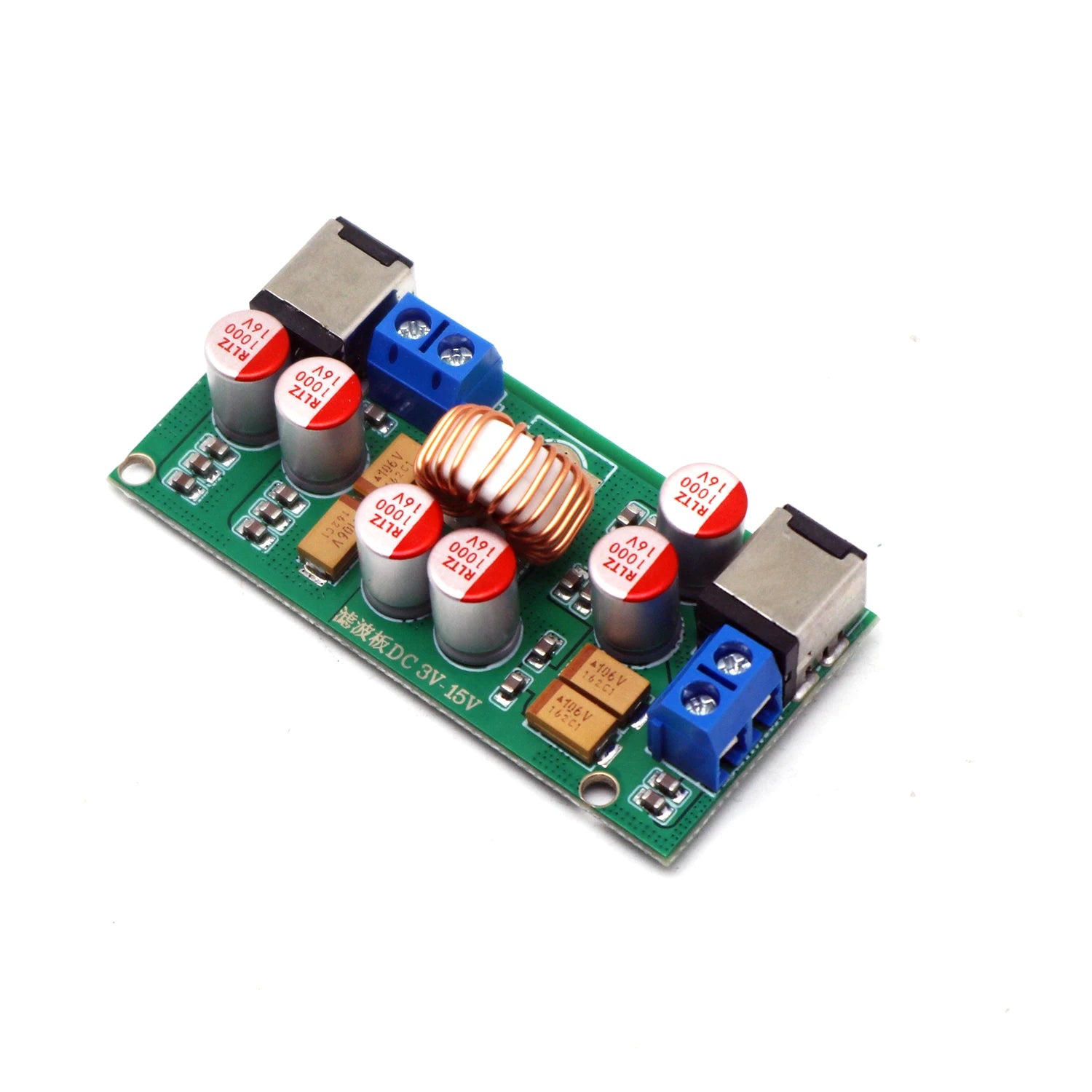

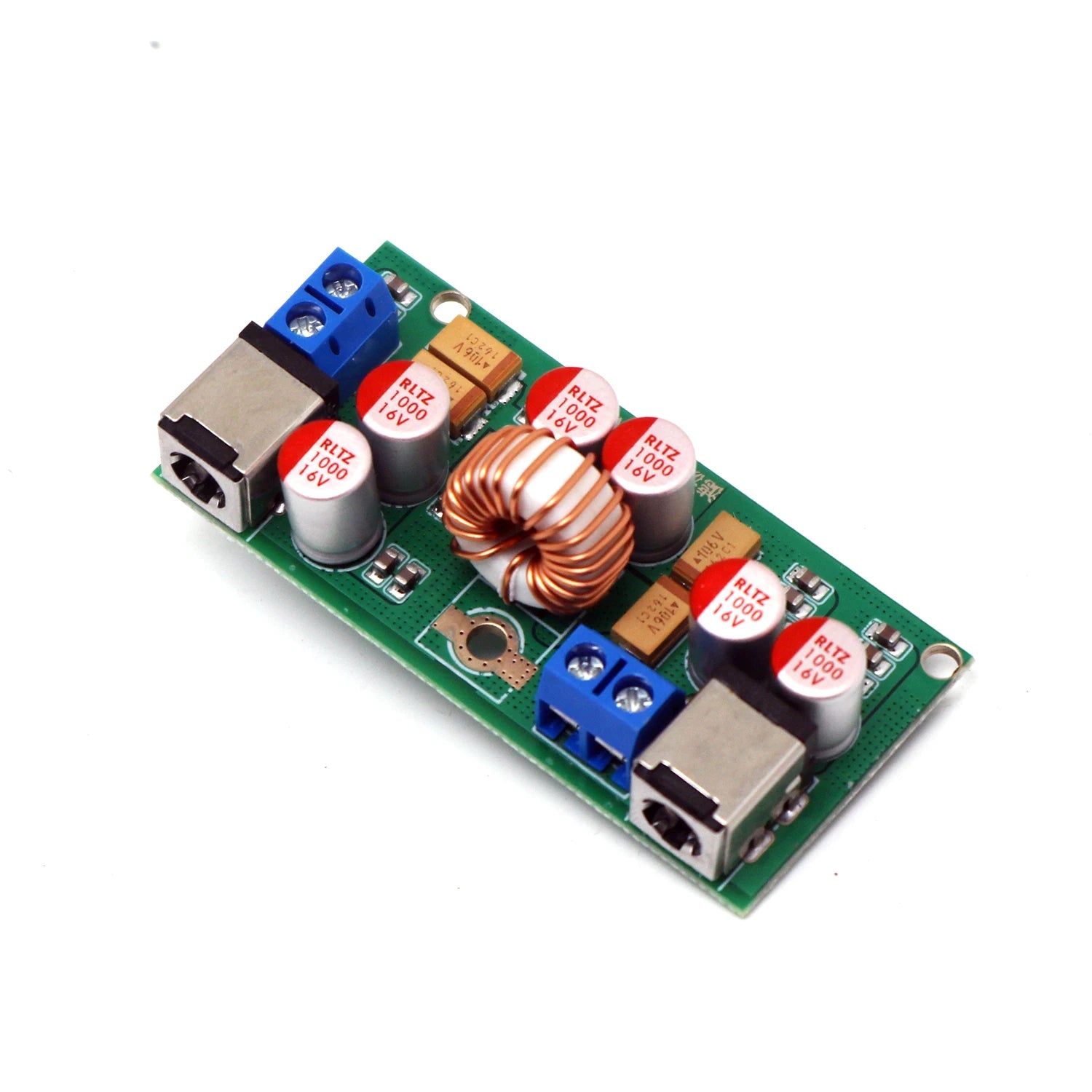

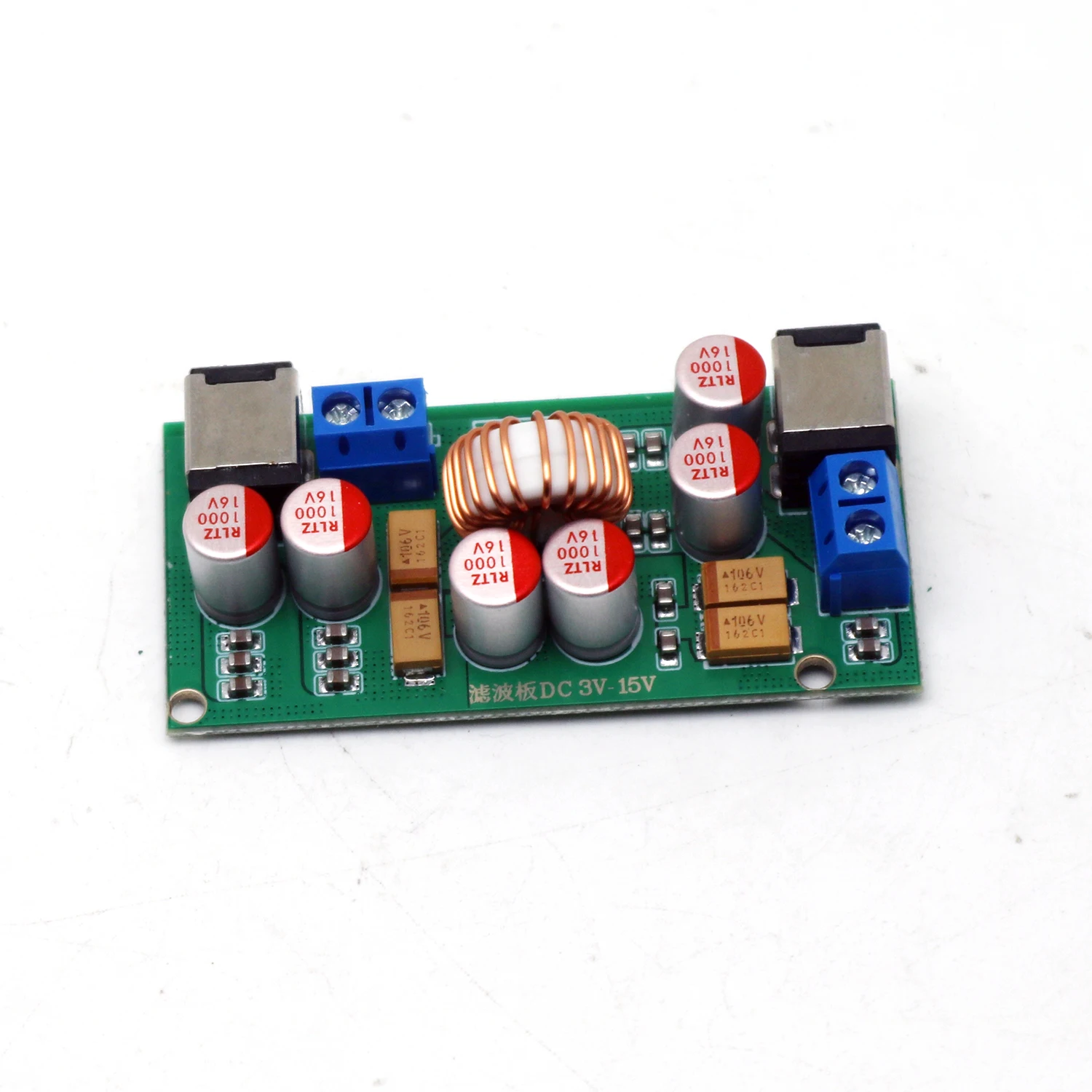

3V-15V DC Power Filter Board 2mV Ripple Low Noise Power Purifier EMI Anti-Interference for 5V 12V Car Audio Decoder DAC amplifier

Description:

This DC power filter board effectively eliminates electromagnetic interference (EMI) and power supply ripple, providing ultra-clean power for sensitive audio equipment and automotive electronics. With an impressive ripple reduction from 244mV to just 2mV, it ensures exceptional power purity for your high-end audio systems and precision electronic devices.

Specifications:

Voltage Range: DC 3-15V

size : 6.7X3.2X2.2CM

Maximum Current: 10A (via DC5525 interface)

Ripple Reduction: ≤2mV (after filtering)

Connection: DC5525 interface

Performance Test Results:

Original power supply ripple: 244mV

After filtering: 3.6mV

Background noise removed: 1-2mV

Final effective ripple: ≈2mV

Applications:

Hi-Fi audio systems

Car audio enhancement

Precision measurement equipment

Surveillance systems power purification

Sensitive electronic device protection

Features:

Ultra-low output ripple (2mV)

High current capacity (10A max)

Wide voltage compatibility (3-15V DC)

Compact and easy to install

Effective EMI/EMC suppression

Package Includes:

1× DC 3-15V Power filter board
