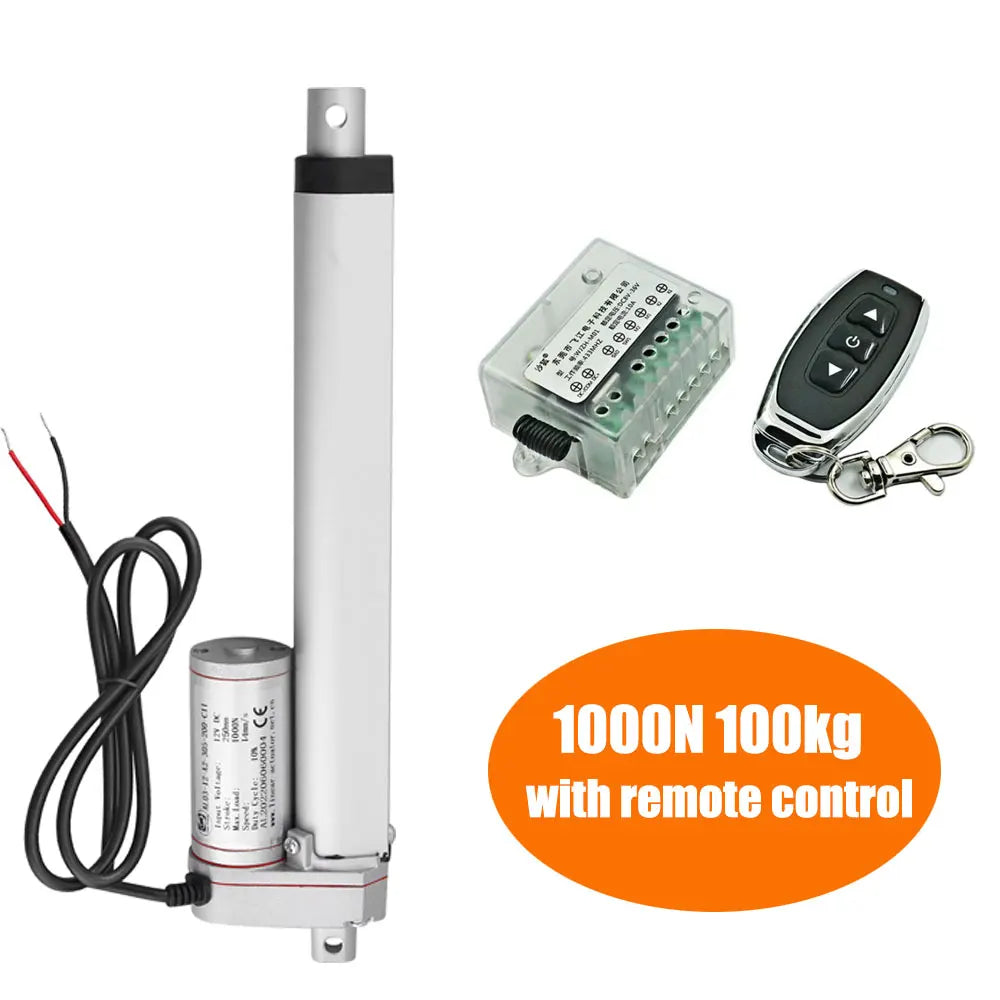

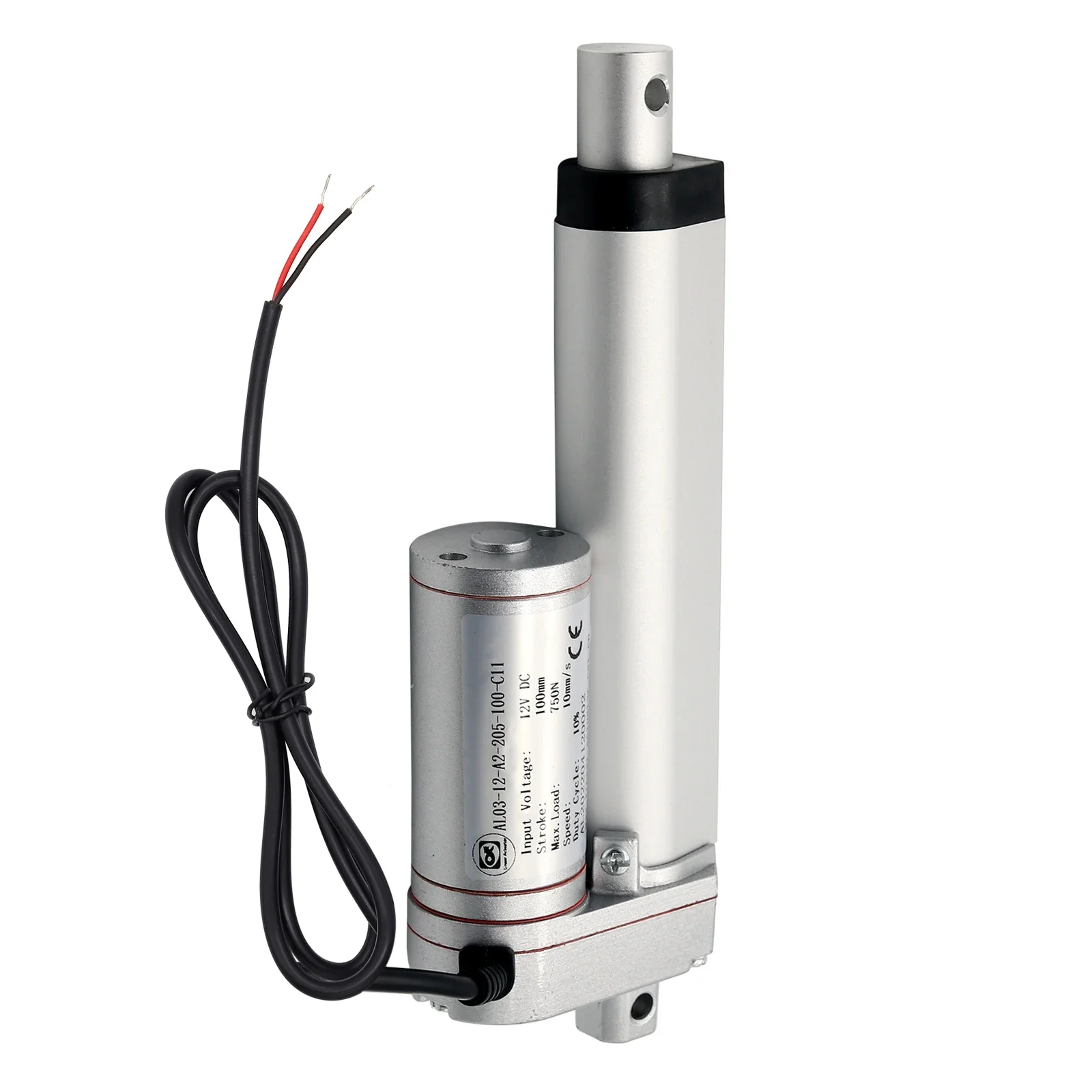

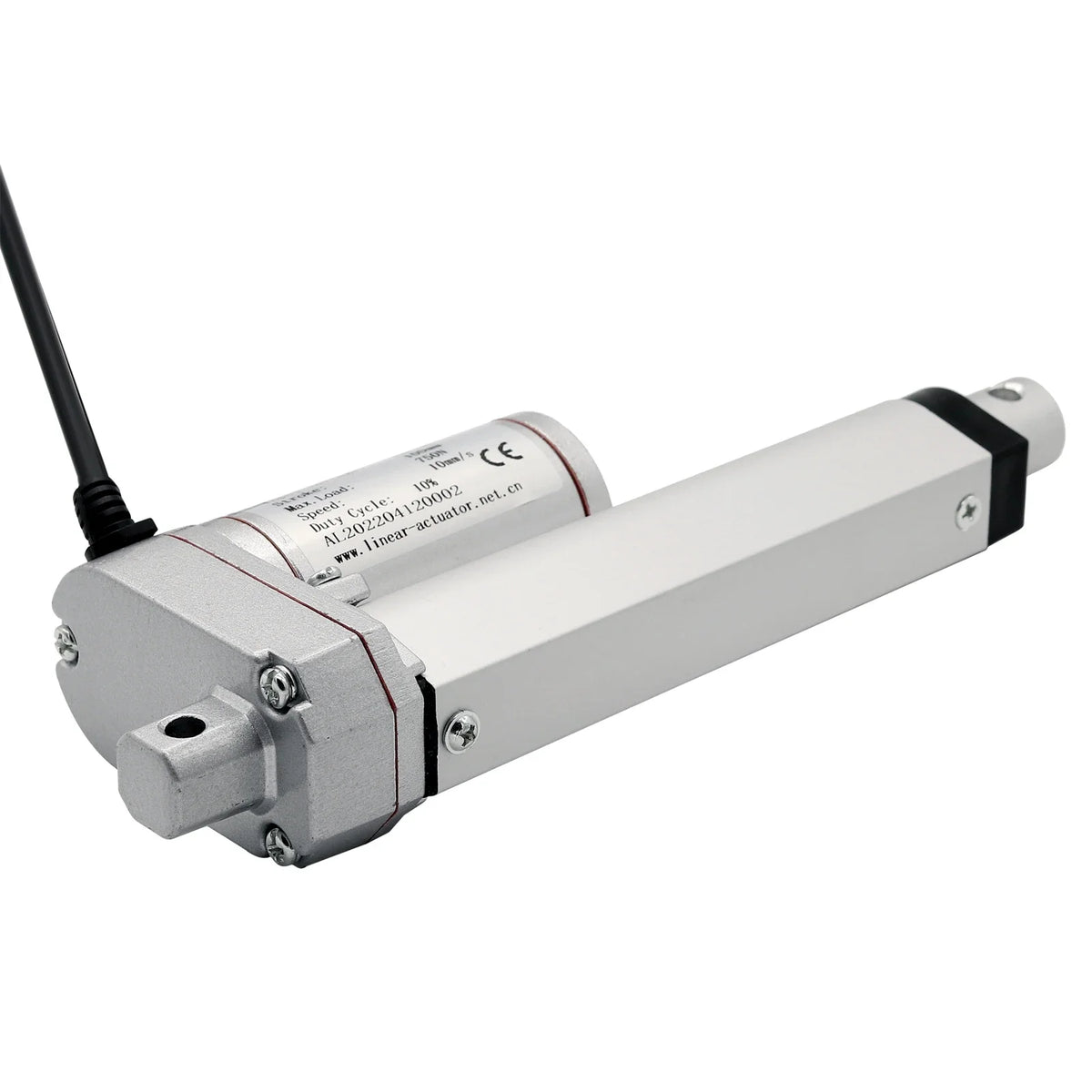

12V Linear Actuator WIth Remote Control 1000N 14mm/s Speed Metal Gear DC Electric Drive Linear Motor 50mm 100mm 150mm Stroke

12V Linear Actuator WIth Remote Control 1000N 14mm/s Speed Metal Gear DC Electric Drive Linear Motor 50mm 100mm 150mm Stroke

$228.60

$228.60 $0.00

Speed(RPM) 300mm stroke 100MM Stroke 50mm Stroke 150mm Stroke 250mm Stroke 350mm stroke 200MM Stroke

Voltagesiliver color

Gear Count|Ships From1000N14mm per second|China Mainland

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: none

Origin: Mainland China

Output Power: 37.5-74.6（include74.6）

Type: Micro Motor

Technical Parameters:
Material: Aluminum alloy
Load capacity: 1000N
Input Voltage: 12V DC
Speed: 14mm/s

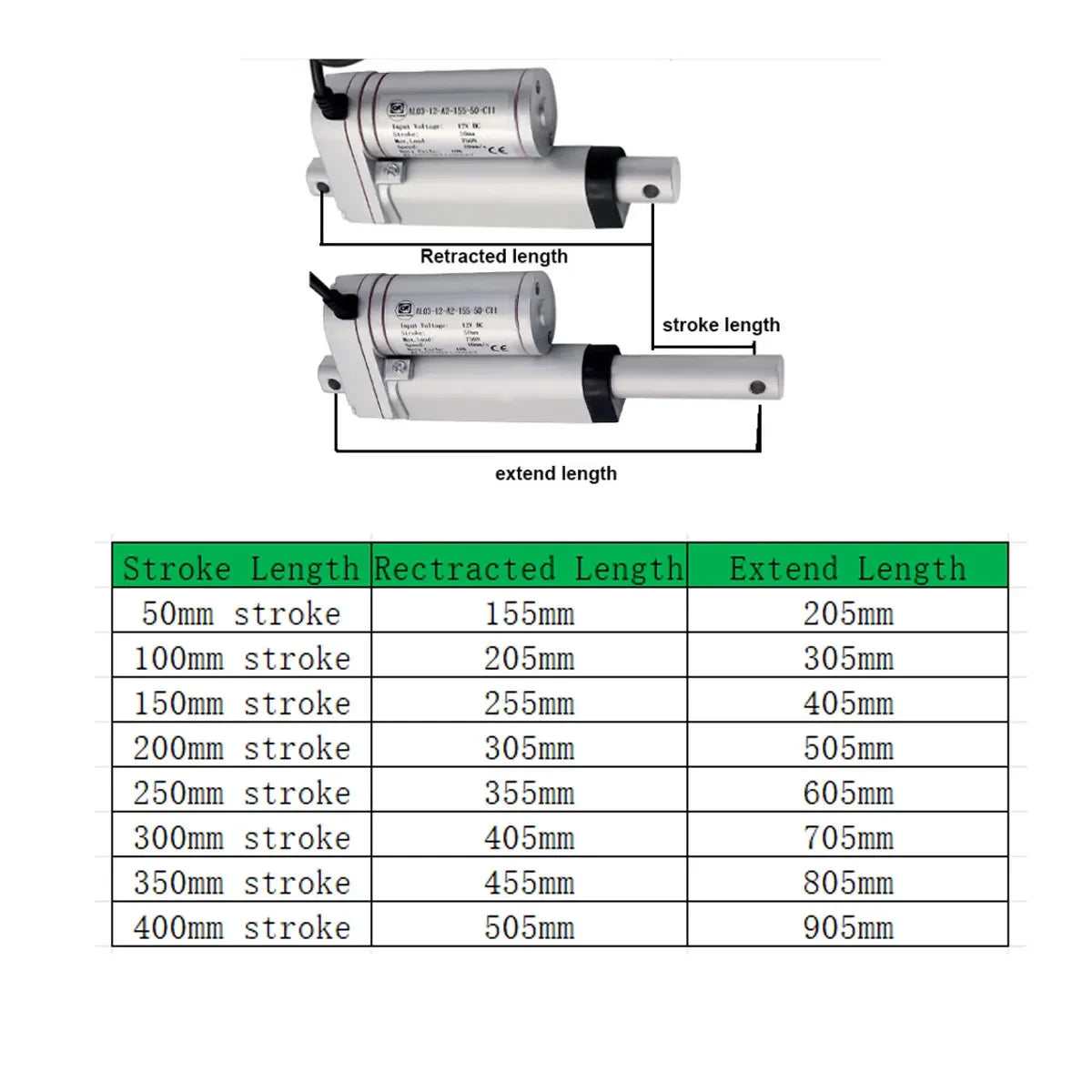

Stroke Length:100mm/4 inch
Working frequency: 20%
Rated power: 20W, maximum 30W.

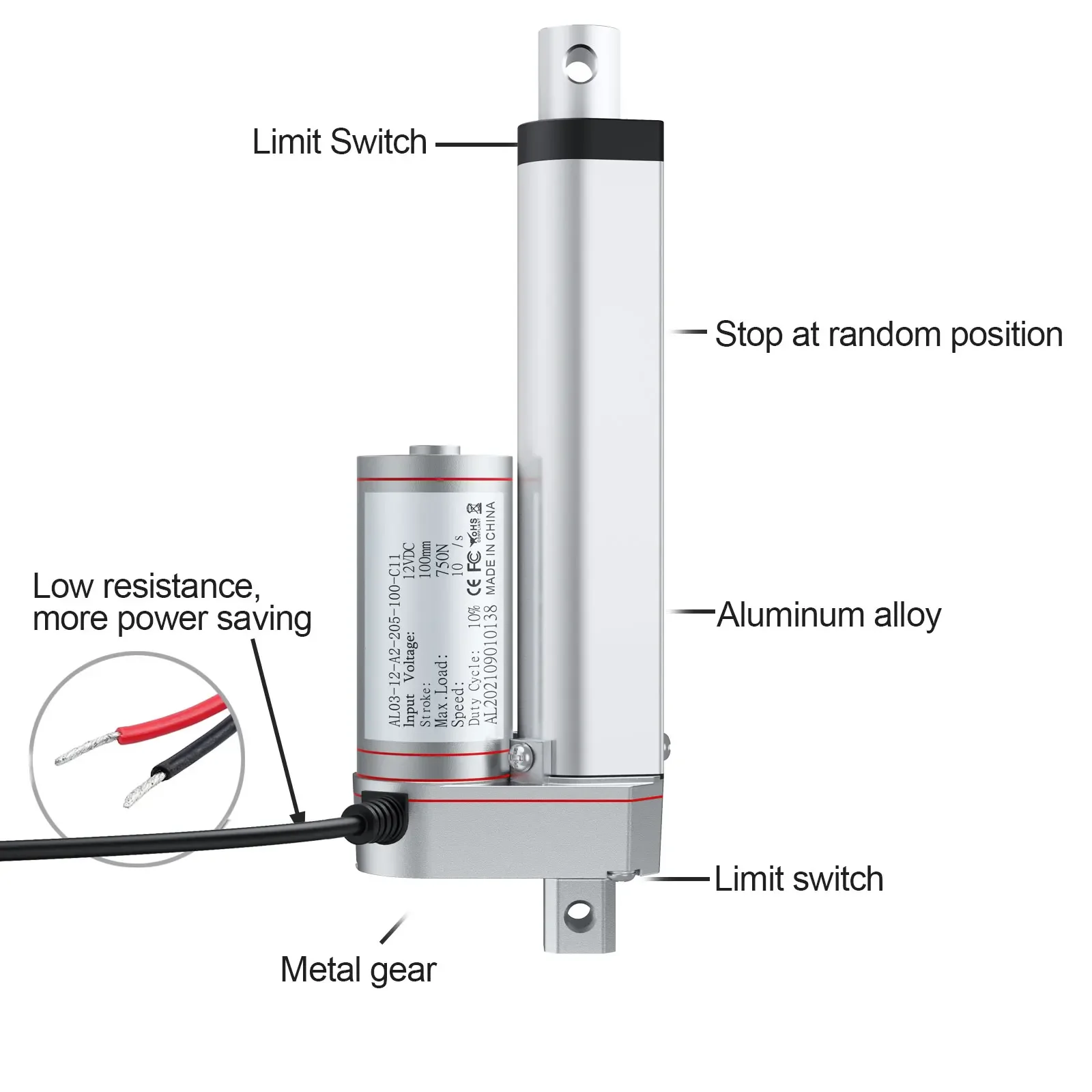

Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity.
The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function.
The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.

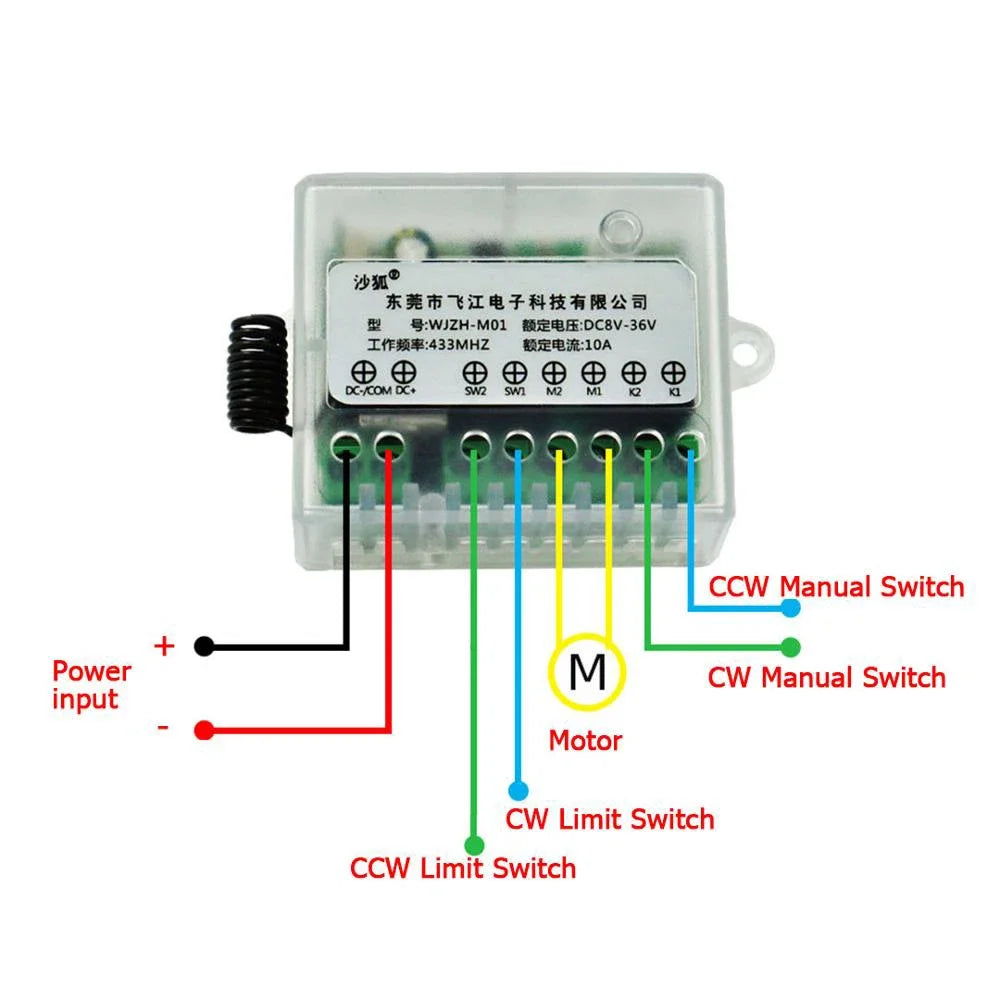

The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
Ambient temperature -20°C to +75°C.
Standard protection class: IP54.
Low noise design, noise level less than 42dB.
Please do not disassemble the machine.
Product features: drive other objects to push, pull, rise, drop.

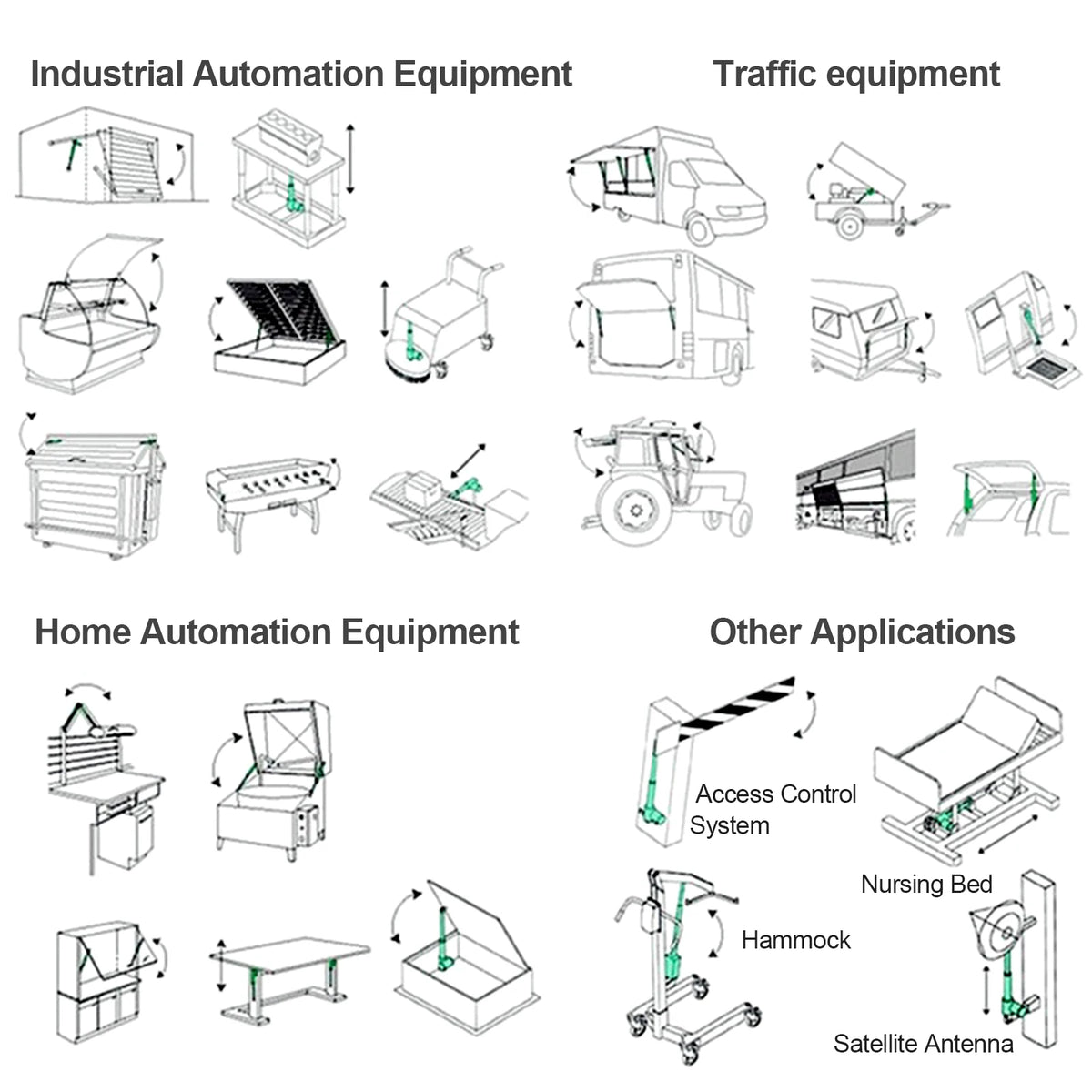

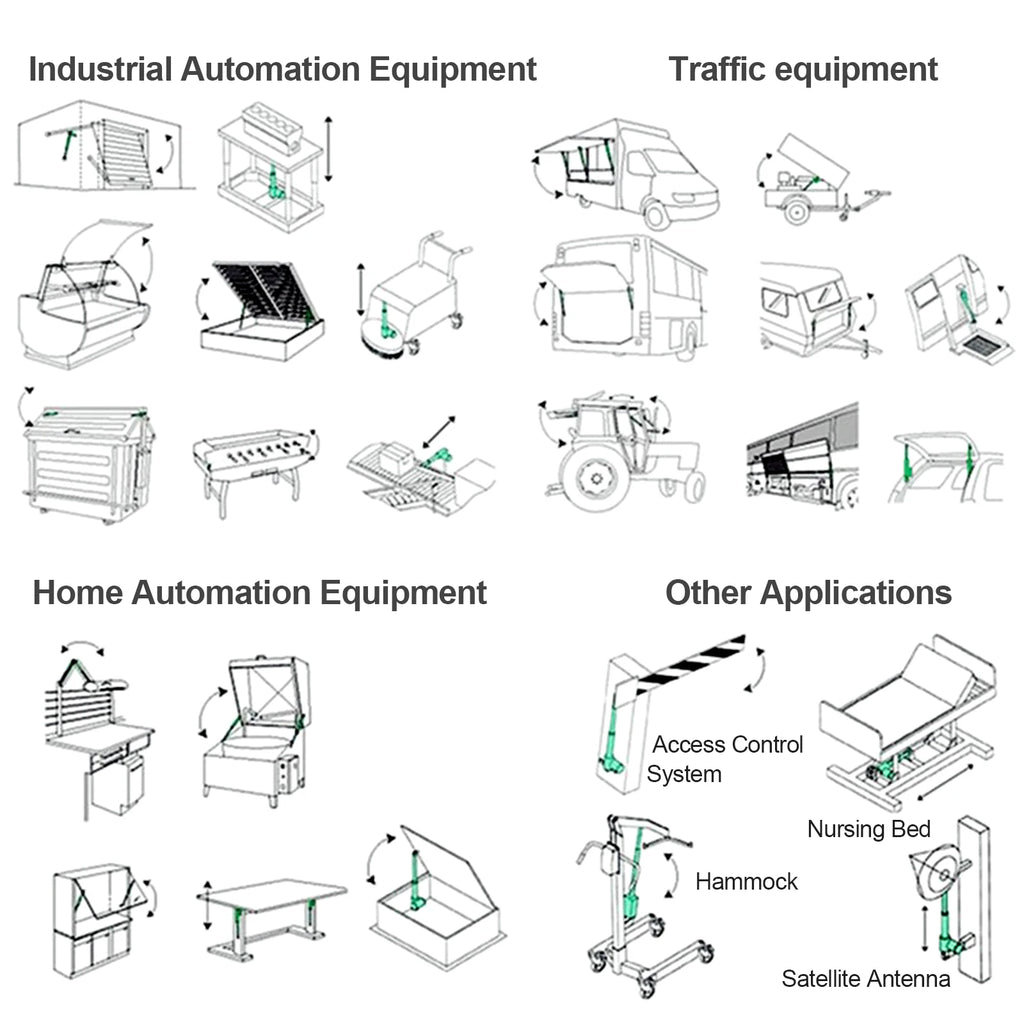

Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

Package Included:
1×Linear Actuator Motor
