SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

Fast Charging Protocol 1: Support FCP

Fast Charging Protocol 2: Support AFC

Fast Charging Protocol 3: Support SCP

Fast Charging Protocol 4: Support DRP Try.SRC protocol, PD3.1

Fast Charging Protocol 5: Support PD3.1

Fast Charging Protocol 6: Support QC2.0/QC3.0/QC3.0+

Feature 1: Support 5V, 9V, 12V, 15V, 20V, 28V gear voltage

Feature 2: Maximum support 28V5A, 140W

Feature 3: Support lithium iron phosphate

Feature 4: Support ternary lithium

Feature 5: Support polymer and other batteries

High-concerned chemical: none

Origin: Mainland China

Quantity: 1

Type: Voltage Regulator

Type 1: PD3.1 140W bidirectional fast charging module

Type 2: Li-ion Lifepo4 BMS charge

Type 3: IP2366 2S 3S 4S 5S 6S Lithium Battery Charging Board

is_customized: Yes

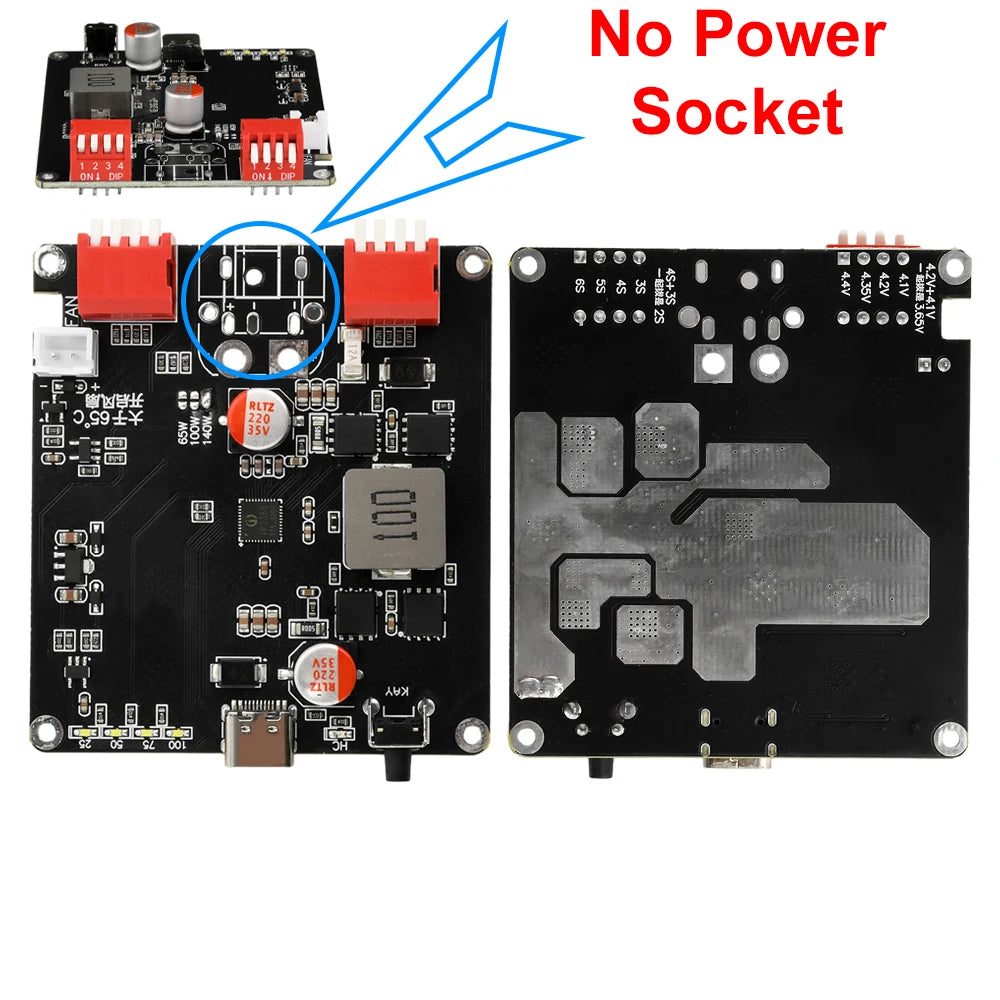

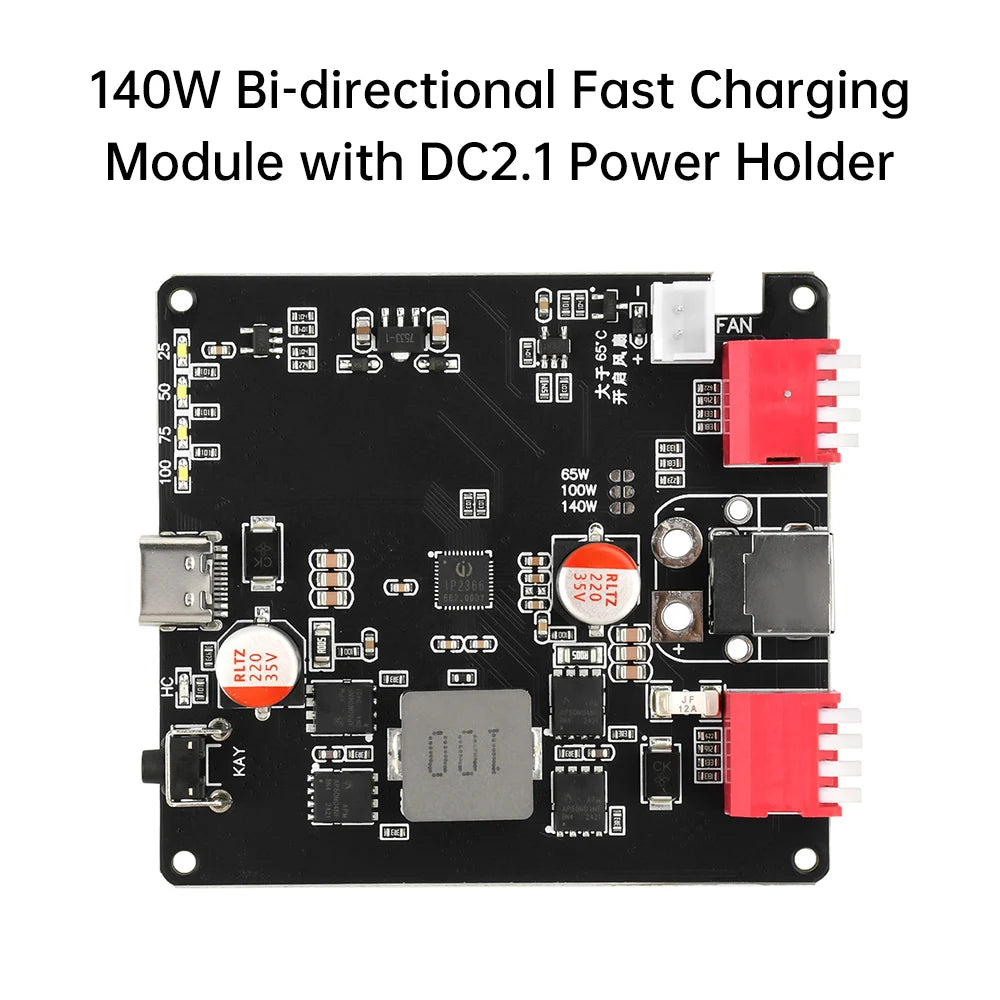

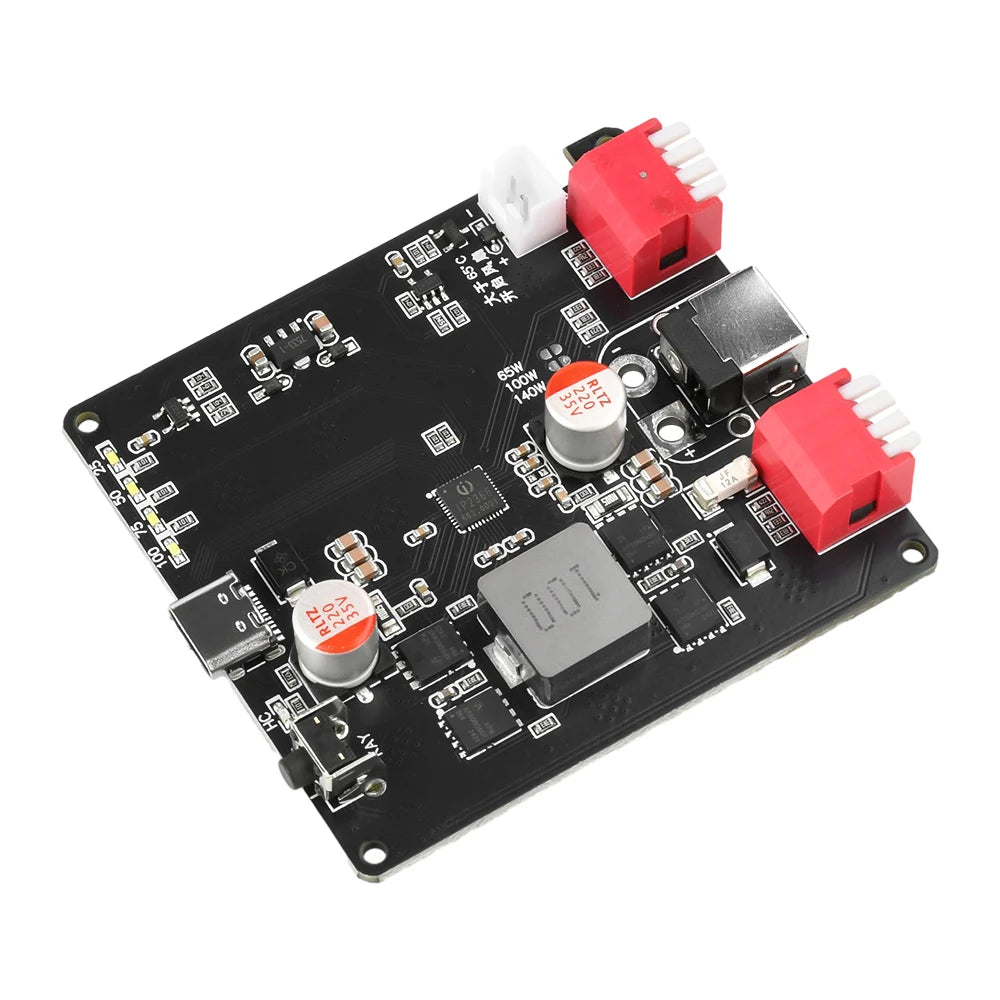

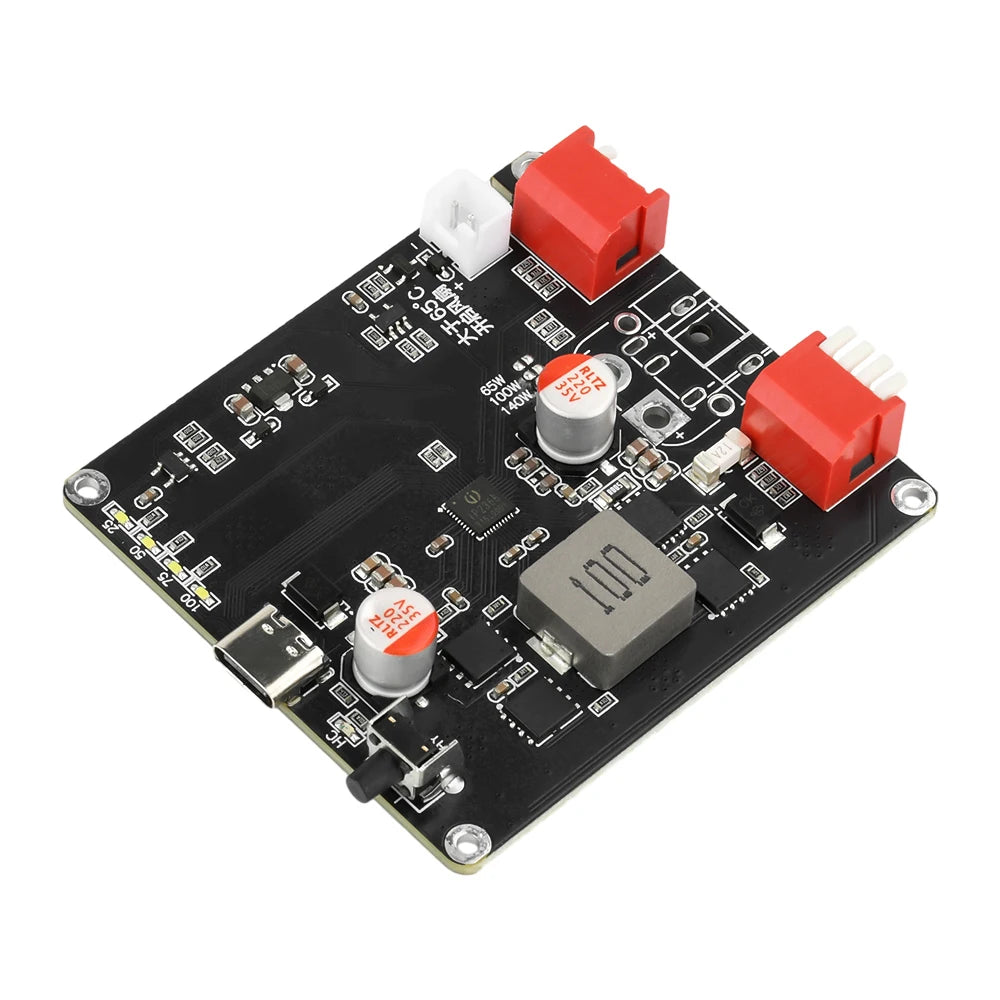

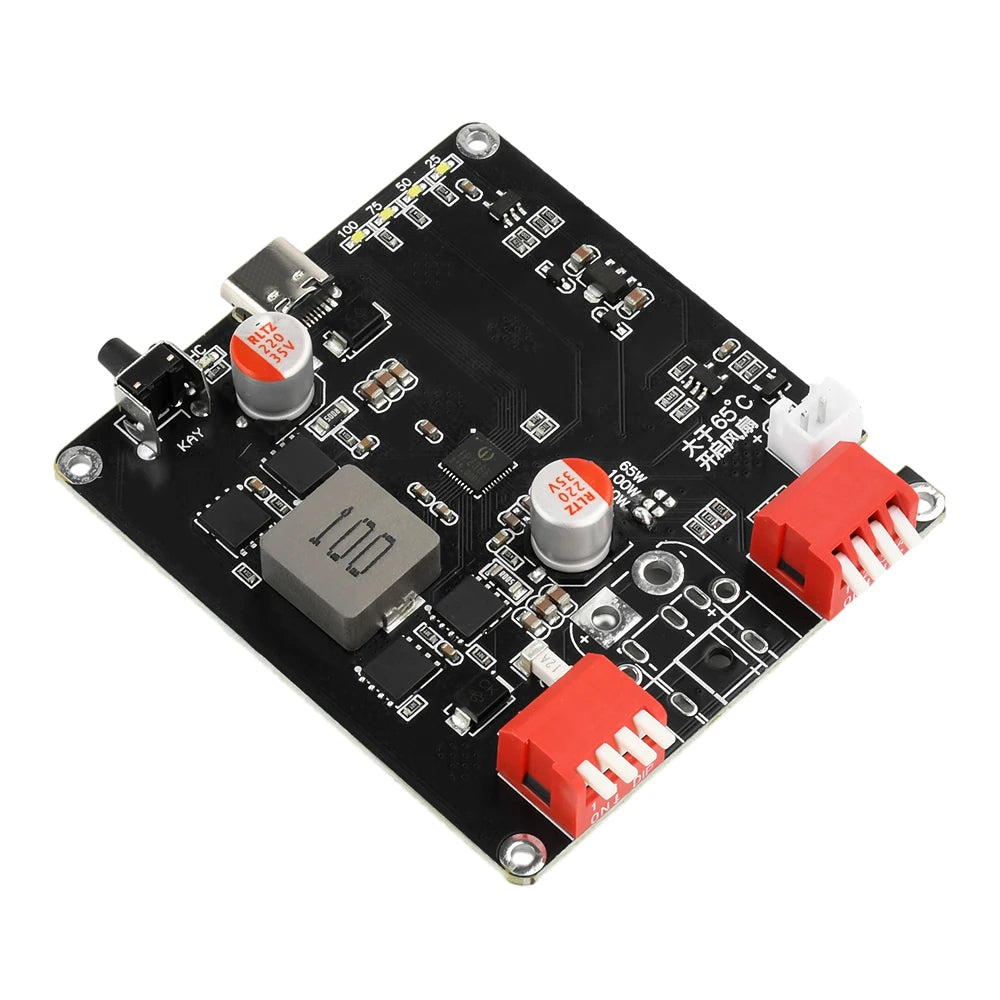

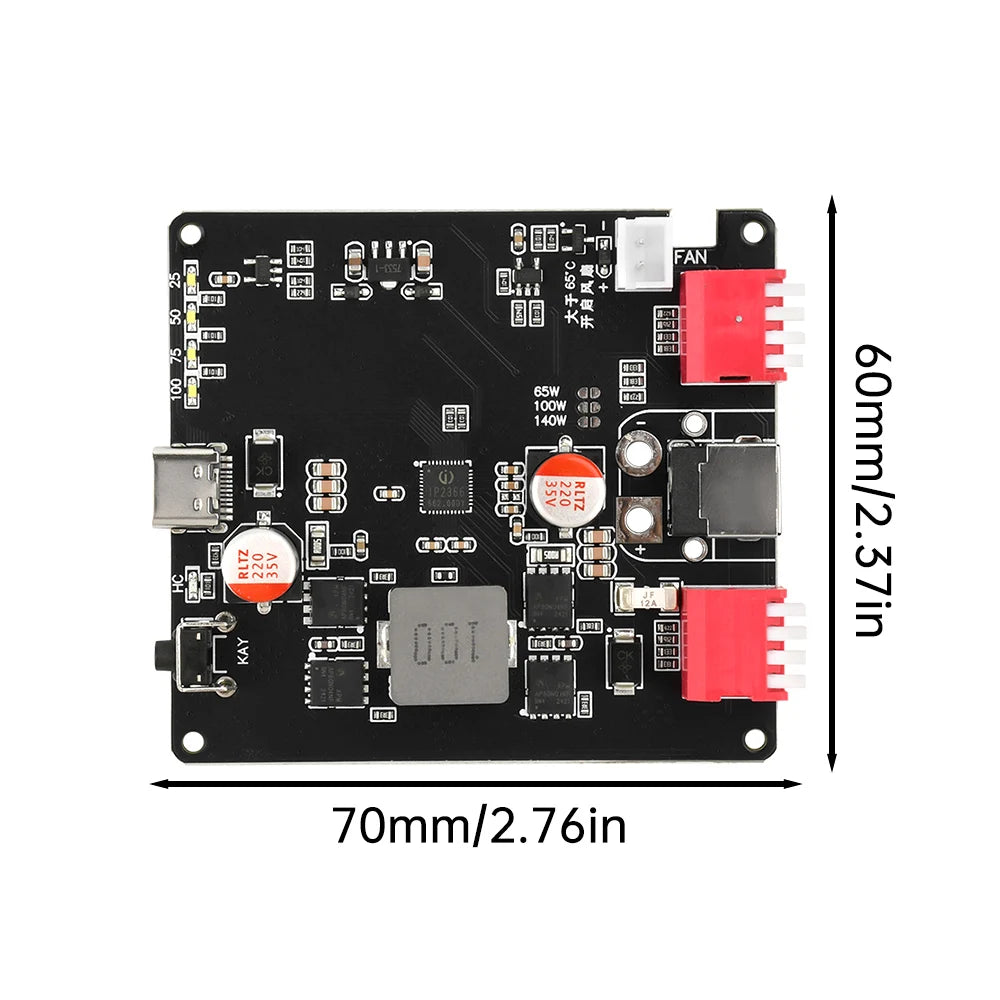

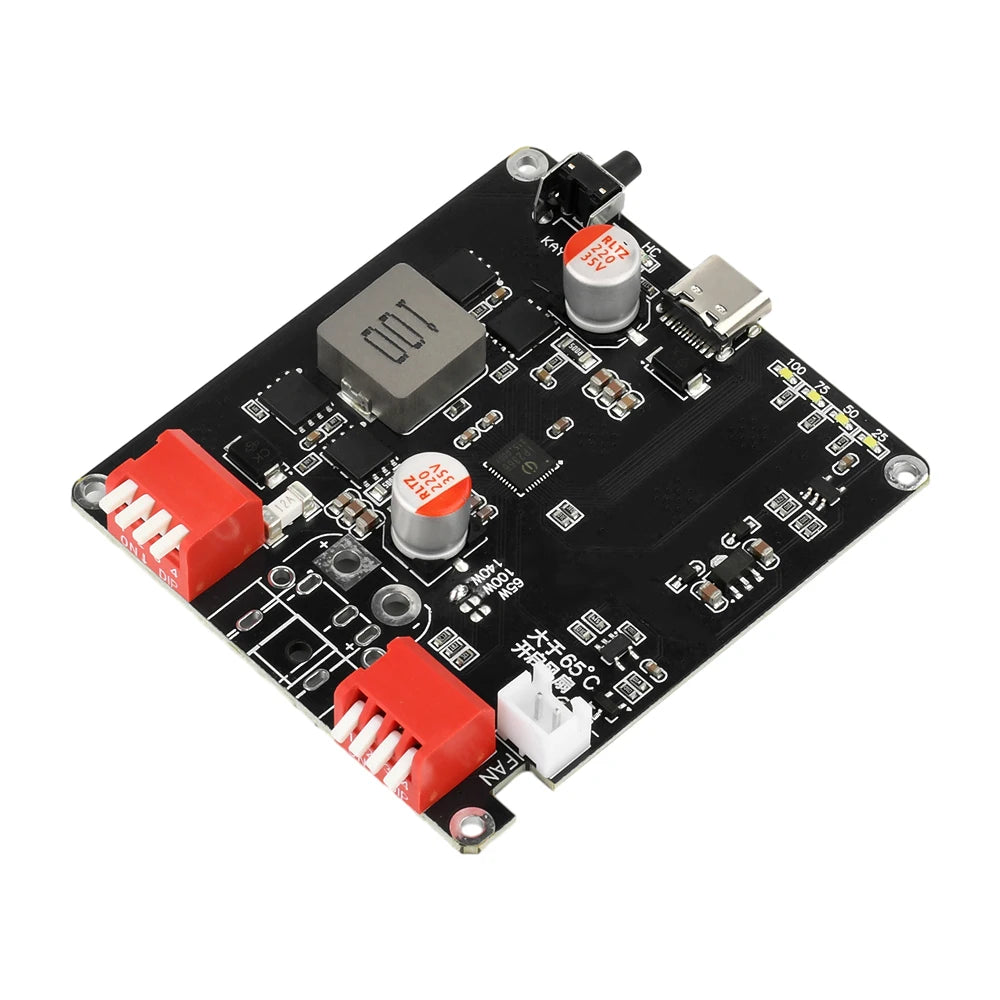

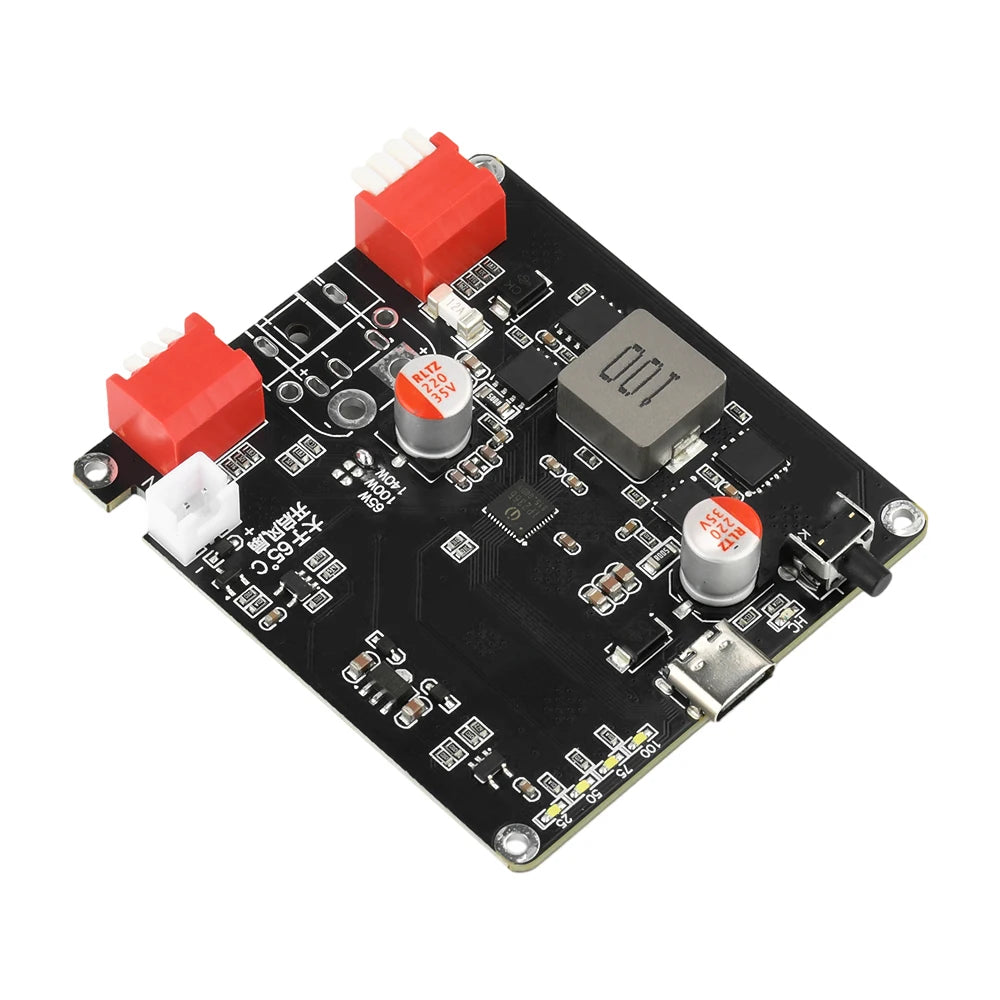

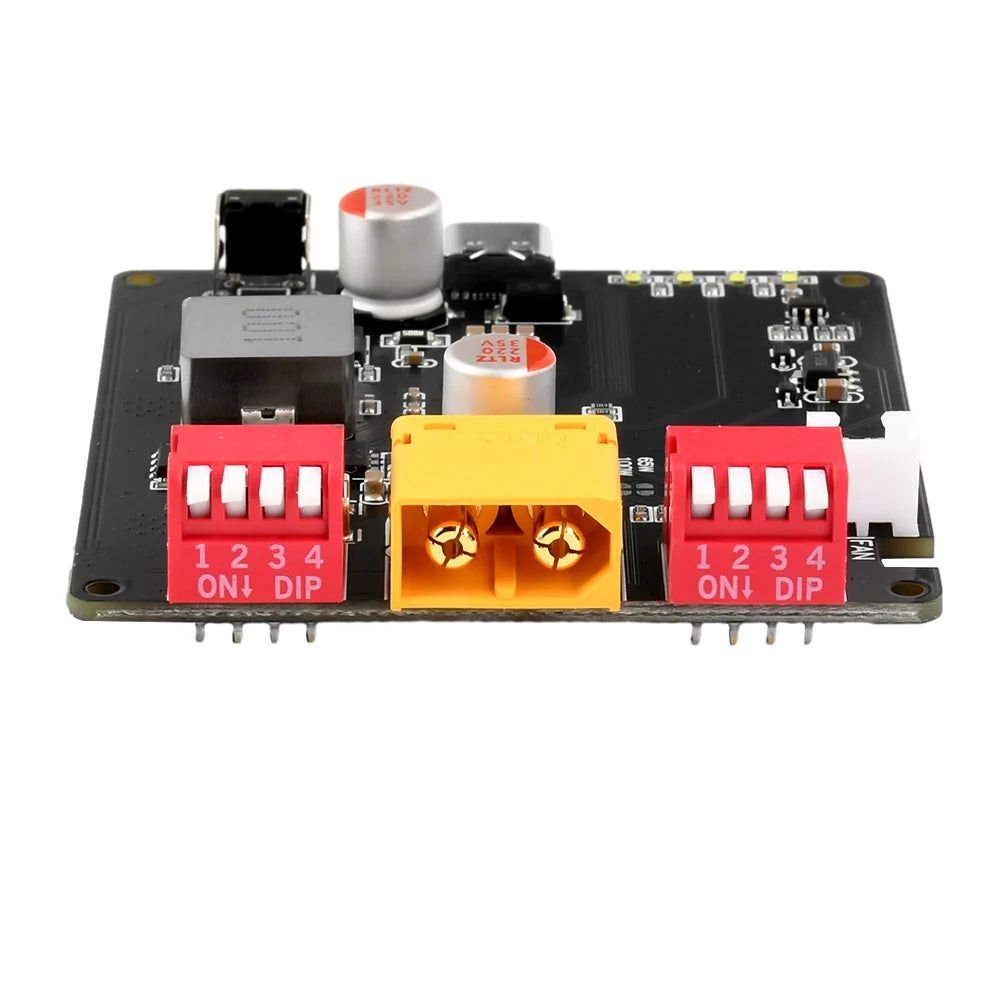

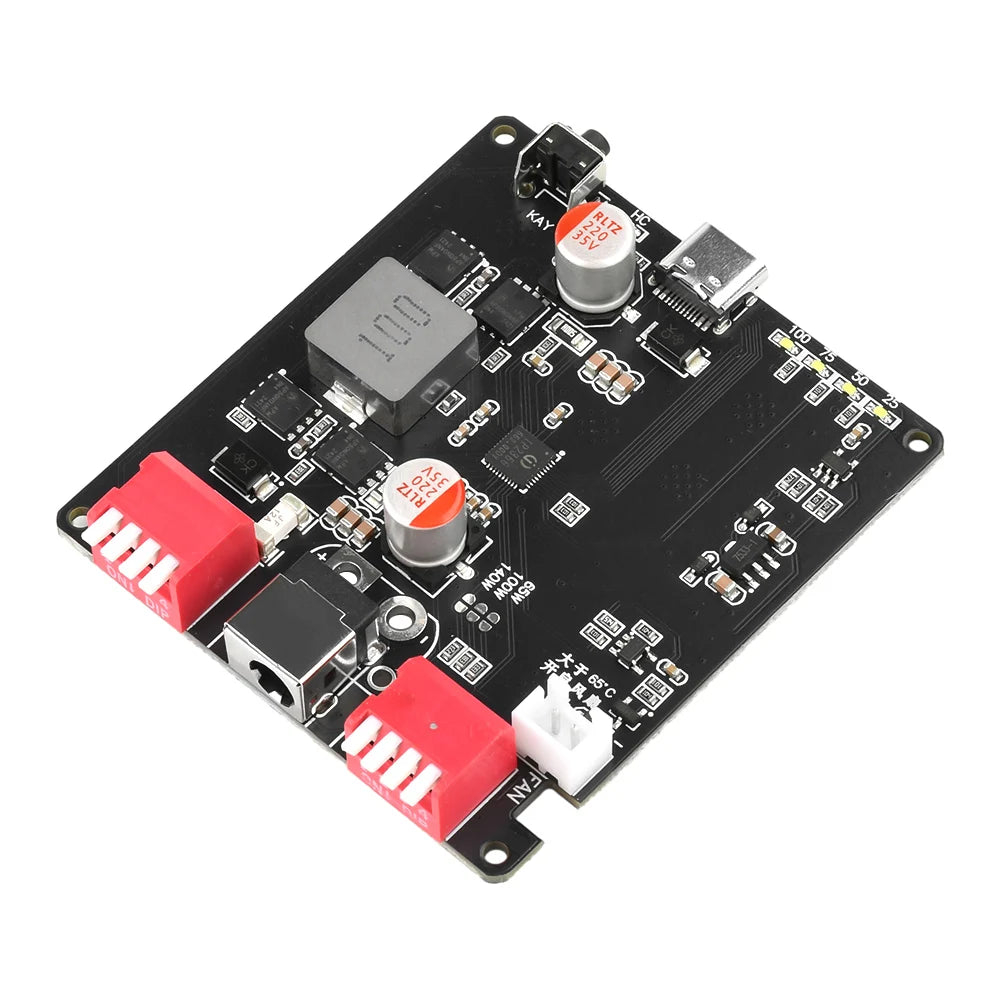

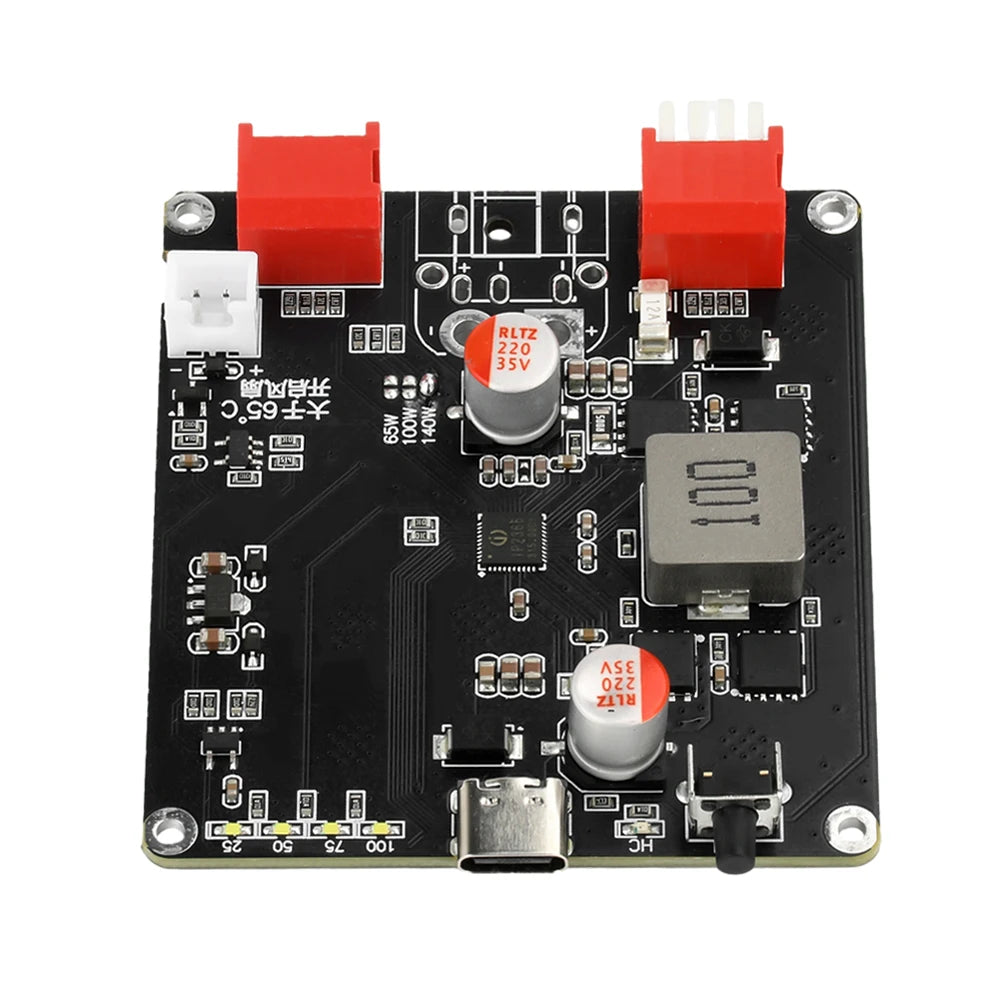

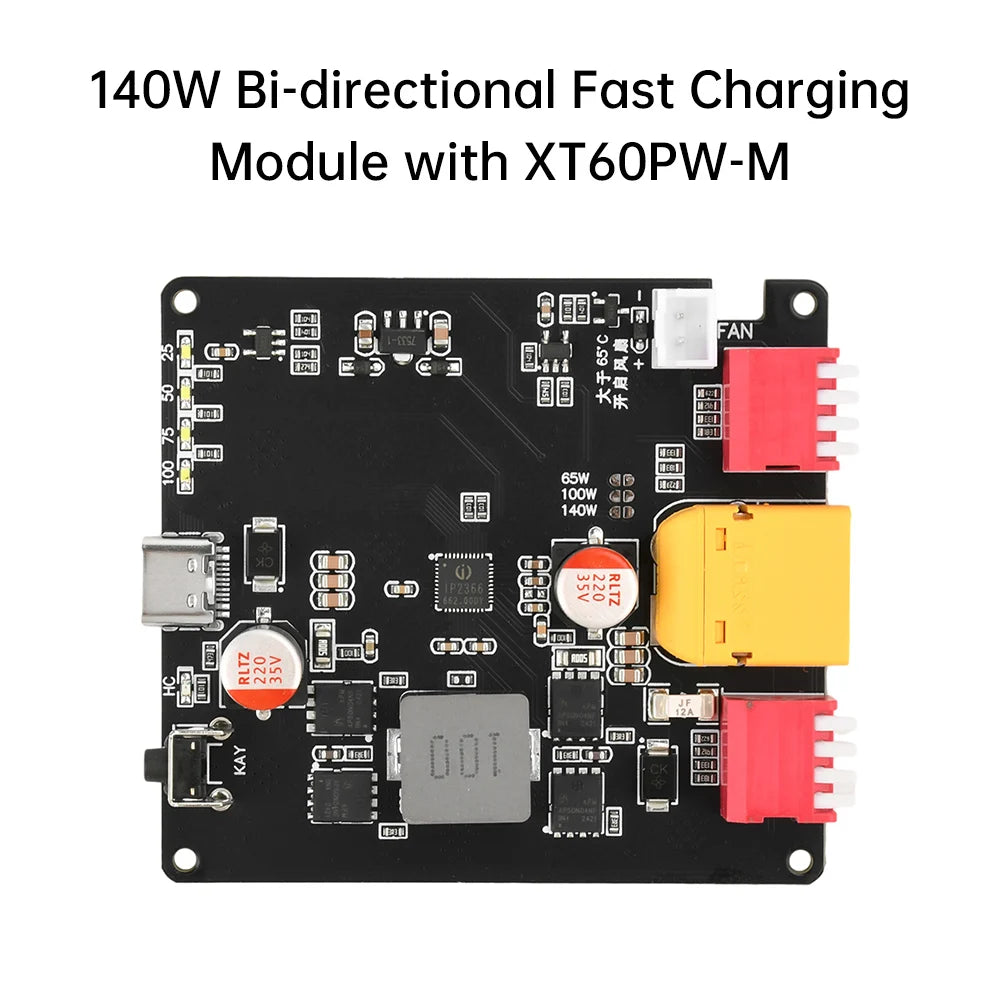

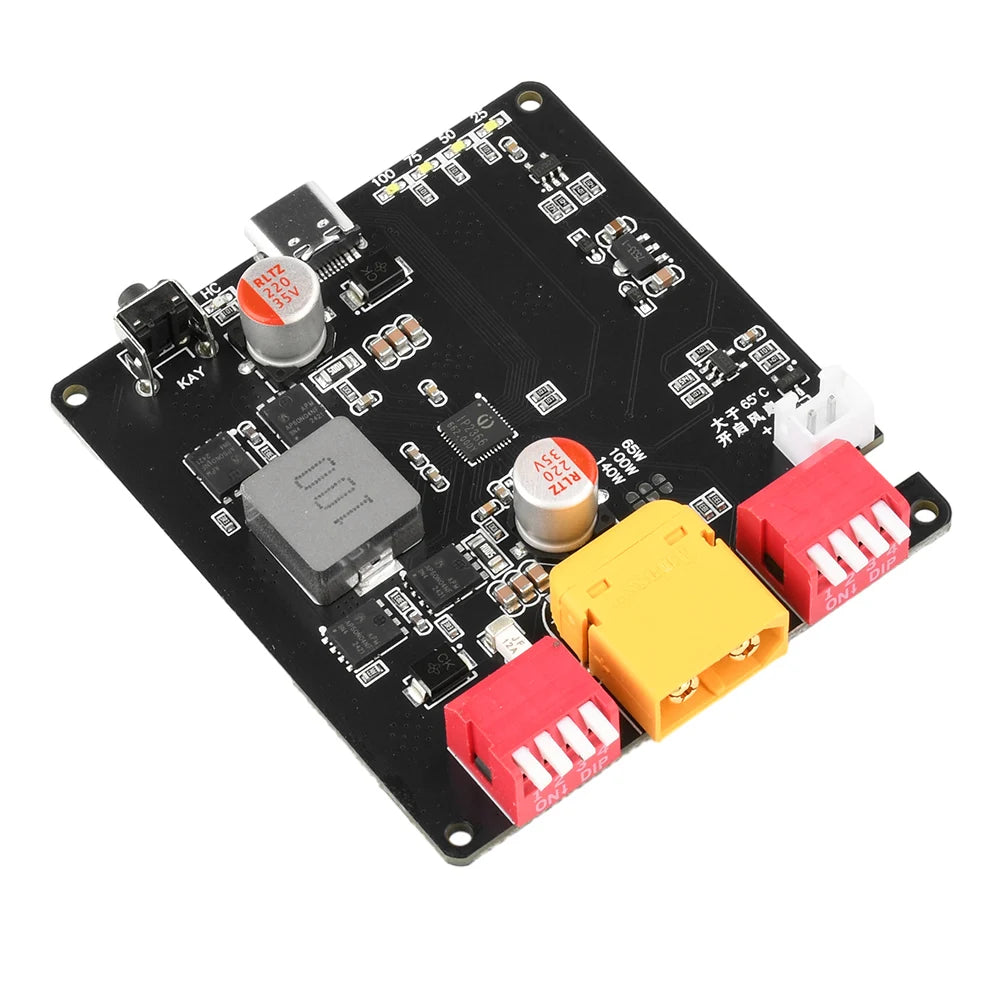

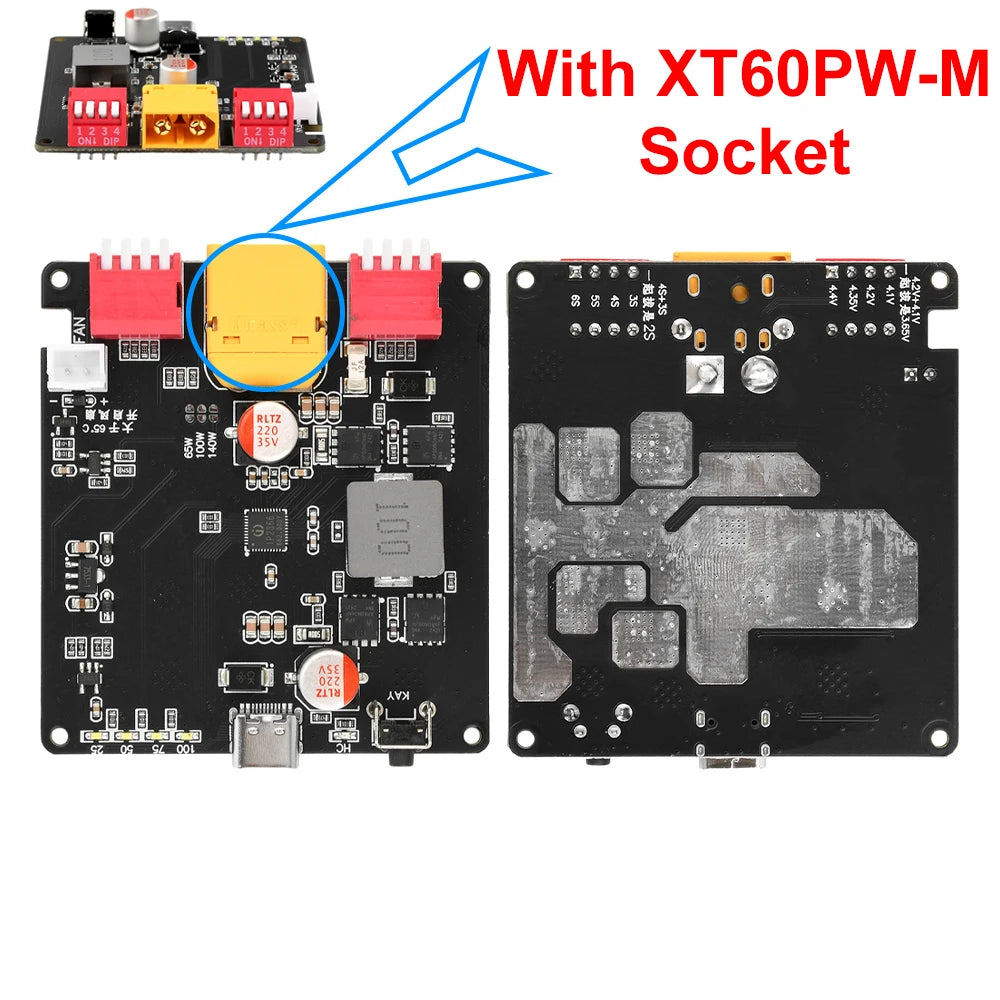

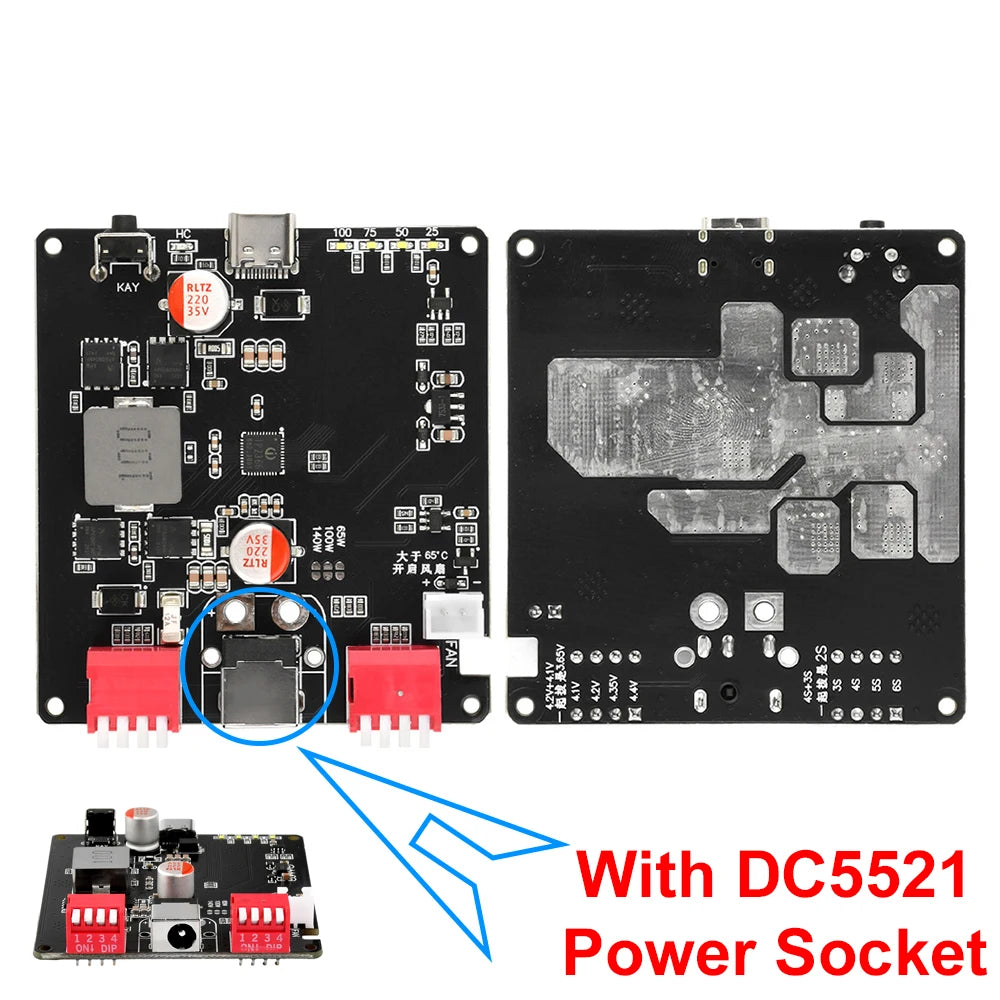

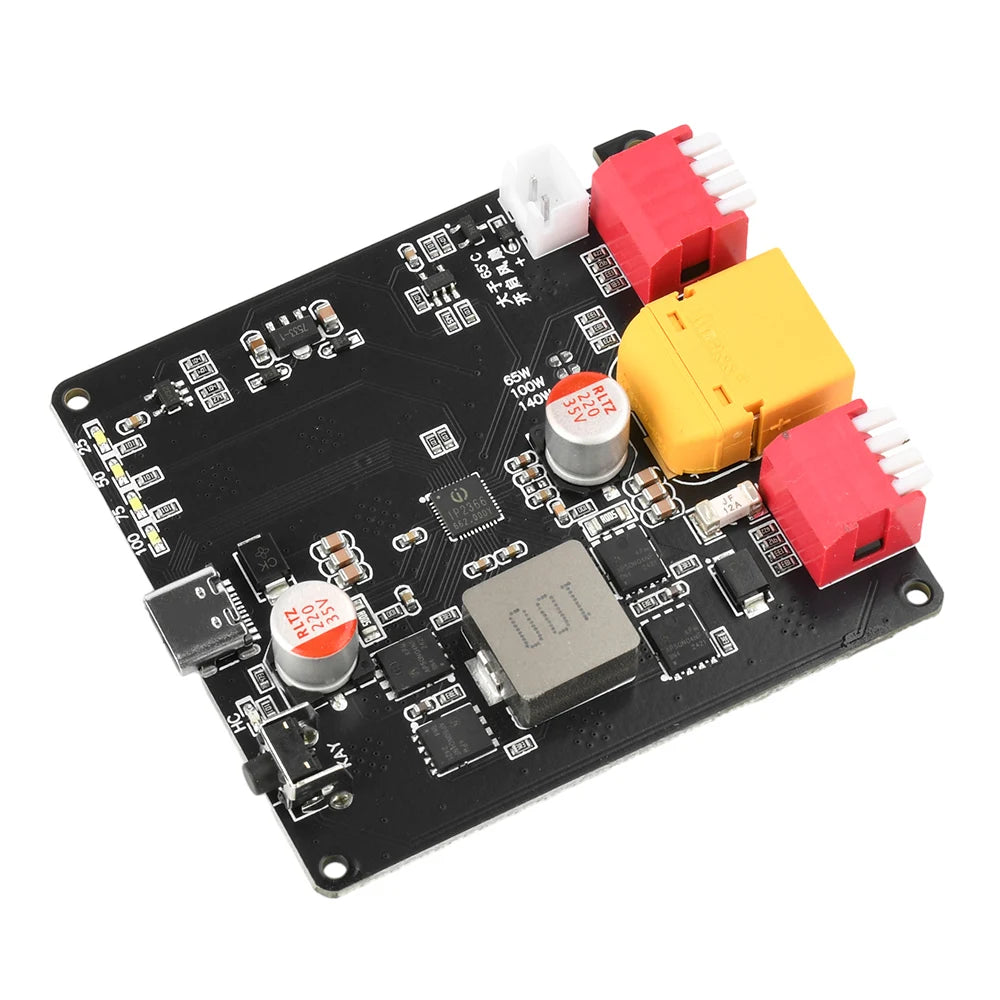

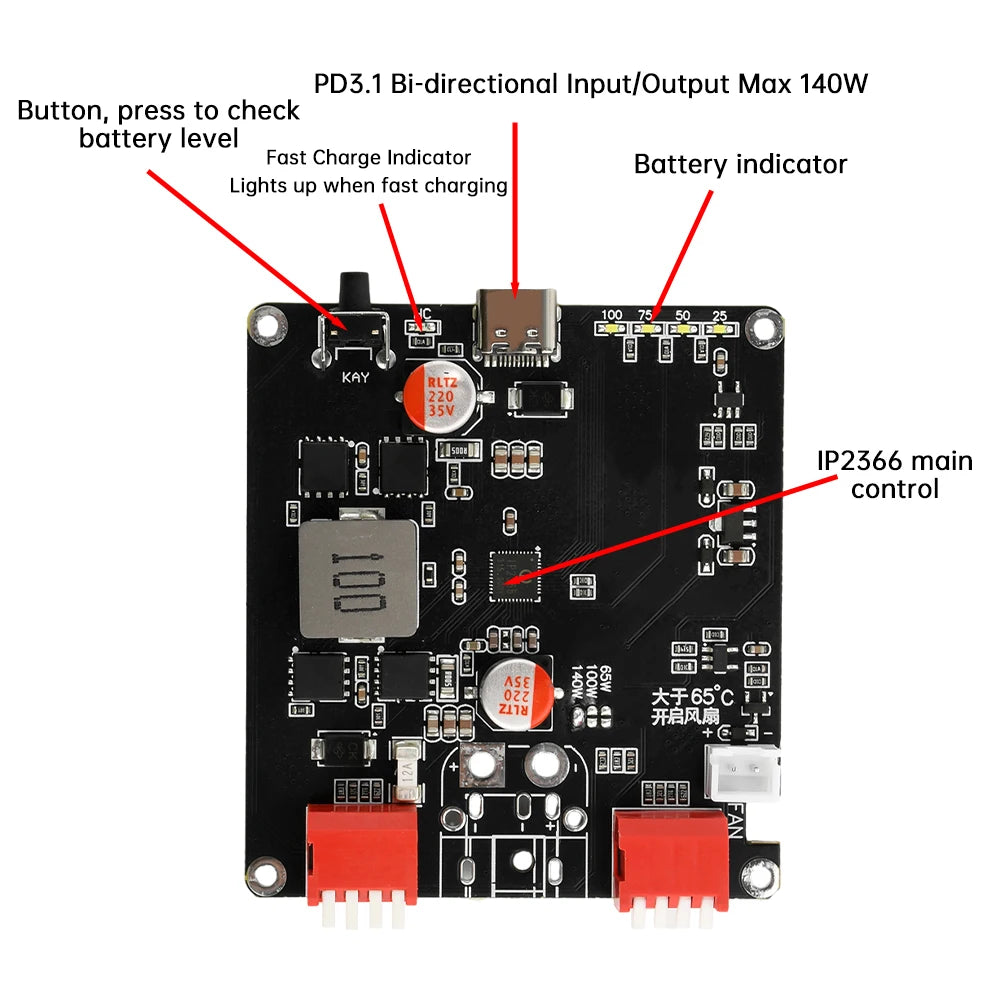

140W 2S 3S 4S 5S 6S Lithium Battery Charging Board Bidirectional Fast Charging Li-ion Lifepo4 BMS Charger Type-C IP2366 PD3.1

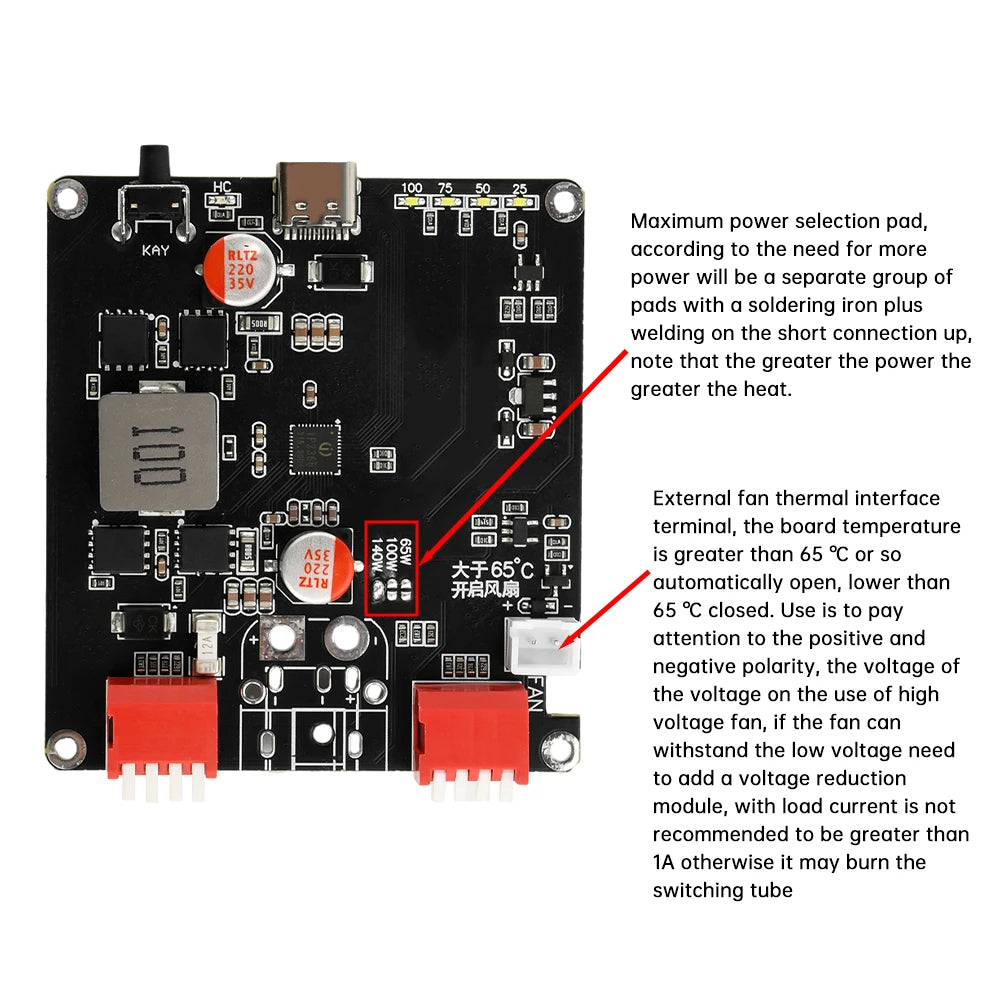

Features:
1.Support 140W high power two-way fast charging, charging and discharging efficiency, saving time
2.Compatible with 2-6S lithium batteries, applicable to a variety of battery configurations, strong flexibility
3. High-efficiency lifting voltage circuit, ensure stable output, adapt to the needs of different equipment
4. Built-in automatic temperature control function, real-time temperature adjustment, to ensure safe and efficient operation.
5. Optimized circuit design, reduce power consumption, improve conversion efficiency and reduce heat generation.

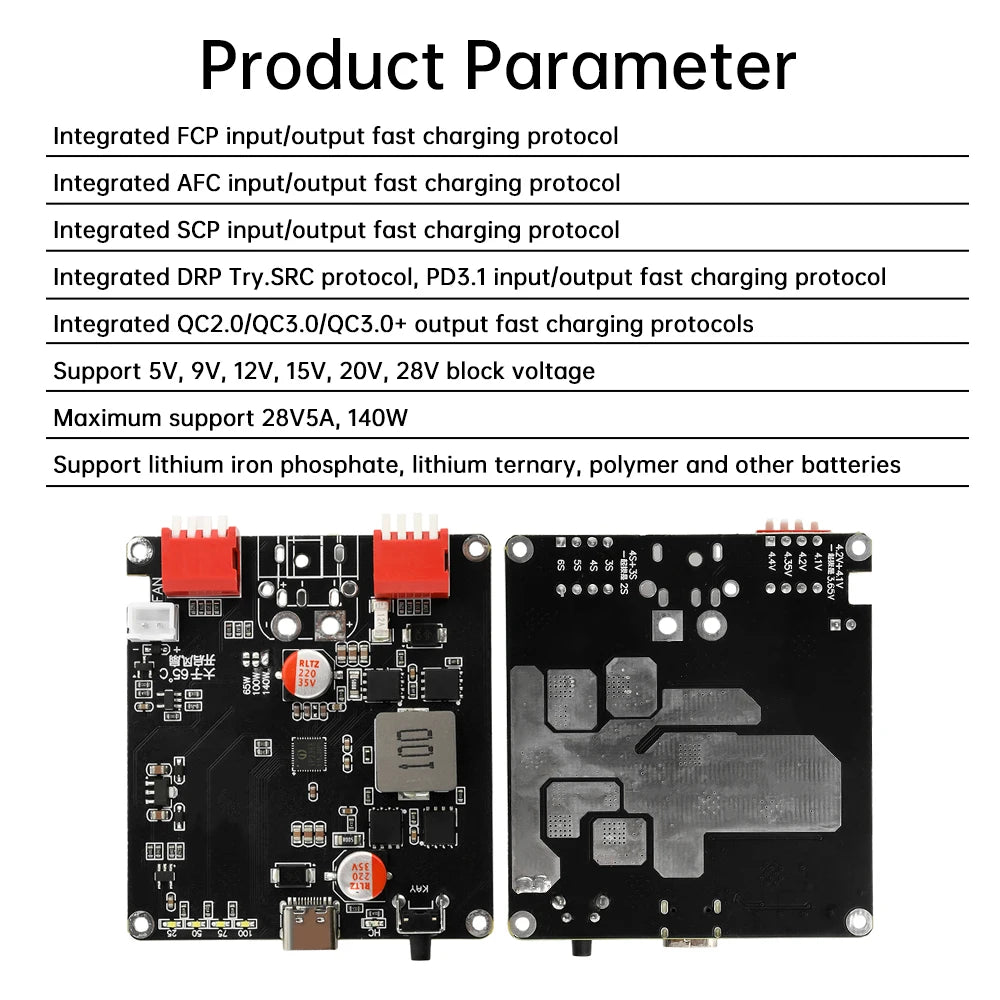

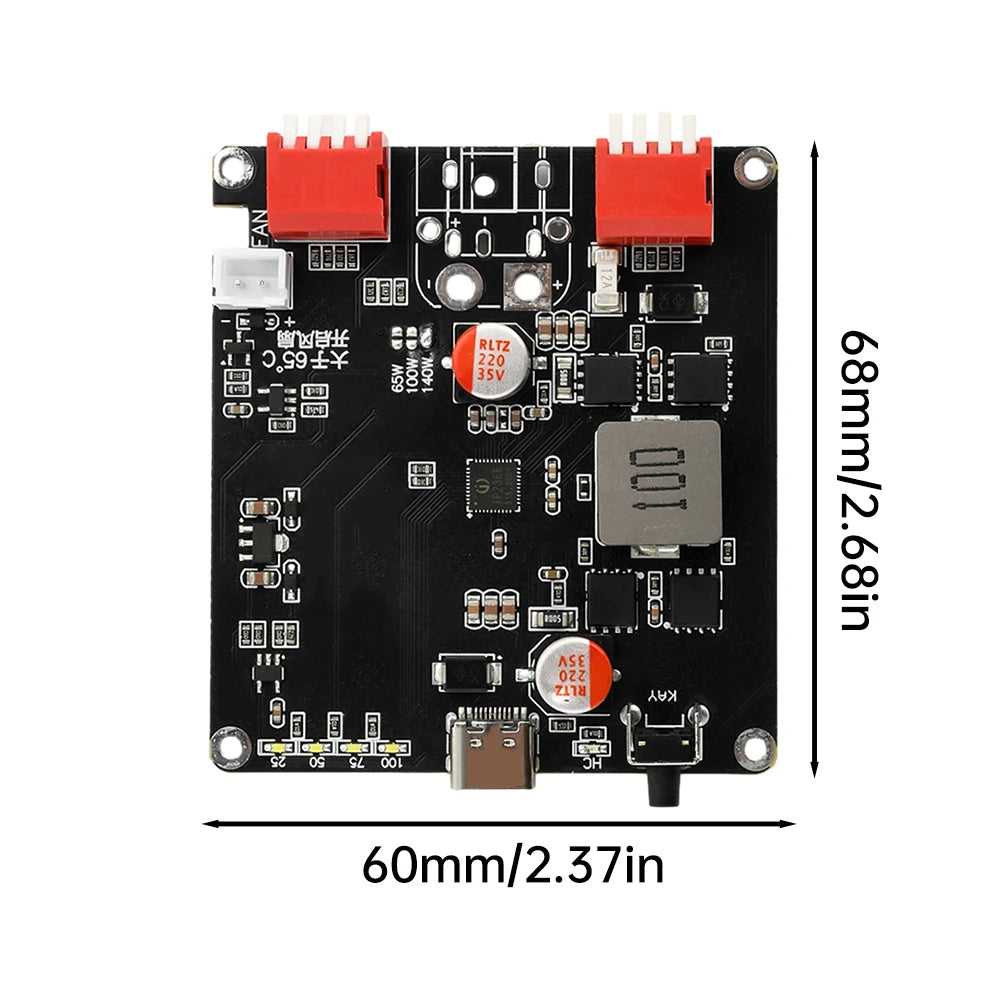

Specifications:
Integrated FCP input and output fast charging protocol
Integrated AFC input/output fast charging protocol
Integrated SCP input/output fast charging protocol
Integrated DRP Try.SRC protocol, PD3.1 input/output fast charging protocol
Integrated QC2.0/QC3.0/QC3.0+ output fast charging protocols
Support 5V, 9V, 12V, 15V, 20V, 28V block voltage
Maximum support 28V5A, 140W
Support lithium iron phosphate, lithium ternary, polymer and other batteries

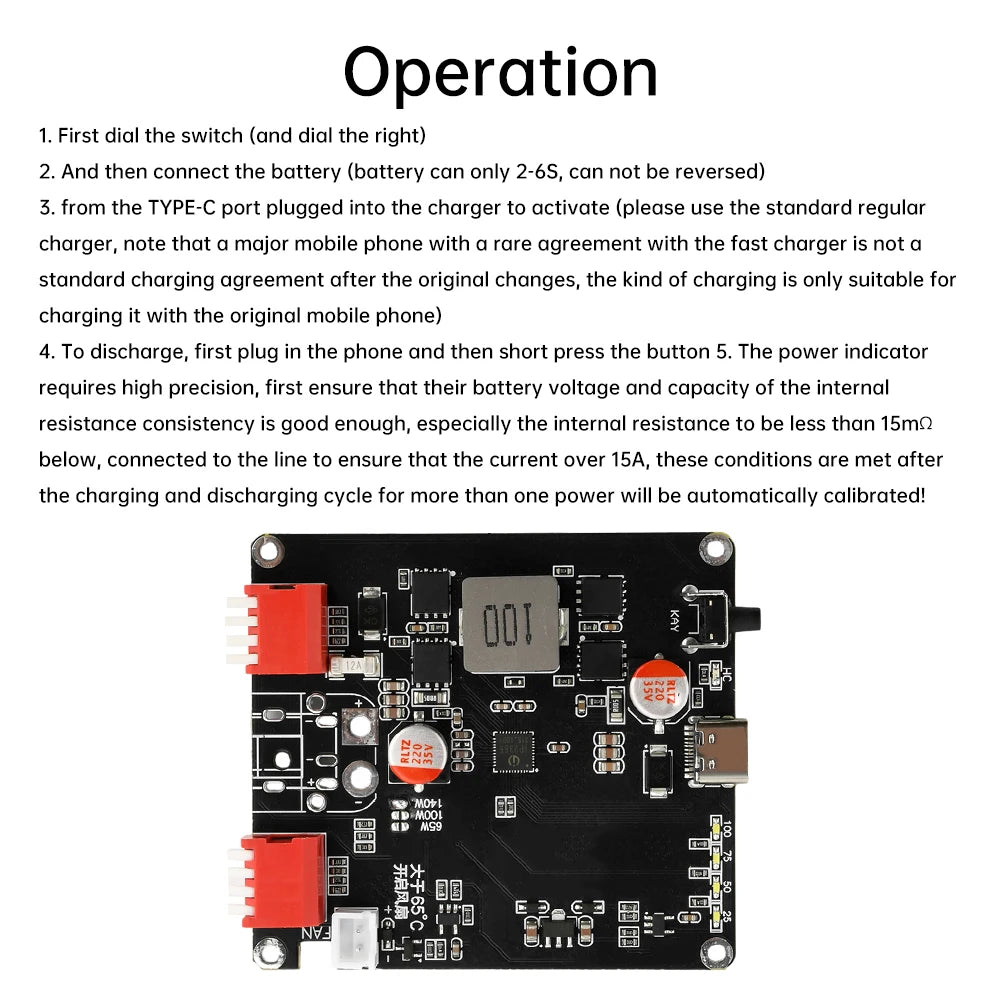

Use operation:
1. First dial the switch (and dial the right)

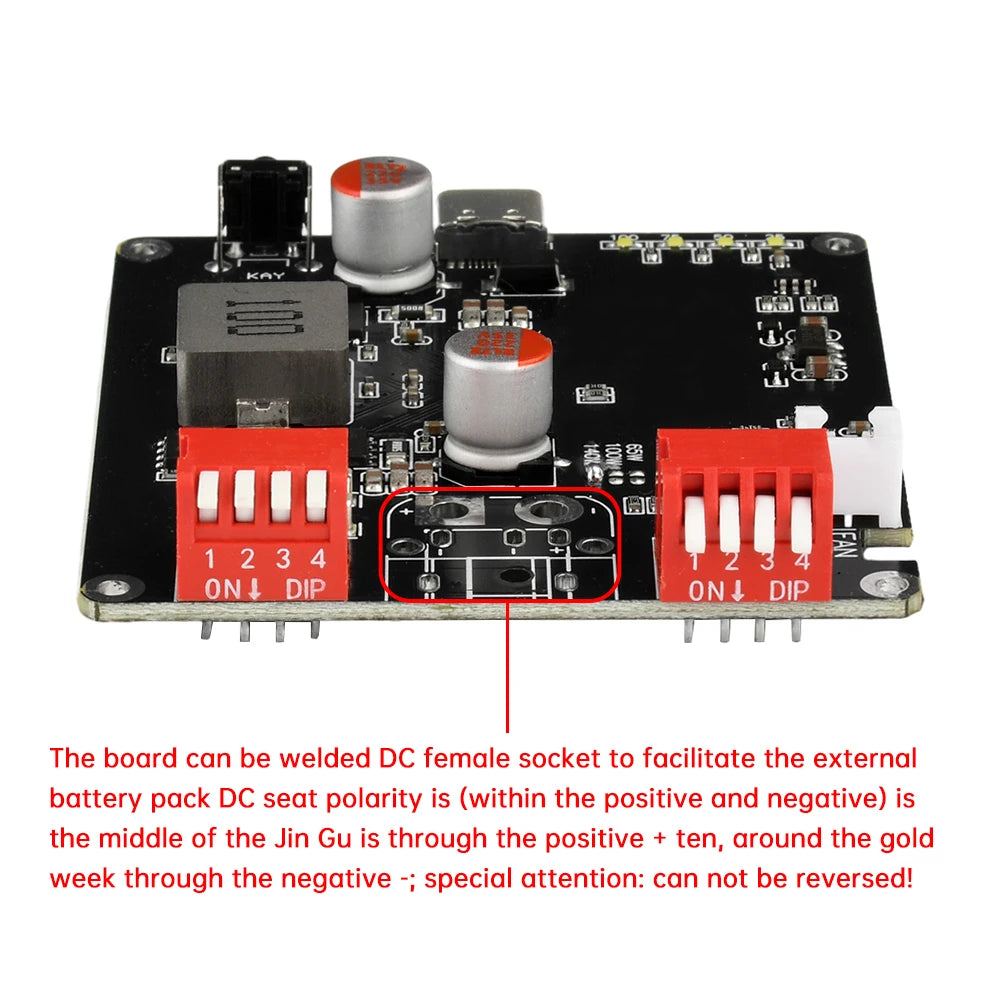

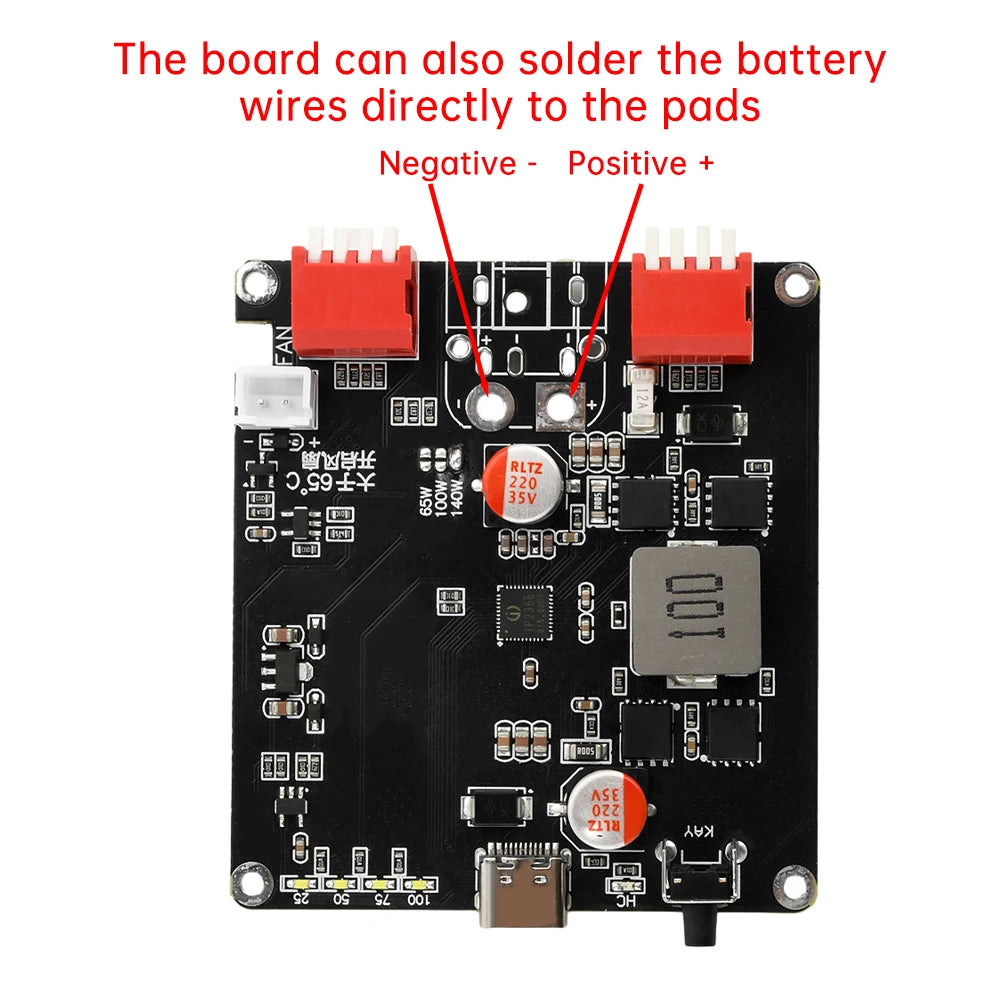

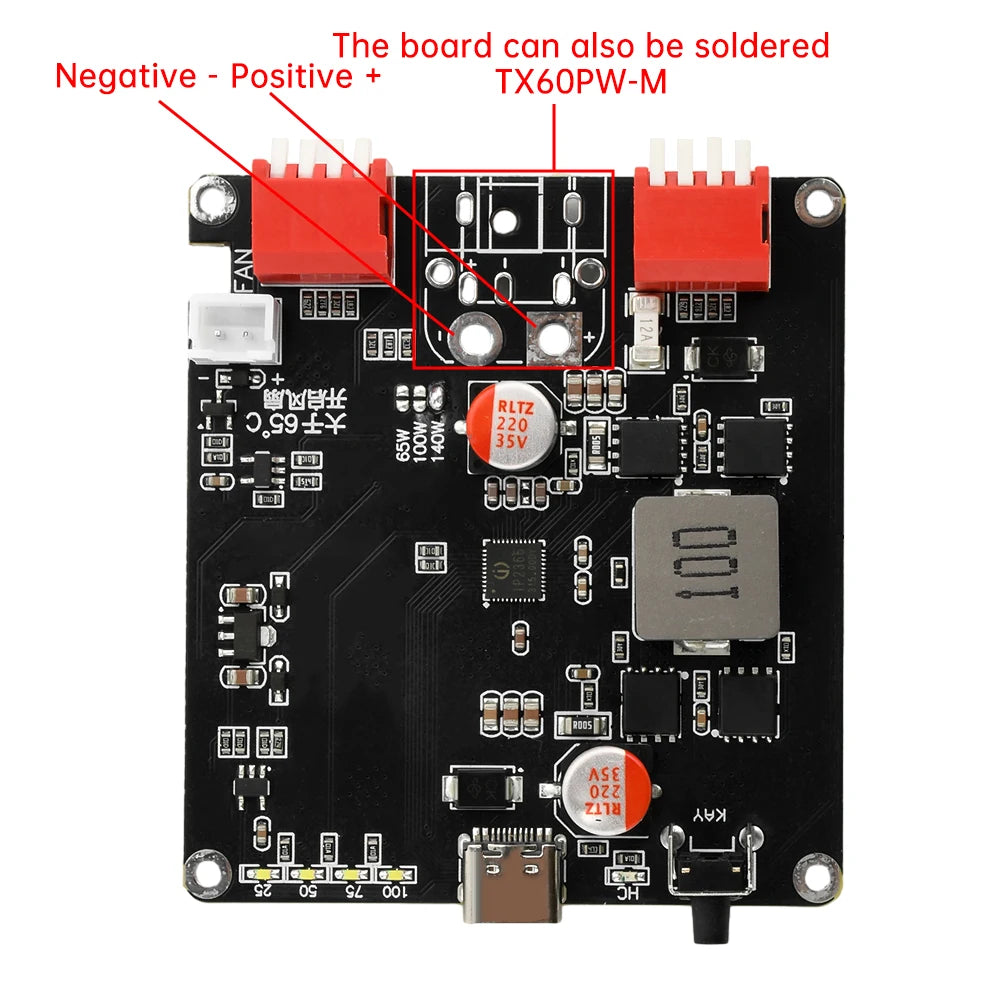

2. Then connect the battery (the battery can only 2-6S, can not be reversed)
3. from the TYPE-C port plugged into the charger to activate (please use the standard regular charger, pay attention to a major brand of cell phones with a rare agreement with the fast-charging charger is modified by the original factory does not belong to the standard charging protocol, the kind of charging is only suitable for the original cell phone it is equipped with)

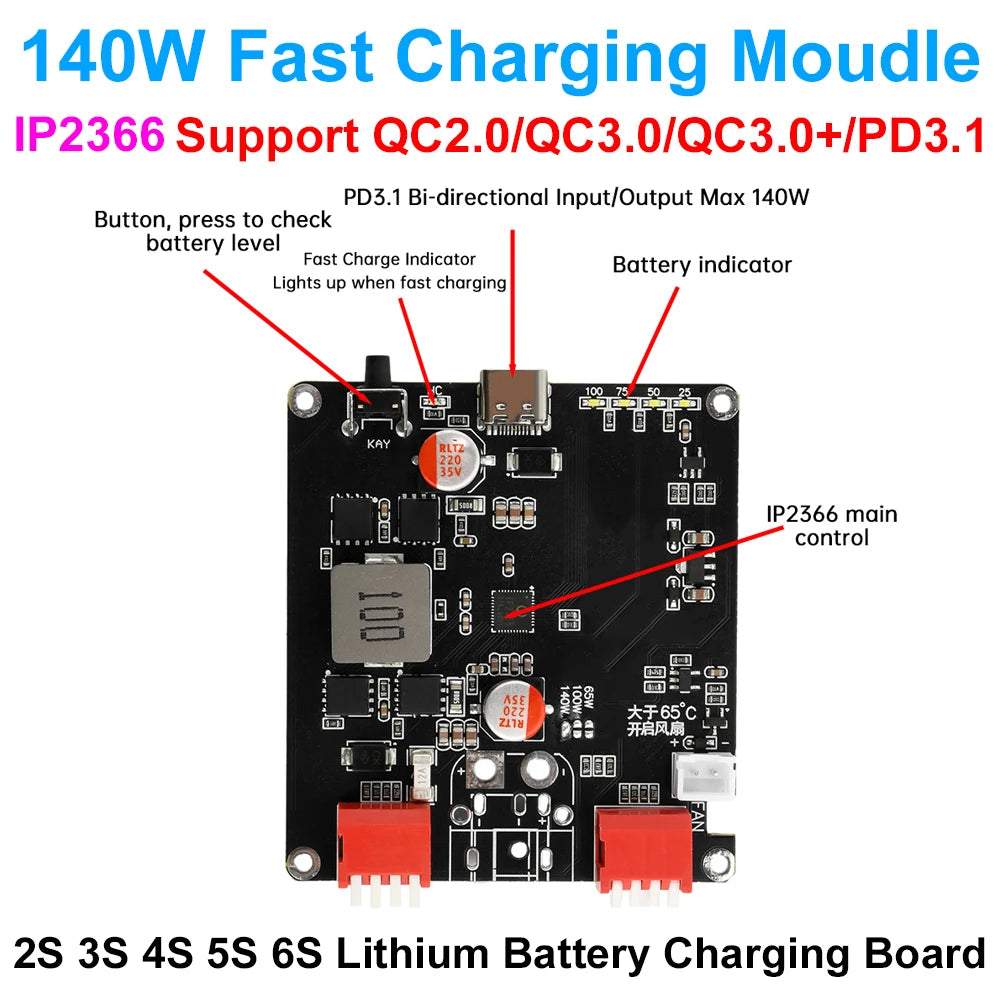

4. To discharge the phone first plugged in and then short press the key
5. If you have high precision requirements for power indication, make sure that your battery voltage and capacity and internal resistance are consistent enough, especially the internal resistance should be less than 15mΩ or less, and make sure that the wires connected to it have more than 15A current, and these conditions are met after charging and discharging cycle for more than one time, and the power will be calibrated automatically.

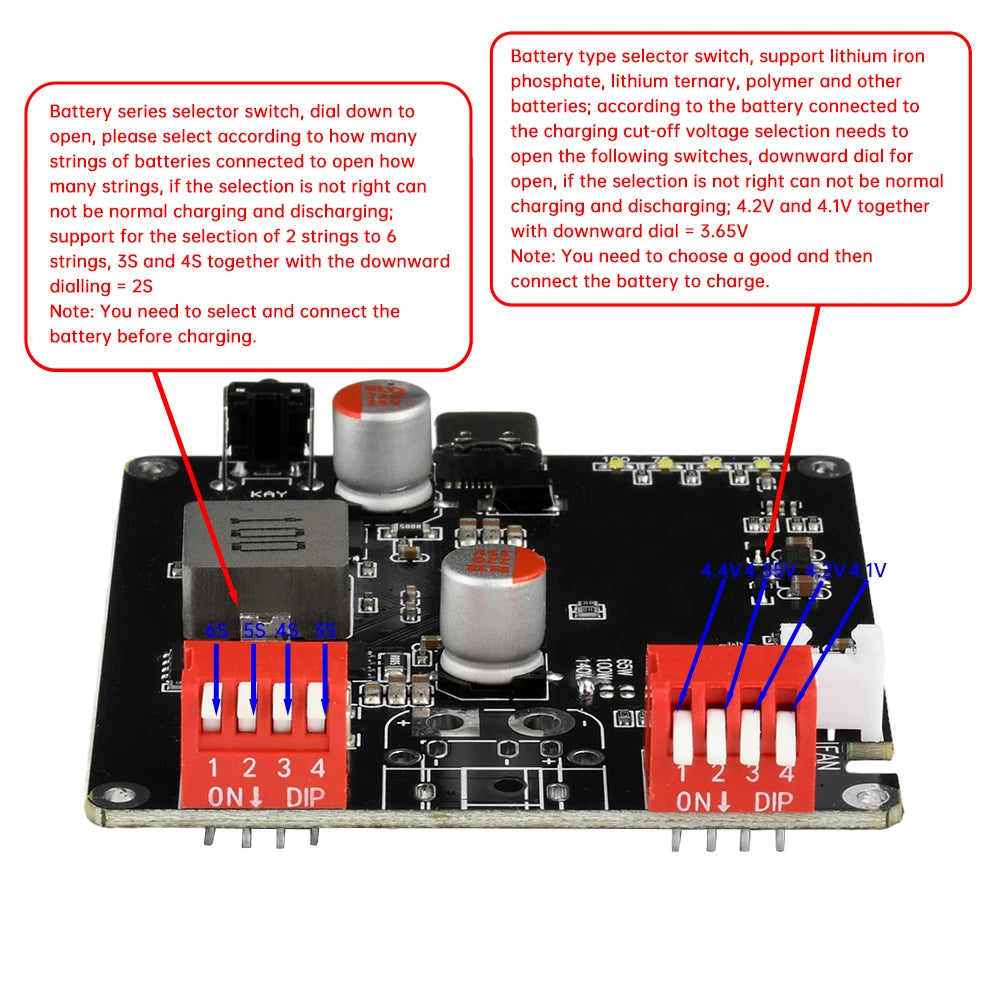

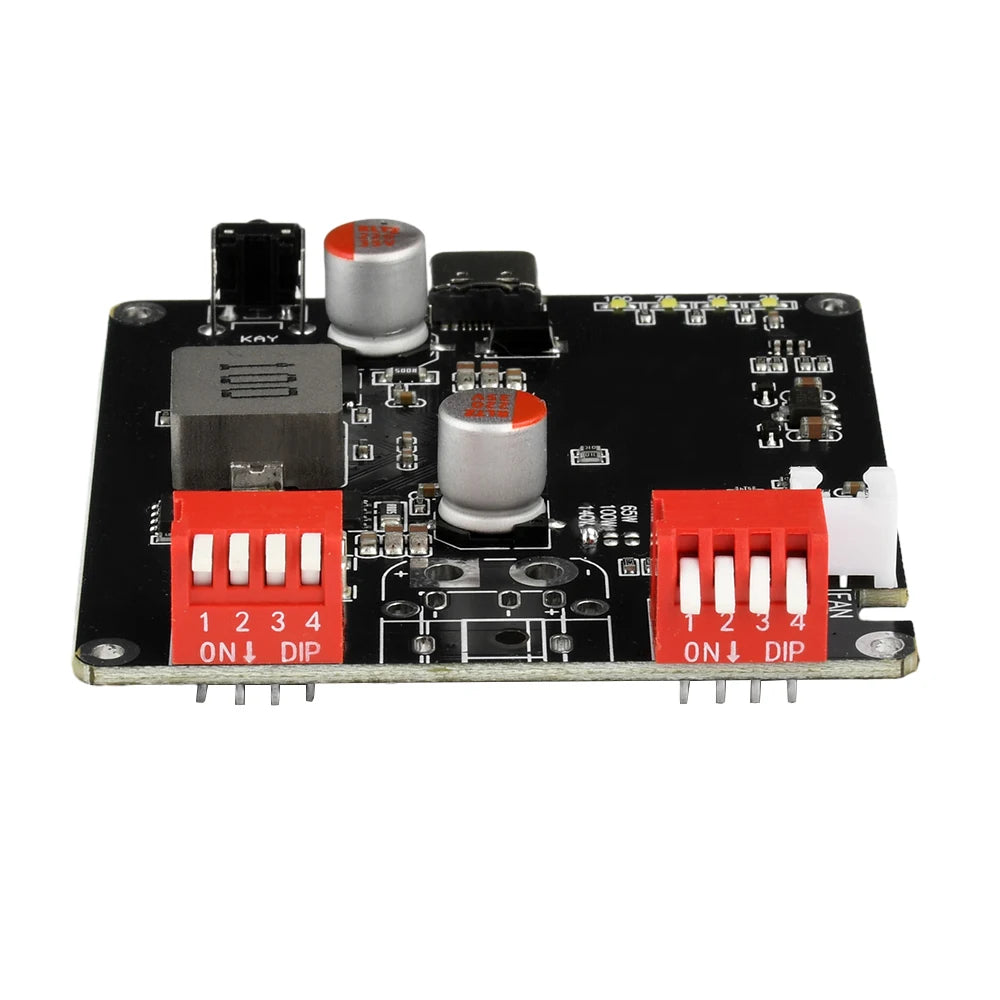

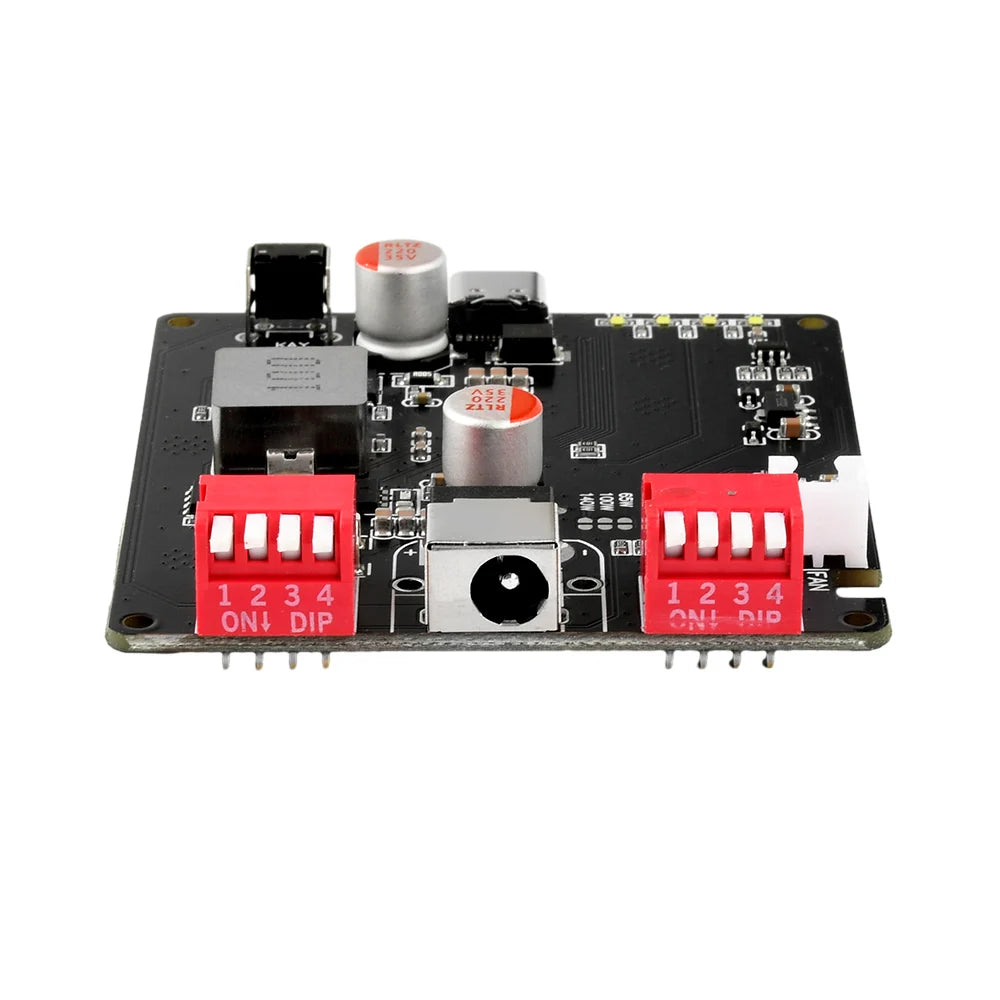

How to choose the switch:
The first step is to confirm that your battery is a few strings? What is the full voltage of a single battery?

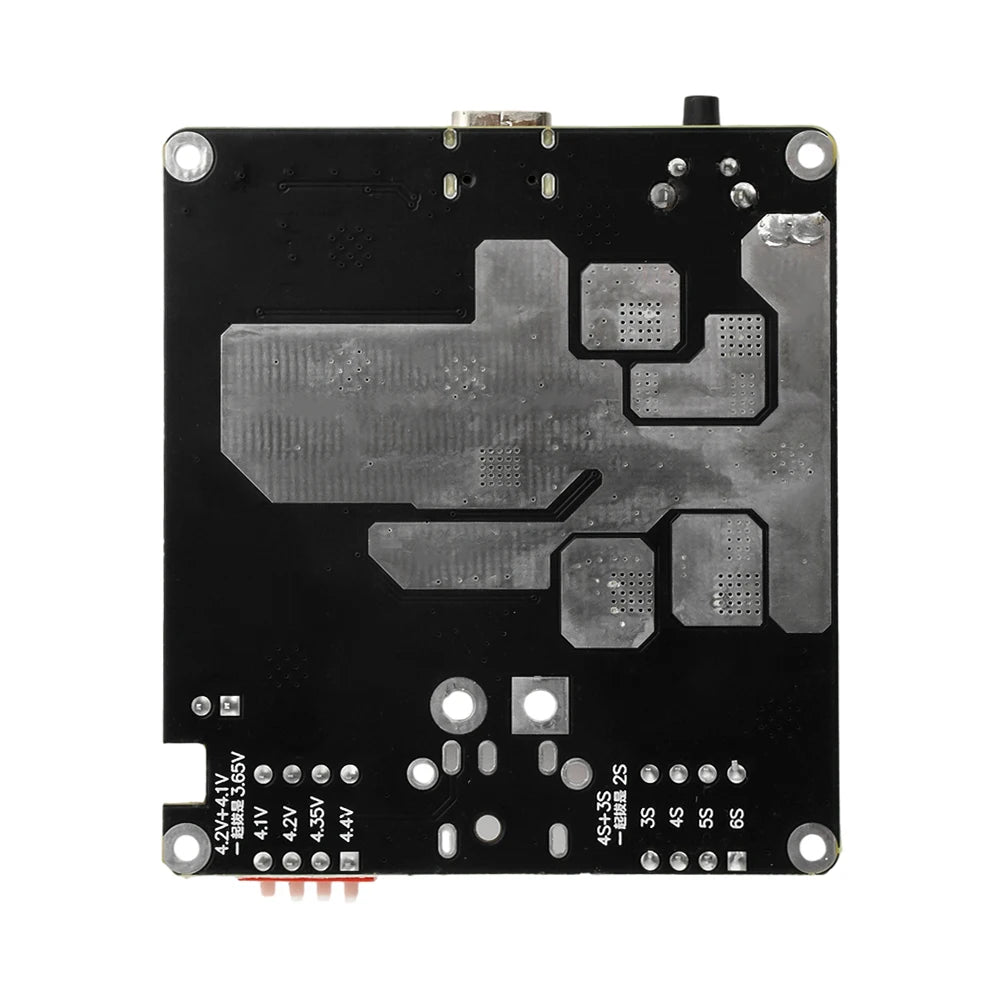

The second step is to look at the circuit board module switch below the corresponding silkscreen instructions, the switch downward dial for open
The third step is toggle the string number switch
1、6S Dial the switch corresponding to 6S.
2, 5S dial 5S corresponding switch
3、4S Dial the switch corresponding to 4S.
4、3S Dial the switch corresponding to 3S.
5、2S need 3S and 4S corresponding to the two switches together.
The fourth step is toggle the voltage switch
1、If the single full charge is 4.4V, dial the switch corresponding to 4.4V.
2、If the single full charge is 4.35V, dial the switch corresponding to 4.35V.
3、Dial the switch corresponding to 4.2V if the full power of single section is 4.2V.
4、Dial the switch corresponding to 4.1V if the full power of single section is 4.1V.
5, a single full charge is 3.65V need to be 4.2V and 4.2V corresponding to the two switches toggled together

What is the reason that the indicator light keeps flashing?
1: The indicator light keeps flashing to indicate an error message.
2: It may be that the switch is not dialed correctly or the voltage is not correct, resulting in the main control recognizes over-voltage or under-voltage, etc. so the indicator light has been flashing.
3: Maybe the output voltage of the plugged-in charger is too high or too low, the voltage deviation of the fast charging gear is too large or the ripple is too large, resulting in the board can not work properly, so the indicator light keeps flashing.

Package Included:

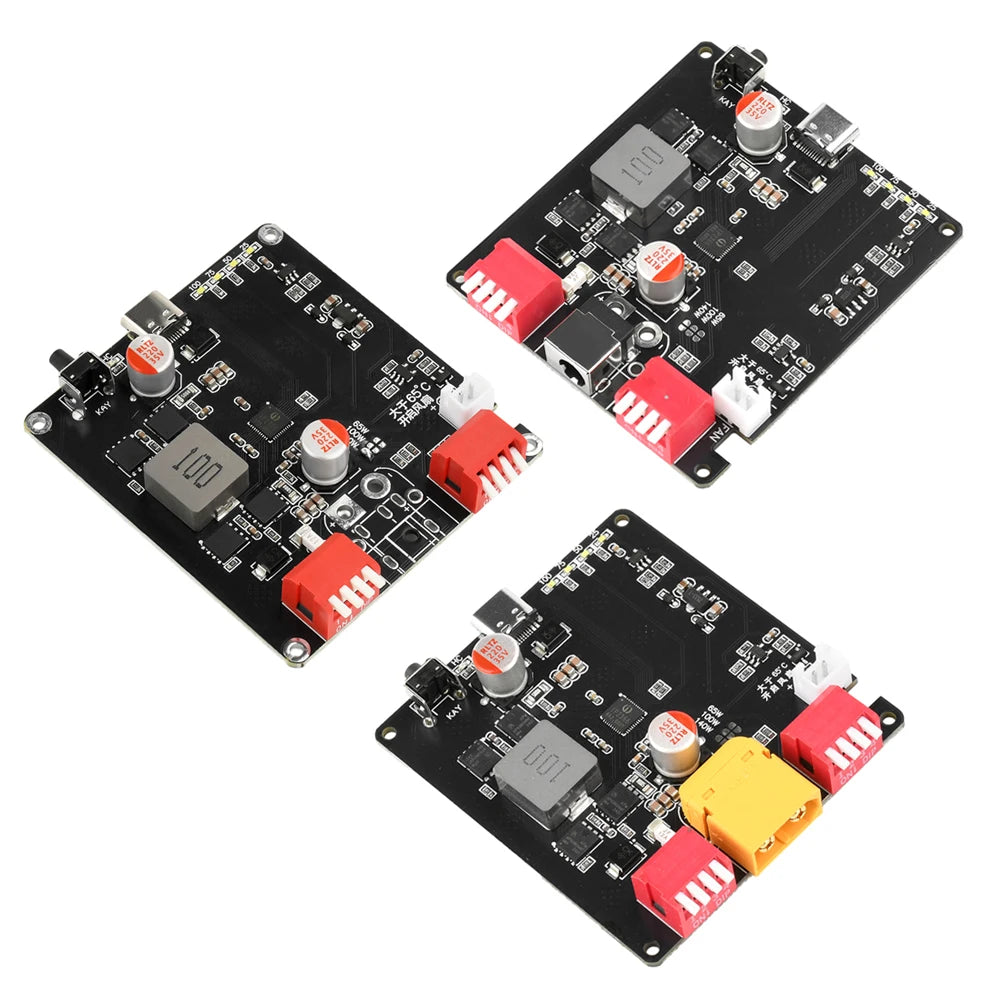

Two-way fast charging module *1 (Style of your choice)
