SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Model Number: HPF Filter RF 144MHz Module high Pass filter

Origin: Mainland China

Package Type: Surface mount

Transfer Function: High Pass

Type: LC Filter

is_customized: Yes

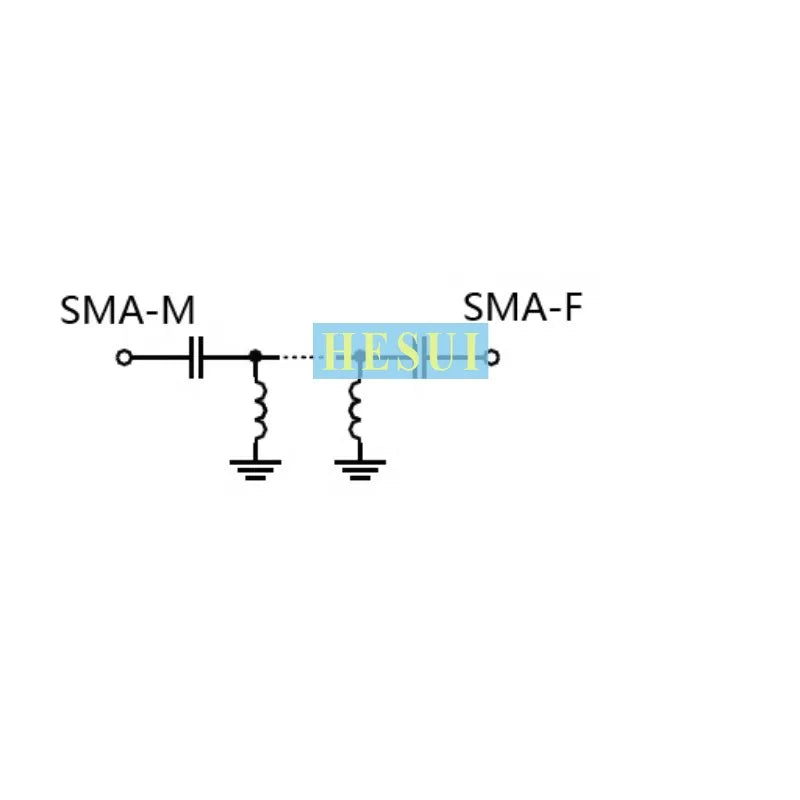

This product is a 9-order series high-pass filter, the passband (@160 ~ 500MHz) insertion loss is less than 1.5dB, stopband (< 110MHz) insertion loss is greater than 40dB, the performance indicators are far better than other products processed using PCB bare board. Small in size and with a robust aluminum shield housing, it can be plugged directly into the antenna system. Powerful filter frequency signals below 140MHz, used for VHF (144MHz), UHF (433 ~ 470MHz) radio, receiver, can effectively suppress the interference of FM and medium and short wave radio stations. We can also design and customize other frequency filters according to customer requirements. (Note: This product is not waterproof, please do waterproof treatment for outdoor applications)

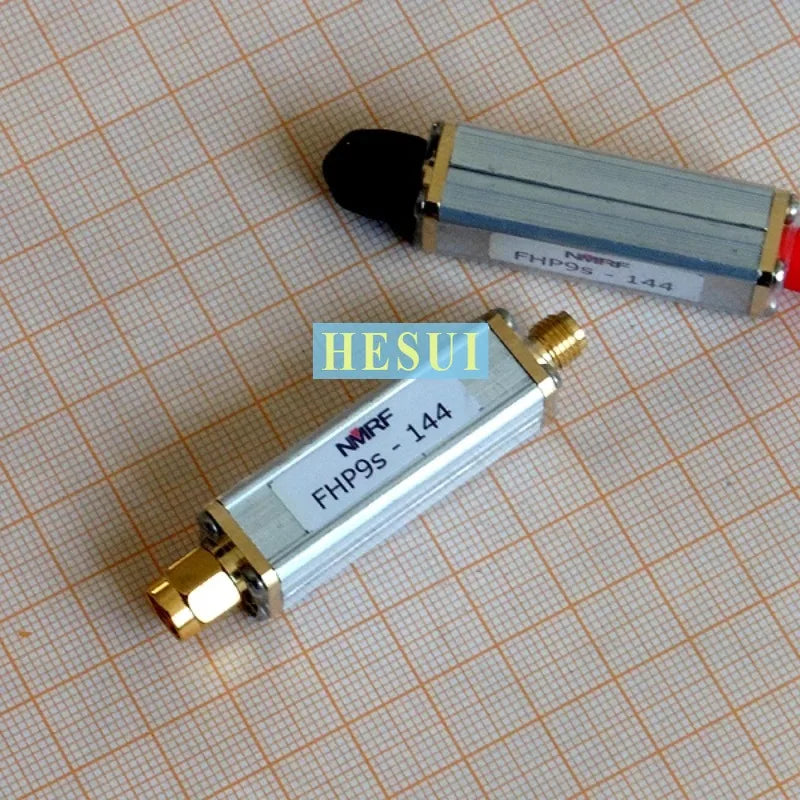

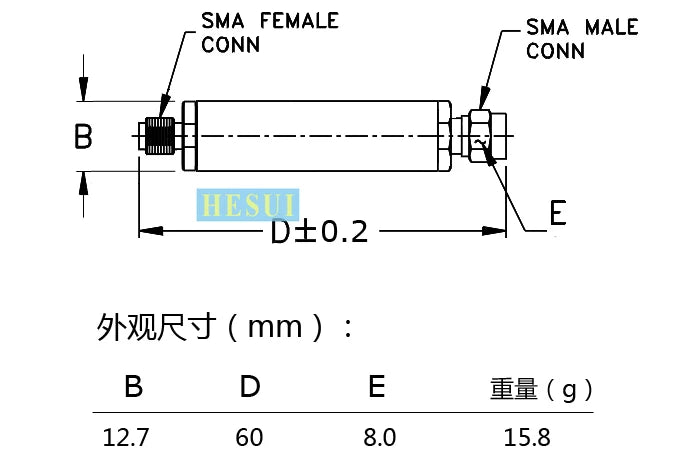

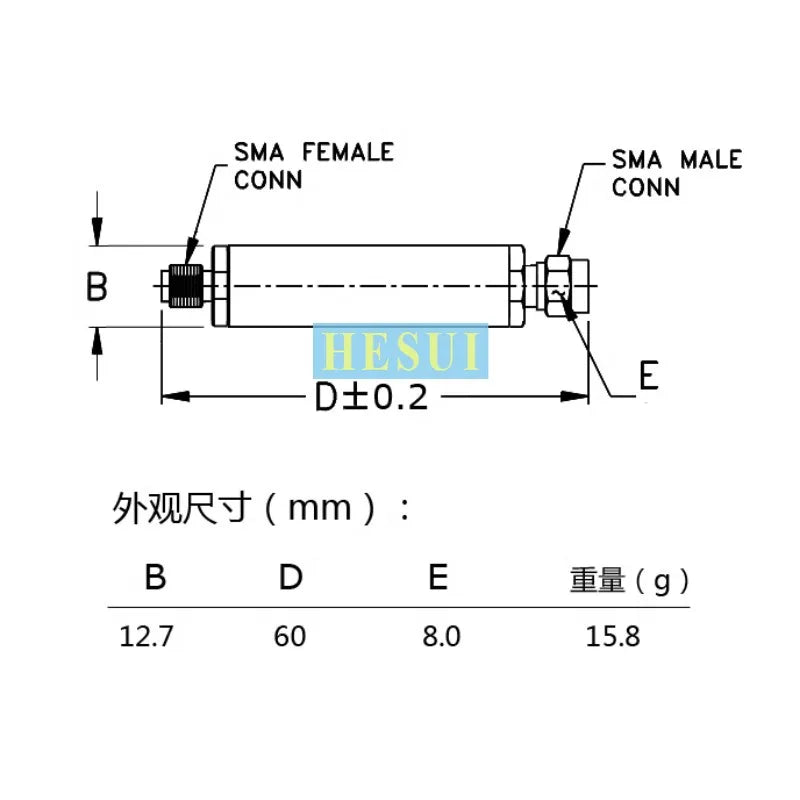

Model: FHP9s-144

Impedance: 50 Ohms

Insertion loss (passband) : < 2.5 dB@144 MHz, < 1.5 dB@160 ~ 500 MHz

Insertion loss (stopband) : >= 40 dB@ <= 100 MHz

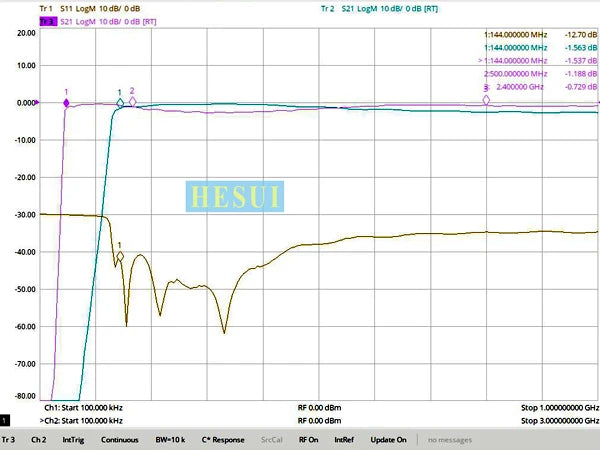

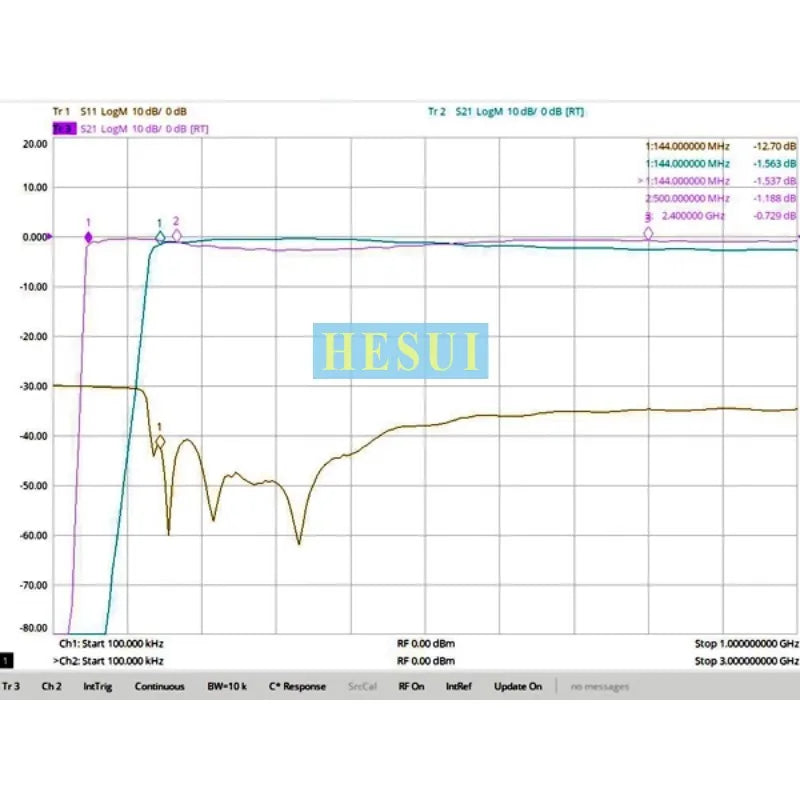

Frequency response diagram (blue line is S21, brown line is S11, sweep frequency range: 0.1-1000MHz; The purple line is S21, sweep frequency range: 0.1-3GHz; Vertical scale is 10dB/div) :
