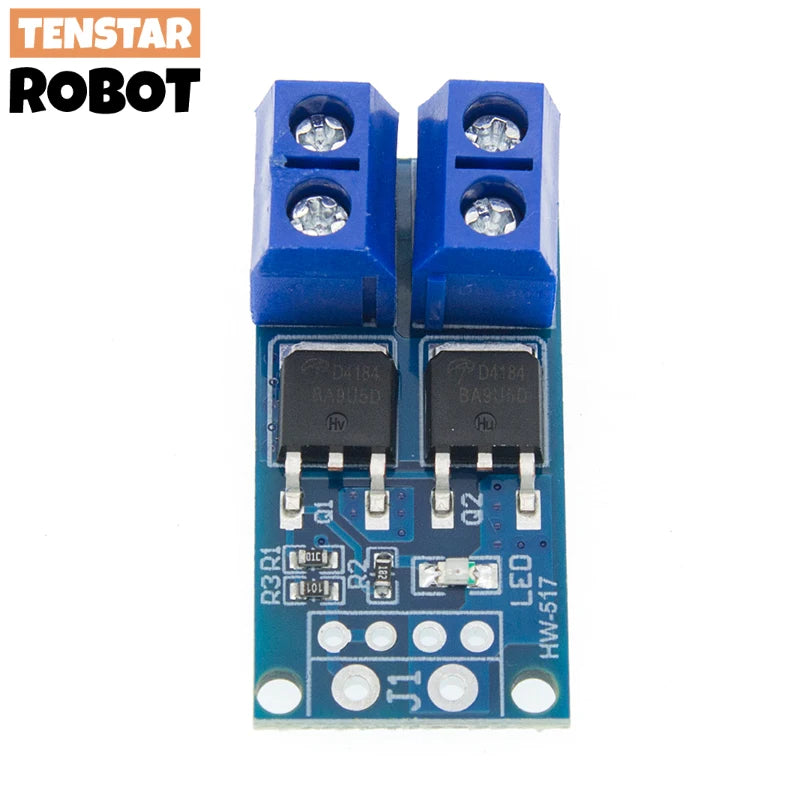

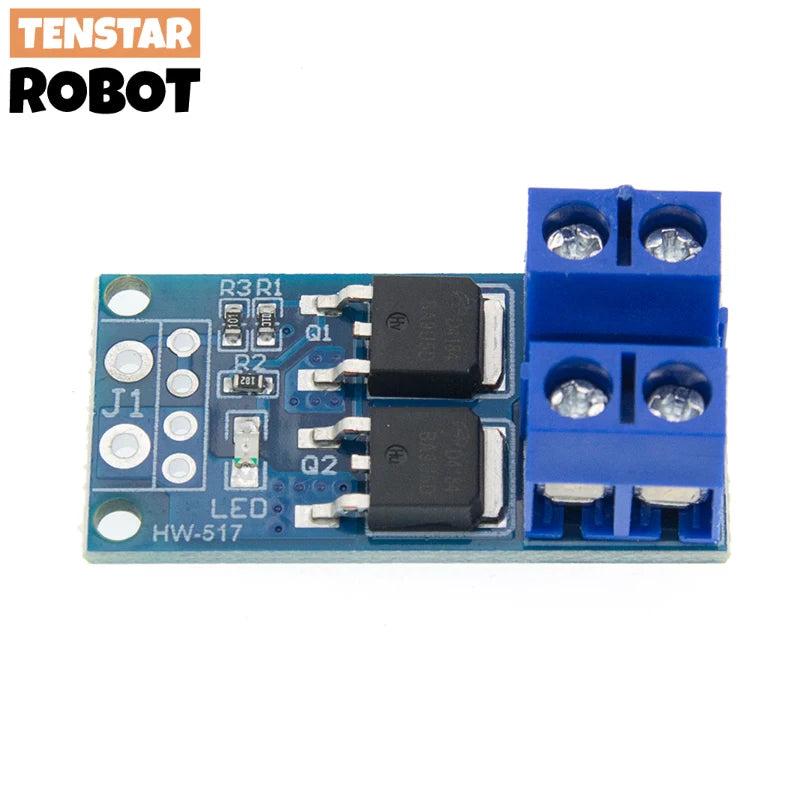

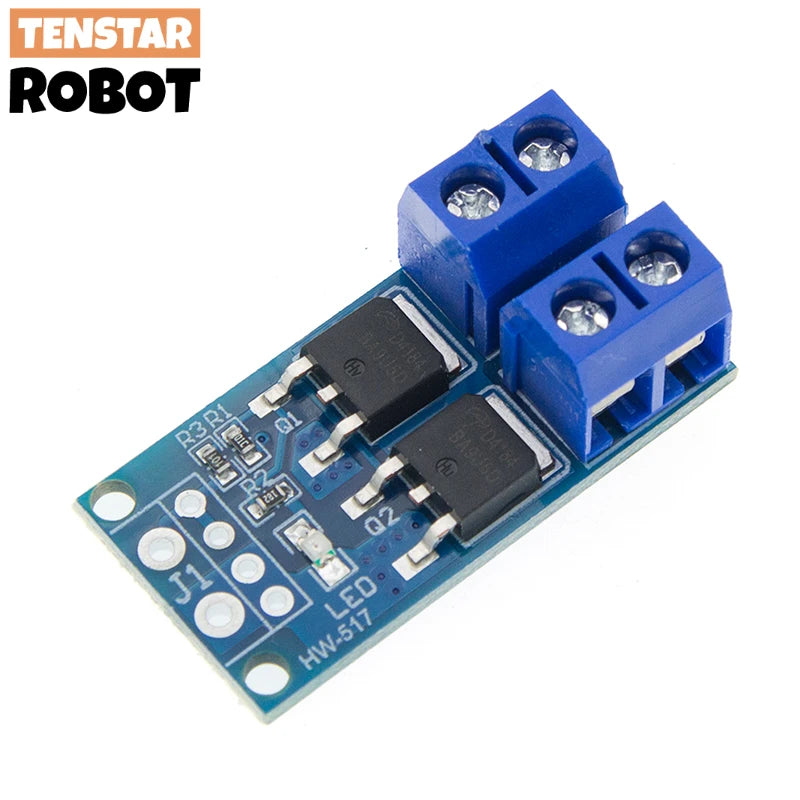

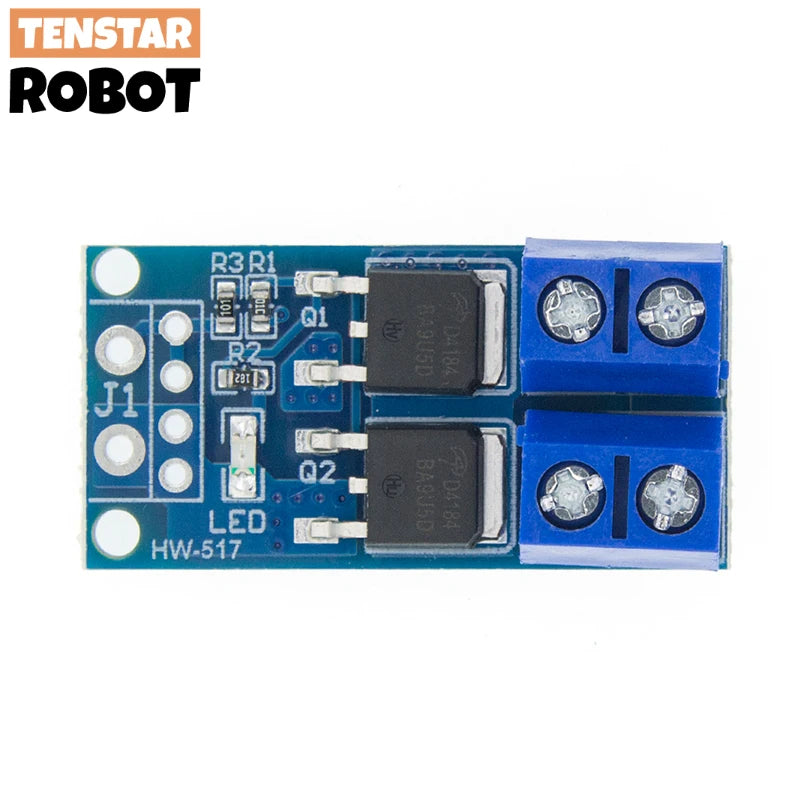

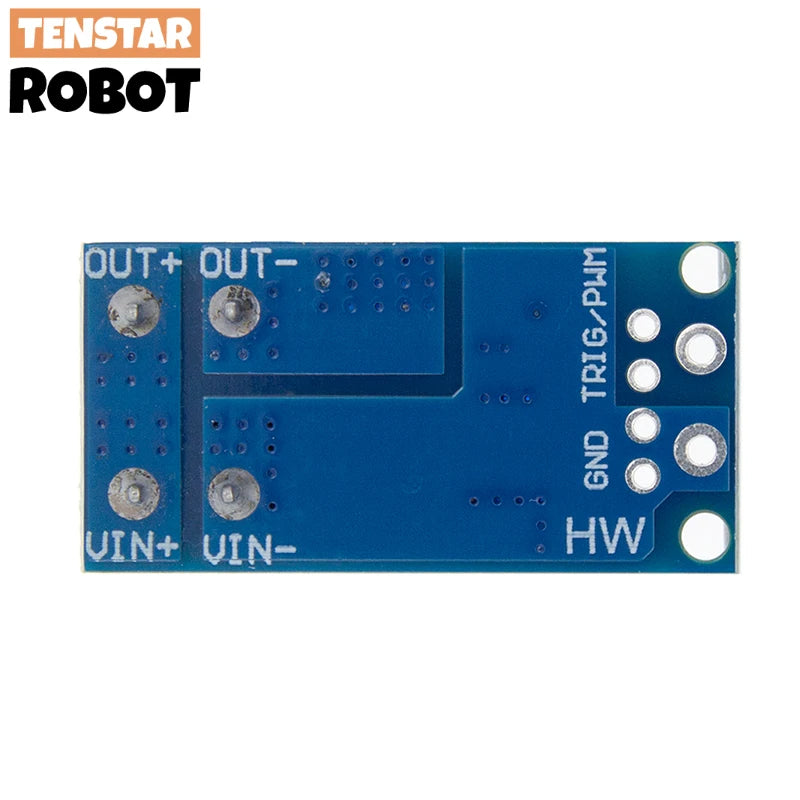

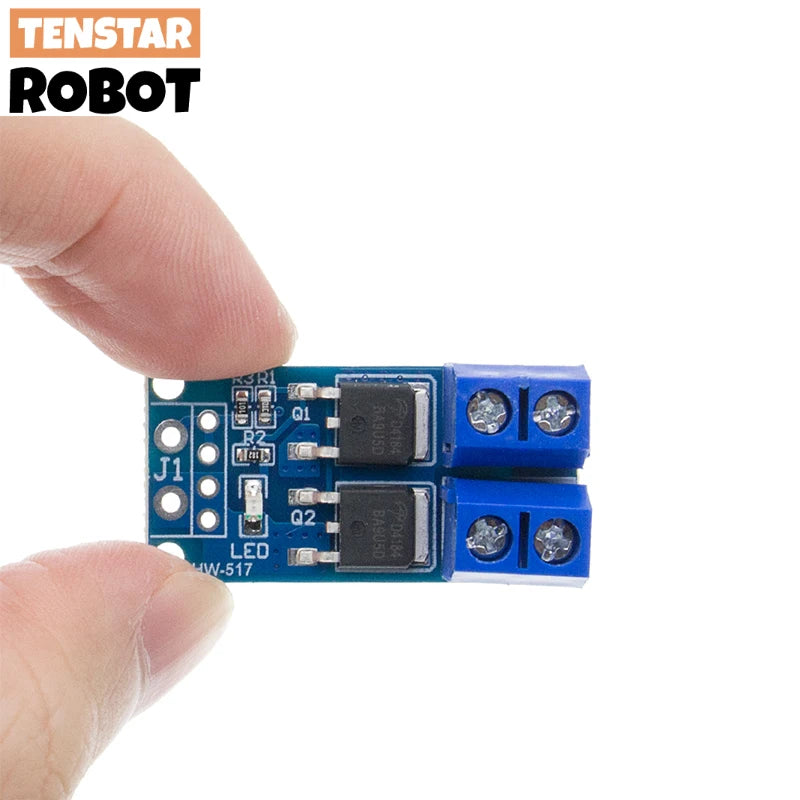

15A 400W MOSFET Trigger Switch Drive Module PWM Regulator Control Panel
MOSFET Trigger
$5.32
Sale price
$5.32
Regular price
$0.00
Skip to product information
15A 400W MOSFET Trigger Switch Drive Module PWM Regulator Control Panel
$5.32
Sale price
$5.32
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: TENSTAR ROBOT
Choice: yes
Condition: New
Dissipation Power: 1
High-concerned chemical: none
Operating Temperature: 1
Origin: Mainland China
Package: SMD
Supply Voltage: 1
Type: Voltage Regulator
is_customized: Yes
Module Highlights:
1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power. At room temperature to provide current of 15A, 400W power;
2. Wide voltage input, support PWM;
3. Easy to control high power devices.
Product specifications and applications:
1. Working voltage: DC 5V - 36V;
2. The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal can be supported frequency range 0--20KHZ.
3. Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W!
4. Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; motor speed control, lamp brightness.
5. life: unlimited-off;
6. Working temperature: -40-85 ℃;
7. Size: 3.4 * 1.7 * 1.2cm.
