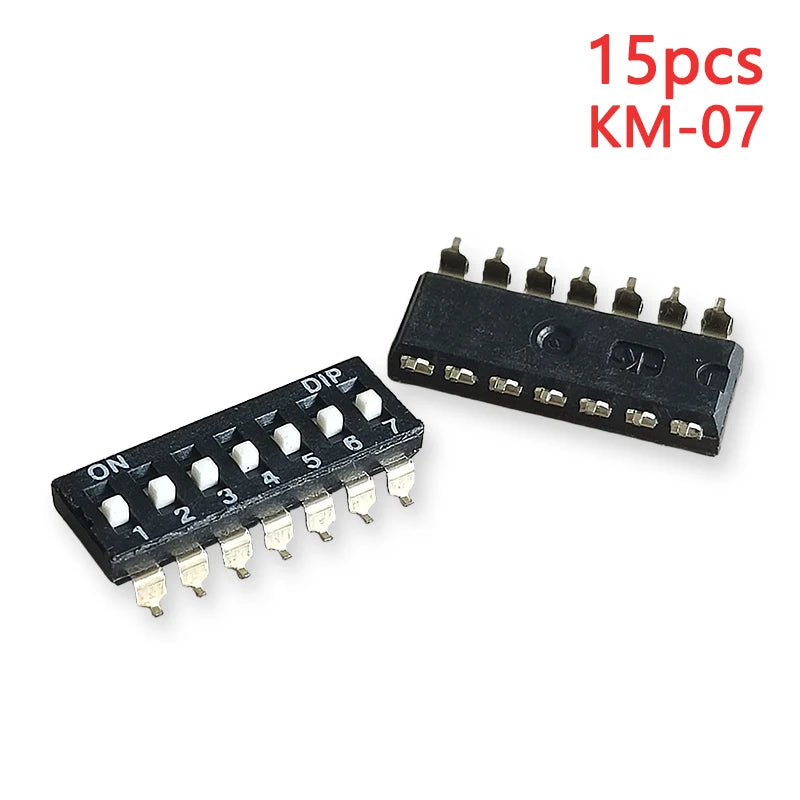

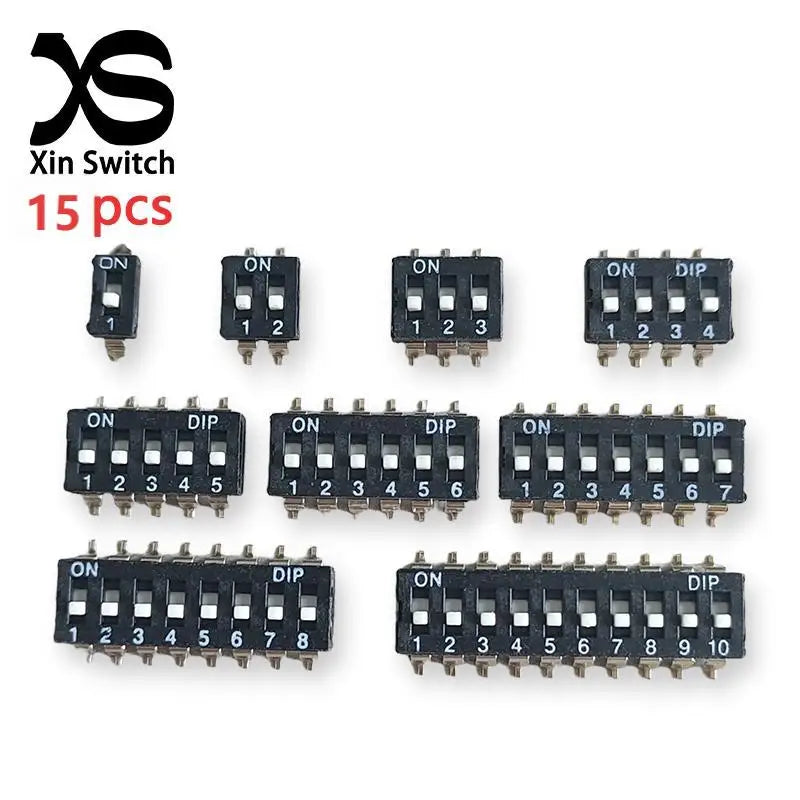

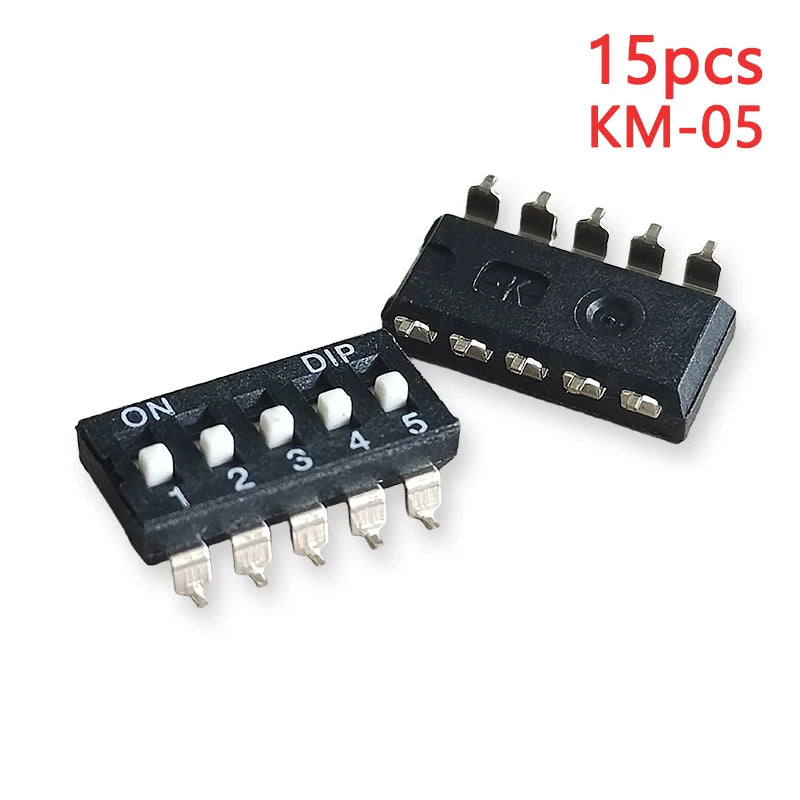

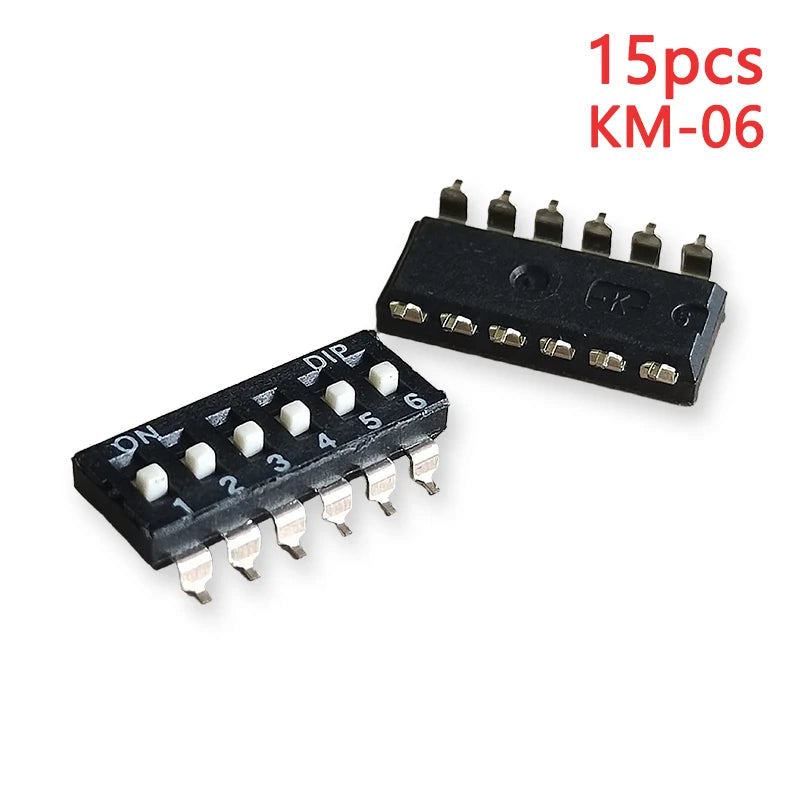

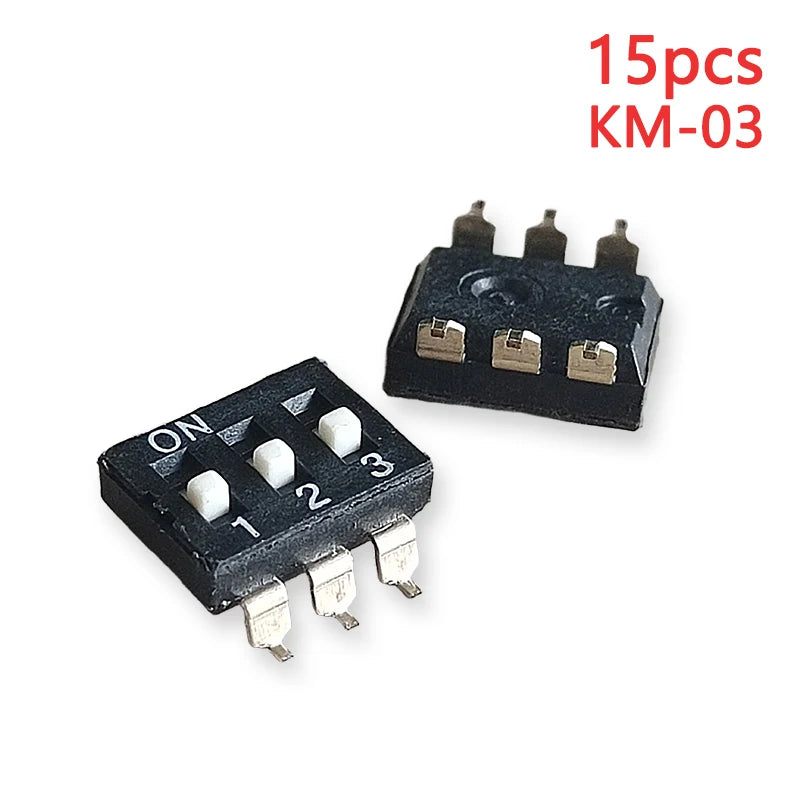

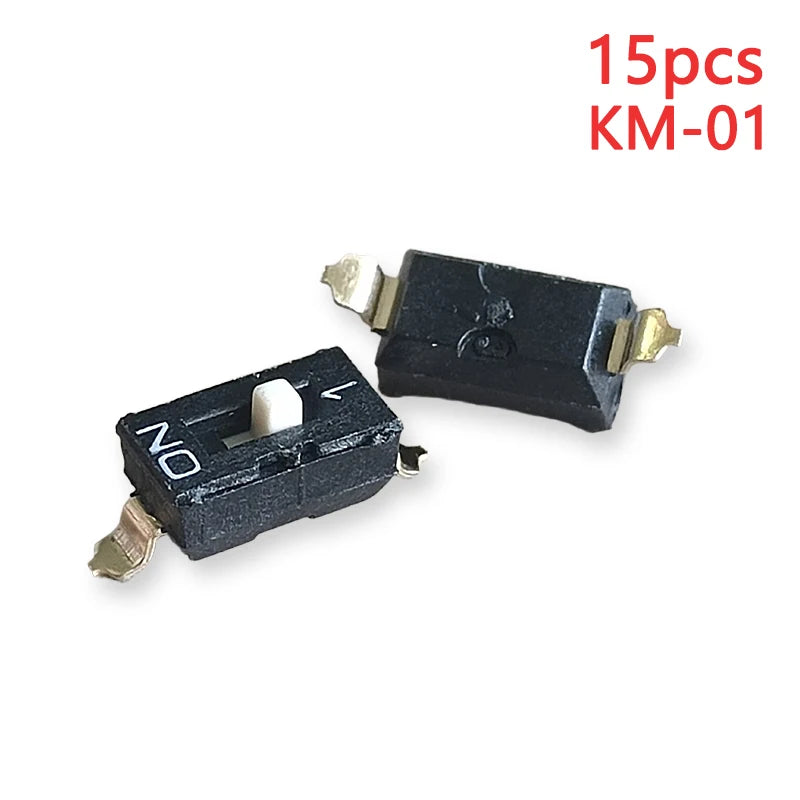

15PCS Black Toggle SMD DIP Switch Module Spacing 2.54MM 24V Patch Type 1 2 3 4 5 6 7 8 10 PIN Quick Dial The Code Switch
K062d065-KM-04 / China Mainland
$25.34
Sale price
$25.34
Regular price
$0.00
Skip to product information
15PCS Black Toggle SMD DIP Switch Module Spacing 2.54MM 24V Patch Type 1 2 3 4 5 6 7 8 10 PIN Quick Dial The Code Switch
$25.34
Sale price
$25.34
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Features: Black Patch Type DIP Switch
High-concerned chemical: none
Is Smart Device: no
Item Type: SWITCHES
Material: Copper
Model Number: Spacing 2.54MM Toggle SMD DIP Switch
Name1: 20PCS Switch
Name2: Black Toggle Switch
Name3: DIP Switch
Name4: Spacing 2.54MM Switch
Name5: 24V Switch
Name6: SMD Switch
Name7: Module Switch
Name8: 1-10 pin Switch
Name9: Quick Dial The Code Switch
Origin: Mainland China
Switch Type: Toggle Switch
Warranty: 50000 times
semi_Choice: yes

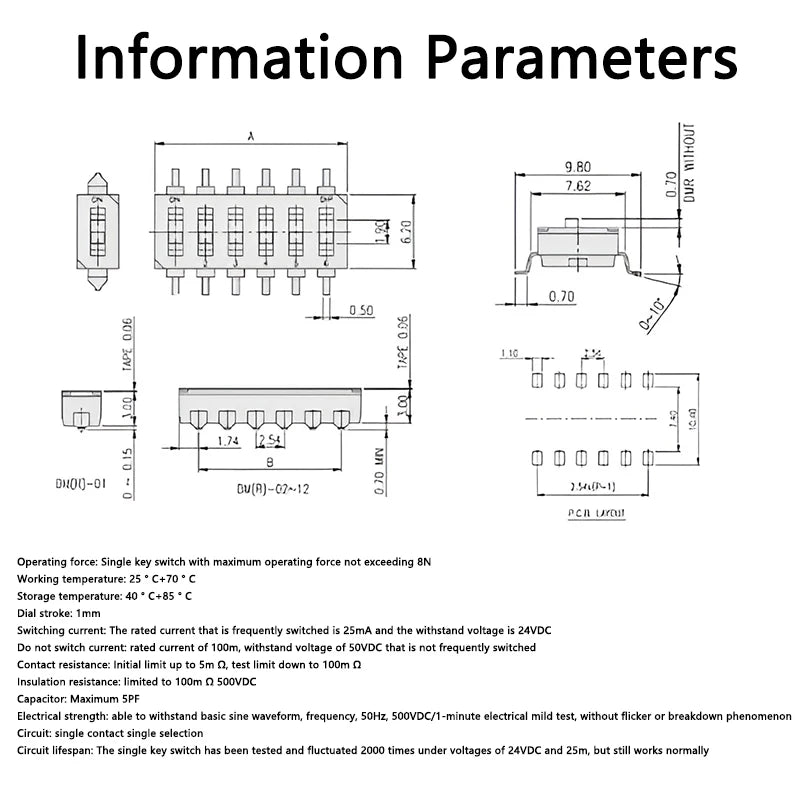

Main Technical Specifications Of Black Patch Type DIP Switch
Operating force: Single key switch with maximum operating force not exceeding 8N
Working temperature: 25 ° C+70 ° C
Storage temperature: 40 ° C+85 ° C
Dial stroke: 1mm
Switching current: The rated current that is frequently switched is 25mA and the withstand voltage is 24VDC
Do not switch current: rated current of 100m, withstand voltage of 50VDC that is not frequently switched
Contact resistance: Initial limit up to 5m Ω, test limit down to 100m Ω
Insulation resistance: limited to 100m Ω 500VDC
Capacitor: Maximum 5PF
Electrical strength: able to withstand basic sine waveform, frequency, 50Hz, 500VDC/1-minute electrical mild test, without flicker or breakdown phenomenon
Circuit: single contact single selection
Circuit lifespan: The single key switch has been tested and fluctuated 2000 times under voltages of 24VDC and 25m, but still works normally

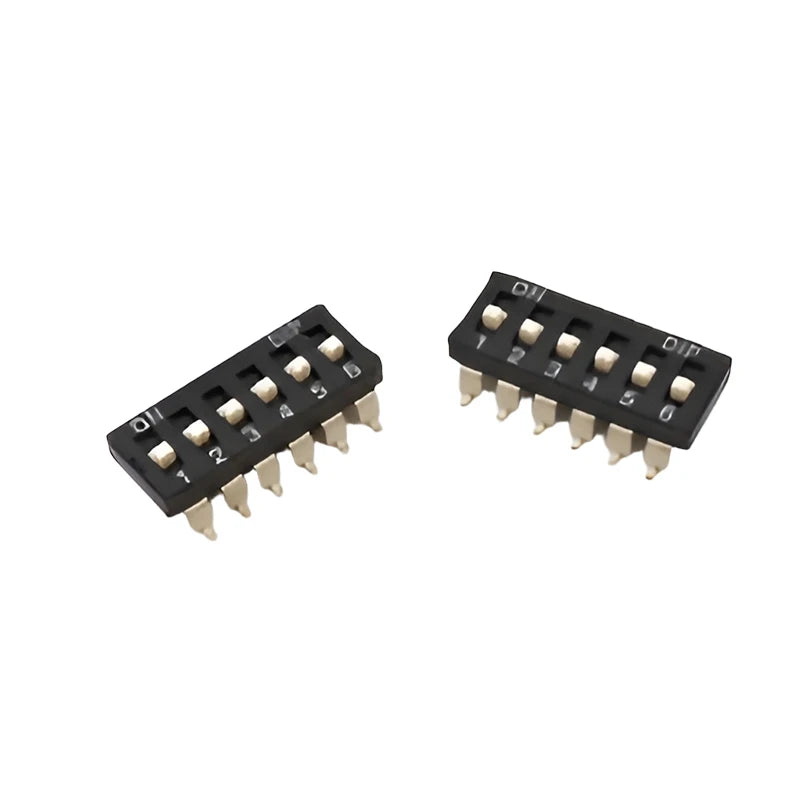

Black Patch Type DIP Switch
20PCS Black Toggle SMD DIP Switch Module Spacing 2.54MM 24V Patch Type 1 2 3 4 5 6 7 8 10 PIN Quick Dial The Code Switch

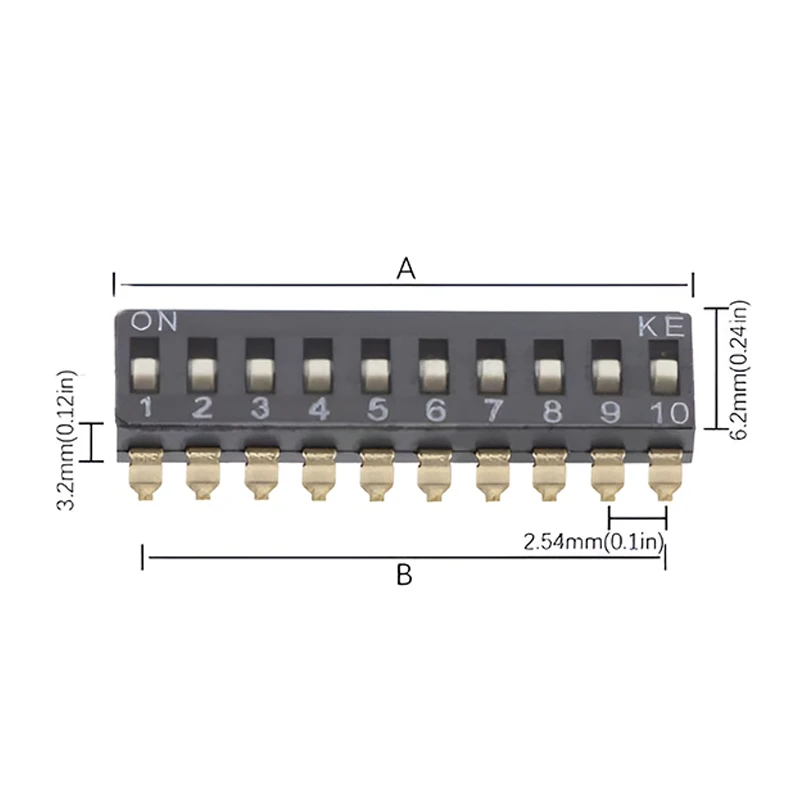

Switches Size

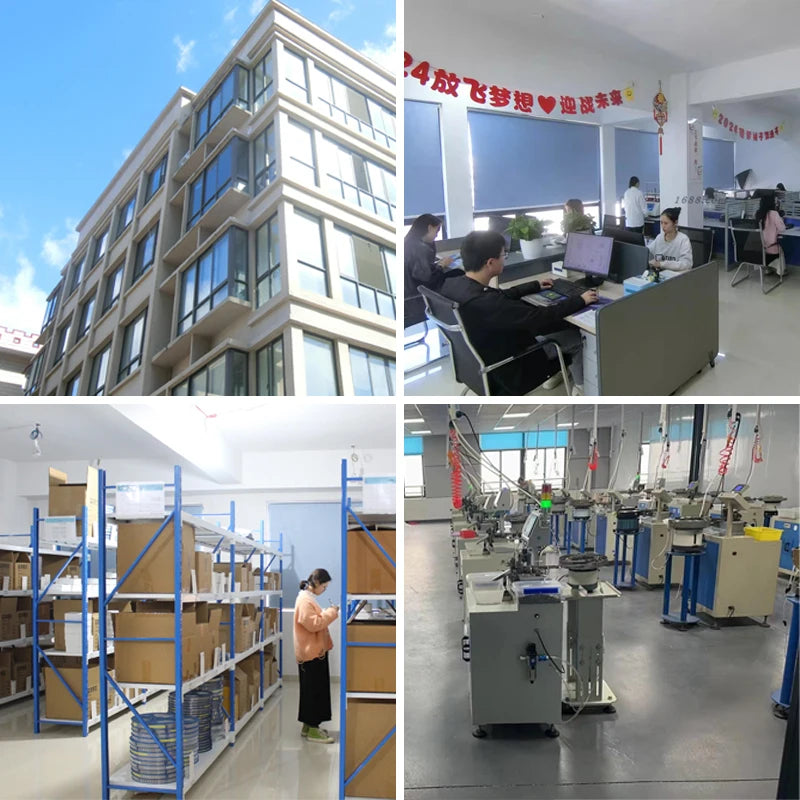

Our Business
