SPECIFICATIONS

Application: MOBILE PHONE

Brand Name: diymore

Choice: yes

Compliant with WPC V1.2.3 wireless charging specifications: Product standard: QI

Condition: New

Dissipation Power: 100-200Khz

High-concerned chemical: none

Input voltage/current 5V-2A, 9V-1.67A, 12V-1.5: Output current: 5V-1A, 9V-1.1, 9V-1.66

Operating Temperature: -40℃-105℃

Origin: Mainland China

Package: TQFP

Quantity: 1

Sensing distance ≤ 8mm: Working frequency: 100-200Khz

Supply Voltage: 5V-2A 9V-1.67A

Support Foreign Object Inspection (FOD): Motherboard size: 48mm * 33mm * 2.7mm

Support Samsung fast charging protocol, compatible with iPhone x/8/8p/12/13 charging protocol: Built in MCU, 12 bit high-precision ADC, communication decoding

Support dynamic energy balance: Intelligent recognition, 5W/7.5W/10W/15W charging

Supports a maximum power output of 15W: Efficiency reaches 75% -85%

Type: Module

is_customized: Yes

Product features:

1. Supports up to 15W wireless charging power, fast charging speed, and high efficiency

2. With different input voltages, it supports multiple charging modes such as 5W, 7.5W, 10W, and 15W, and is compatible with various smartphones and tablets

3. The product has multiple protection functions such as overcurrent, overvoltage, overheating, and short circuit, making it safer and more reassuring to use

4. Using high-quality coil materials to ensure efficient energy transmission and reduce energy loss

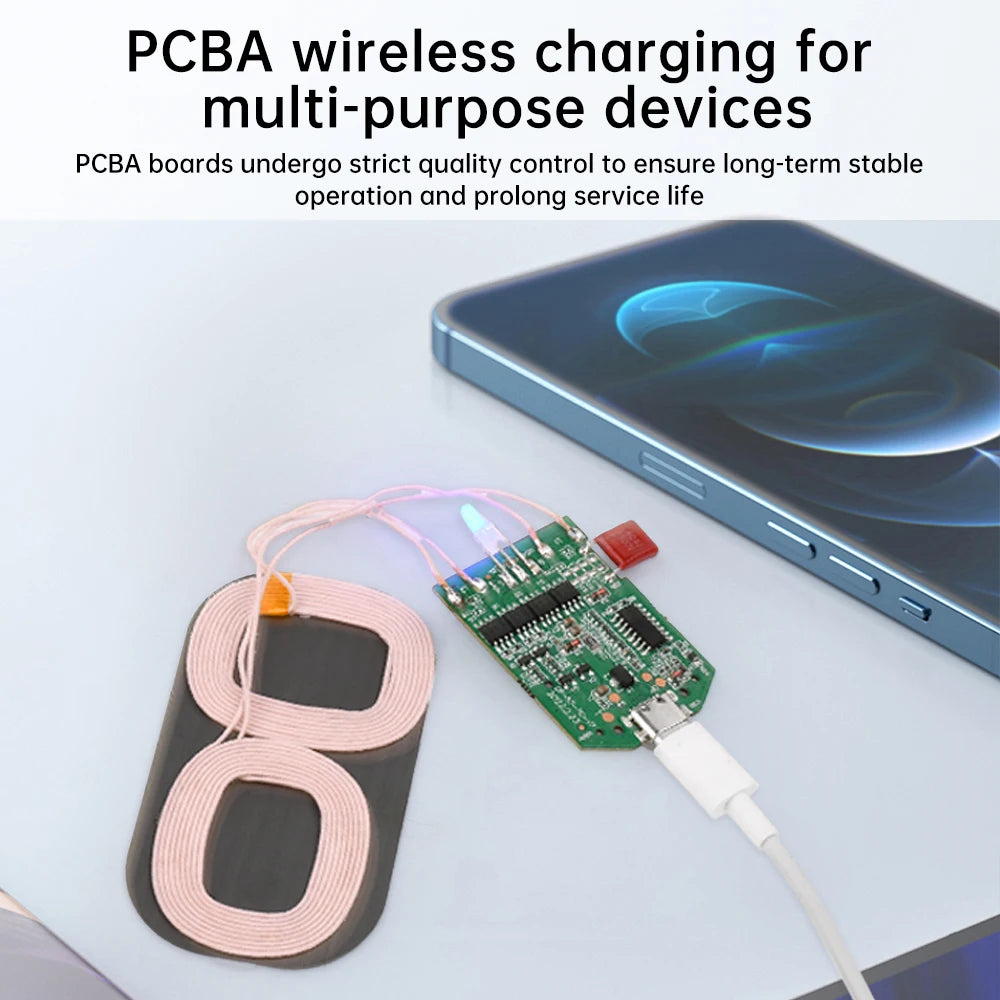

PCBA boards undergo strict quality control to ensure long-term stable operation and extend their service life

Product parameters:

Compliant with WPC V1.2.3 wireless charging specifications

Product standard: QI

Support Samsung fast charging protocol, compatible with iPhone x/8/8p/12/13 charging protocol

Built in MCU, 12 bit high-precision ADC, communication decoding

Input voltage/current: 5V-2A, 9V-1.67A, 12V-1.5

Output current: 5V-1A, 9V-1.1, 9V-1.66

Supports a maximum power output of 15W

Efficiency reaches 75% -85%

Sensing distance ≤ 8mm

Working frequency: 100-200Khz

Support dynamic energy balance

Intelligent recognition, 5W/7.5W/10W/15W charging

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support Foreign Object Inspection (FOD)

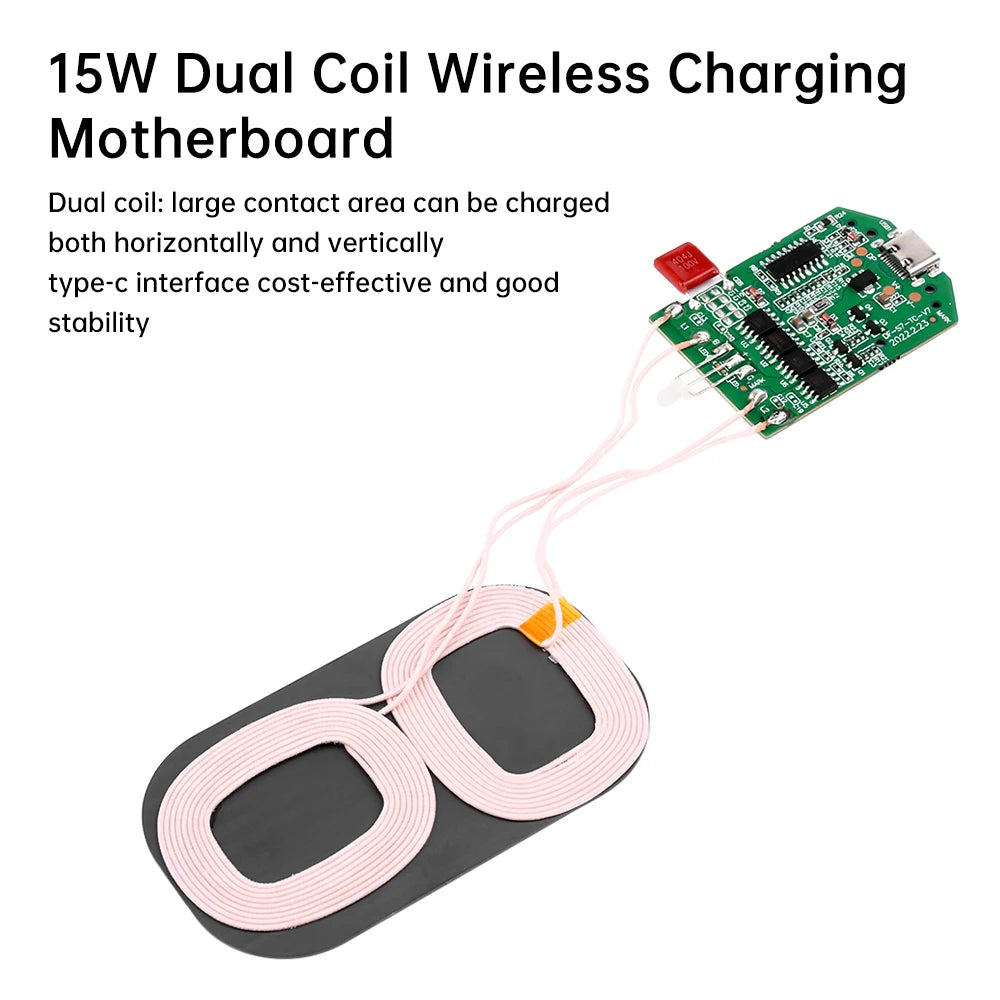

Motherboard size: 48mm * 33mm * 2.7mm

Coil size: 82mm * 46mm (outer diameter)

Shipping List:

Wireless charging transmission module X1
