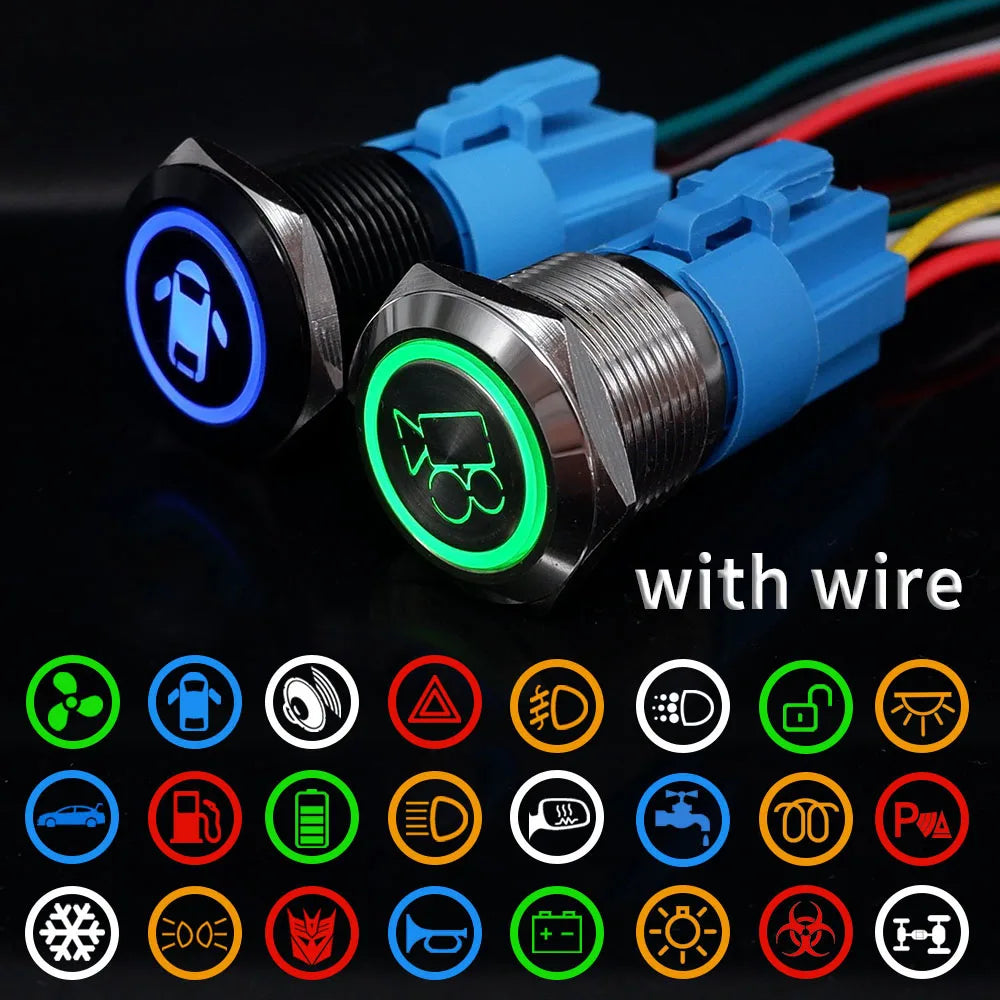

16/19/22mm Custom Metal Push Button Switch with Wire Laser Luminous Waterproof Latching Momentary 12V 220V 5V Motorcycle Switch
Switch with wire / 22mm Silver shell / Blue 12-24V|Fixed Self-locking
$35.42
Sale price
$35.42
Regular price
$0.00
Skip to product information
16/19/22mm Custom Metal Push Button Switch with Wire Laser Luminous Waterproof Latching Momentary 12V 220V 5V Motorcycle Switch
$35.42
Sale price
$35.42
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: PRONCH
Certification: CE,ce
Current: 3A
Customization: Yes , please leave a message to us
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Features: Momentary Latching
Function: Momentary/ Latching
High-concerned chemical: none
Is Smart Device: no
Item Type: SWITCHES
LED Color: Red Yellow Blue White Green
LED Voltage: 3-6V 9-24V 110-220V
Material: Alloy
Model Number: Push button switch
Name: Power button/push button/switch button/Switches

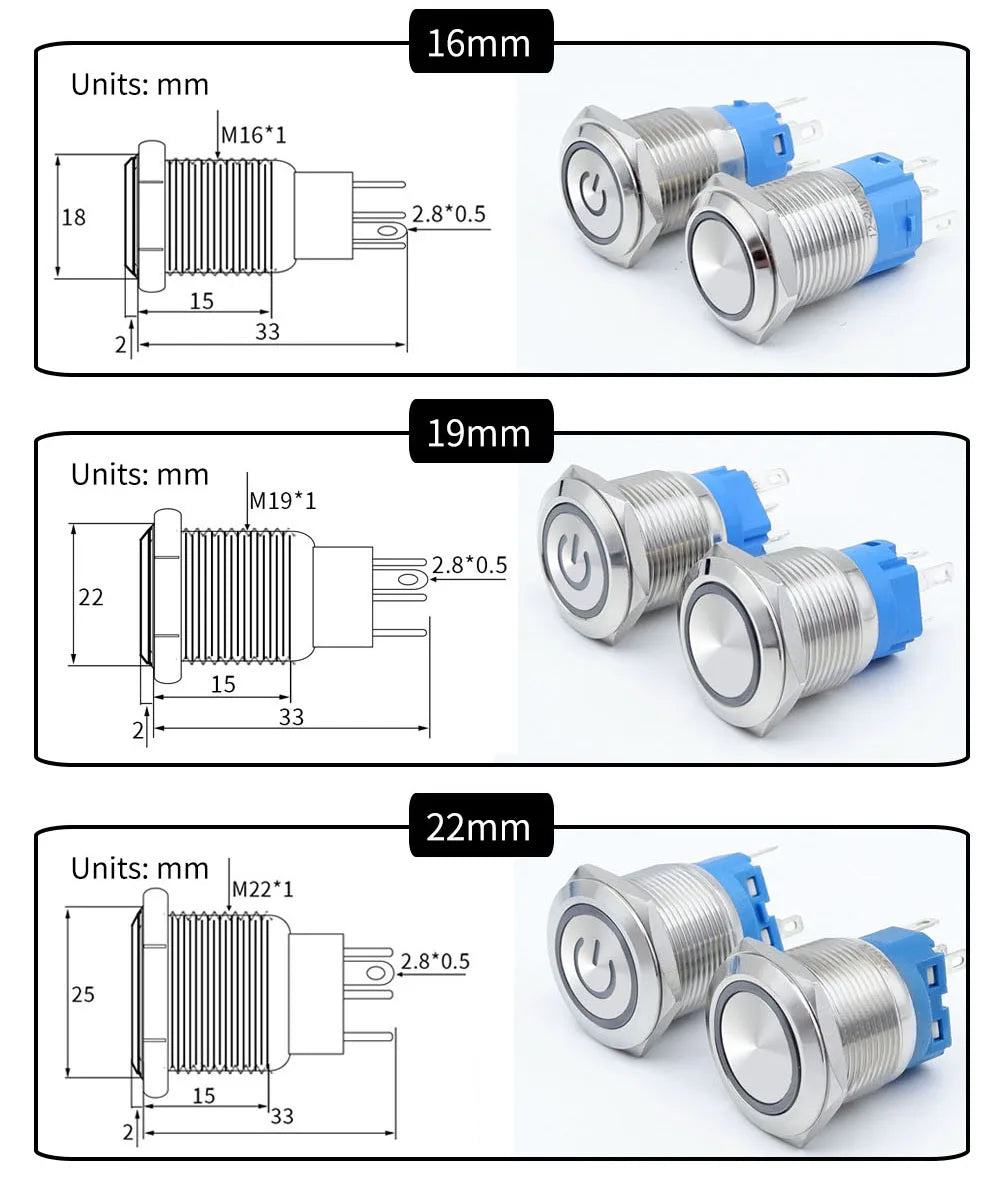

Opening Diameter: 16/19/22mm
Origin: Mainland China
Shell Material: Copper nickel plating
Switch Type: Push Button Switch,1NO1NC
Using: Car PC machine Device buttons
Warranty: 1 Year

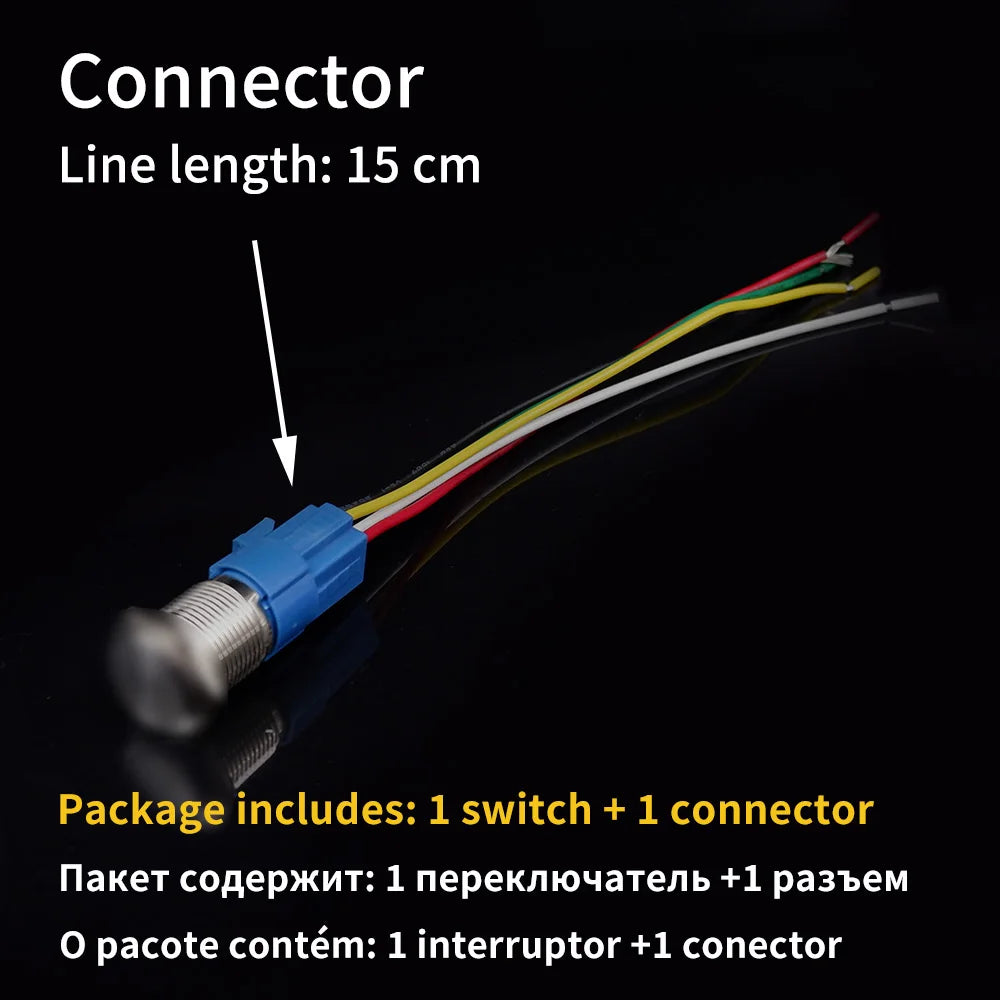

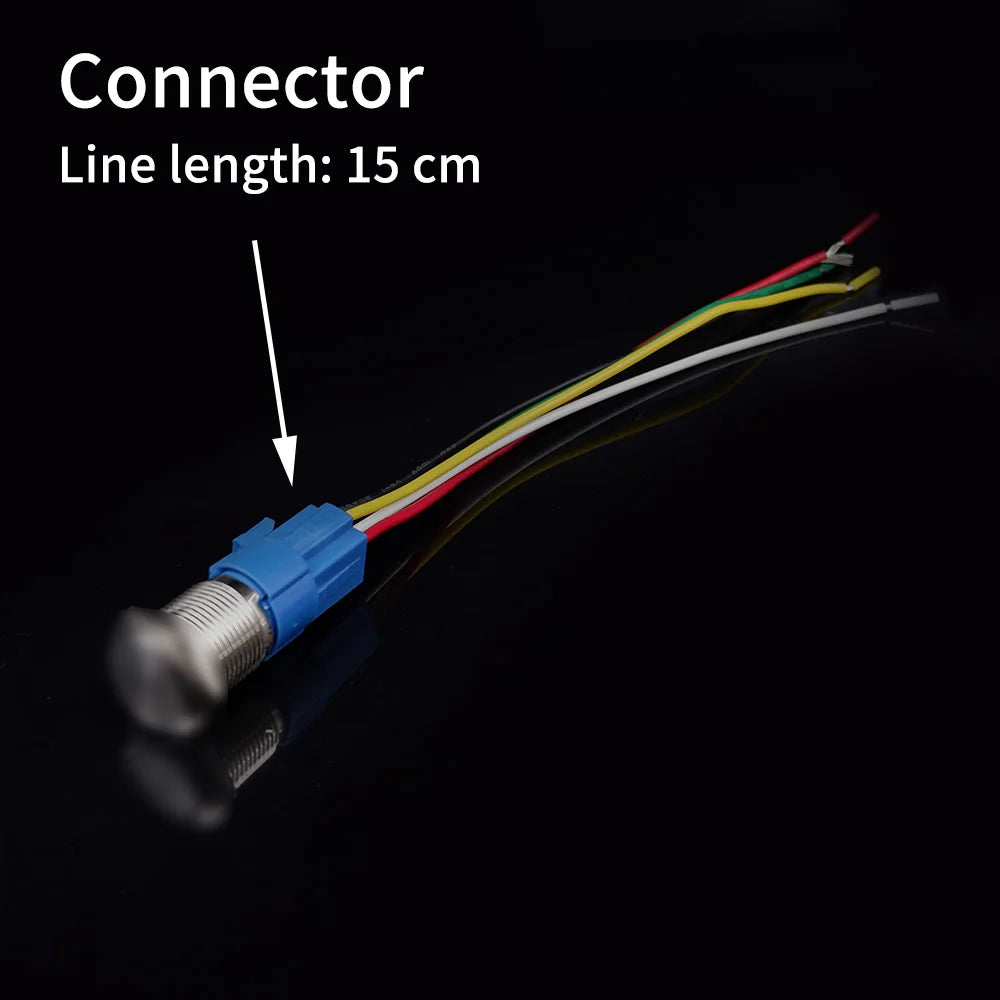

Package includes: one switch + one connector
Dear, if you need 3-6V, or 110-220V voltage. Please contact us. Or note in the order. Thanks!

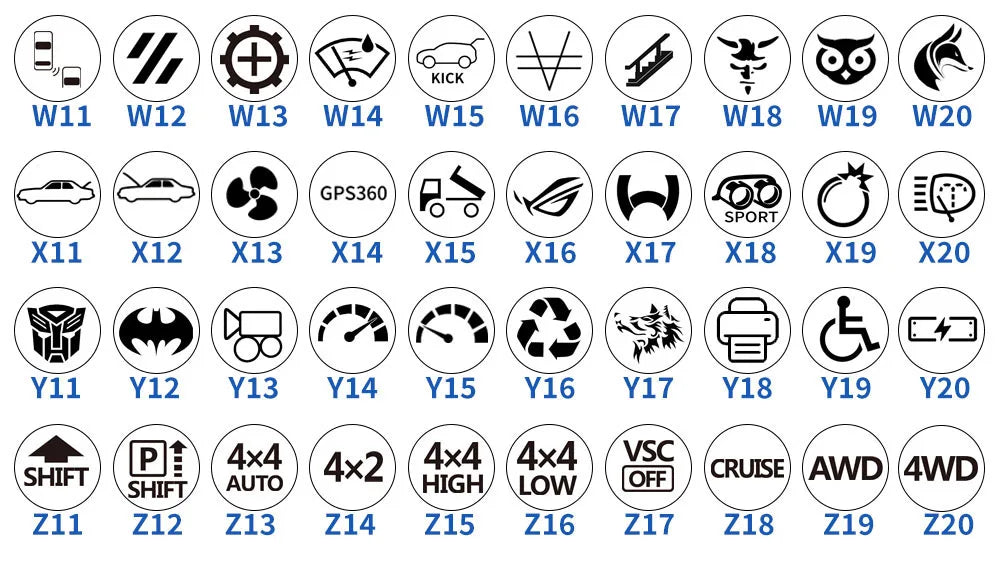

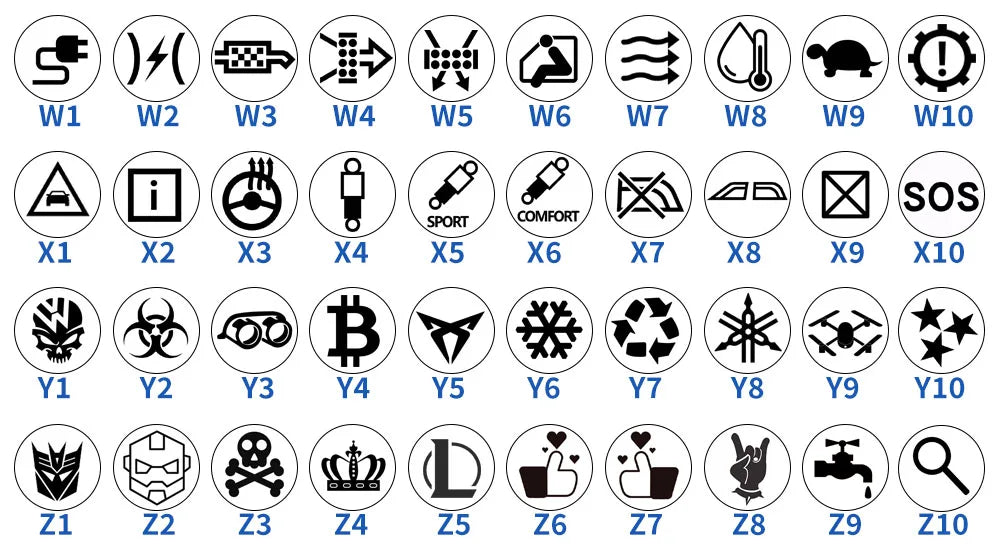

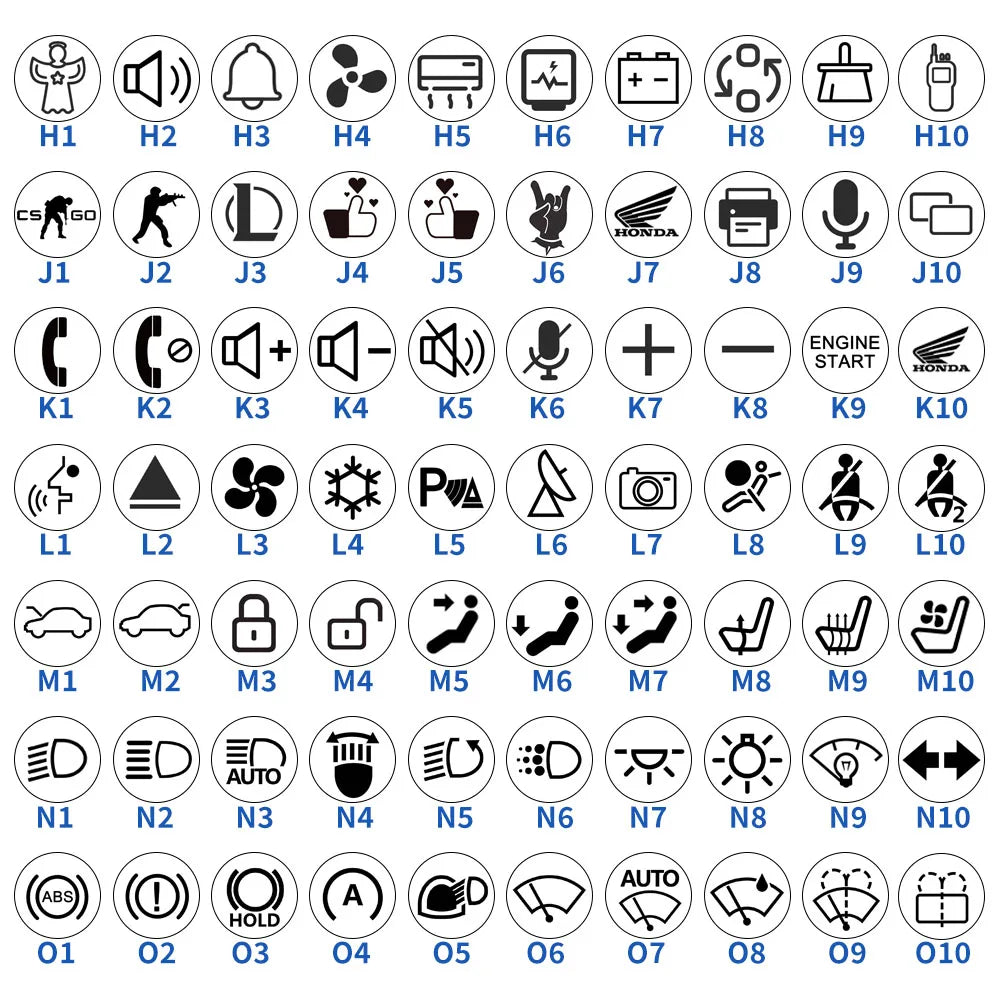

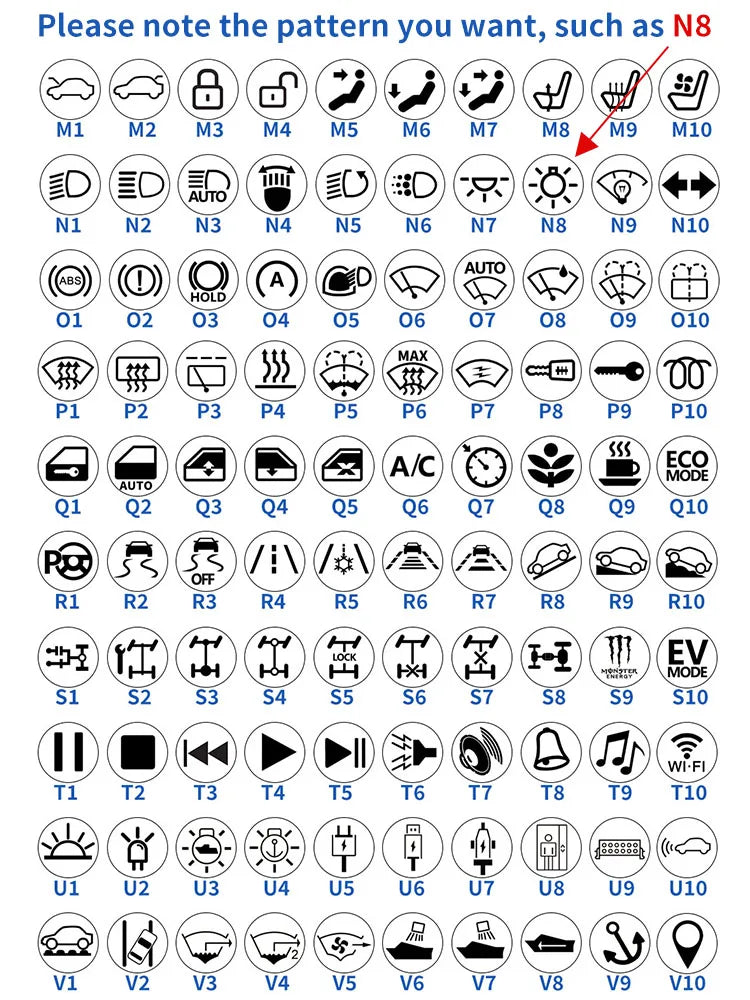

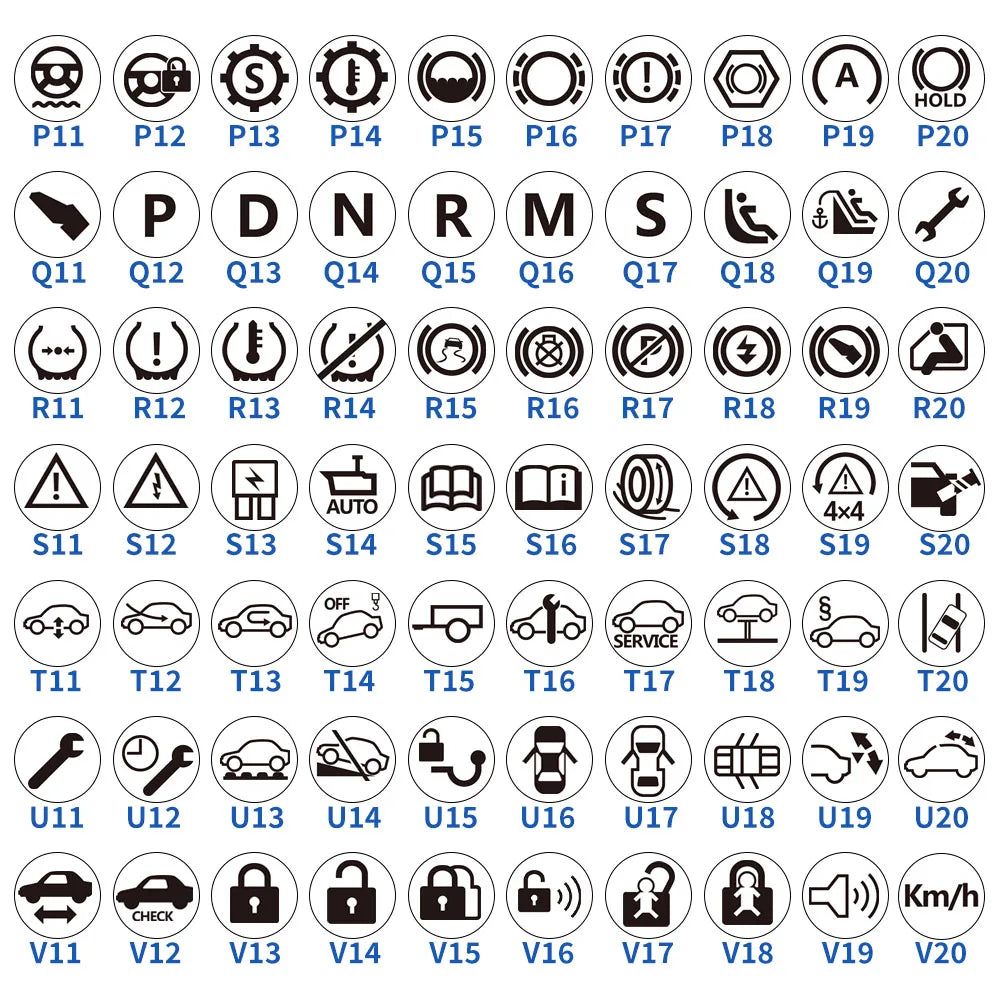

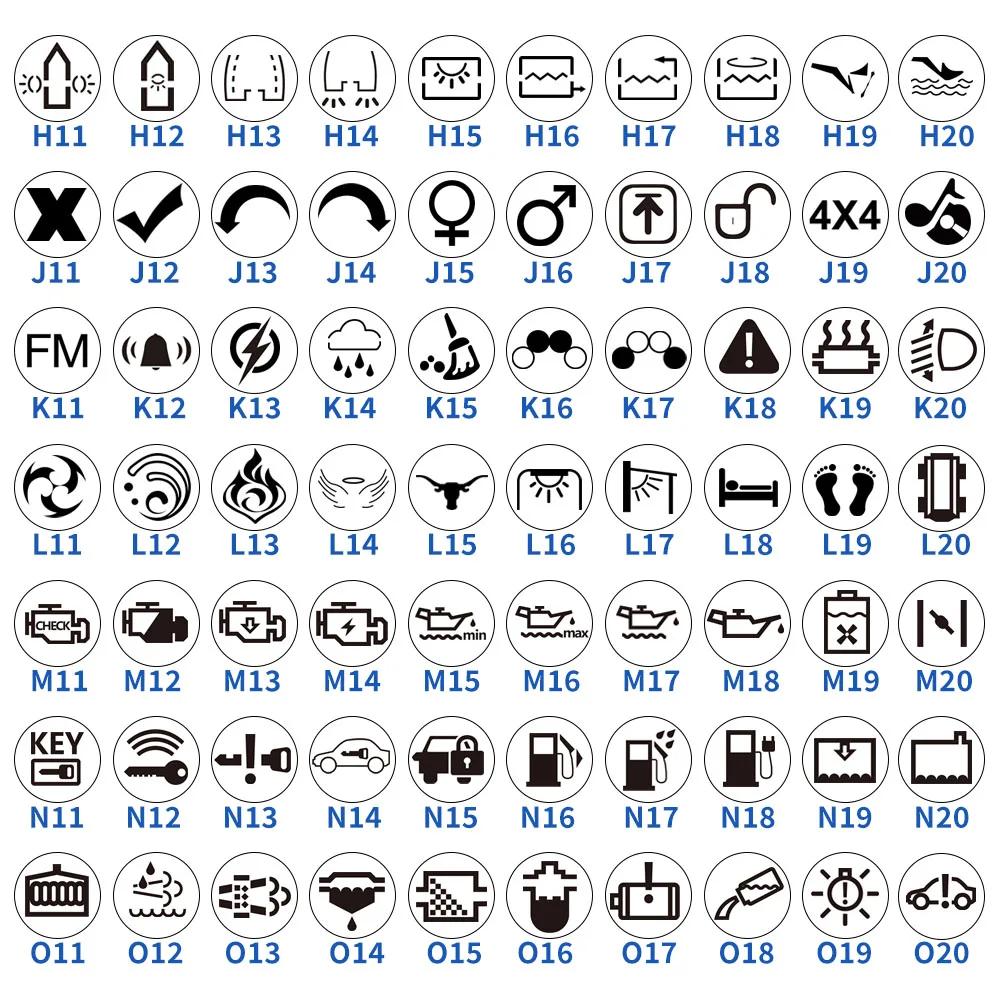

Dear friend： Please fill in the pattern code you want in the order，(The combination of blue letters and numbers below the pattern is the code corresponding to the pattern, such as "B8"), or you can tell me the pattern you want through the chat window.
If there is no icon you want here, please give me your pattern. But a picture of HD is required.

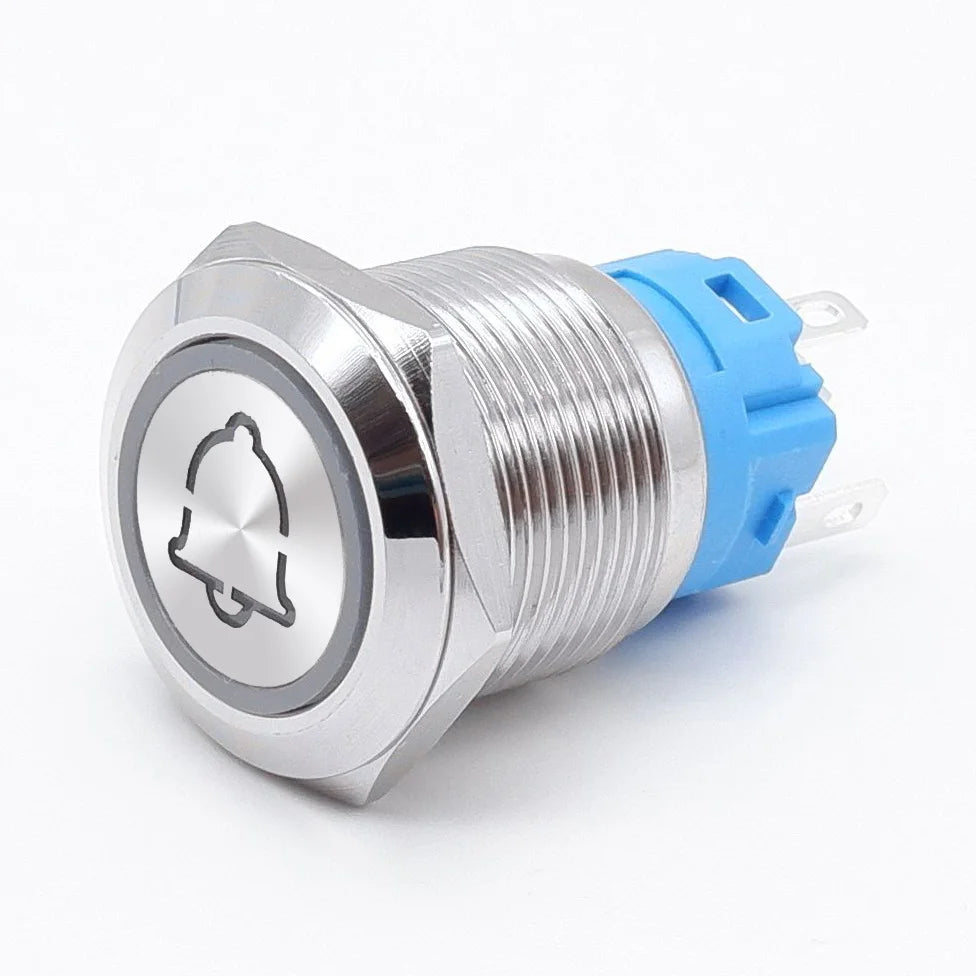

Product Name: Push Button Switch
Switch Combination: 1NO1NC
Opening Diameter:16/19/22mm
Max Current: 3A
Operation Type: Self-recovery 、Self-locking
Shell color: silver / black
Material: Metal
LED Colors: Red Yellow Blue White Green
LED Voltage: 3-6V;9-24V;110-220V
Waterproof Level: IP65
Customization: Yes . Customized products, do not support return.

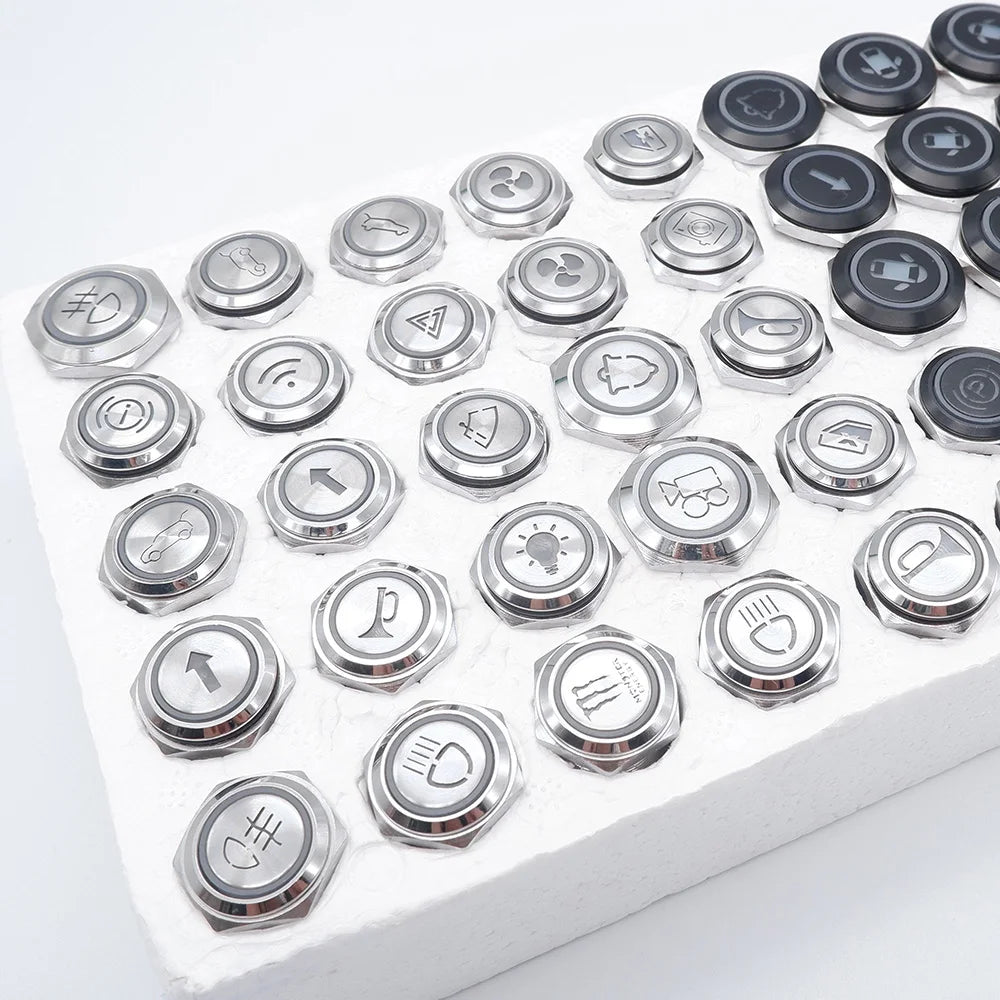

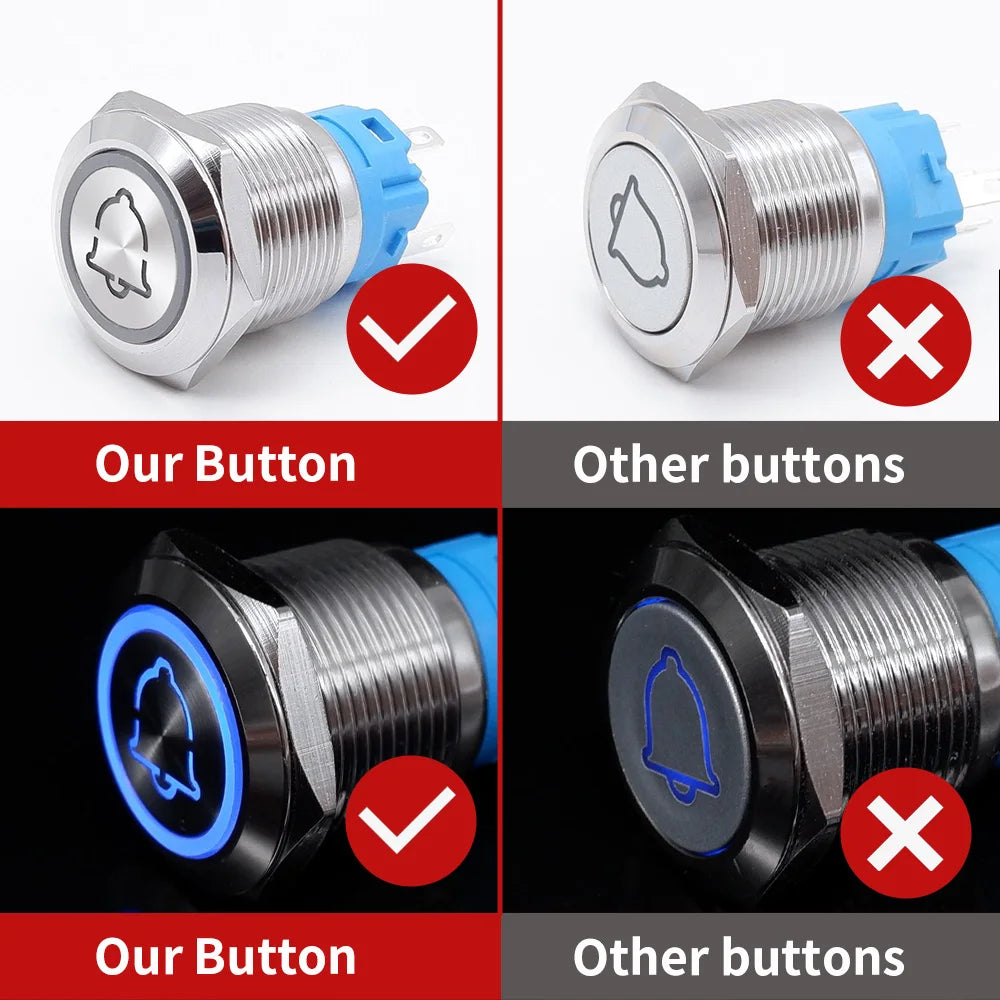

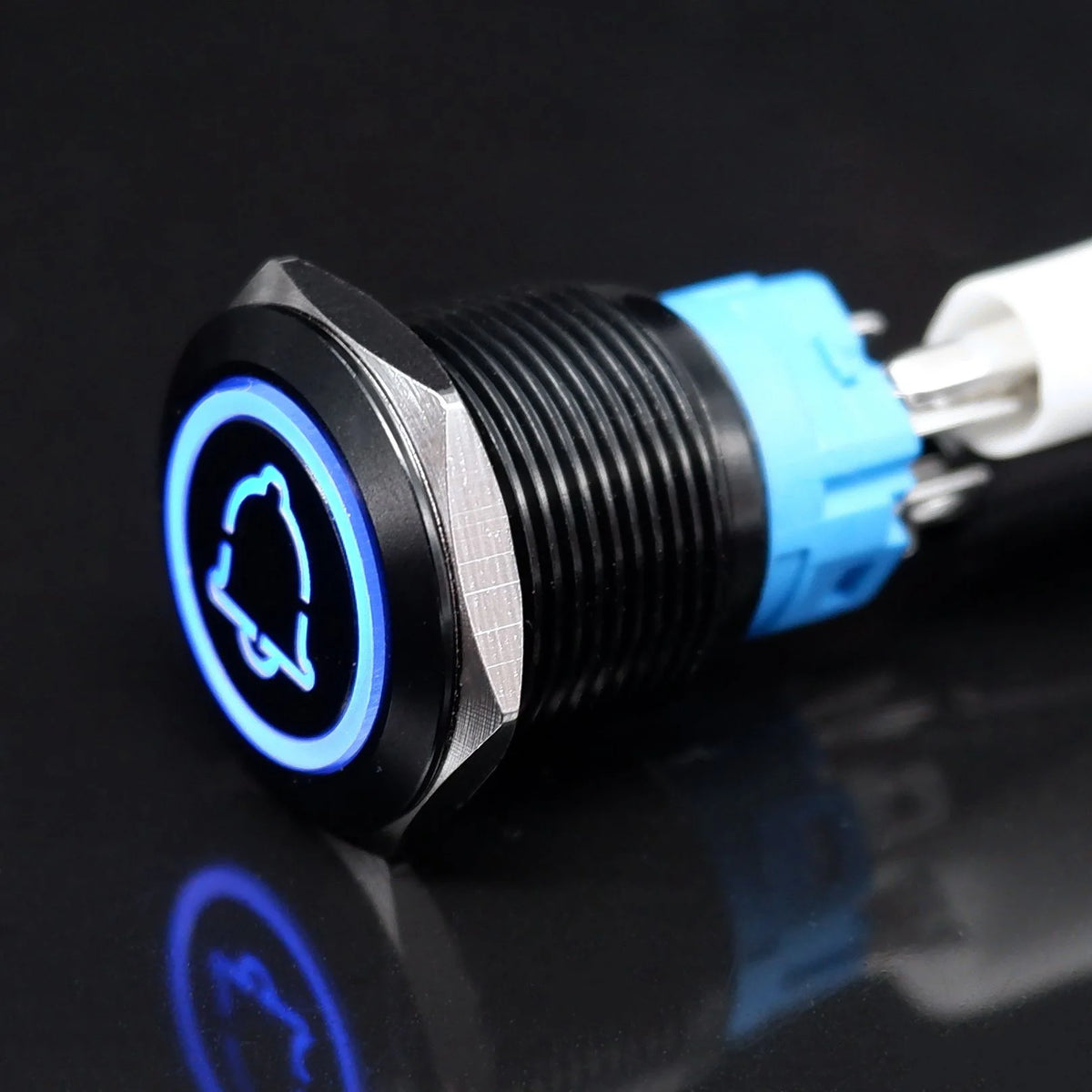

The head of our switch is metal, and it has a very beautiful metal luster. And the LED is bright and uniform. Other merchants' switches, the head is replaced by plastic sheets. It is not good -looking, and the brightness is not high.

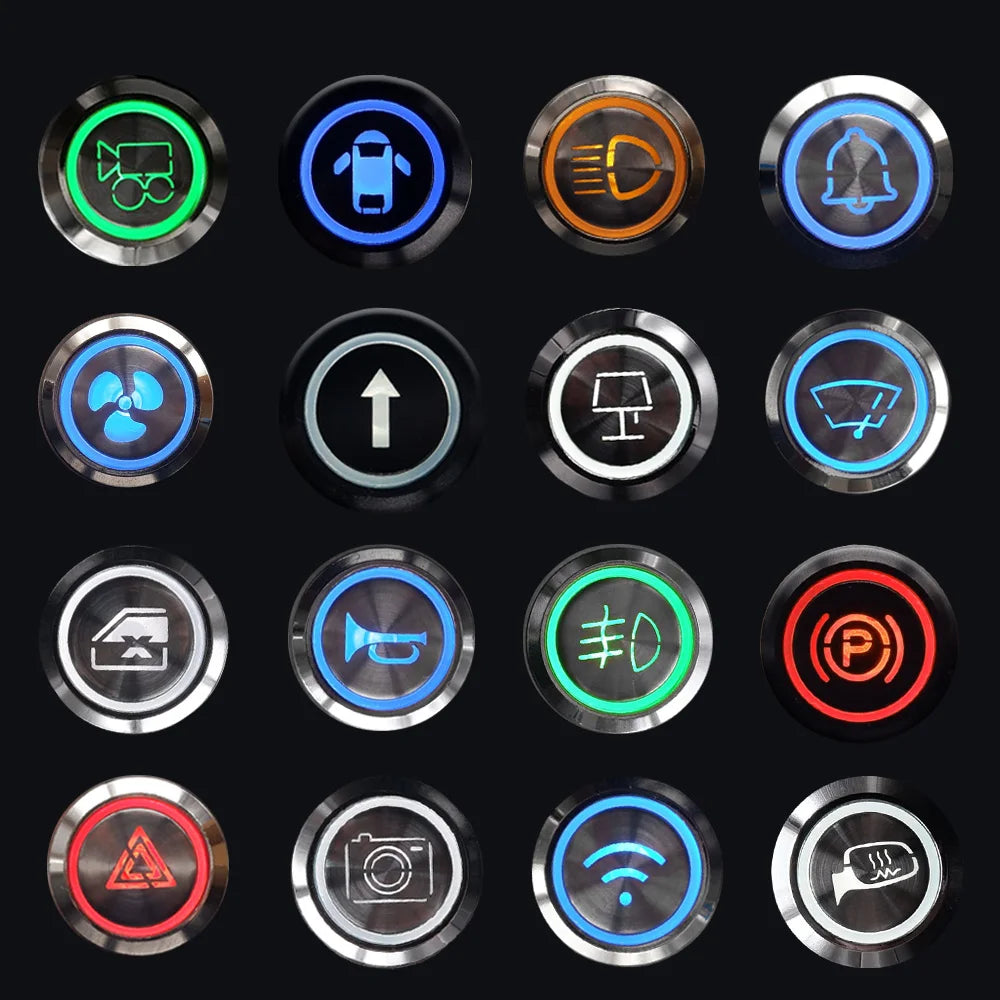

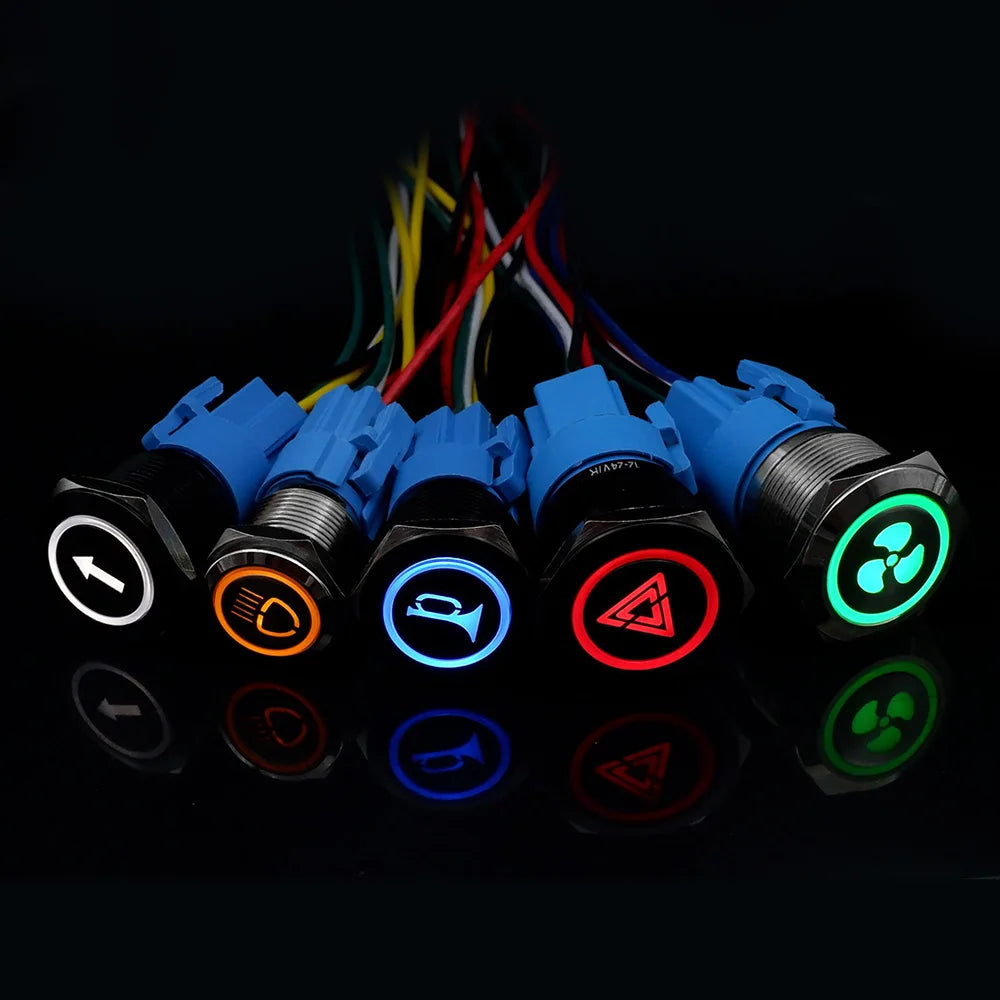

Non-polarity LED lamp makes wiring more convenient. High brightness and long service life.
The metal shell can resist corrosion, pressure and wear.

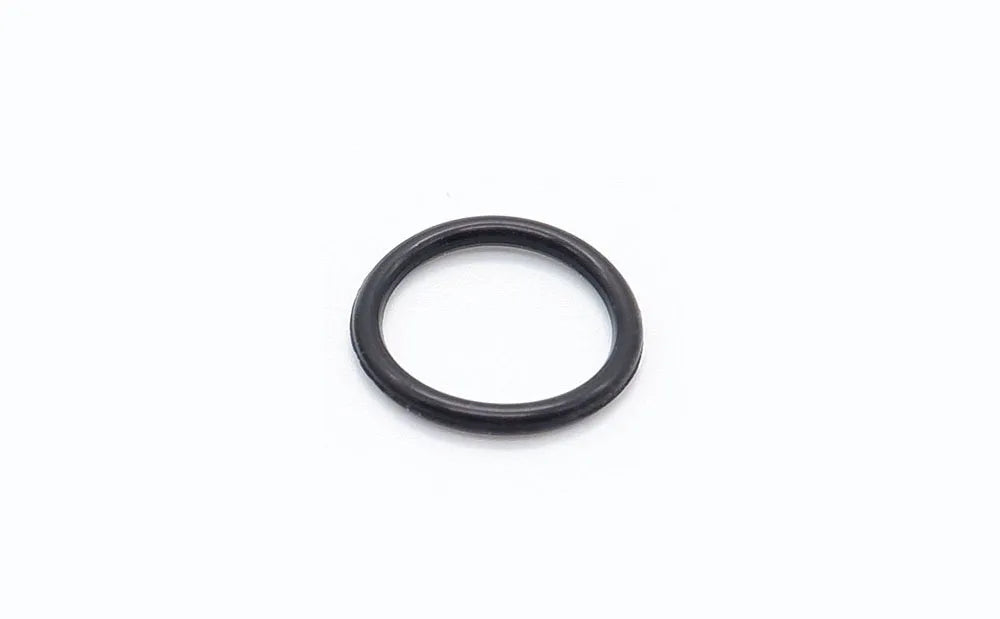

With rubber sealing ring, waterproof and dustproof.

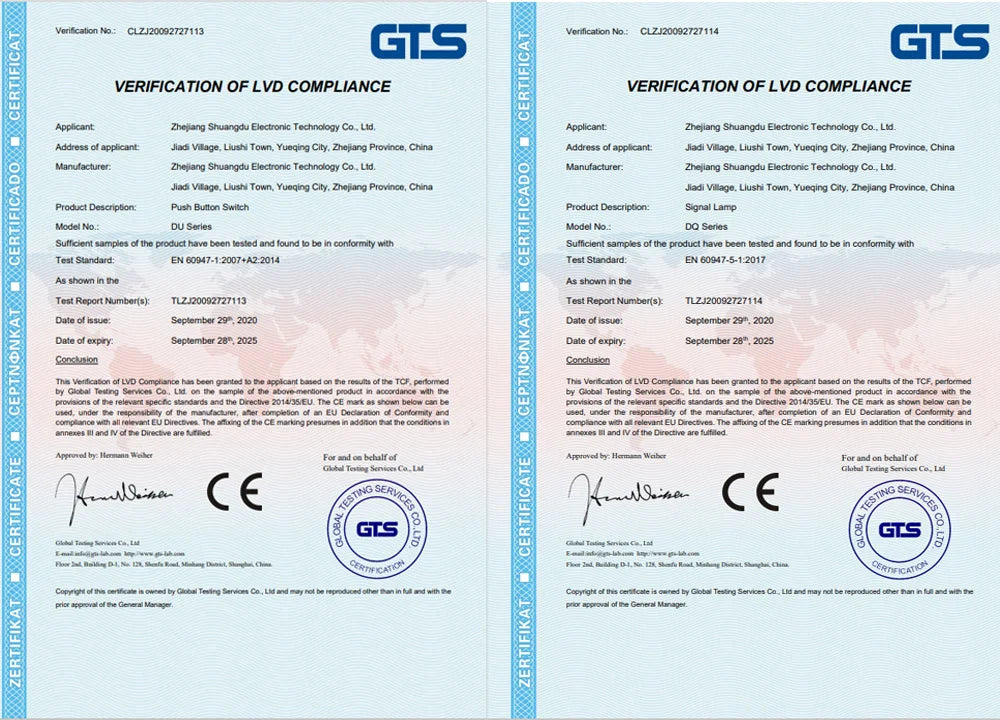

Certificate

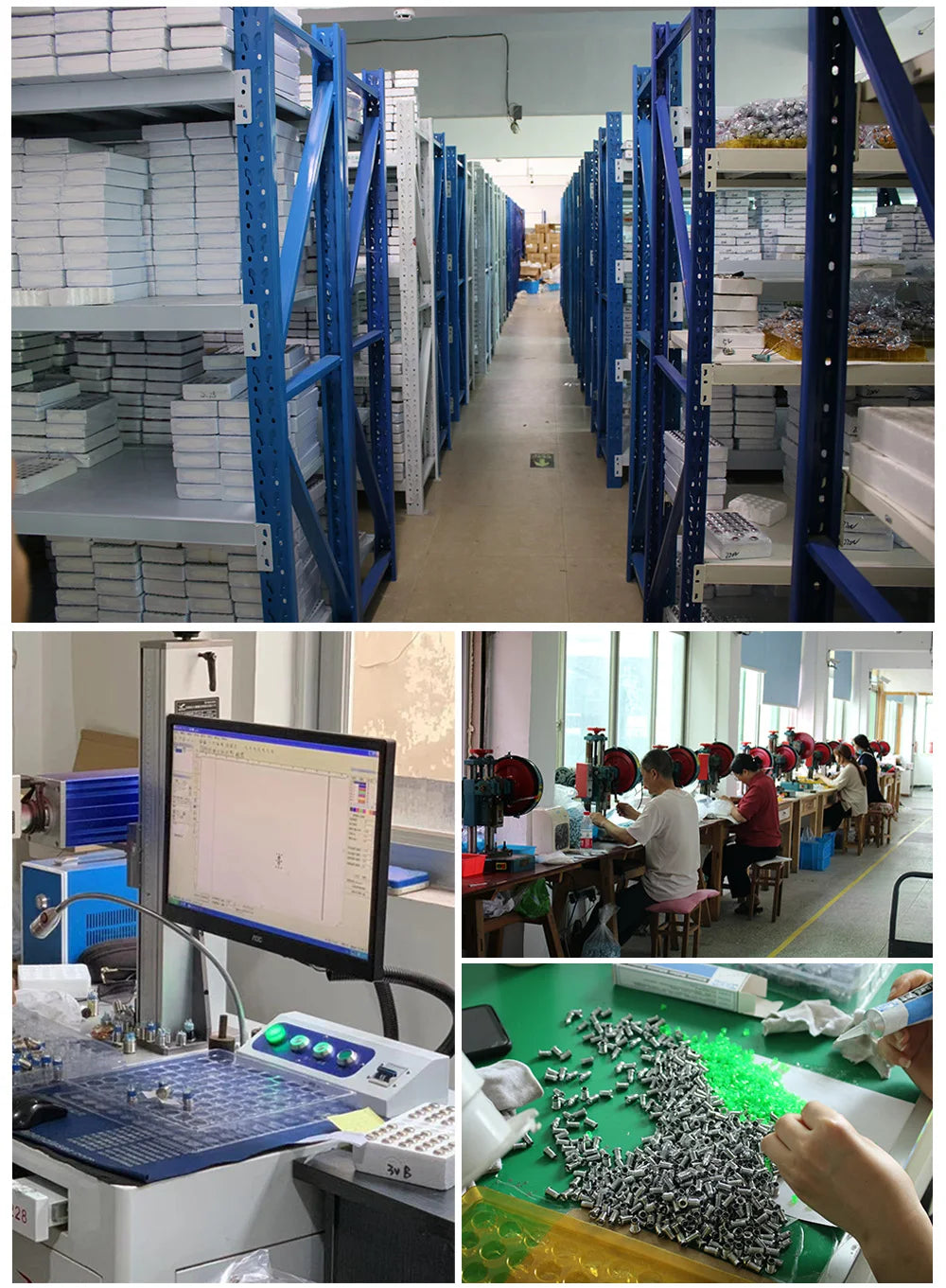

Factory direct sales, sufficient supply.

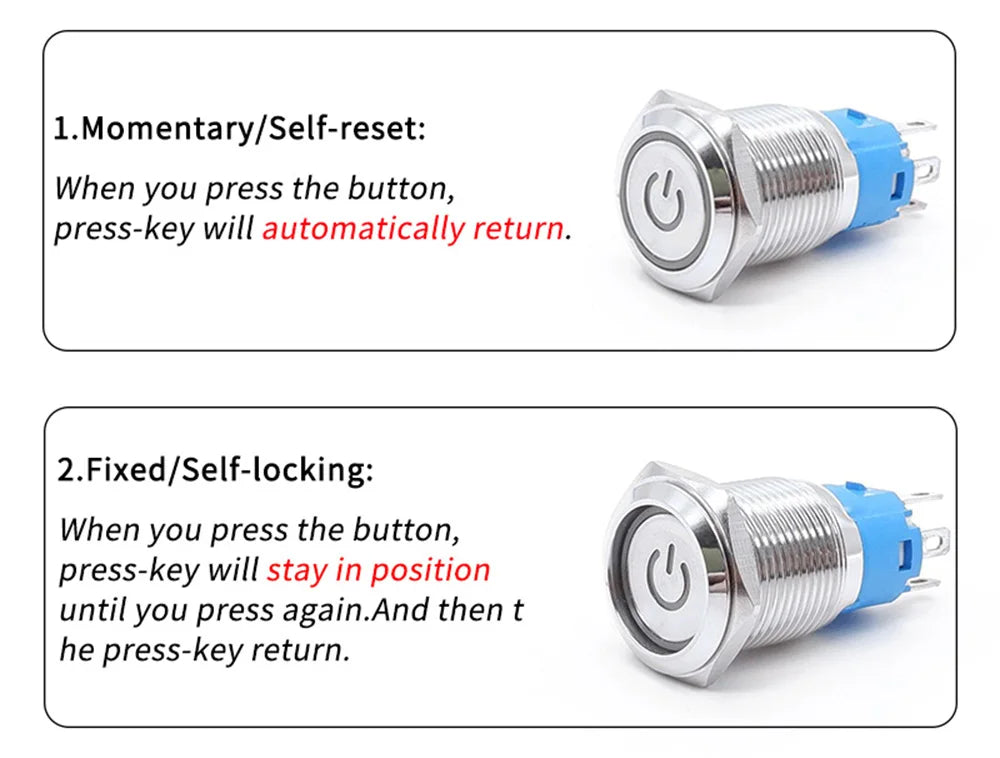

Switch Tip
1.Momentary/Self-reset: When you press the button, press-key will automatically return.
2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then t he press-key return.
This figure is an explanatory map, which may not be a product that is launched by the web page.

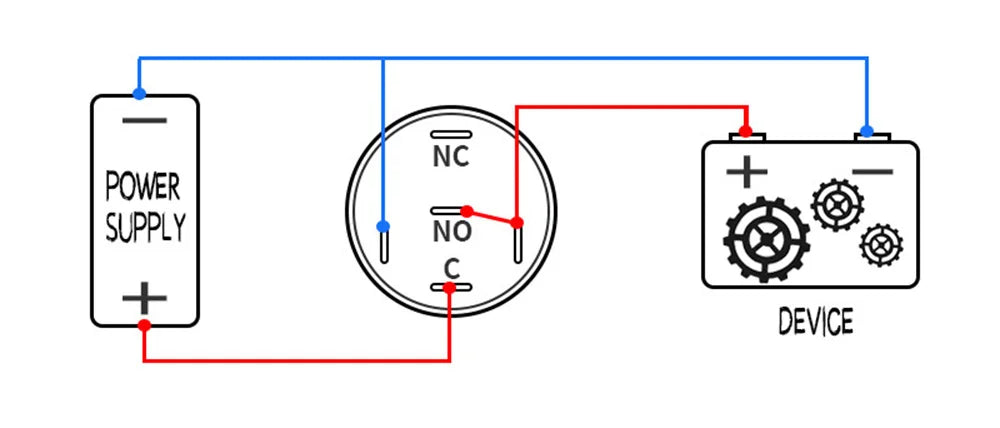

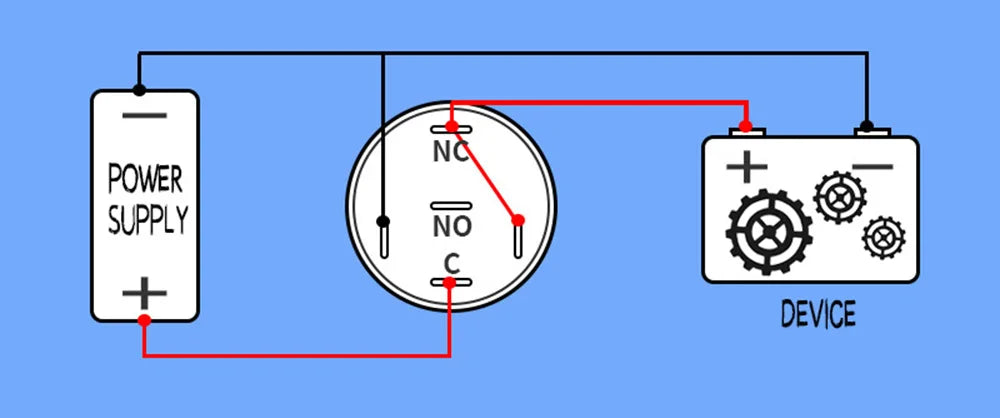

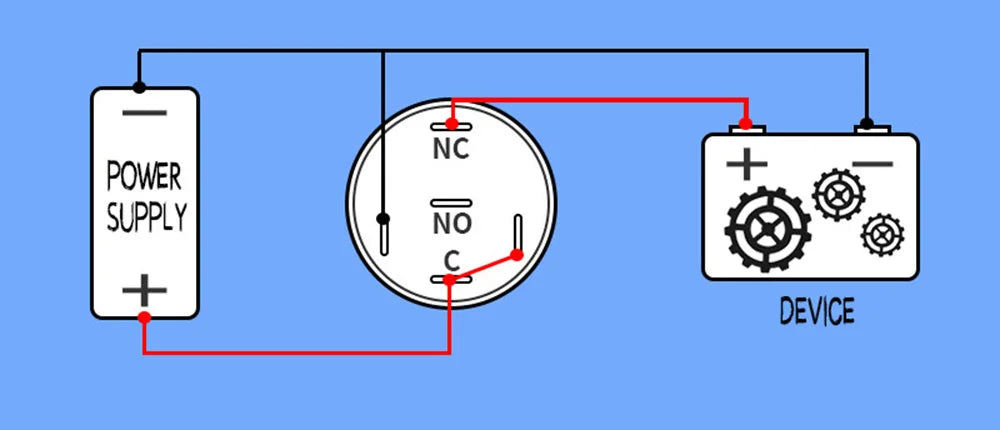

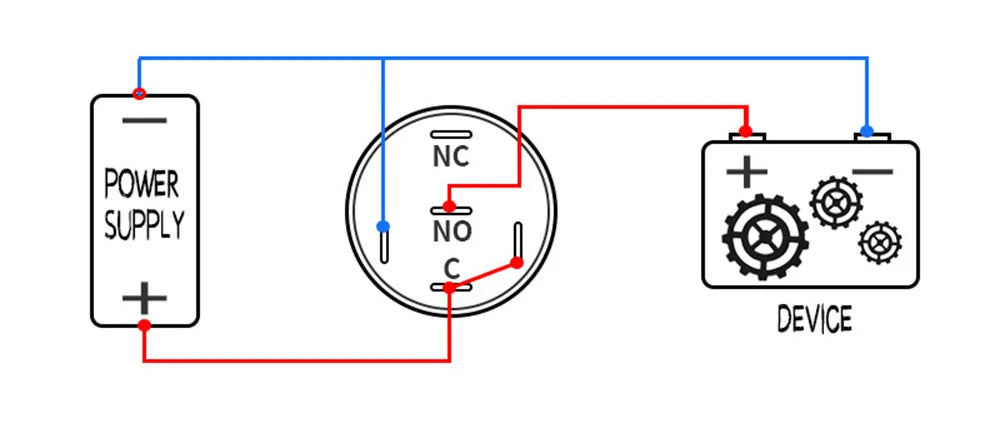

Wiring Diagram
1、The button turns the LED light on and off，the circuit is alway open unless press the button.
2、LED lights are always on，the circuit is alway open unless press the button.
3、 The button turns the LED light on and off，the circuit is alway close unless press the button.
4、LED lights are always on，the circuit is alway close unless press the button.
