SPECIFICATIONS

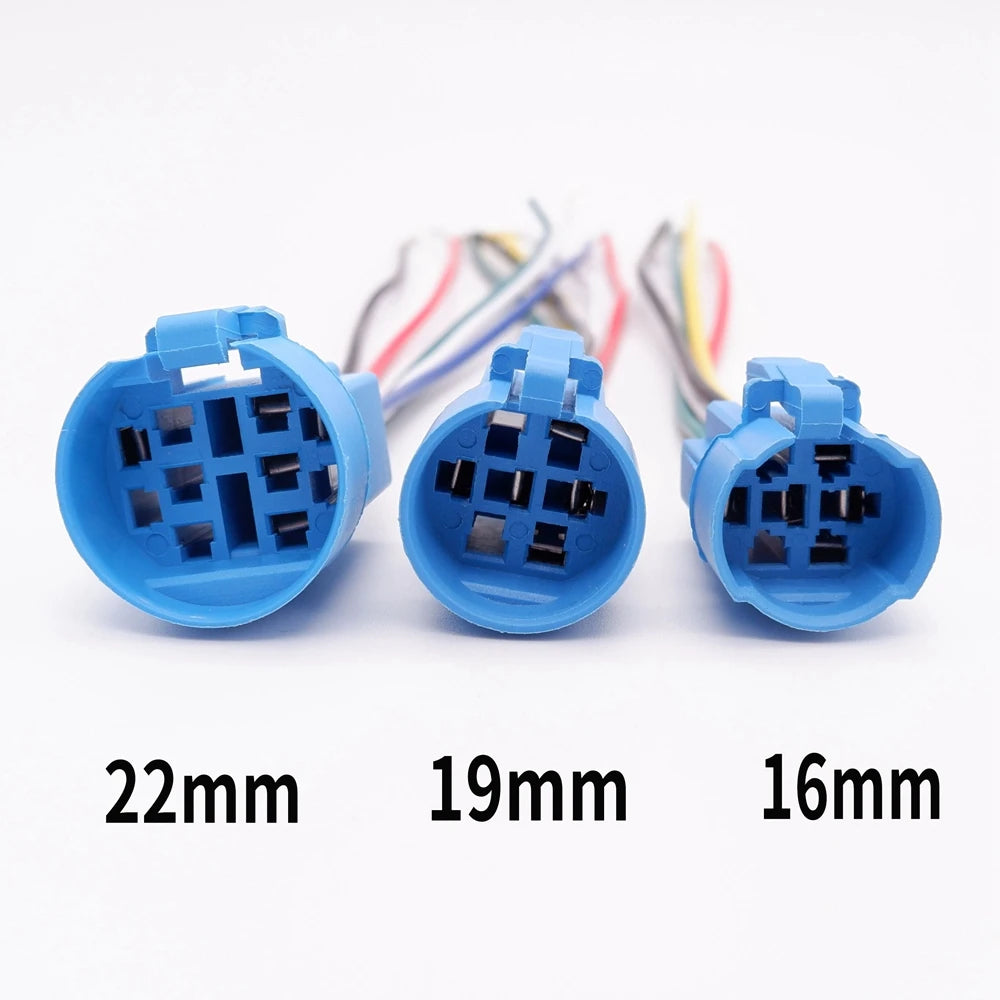

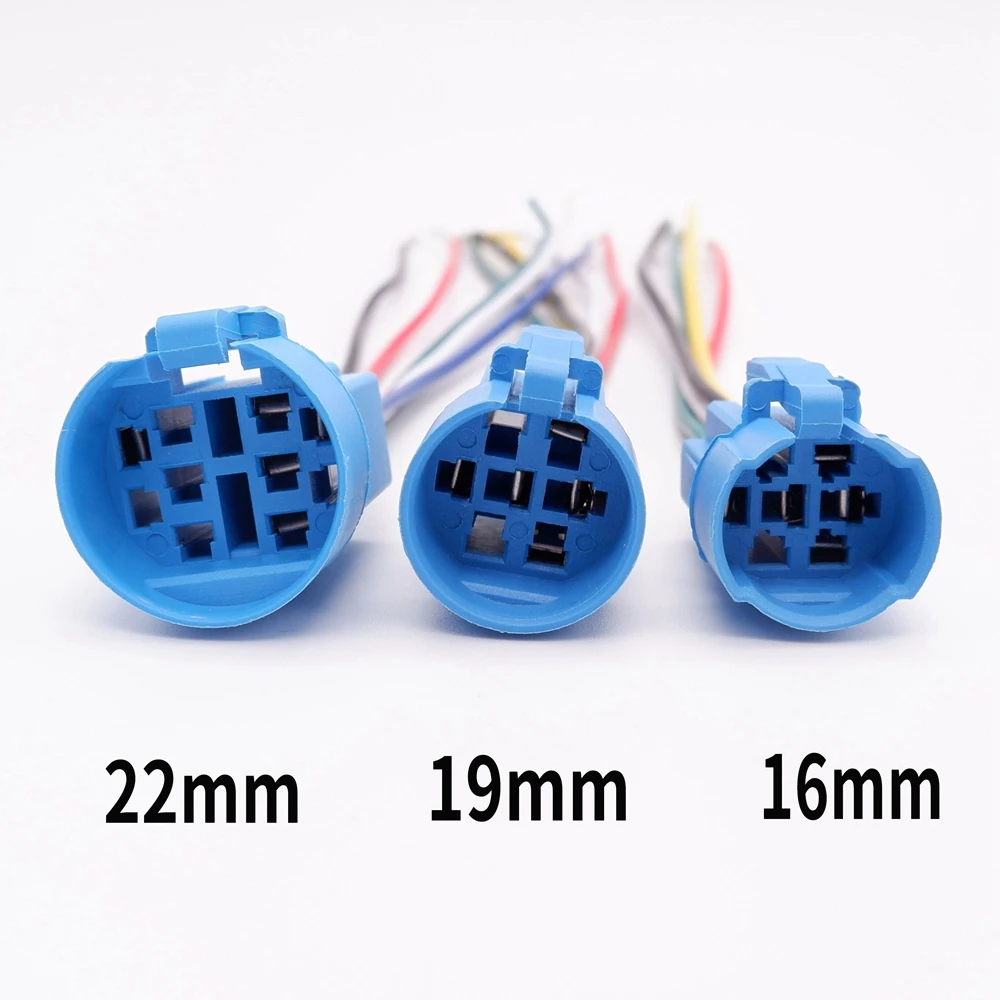

Product includes: 1pcs button switch +1pcs connector.

★Send 12-24V by default (if you need a voltage of 3-6V, 110-220V, please let us know in the chat, or make a note in the order)

★If there is no pattern you like here, you can send me the high-definition pattern you want, and we can customize it for you.

★If you have any questions, please feel free to contact us and we will reply as soon as we see them

Please note the number you need. Such as the first, please note "A1"

Product Types：Customizable push button switch

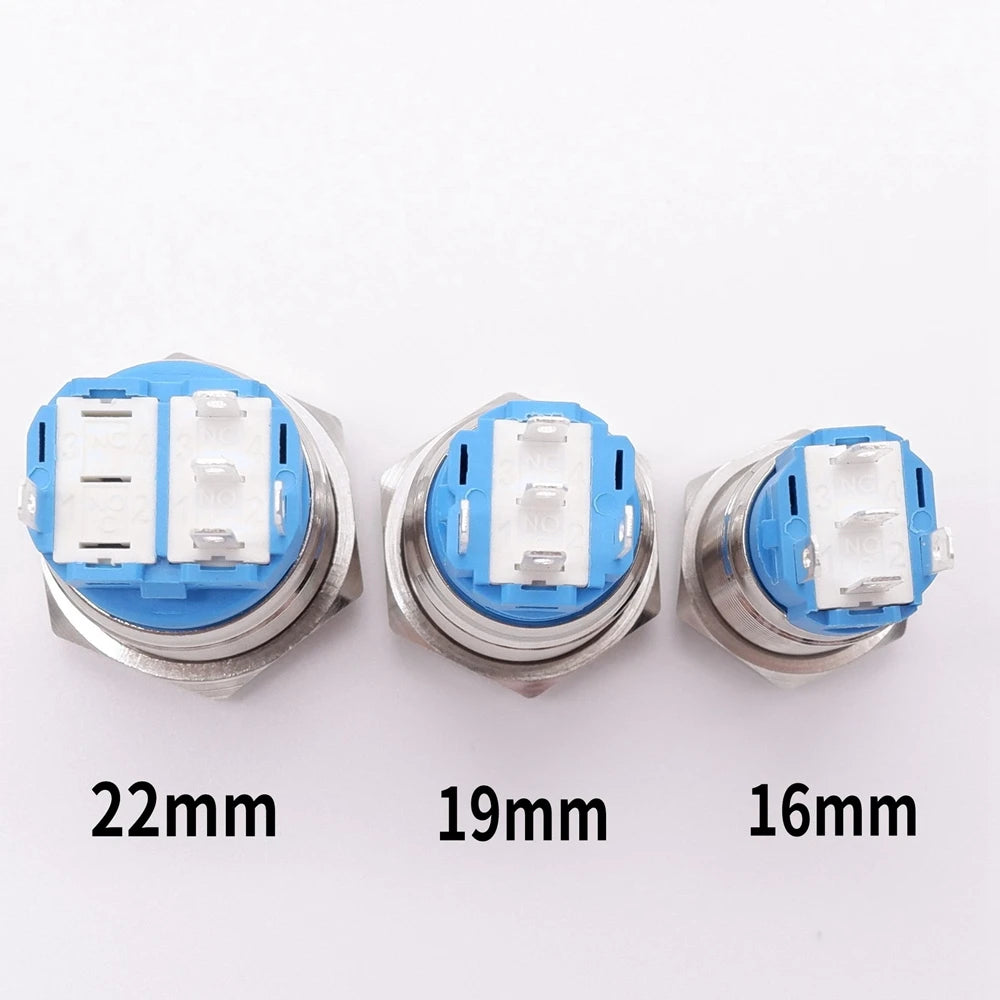

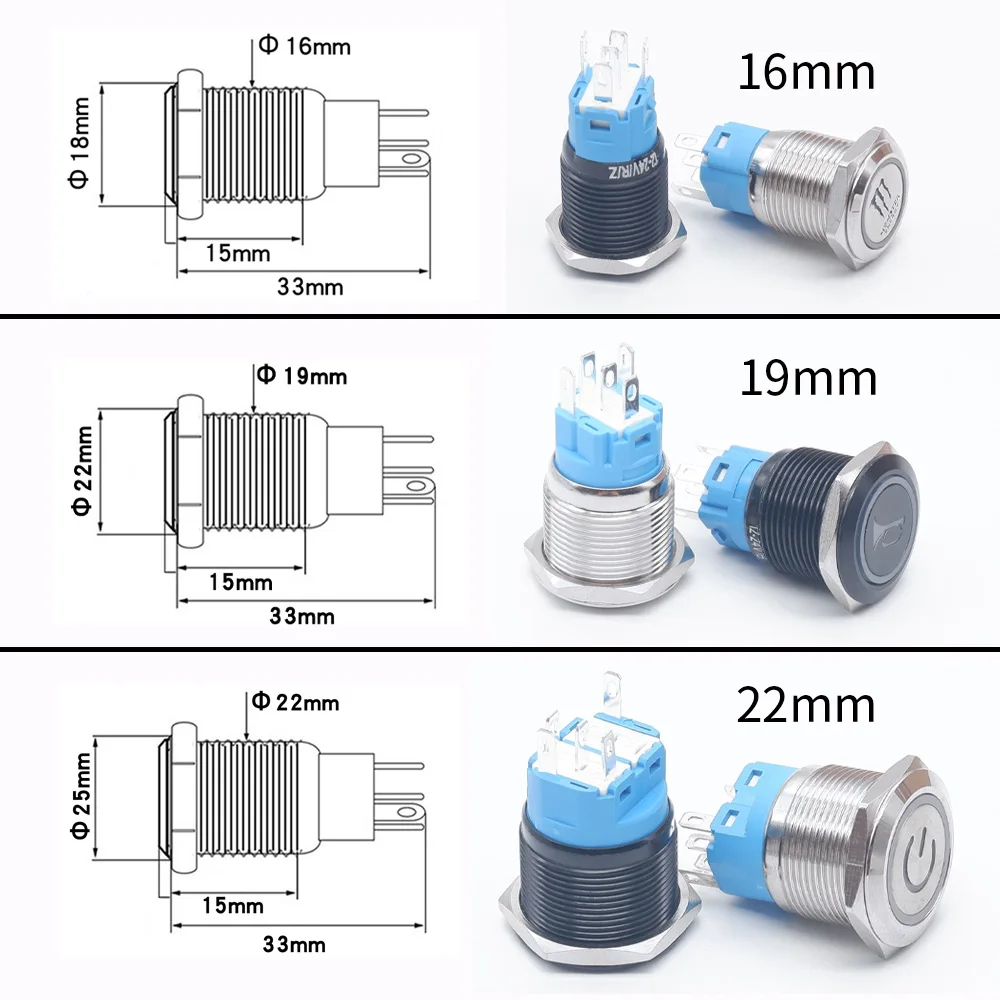

Hole diameter:16/19/22mm
Led color:red/orange/green/blue/white
Voltage:3-6V/12-24V/110-220V
Operation method:Momentary self-reset/Latching self-locking
Waterproof level:IP66
Contact type:1NO1NC

Manual measurement, there may be a little error.

Difference between Momentary self-reset and Latching self-locking:

1.Momentary/Self-reset: When you press the button, press-key will automatically return.(Like a car horn switch.Press it-power on, release it-power off.)
2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then the press-key return.(Like a light switch.Press it-power on, press it again-power off.)

How to connect?

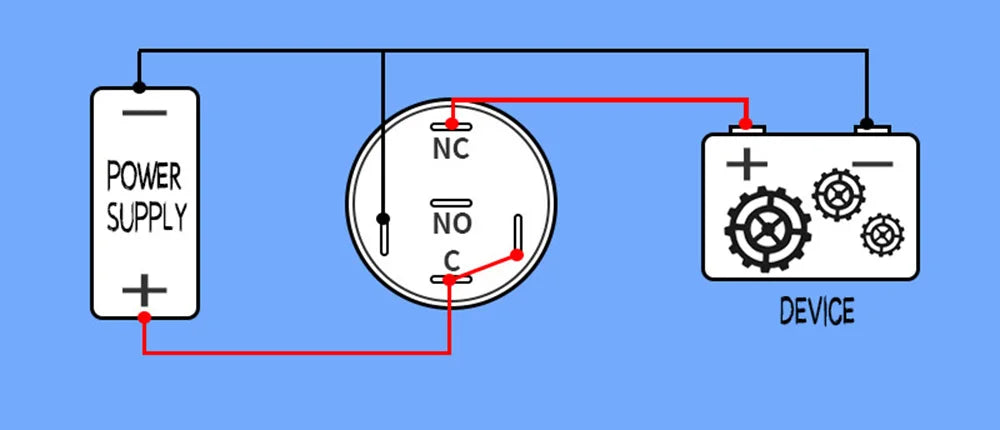

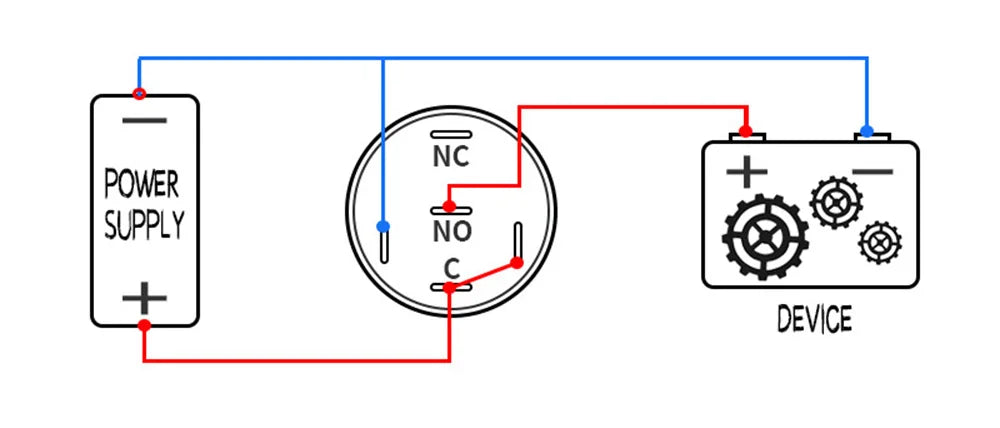

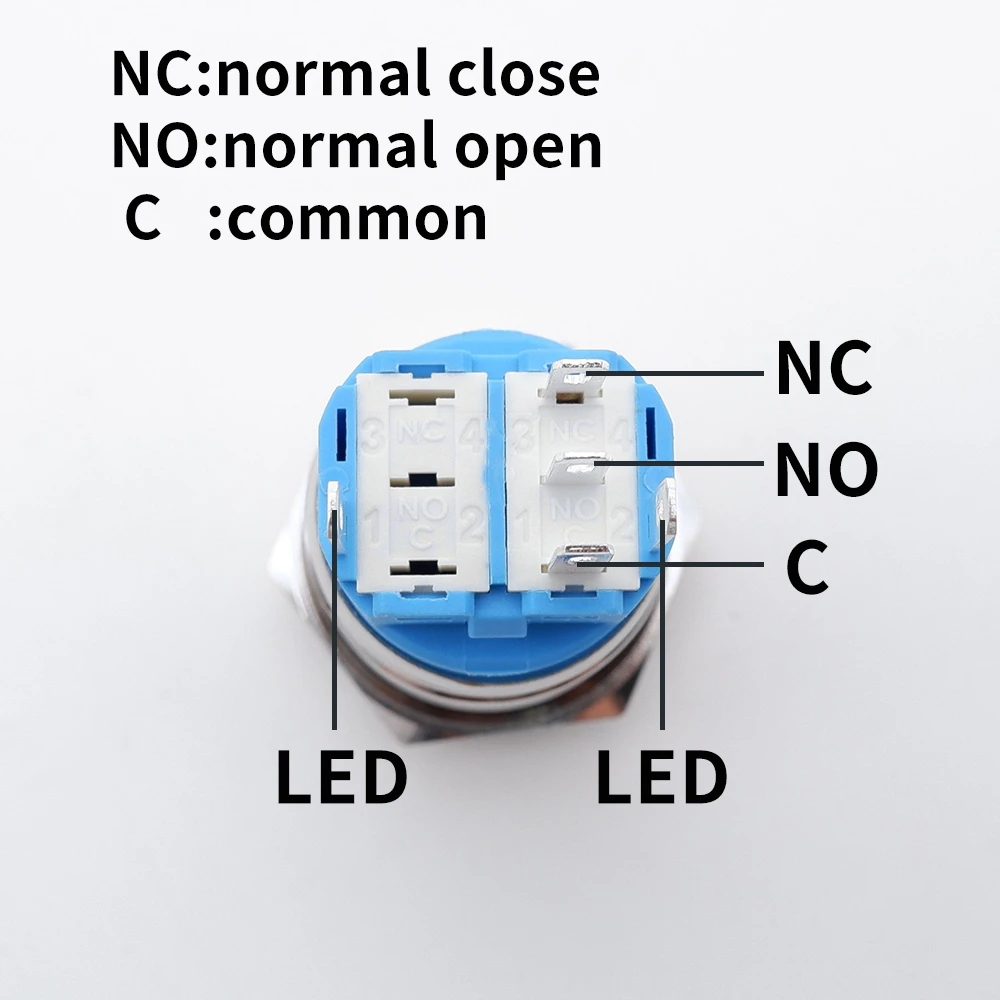

(1).Connect " NO " and " C " : The circuit is alway open unless press the button.
(2).Connect " NC " and " C " : The circuit is alway close unless press the button.

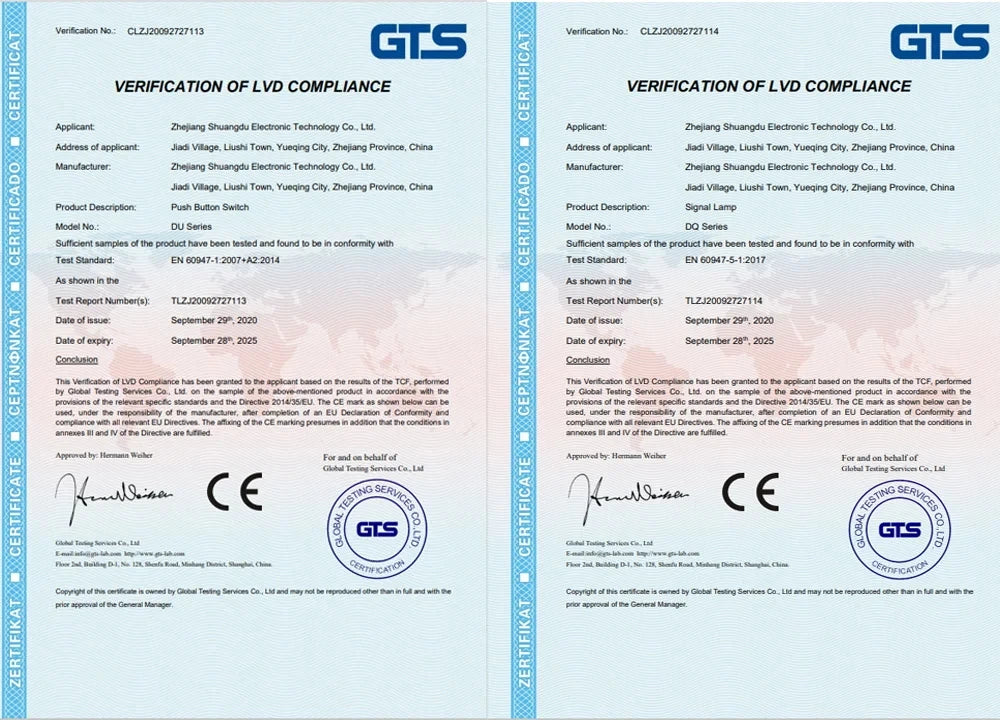

Certificate authentication

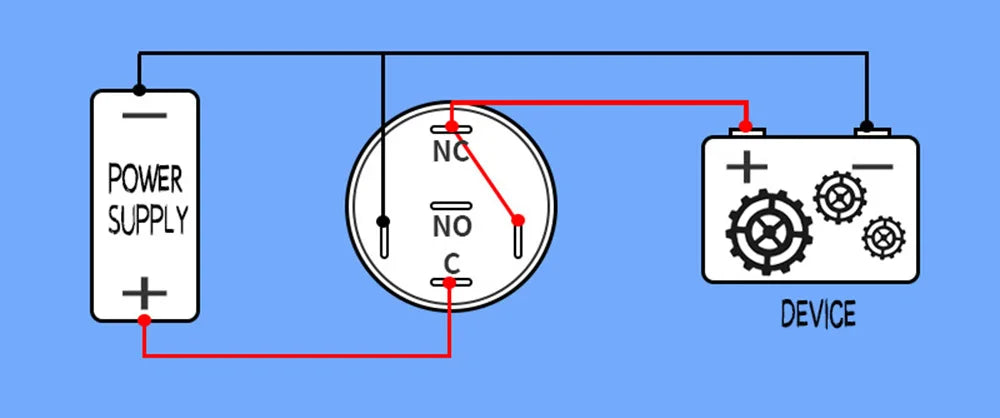

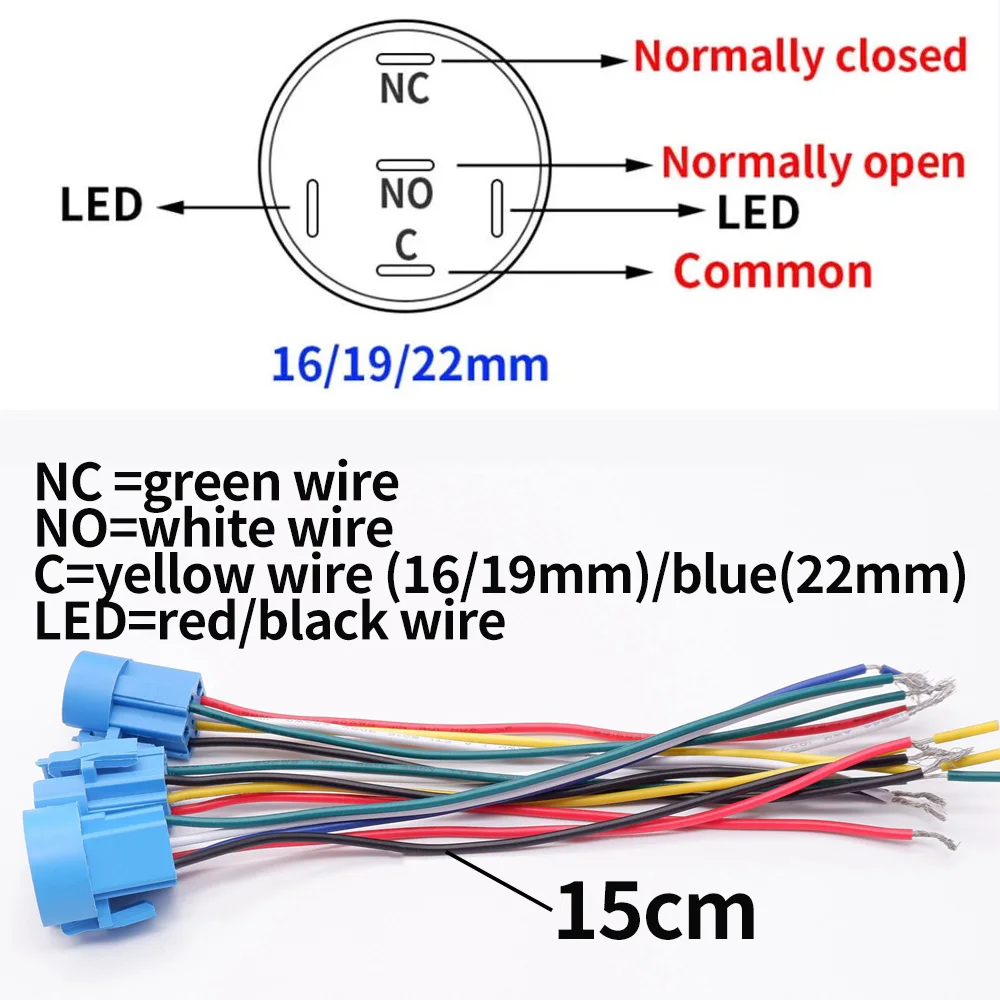

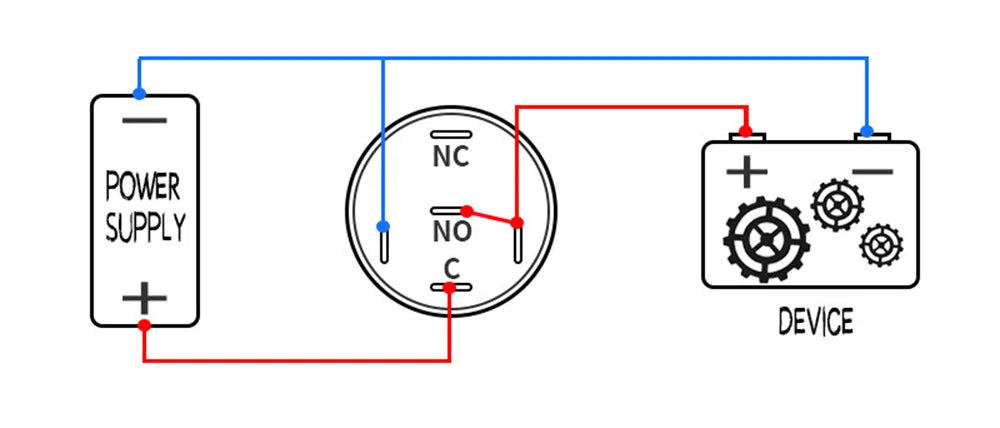

Wiring Diagram(16/19/22mm)

1、The button turns the LED light on and off，the circuit is alway open unless press the button.

2、LED lights are always on，the circuit is alway open unless press the button.

3、 The button turns the LED light on and off，the circuit is alway close unless press the button.

4、LED lights are always on，the circuit is alway close unless press the button.
