SPECIFICATIONS

Brand Name: HUSA

Certification: CE,ce

Choice: yes

Color: silver

Current: 3A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

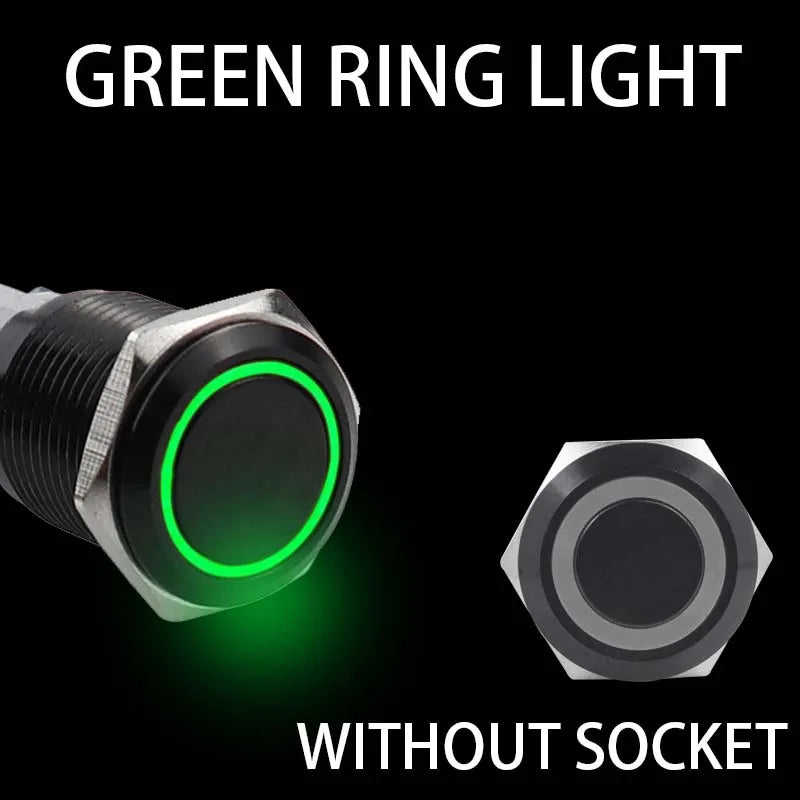

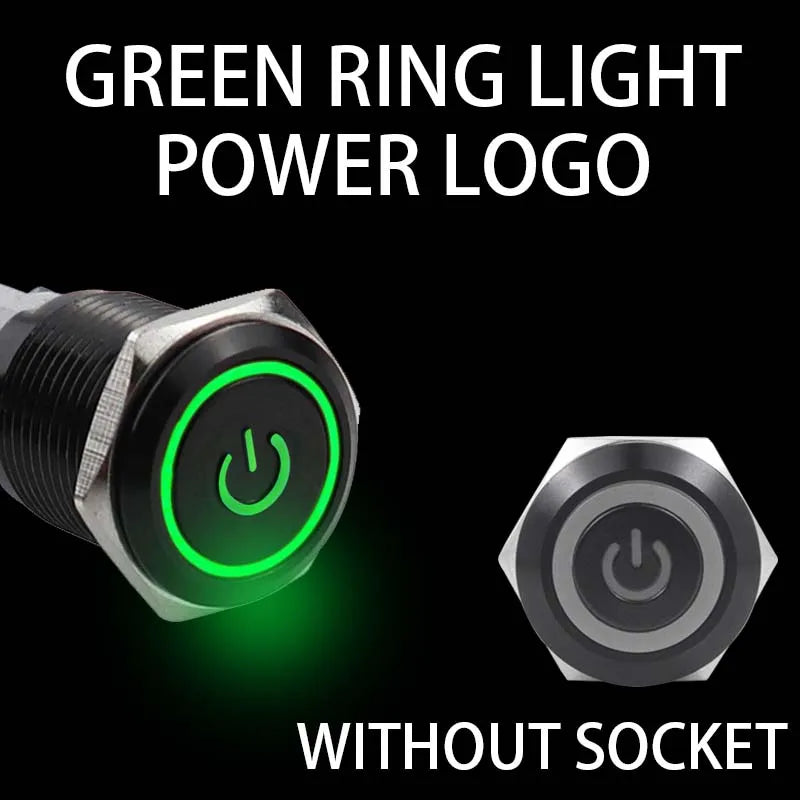

Light color: white/red/yellow/blue/green

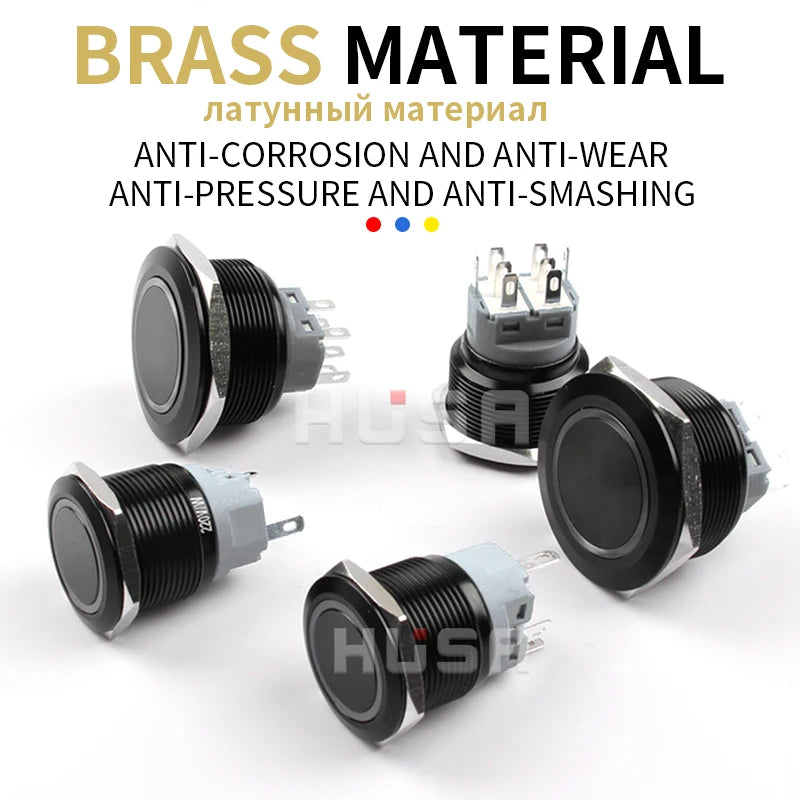

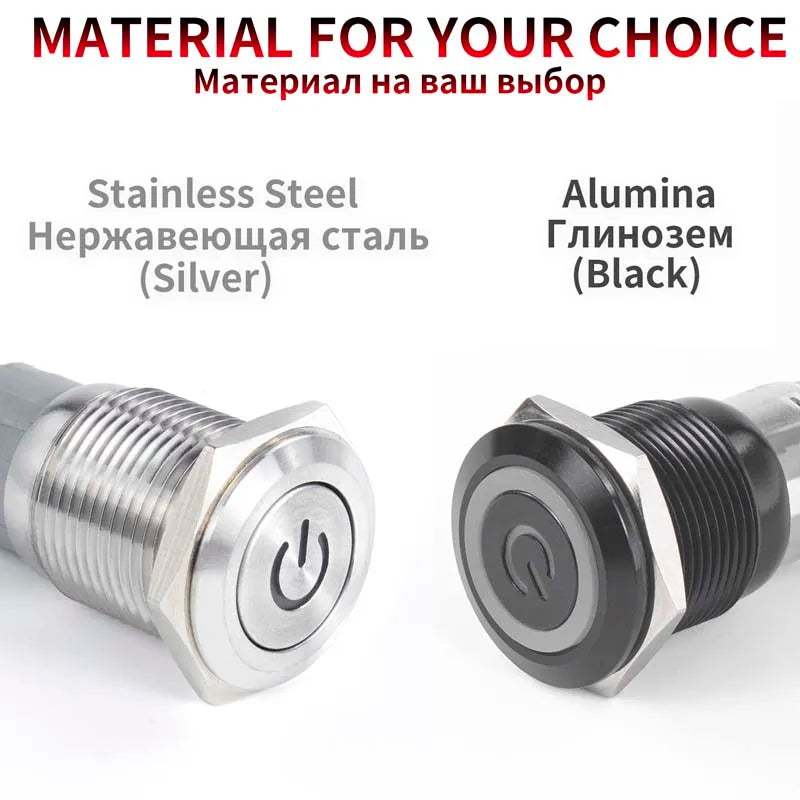

Material: Copper,aluminium alloy

Origin: Mainland China

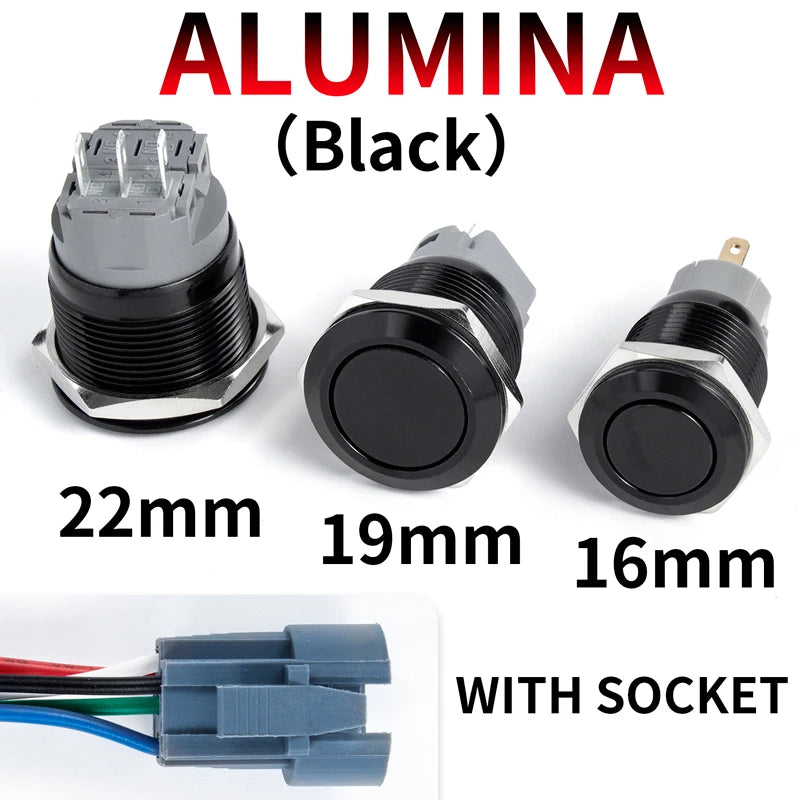

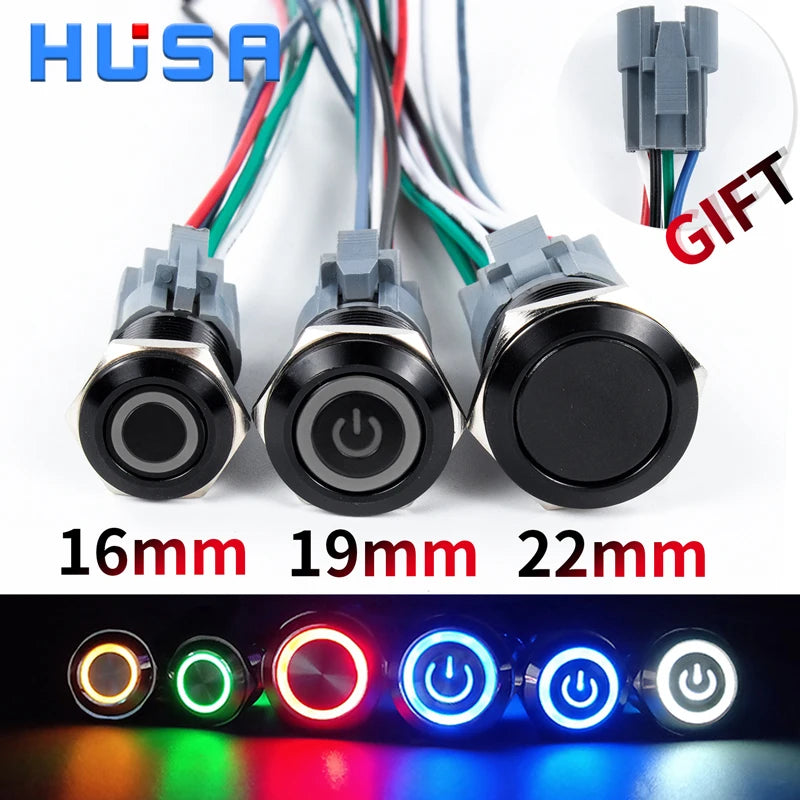

Size: 16mm 19mm 22mm

Switch Type: Push Button Switch

Wiring: pins

semi_Choice: yes

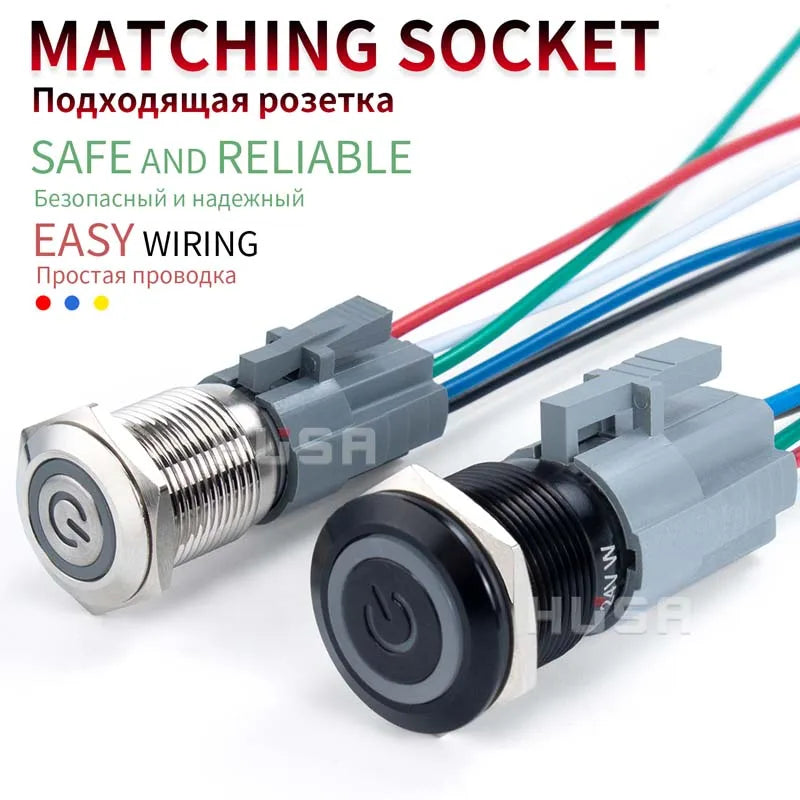

Note: the connector needs to be purchased separately

Difference between auto-recovery button and auto-lock button:

1. Self-recovery button: press this button to turn on the power (light on);

Release your hand, the power will appear and turn off automatically (the light goes out)

2. Self-locking button: press the power button, release your hand, and keep the button stationary (lit);

Press the button again to display and turn off the power (the light goes out).

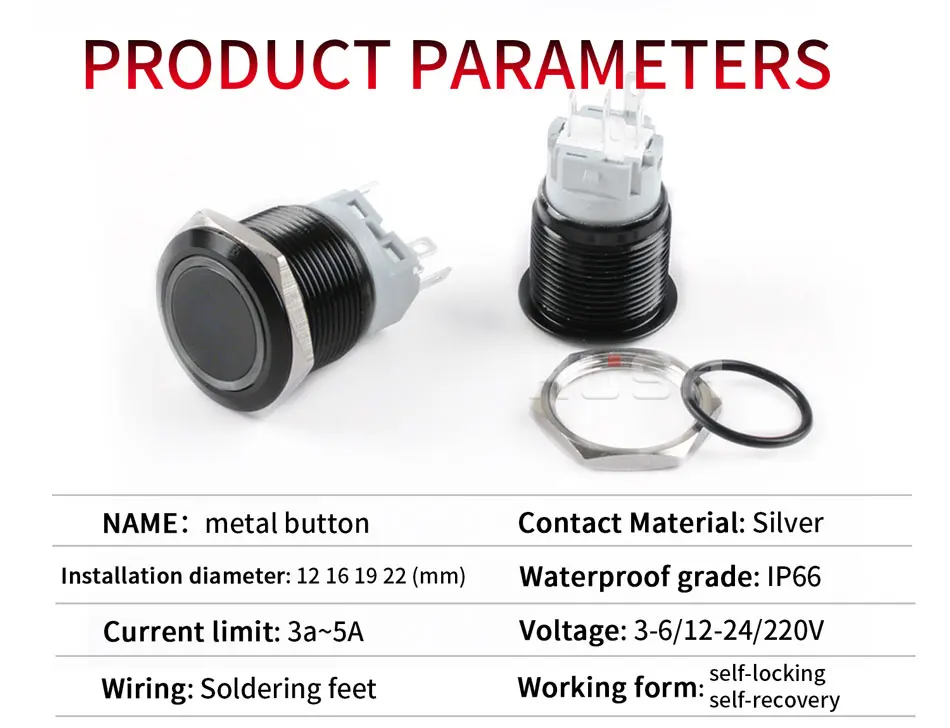

Product parameters

Head type: round head

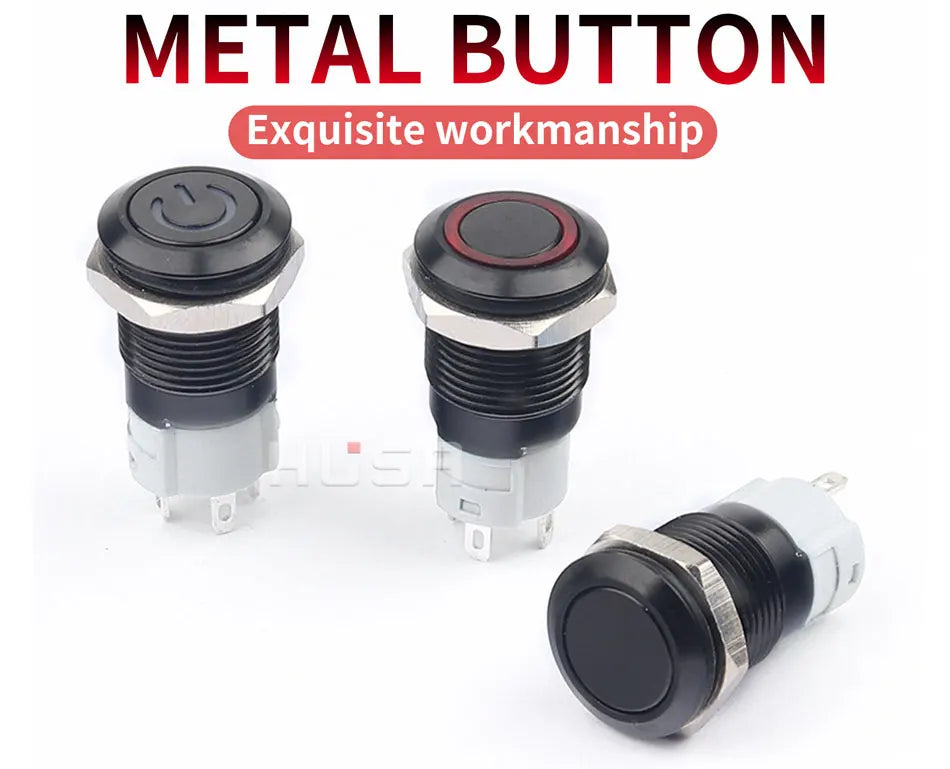

Housing material: metal

Operation type: Momentary self-reset/fixed self-locking

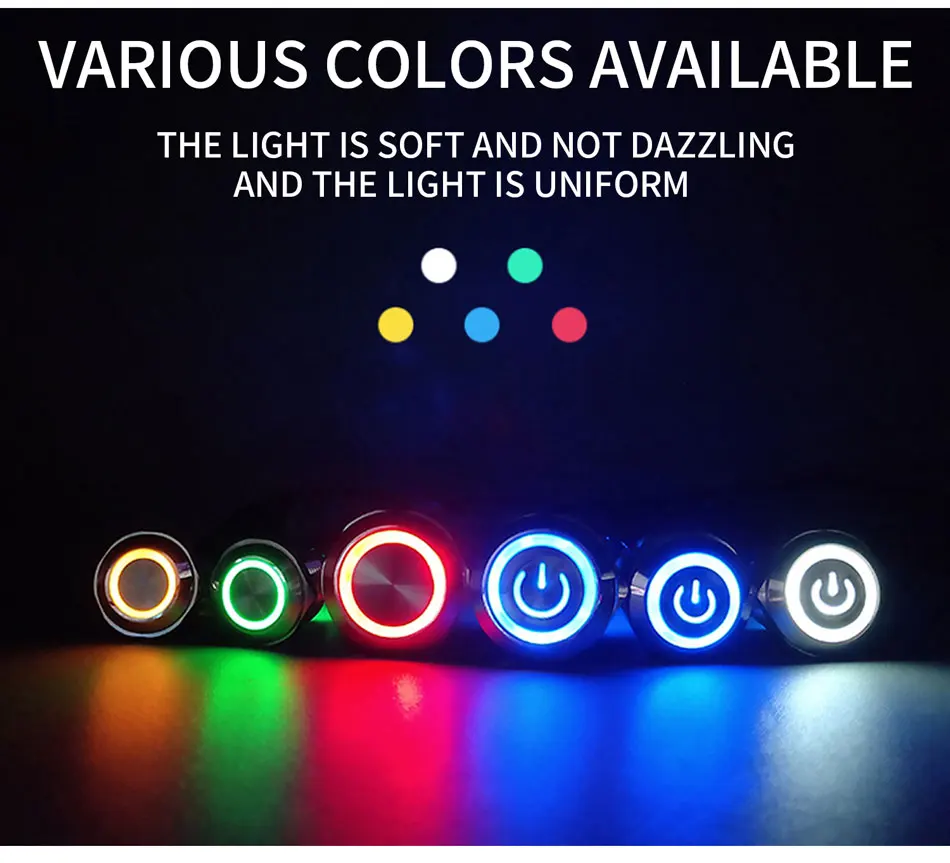

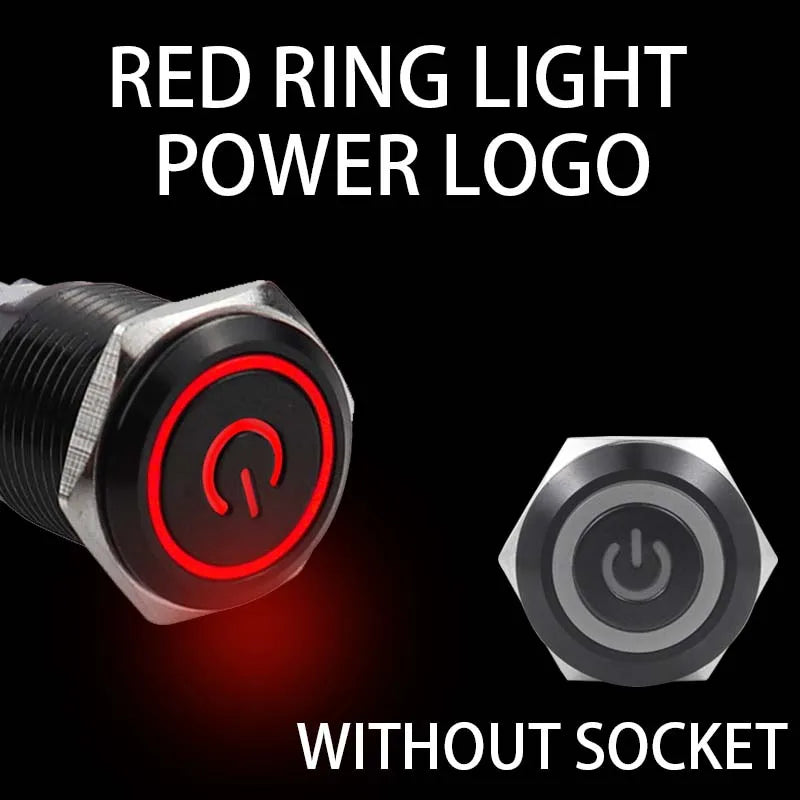

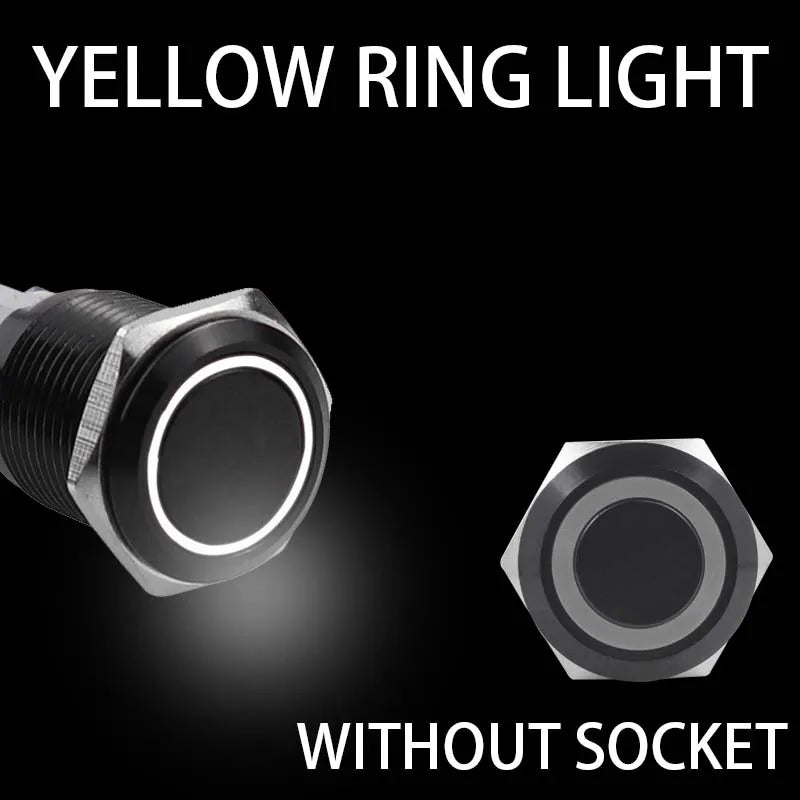

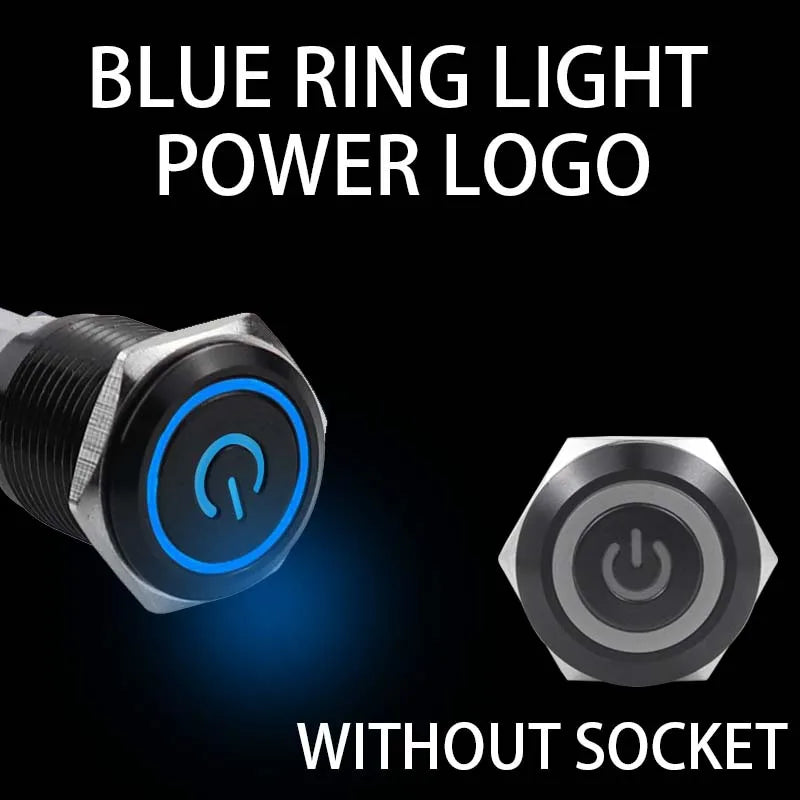

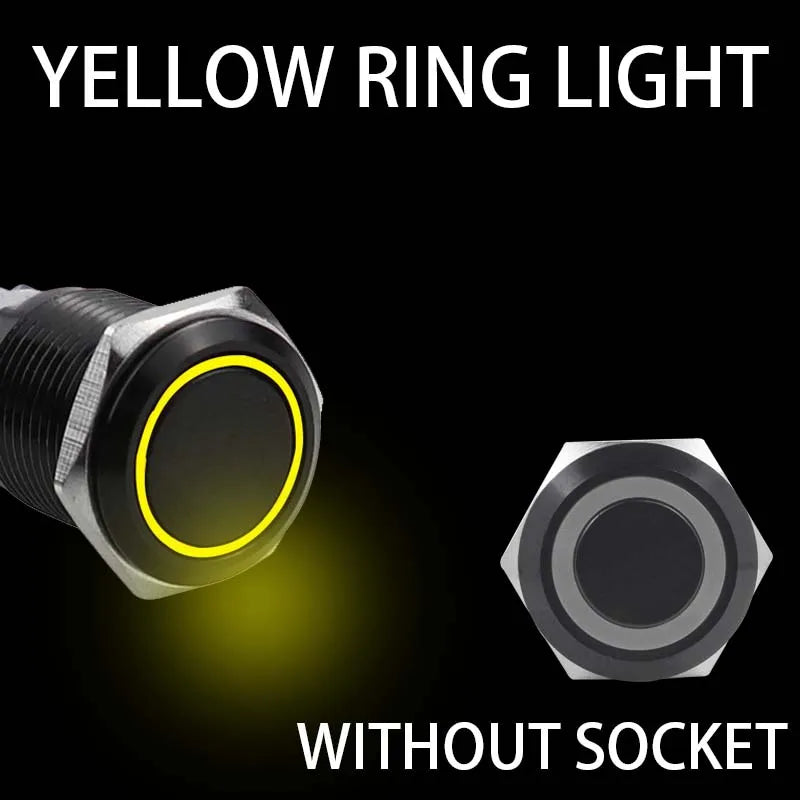

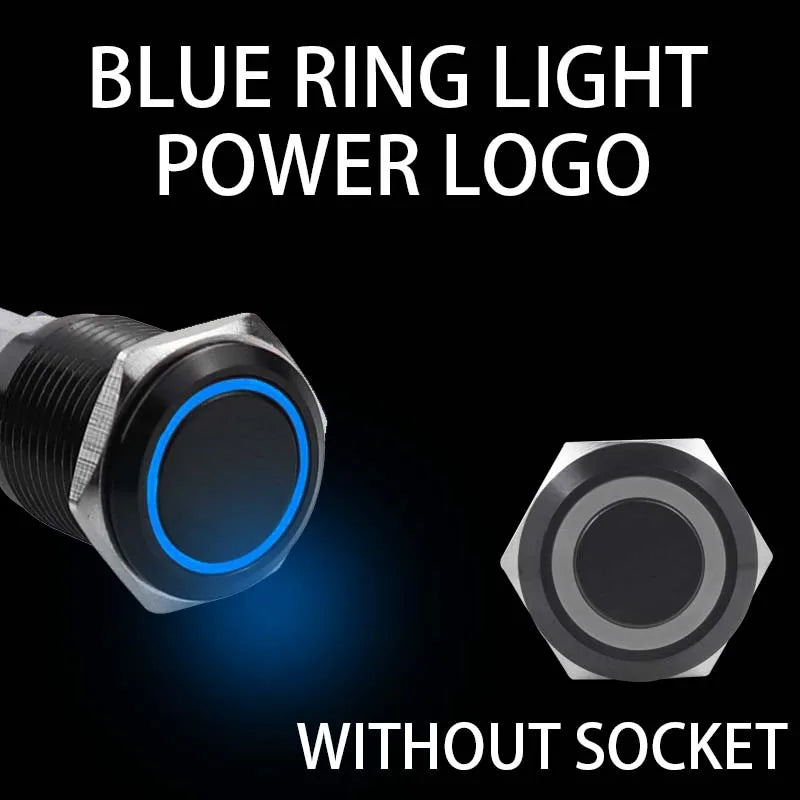

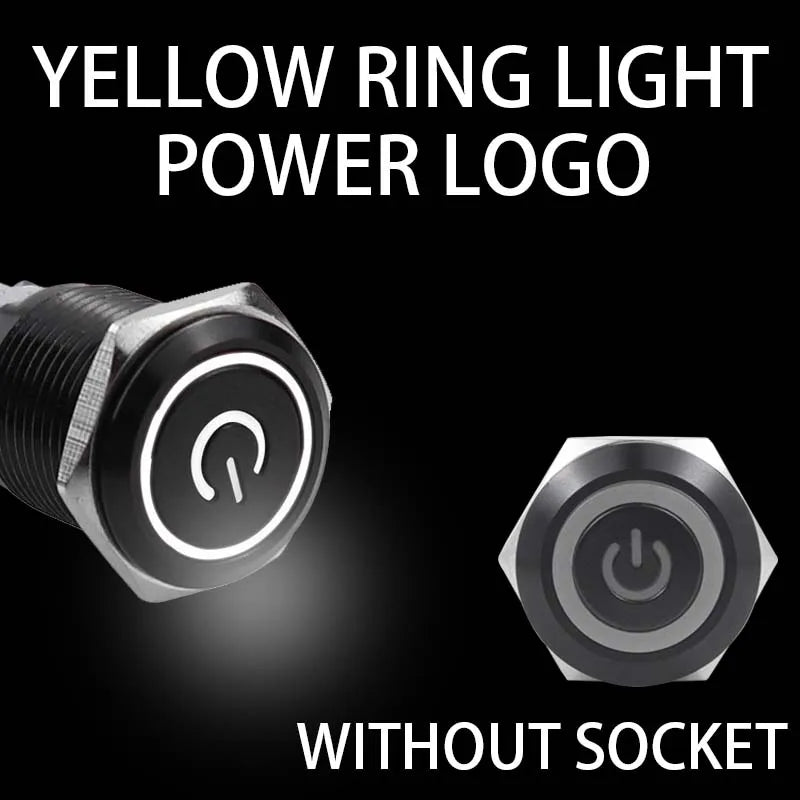

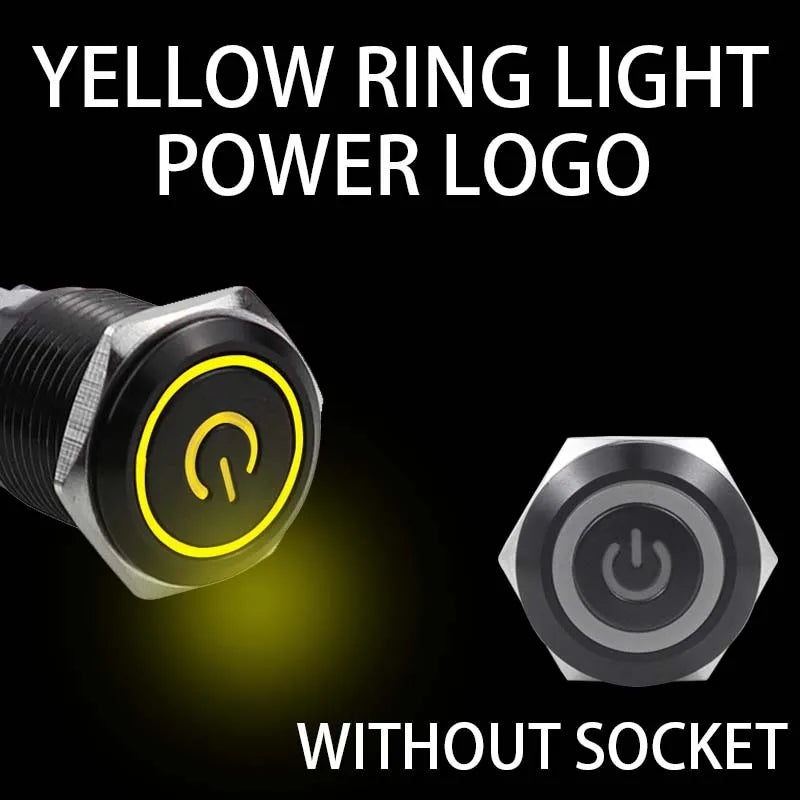

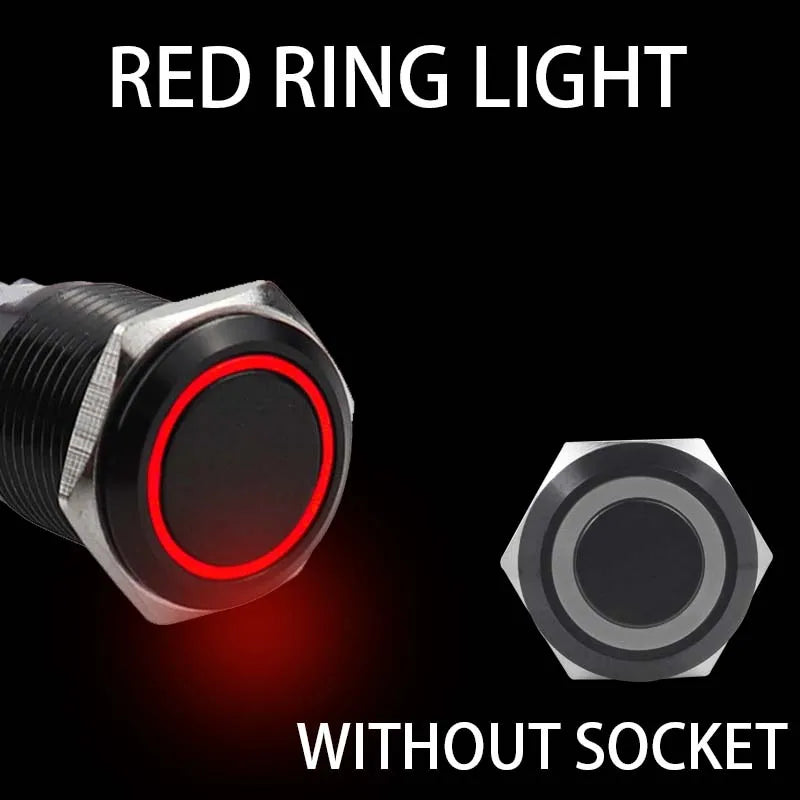

Emitting color: red / yellow / blue / green / white

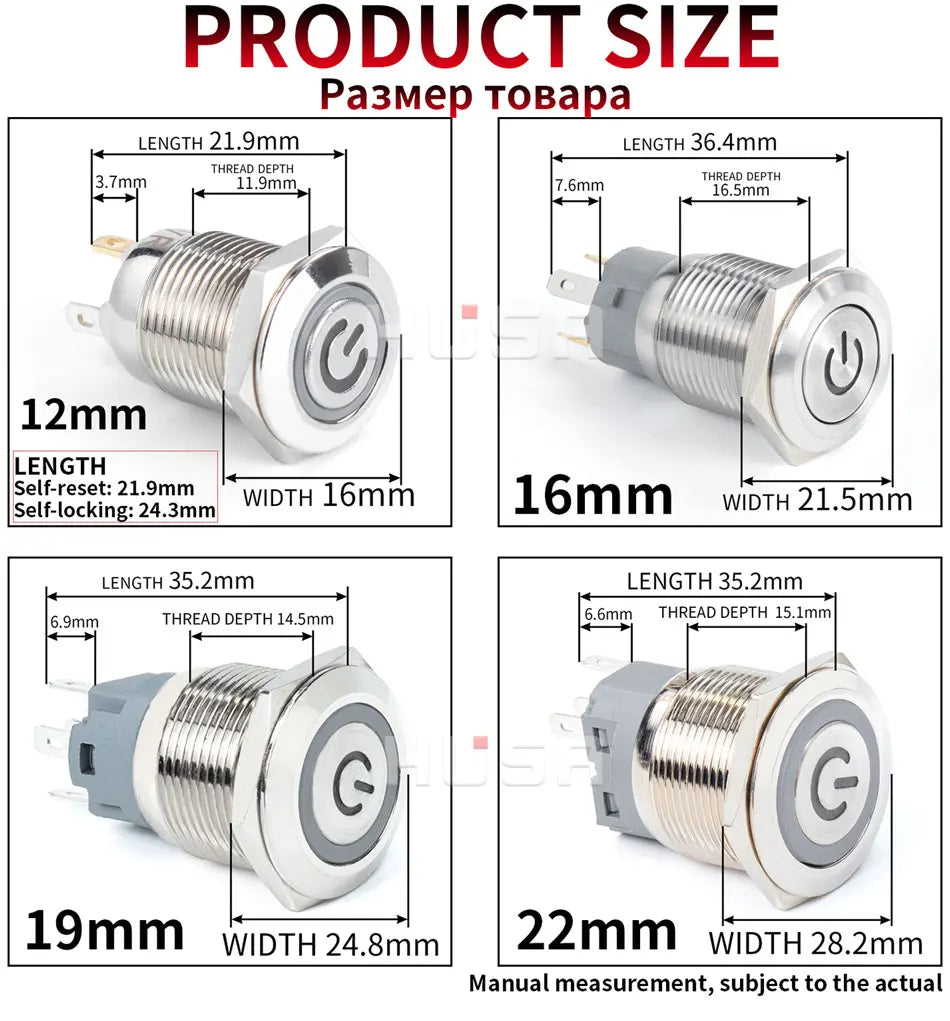

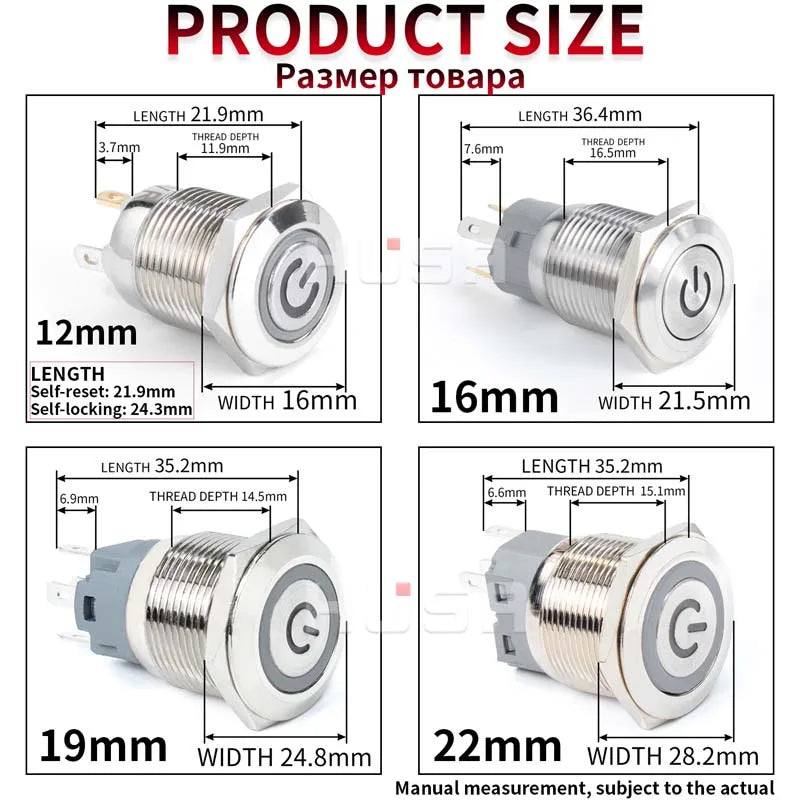

Opening size: 12mm/16mm/19mm/22mm

Very important: Because of the virus,the Economic shipping is slow,If you need buttons hurry,please choose Alistandard shipping

1.What does the signal "NC" and "NO" means?

"A" "+": positive pole of the led

"LED" " - ": negative pole of the led

" NC ": Normal Close

" NO ": Normal Open

" C " : Common

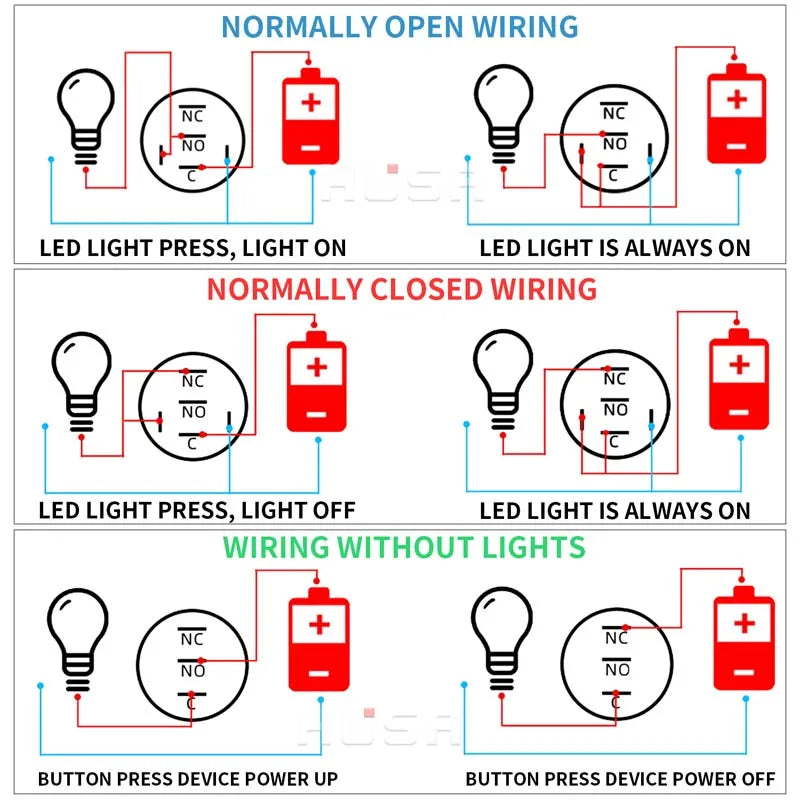

2.How to connect?

1.Connect " NO " and " C " : The circuit is alway open unless press the button.

2.Connect " NC " and " C " : The circuit is alway close unless press the button.
