Description

SPECIFICATIONS

Brand Name: AFU

Certification: CE,FCC,RoHS

Data Transmission: no

Display screen: Yes

High-concerned chemical: none

Intelligent Charge: Yes

Max. Output Power: 168W

Model Number: AF180-16810R

Origin: Mainland China

Output Power: 74.6-150（include150）

Package: Yes

Power Source: AC&DC

Quick charge: No

Type: Electric,Quick charger

Use: Standard Battery

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

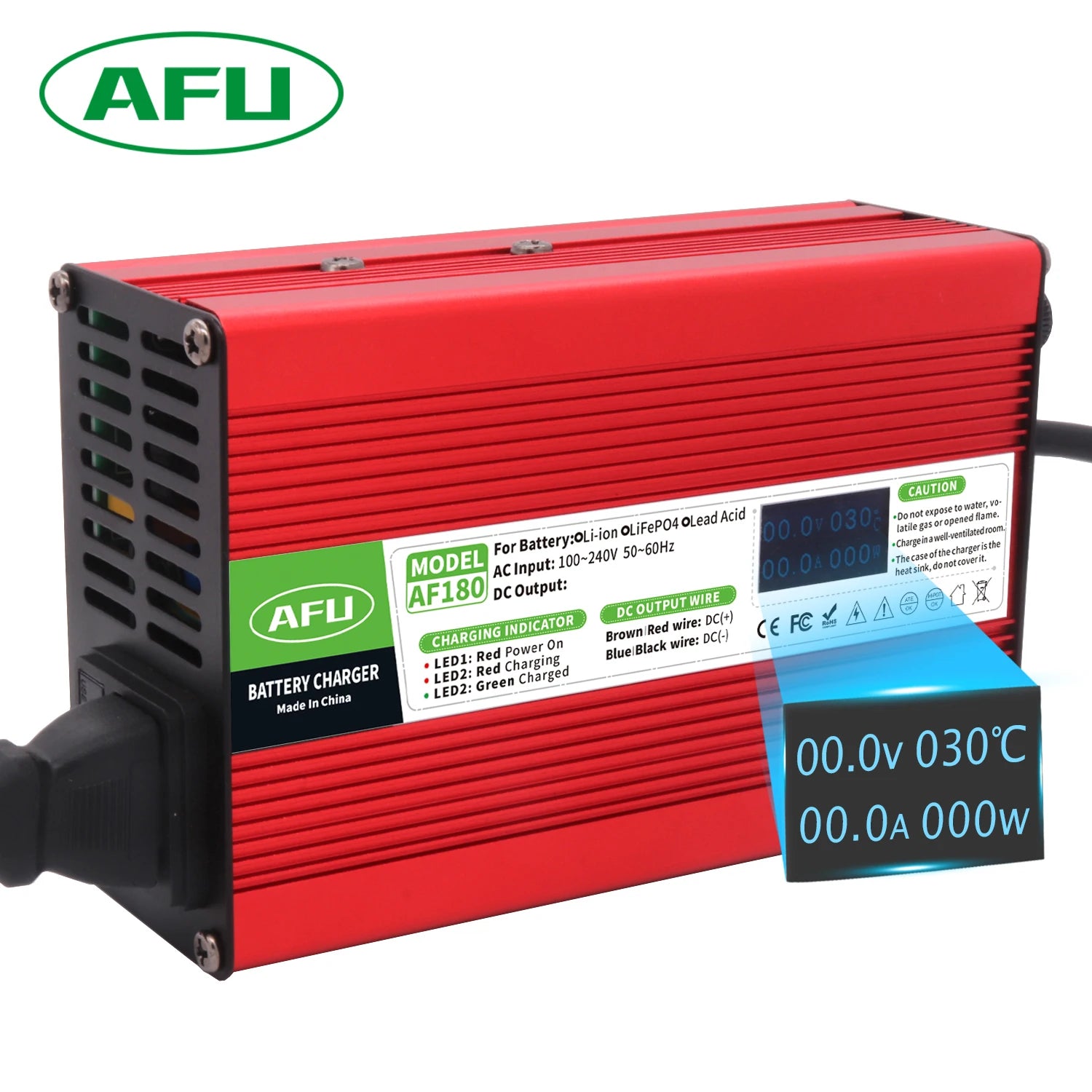

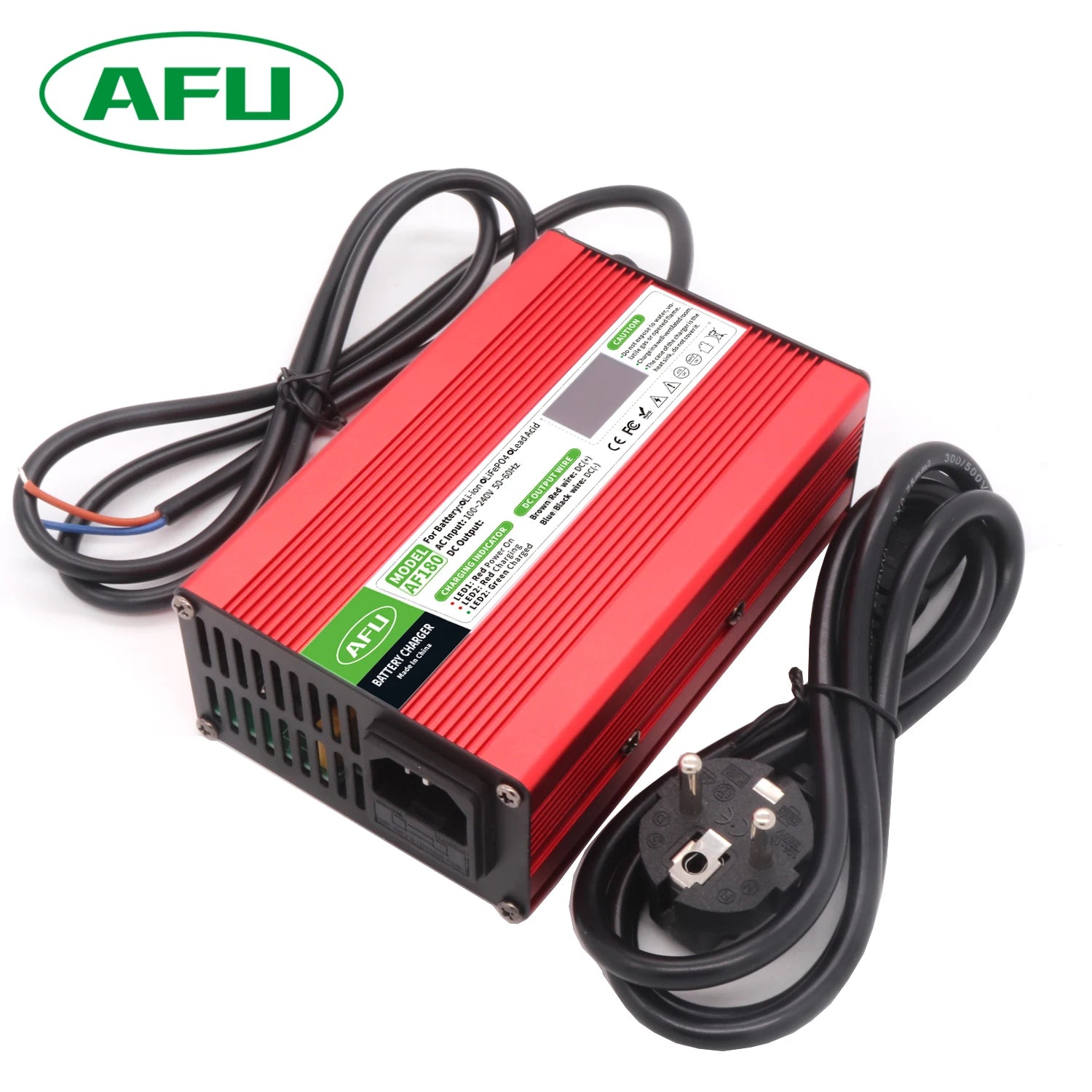

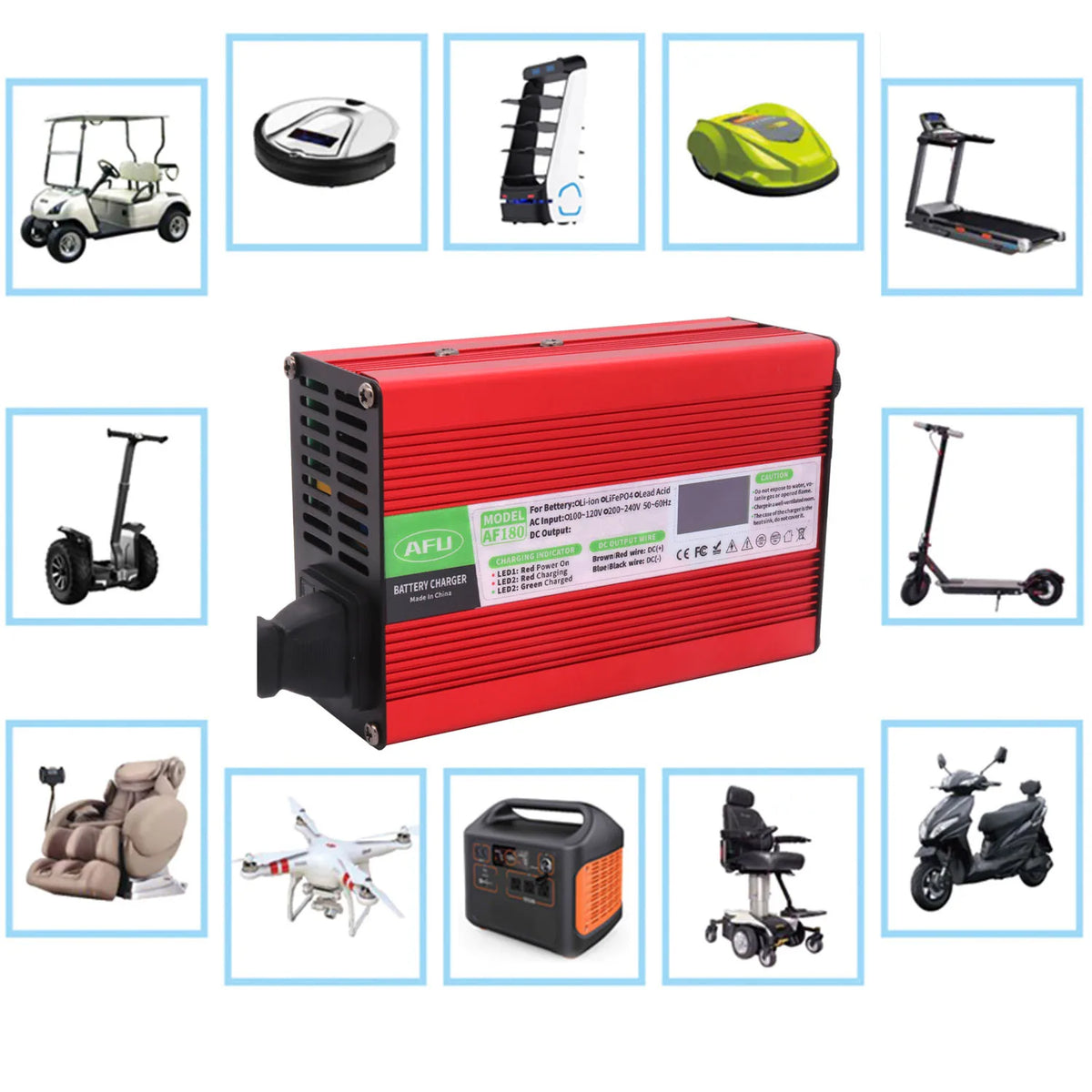

Product Name	AF180 BATTERY CHARGER
Brand Name	AFU	Model Number	AF180-16810R
AC Input Voltage	100~240Vac	Frequency	50~60Hz
DC Output Voltage	16.8 Volt	DC Output Current	10 Amp

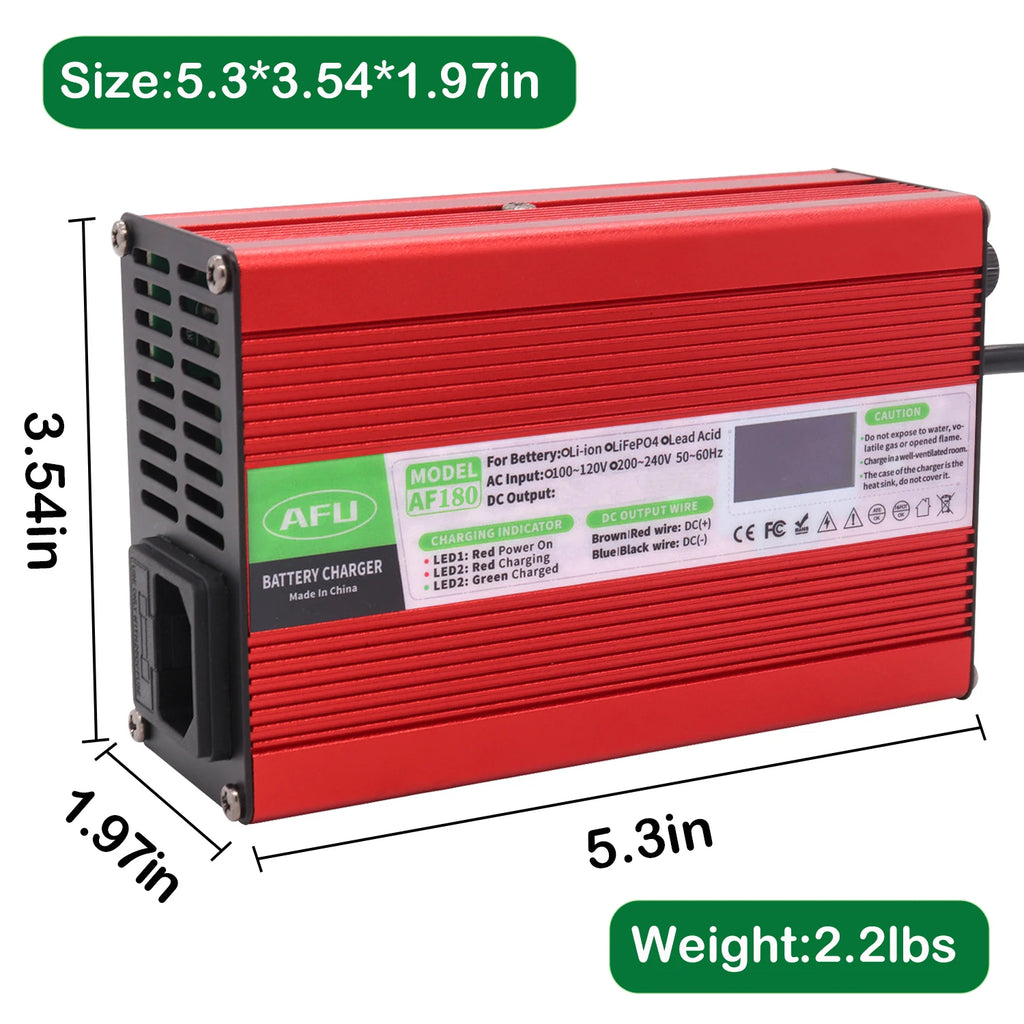

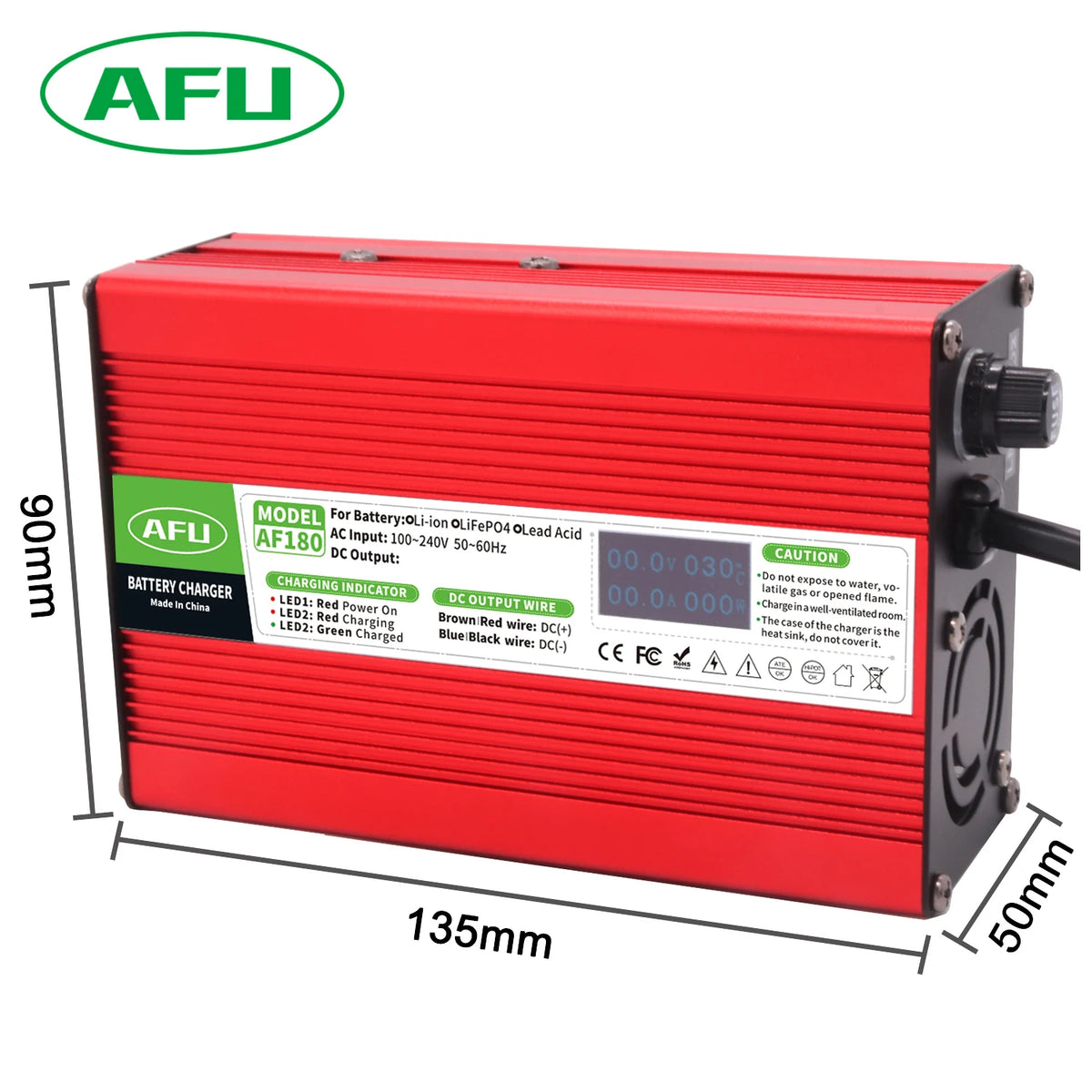

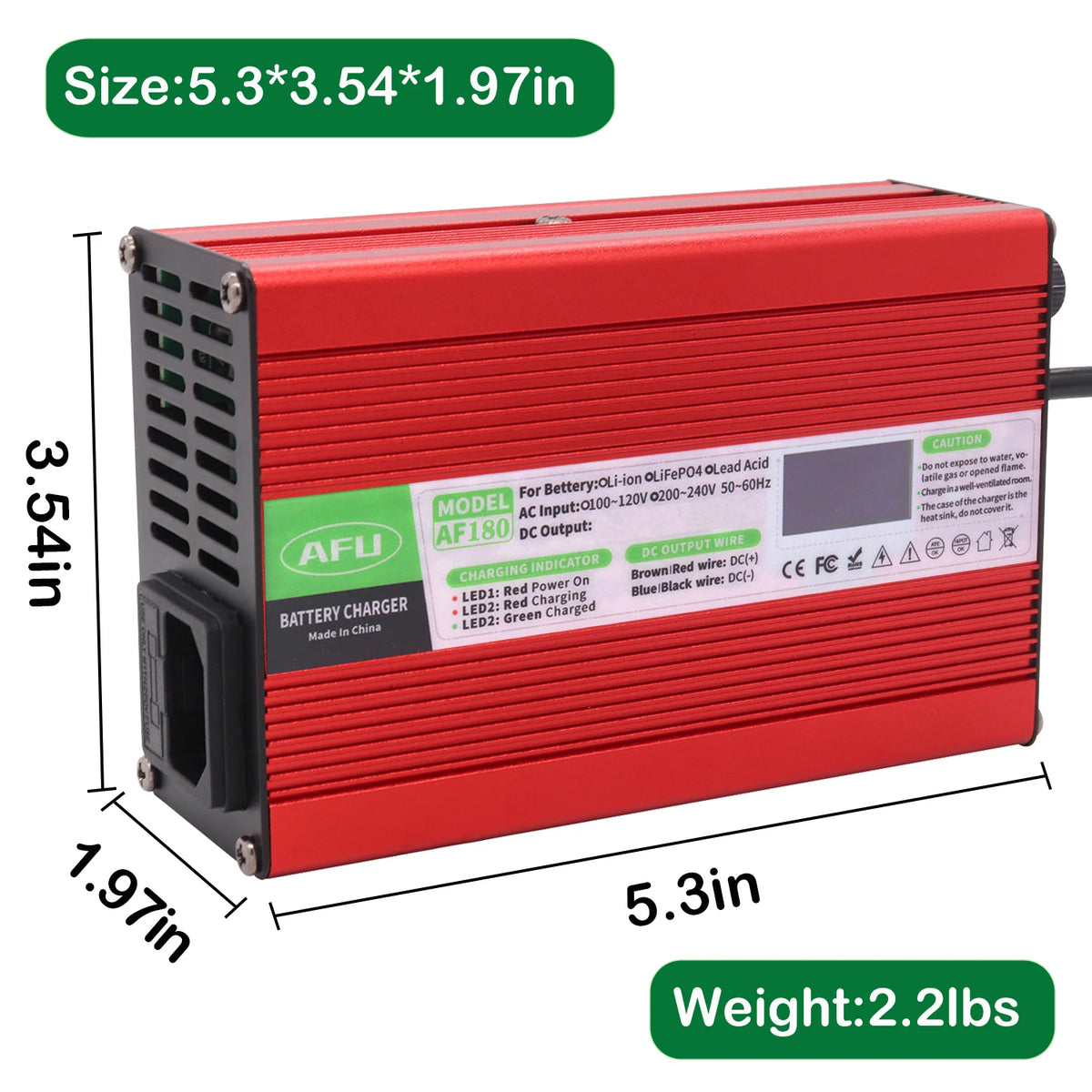

Dimension	1359050mm	Net Weight	0.8KG
Case Color	Red	Case Material	Aluminum case
Suitable Battery Type	4S 14.8V Li-ion battery (S=Series Connection)	Efficiency	≥85%

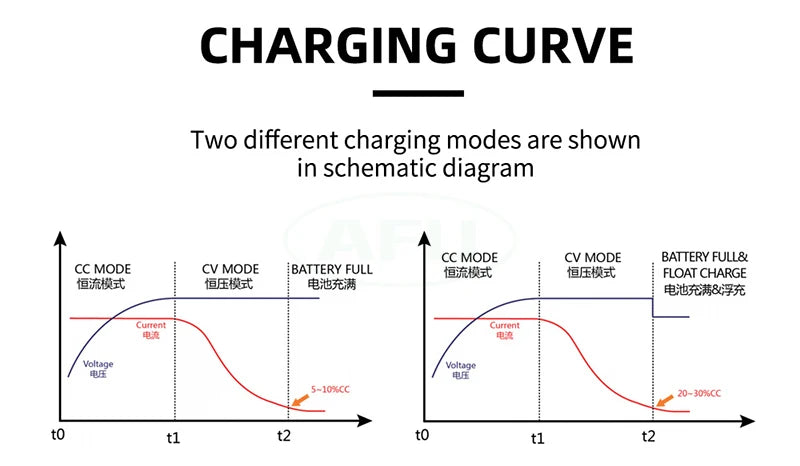

Charging Mode	Three-stage Intelligent Charging Mode: Constant Current~Constant Voltage~Trickle(Floating Charge) to Ensure Battery Fully Charged (Floating Charge is when Lead Acid charger)
Charging Indicator	Red and Green, double color instructions, Red logo charging, Green logo finished or standby

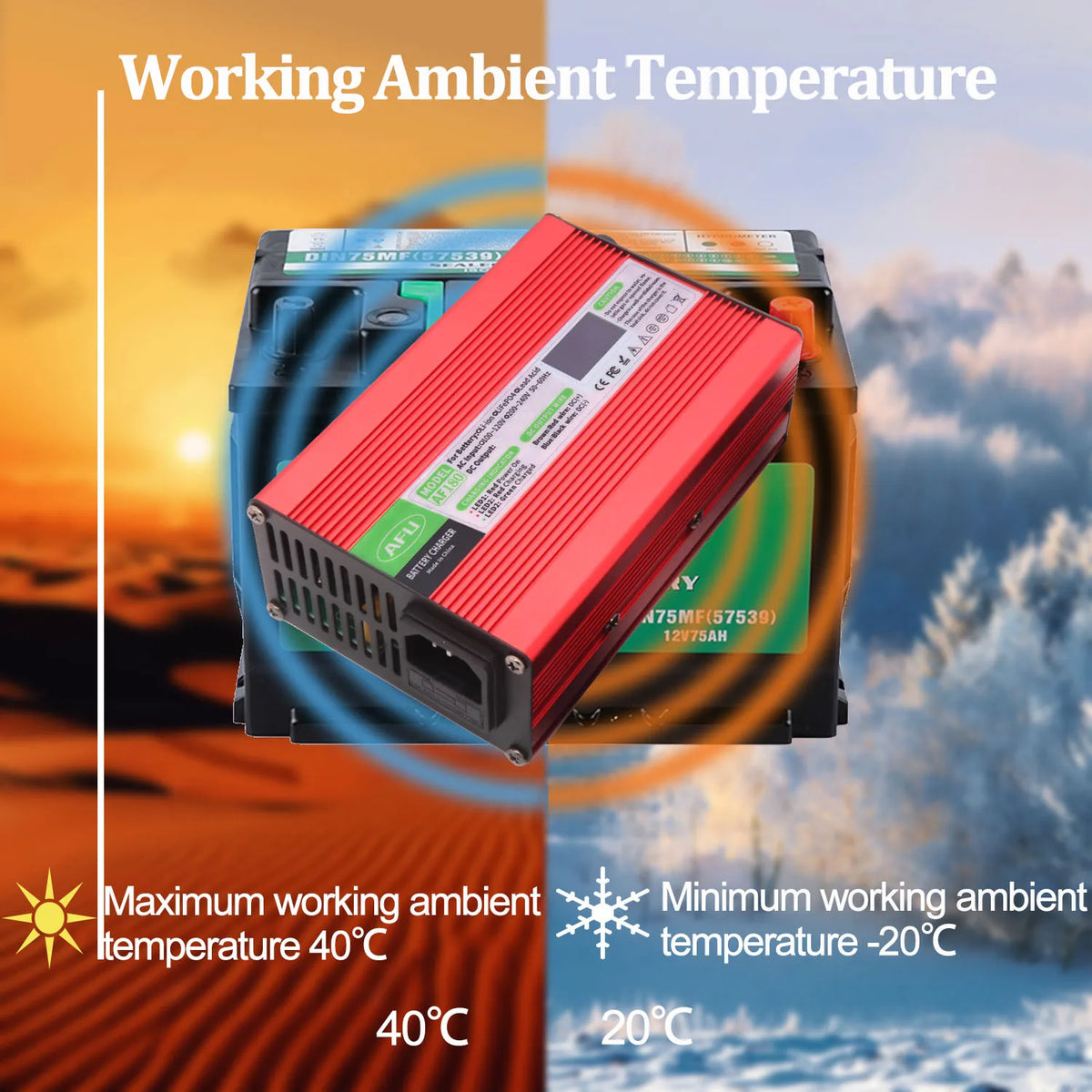

Operating/Storage Conditions	Operating:Ambient temperature: -20~+40℃; RH: 5~95%; Max. altitude: 10000 meter
Operating/Storage Conditions	Storage:Ambient temperature: -40~+70℃; RH: 0~95%; Max. altitude: 20000 meters

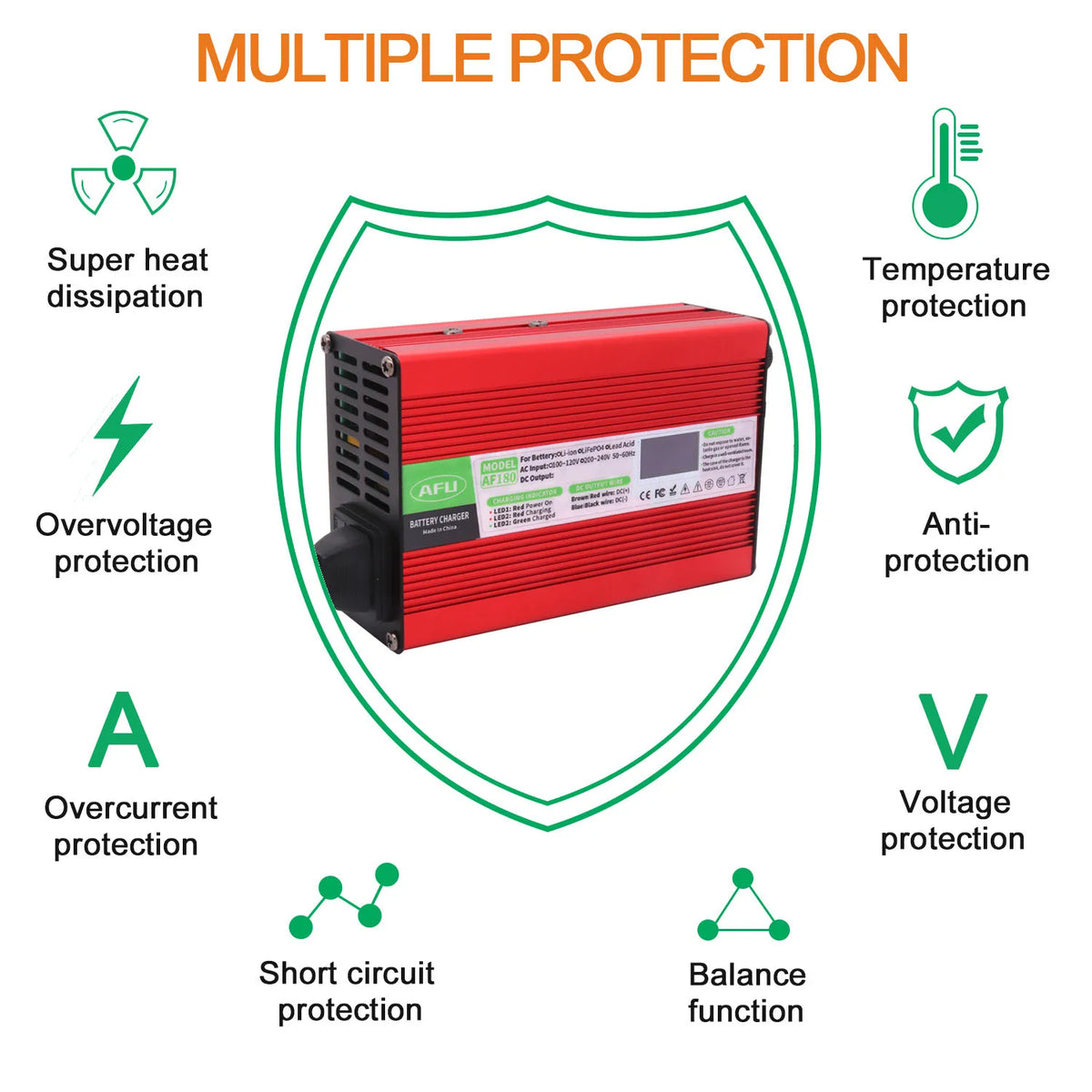

Various Protection	Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge

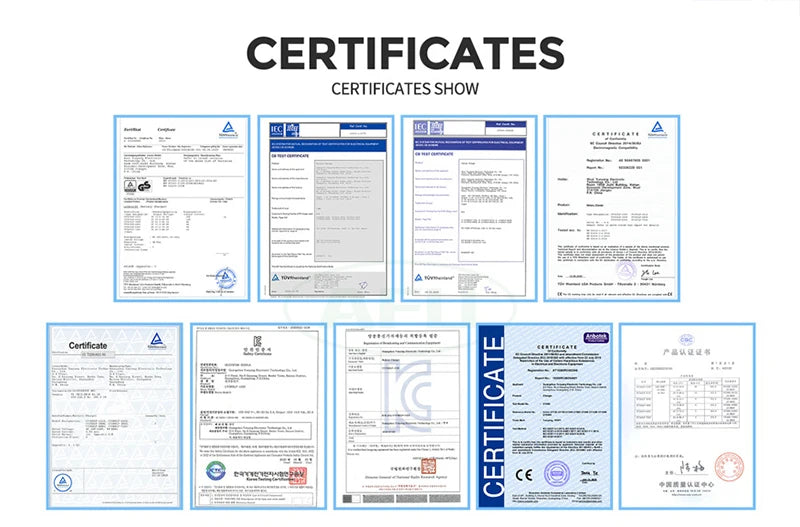

Our Advantage	Safety certifications CE, RoHS, FCC Directive-compliant, Intelligent IC control ,full automatic transition of CC,CV and Float/Cut-off rickle, meet the demands for different Curve.
Our Advantage	Aluminum case, Robust, Elegant, Safe, Stable, Reliable

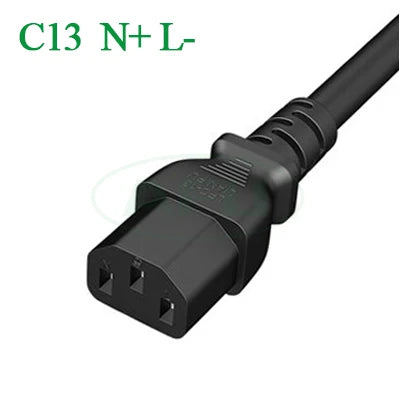

Package Contents	1xbattery charger 1xInput Wire *1xUser Manual This battery charger is your affordable necessity without sacrificing performance. It features an integrated MCU and PWM for power control.
