SPECIFICATIONS

Application: Computer

Brand Name: eletechsup

Bus Interface: RS485

Channels: 16

Choice: yes

Condition: New

Dissipation Power: 0.1-2W

High-concerned chemical: none

Operating Temperature: -40-80

Operating Voltage: DC 12V

Origin: Mainland China

Package: SMD

Rail: DIN35/C45

Standby current: 13MA

Supply Voltage: DC 12V

Type: Drive IC

is_customized: Yes

semi_Choice: yes

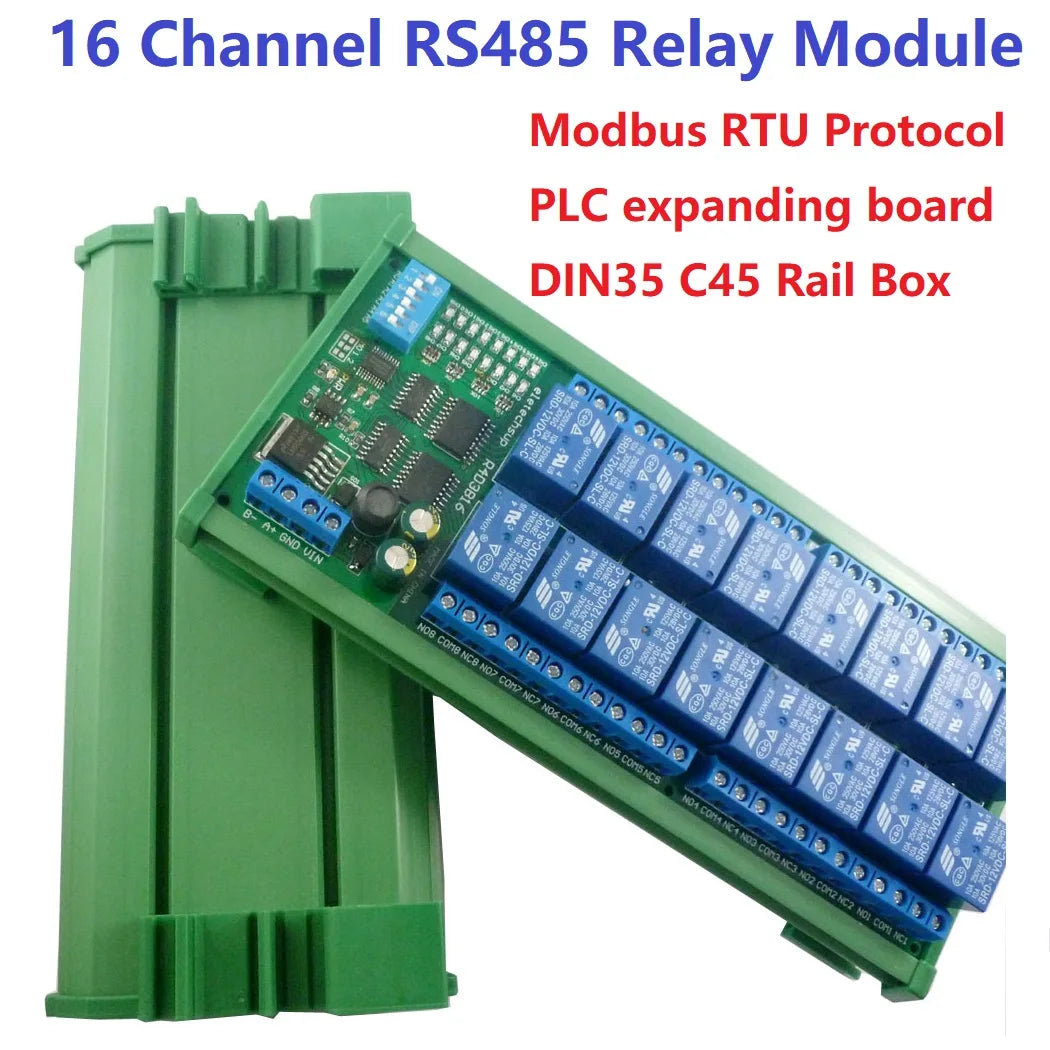

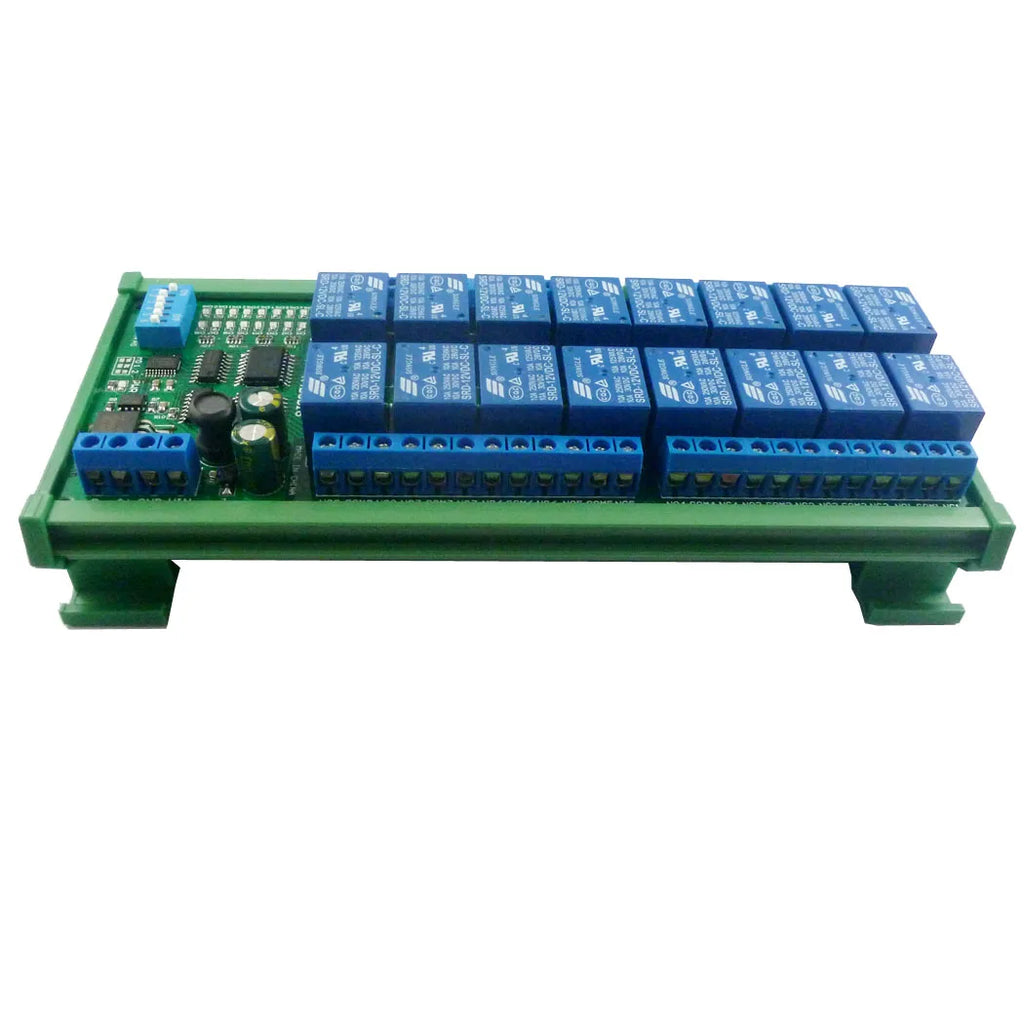

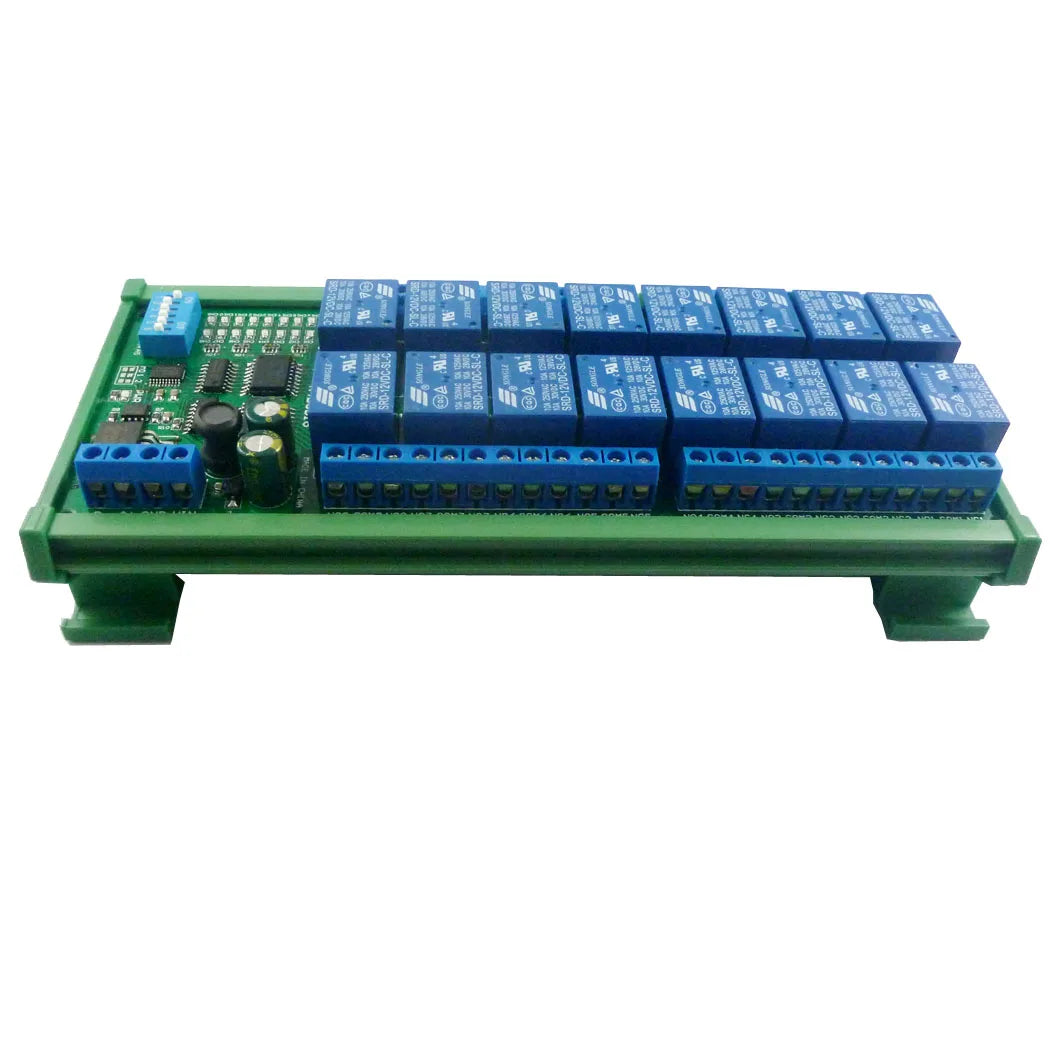

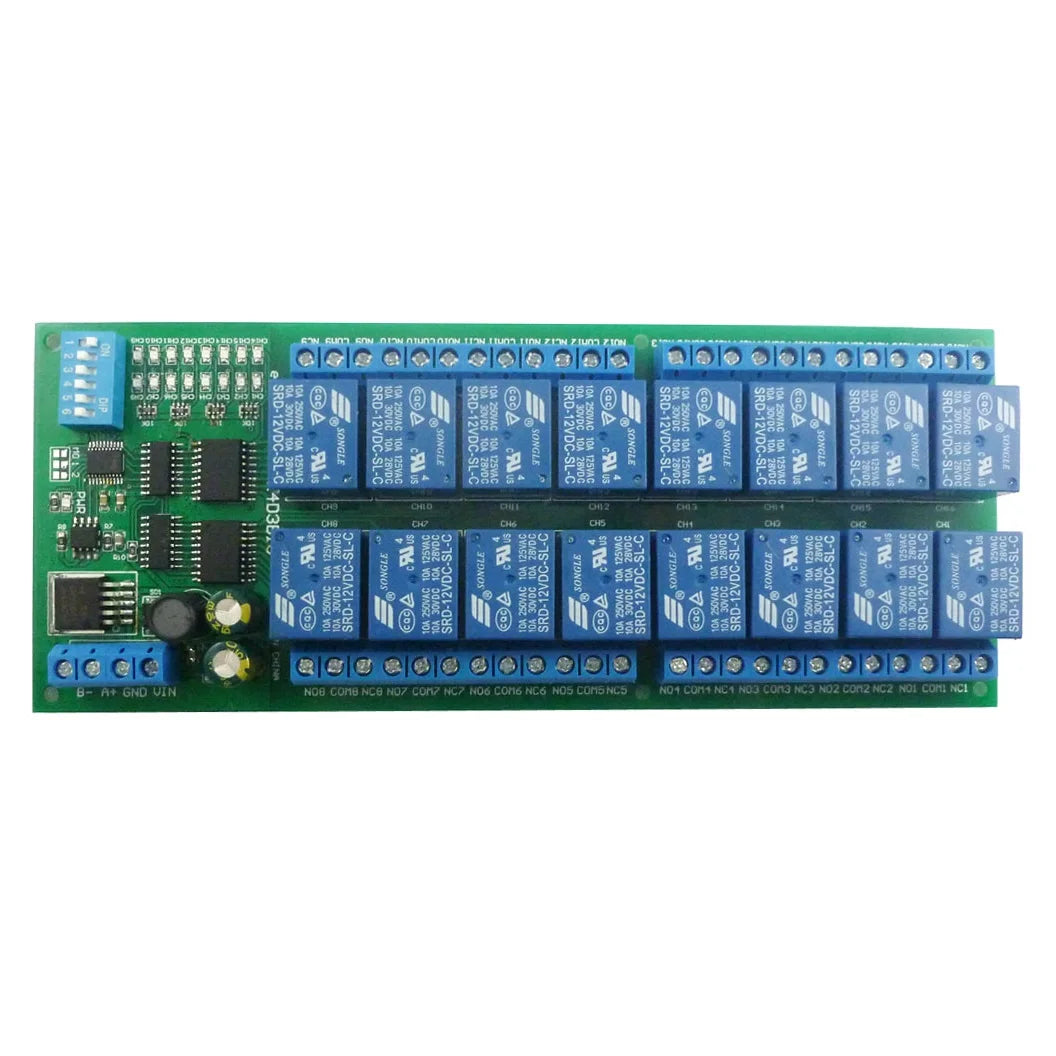

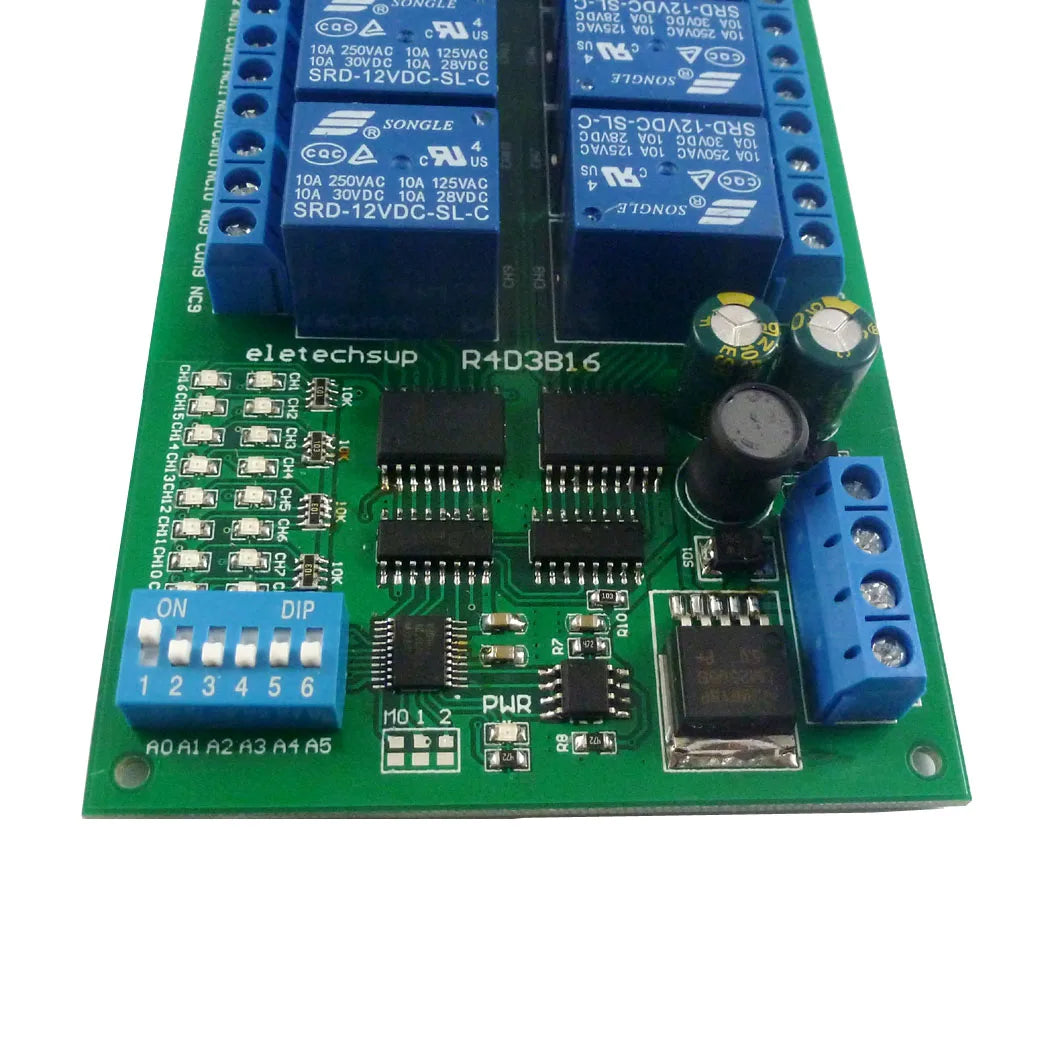

Product Name: 16-Channel 12V 10A DIN Rail Box PLC Expansion Board RS485 Modbus RTU Relay Module

Package inlcuded:

1PCS DC 12V 16Ch DIN35 C45 Rail RS485 Modbus RTU Relay Board

(Specific according to the version and quantity you choose)

Description:

1: DC 12V power supply

2: Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 148MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 225MA.etc

3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

4: Two instruction-control mode : MODBUS RTU command and AT command

5: Under the ''Delay'' command ,the maximum delay is 255 seconds;

Under the AT command ,the maximum delay is 9999 seconds

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter; AT commands can be made serial HyperTerminal (serial assistant) Enter;

7 Under the MODBUS command mode, it can support up to 64 devices in parallel

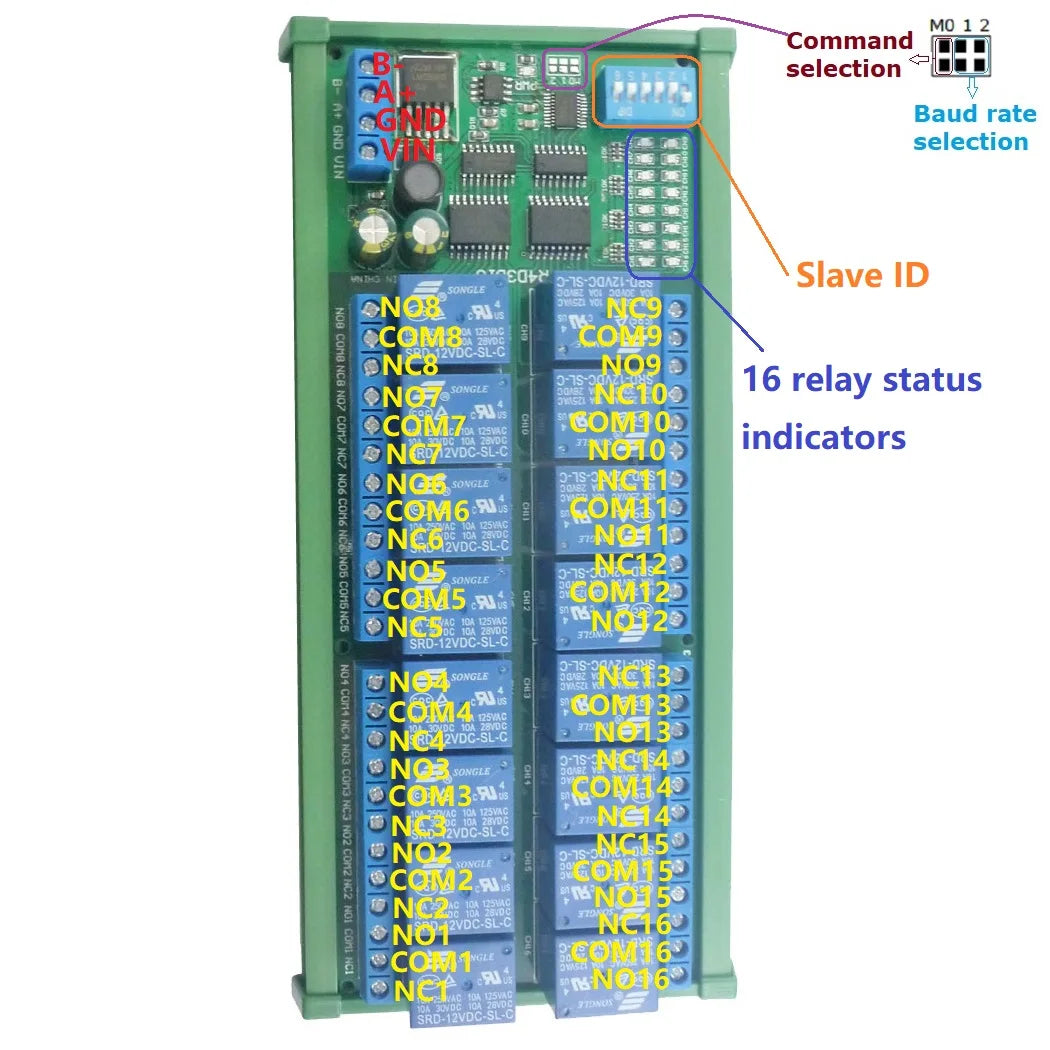

8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS

9 Size: 180 * 72 * 20mm(Only PCB Board);184 * 88* 42mm(with Din Rail Box)

10 Weight: 230g(Only PCB Board);358g(with Din Rail Box)

11 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC




For more information, please open the link and download:

https://1drv.ms/u/s!AjrAGEbCBLls2hqUzzD5fjKJAESM?e=gTnRu0

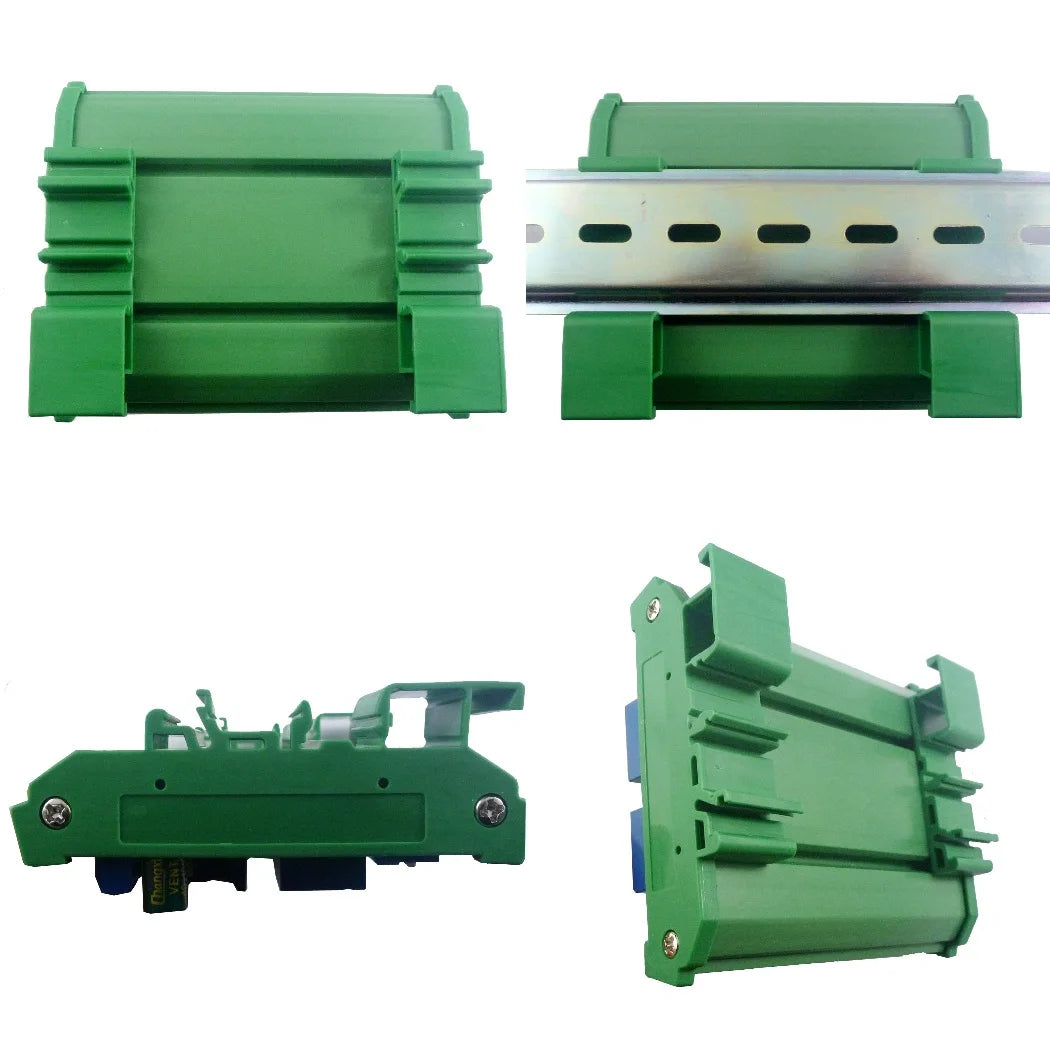

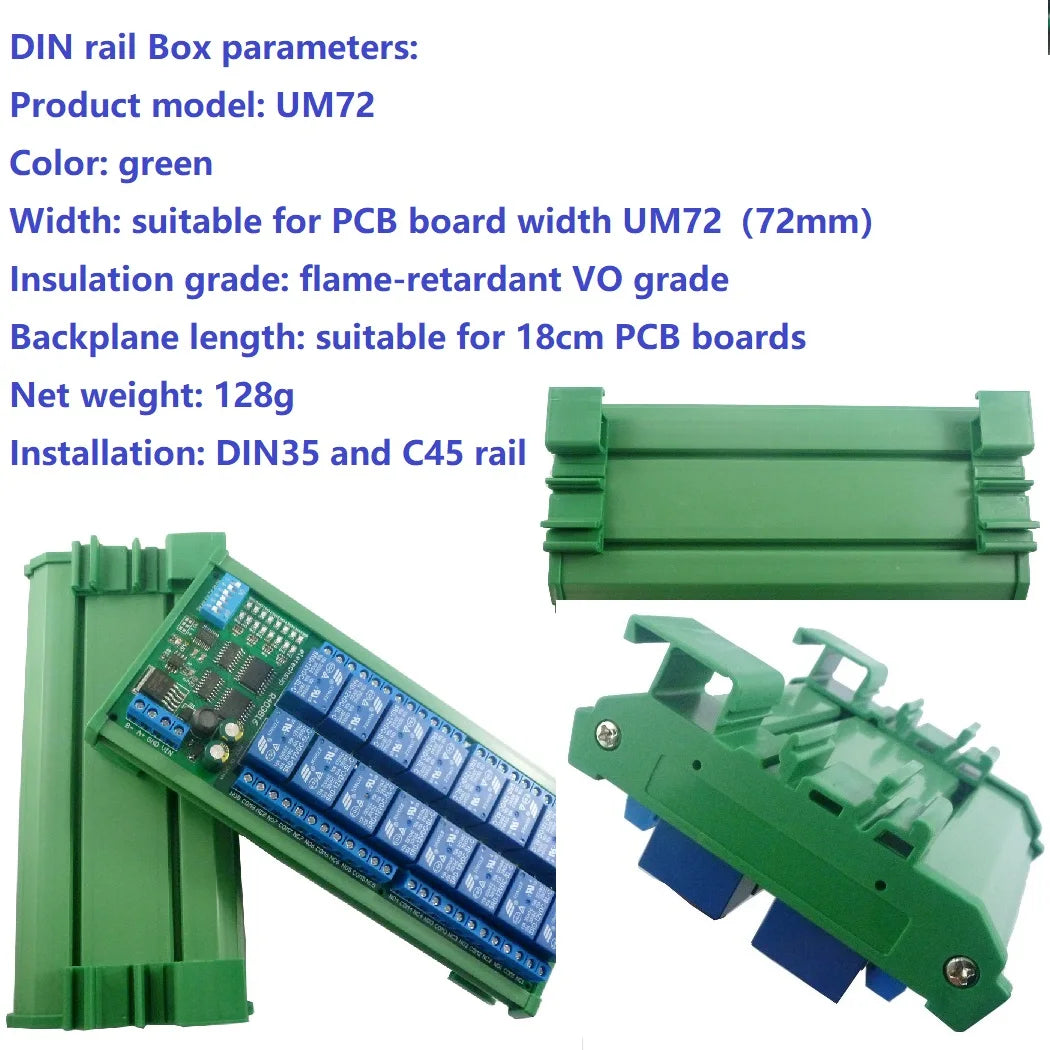

DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 180 mm PCB boards
Net weight: 128g
Installation: DIN35 OR C45 rail

Application

PLC expansion board
Smart Home,Home Automation ,Wiser Home;

PTZ CCTV IP Camera

Security Monitoring

Identification system;

Motor FW & BW
Automatic curtain control
LED
illumination

Typical applications:




1 When controlling a module, you can use the MODUBS RTU instruction or the AT instruction. In AT command mode, the dial switch (slave address) is invalid and can only control one module at a time.

MODBUS RTU command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control

Wiring Diagram:

1 DC 12V control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC 12V equipment

2 DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). ''LOAD'' may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipmen

Test Software(We offer a demo video):

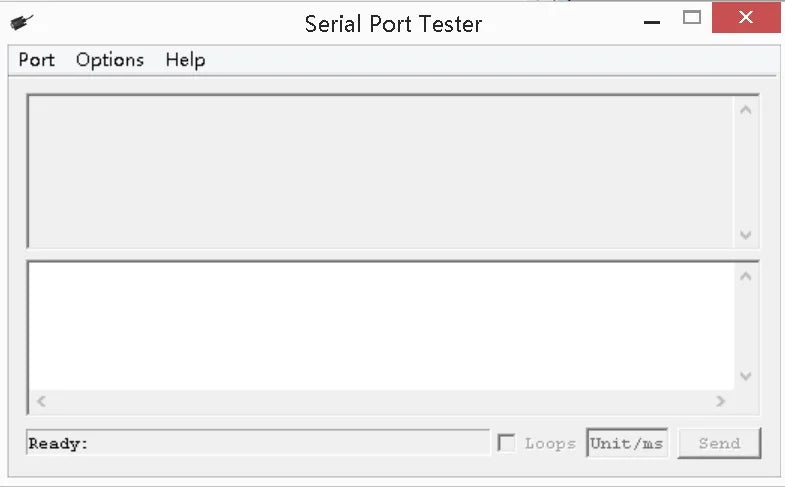

Serial HyperTerminal:

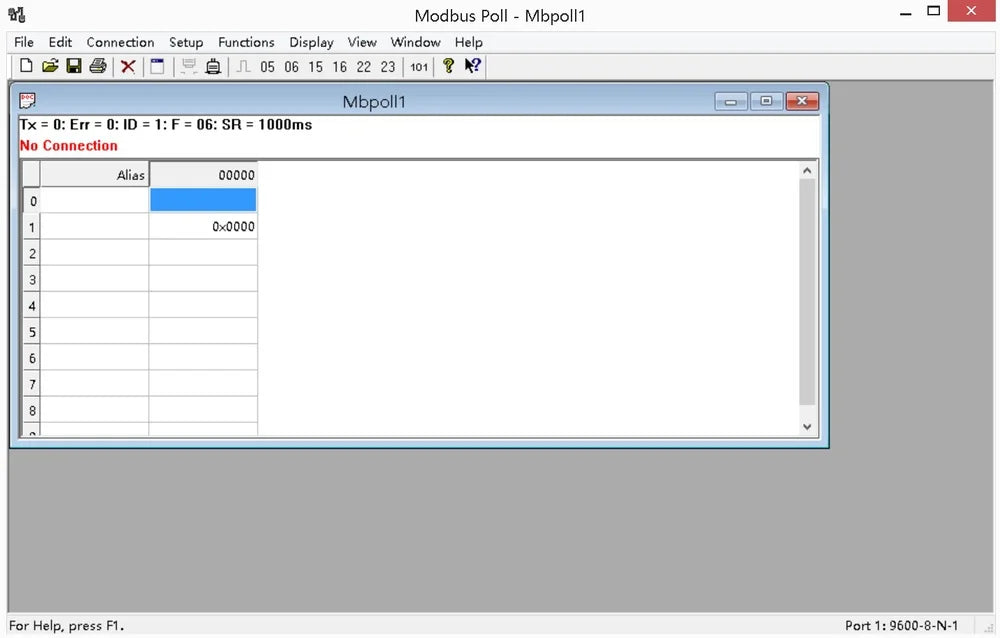

Modbus Poll
