SPECIFICATIONS

Brand Name: Stlxy

Certification: NONE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 16 Channel Relay

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Voltage relay

Use: General Purpose

Voltage: 5V

is_customized: Yes

semi_Choice: yes

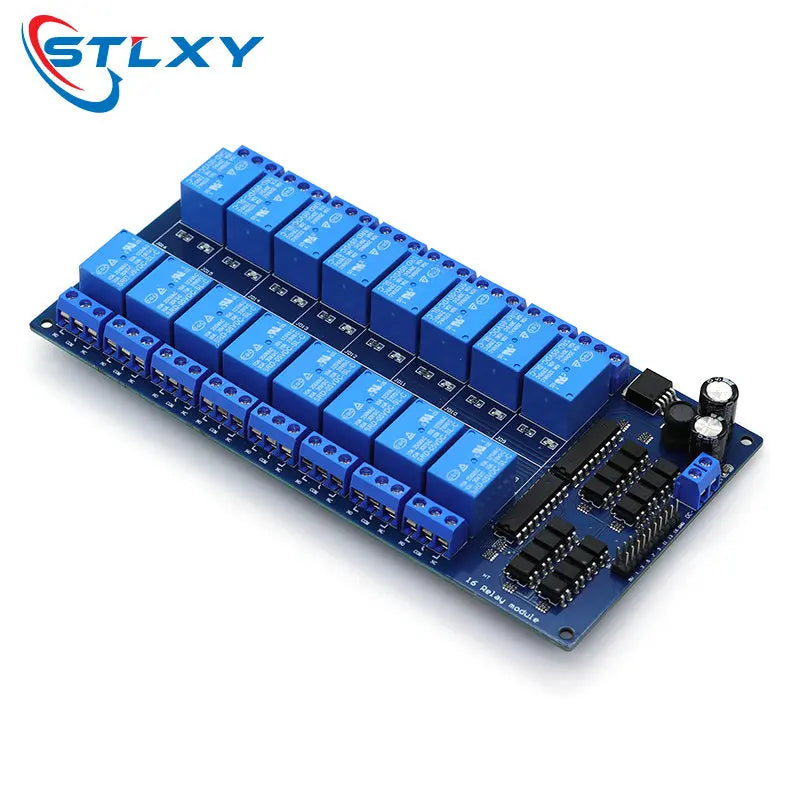

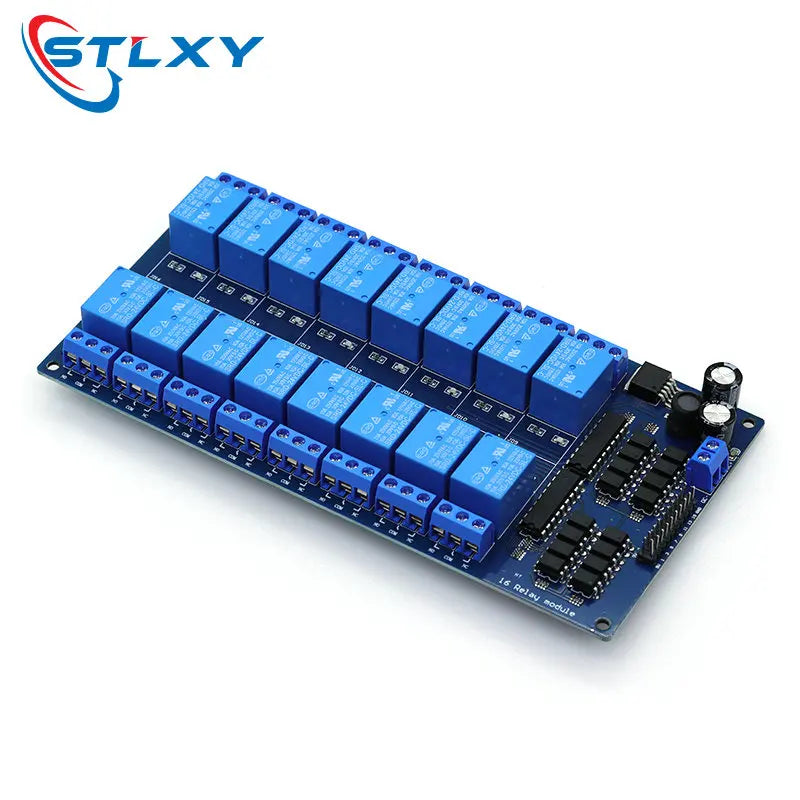

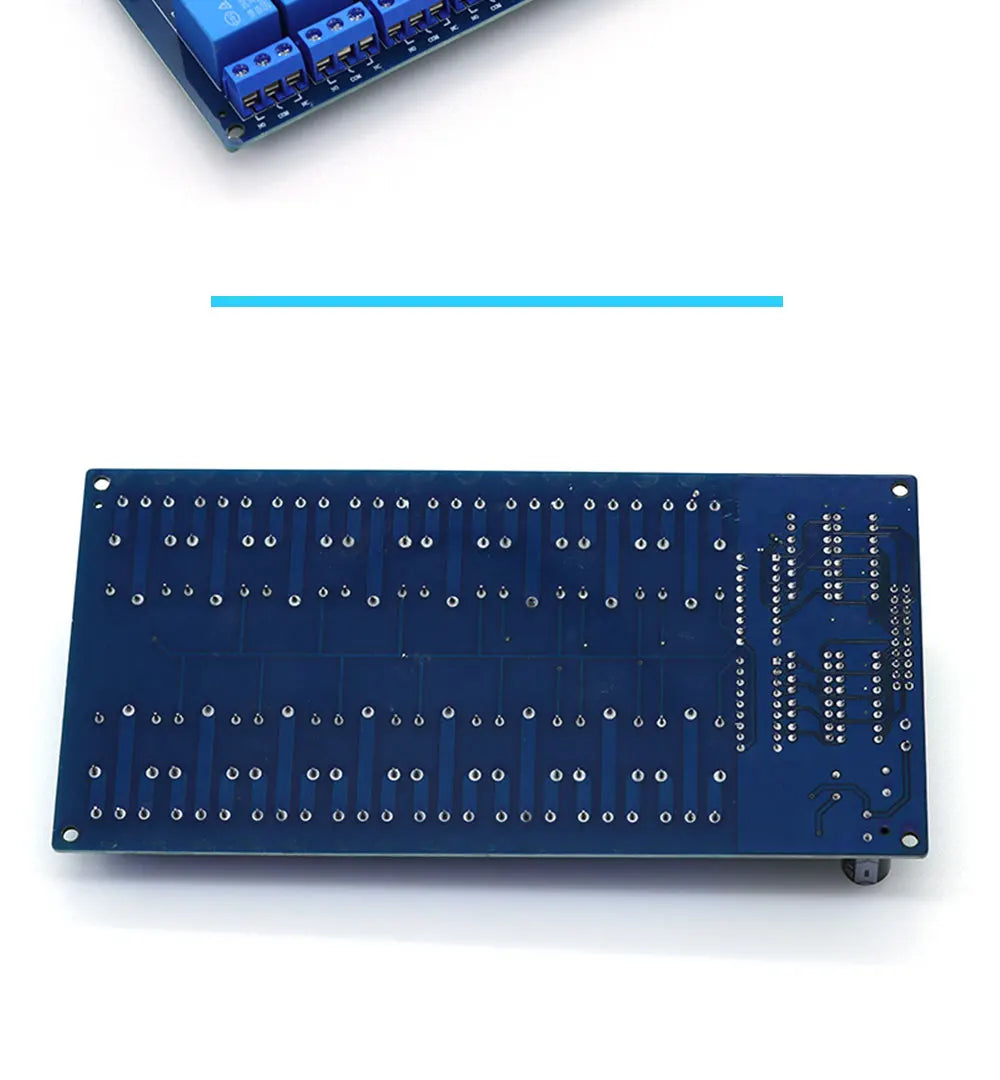

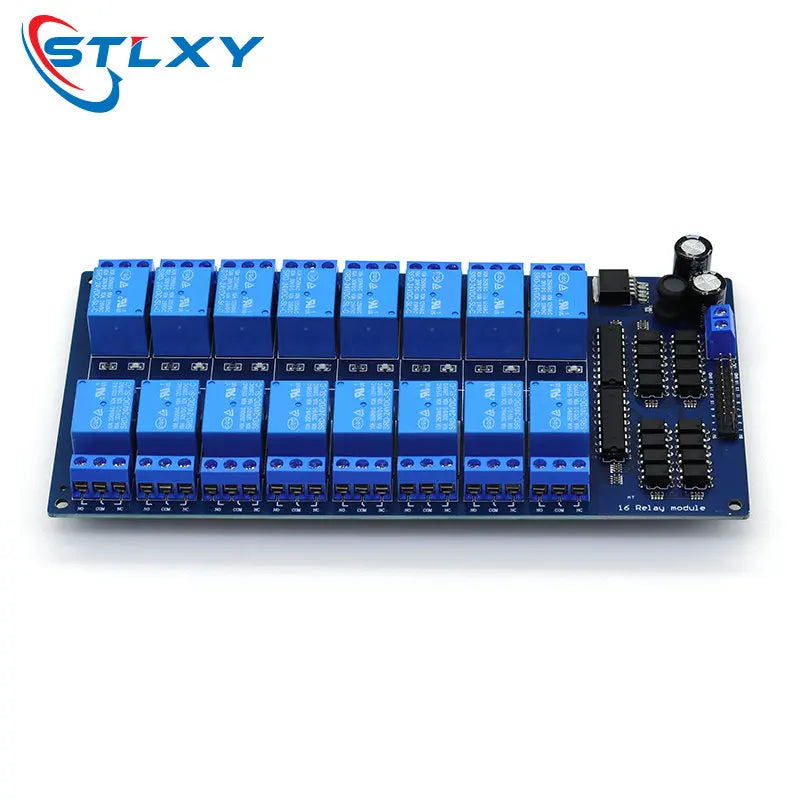

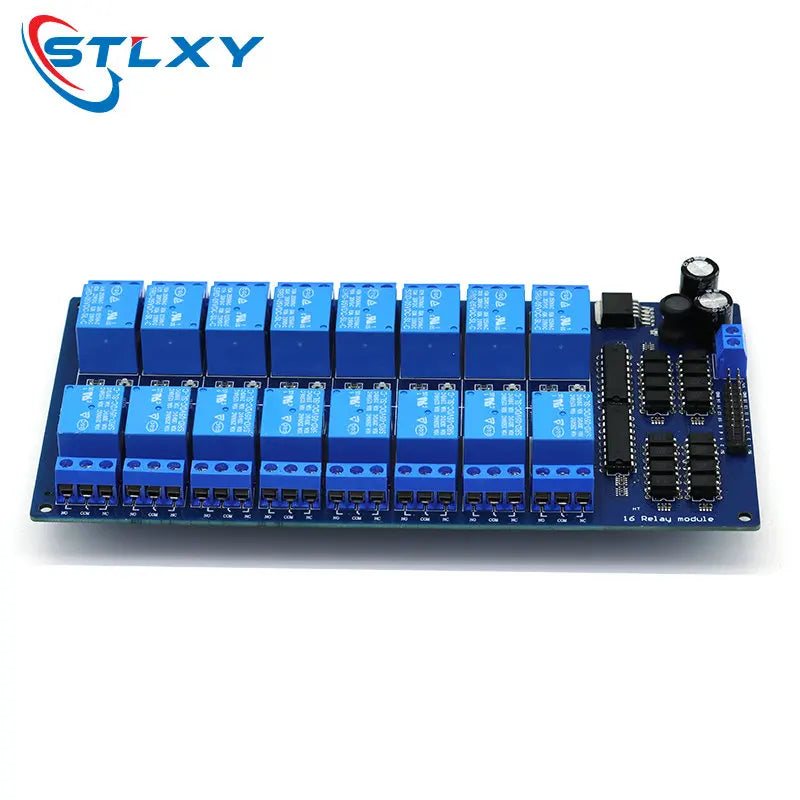

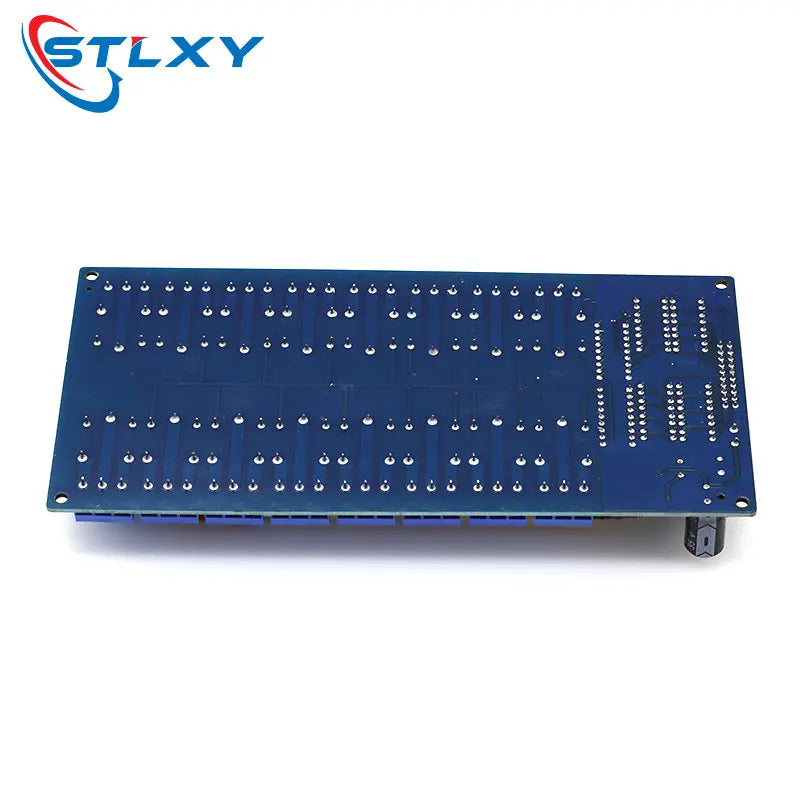

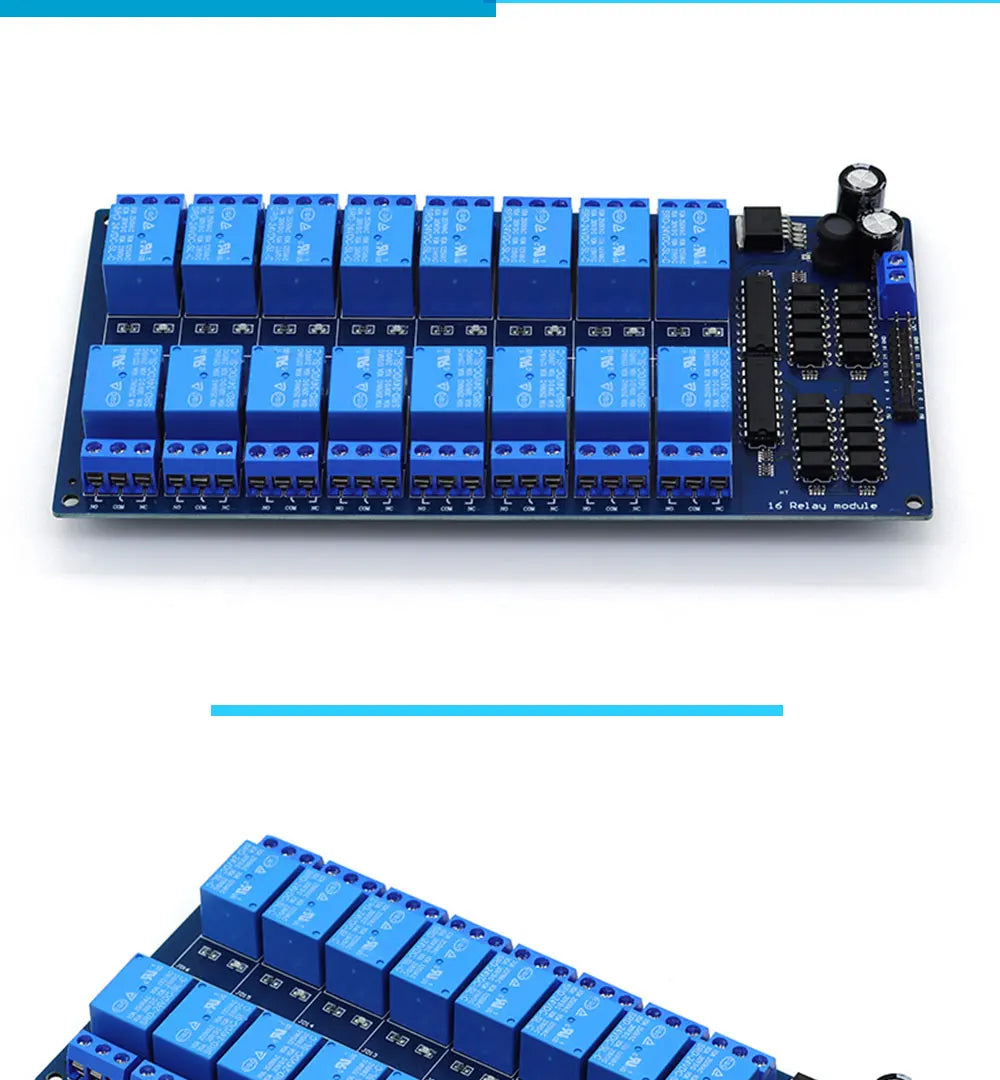

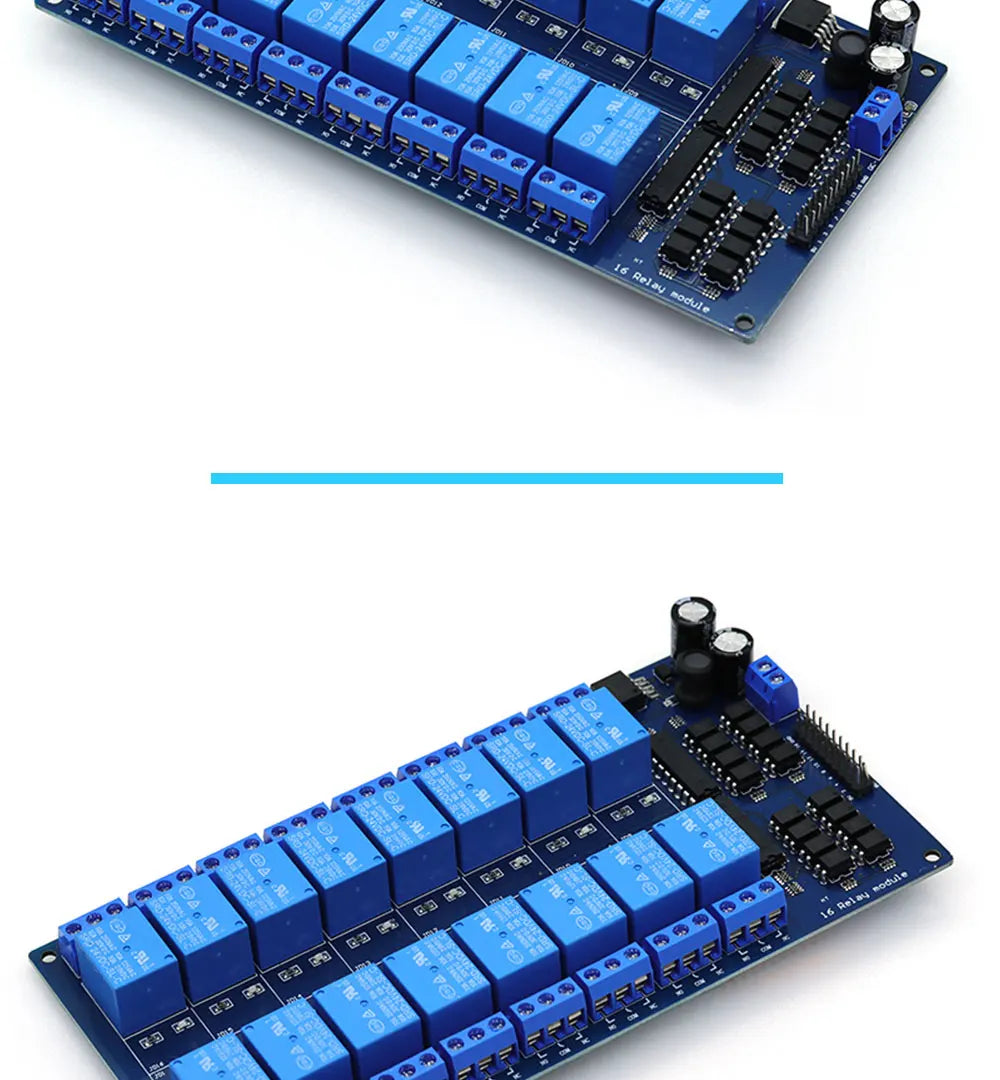

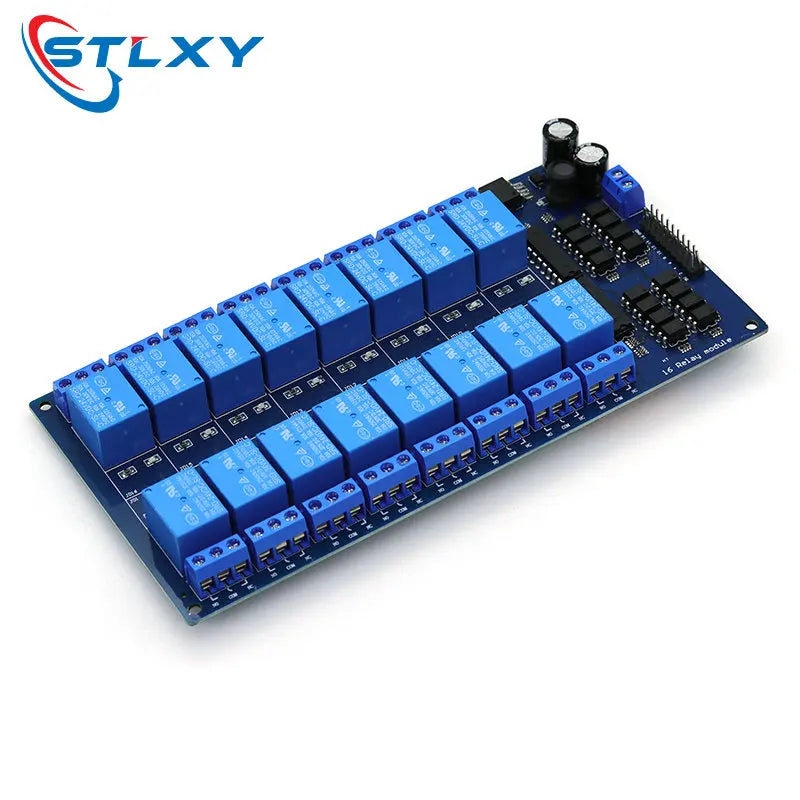

16 Channel Relay Shield Module DC 5V 12V 24V with Optocoupler LM2576 Microcontrollers Interface Power Relay For Arduino DIY Kit

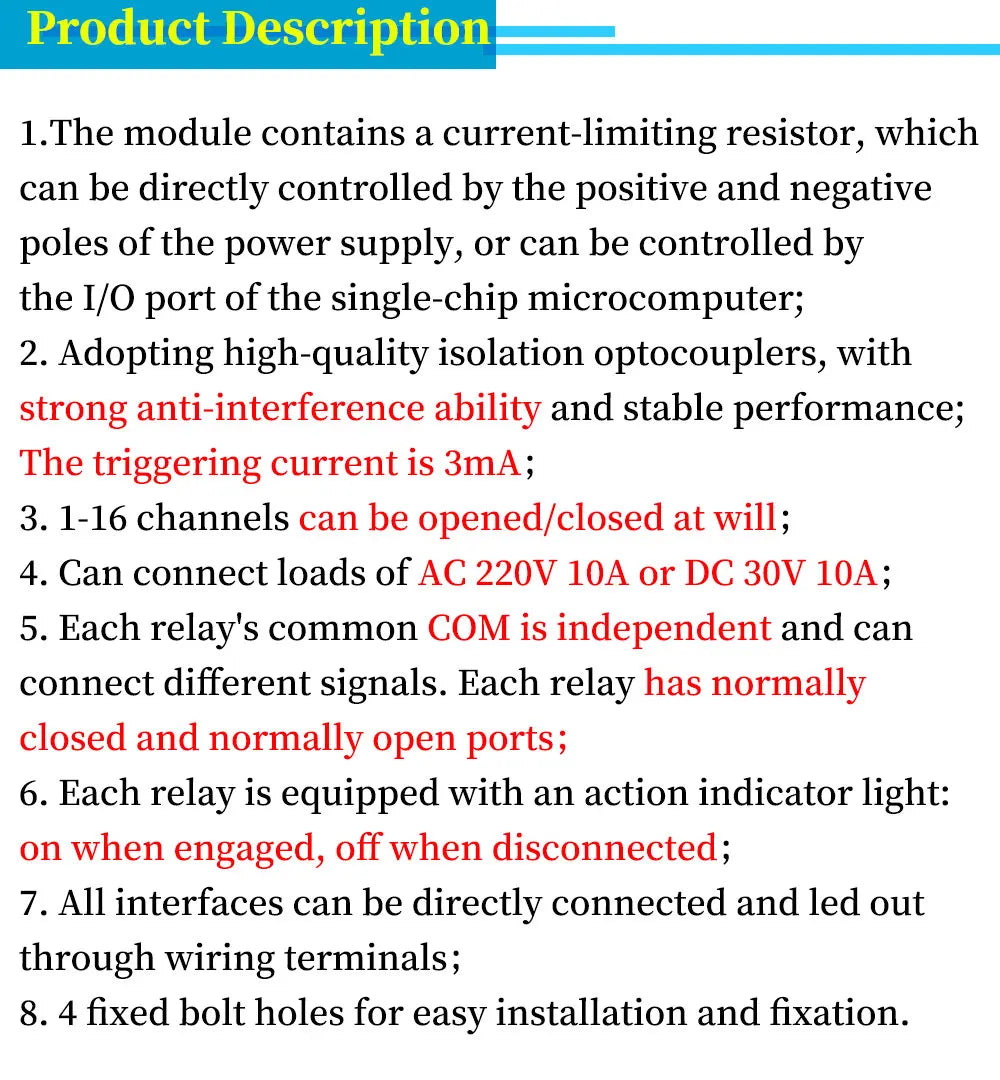

Features:
and each one needs 15-20mA driver current.
Uses two 8-channel ULN2803APG darlington arrays chip to control relay module.
It is a 16-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.
It is also able to control various appliances and other equipments with large current.
Relay output maximum contact is AC250V 10A and DC30V 10A.
Standard interface can be directly connected with microcontrollers.
The working status indicator lights are conducive to the safe use.
Widely used for all MCU control, industrial sector, PLC control, smart home control.

Specifications:
Working voltage: 5V/12V/24V
Channel: 16 channel

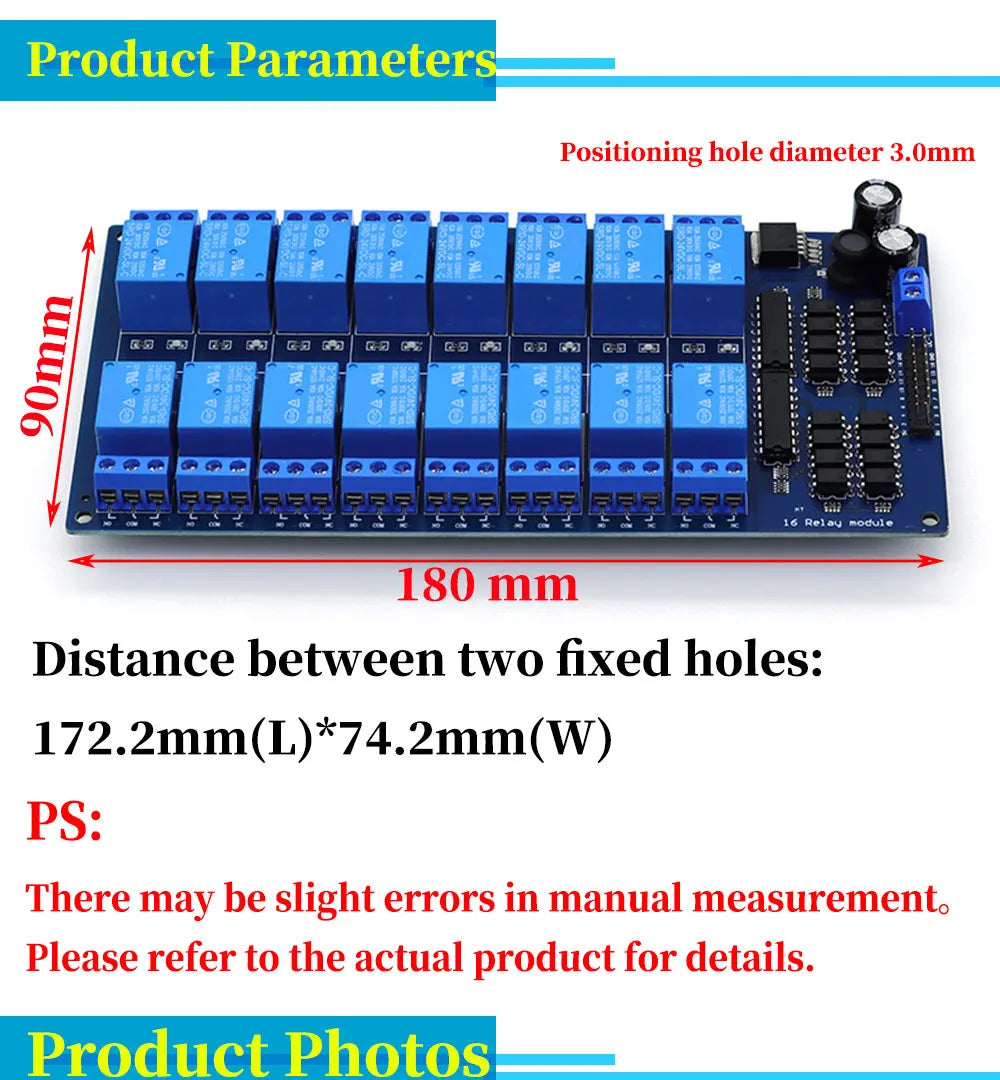

Item size: 17.6 * 9 * 1.7cm / 6.93 * 3.54 * 0.67in
Item weight: approx 240g / 8.47oz
Package weight: approx 251g / 8.86oz

Package:
1PCS*16-Channel Relay Shield Module with optocoupler LM2576 Power supply for Arduino
