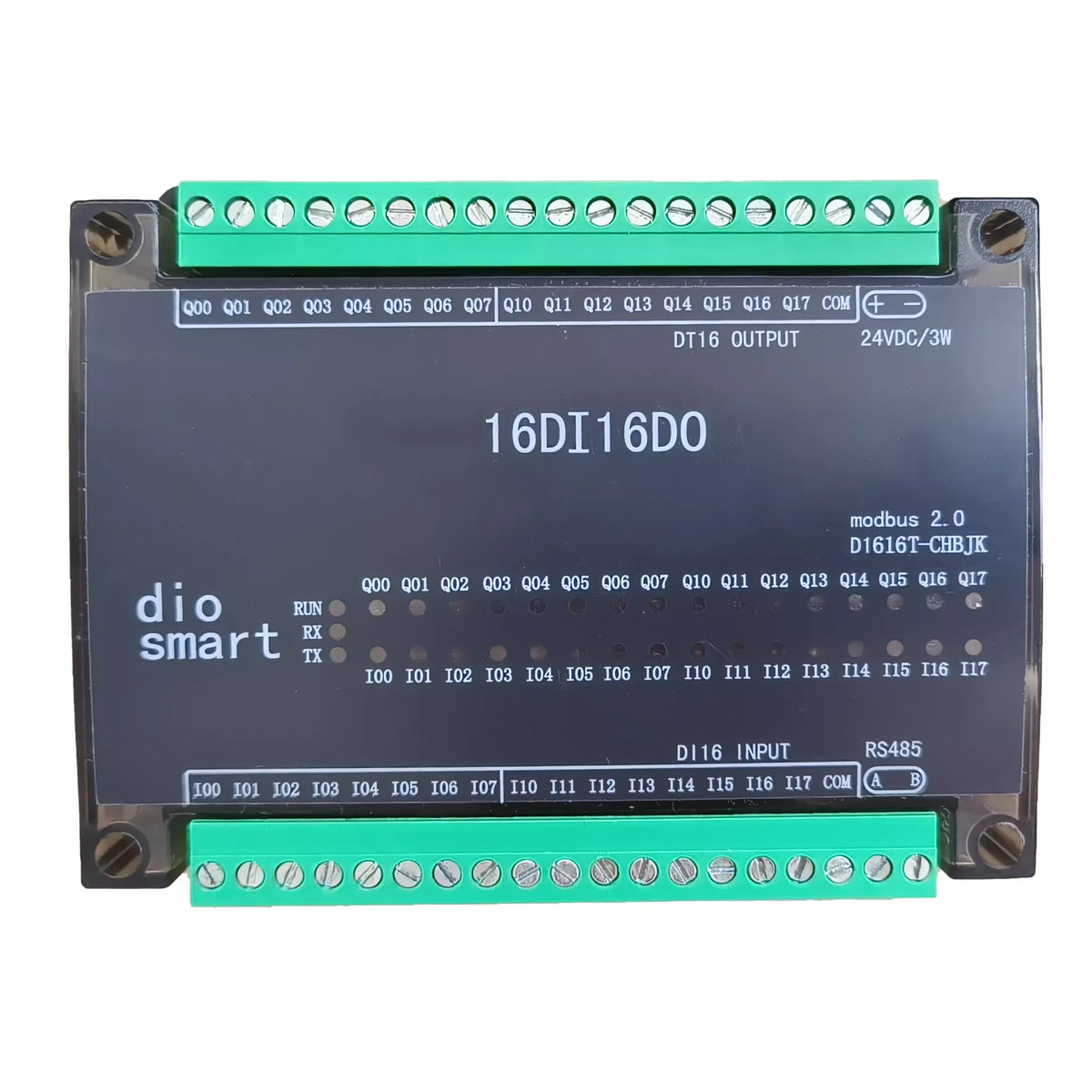

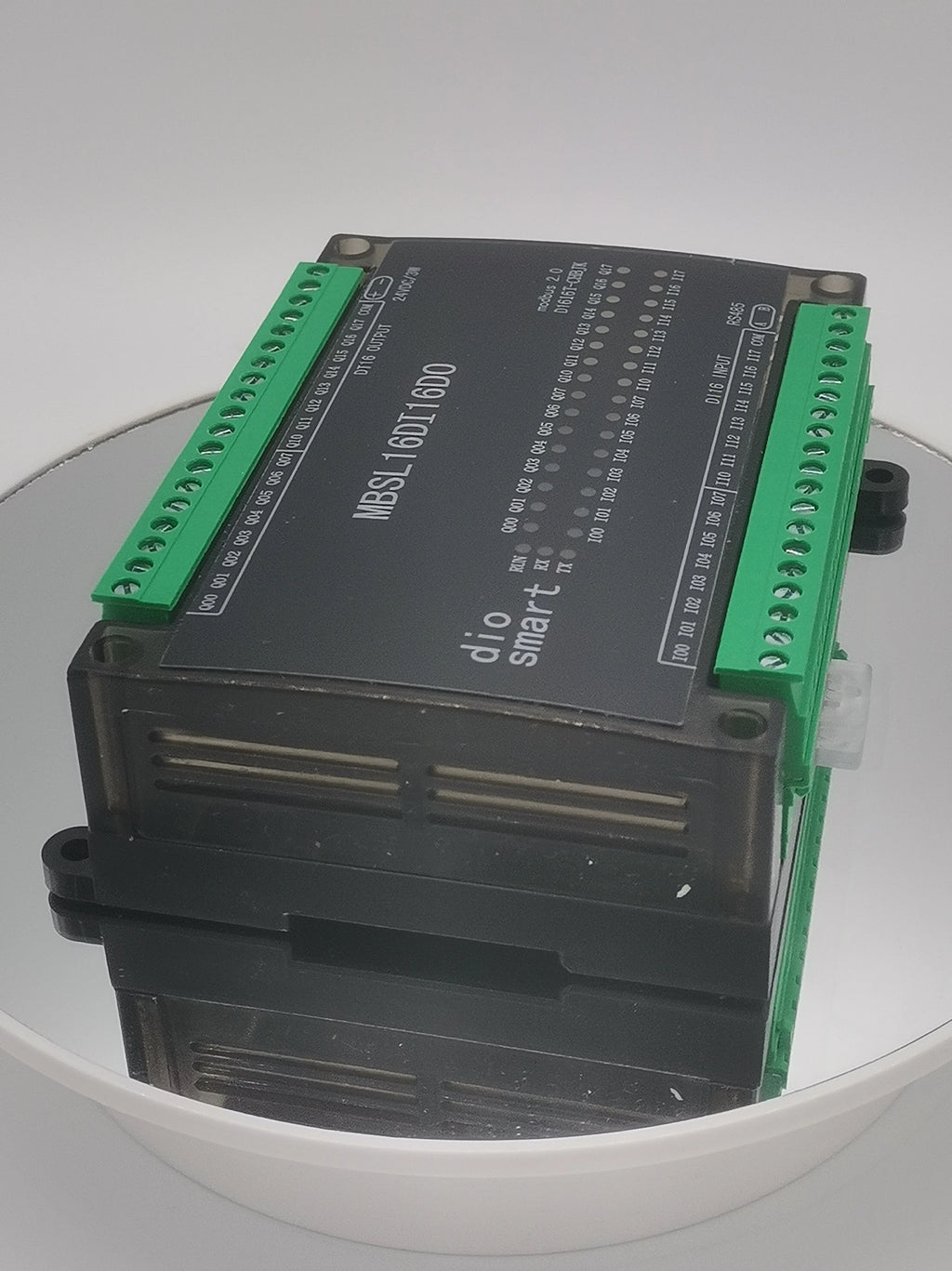

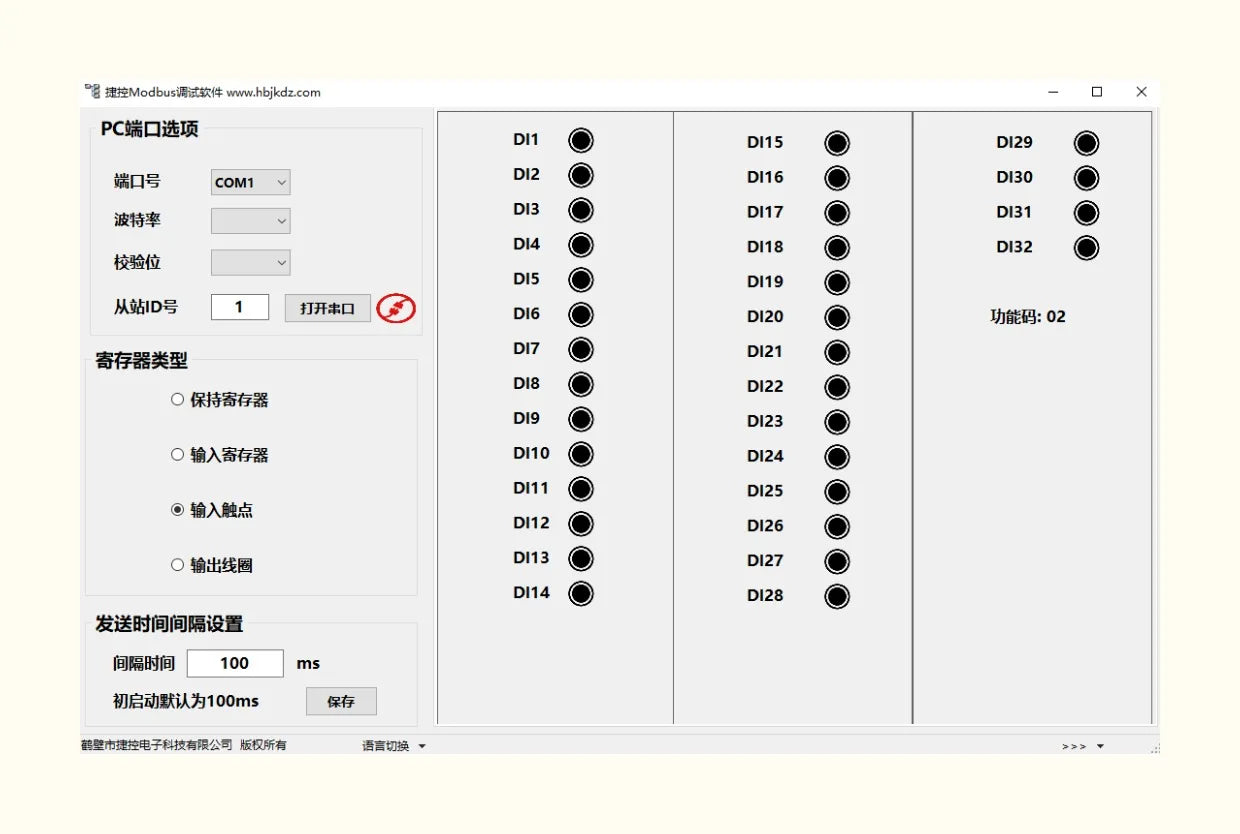

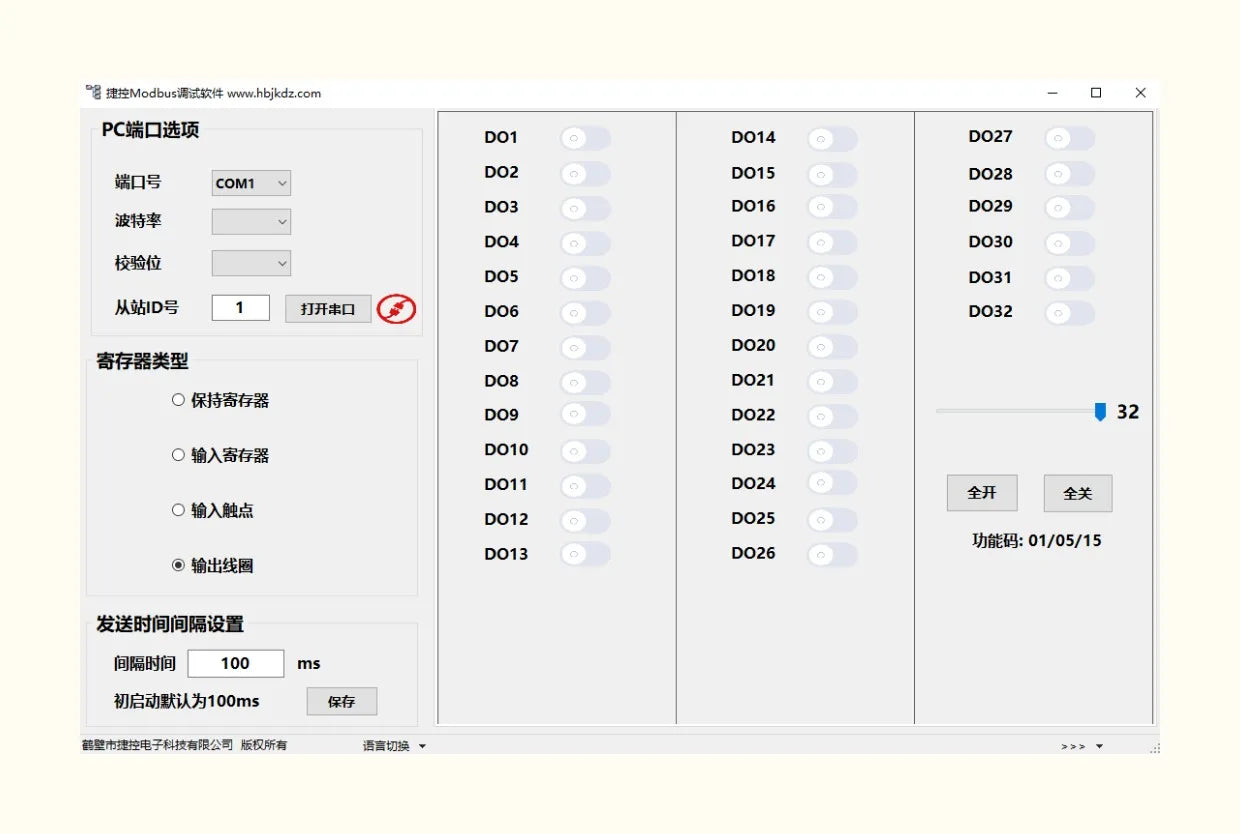

The MBSL16DI16DO module is a 16-way digital isolated input and 16-way digital transistor isolated output module, output through isolated RS485 interface. The module adopts the standard Modbus RTU communication, which can be directly adapted to various upper computer configuration software, PLC, DCS, etc. The module power supply and RS485 communication electrical signals are isolated from each other, effectively suppressing all kinds of series-mode and common-mode interference, and also ensuring the stability and reliability of the module.

Main technical indicators

Item	Technical specifications
Signal input/output	1、Input channels: 16 digital inputs 2、Output channels: 16-way transistor output 3、Load capacity: resistive load 1A/channel
Communication output	Communication protocol: MODBUS-RTU Interface type: isolated RS485 communication, output interface with overvoltage and overcurrent dual protection 3. Baud rate: 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps 4. Check digit: no parity, even parity, odd parity Setting method: Module address, baud rate, parity bits can be set by software Communication distance: @9600bps1200m
Module size and mounting method	1、 Mounting method: standard DIN rail mounting or screw mounting 2、 Dimension: 125×90×40mm
Working Environment	Temperature: -10～+60℃ Humidity: 35～85% (no condensation)
Working power	Supply voltage: 10V ~ 28V wide range of power supply with power supply polarity protection Power consumption: less than 5W

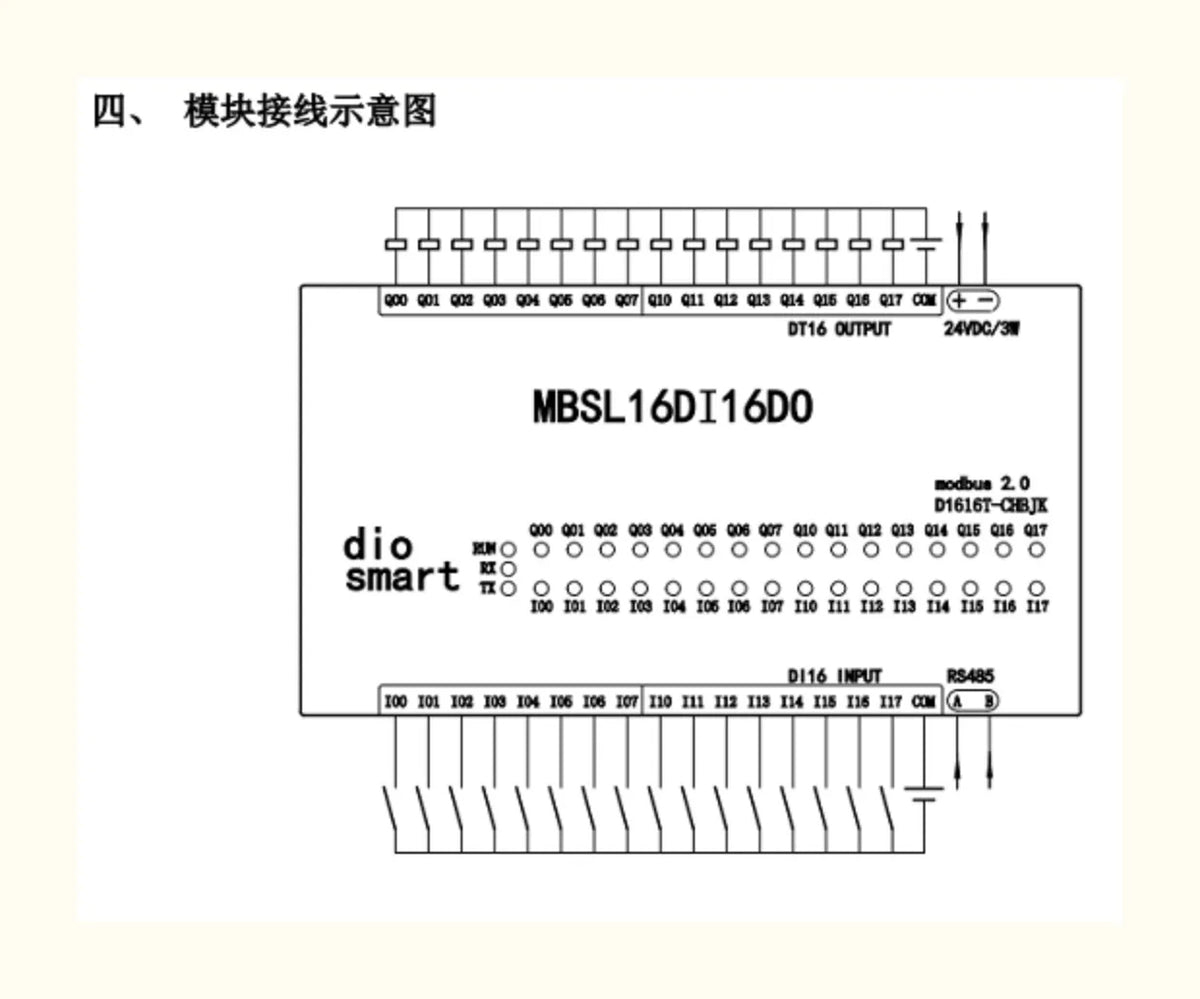

Interface definition

Terminal Name	Description Explain	Terminal Name	Description Explain
PW+	Positive external power input	485A	RS485 signal A+
PW-	External power input negative	485B	RS485 signal B-
X1	Digital input channel 1	YO1	Digital output channel1
X2	Digital input channel 2	YO2	Digital output channel2
X3	Digital input channel 3	YO3	Digital output channel3
X4	Digital input channel 4	YO4	Digital output channel 4
X5	Digital input channels 5	YO5	Digital output channel 5
X6	Digital input channel 6	YO6	Digital output channel 6
X7	Digital input channels 7	YO7	Digital output channels 7
X8	Digital input channels 8	YO8	Digital output channels 8
X9	Digital input channel 9	YO9	Digital output channel 9
X10	Digital input channel 10	Y10	Digital output channel 10
X11	Digital input channel 11	Y11	Digital output channel 11
X12	Digital input channels 12	Y12	Digital output channel 12
X13	Digital input channels 13	Y13	Digital output channel 13
X14	Digital input channels 14	Y14	Digital output channel 14
X15	Digital input channels 15	Y15	Digital output channel 15
X16	Digital input channels 16	Y16	Digital output channels 16
COM	24V+ input common	COM	Output Common
