SPECIFICATIONS

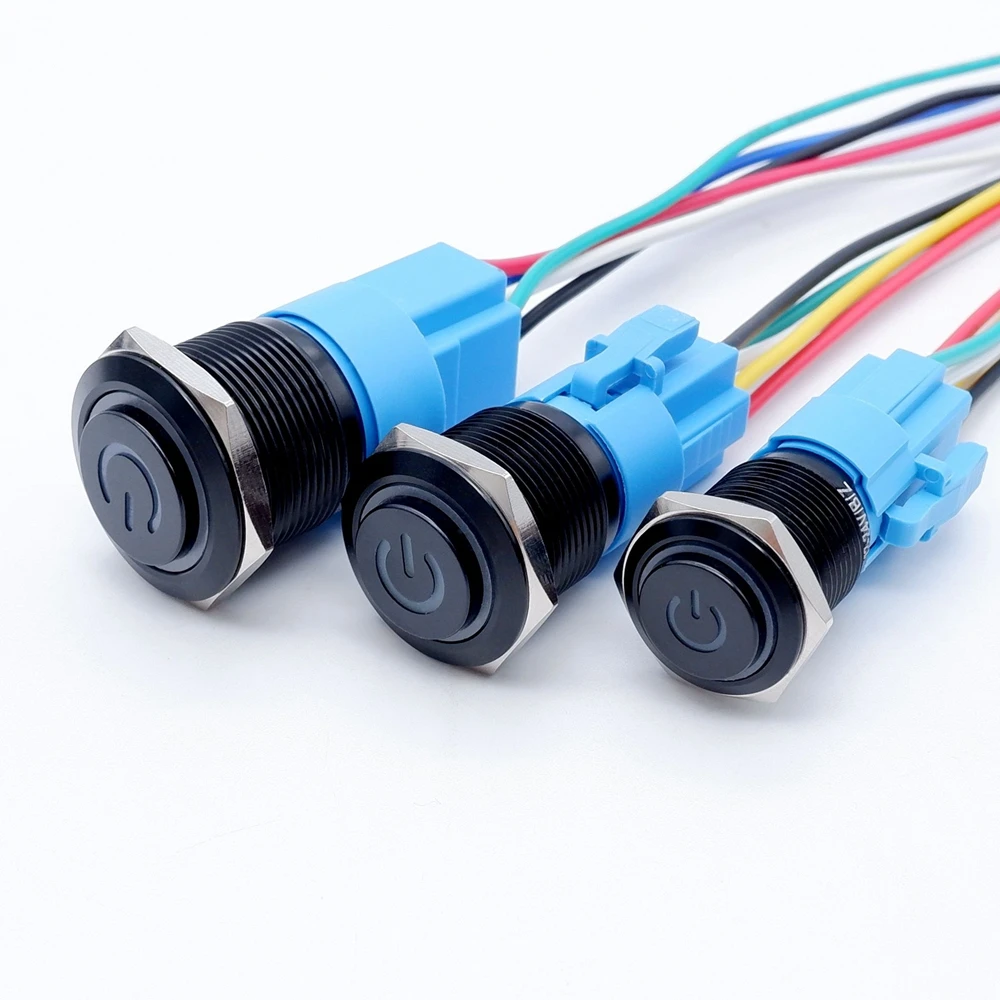

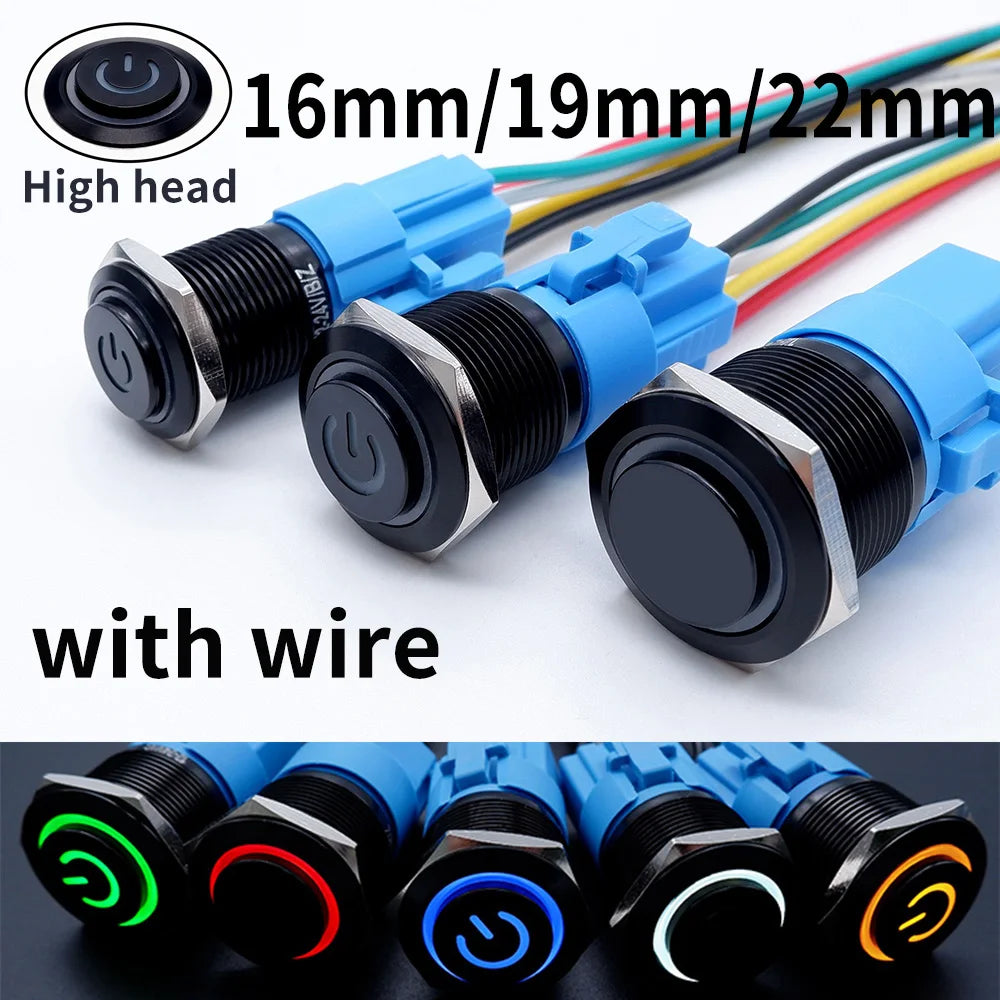

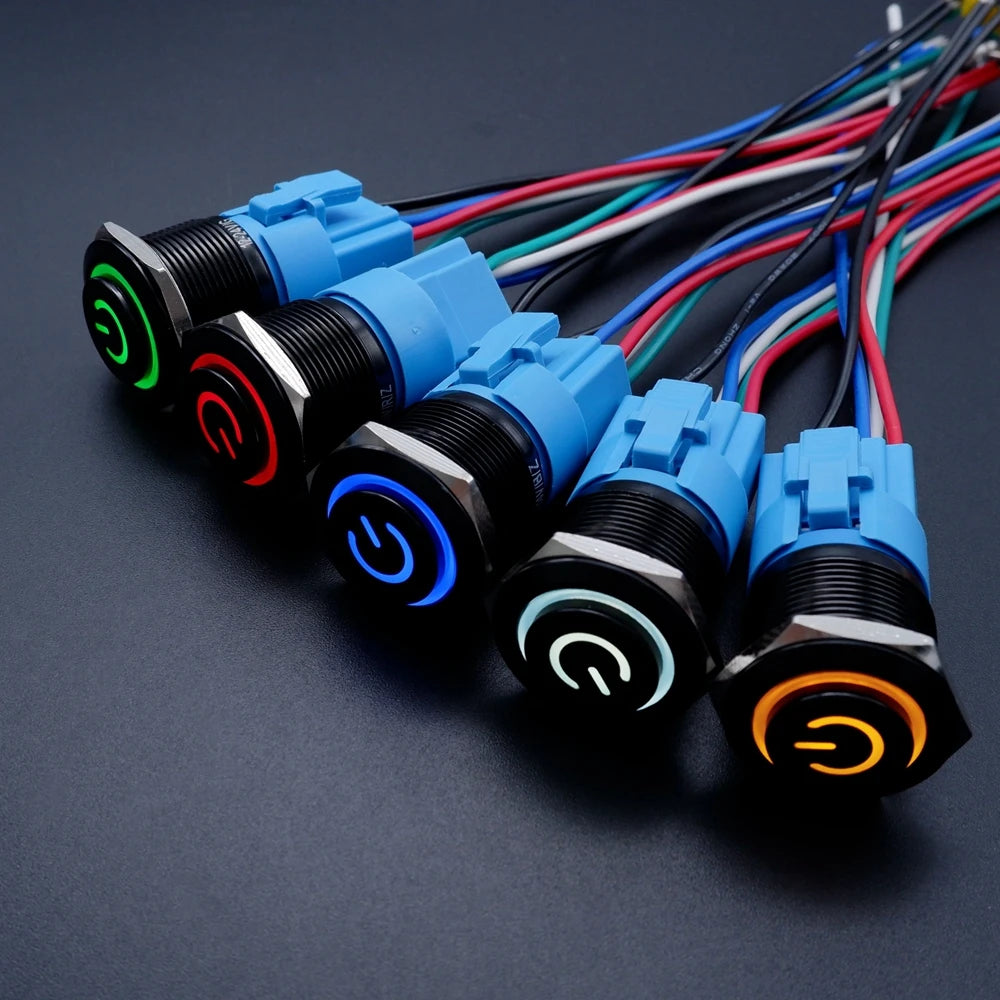

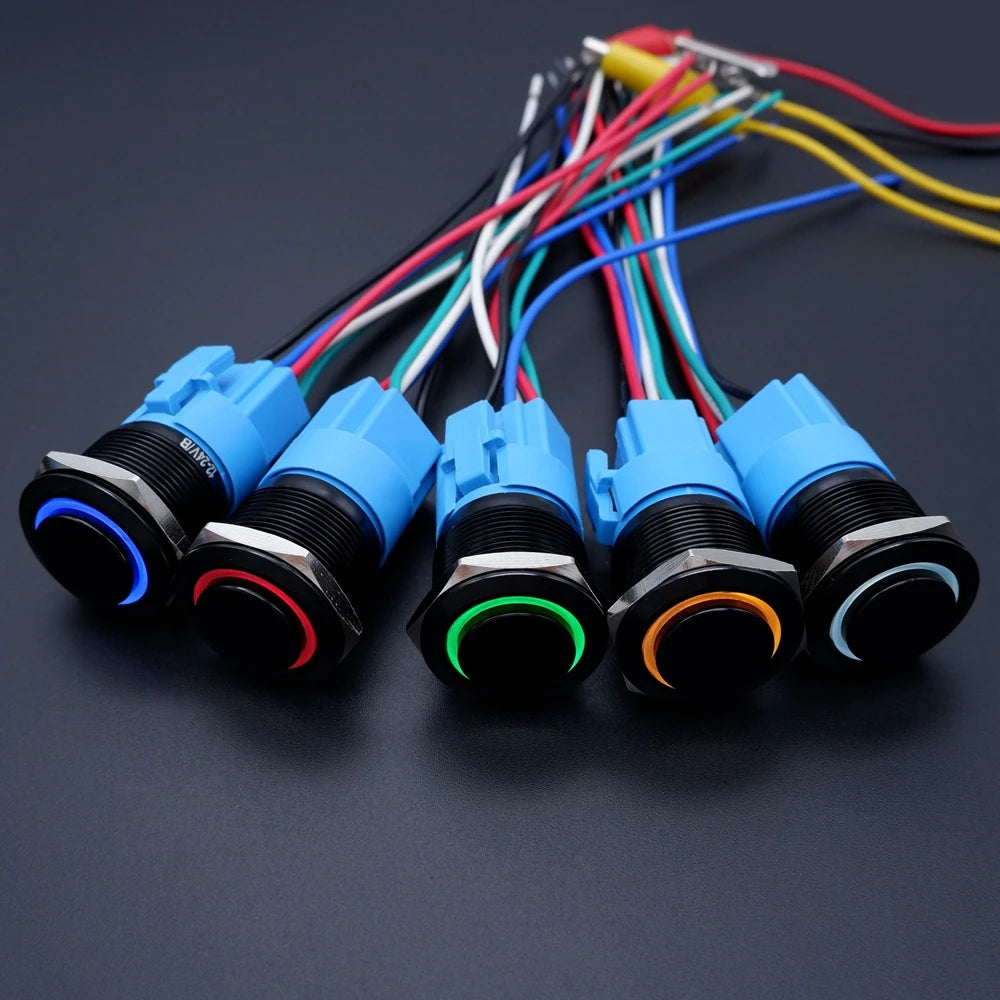

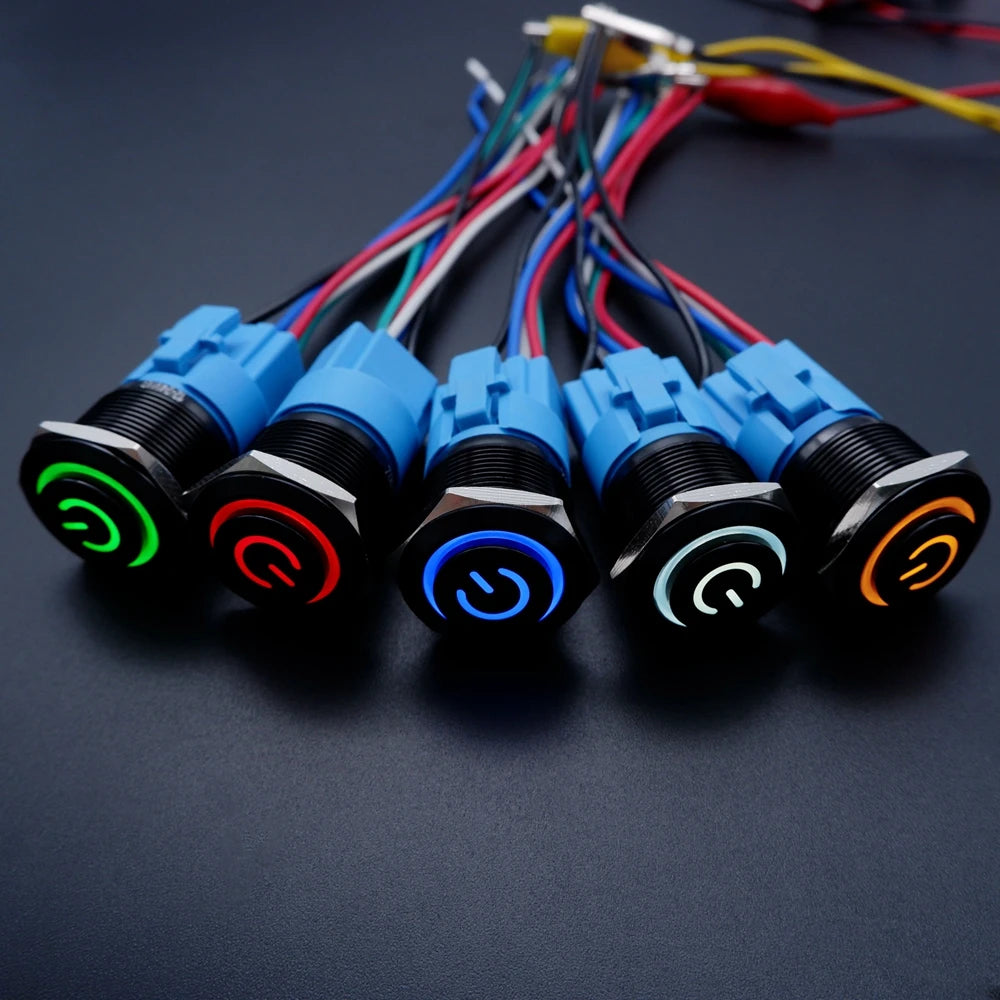

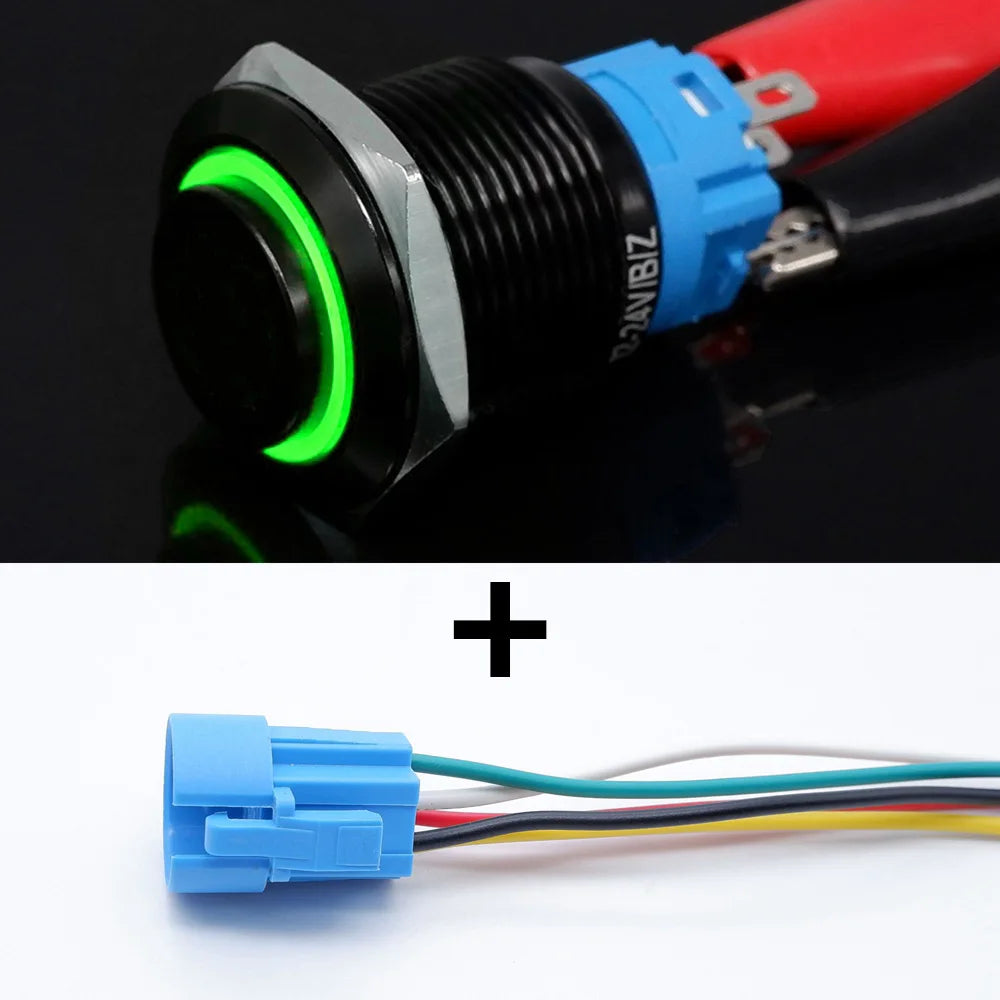

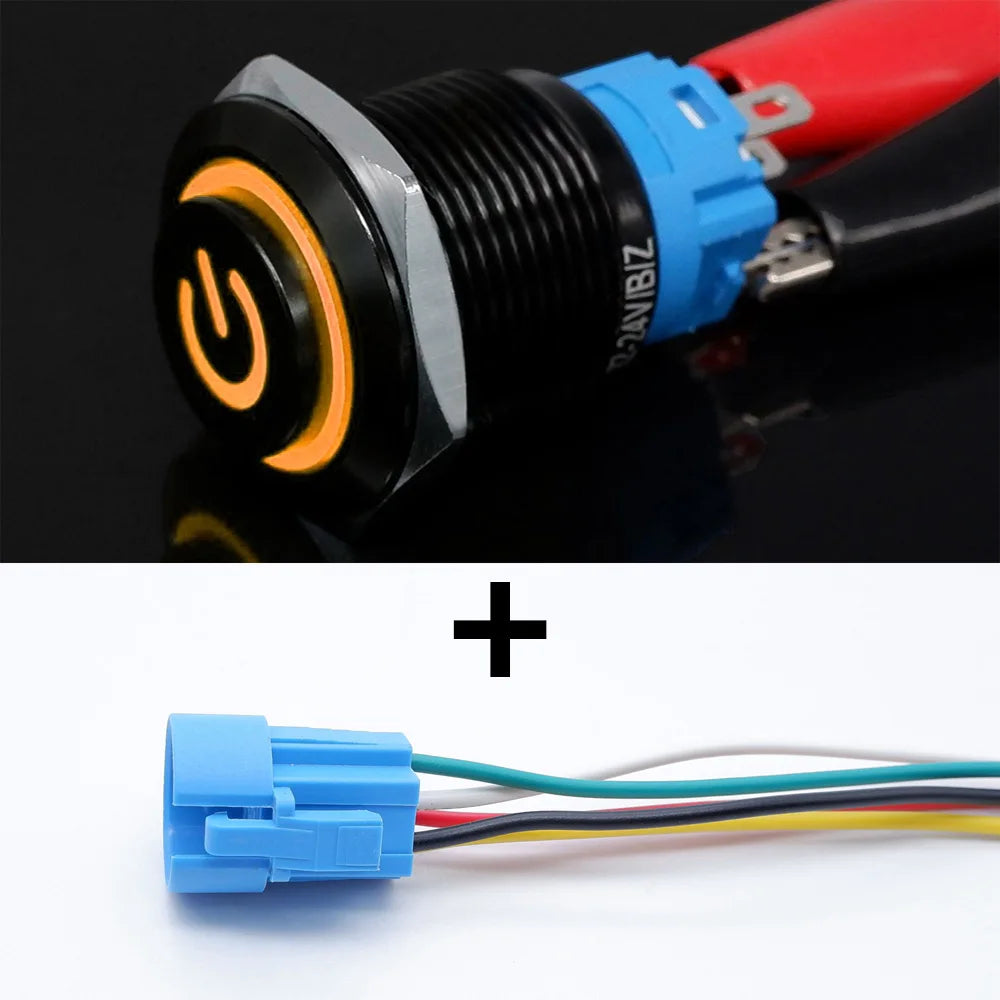

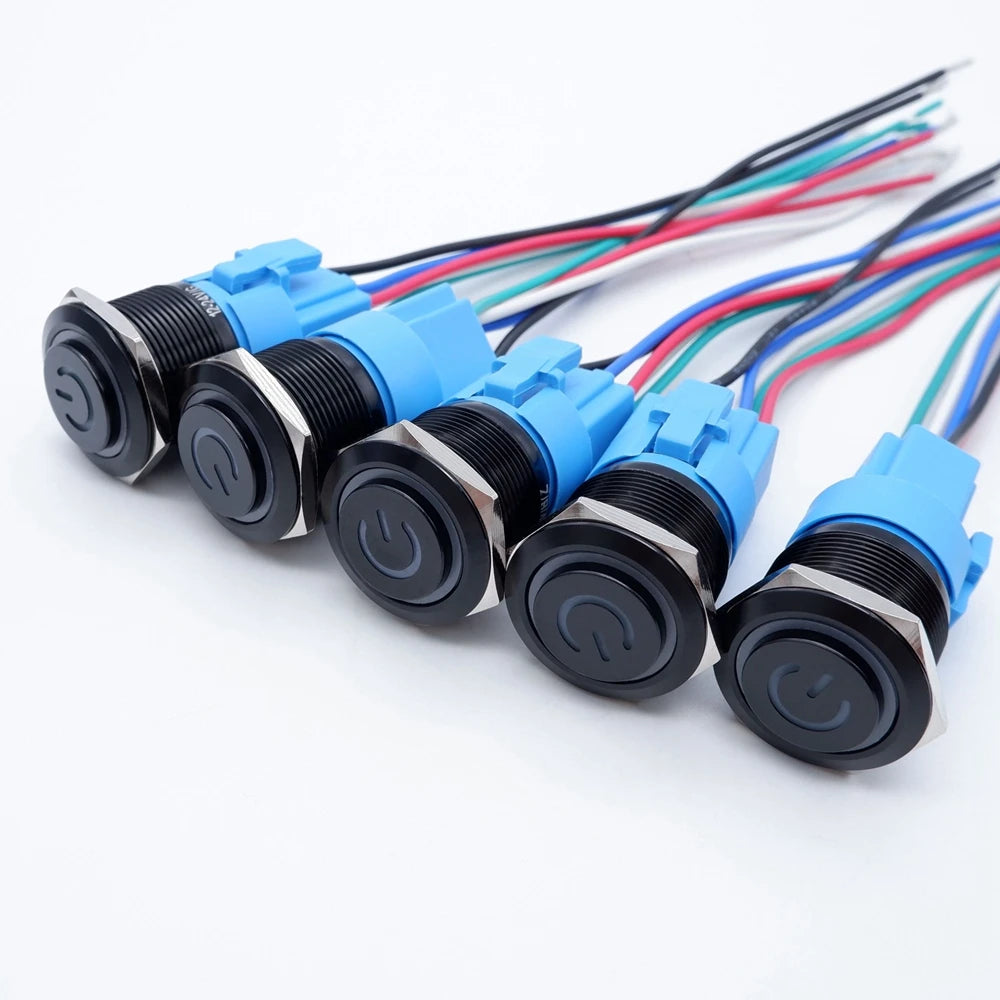

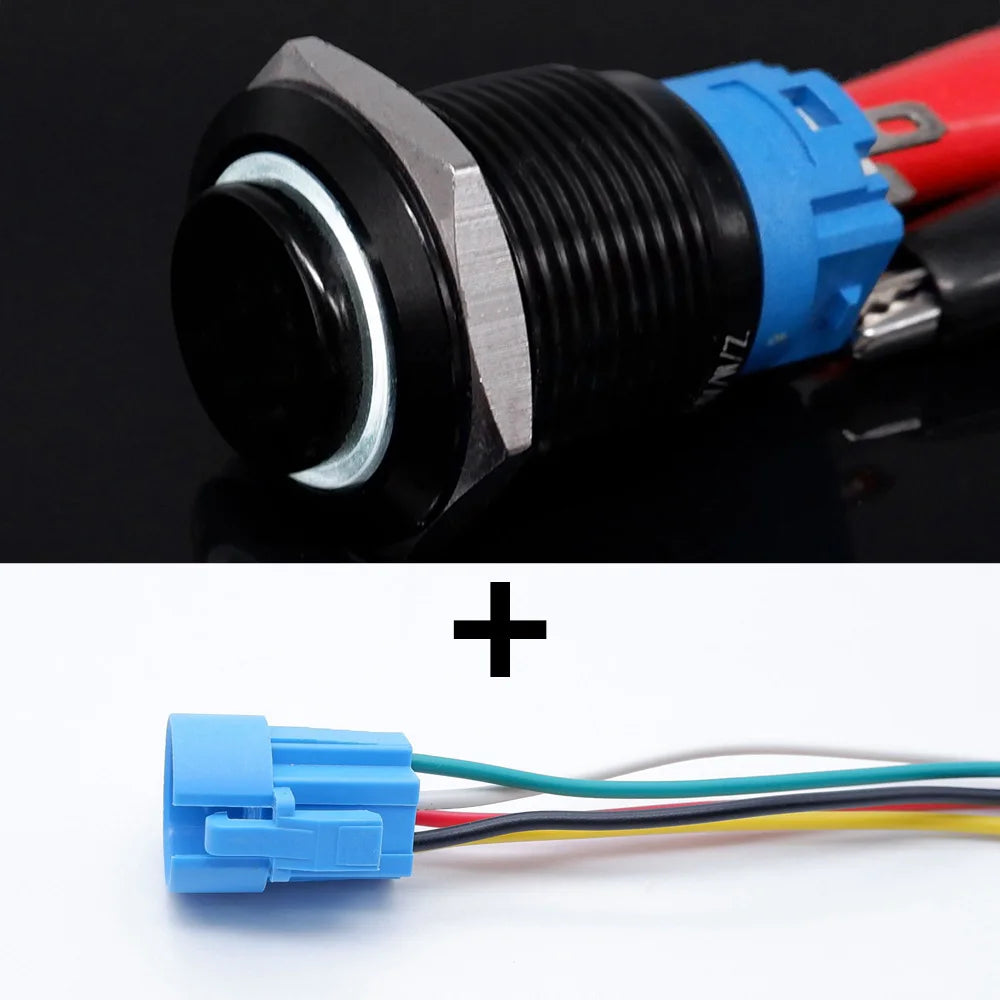

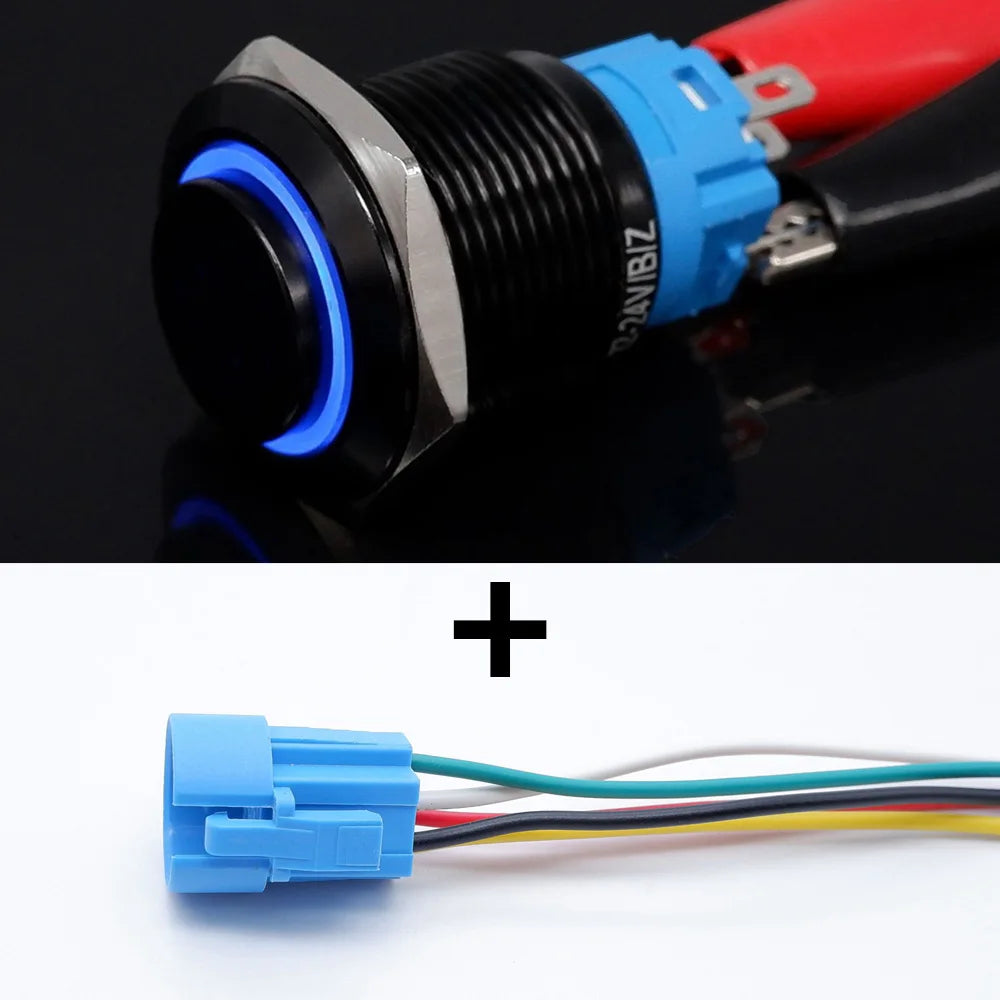

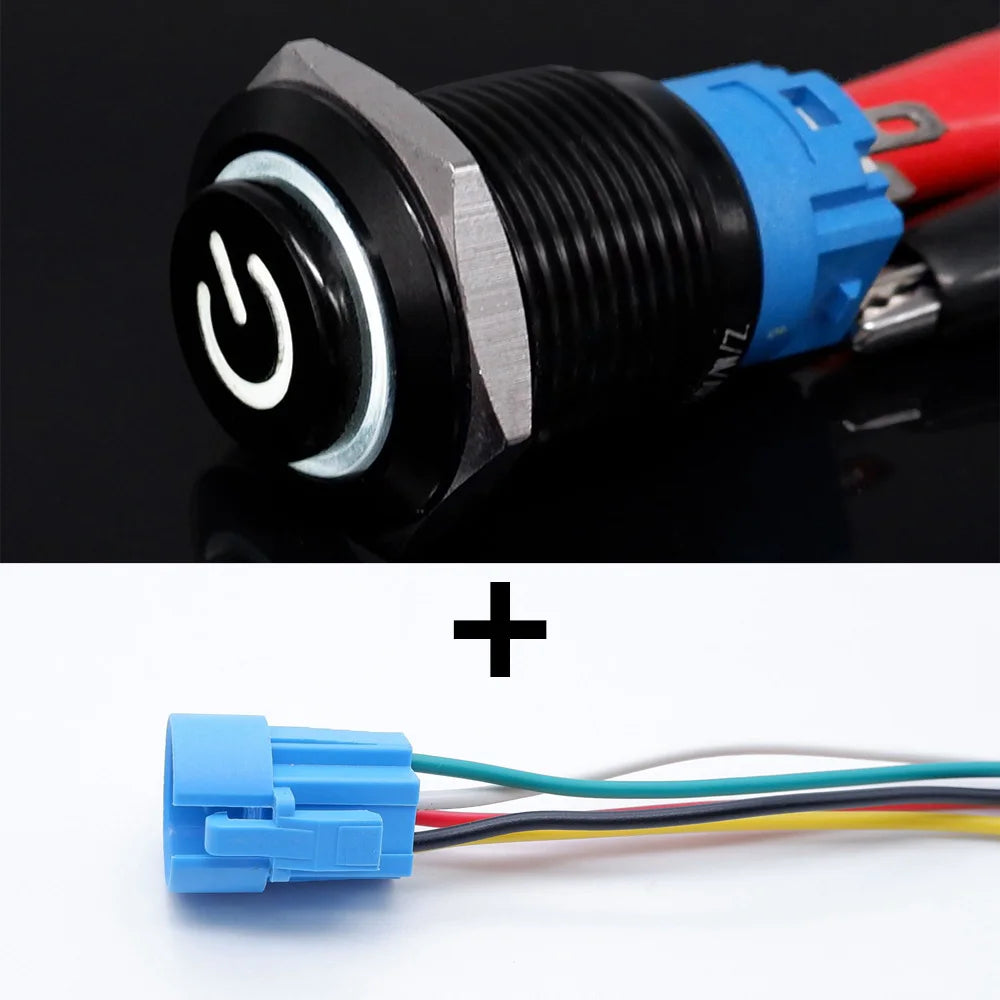

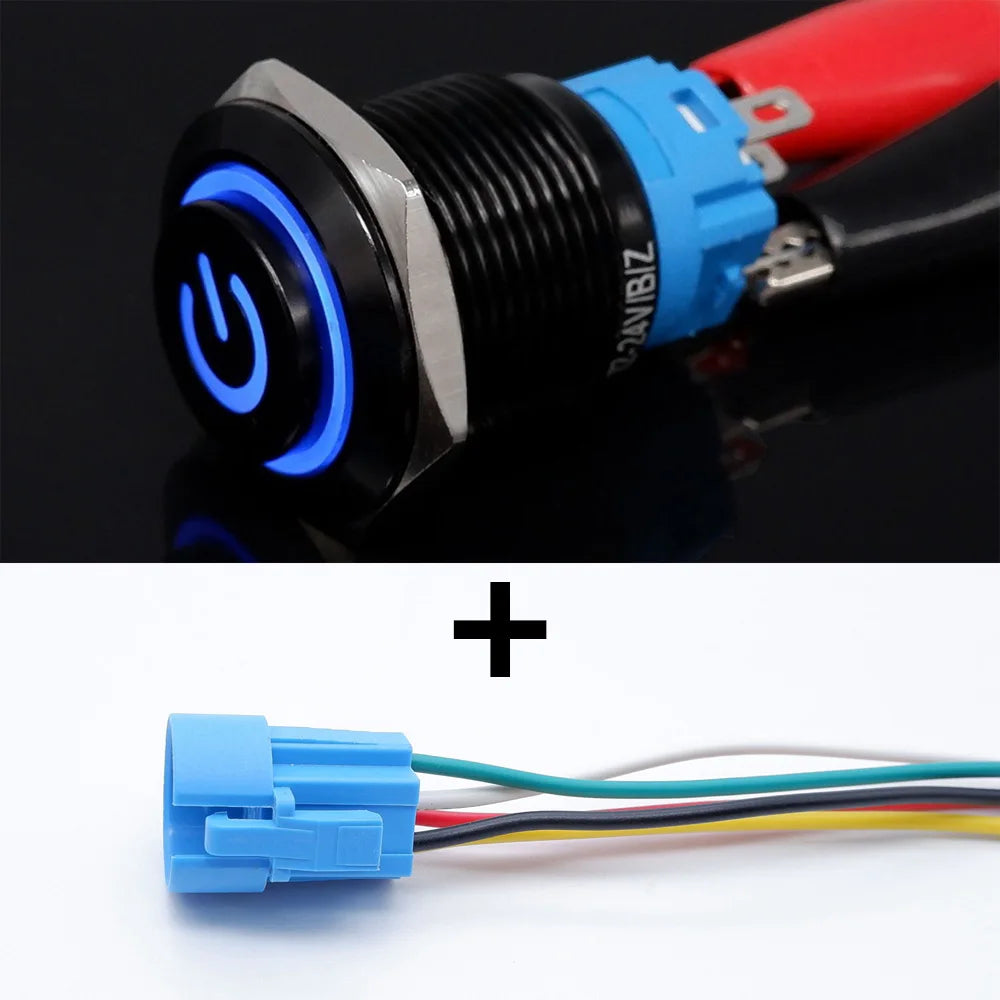

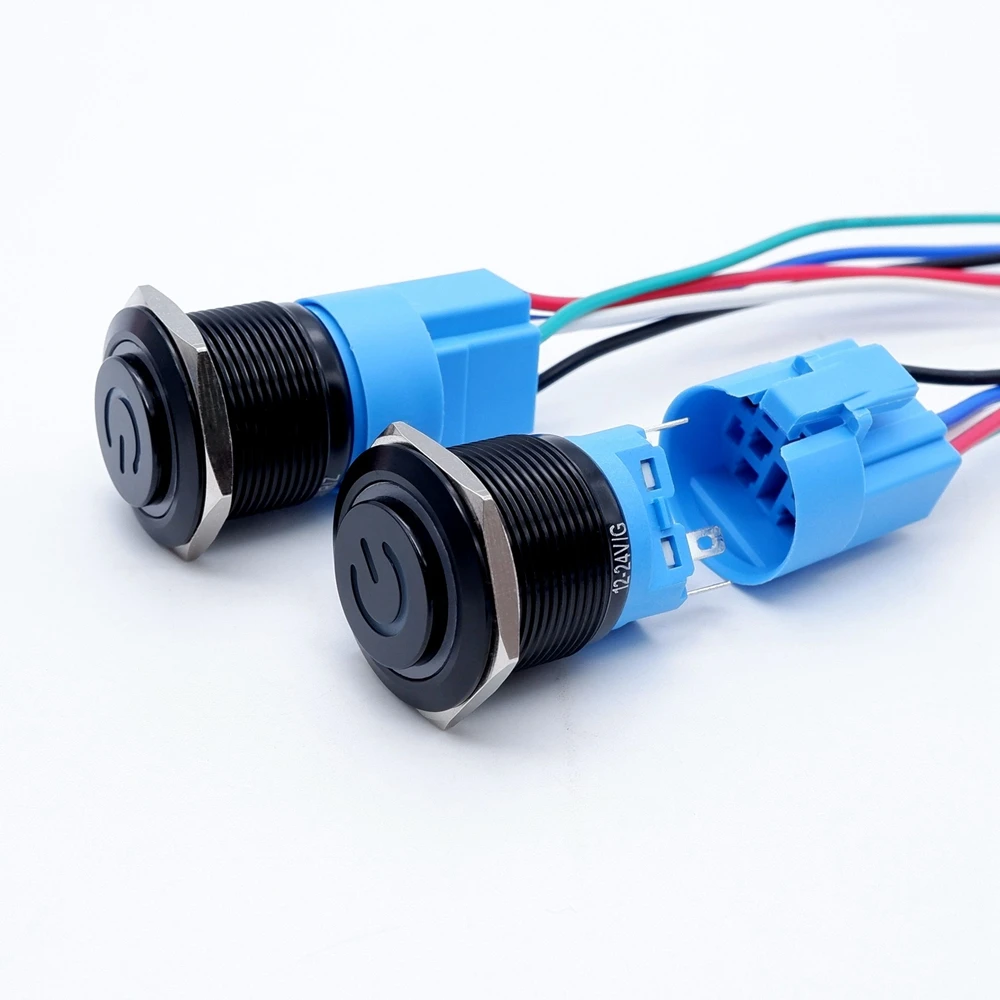

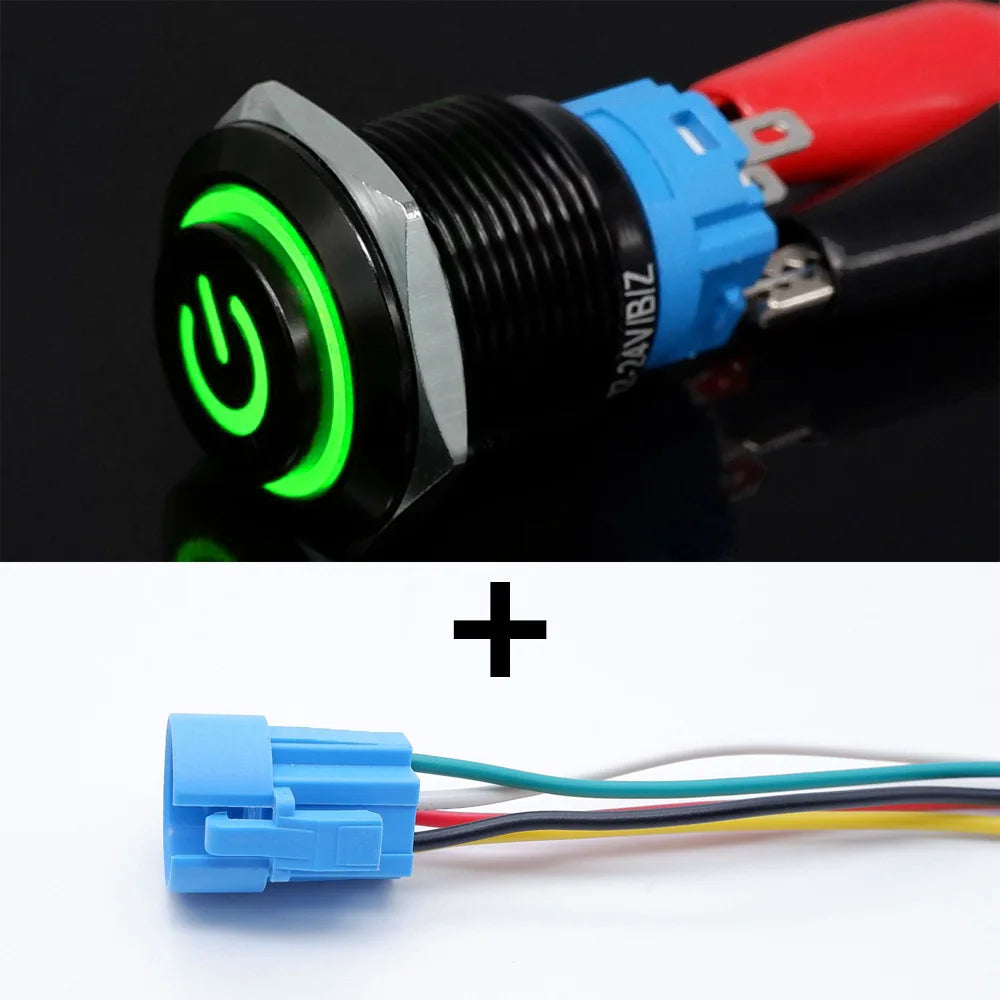

16mm 19mm 22mm Black On Off Metal Button Switch Car Power Start Stop Led Light Waterproof Reset Latching With Socket 5V 12V 220V High Head

Switch type:power switch button

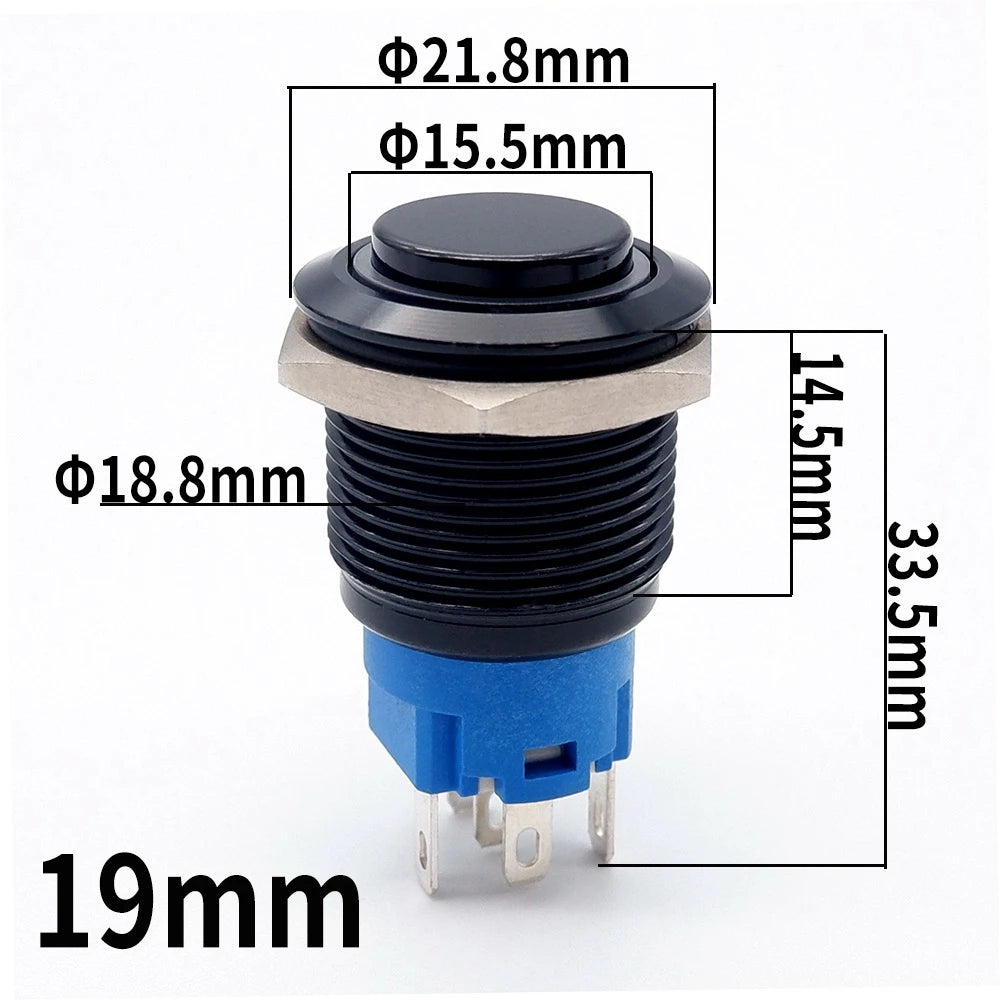

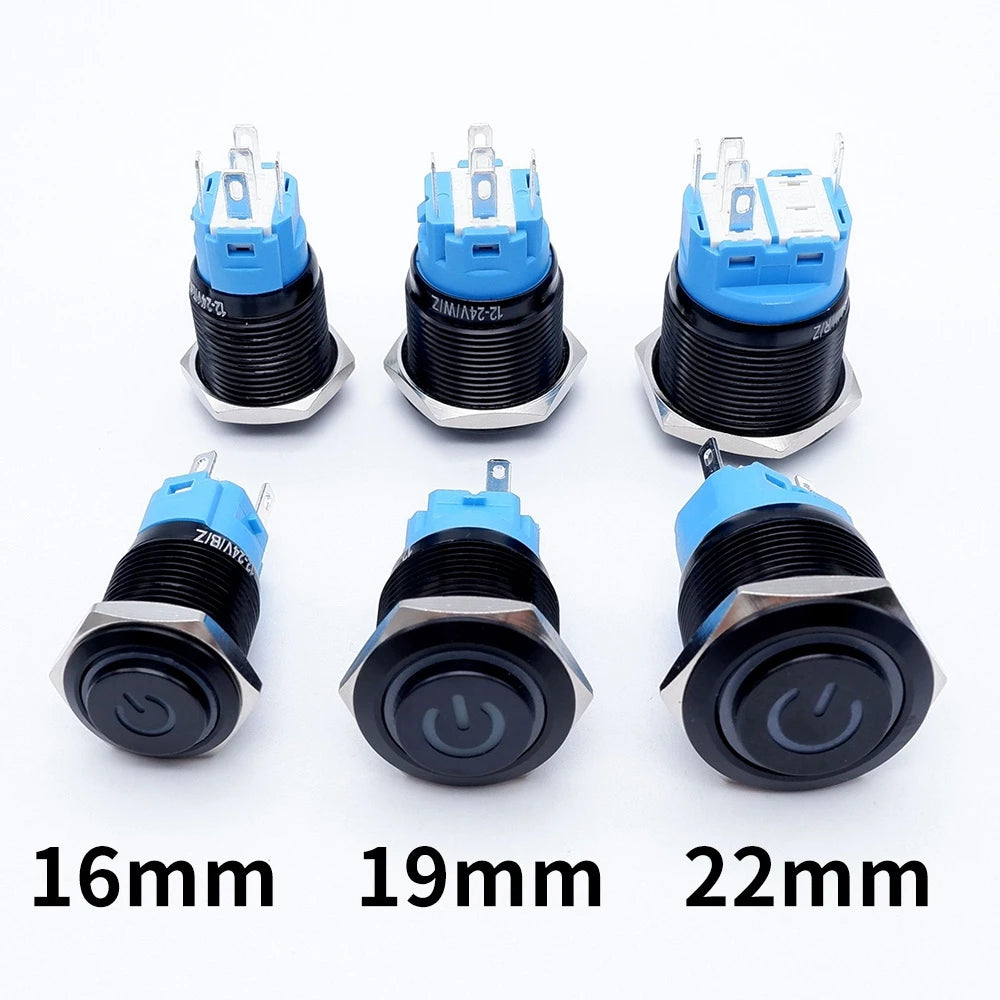

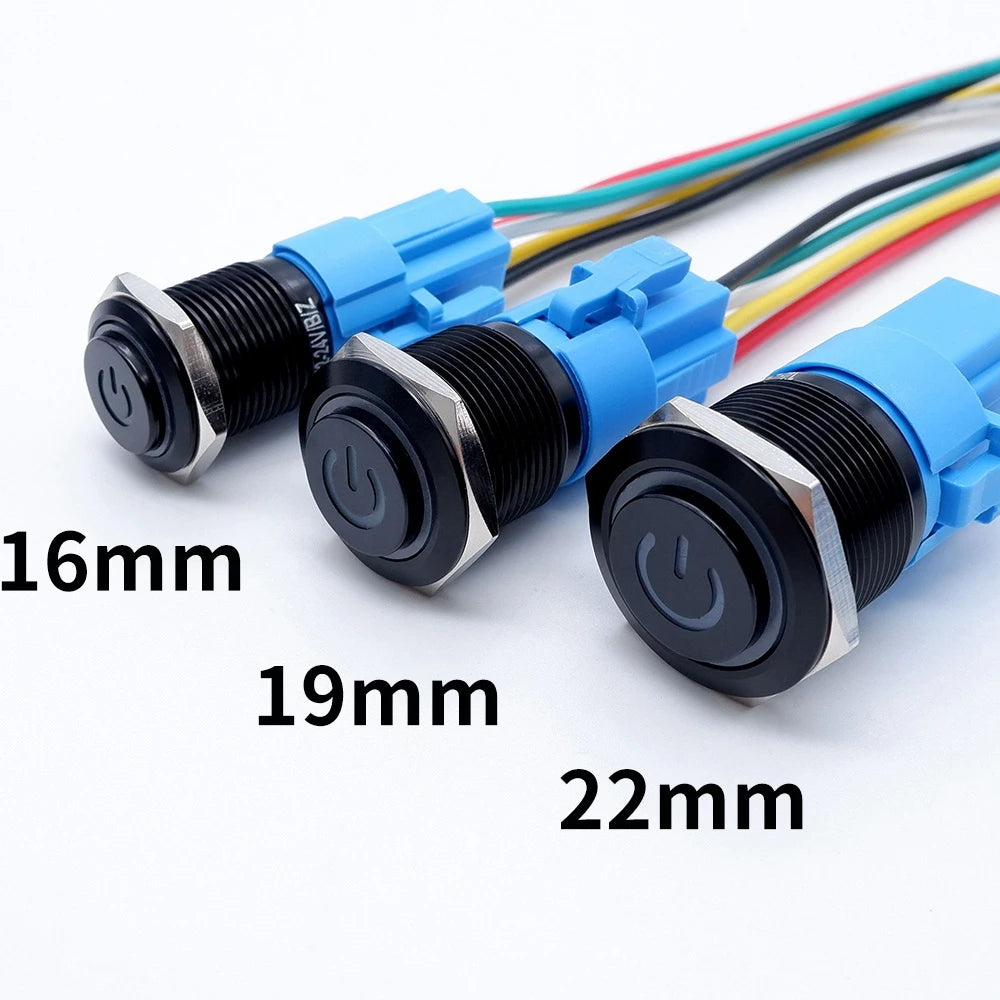

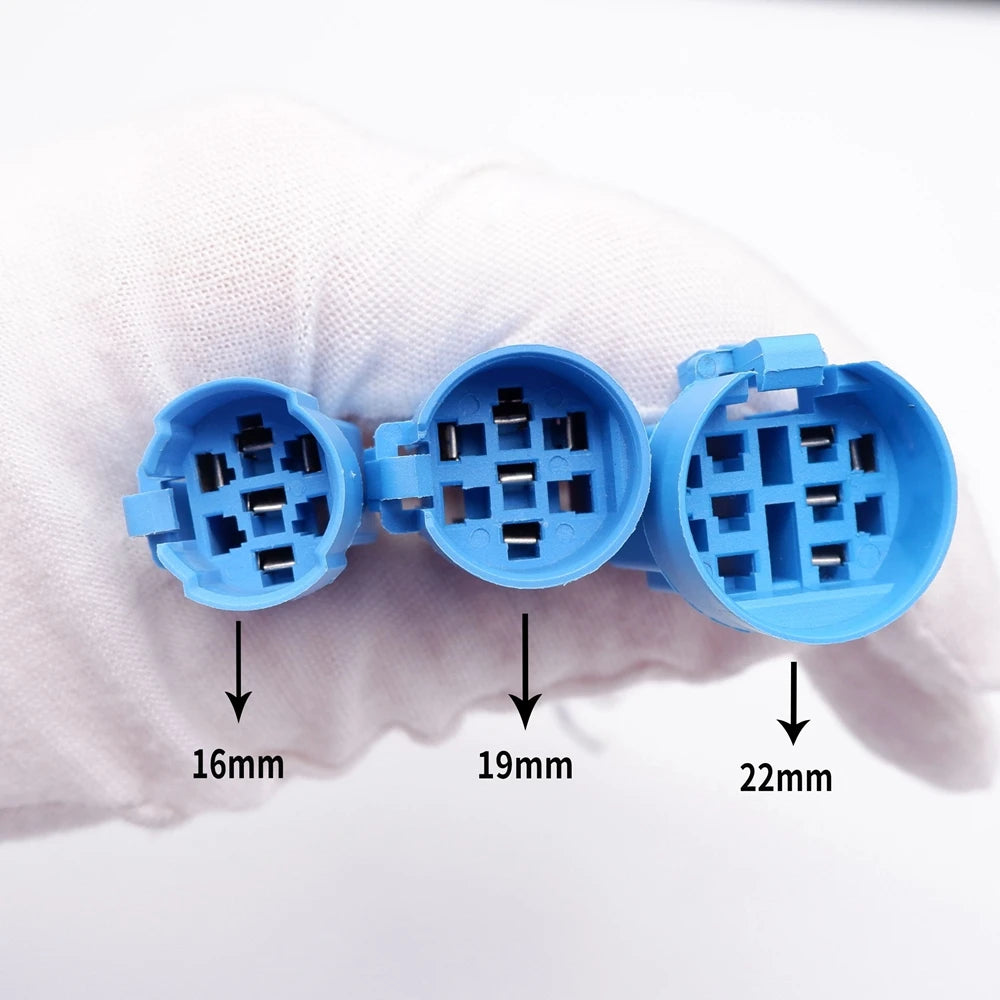

Hole diameter:16/19/22mm

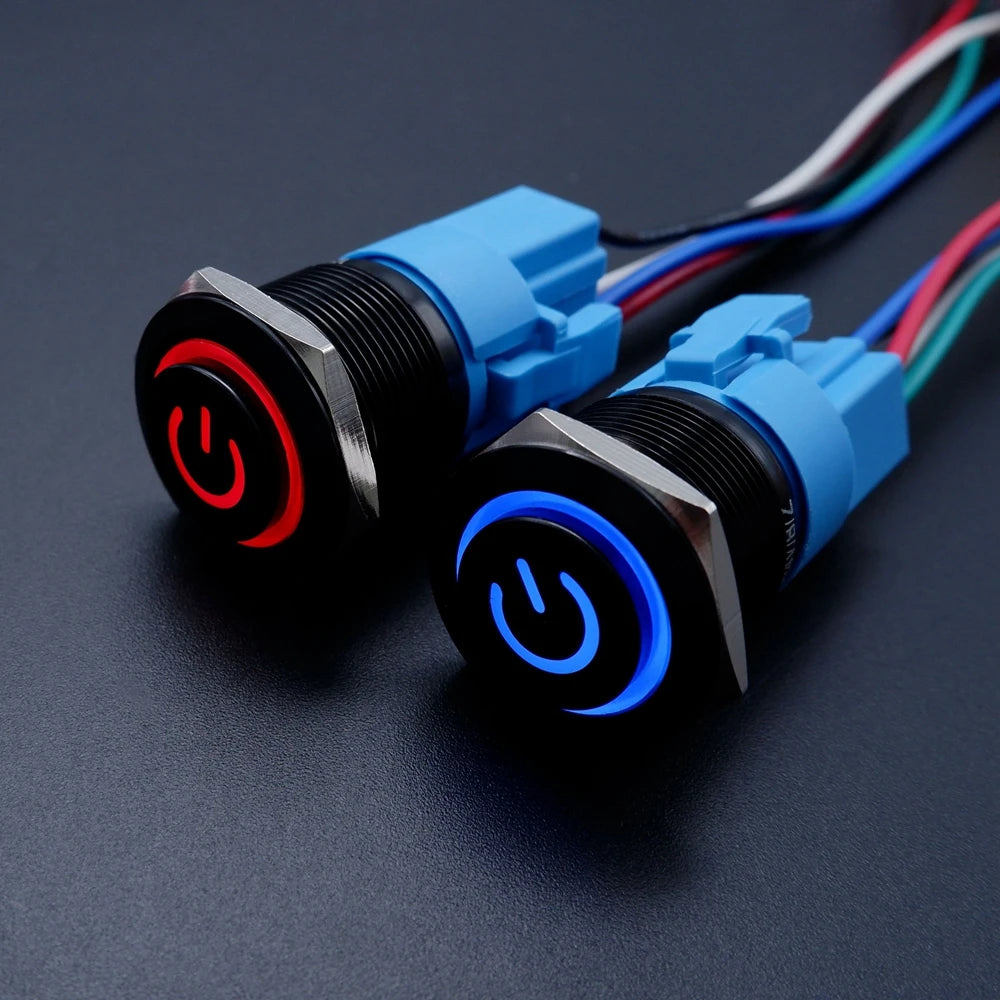

Led color:red/orange/green/blue/white
Operation method:Momentary self-reset/Latching self-locking
Led Voltage:3-6V/12-24V/110-220V
Maximum current:4A
Waterproof level:IP66
Contact type:1NO1NC

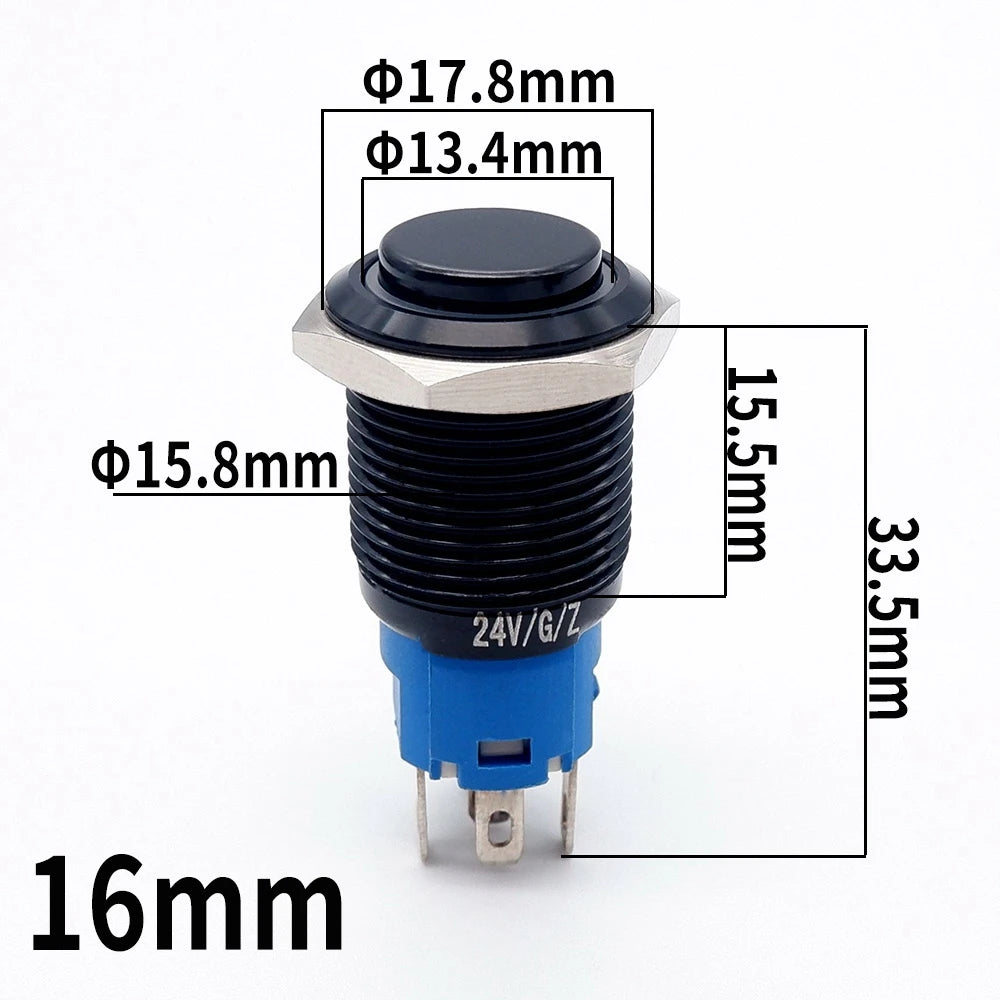

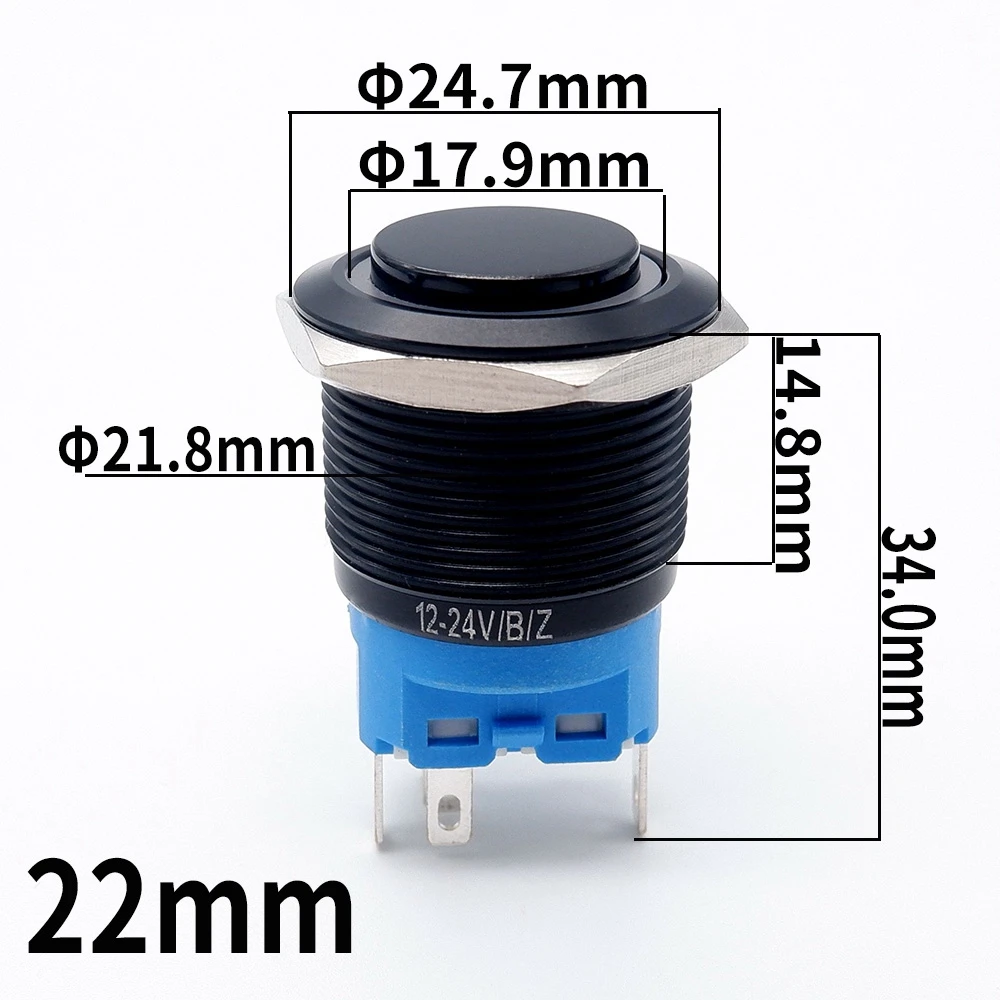

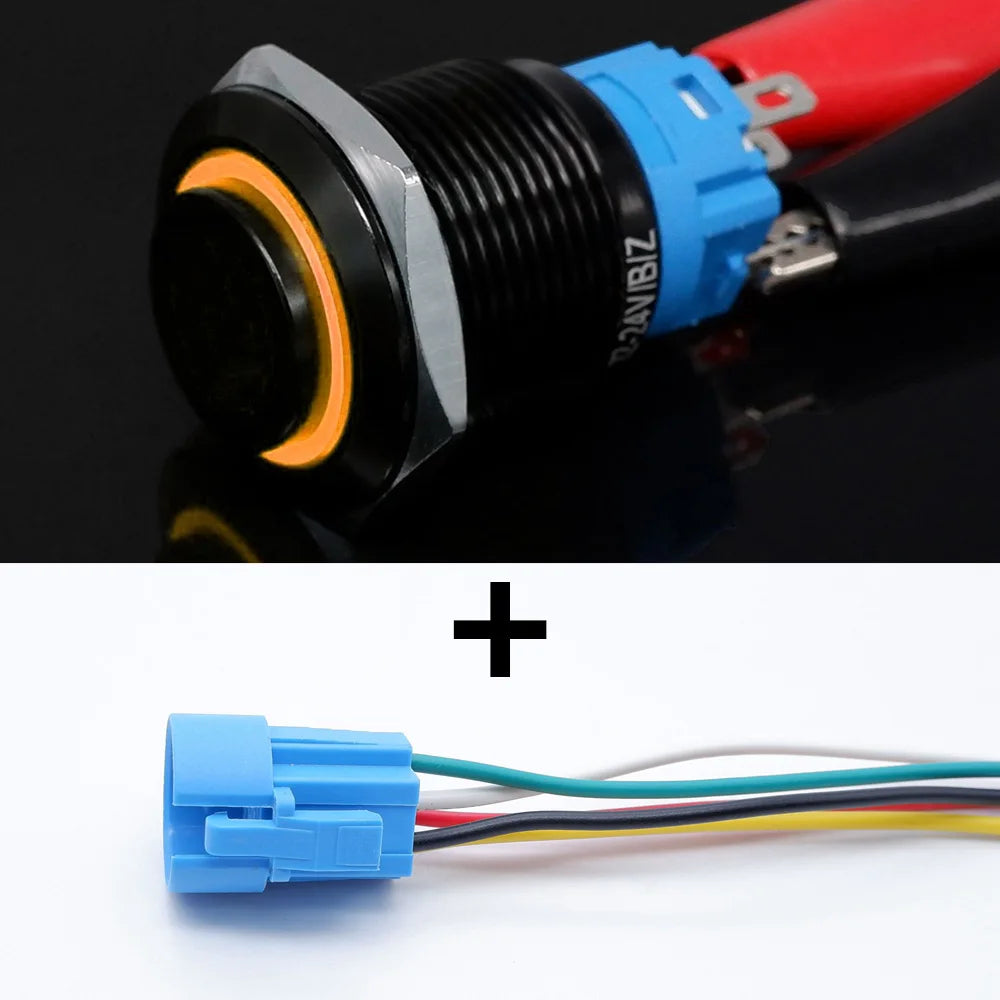

Manual measurement, there may be a little error. The protruding part of the head is about 2mm, and the connector wire length is about 15cm.

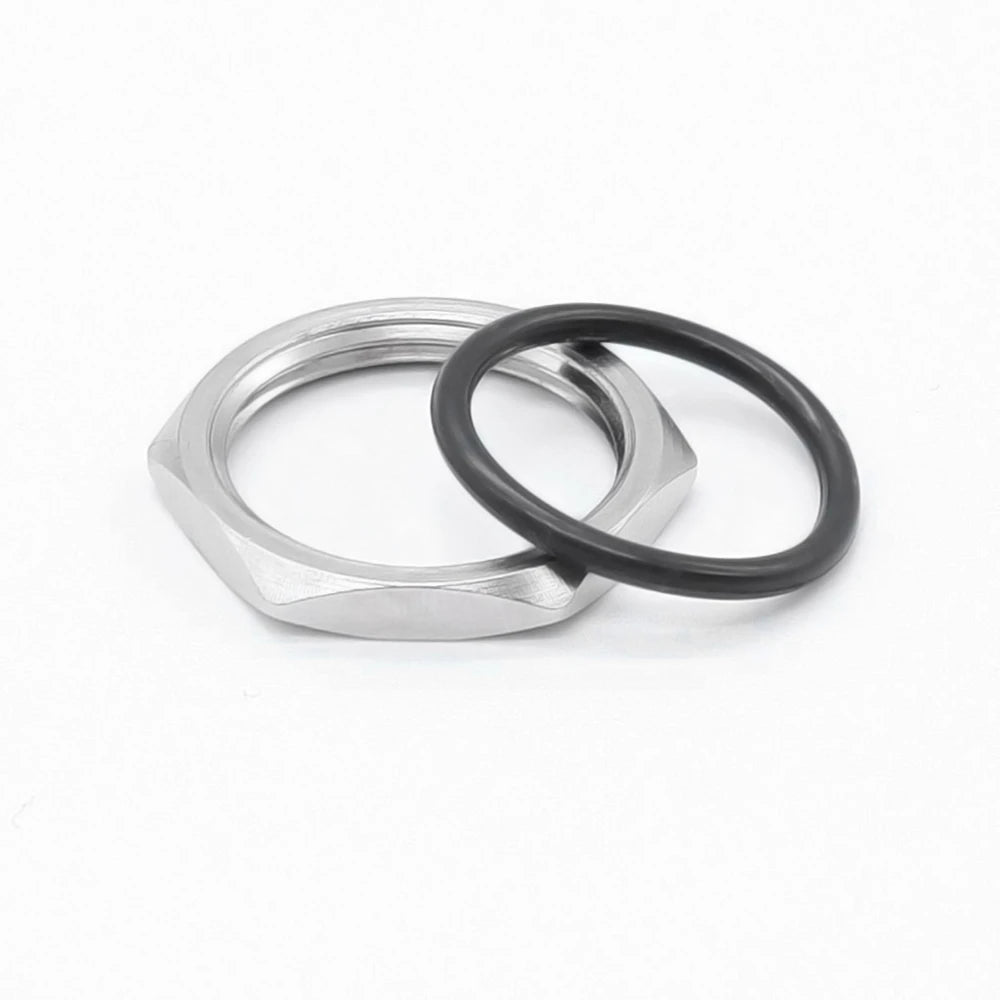

Switch push button with rubber sealing ring, waterproof and dustproof.

Difference between Momentary self-reset and Latching self-locking:

1.Momentary/Self-reset: When you press the button, press-key will automatically return.(Like a car horn switch.Press it-power on, release it-power off.)
2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then the press-key return.(Like a light switch.Press it-power on, press it again-power off.)

How to connect?

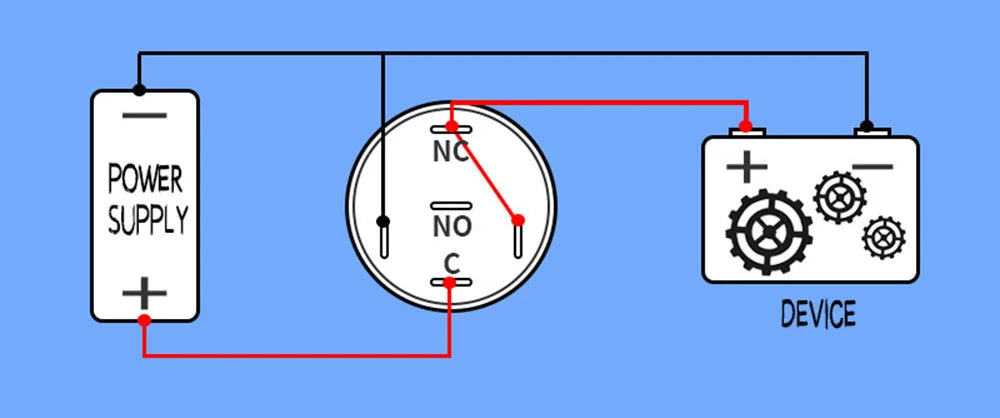

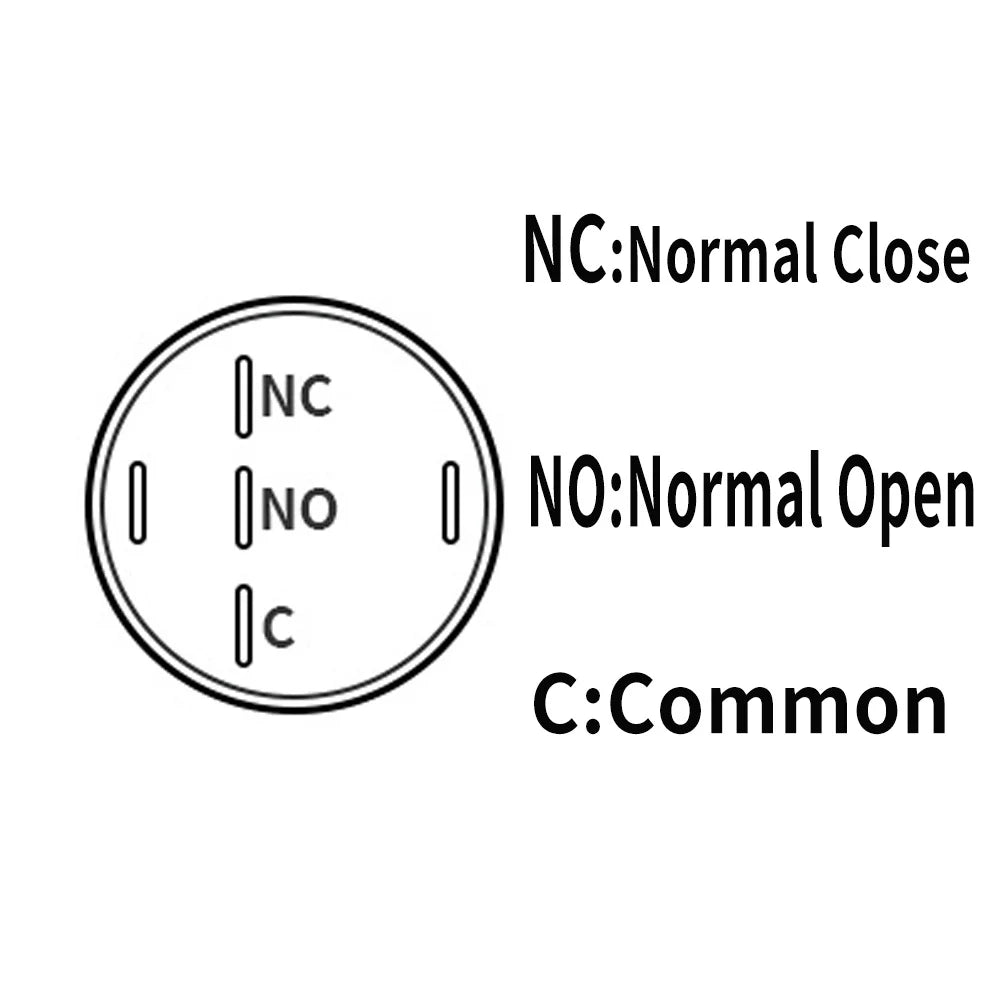

(1).Connect " NO " and " C " : The circuit is alway open unless press the button.
(2).Connect " NC " and " C " : The circuit is alway close unless press the button.
-The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.

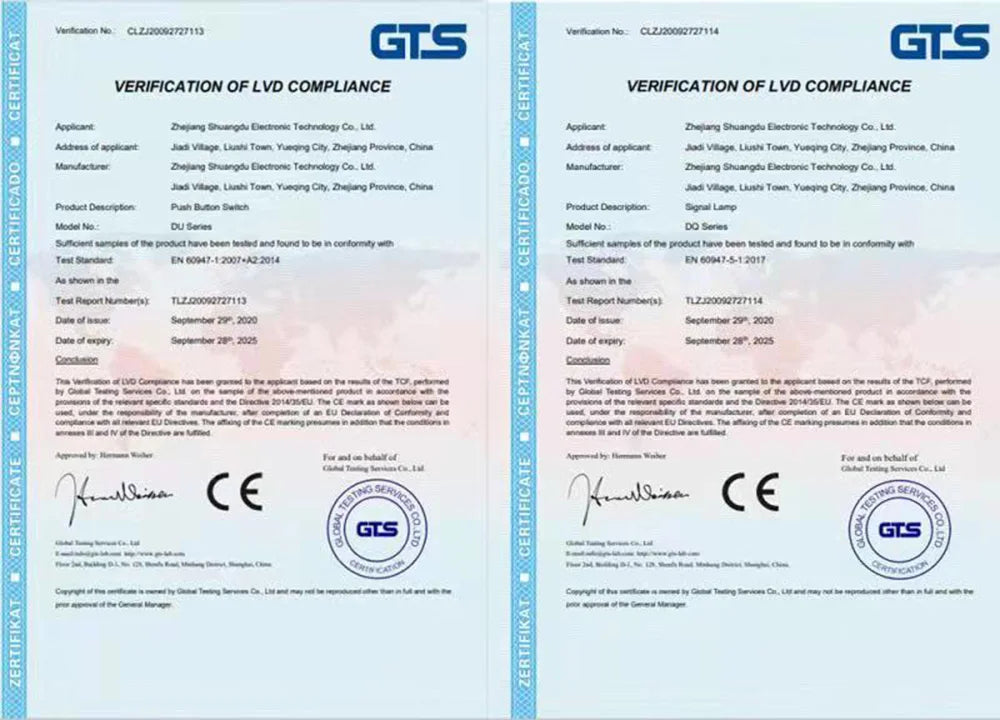

Certificate authentication

Wiring Diagram(16/19/22mm)

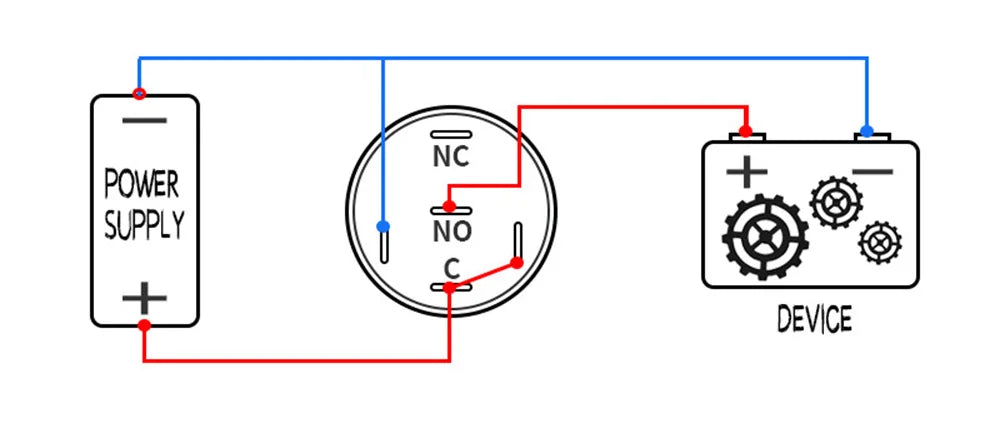

1、The button turns the LED light on and off，the circuit is alway open unless press the button.

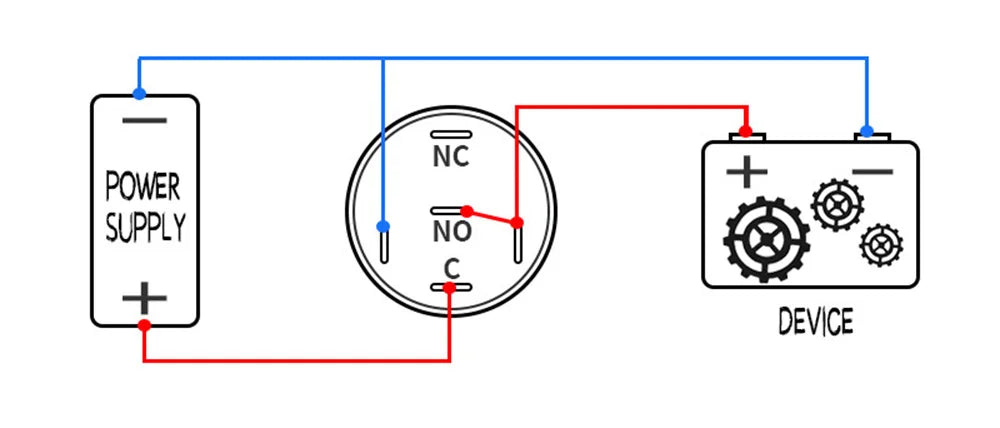

2、LED lights are always on，the circuit is alway open unless press the button.

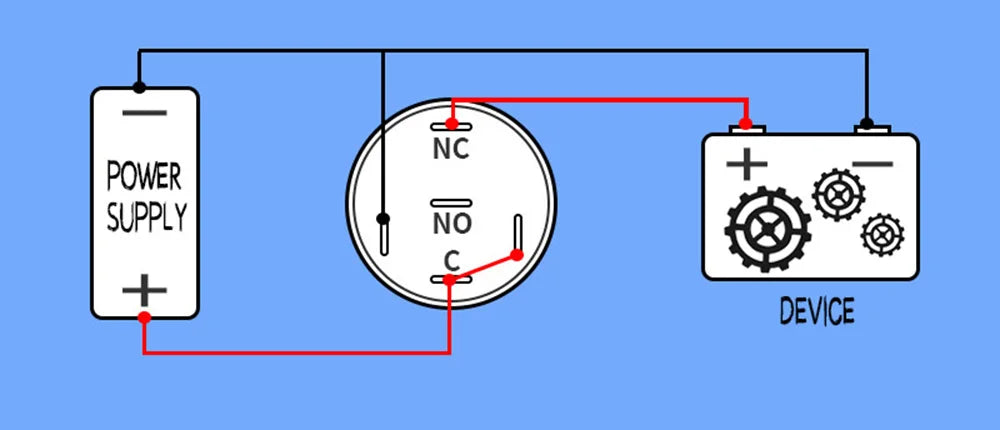

3、 The button turns the LED light on and off，the circuit is alway close unless press the button.

4、LED lights are always on，the circuit is alway close unless press the button.
