Description

SPECIFICATIONS

Brand Name: YIDI

Certification: RoHS,CE,CCC,CCC,ce,ROHS

Current: 3A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: 16mm mounting hole size

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

LED Light: Red/Green/Blue/Yellow/White

LED Voltage: 12V-24V/110V-220V

Material: Stainless Steel,Stainless steel

Model Number: YD02-YLM16-RJ-1

Mounting hole Diameter: 16mm

Origin: Mainland China

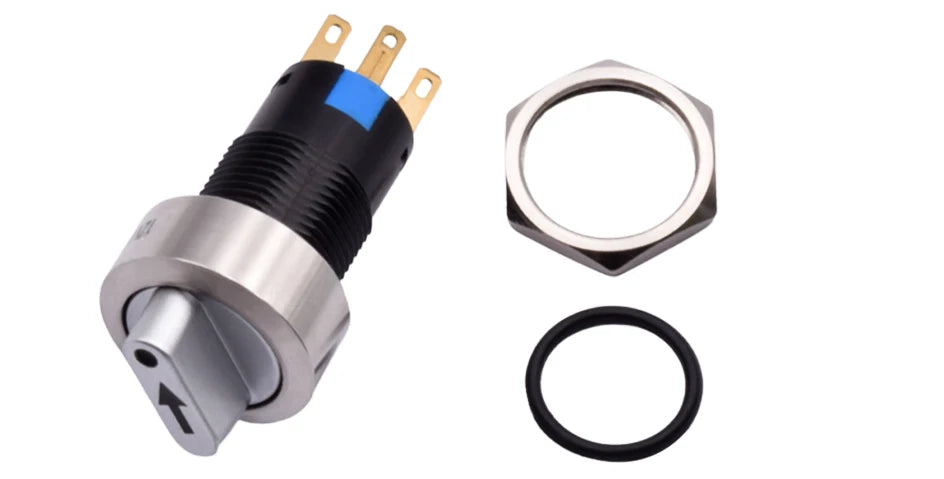

Packing: 1 switch + 1 o ring + 1 nut

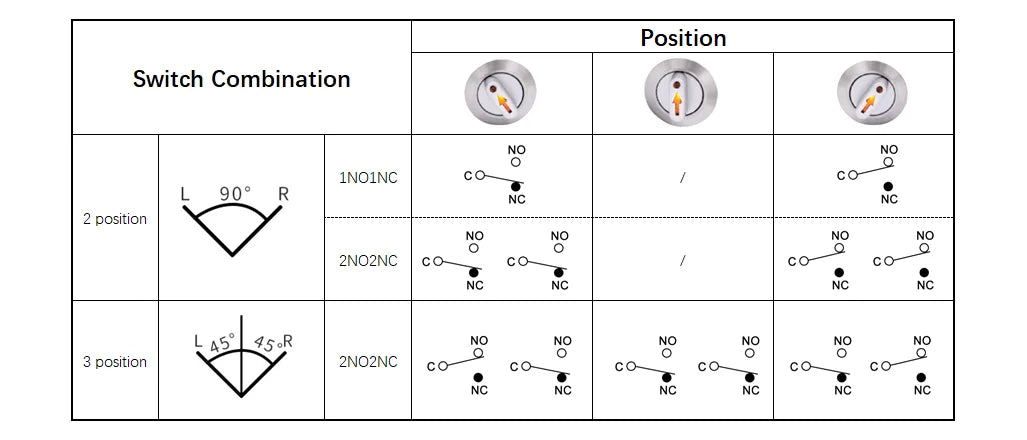

Switch Combination: 1NO1NC / 2NO2NC

Switch Function: Latching

Switch Position: 2/3 position

Switch Rating: 3A/250VAC

Switch Type: Knob switch

Warranty: 1 year

Attention:

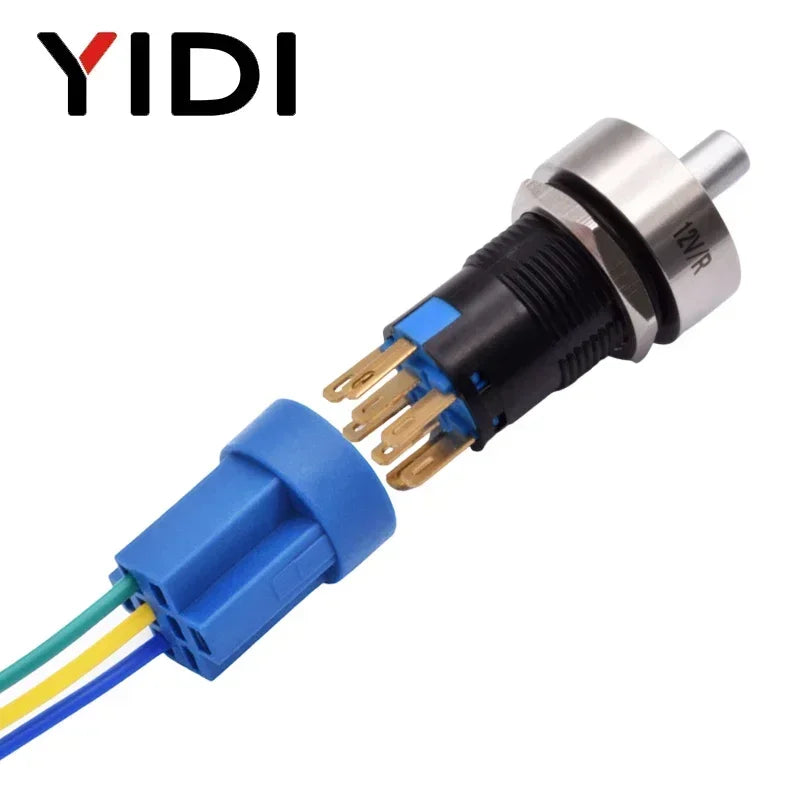

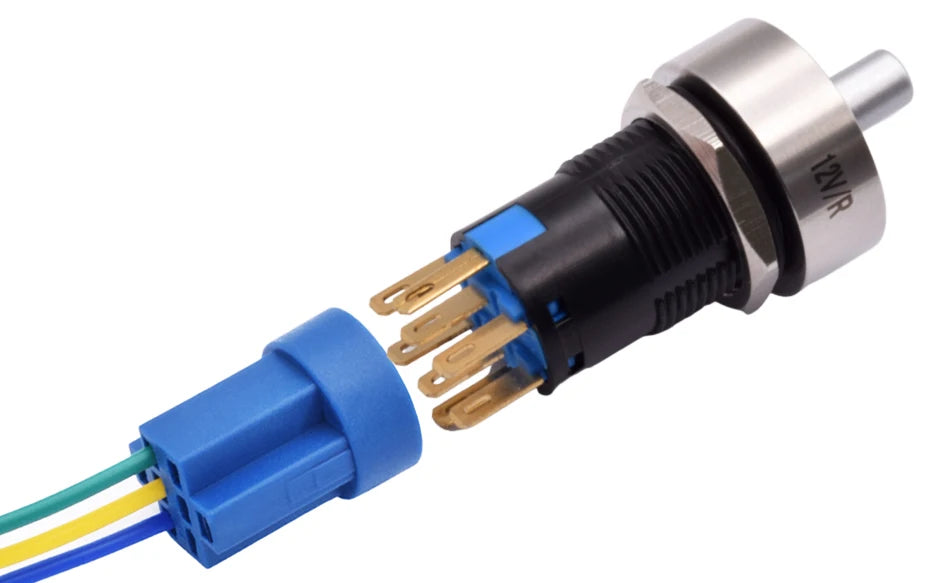

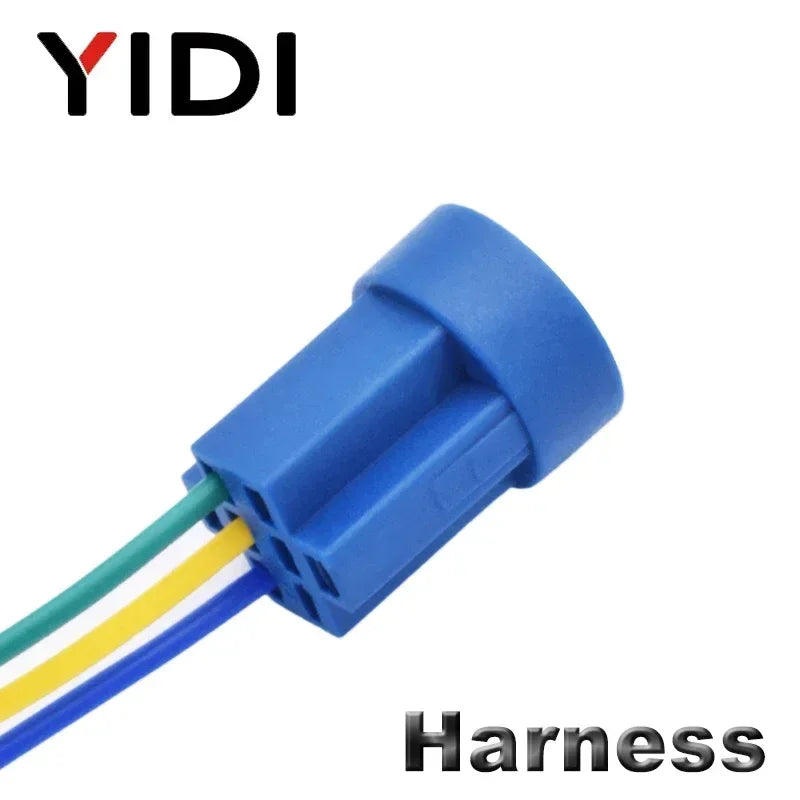

1. The harness should buy together with the switch. If buy harness only without switch, we will not arrange shipment.
If need the harness only, check the link below to buy:
www.aliexpress.com/item/4000781504021.html

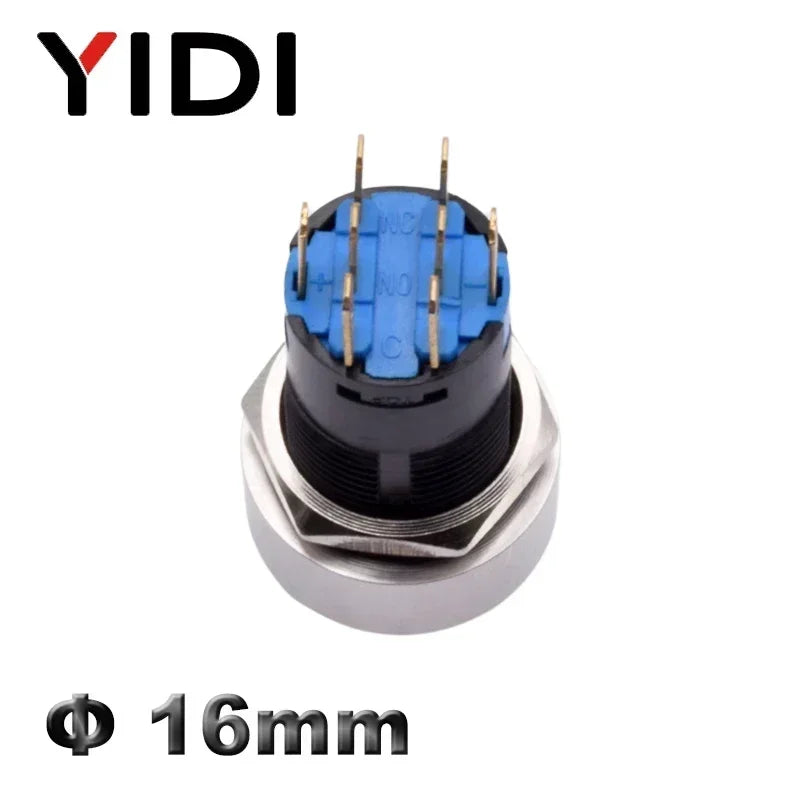

2. The number of switch pins depends on the switch function.
-- 1NO1NC without LED - 3 pins
-- 1NO1NC with LED - 5 pins
-- 2NO2NC without LED - 6 pins
-- 2NO2NC with LED - 8 pins

3. Harness is not included. If needed, choose the option when place order.

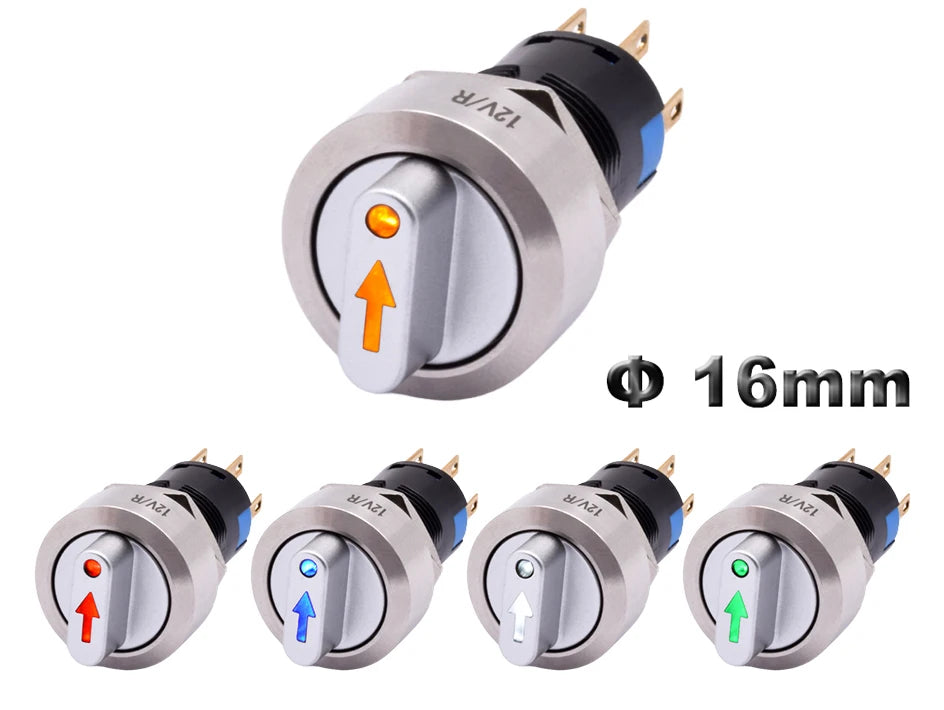

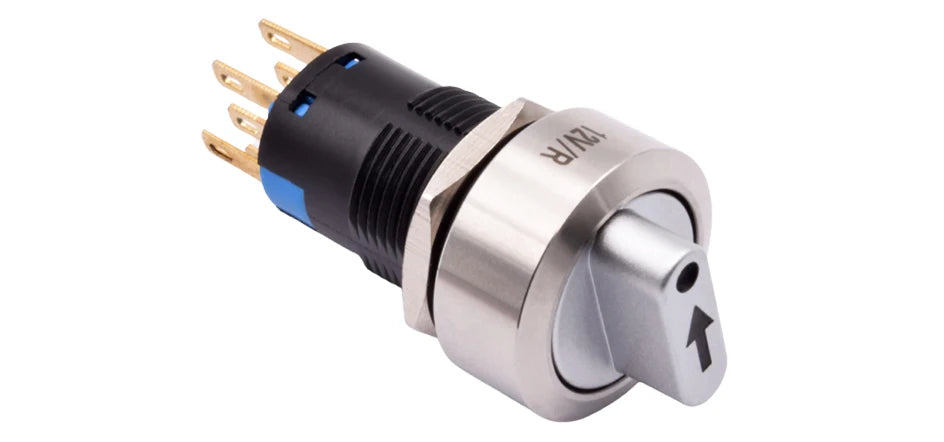

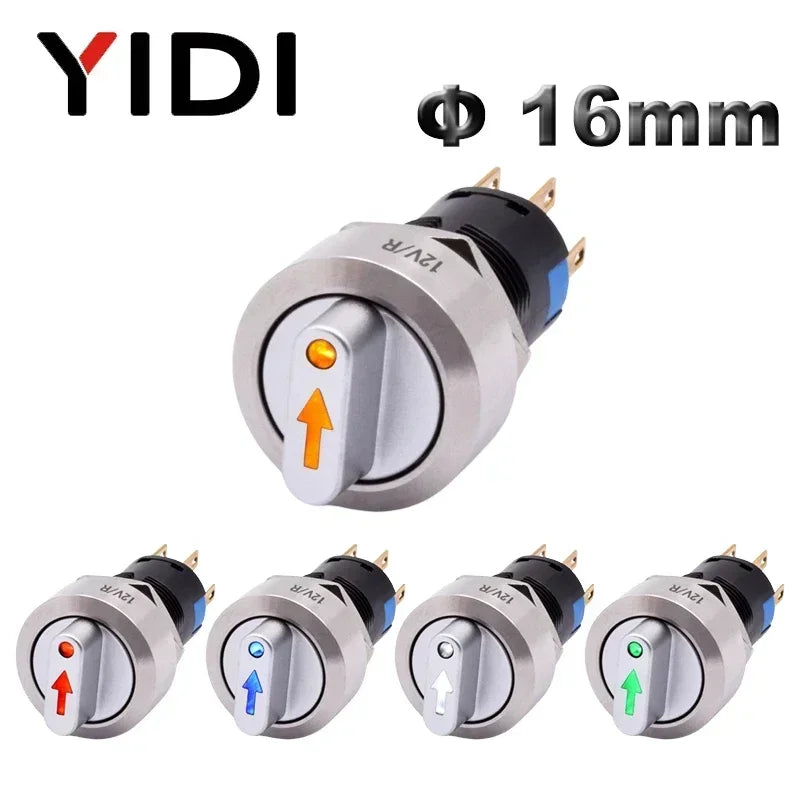

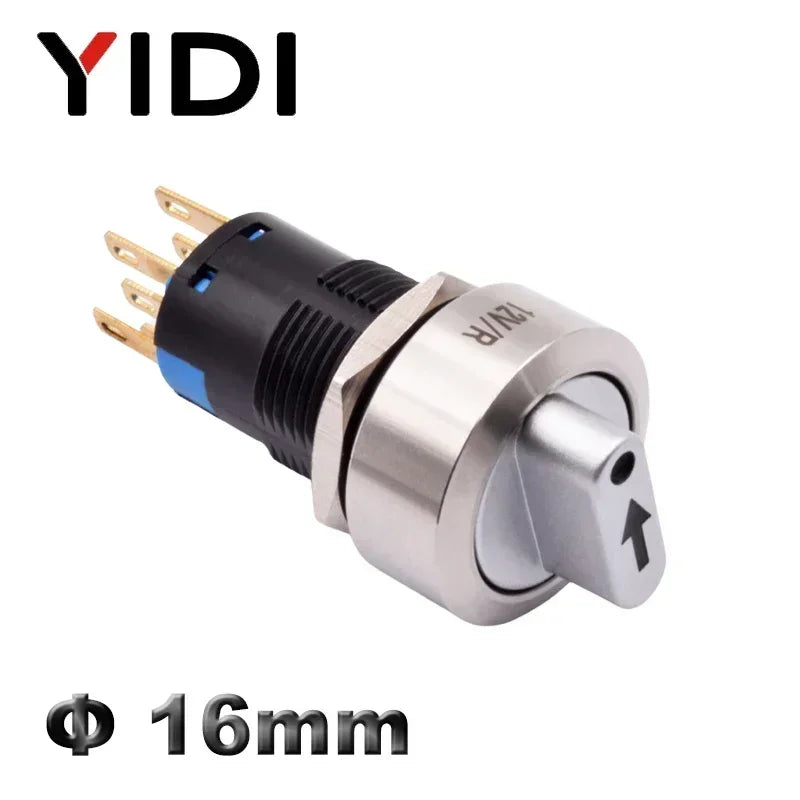

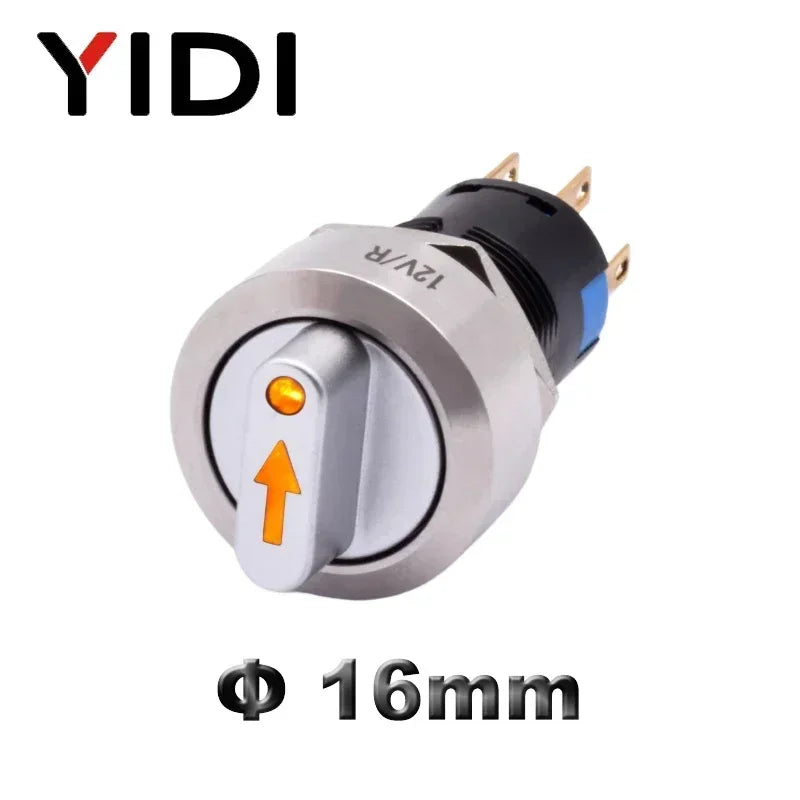

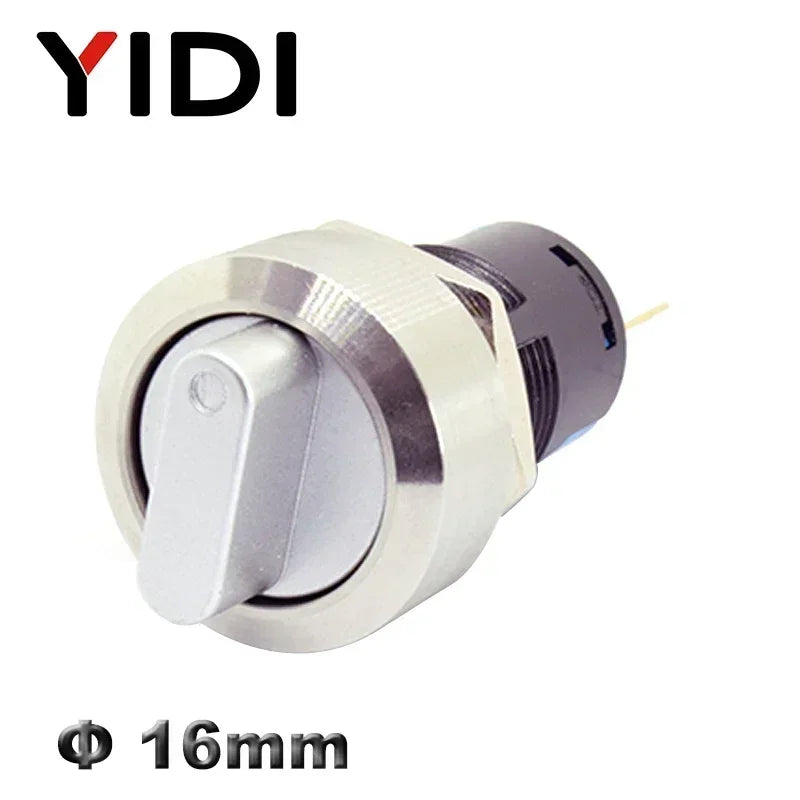

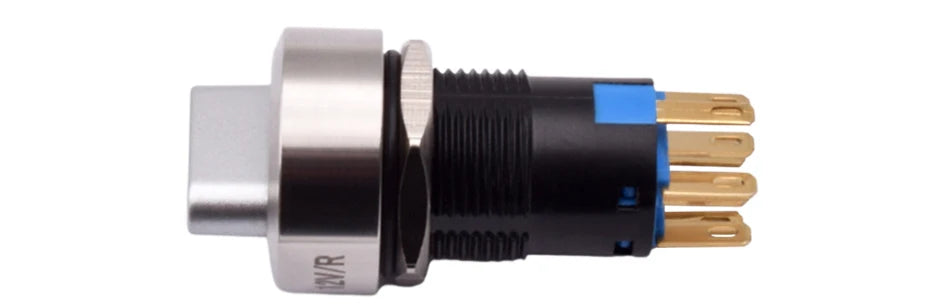

YIDI 16mm Metal Rotary Selector Switch 2 3 Position On Off 12V Led Red Green Stainless Steel Push Button Switch 1NO1NC Latching SPDT

Specification:
Mounting Hole Diameter: 16mm
Material: Stainless Steel, Plastic
Position: 2 or 3 position
Function: Latching
Rating: 3A/250VAC
LED Color: No LED/ Red / Green / Blue / Yellow / White
LED Voltage: 12V-24V /110V-220V (if need other voltage, contact us or leave message when place order)

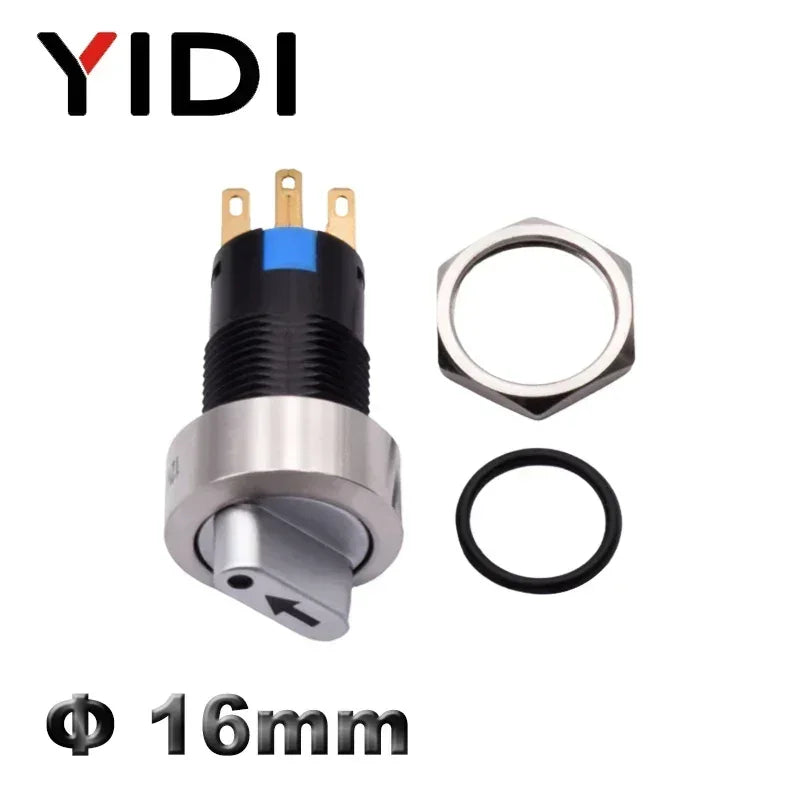

Packing:1 switch + 1 o ring + 1 nut
