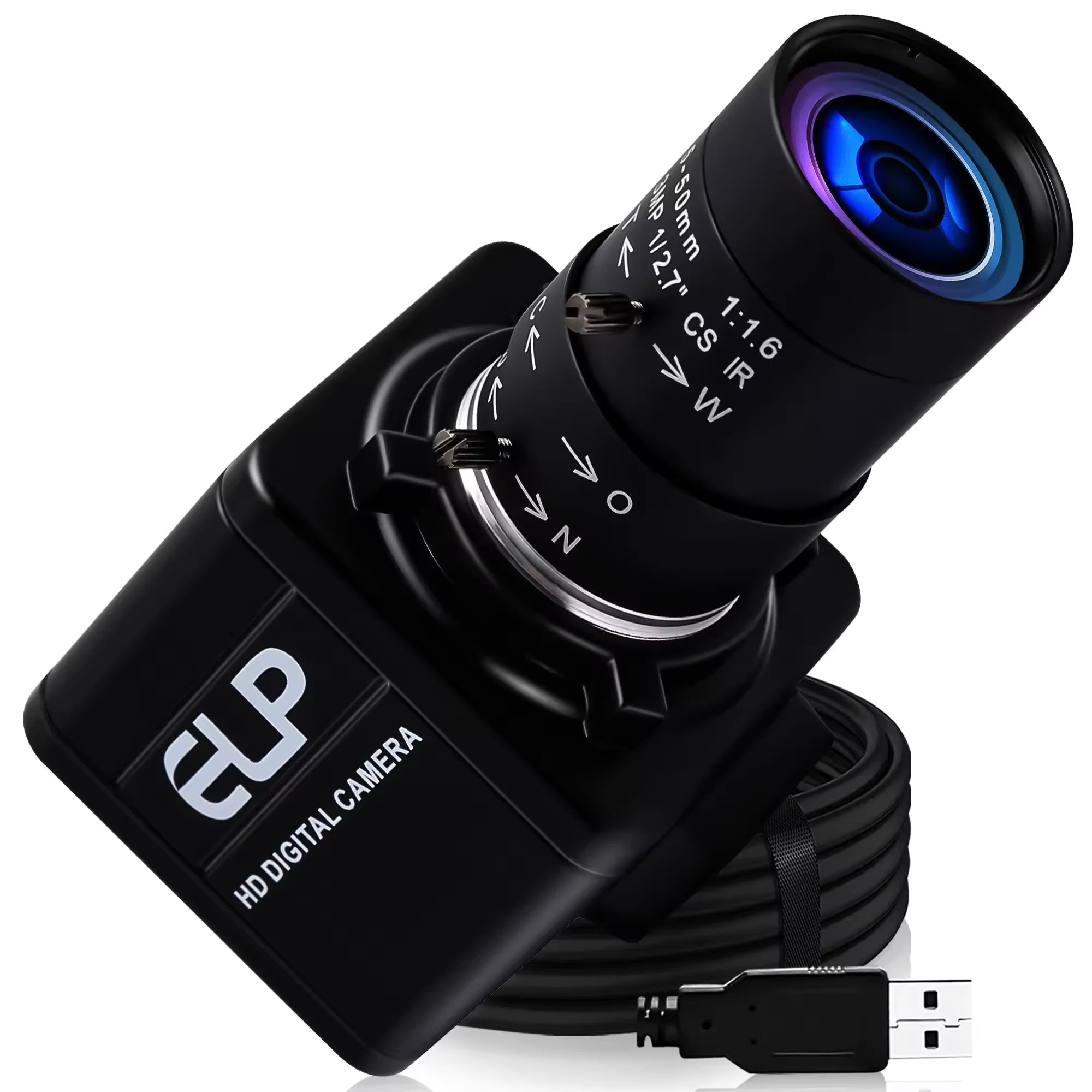

16MP USB Camera IMX298 Industrial Ultra HD Mini Webcam with CS Mount 5-50mm Manual Varifocal Lens Free Driver Plug&Play for PC

16MP USB Camera IMX298 Industrial Ultra HD Mini Webcam with CS Mount 5-50mm Manual Varifocal Lens Free Driver Plug&Play for PC

$378.36

$378.36 $0.00

Description

SPECIFICATIONS

Brand Name: ELP

Cable: Standrad 3m cable

Certification: CE,FCC

Compression Format: MJPEG/YUY2

Free Driver: Plug and Play

High-concerned chemical: none

Megapixels: 16MP

Mini illumination: 0.5lux

Model Number: ELP-USB16MP01-MFV(5-50)

OS Support: Android /Linux/Windows/MAC OS

OTG: Support, can connect with Android mobile phone

Origin: Mainland China

Smart home platform: Other

Zoom: 10X

Zoom type: Optical zoom

16MP USB Camera IMX298 Industrial Ultra HD Mini Webcam with CS Mount 5-50mm Manual Varifocal Lens Free Driver Plug&Play for Laptop PC

Package Includes:

1) 1pc 16MP usb camera with varifocal lens

2) 1pc 3m usb cable

Features:

* High resolution 16MP usb camera with IMX298 sensor, max resolution 4656(H)x3496(V).

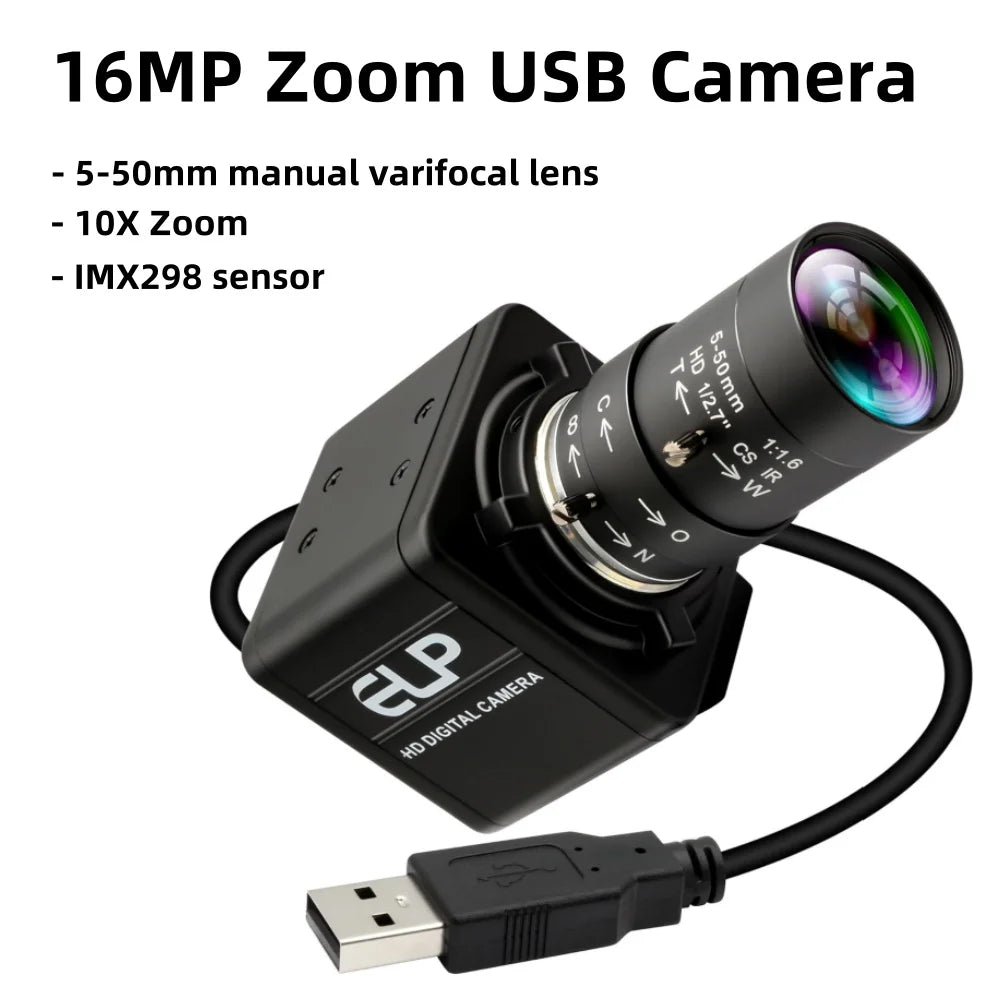

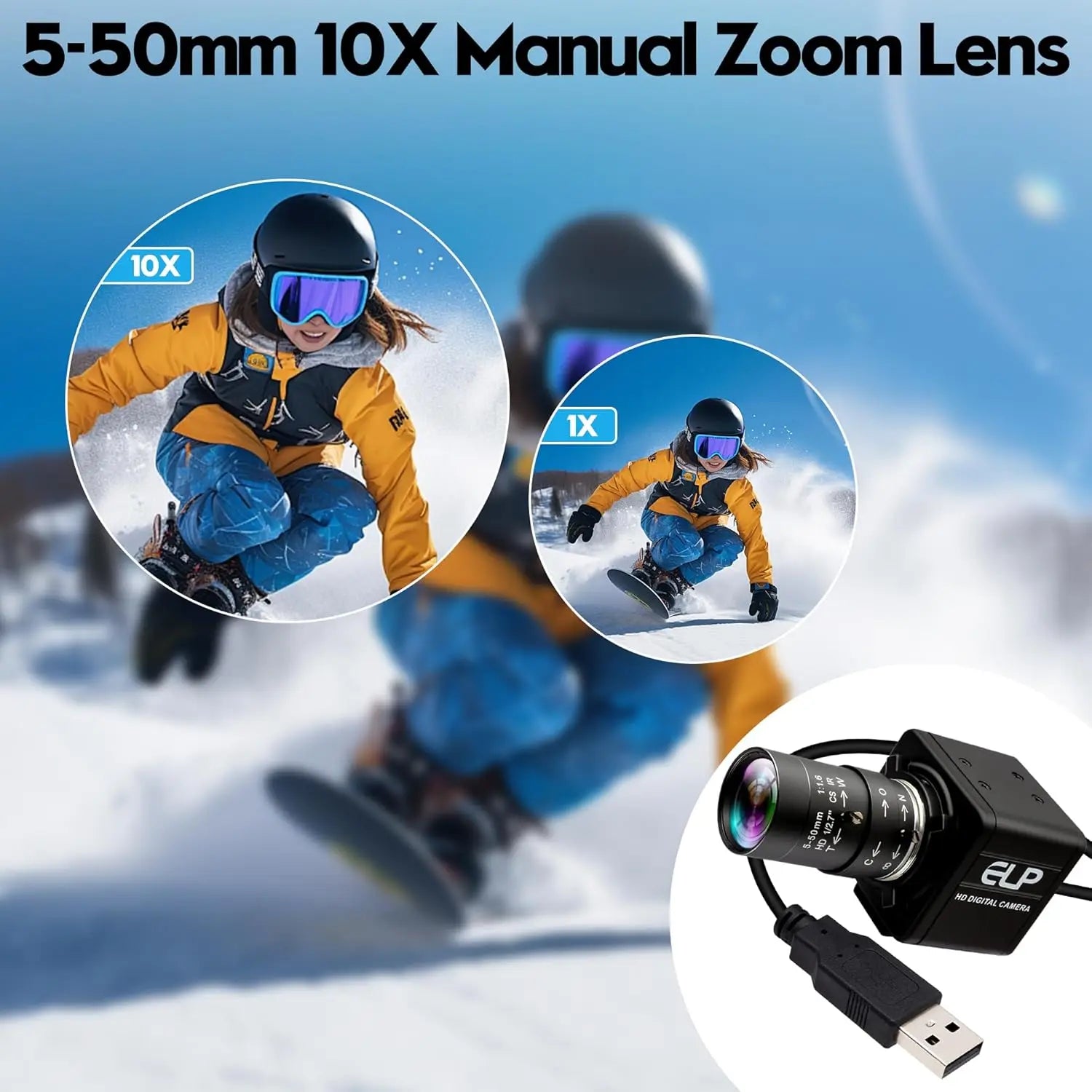

* With CS mount, 5-50mm 10X varifocal close up lens

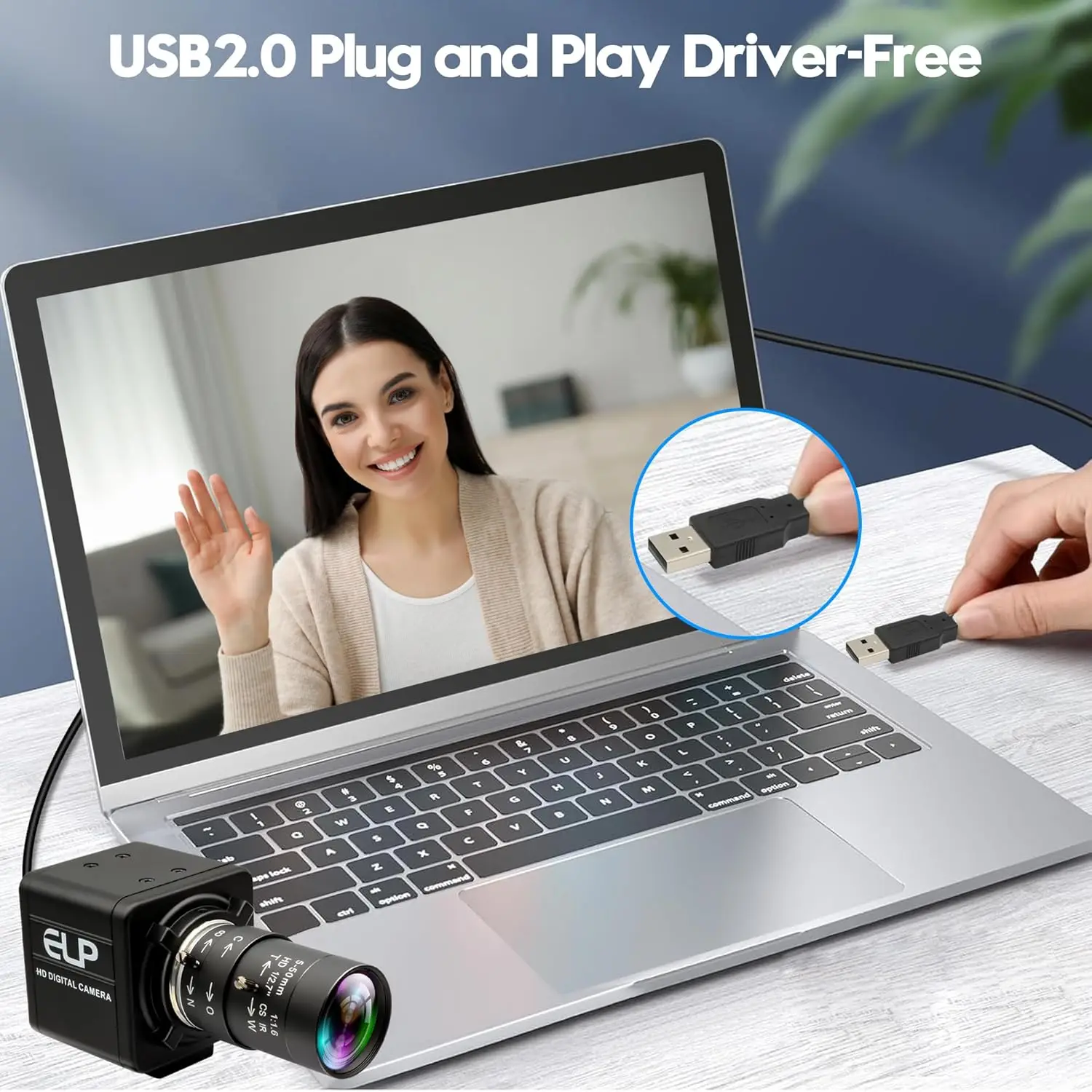

* Plug & Play, free driver. UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

* Support many APPs and software, Amcap, OpenVC, PC default webcam software, VLC, V4L2...

* Specification:

Model	ELP-USB16MP01-MFV(5-50)
Optional Models	ELP-USB16MP01-MFV(2.8-12)
Optional Models	ELP-USB16MP01-MFV
Sensor	CMOS IMX298
Sensor Size	1/2.8inch
Pixel Size	1.12um
Image Area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V) 16 Megapixel
Compression Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	4656 x 3496 MJPEG@10fps YUY2@1fps4208 x 3120MJPEG@10fps YUY2@1fps
	4160 x 3120 MJPEG@10fps YUY2@1fps4000 x 3000MJPEG@10fps YUY2@1fps
	3840 x 2160 MJPEG@10fps YUY2@1fps3264 x 2448MJPEG@10fps YUY2@1fps
	2592 x 1944 MJPEG@10fps YUY2@1fps2320 x 1744MJPEG@30fps YUY2@1fps
	2048 x 1536 MJPEG@30fps YUY2@1fps1920 x 1080MJPEG@30fps YUY2@5fps
	1600 x 1200 MJPEG@30fps YUY2@5fps1280 x 960MJPEG@30fps YUY2@10fps
	1280 x 720 MJPEG@30fps YUY2@10fps1024 x 768MJPEG@30fps YUY2@10fps
	800 x 600 MJPEG@30fps YUY2@15fps640 x 480MJPEG@30fps YUY2@30fps
Min Illumination	0.5 Lux
Shutter Type	Electronic Rolling Shutter / Frame Exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class (UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameters	CS 5-50mm lens (CS 2.8-12mm optional)
Power Supply	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC5V
Working Current	180mA~240mA
Working Temperature	-10~70℃
Storage Temperature	-20~85℃
Cable	Standard 3m / Optional 1m,2m,5m
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
	Linux with UVC (above Linux-2.6.26)
	MAC-OS X 10.4.8 or later
	Android 4.0 or above with UVC

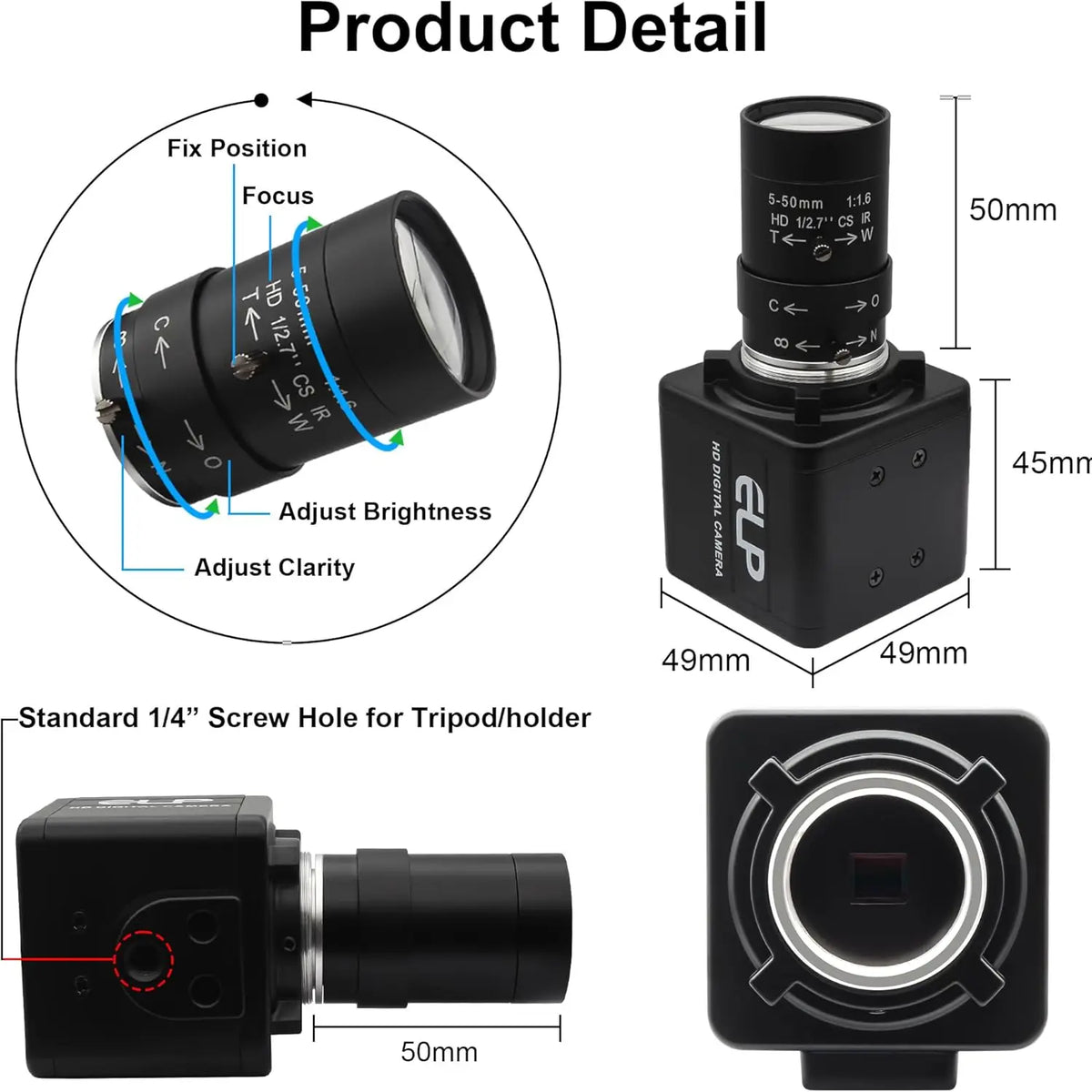

Product Display:

Wide Application:

Widely used in applications where high resolution images and videos with autofocus are required, such as industrial camera, video conferencing, live streaming, security, medical equipment, industrial inspection, scientific research and development, education and training, high resolution document scanning, high speed photography equipment, photo scanner ANPR camera, 3D printer, industrial machine vision, etc.
