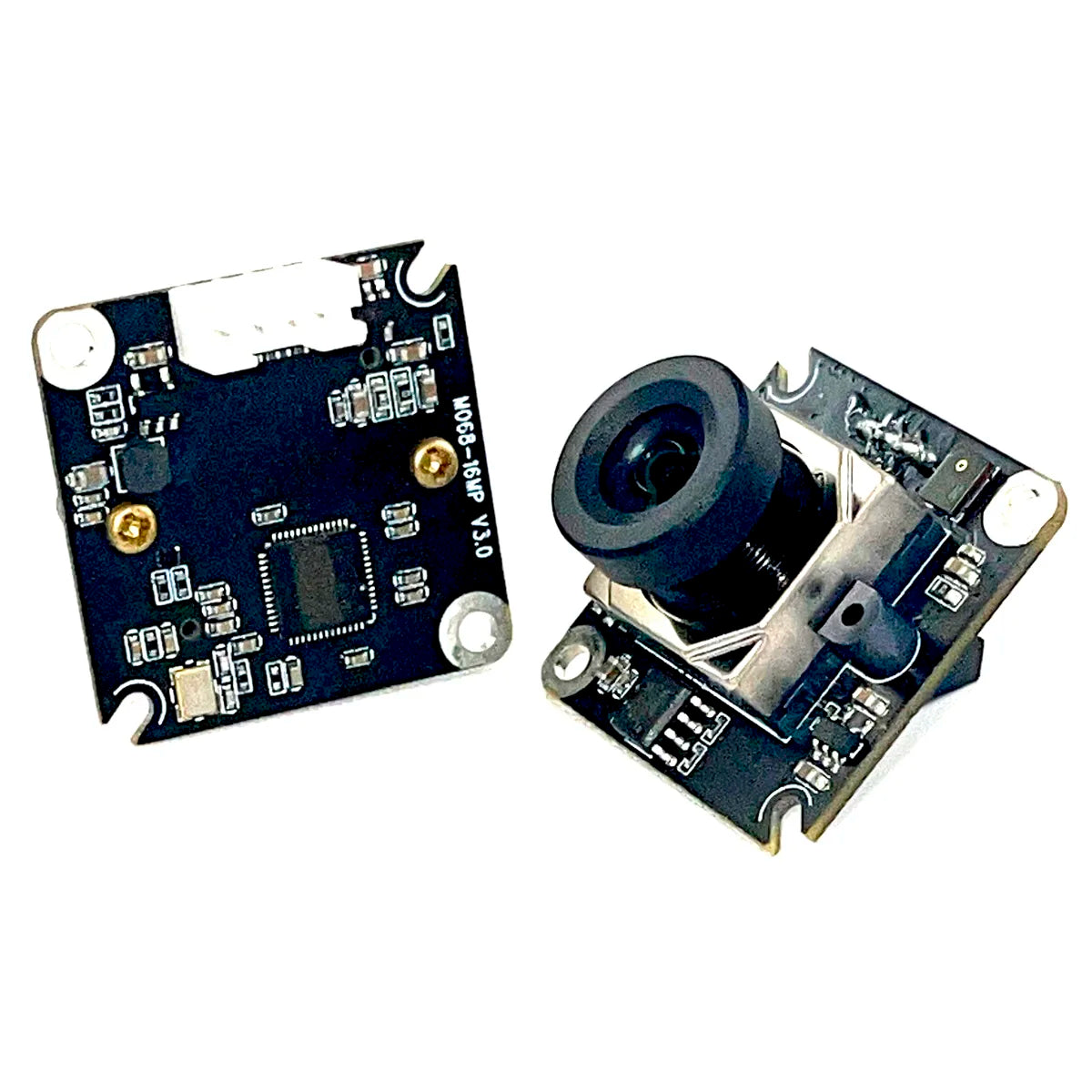

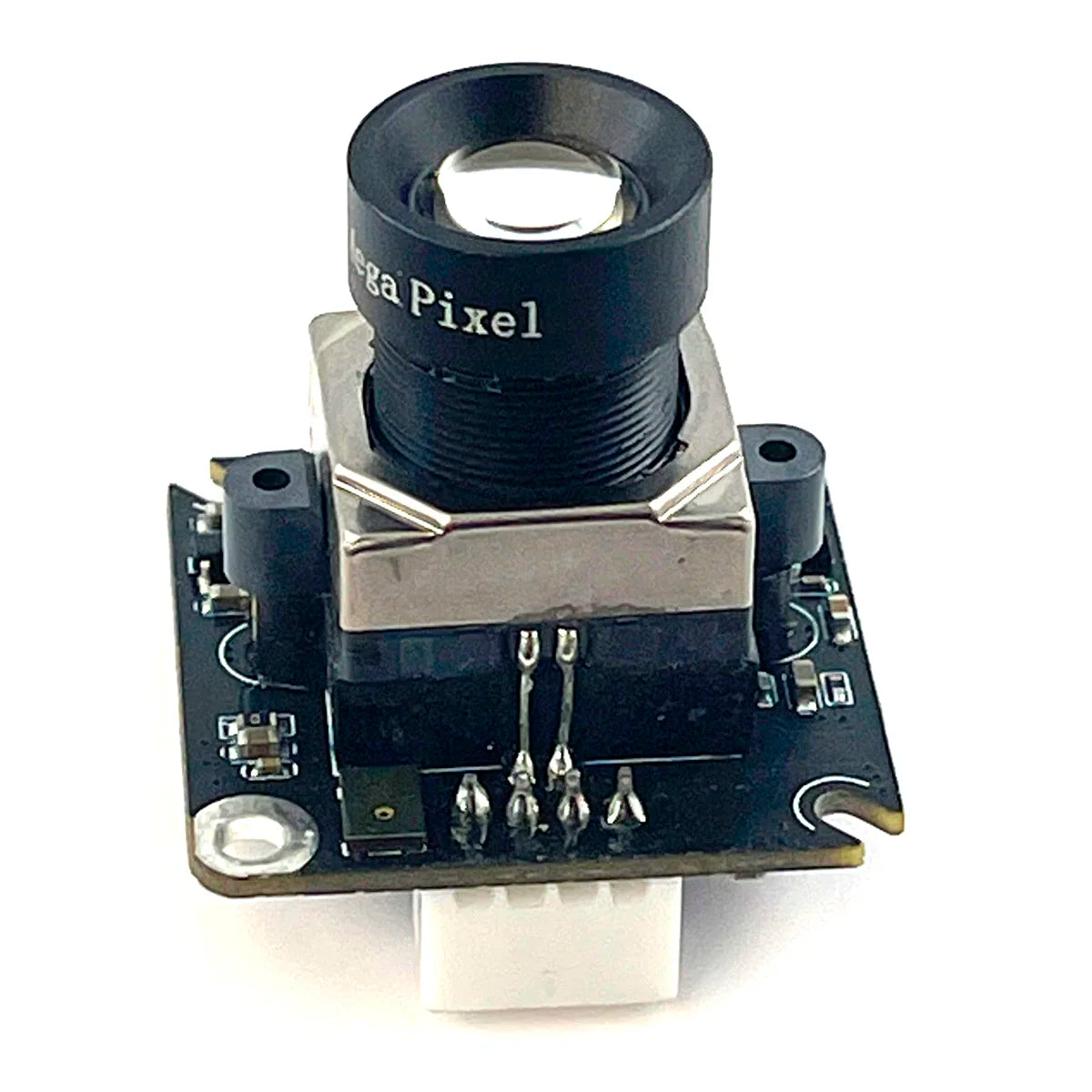

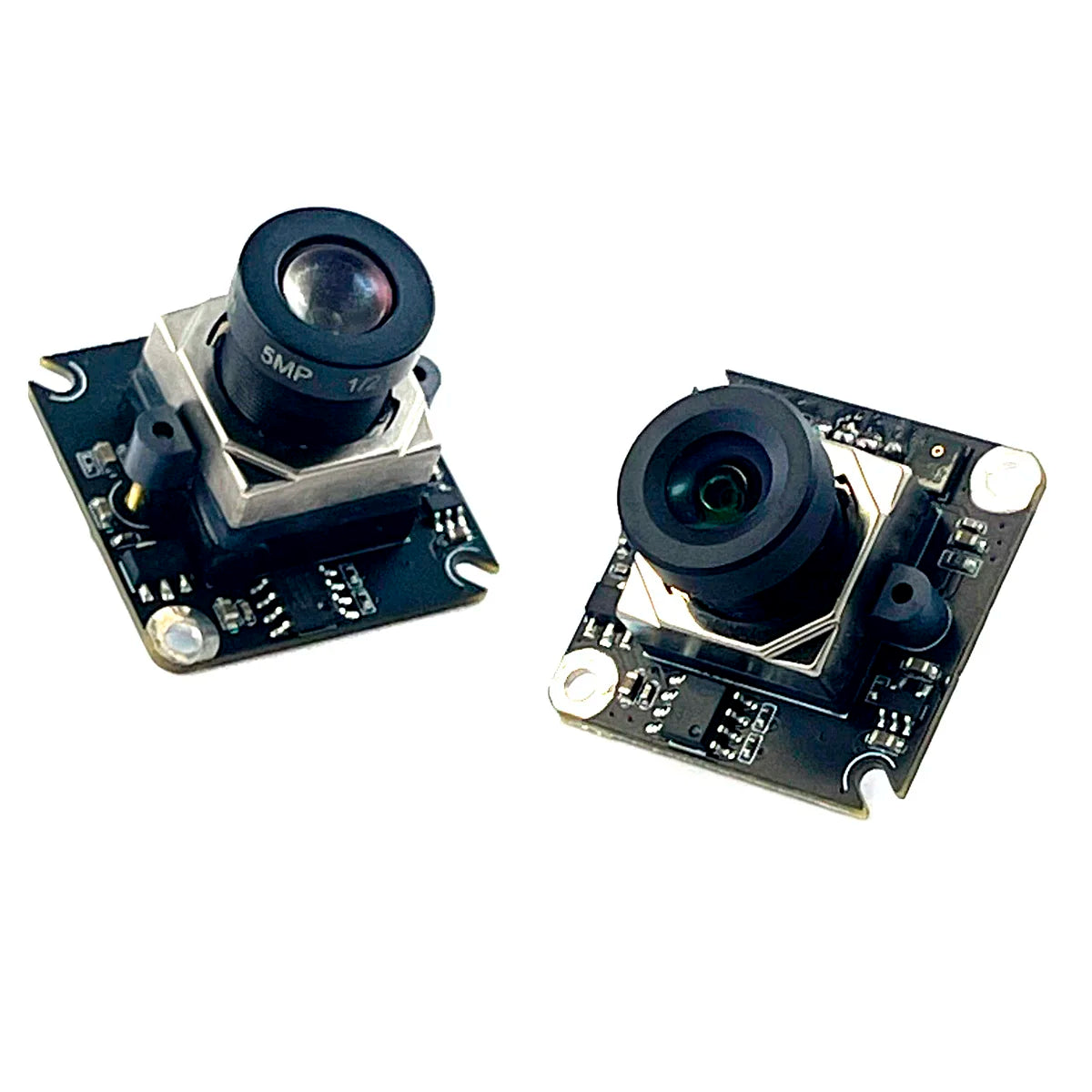

16MP USB Camera Module Autofocus IMX298 CMOS UVC AF Auto-focus Lens 8K 4K Webcam
8mm / China Mainland
$180.00
Sale price
$180.00
Regular price
$0.00
Skip to product information
16MP USB Camera Module Autofocus IMX298 CMOS UVC AF Auto-focus Lens 8K 4K Webcam
$180.00
Sale price
$180.00
Regular price
$0.00
Description
SPECIFICATIONS
AI Functions: Face Comparison
App name: Other
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
Color: black
Color Night Vision: Yes
Connectivity: Closed System/CCTV Wired
Dimensions (L x W x D)(mm): 28(D)*28(L)*8(H)mm
High Definition: 12.0 Megapixels
High-concerned chemical: none
IP Rating: Other
IR Distance(m): 0M
Installation: Embedded
Internal Storage: None
Keyword: AF Autofocus USB
Lens (mm): 2.8mm
Lens Quantity: Single Lens
Megapixels: 9MP
Microphone: Built In Digital Mic
Minimum Illumination(Lux): 0.5lux
Model Number: AICON-UVC-H001
Movement Range(Pan): 0°-360°
Movement Range(Tilt): 0°-360°
Operating Temperature: -10°-60°
Optical Zoom: Other
Origin: Mainland China
Power Consumption(W): 1.2W
Power Supply: Normal
Power Supply(V): 5V
Product Name: Autofocus Camera Module
Rechargeable Battery: NONE
Rechargeable Battery Capability: Other
Resolution 1: 4656x3496 at10fps
Rresolution 2: 2320x1744 at30fps
Scene: Indoor
Sensor: CMOS
Sensor Brand: Sony
Size: 28x28 mm
Special Features: Vandal-proof
Style: Mini Camera
Supported Mobile Systems: Windows Mobile
Supported Operating Systems: Windows Vista,macOS,Windows 10
TF Card: None
Video Compression Format: MJPEG
Viewing Angle : 75°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: NONE
Zoom type: none
is_customized: Yes

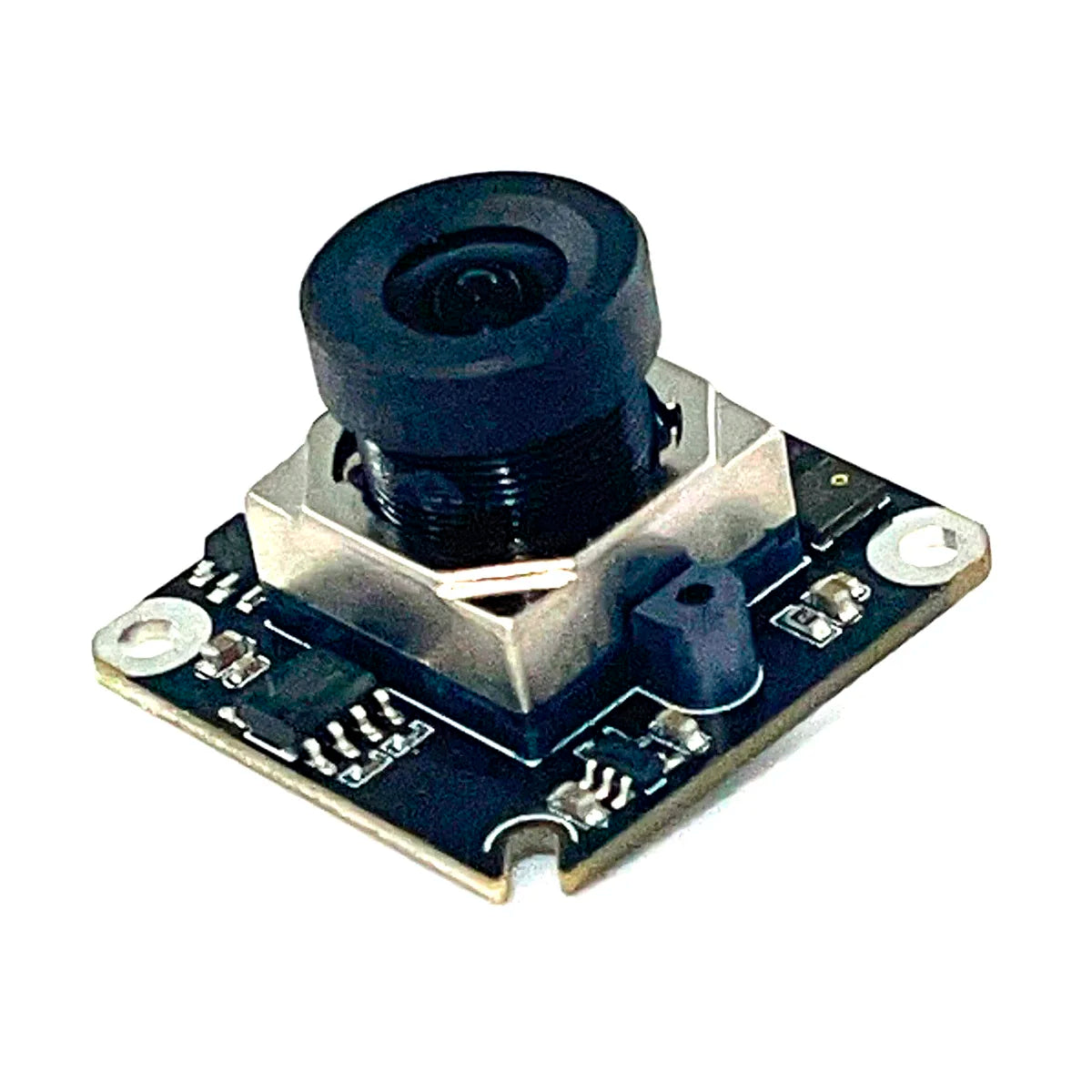

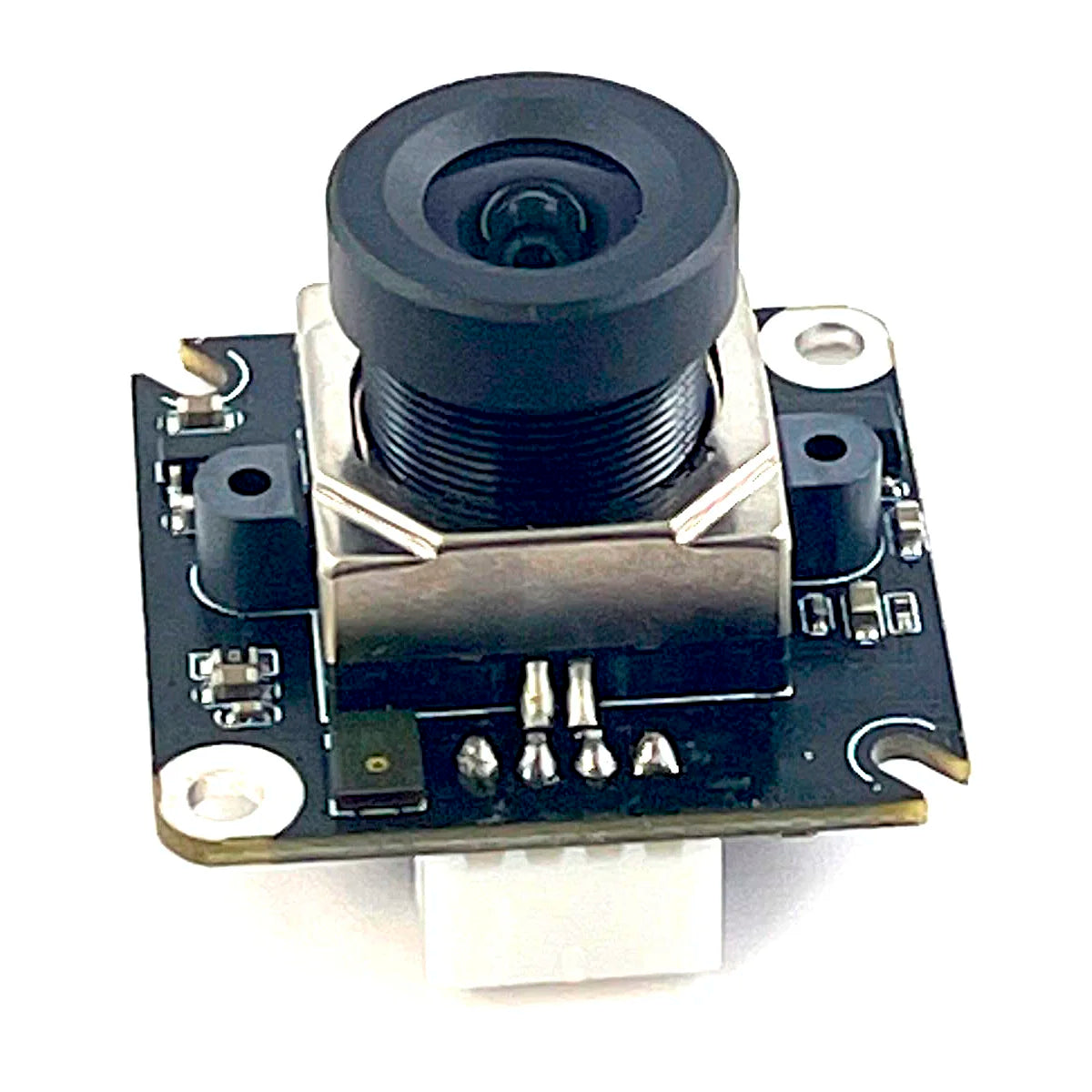

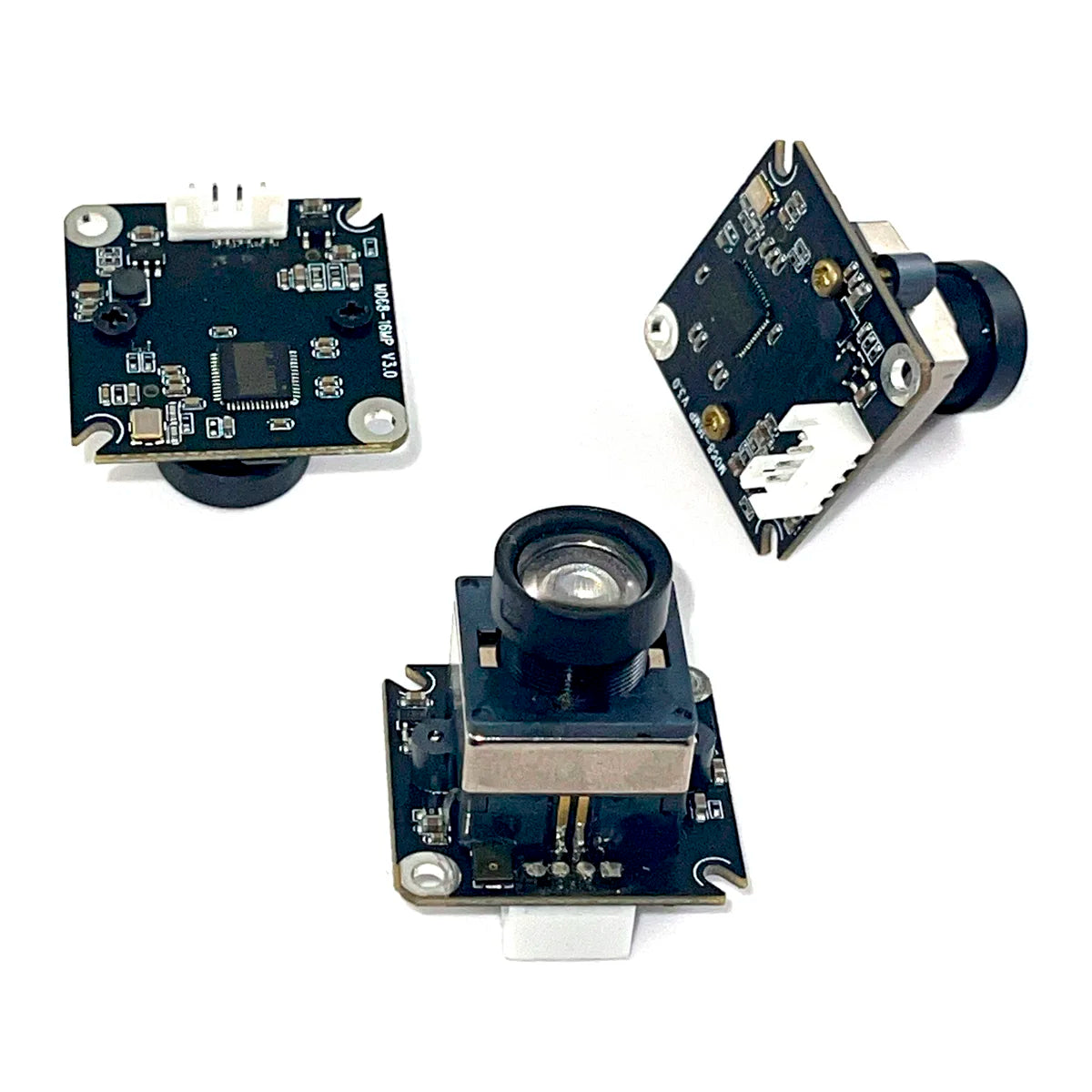

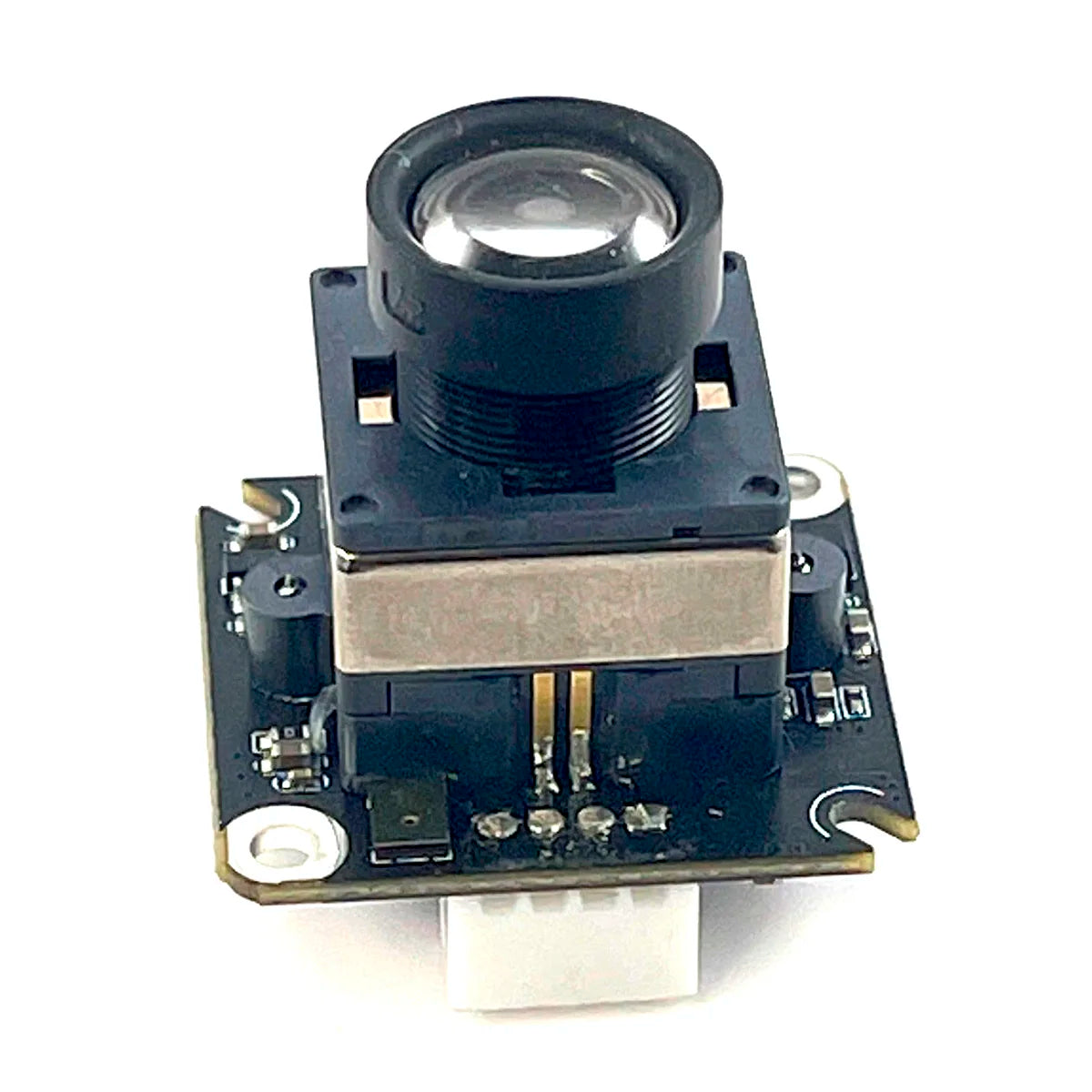

16MP USB Camera Module Autofocus IMX298 CMOS UVC AF Auto-focus Lens 8K 4K Webcam
Overview:
1.It is Auto-Focus, really 16 Mega Pixel(4656x3496) with SONY IMX298 CMOS Sensor, image quality is very high and stable.this camera module comes with a digital microphone that captures the sound of 5 meters around the camera when recording video The Camera module have autofocus function.Capture clear images of objects at different distances by autofocus.USB Connecting port in this camera module support high speed usb 2.0 data transmission,Webcamera board usb also support OTG protocol(UVC).The camera has a dedicated, high-performance Image Signal Processor chip (ISP) that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images and video and the MJPEG compression.

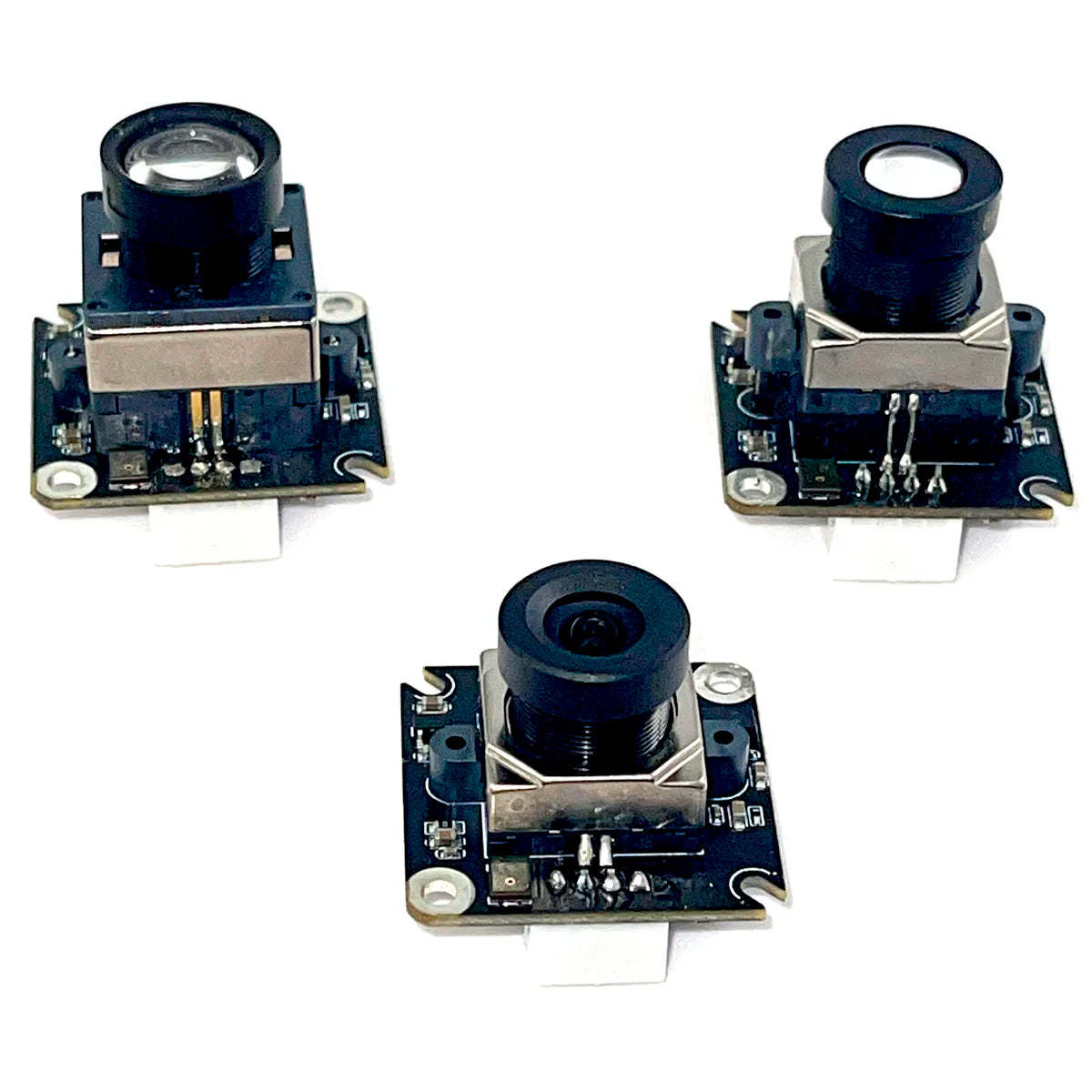

2.The AF usb camera module come with M12 no distortion lens,support f3.0mm(98 degree) lens/f8.0mm(49 degree) lens /f24.0mm(15 degree) lens for different applies.
Specification:
Working system |
OTG Compatible Android advice,Over Android 4.3 supported |
APP |
USB OTG Camera or camerafi or USB camera |
Sensor |
1/2.8" CMOS |
Power |
OTG |
Image pixels |
16.0MP |
Image Format |
YUV/MJPG |
Audio |
embedded microphone,sound & video recording |
Data Format |
4656x3496/4208x3120/4000x3000/3264x2448/2592x1944/2320x1744/2304x1728/2048x1536/1920x1080/1600x1200/1280x960/1280x720 |
Frame rate |
4656x3496 at10fps/4208x3120 at10fps/4000x3000 at 10fps/3264x2448 at 10fps/2592x1944 at10fps/2320x1744 at30fps/2304x1728 at30fps/2048x1536 at30fps/1920x1080 at30fps /1600x1200at30fps/1280x960at30fps/1280x720at30fps |
Camera control |
auto/manually/saturation/contrast/acutance |
AF Range |
5CM to +∞ |
White balance |
automatically |
Exposure |
Average brightness |
Sleep model current |
<10mA |
Working current |
5V 240mA |

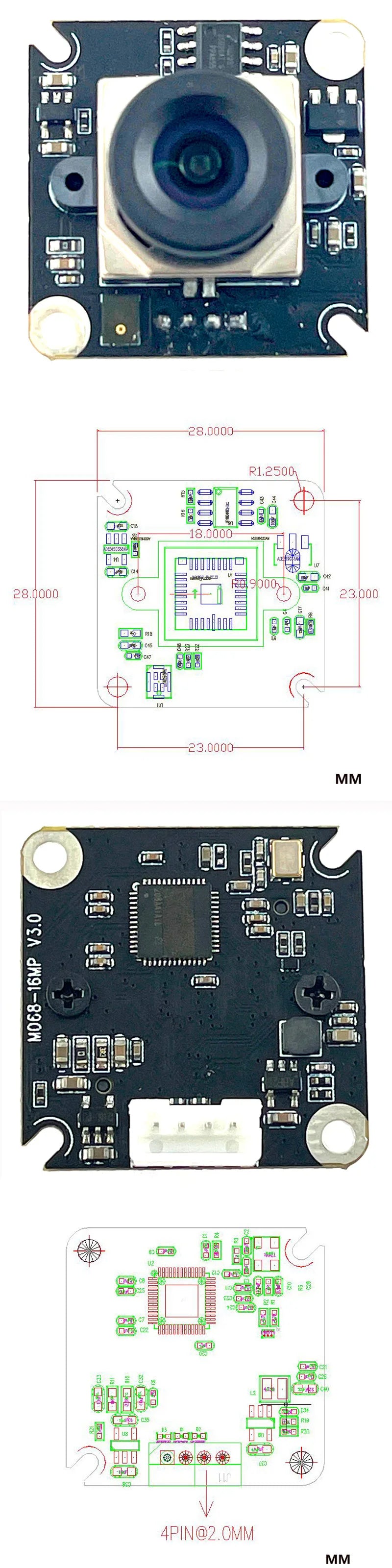

Measure |
28x28mm |
Cable length |
80CM or Customized |
Plug |
Micro USB or Type - C or Type - A |
Storage Temperature |
-30C to 80C |
Working Temperature |
-20C to 70C |
Lens |
3.0mm / 8mm / 24mm |

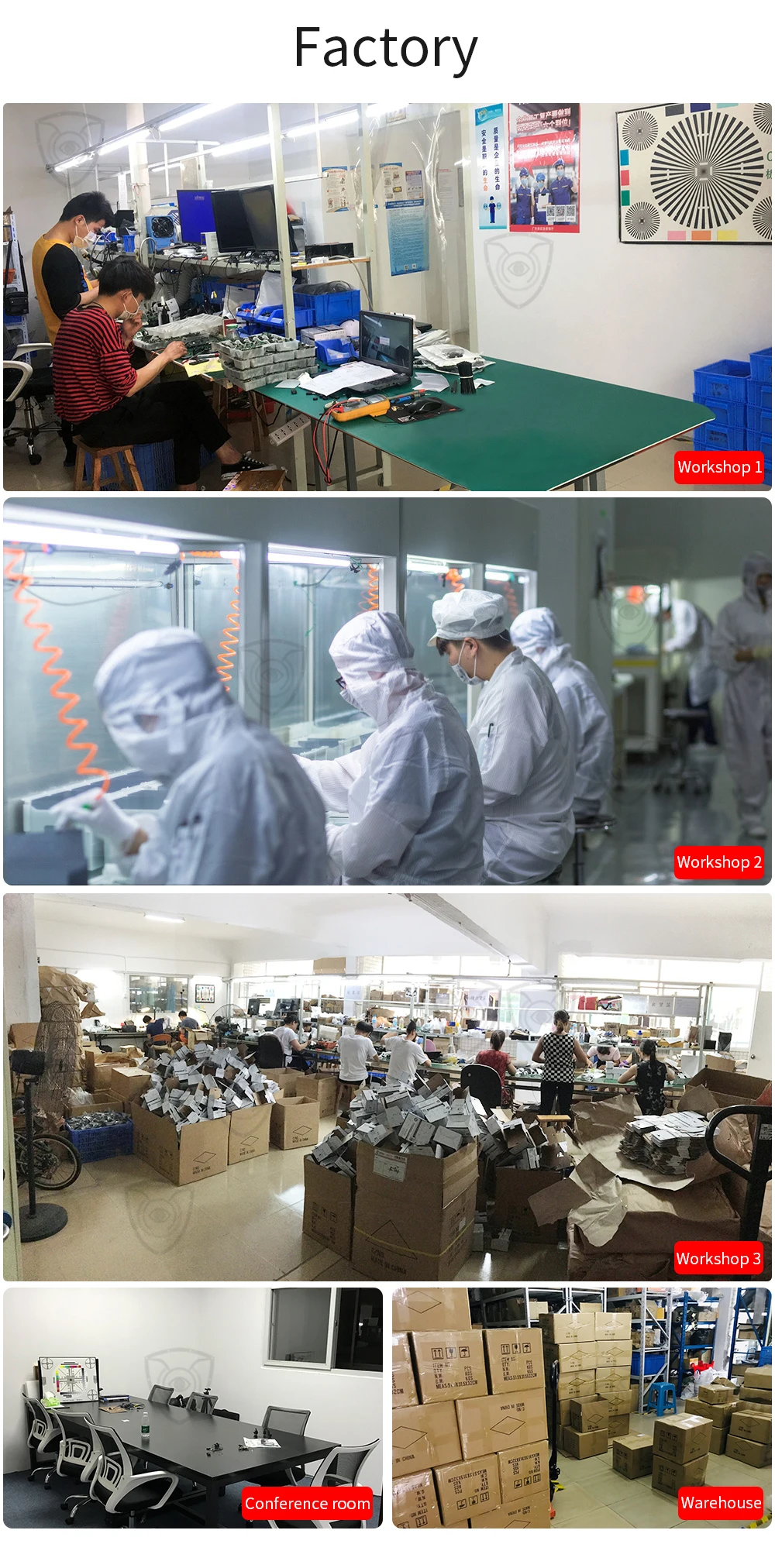

Manufacturer Overview
1).Shenzhen Yushida Technology CO.,LTD(GETG CO.,Limited) in 2006 Shenzhen China,with convenient transportation.
a professional OEM/ODM manufactory,with international quality standards.several senior R & D engineers in
our company for over ten years.
2).Developing and selling broadcast lipstick camera , portable DVR, 3D VR stereo camera, autofocus uvc camera ,
IR night vision body camera, USB board camera, miniature 3G-SDI camera , external camera for android device ,
zoom 3g / hdsdi camera , Ear-buds camera, portable DVR .we can constom most of showing products
if customers need different specifications.
3).Most of our products have CE, FCC and RoHS certificates. The quality is strictly controlled by our QC & QA
departments. Therefore, customers don't worry about the quality and after-sales service when they place
orders.Our company is not only a supplier but also your reliable business partner.
