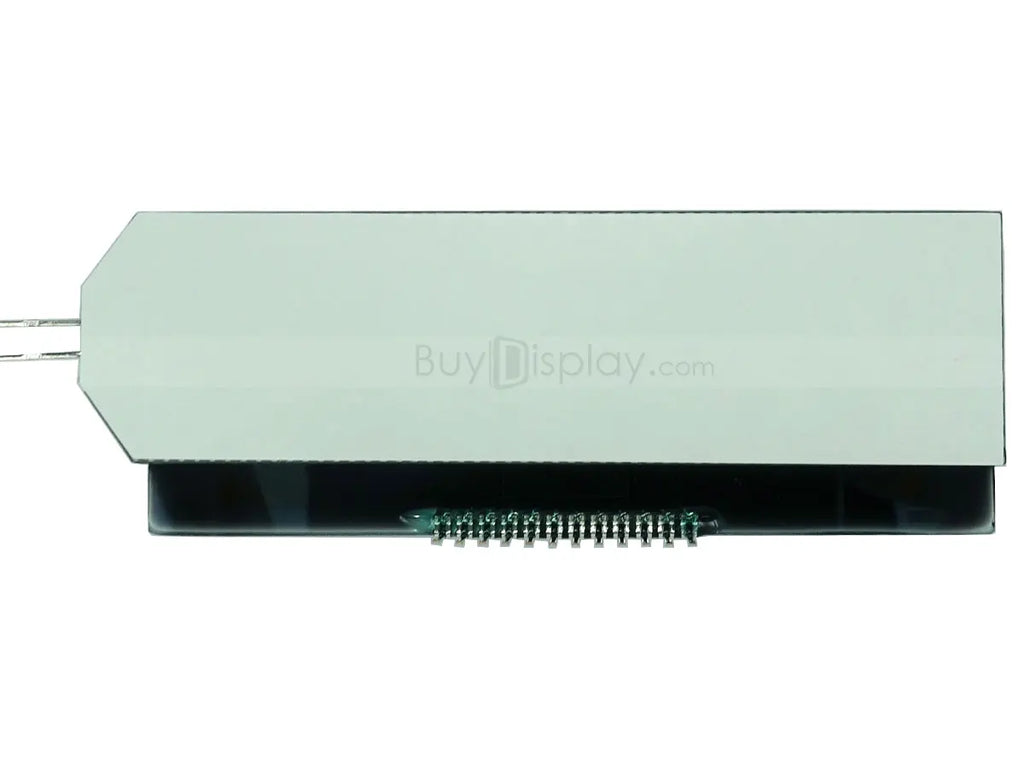

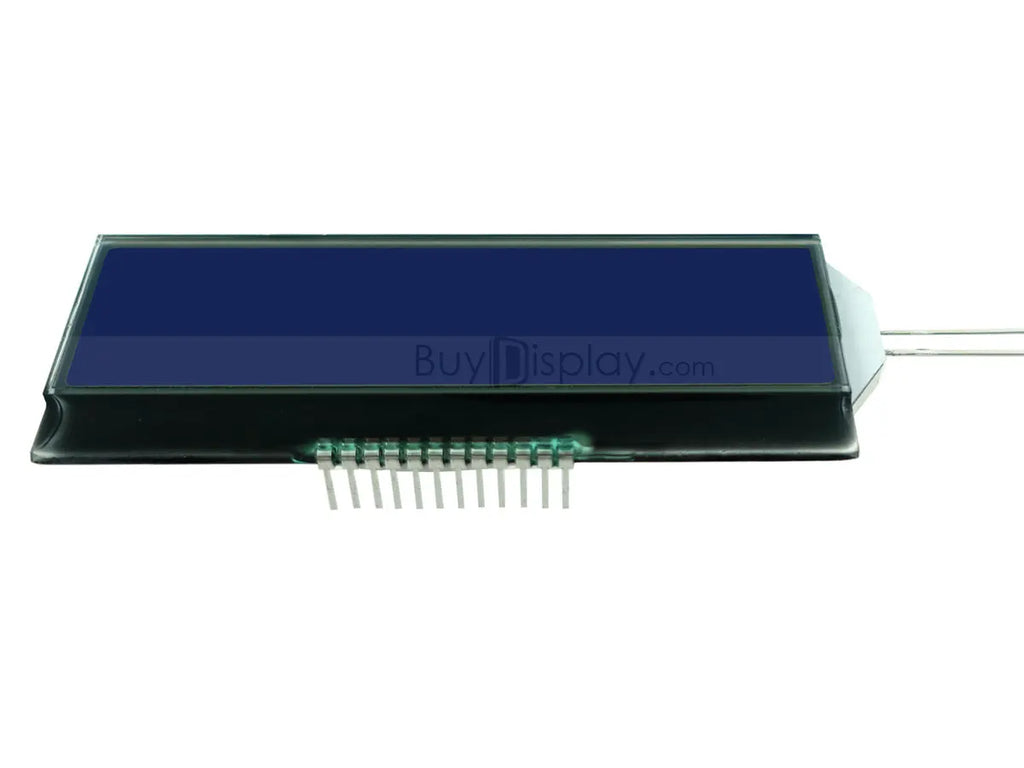

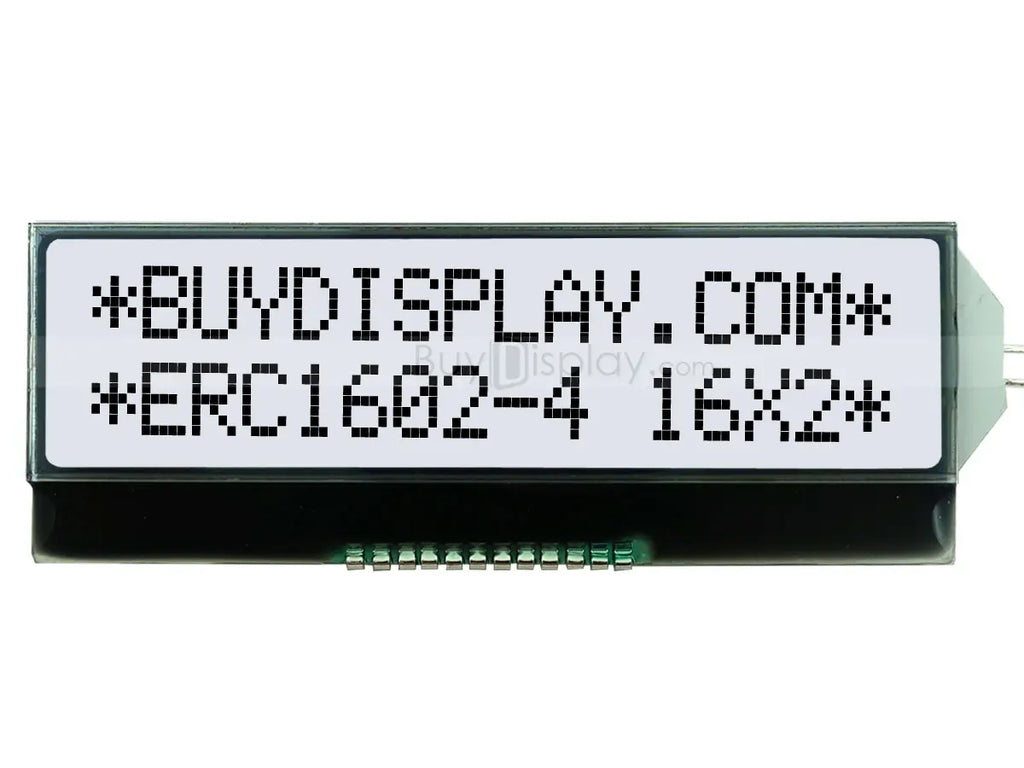

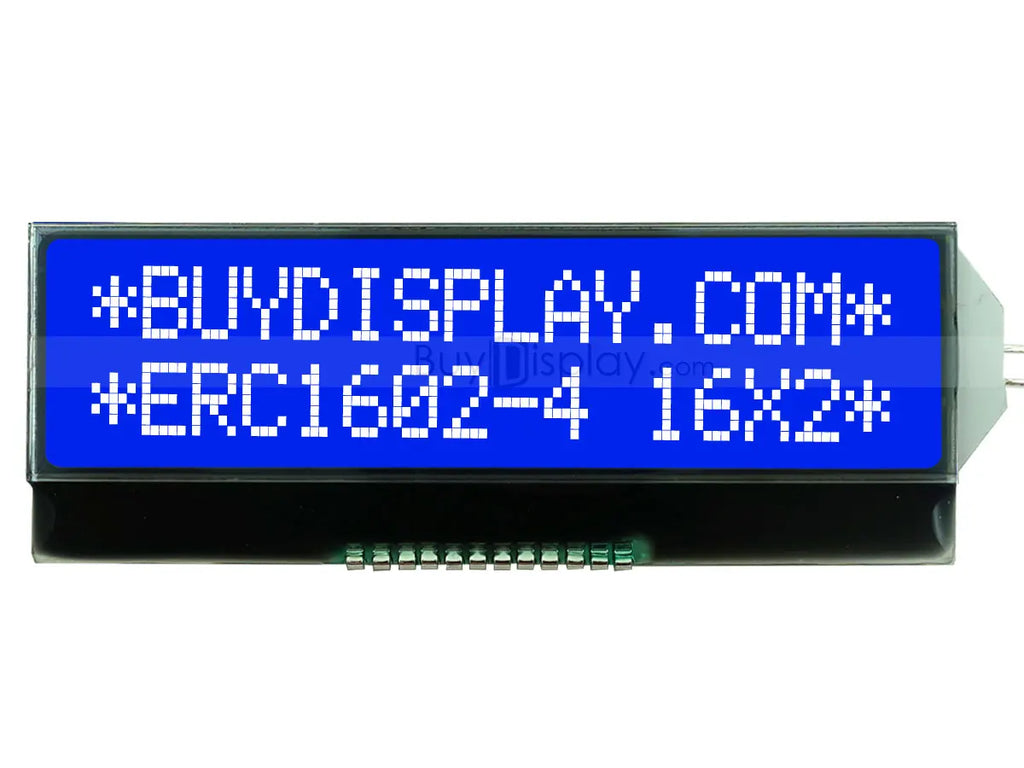

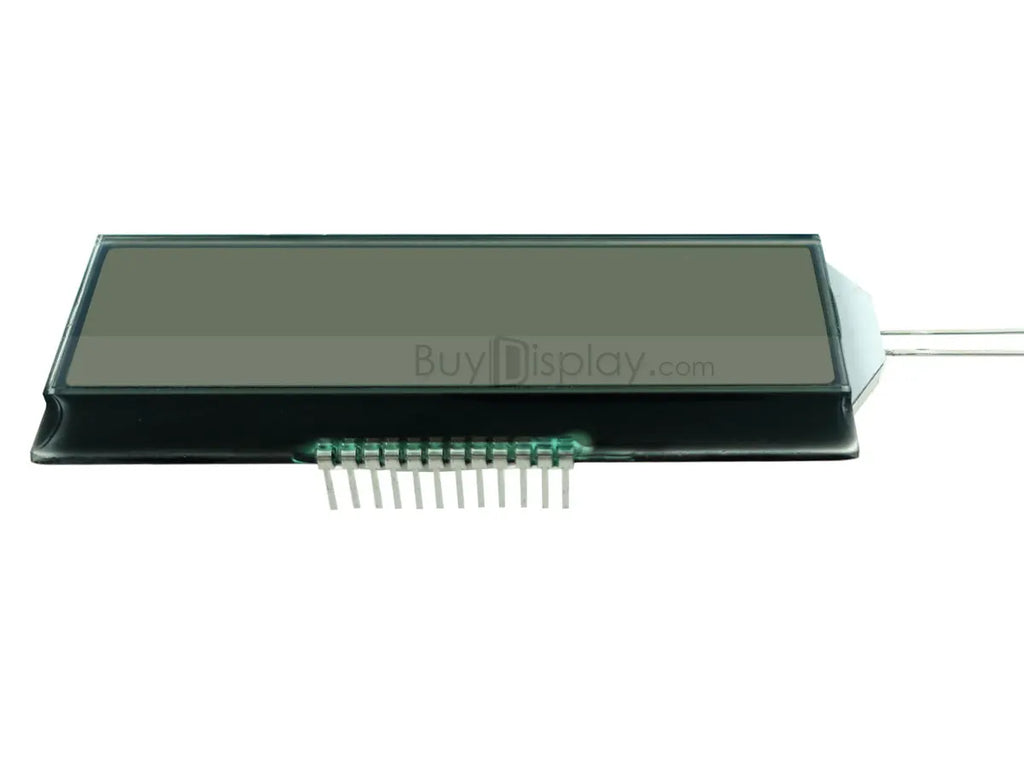

16x2 LCD 3.3v Character COG Display Module Black on White/White on Blue
White on Blue
$20.30
Sale price
$20.30
Regular price
$0.00
Skip to product information
Aliexpress does not permit external links. The technical documentation links below are inactive. To access this content, please contact Mr Sajay Peng, sales@buydisplay.com or visit: https://www.buydisplay.com/16x2-lcd-3-3v-character-cog-display-module-black-on-white
16x2 LCD 3.3v Character COG Display Module Black on White/White on Blue
$20.30
Sale price
$20.30
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Display Mode: 400:1
High-concerned chemical: none
Model Number: ERC1602-4
Origin: Mainland China
Resolution: 16*2
Type: Character
is_customized: Yes
ERC1602-4 sereis is a 16 characters wide,2 row cog(chip on glass,no board) character lcd module,compact size,metal pin connection,ST7032i controller,i2c+4-wire serial interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,fstn-lcd/stn-lcd, optional black text on the white color or white text on the blue color,high contrast,wide operating temperature range,wide view angle,rohs compliant,built in character set supports English/Japanese text,see the ST7032i datasheet for the full character set.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Aliexpress does not permit external links. The technical documentation links below are inactive. To access this content, please contact Mr Sajay Peng, sales@buydisplay.com or visit: https://www.buydisplay.com/16x2-lcd-3-3v-character-cog-display-module-black-on-white
Datasheet for Character LCD Module,Controller IC
Format |
Documents Name |
Version |
Language |
Update Date |
Size |
|
16x2 Character COG LCD Module Datasheet |
1.0 |
English |
May-19-2013 |
397K |
|
Controller IC ST7032 Datasheet |
1.2 |
English |
Oct-17-2005 |
1.2M |
Tutorial- 8051 Microcontroller
Format |
Documents Name |
Version |
Language |
Update Date |
Size |
|
I2C Serial Interface Demo Code |
1.0 |
English |
May-20-2013 |
8K |
|
4-Wire SPI Serial Interface Demo Code |
1.0 |
English |
May-23-2013 |
6K |
|
ERC1602-4 Series Interfacing Document |
1.0 |
English |
May-27-2013 |
157K |
|
8051 Microcontroller Development Board&Kit for ERC1602-4 |
N/A |
N/A |
N/A |
N/A |
Specification
Gross Weight (kg) |
0.0350 |
Manufacturer |
EastRising |
Continuity Supply |
We promise the long term continuity supply for this product no less than 10 years since 2015. |
Part Number |
ERC1602FS-4/ERC1602SBS-4 |
Display Format |
16x2 Character |
Interface |
I2C, 4-wire SPI |
IC or Equivalent |
ST7032i |
Appearance |
Black on White/White on Blue |
Diagonal Size |
1.9“ |
Connection |
Pin Header |

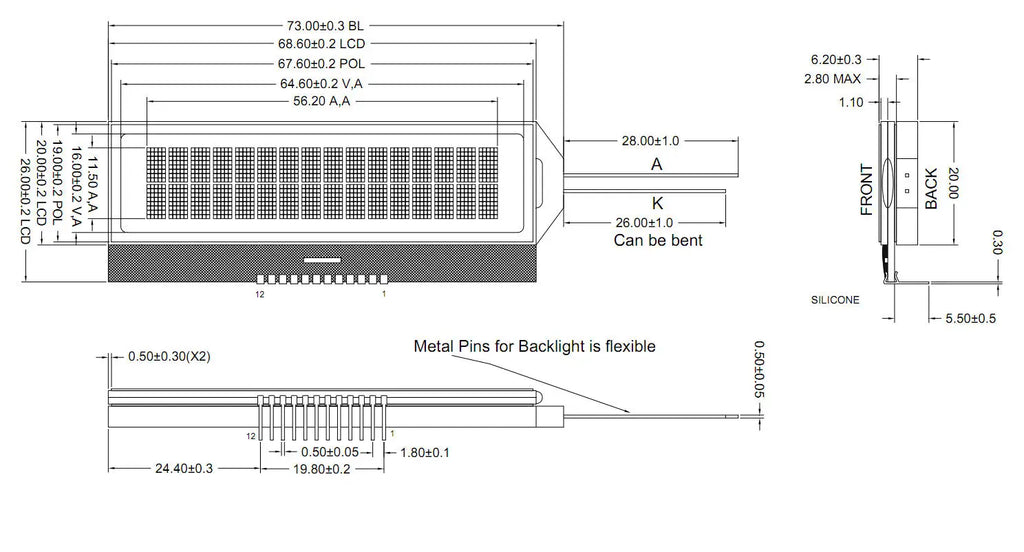

Outline Dimension |
68.6(W)x26.0(H)x6.0(T)mm |
Visual Area |
64.60x16.00mm |
Active Area |
56.25(W)x11.50(H)mm |
Dot (Pixel) Size |
0.55x0.65mm |
Dot (Pixel) Pitch |
0.60x0.70mm |
IC Package |
COG |
Display Type |
FSTN-LCD Grey/STN-LCD Blue |
Touch Panel Optional |
No |
Sunlight Readable |
Yes for FSTN-LCD, No for STN-LCD |
Viewing Direction |
12:00 |
Viewing Angle Range |
Left:50.0 , Right:50.0 , Up:40.0 , Down:40.0 degree |
Brightness(Typ) |
80cd/m2 |
Backlight Color |
White Color |
Backlight Current (Typ) |
15mA |
Power Supply(Typ) |
3.3V |
Supply Current for LCM(Max) |
300uA |
Operating Temperature |
-20℃~70℃ |
Storage Temperature |
-30℃~80℃ |
