SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Switch

Features:

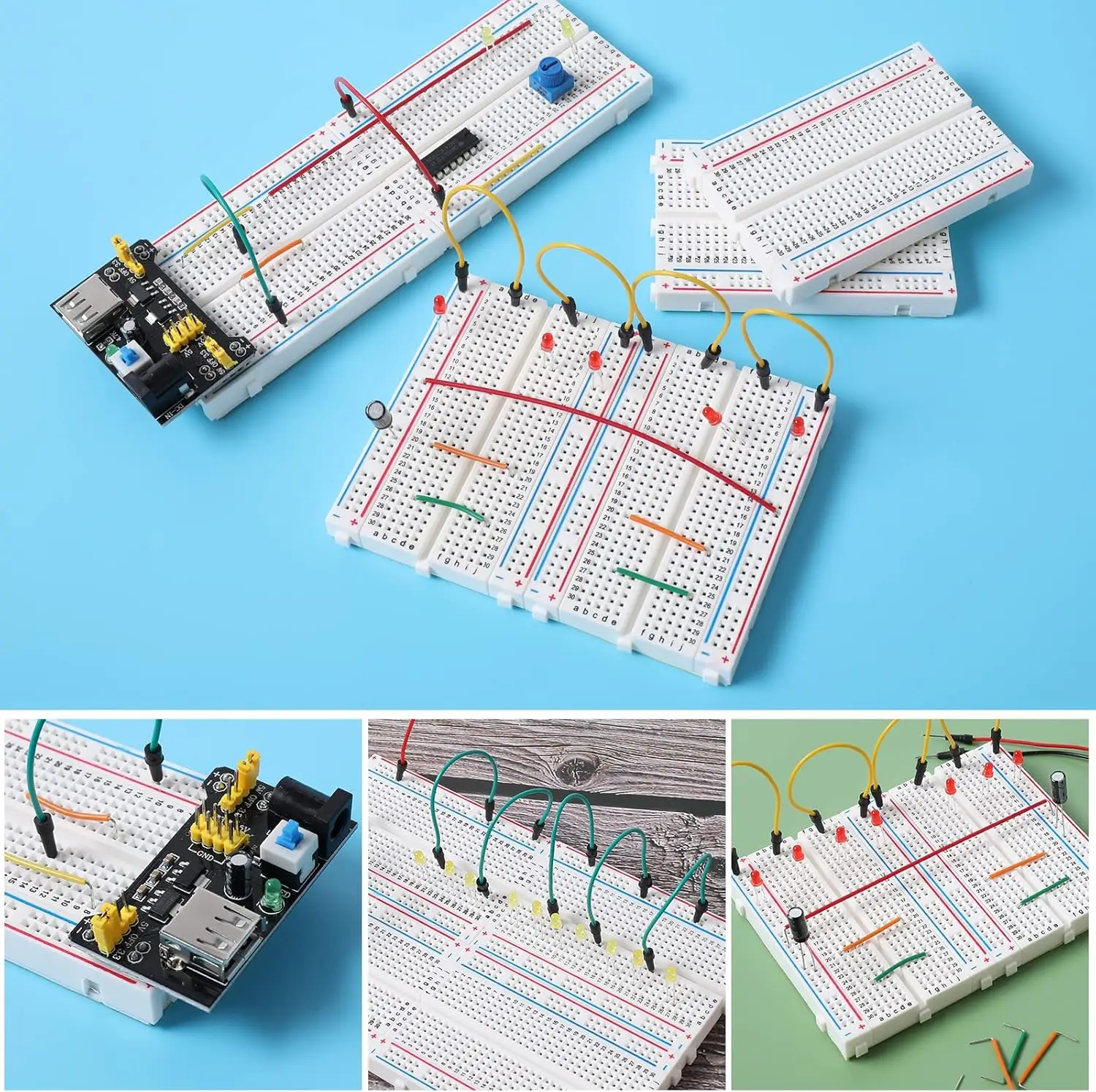

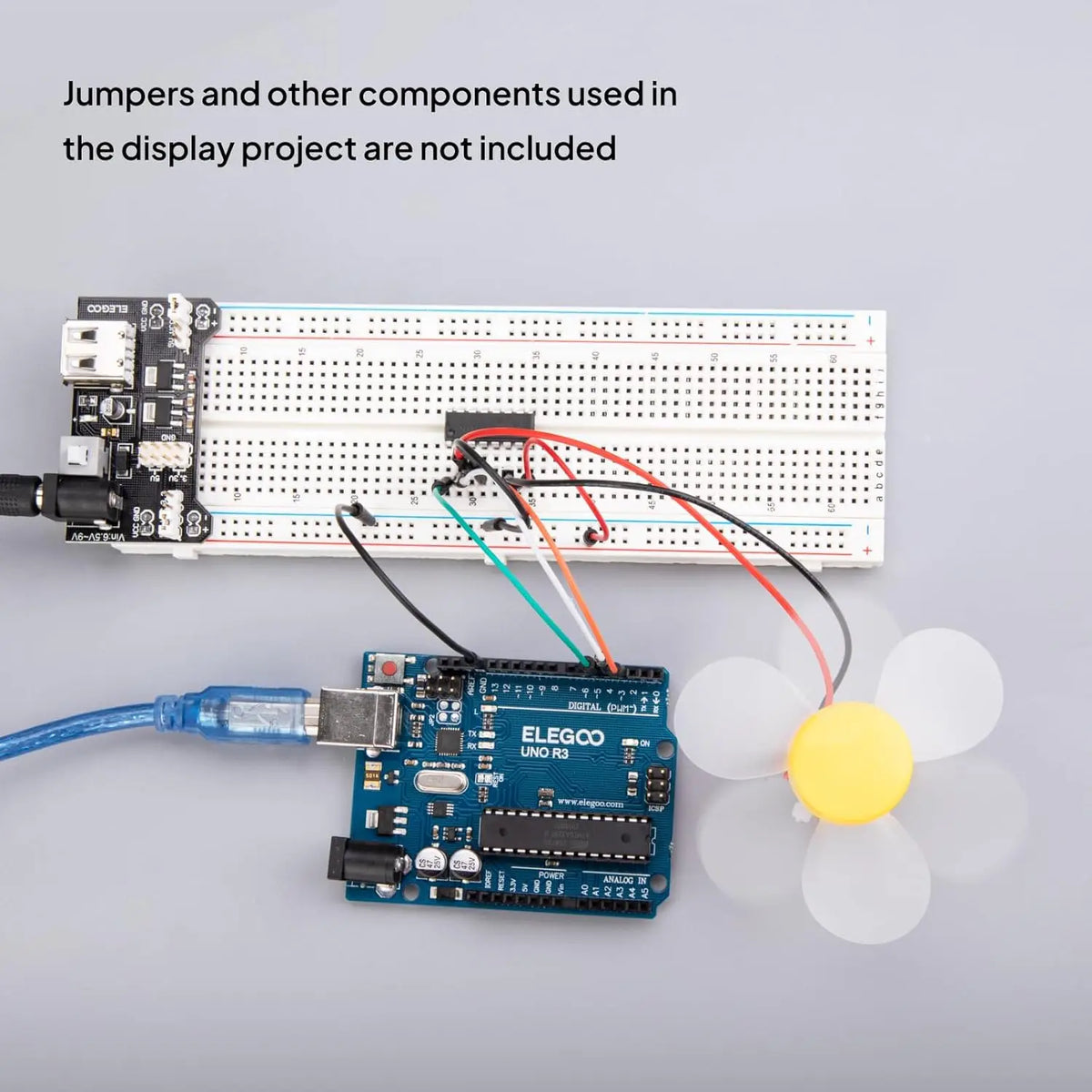

• Perfect for Arduino Shield Prototyping and Testing, can be applied in debugging without welding.

• Fit for 21-26 AWG (0.4-0.7MM) wire. Comparing with breadboards of high AWG wire, Elegoo breadboards is of higher physical strength and lower resistance.

• The solderless breadboards do not require soldering, therefore they are completely re-usable. This makes it easy to use for creating temporary prototypes and experimenting with circuit design which is a construction base for prototype of electronics.

• Compatible with resistors, transistors, diodes, LEDS, capacitors and other types of electronic components.

Specifications:

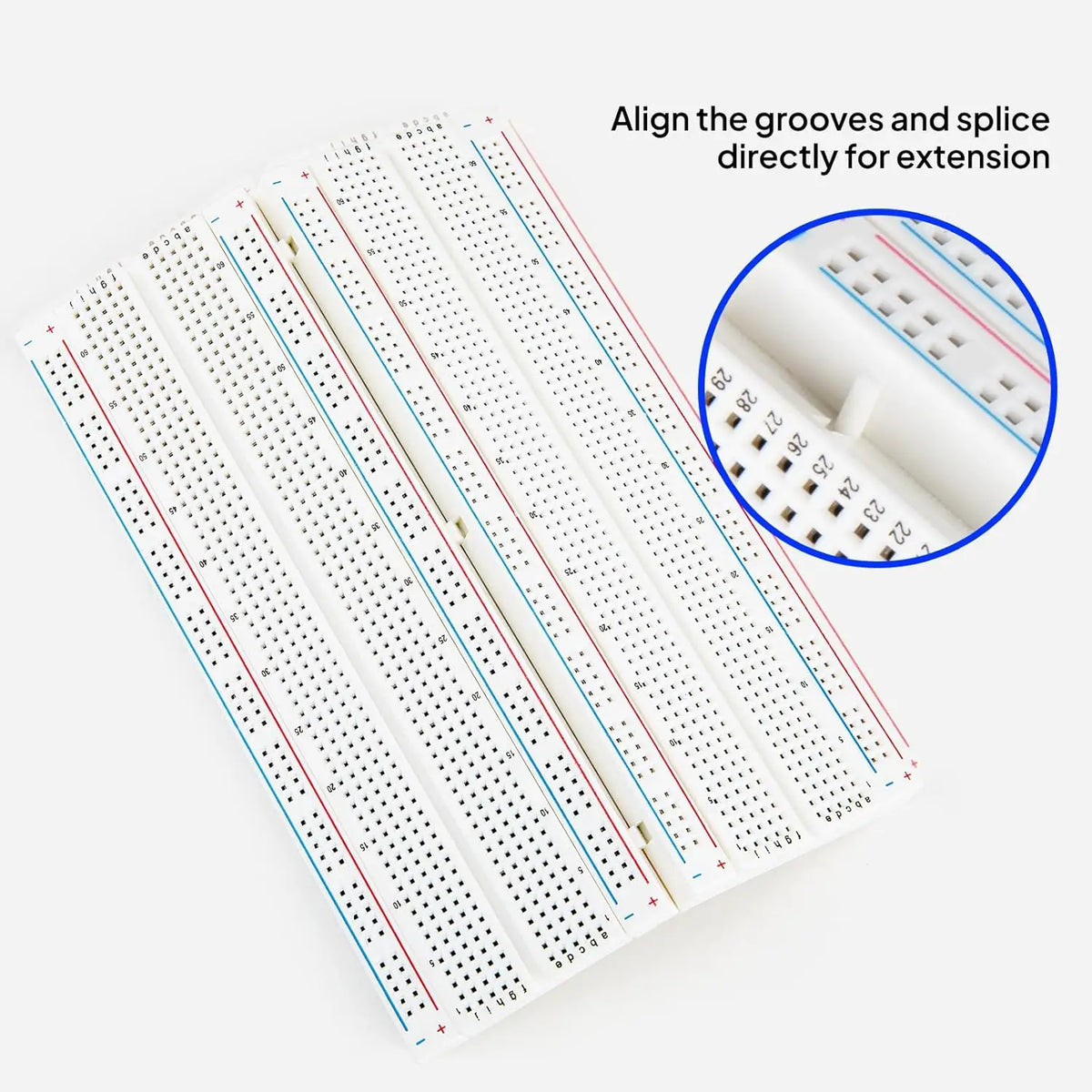

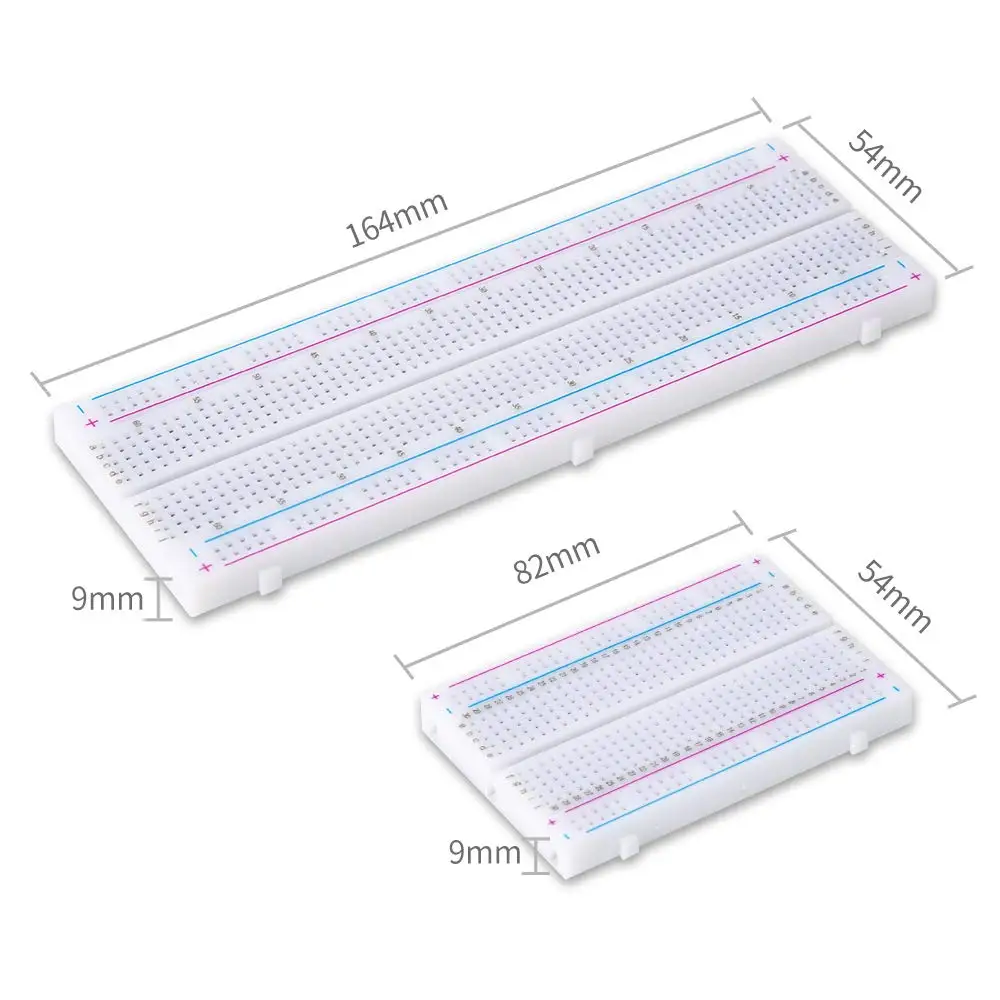

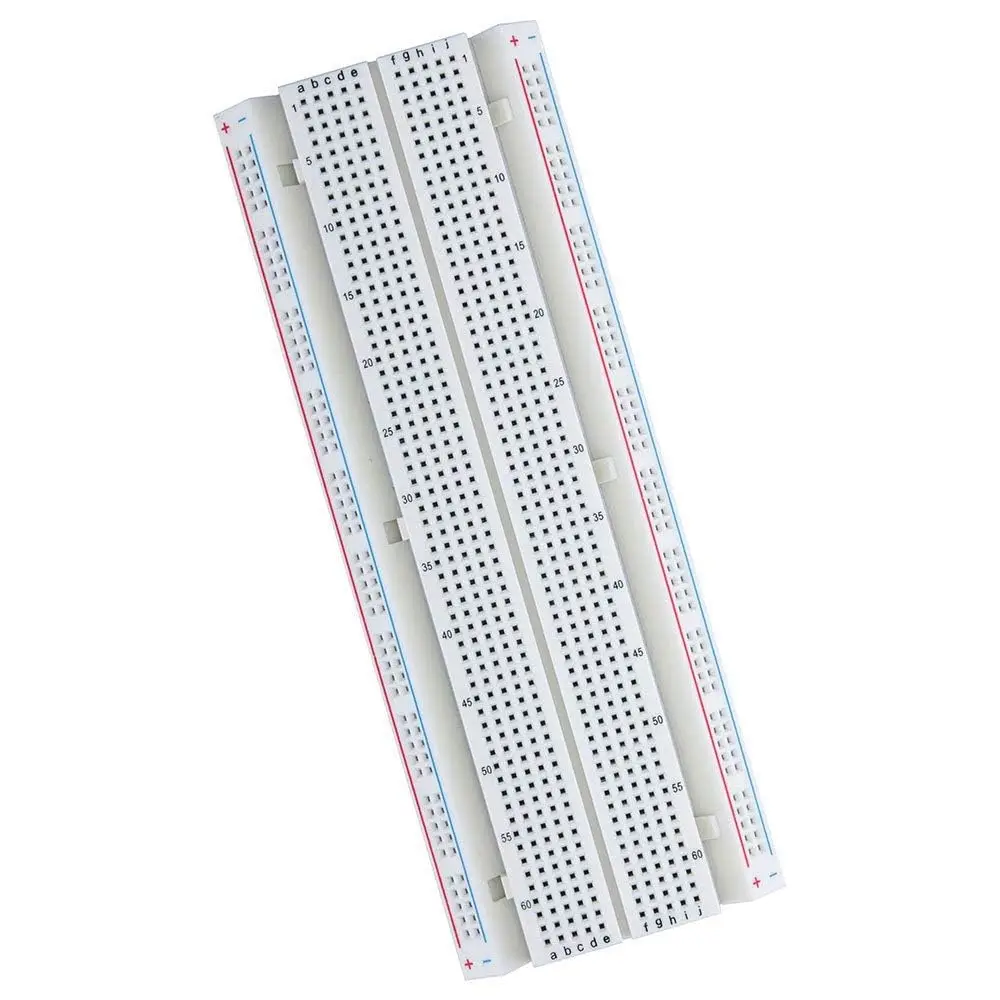

• 830 Points breadboard size: 6.5 x 2.1 x 0.3 inch/ 165 x 55 x 8.5 mm

• 830 tie points breadboards: 630 tie-point ic-circuit area plus 2x100 tie-point distribution strips providing 4 power rails.

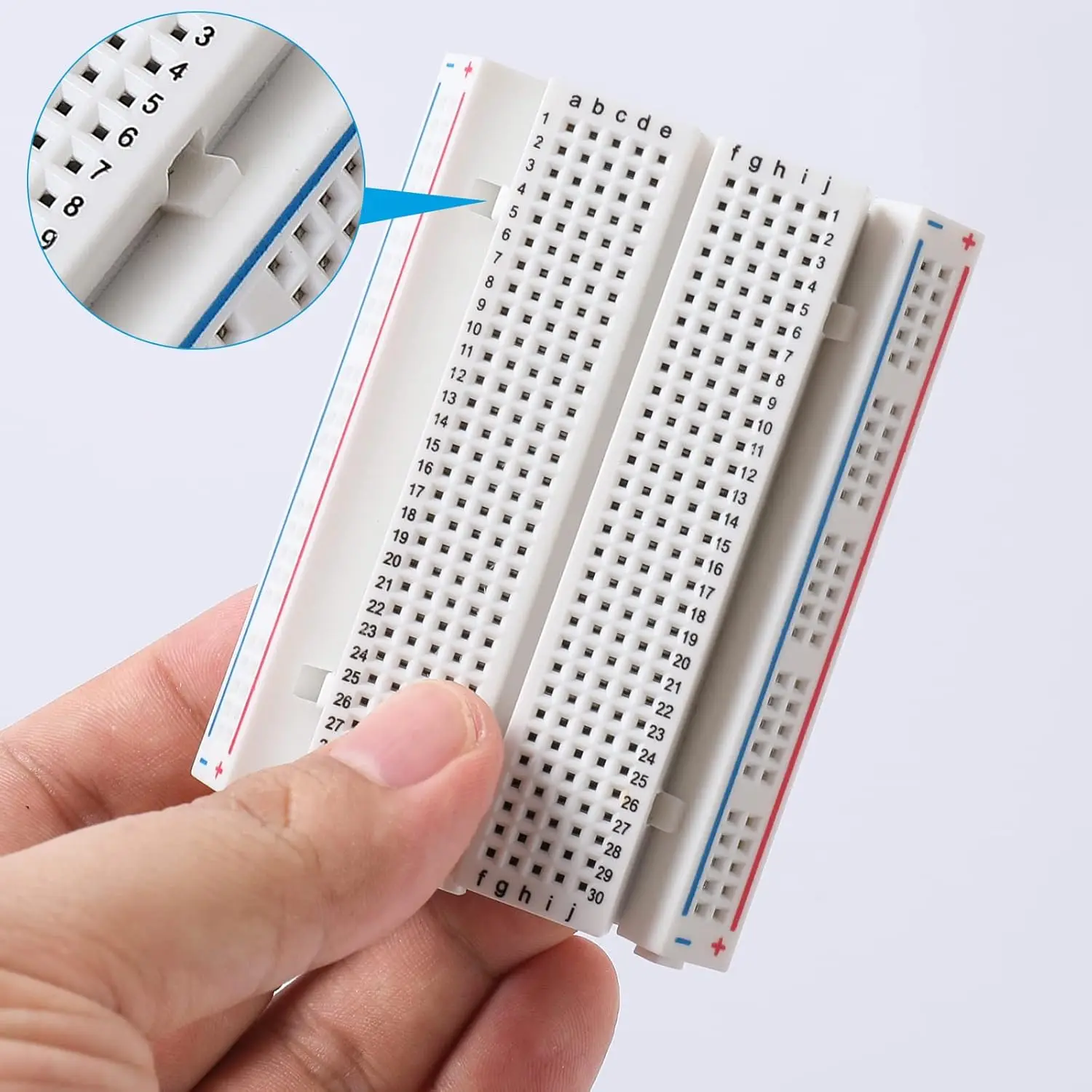

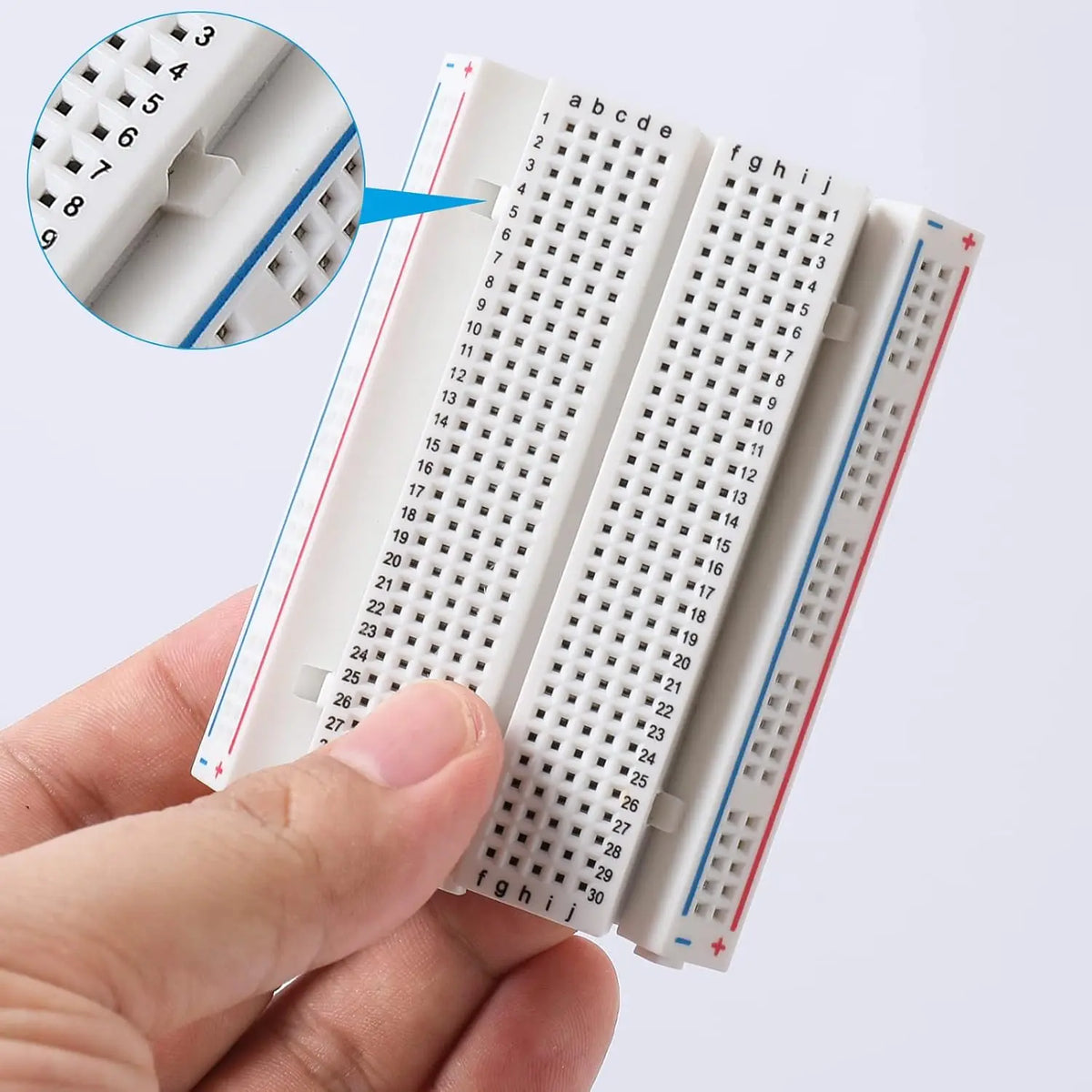

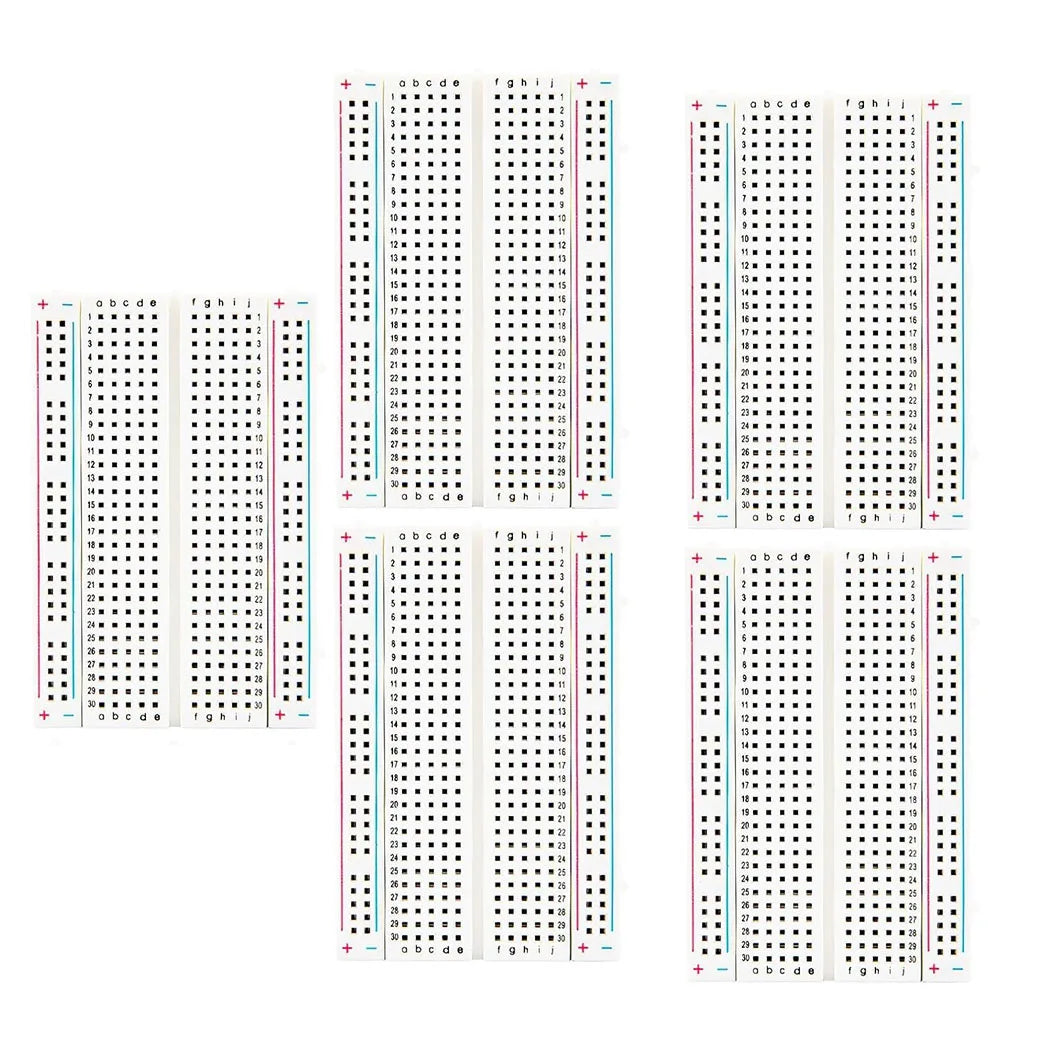

• 400 Points breadboard size: 3.2 x 2.1 x 0.3 inch/ 82 x 55 x 9 mm

• 400 tie points breadboards: 300 tie-point ic-circuit area plus 2x50 tie-point distribution strips providing 4 power rails.

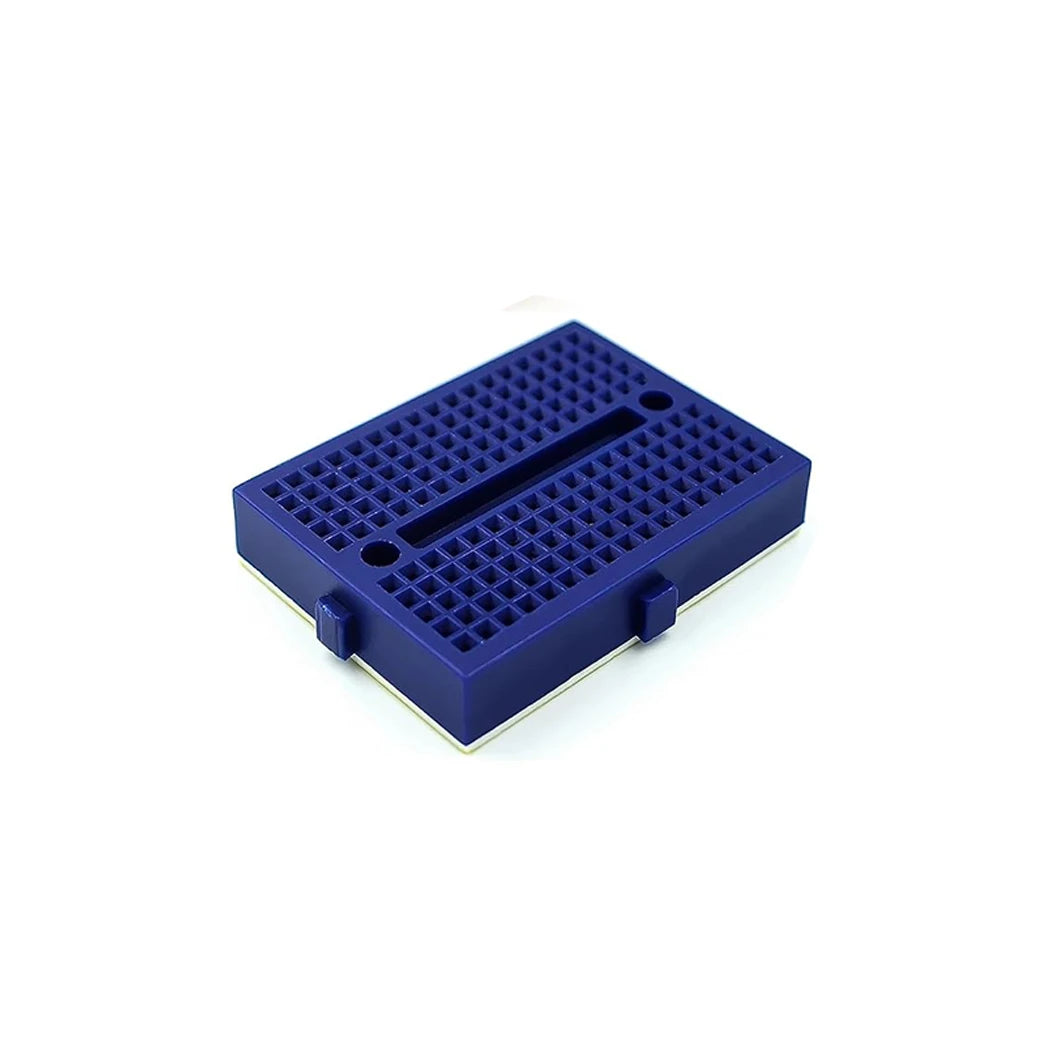

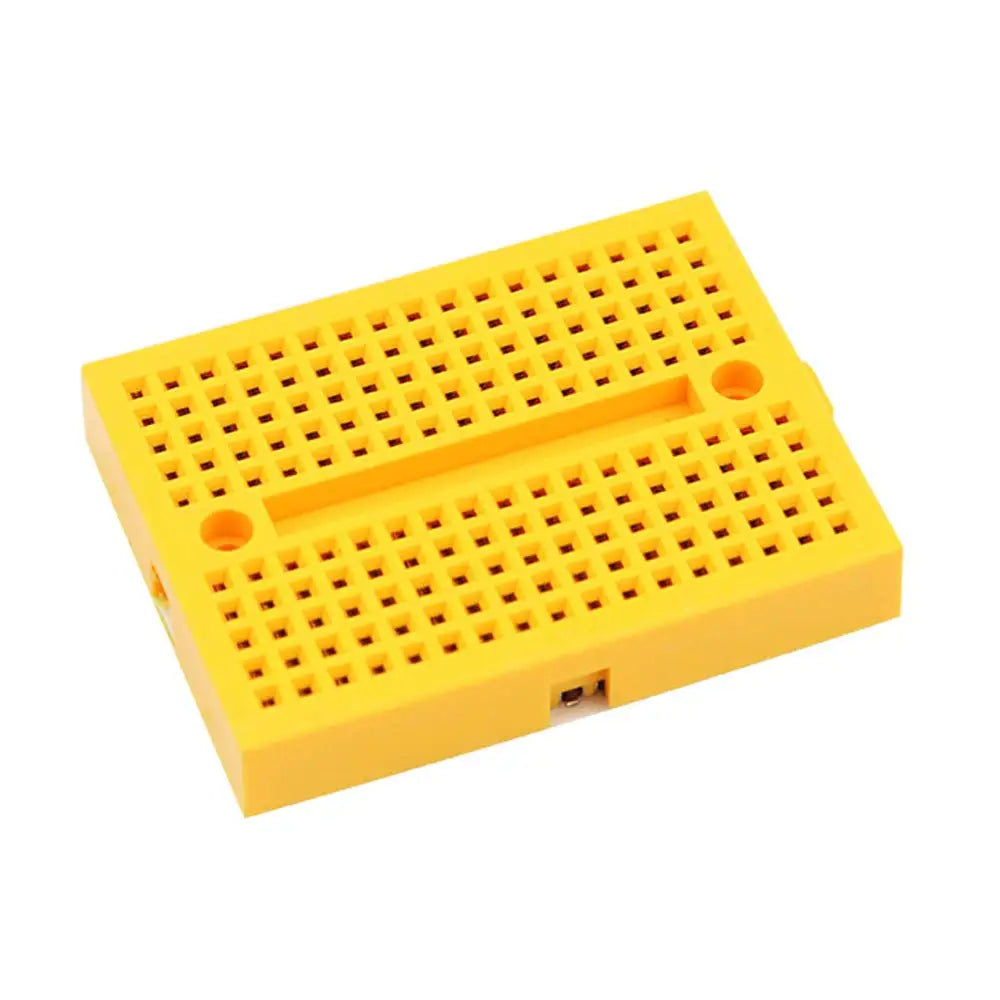

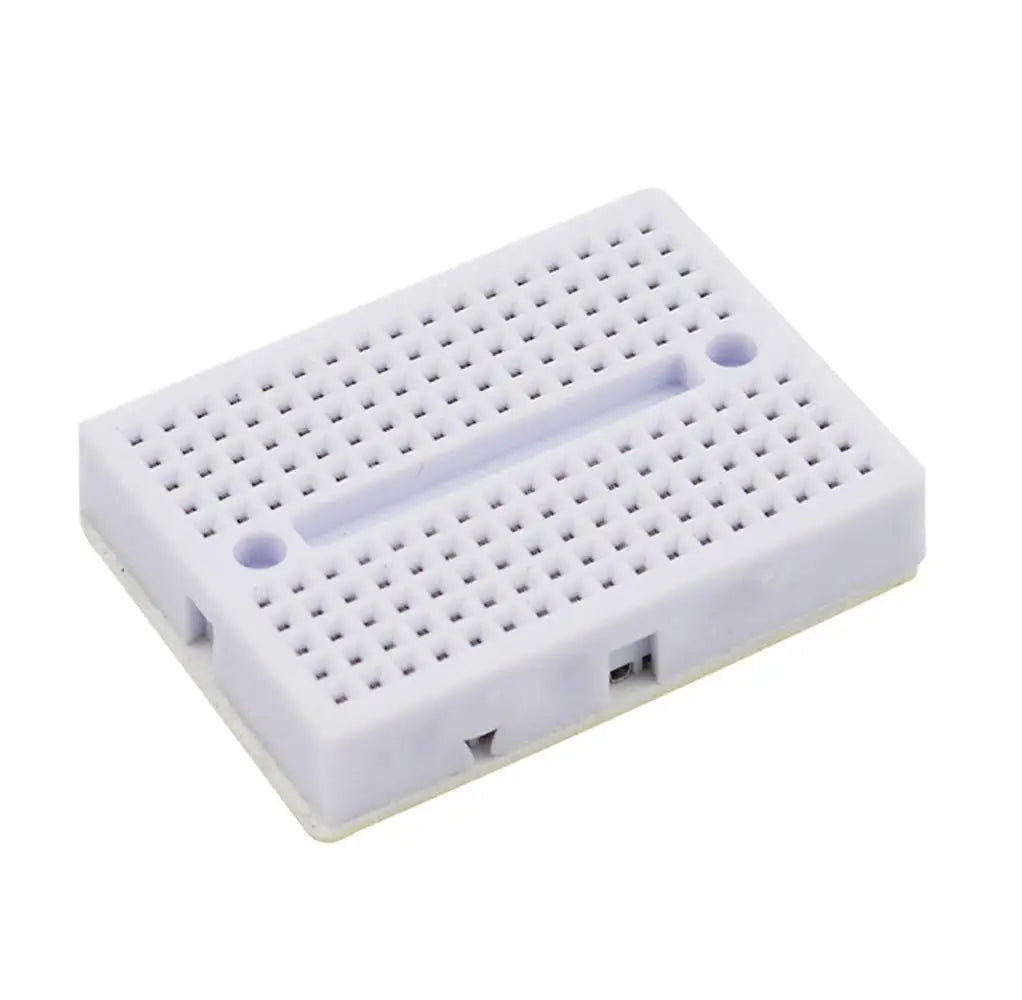

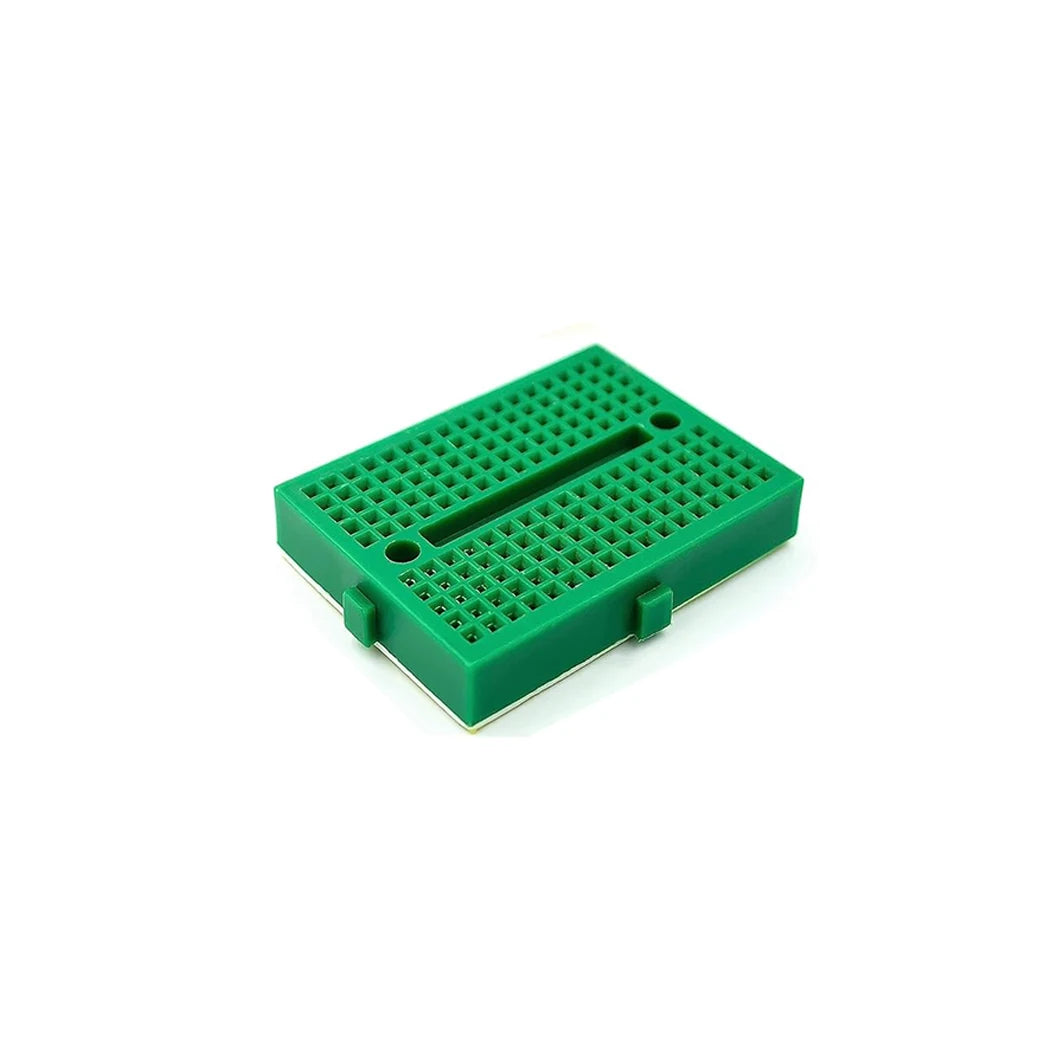

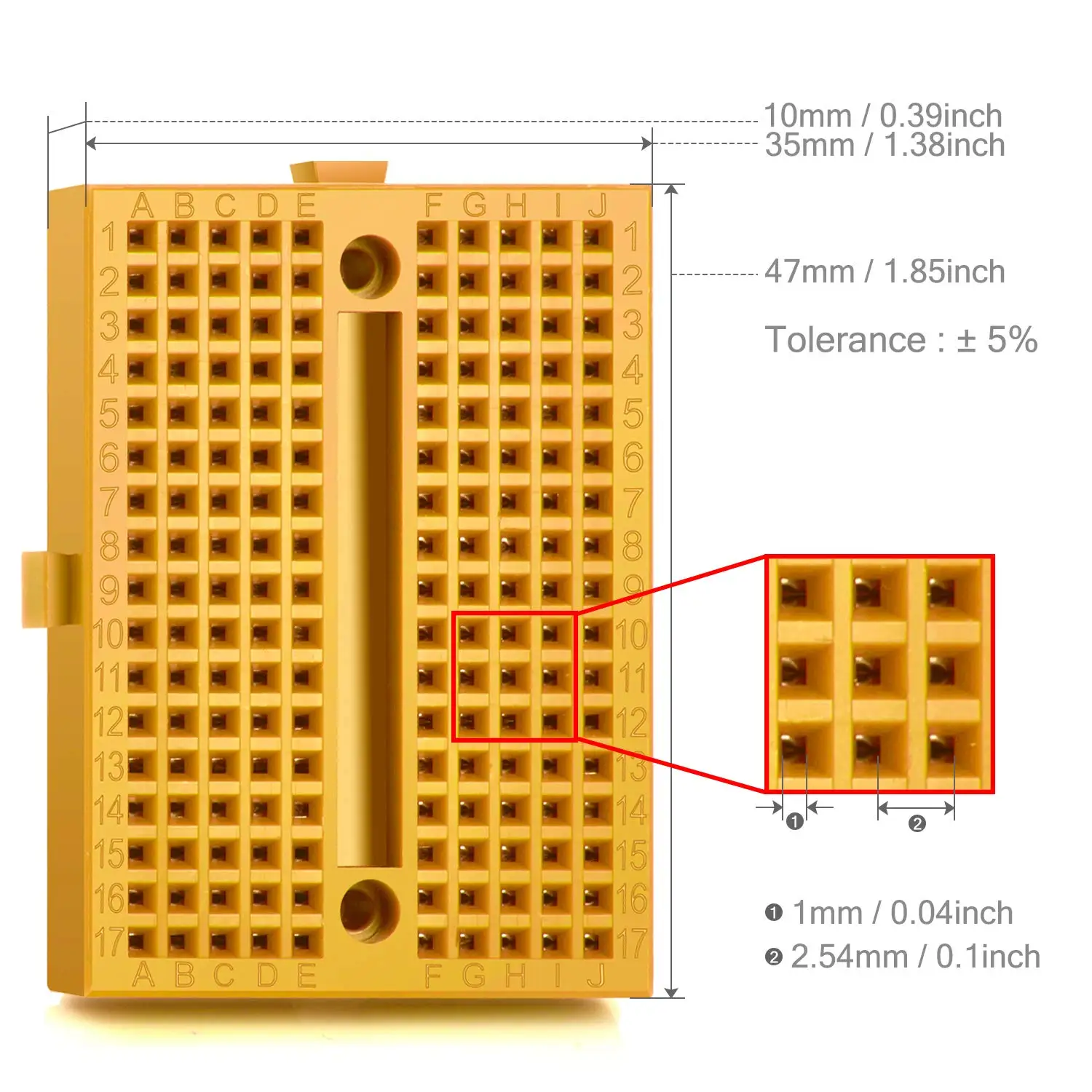

• 170 Points total: 2 columns of 17 lanes with two 5 point rows each column.

• 170 PointsDimension: 45mm x 34.5mm x 9.5mm

• Material: ABS Plastic Panel, Tin Plated Phosphor Bronze Contact Sheet.

• Breadboard color: White/Blue/Green/Yellow

• Wire size: Suitable for 20-29 AWG wires

• Voltage / Current: 300V/3-5A.

Package includes:

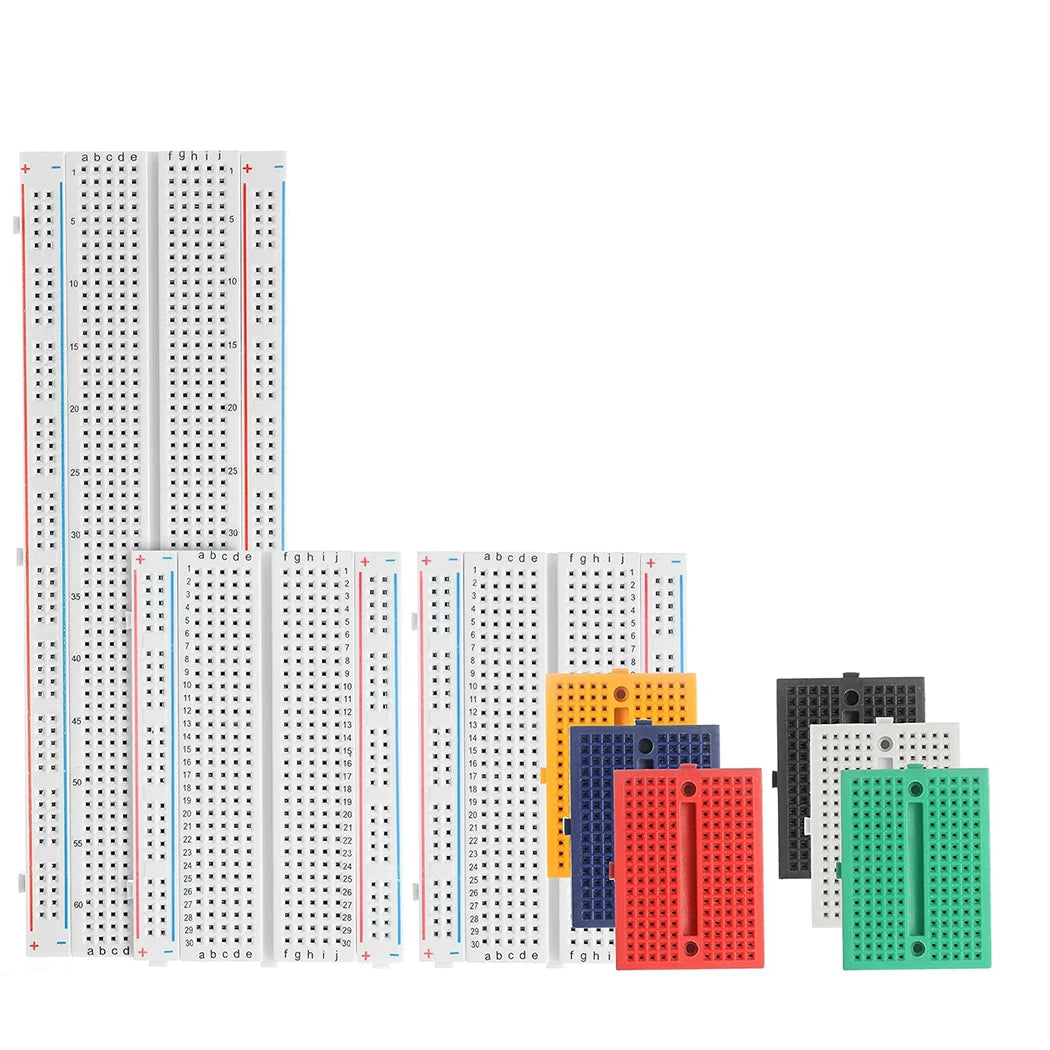

• 1PCS 170(Blue/Green/Yellow/White)/400/830 Tie-Points Breadboard

(please choose the model and quantity you need,we will send the goods according to your choice.)
