SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

Dissipation Power: 180W/12W

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Quantity: 1

Type: Voltage Regulator

is_customized: Yes

120W

Features

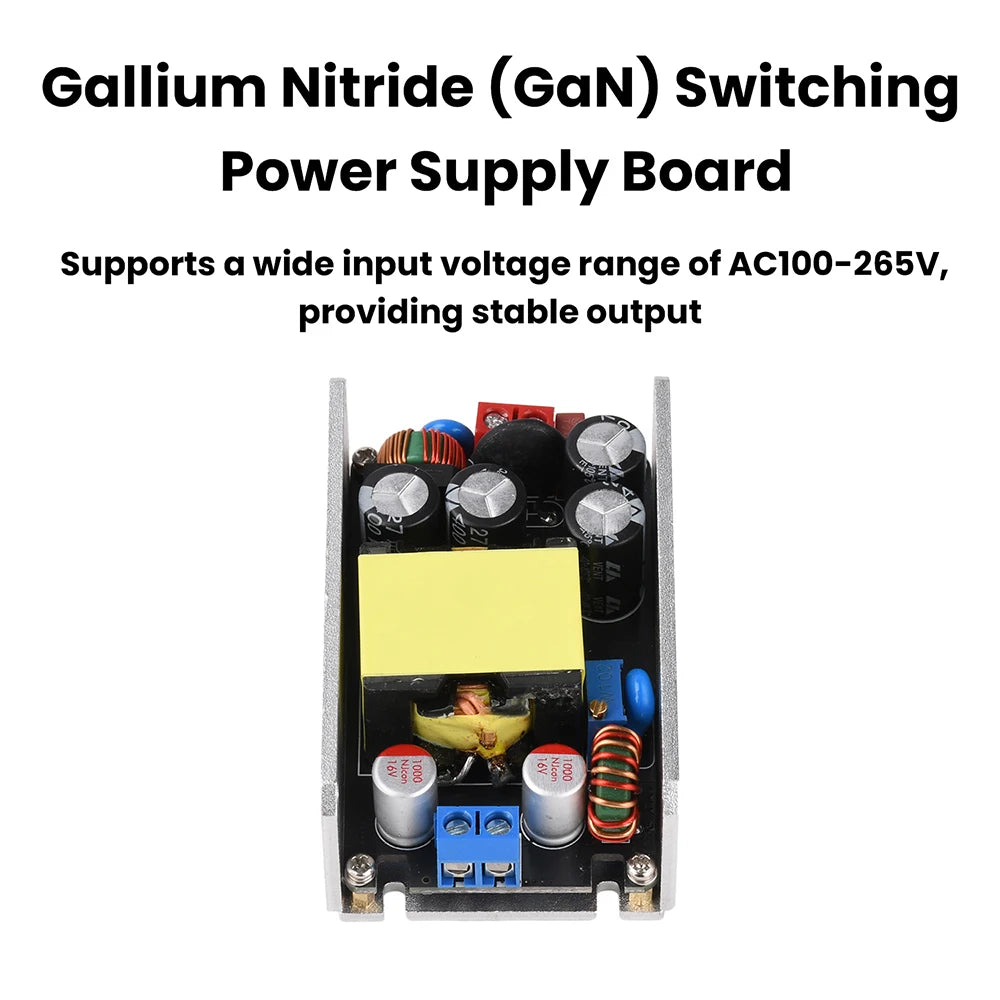

1. Supports a wide AC input voltage range of 100-265V, providing stable output
2. Utilizes advanced GaN technology to enhance power conversion efficiency
3. Optimized circuit design and highly integrated components
4. Primarily designed for applications requiring high power output in compact spaces
5. Features excellent anti-interference capabilities and can adapt to complex electromagnetic environments

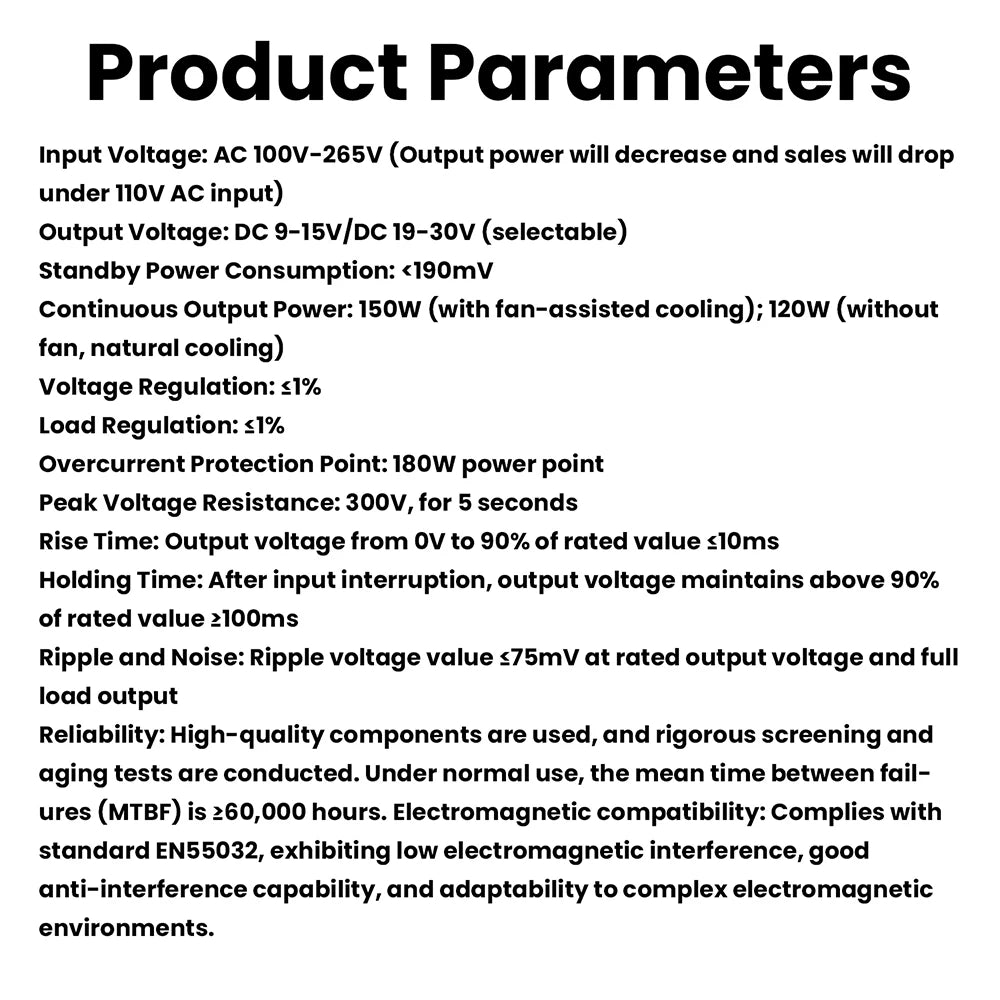

Parameter
Input Voltage: AC 100V–265V (Output power and sales volume will decrease when using 110V mains input)

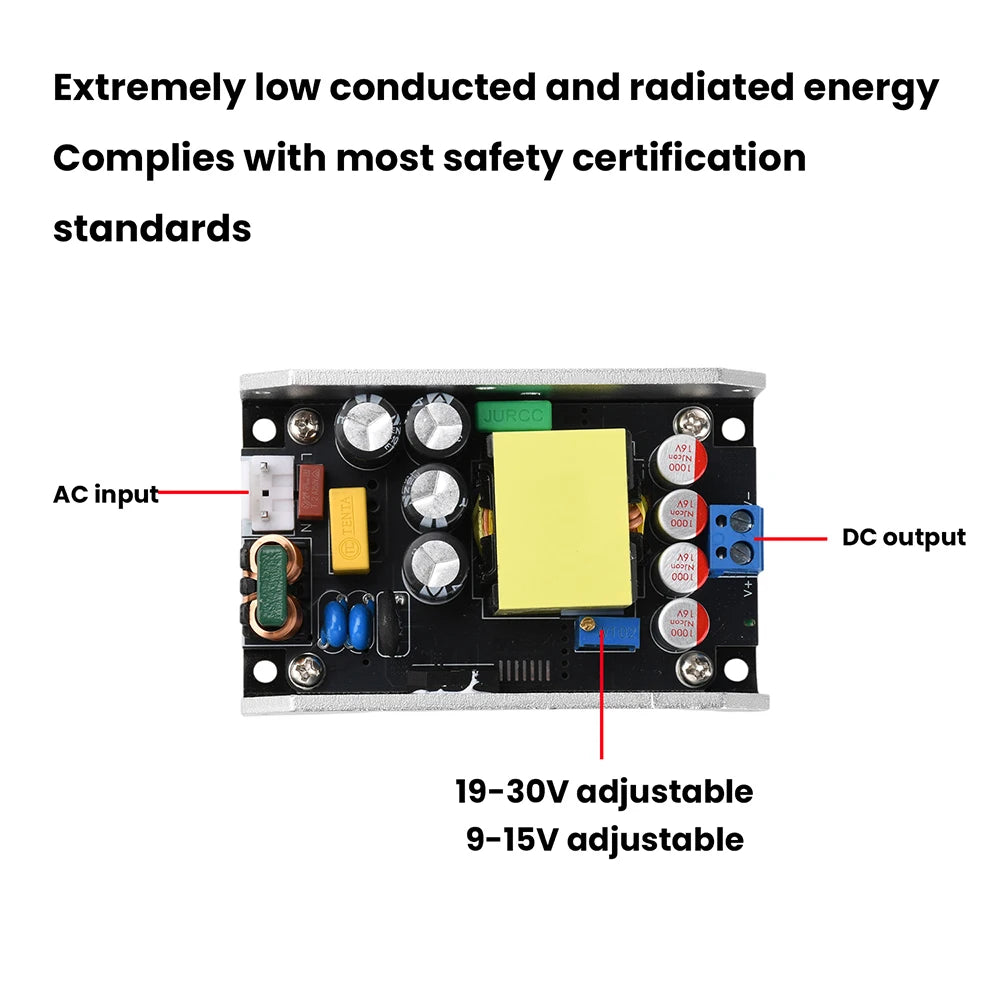

Output Voltage: DC 9–15V / DC 19–30V (selectable)
Standby Power Consumption: <190mV
Continuous Output Power: 150W (fan-assisted cooling); 120W (fanless natural cooling)
Voltage Regulation: ≤1%
Load Regulation: ≤1%
Overcurrent protection threshold: 180W power point
Peak voltage withstand capability: 300V, sustained for 5 seconds
Rise time: Output voltage from 0V to 90% of rated value ≤ 10 ms
Hold time: After input interruption, output voltage maintained at 90% or above of rated value for ≥ 100 ms

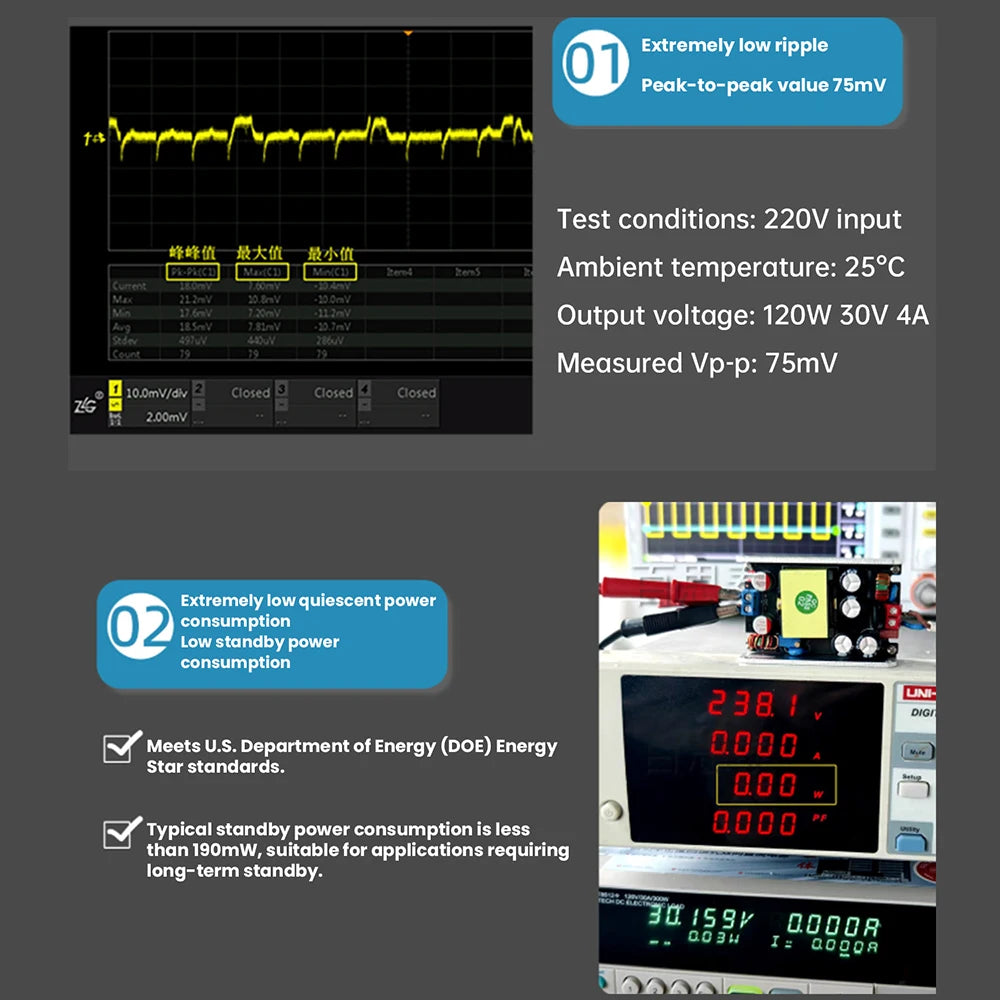

Ripple and noise: At rated output voltage and full load, ripple voltage ≤ 75 mV
Reliability: Utilizes high-quality components that have undergone rigorous screening and aging tests. Under normal use, the Mean Time Between Failures (MTBF) is ≥60,000 hours
Electromagnetic Compatibility: Complies with EN55032 standards, produces minimal electromagnetic interference, offers excellent interference resistance, and adapts to complex electromagnetic environments

Package include
Module*1 (model of your choice)

180W

Product Features

1. Supports AC190-265V wide voltage input and provides stable output

2. Adopting advanced gallium nitride technology to improve power conversion efficiency, reduce energy consumption and heat generation

3. Optimized circuit design and high integration components to achieve a small size power board for easy installation

4. The main application scenario is to achieve high power output in small spaces and achieve product miniaturization

5. The product has good anti-interference ability and can adapt to complex electromagnetic environments

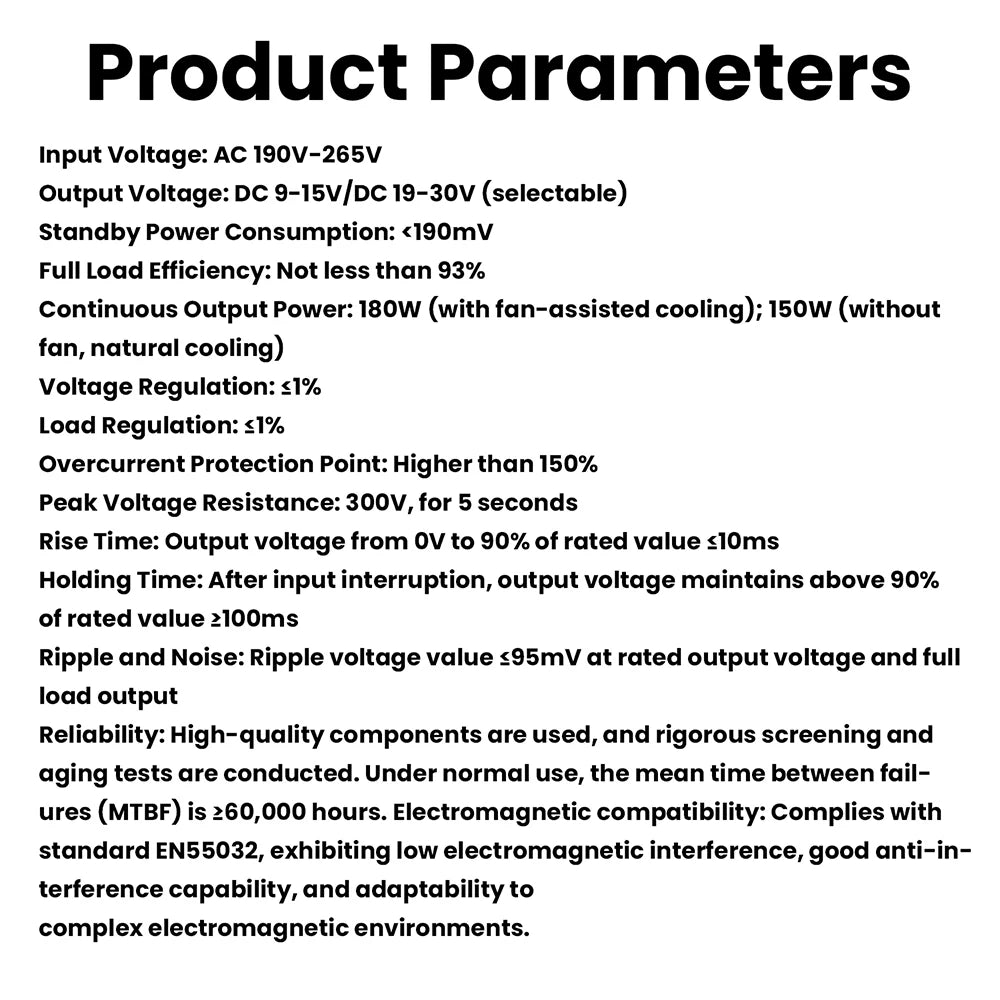

Product Parameters

Input voltage: AC 190V-265V

Output voltage: DC9-15V/DC19-30V (optional)

Standby power consumption:<190mV

Full load efficiency: not less than 93%

Continuous output power: 180W (with fan assisted cooling); 150W (fanless natural cooling)

Voltage regulation rate: ≤ 1%

Load adjustment rate: ≤ 1%

Overcurrent protection point: above 150%

Peak voltage resistance capability: 300V, lasting for 5 seconds

Rise time: Output voltage 0V to rated value 90% ≤ 10ms

Holding time: After an input interruption, the output voltage remains above 90% of the rated value for ≥ 100ms

Ripple and noise: Ripple voltage value ≤ 95mV at rated output voltage and full load output

Reliability: High quality components are used and undergo strict screening and aging testing. Under normal use, the mean time between failures (MTBF) is ≥ 60000 hours

Electromagnetic compatibility: standard EN55032, with low environmental electromagnetic interference and good anti-interference ability, suitable for complex electromagnetic environments

Packing List

Module 1 (optional style)
