SPECIFICATIONS

Brand Name: EQP

DSD Sampling Frequencies: NONE

Electrified: No

High-concerned chemical: none

Inputs: -1

Material: Metal

Origin: Mainland China

Outputs: RCA,3.5 mm

PCM Sampling Frequencies: 192 kHz

PCM Word Length: 24-bit

Type: Portable

With this converter, you can complete the connection no matter what interface your audio equipment has.
Input: HDMI-compatible ARC

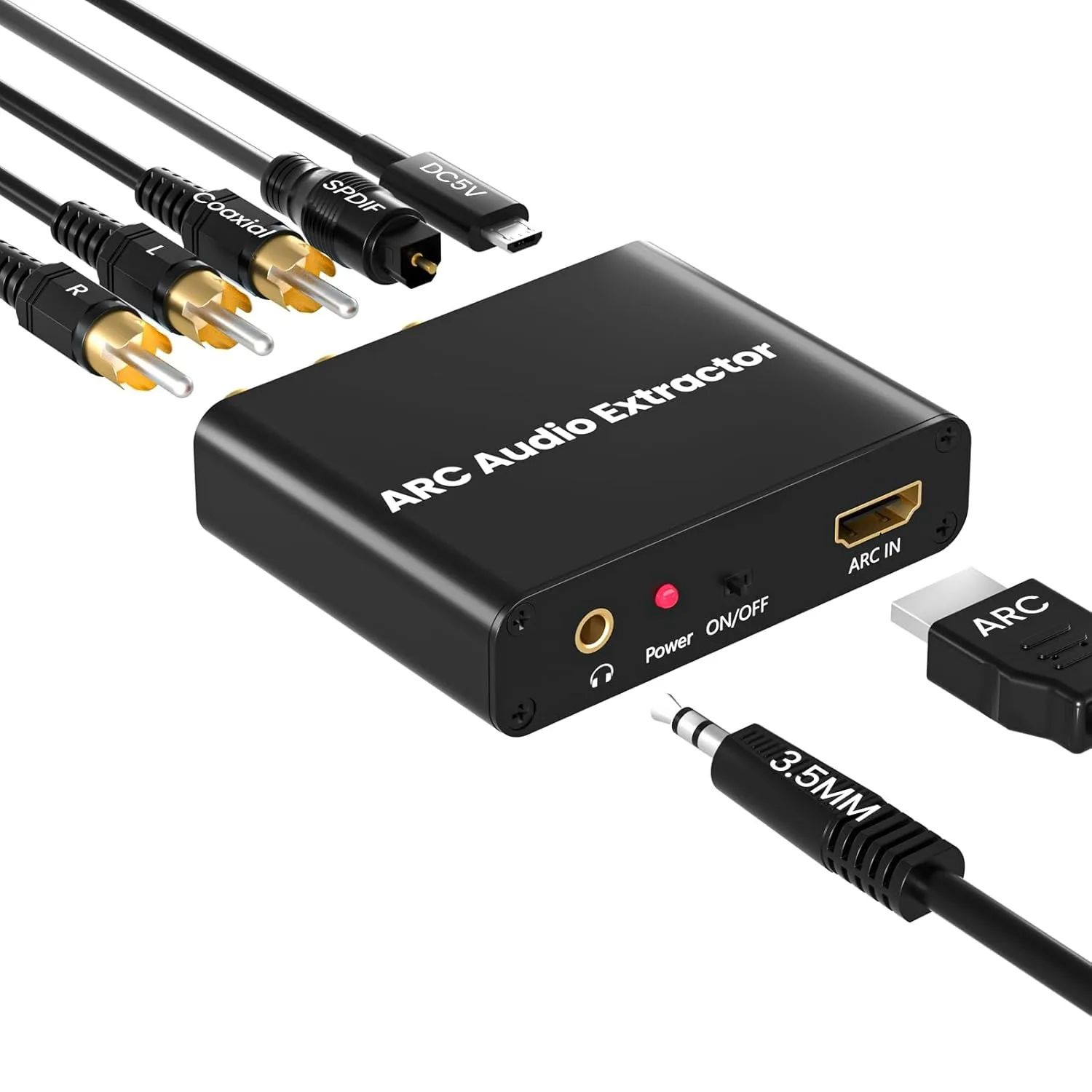

Output: Optical, Coaxial, 3.5mm Jack, R/L
Sampling Rate: 32, 44.1, 48, 96 and 192 KHz
Audio Channal: 5.1CH for optical and coaxial output, 2CH for R/L and 3.5mm jack
CEC Function: When R/L and 3.5mm jack output, CEC is available.

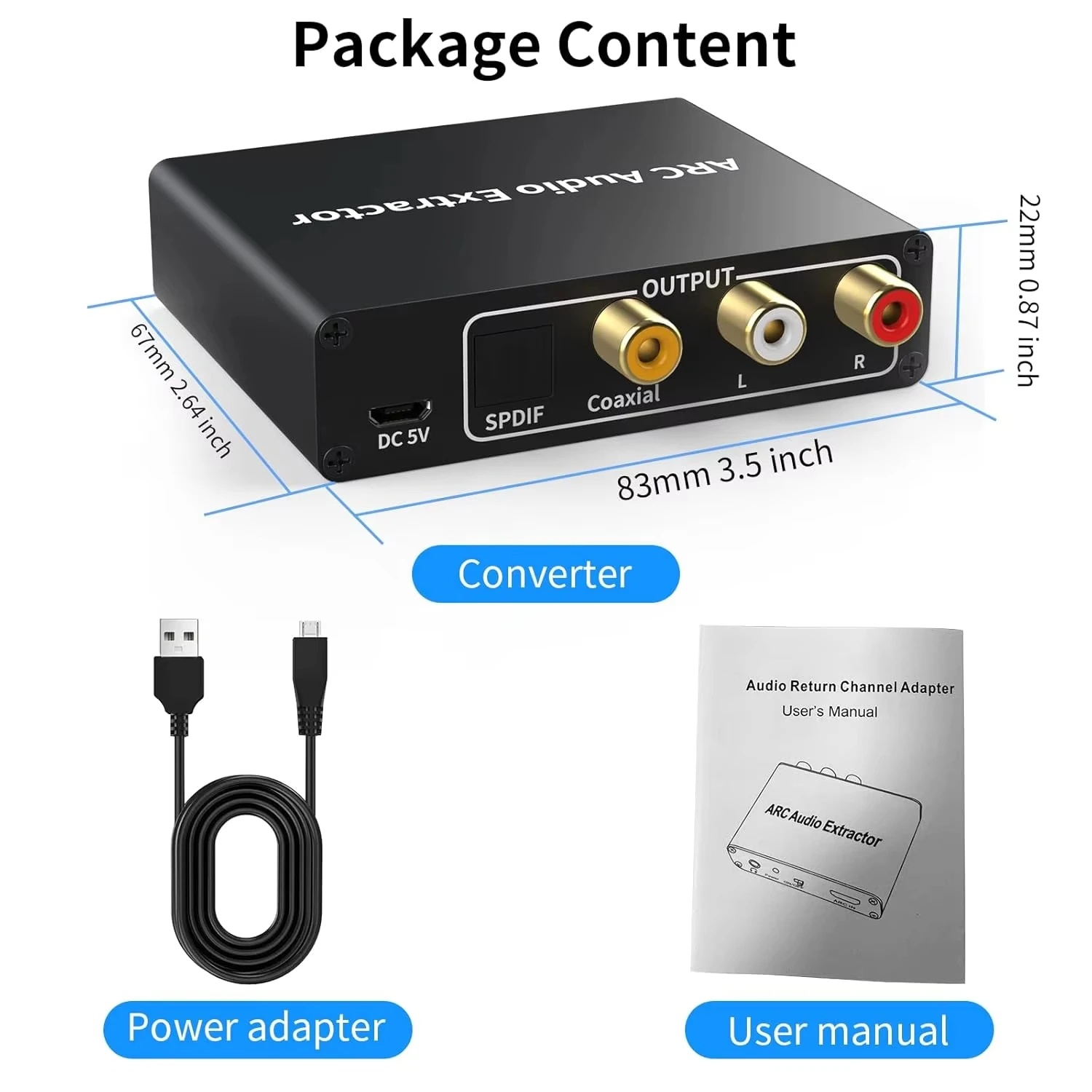

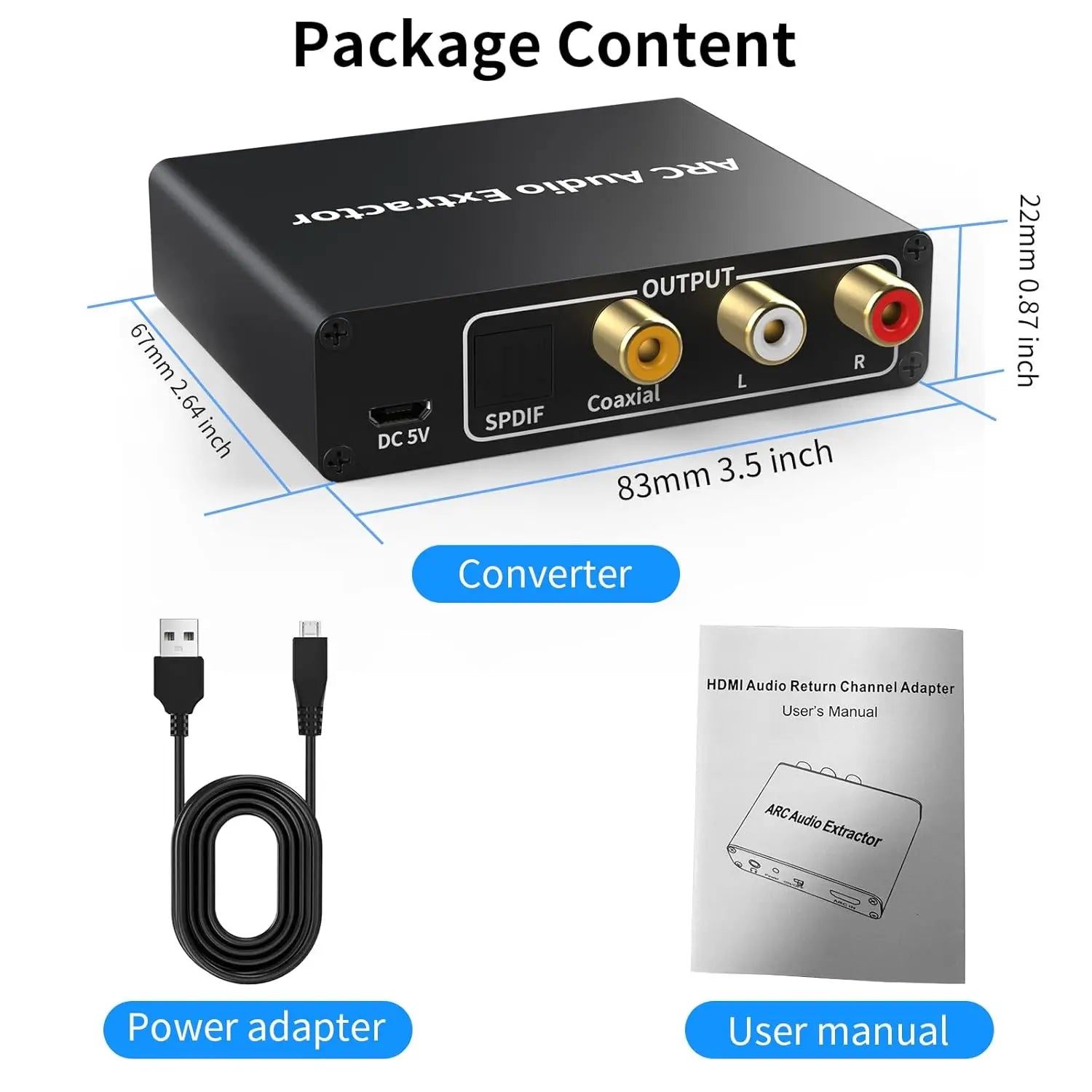

Package: Converter *1, Power Cable *1, User Manual *1

What need to Note:

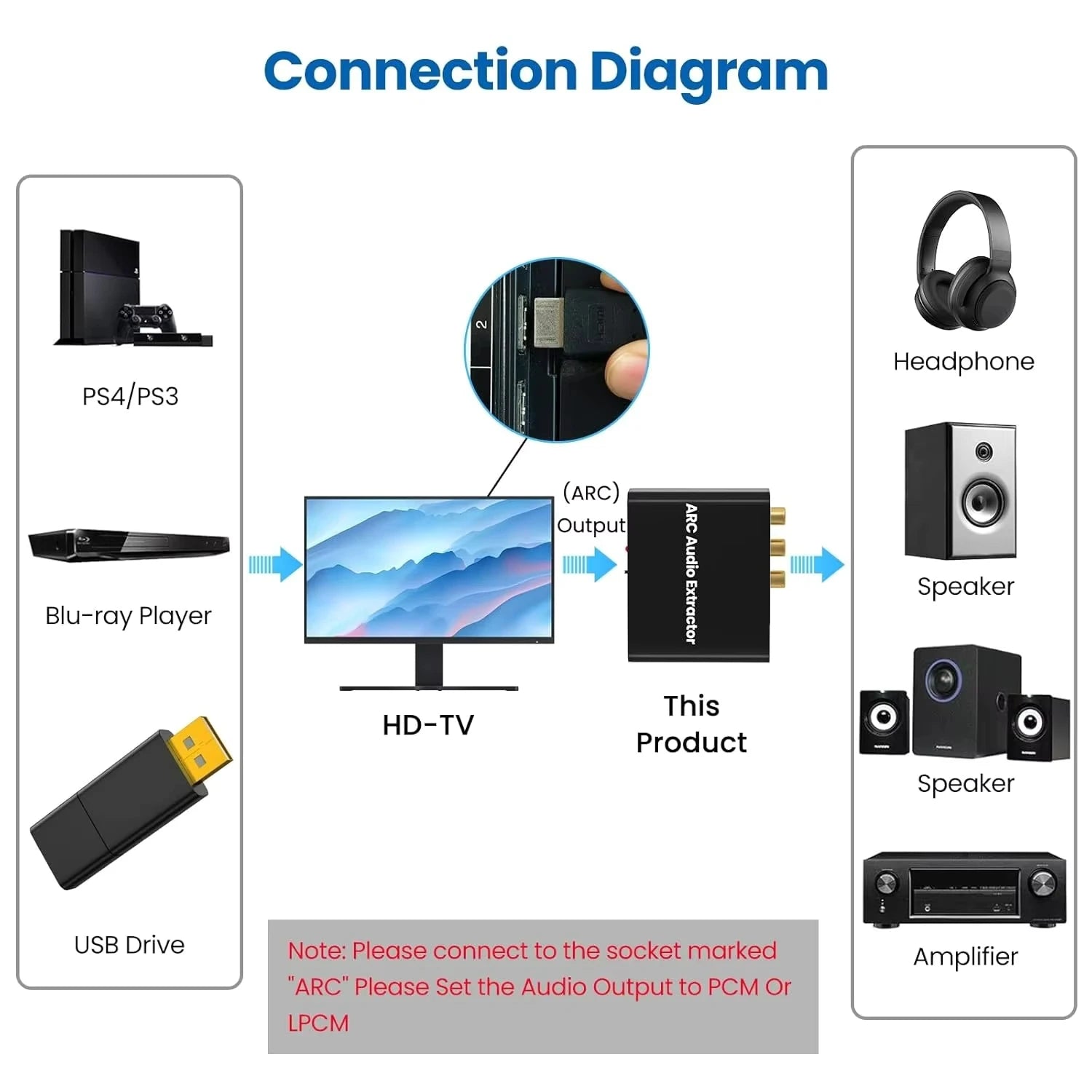

1.Please connect the converter to your TV's ARC interface.
2.Please make sure that your HD cable support ARC function
3.Please set ARC as the audio output mode in the TV settings.
Any problems when using, we will provide tech support.

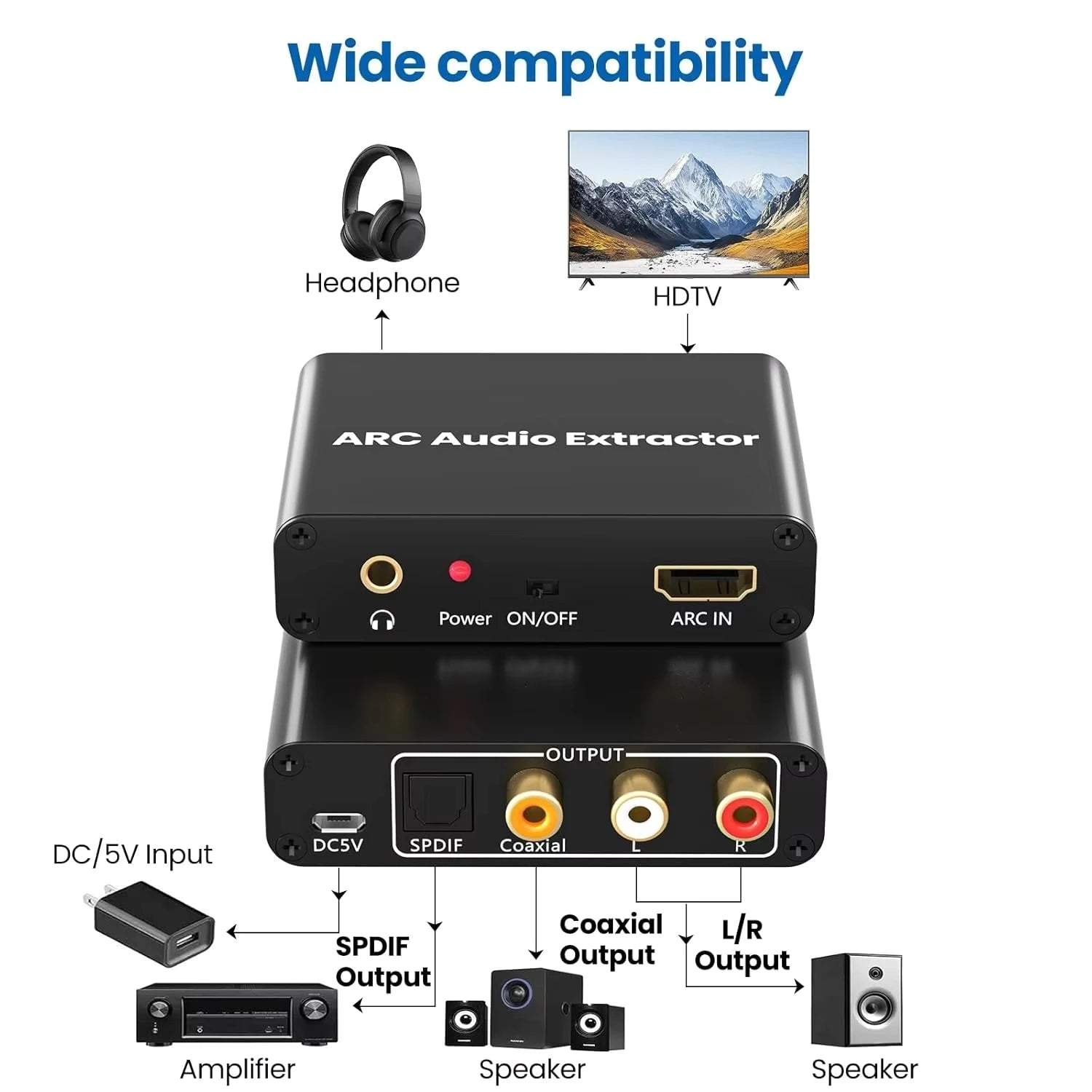

HDMI-compatible ARC Audio Extractor: Extract ARC audio signal from TV/projector/TV Box to soundbar/amplifier/speaker/headset/earphone etc. Able to convert ARC audio signal to 5.1CH(optical or coaxial), 2CH(R/L RCA or 3.5mm jack), all output interfaces work simultaneously.

Wide Compatibility: Support 32, 44.1, 48, 96 and 192 KHz and 24-bit S/PDIF incoming bit stream on left and right channels. Support Dolby AC3/ Dolby Digital Plus. Optical and coaxial output interfaces support 5.1CH.

Plug and Play: No need to install software or drivers, just connect your TV and audio equipment to get the sound. When ARC in, 3.5mm jack out, CEC function is supported, so convenient.
