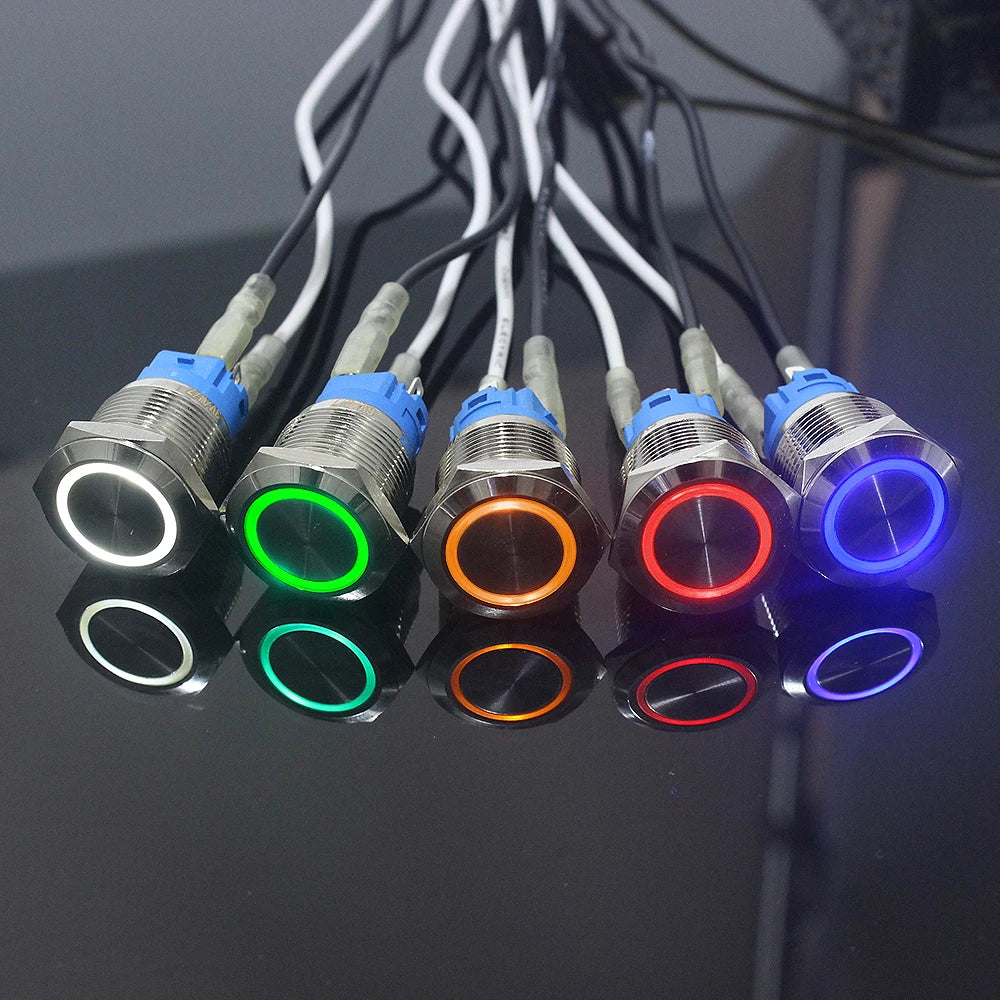

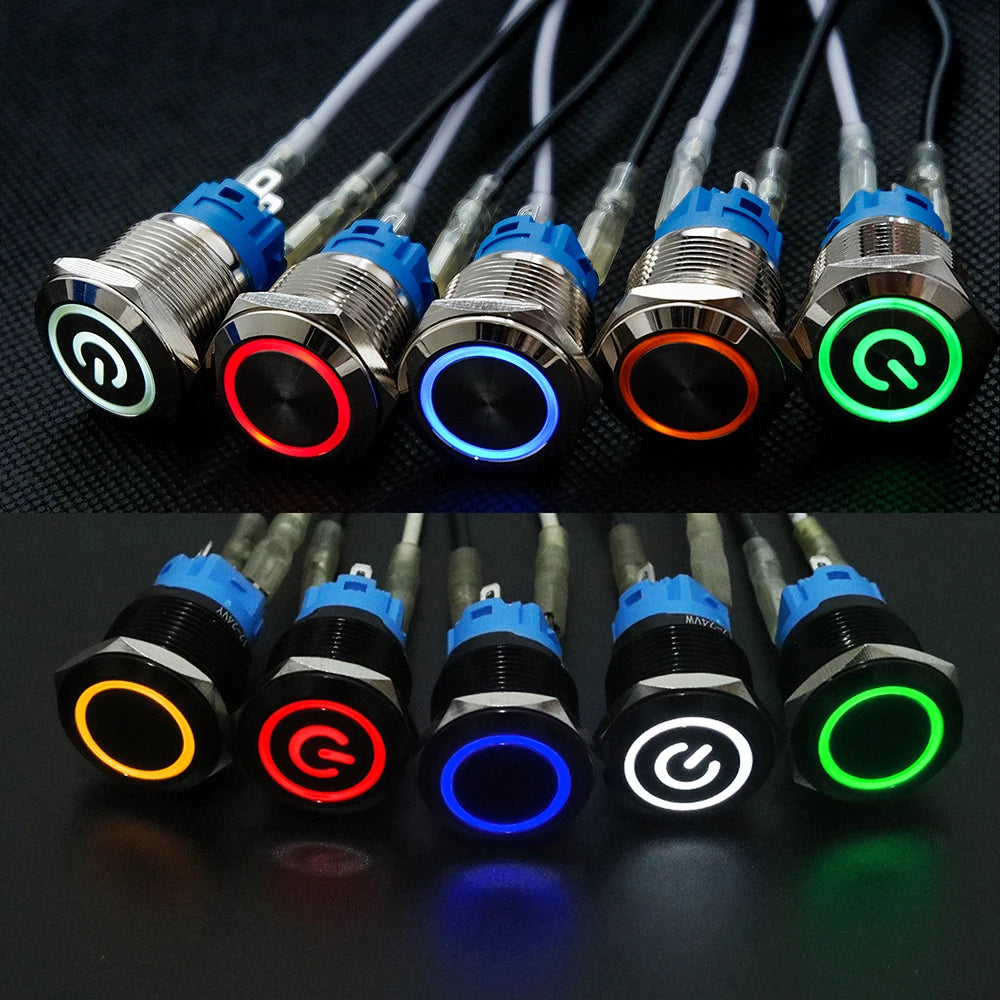

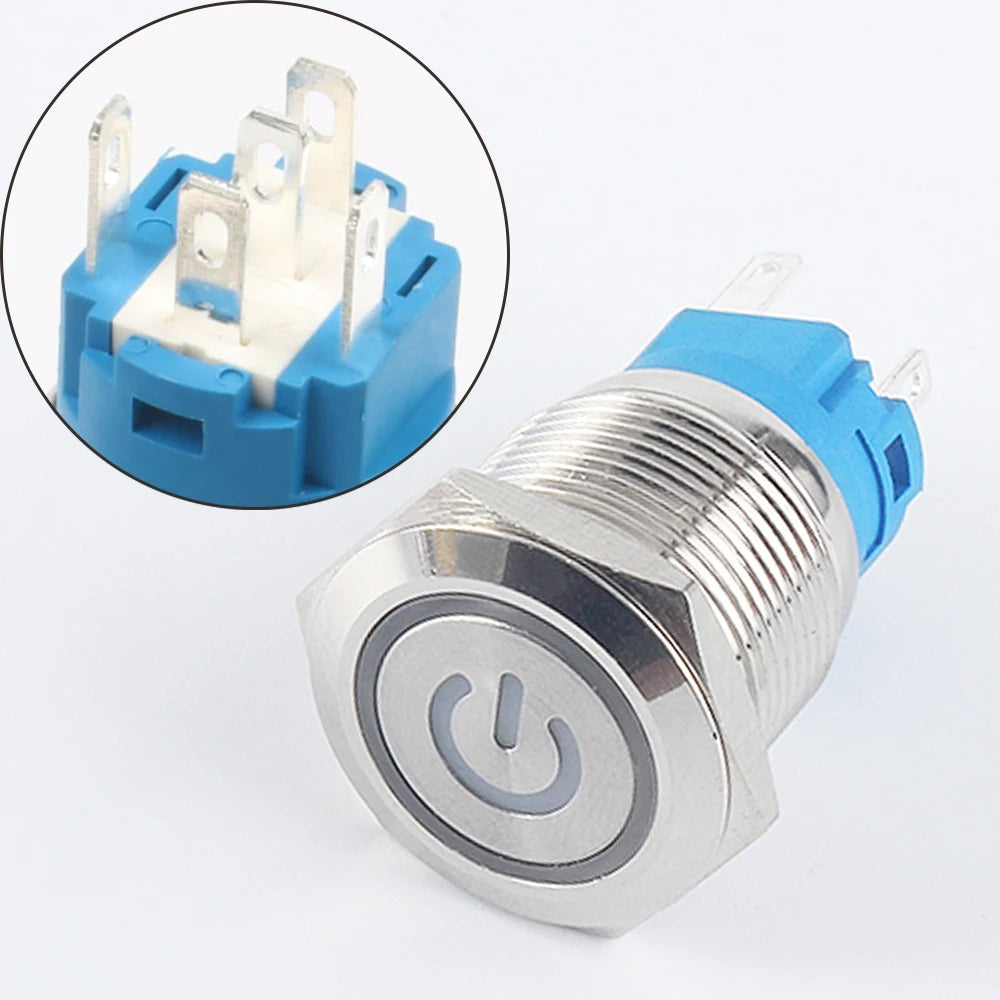

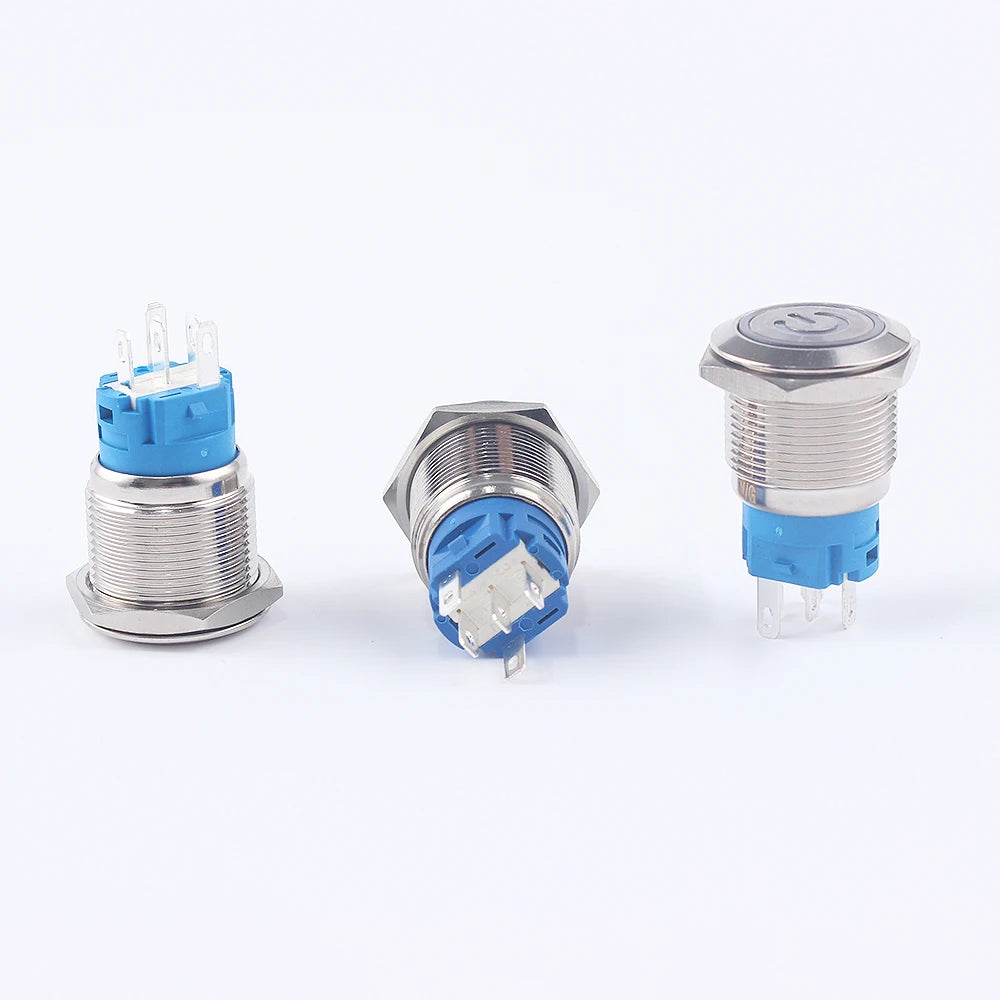

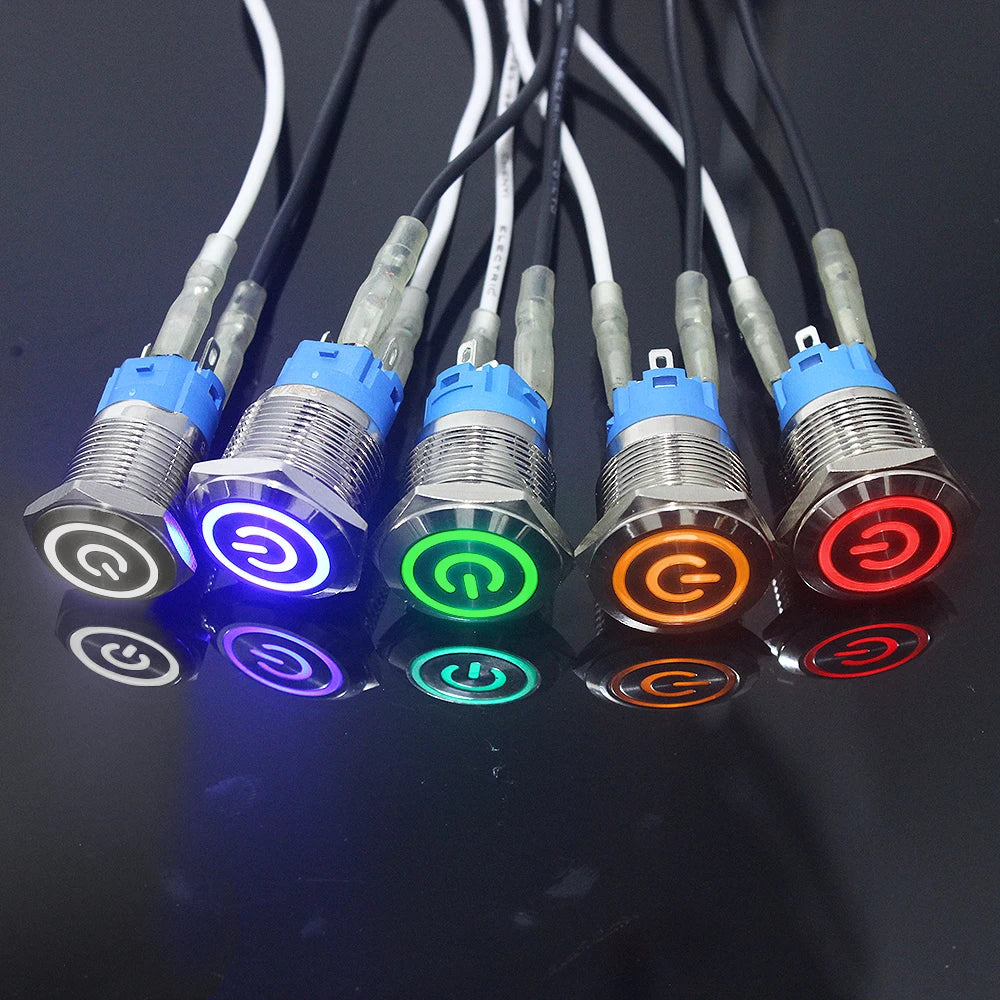

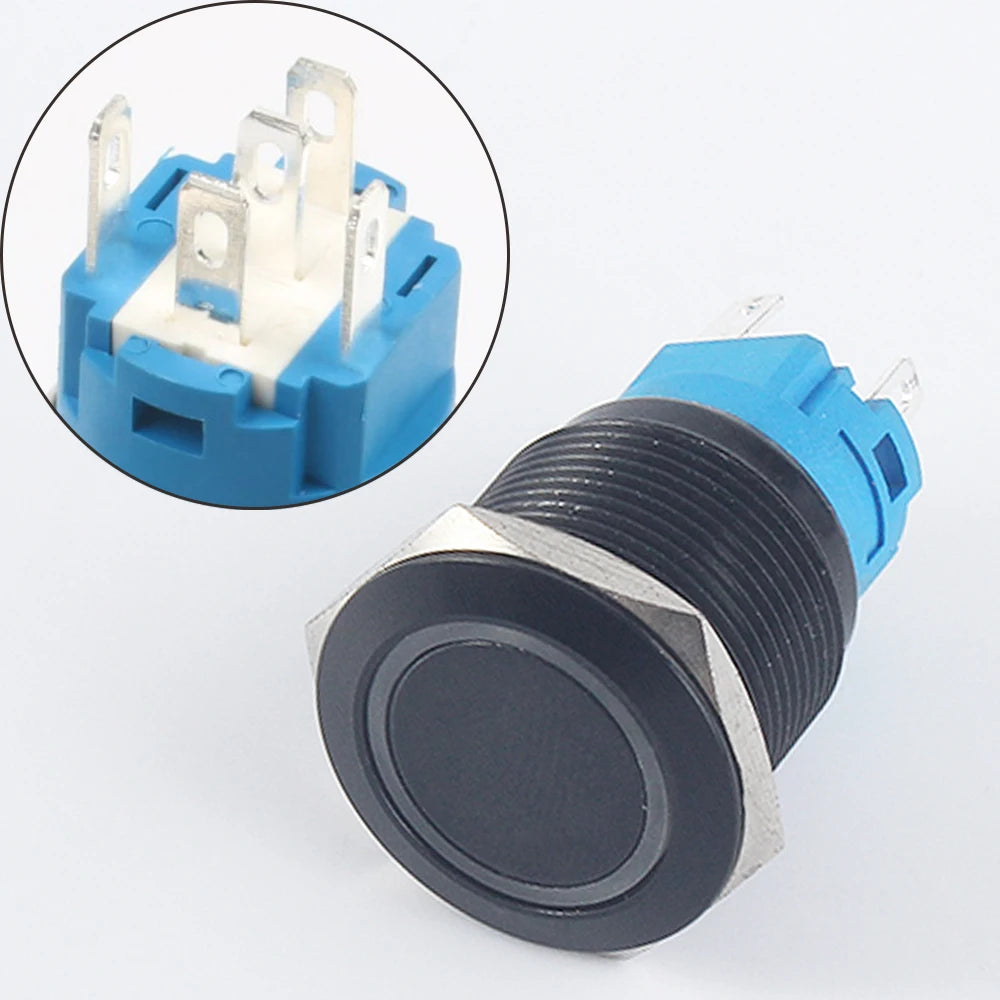

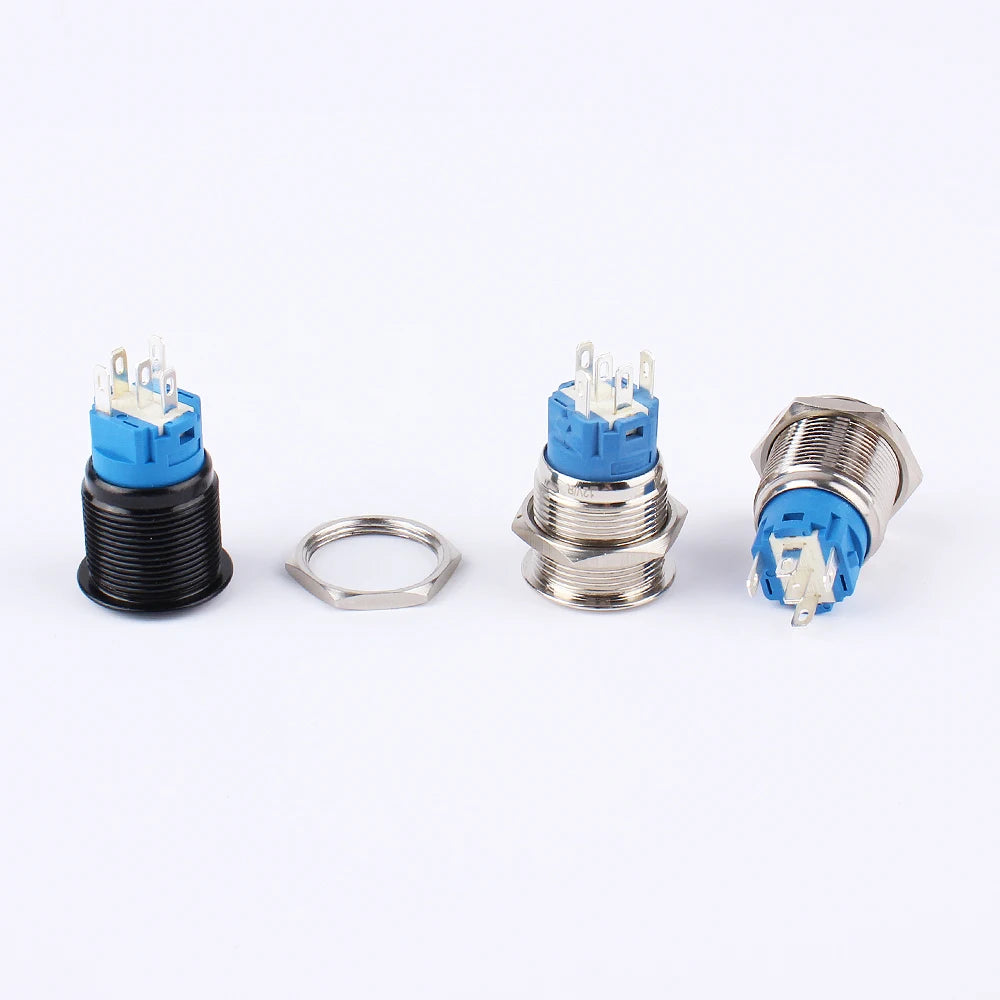

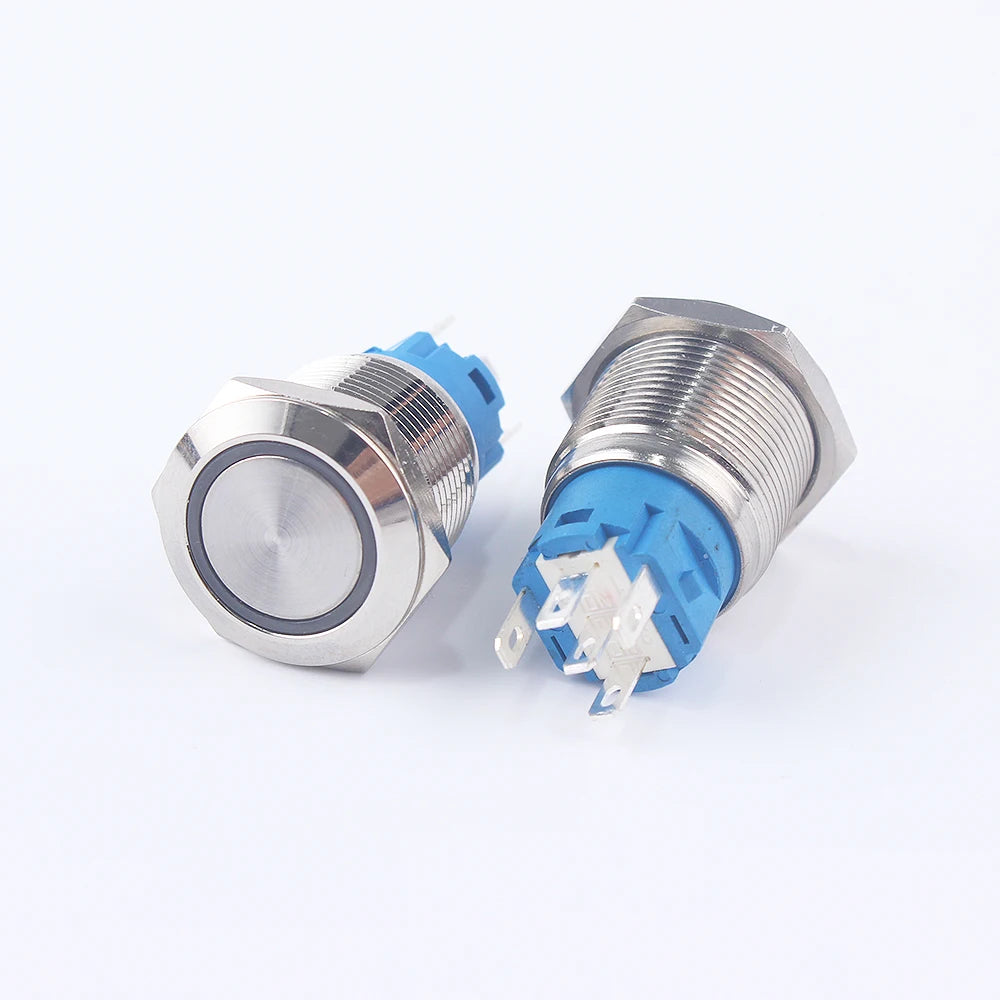

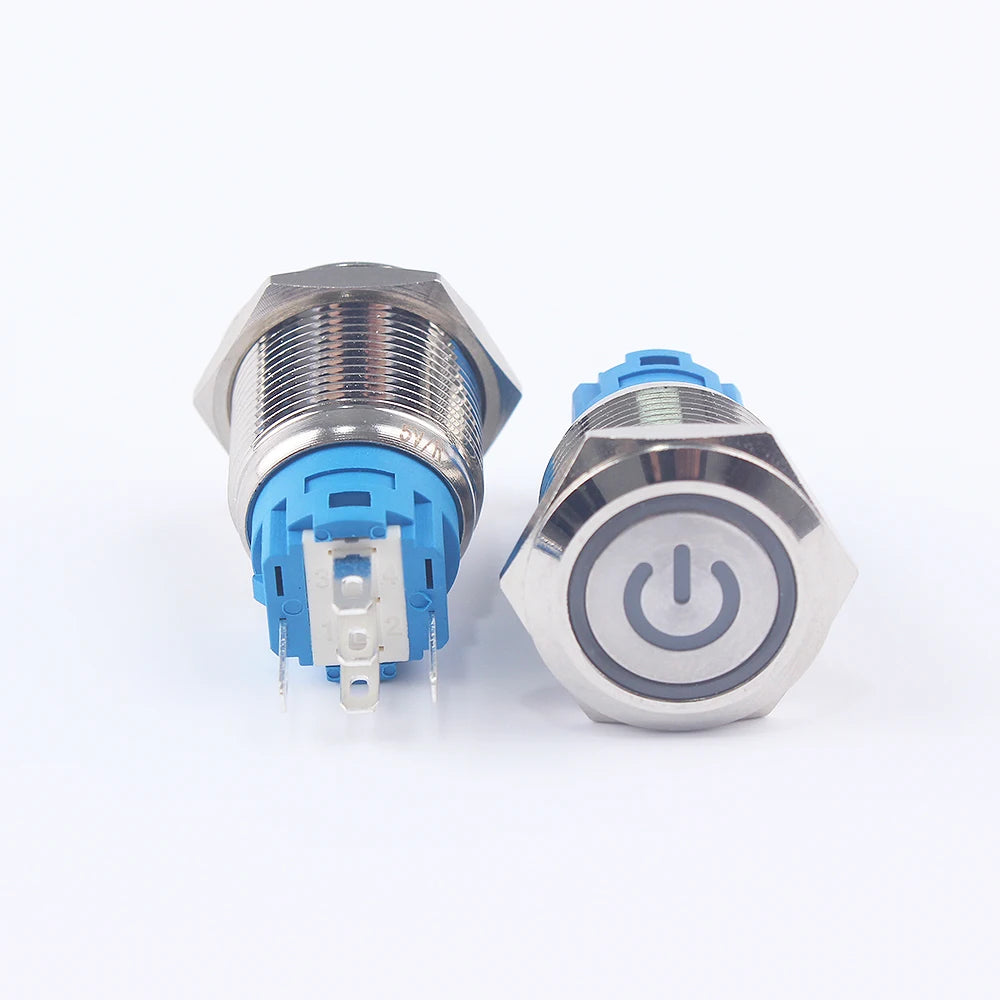

19mm Waterproof Momentary Latching Metal Doorbell Bell Horn Push Button Switch LED Ring Mark Fixation 5V 12V 24V 220 Lock Reset
Only a Socket / Momentary Reset / LED Yellow|110-220V(110V220V)
$11.61
Sale price
$11.61
Regular price
$0.00
Skip to product information
19mm Waterproof Momentary Latching Metal Doorbell Bell Horn Push Button Switch LED Ring Mark Fixation 5V 12V 24V 220 Lock Reset
$11.61
Sale price
$11.61
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: DIANQI
Certification: CE,CCC,RoHS
Choice: yes
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Is Smart Device: no
Material: Alloy
Model Number: 19mm
Origin: Mainland China
Switch Type: Push Button Switch
semi_Choice: yes
Model Description

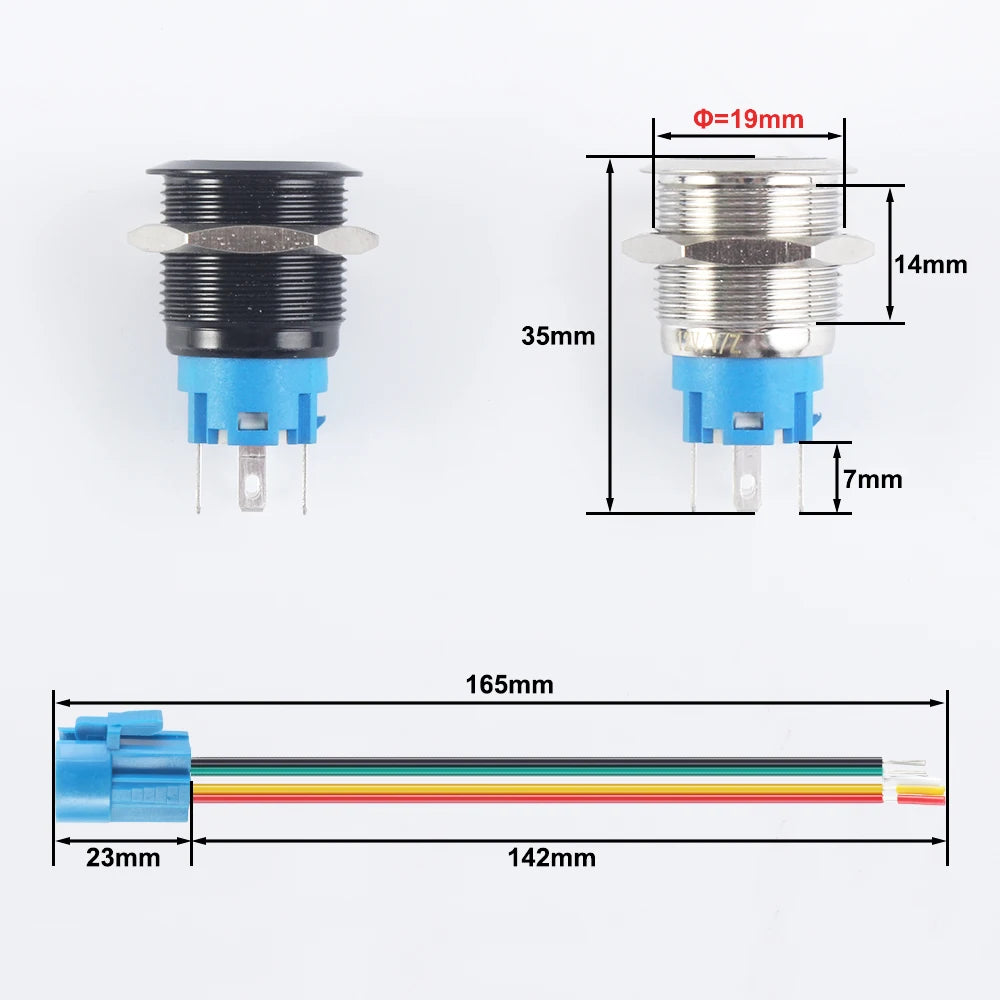

Mounting diameter:19MM
Head shape ：Flat Head

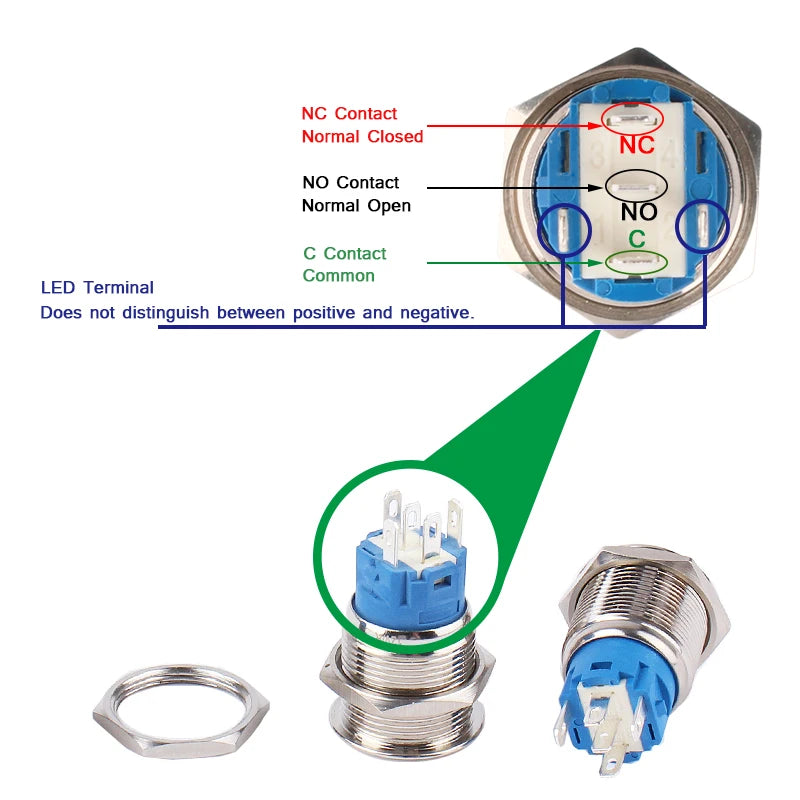

Switch Combination：1NO 1NC
Operation type：Momentary/latching
Shell material：aluminum oxide,copper plating
Mounting diameter:19MM
Head shape ：Flat Head
Switch Combination：1NO 1NC
Operation type：Momentary/latching
Shell material：aluminum oxide,copper plating
The Others Parameters
Contact type:Slow moving single contact
Operation Schedule Connected:1.8mm,Total:3.1mm
Contact Resistance ： ≤50mΩ
Actuating Force : about 4N
Insulation Resistance : ≥1000mΩ
Mounting panel thickness : ≤11mm. customised the others
Dielectric Strength : 1000VAC/min
Nut torque: 5~14N.m
Ambient Temperature:-30°~+80°
Body/Press Key :Stainless Steel/Aluminum Oxide/Copper plate / According to the request
Protection Levels:IK10
Diffuser:Environmental protection PC
Nut ：Nickel brass
Waterproof :IP67
Contact type:Slow moving single contact
Operation Schedule Connected:1.8mm,Total:3.1mm
Contact Resistance ： ≤50mΩ
Actuating Force : about 4N
Insulation Resistance : ≥1000mΩ
Mounting panel thickness : ≤11mm. customised the others
Dielectric Strength : 1000VAC/min
Nut torque: 5~14N.m
Ambient Temperature:-30°~+80°
Body/Press Key :Stainless Steel/Aluminum Oxide/Copper plate / According to the request
Protection Levels:IK10
Diffuser:Environmental protection PC
Nut ：Nickel brass
Waterproof :IP67
Packing detail :

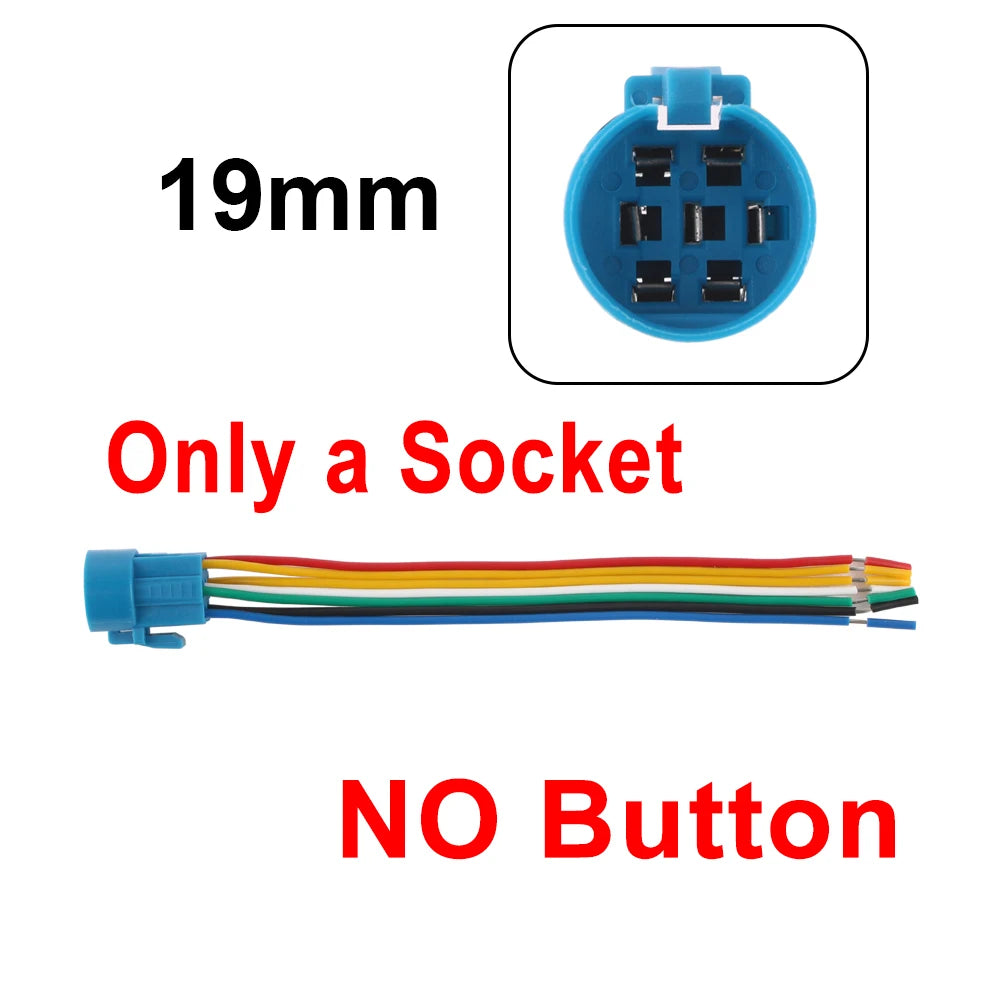

1 x Metal push button switches or 1 x socket
