Description

SPECIFICATIONS

18650 Lithium Battery Heat Shrink Tube T: Li-ion Wrap Cover Skin

Accessory Type: Battery Accessories

Battery Included: Yes

Brand Name: SAGOMIGEN

Certification: NONE

Charger included: N

Electronic: no

Heat Shrink Tube: Battery Accessories

High-concerned chemical: none

Model Number: Heat Shrink Tube

Origin: Mainland China

PCBincluded: No

PVC Shrinkable Film: Pipe Sleeves Accessories

Reusability: Disposable

Voltage range: No voltage

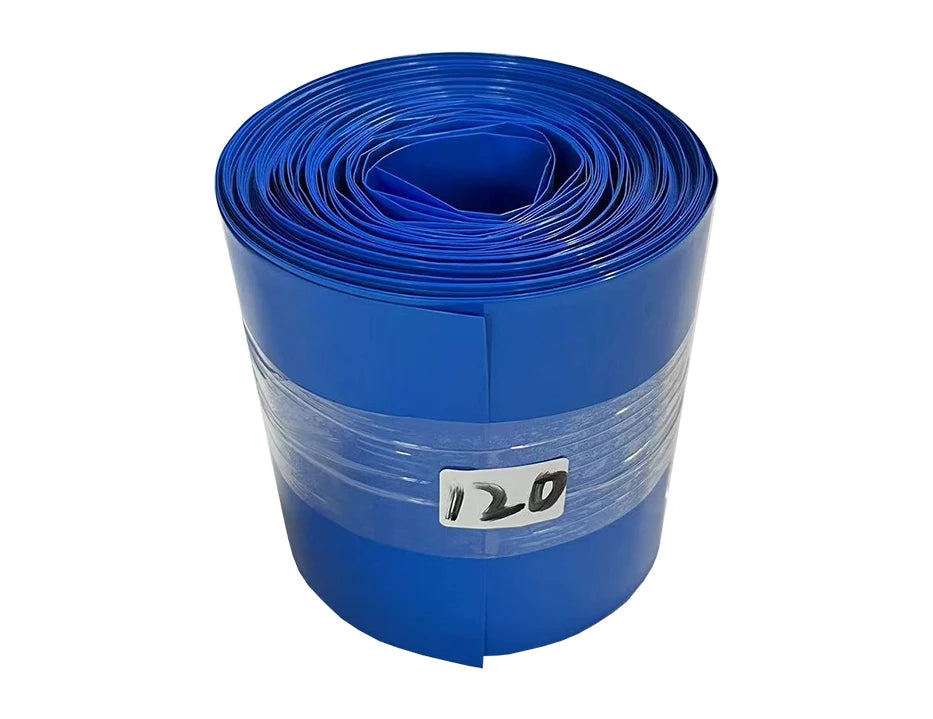

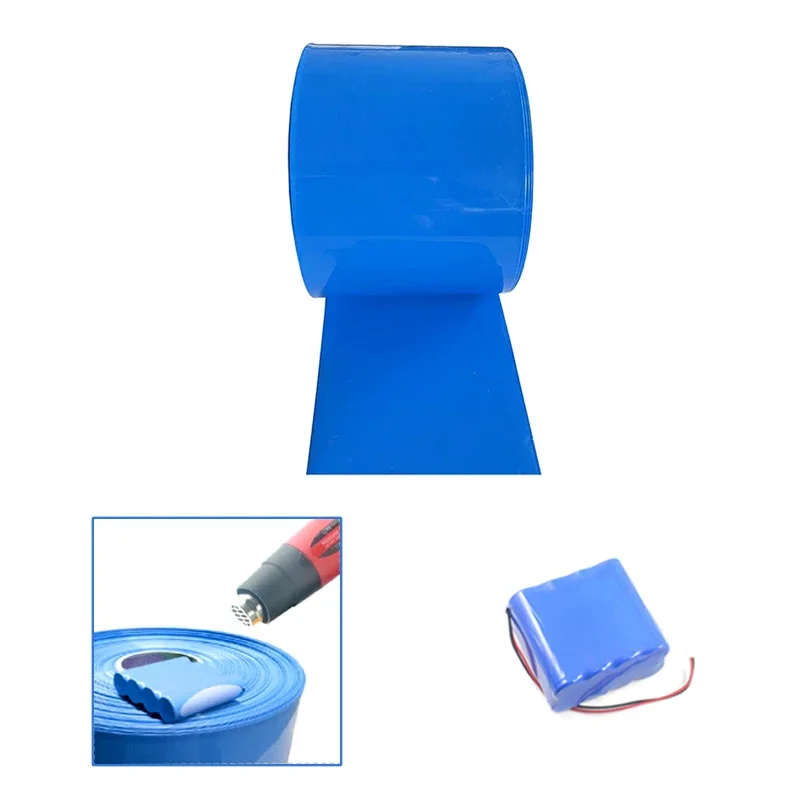

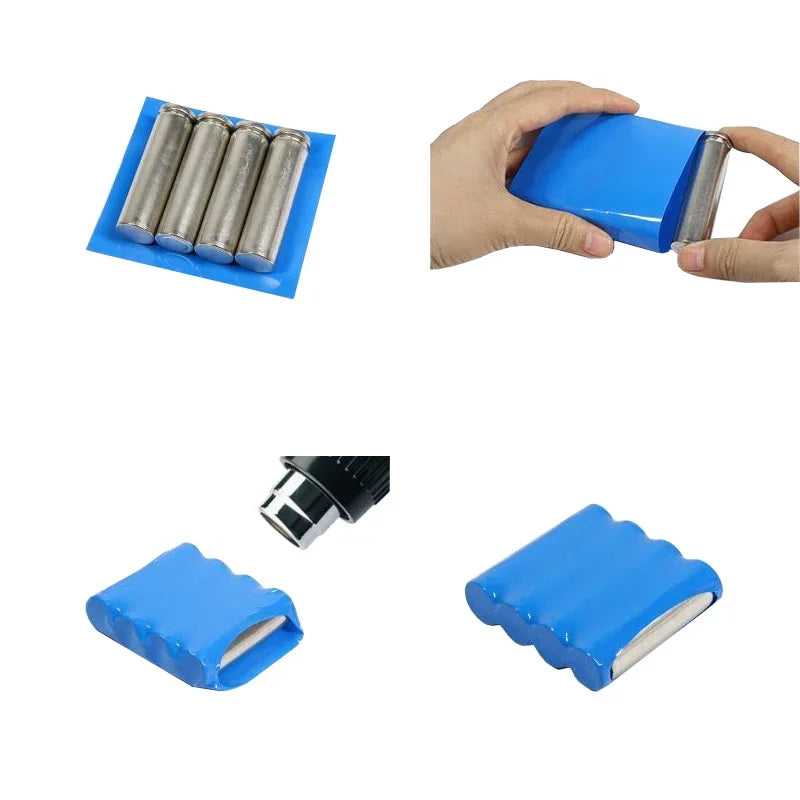

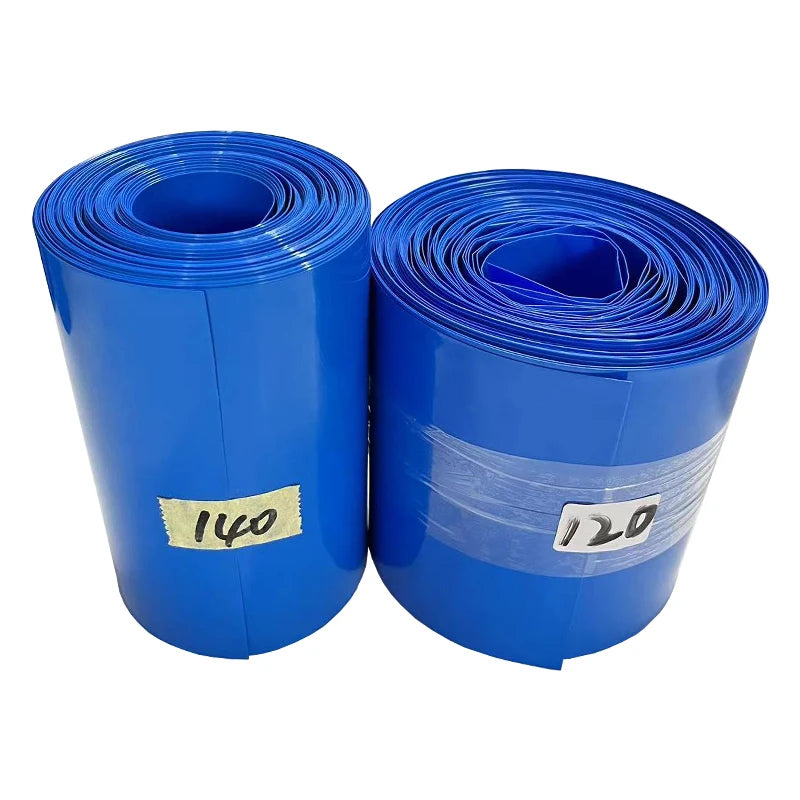

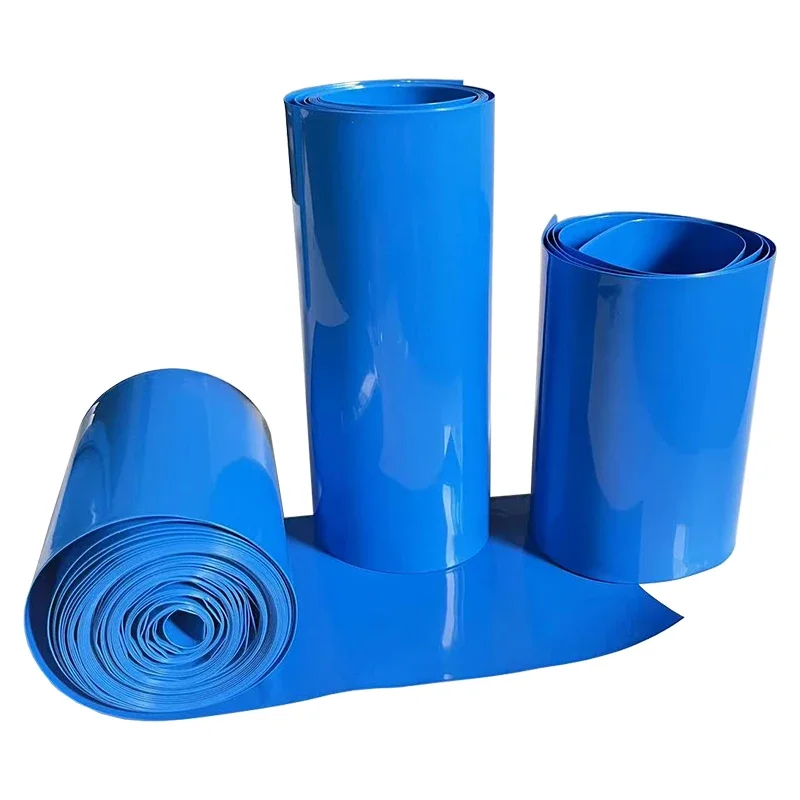

18650 21700 26650 32650 Lithium Battery Heat Shrink PVC Shrinkable Tubing Li-ion Wrap Cover PVC Skin Sleeves Insulation Sheath
Product Specifications:

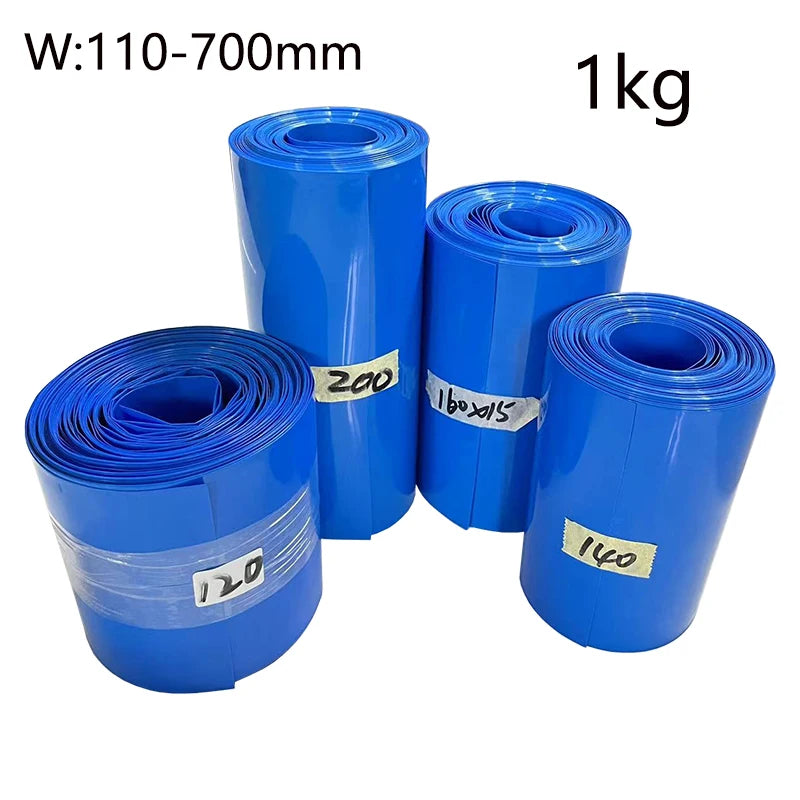

Flattening width 160mm~300MM,
wall thickness 0.08mm~0.23M
Shrinking temperature: 80°C
Temperature range: -40°C to 105°C
Temperature rating: 105°C
Shrinkage: ≥48±5%
Rated voltage: 300v
Product color: blue
The width size in the product description is the flat size, not the diameter.

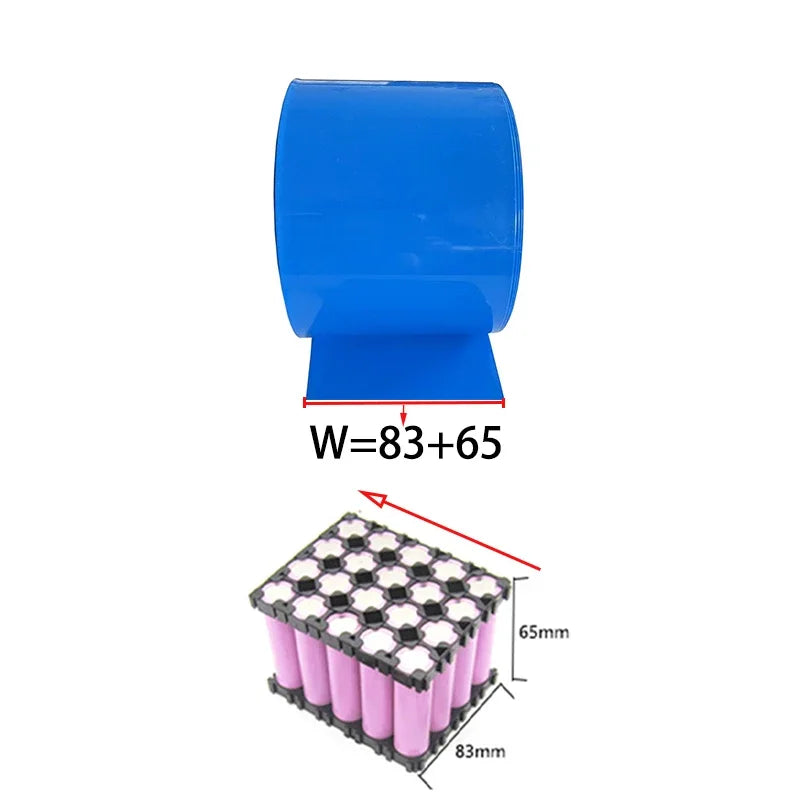

For size calculation, first divide the circumference of the direction you want to cover by 2 to flatten the size of the heat shrink film, or you measure the length and width of the square or cuboid and then add the length and width to be the flattening size of the heat shrink film. Then add a 5%-15% shrinkage margin.
If you need other sizes, please consult us
