1m/2m/5m WS2812B ECO 30/60/100/144 Pixels/Leds/M TV RGB Led Strip Light WS2812 IC Individually Addressable Black/White PCB DC5V
Black FPCB Economy / 5M Total 150LED IP67
$54.41
Sale price
$54.41
Regular price
$0.00
Skip to product information
1m/2m/5m WS2812B ECO 30/60/100/144 Pixels/Leds/M TV RGB Led Strip Light WS2812 IC Individually Addressable Black/White PCB DC5V
$54.41
Sale price
$54.41
Regular price
$0.00
Description
SPECIFICATIONS
3M Adhensive Tape: IP30, IP65
Average Life (hrs): 50000
Brand Name: Cocurve
Certification: CCC,ROHS,ce,FCC
Controller: Arduino uno, Raspberry pi, Wifi, Bluetooth and APP controller, etc
Customized: Yes
Cuttable: Every LED is cuttable
Dropshipping: Yes
FPCB Color: Black, White
High-concerned chemical: none
IC Type: Improved version ws2812 IC, 1 ic drives 1 led chip
Is Batteries Included: no
Item Type: Strip
LED Chip Brand: Epistar
LED Chip Model: SMD5050
LEDs Number/M: 60 pcs/m
Luminous Flux: 2000-82000
Model Number: WS2812B ECO
Nominal Voltage: 5V
ODM & OEM: Yes
Occasion: Bedroom
Origin: Mainland China
Package: In anti-static bag
Pixels Led: 30leds/m, 60leds/m, 100leds/m, 144leds/m
Power Source: DC
RGB 5050SMD LED: Each LED is separately controlled
Strip type: SMD
Voltage: 5V
Waterproof: Yes
Waterproof Grade: IP30, IP65, IP67
Note:
The price is only Led Strip, Not Included Power Supply or Led Controller!

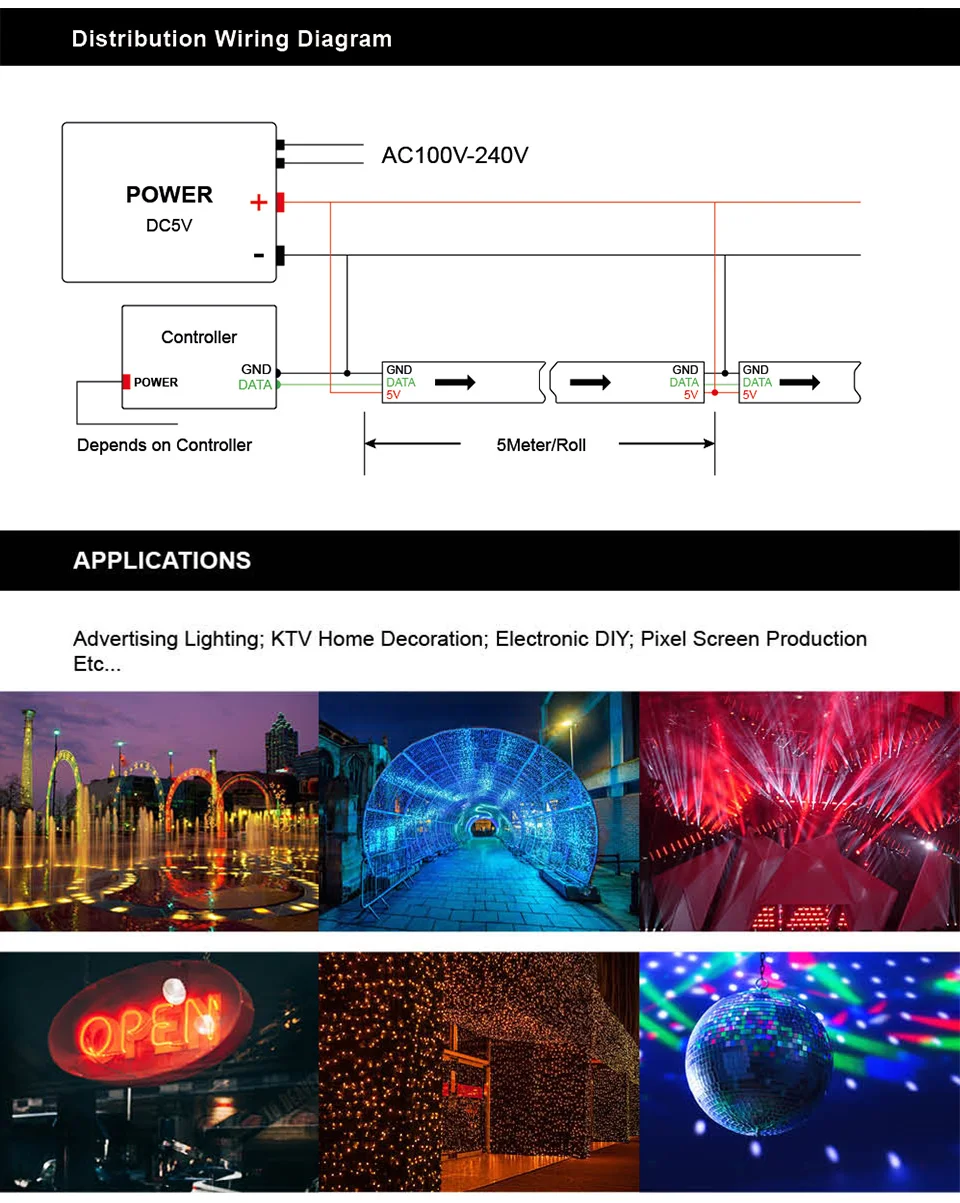

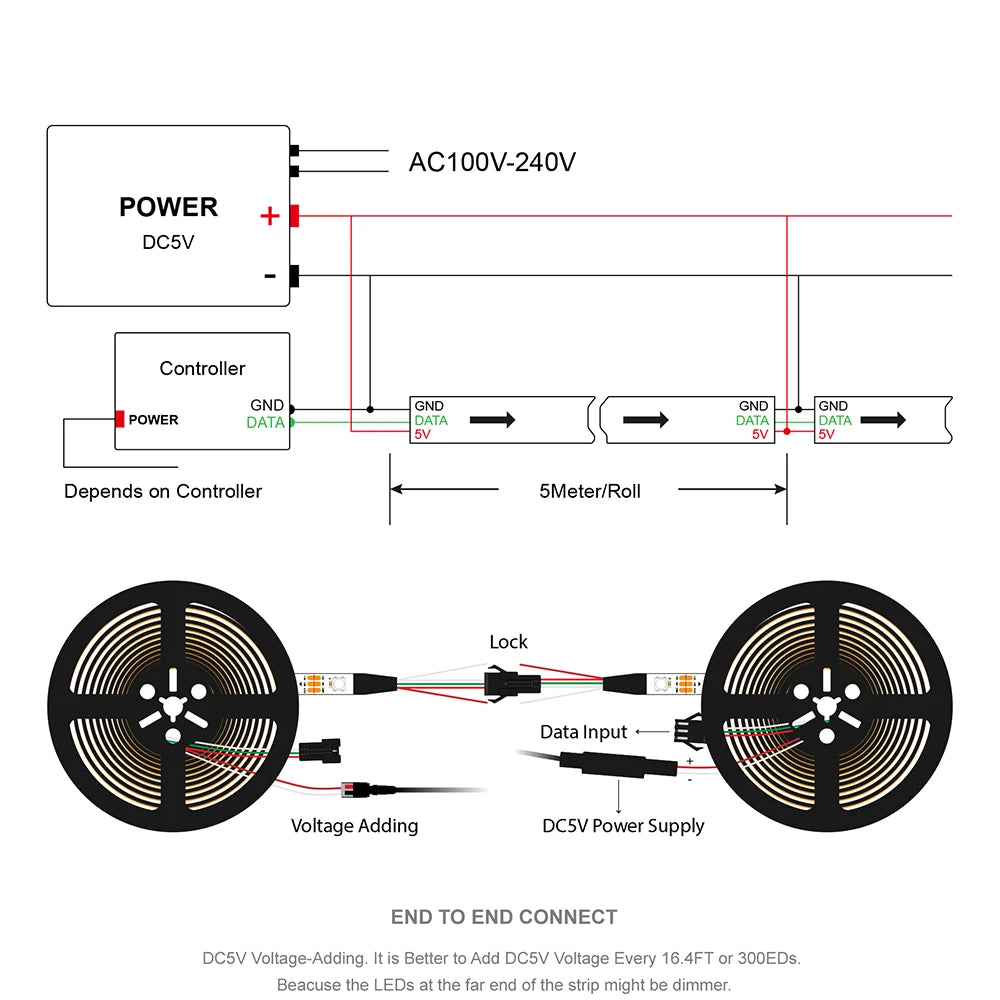

WS2812B ECO Must Use DC5V Power Supply AND Led Controller to Control!

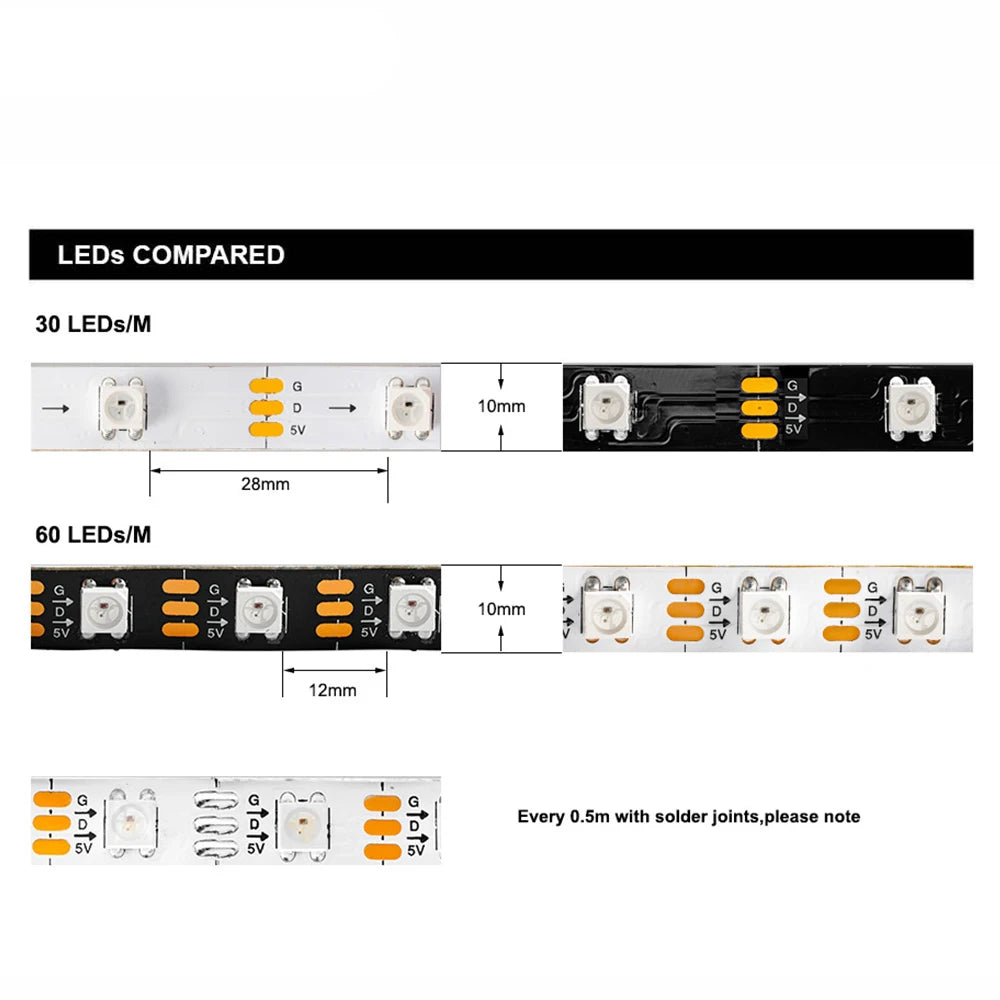

Every 0.5meter with solder joints, please note!
Pay attention:
White PCB / Black PCB
30leds/m, 60leds/m, 100leds/m, 144leds/m
IP30: Non-Waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube
Features:
Input Voltage:DC5v;
Power:30leds/m----9watt/meter
60leds/m----18watt/meter
100leds/m----30watt/meter
144leds/m----43.2watt/meter

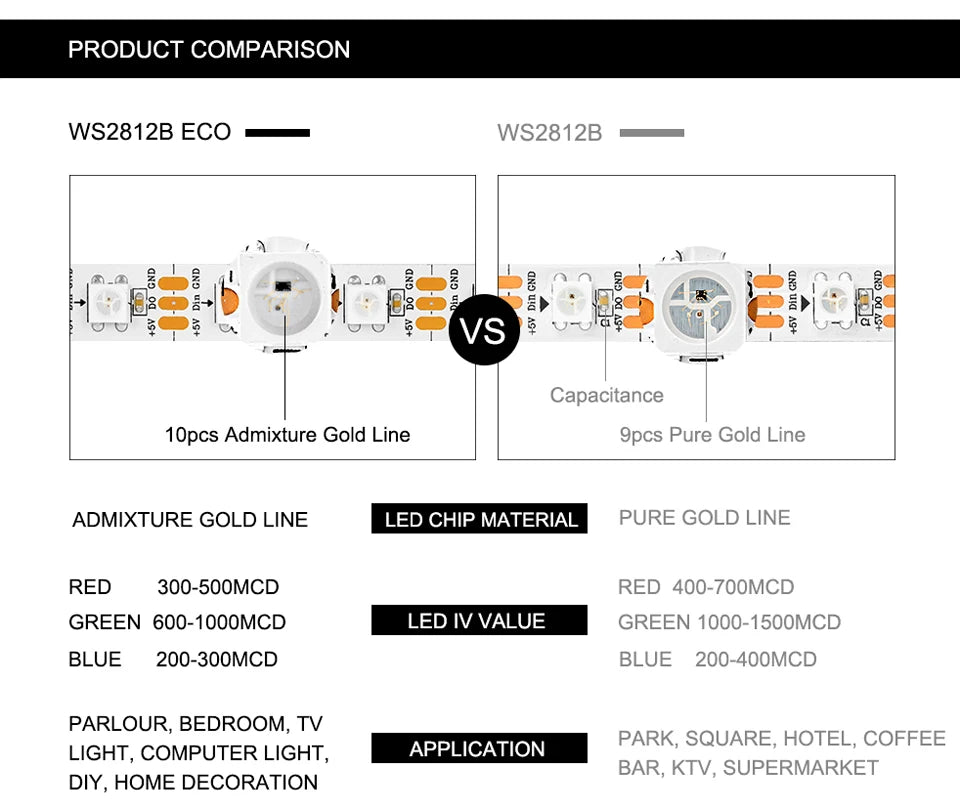

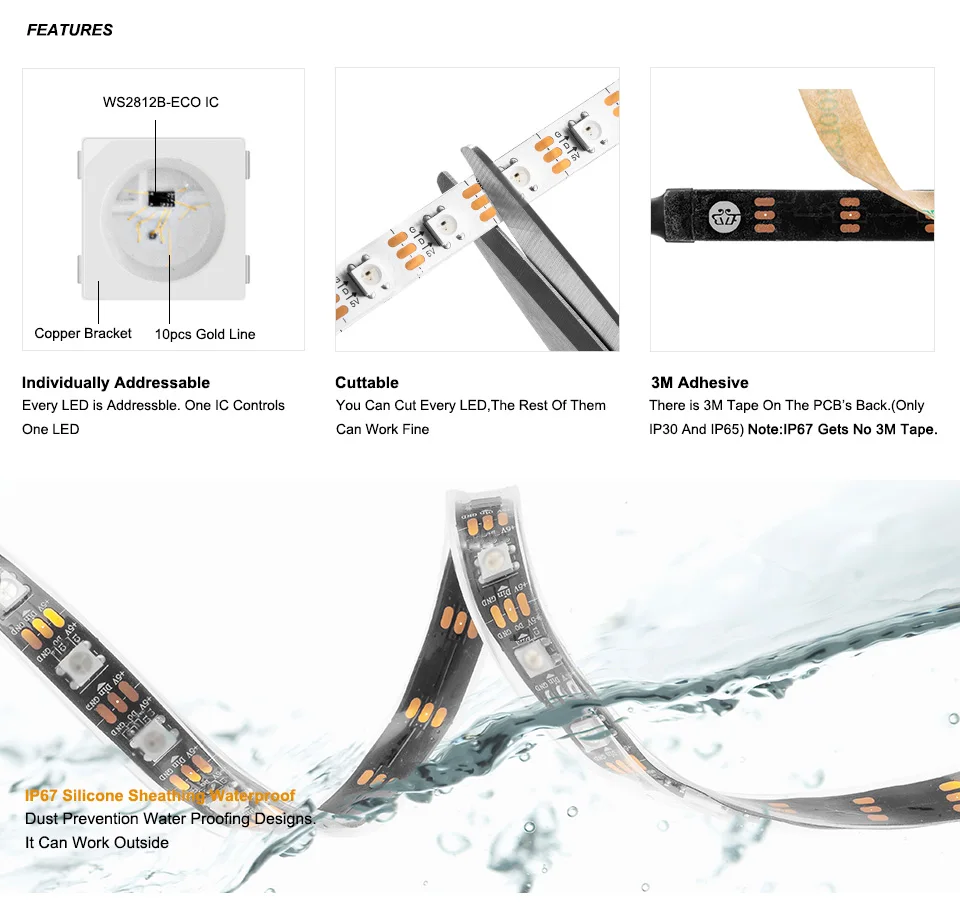

LED Resource: WS2812B ECO led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: Each LED is separately controlled
IC Type: Improved version ws2812 IC ( built inside the 5050 smd rgb led, 1 IC drives 1 led chip)
Pixels: 30/60/100/144/meter
Grey Scale: 256;
Bits/color:8-bits

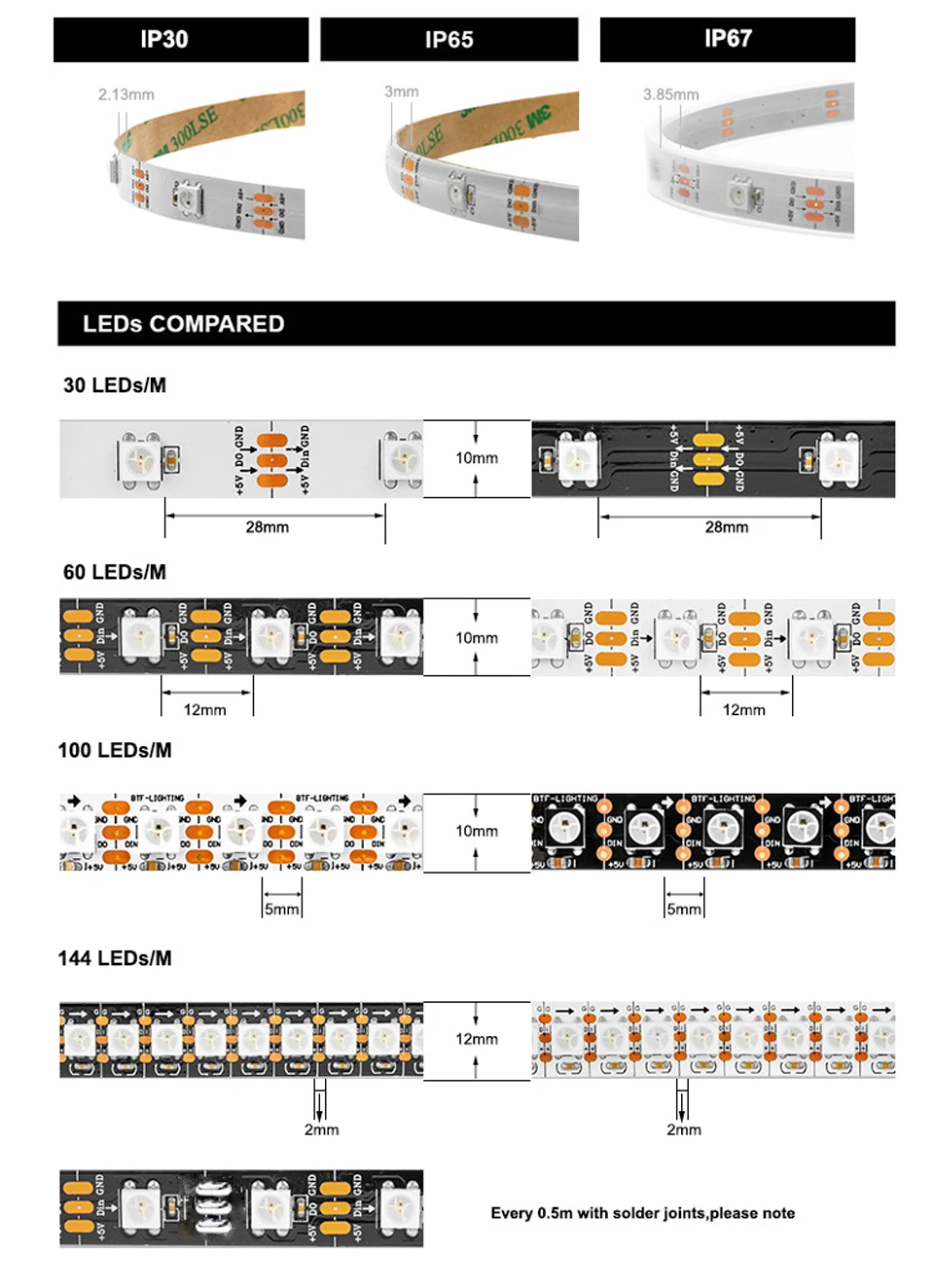

FPCB Width: 30leds/m----10mm
60leds/m----10mm
100leds/m----10mm
144leds/m----12mm
FPC Color: Black / White

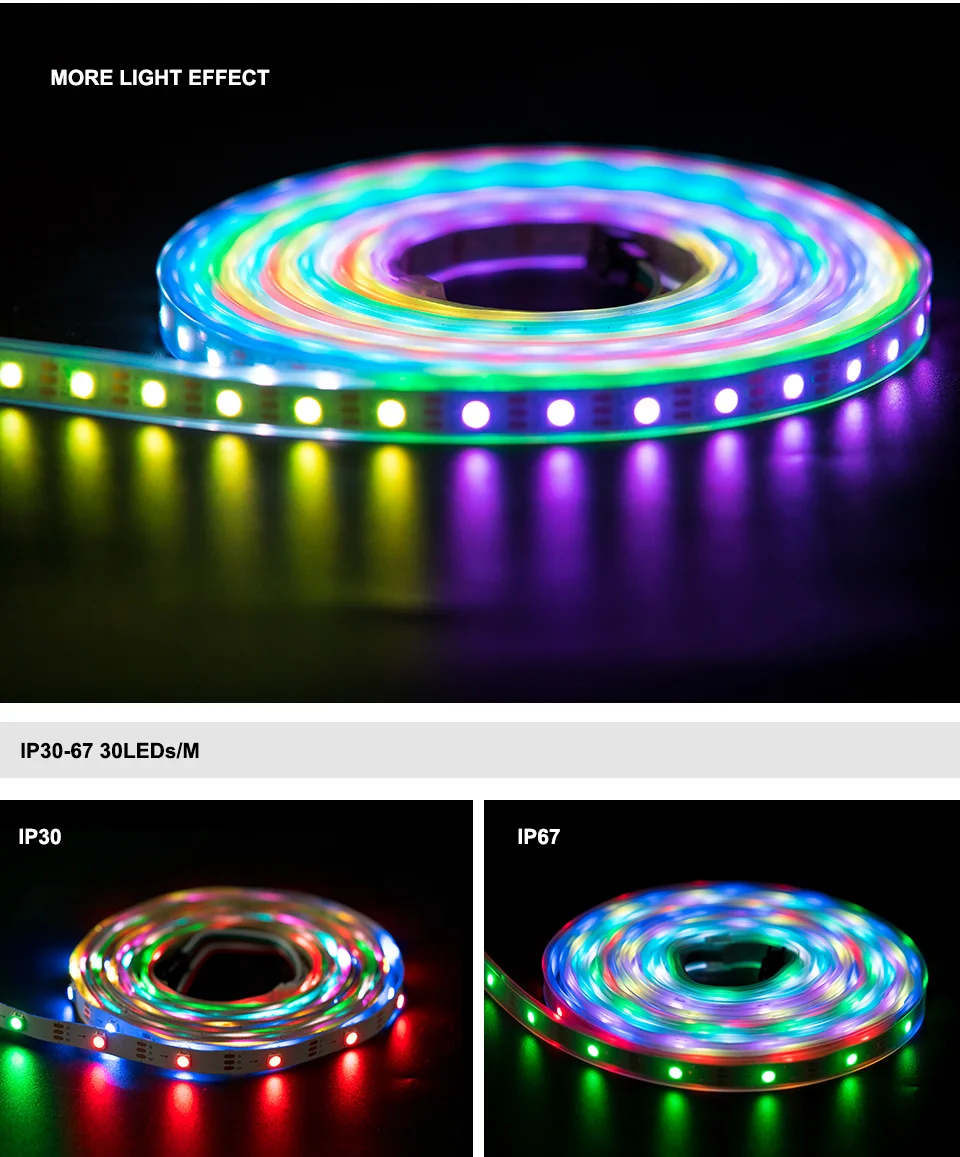

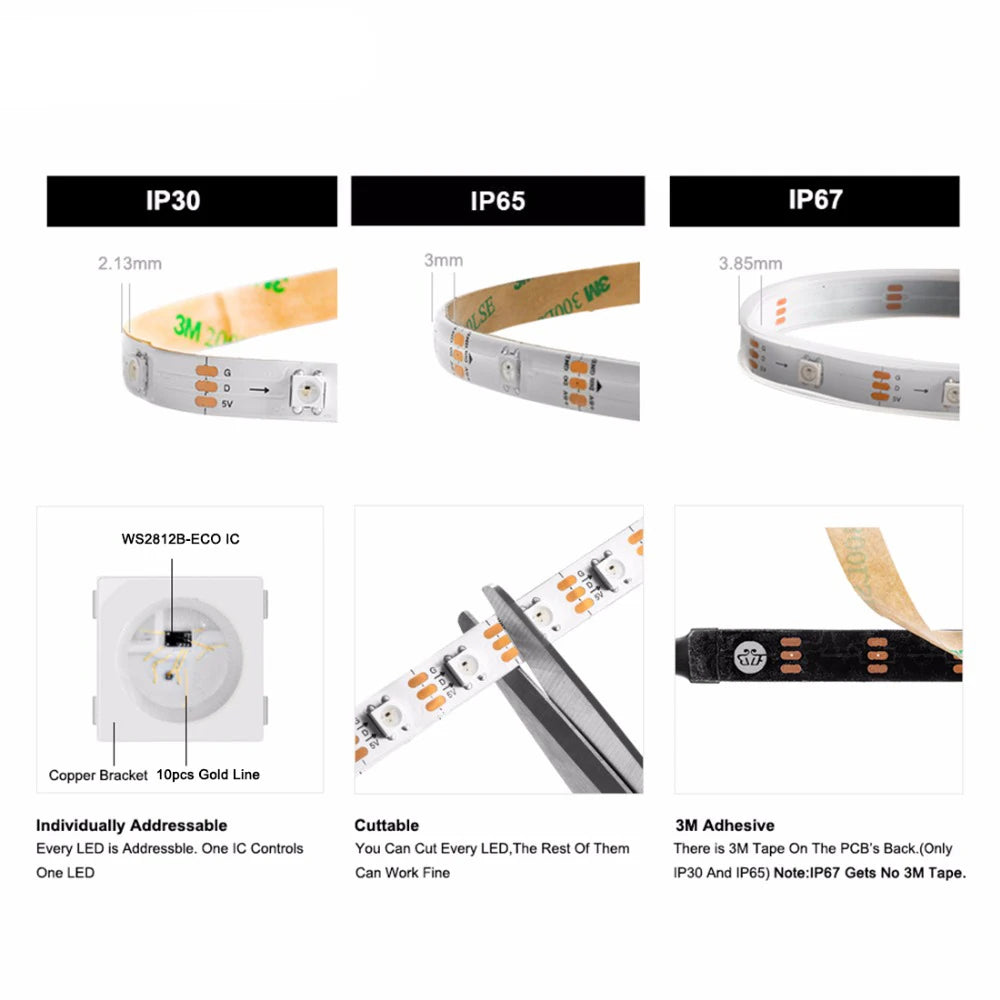

Protection Rate: IP30 Non-Waterproof
IP65 Waterproof in Silicon Coating
IP67 Waterproof in Silicone Tube
Colors: Full color RGB, Dream color changing
Cuttable: Every LED is cuttable

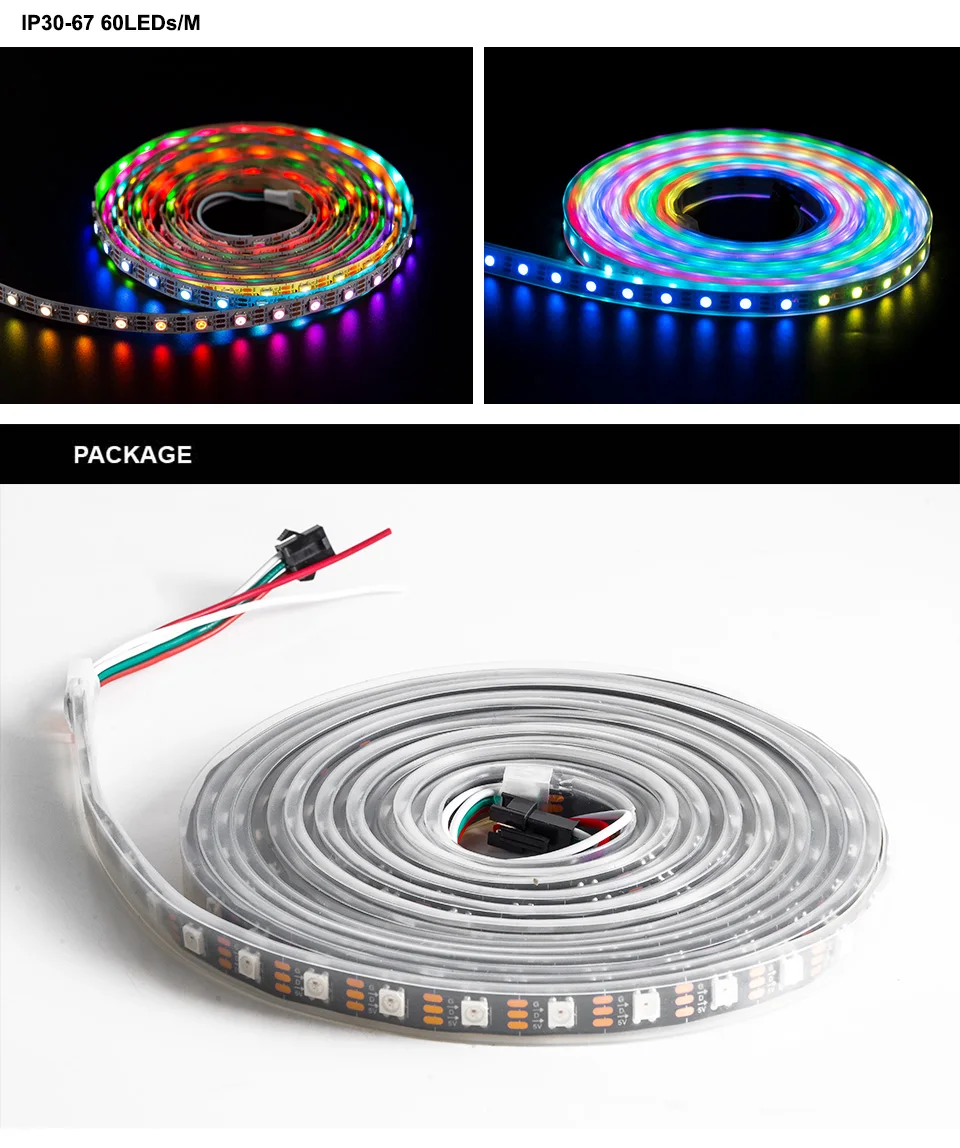

Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back
(IP67 without 3M adhensive)

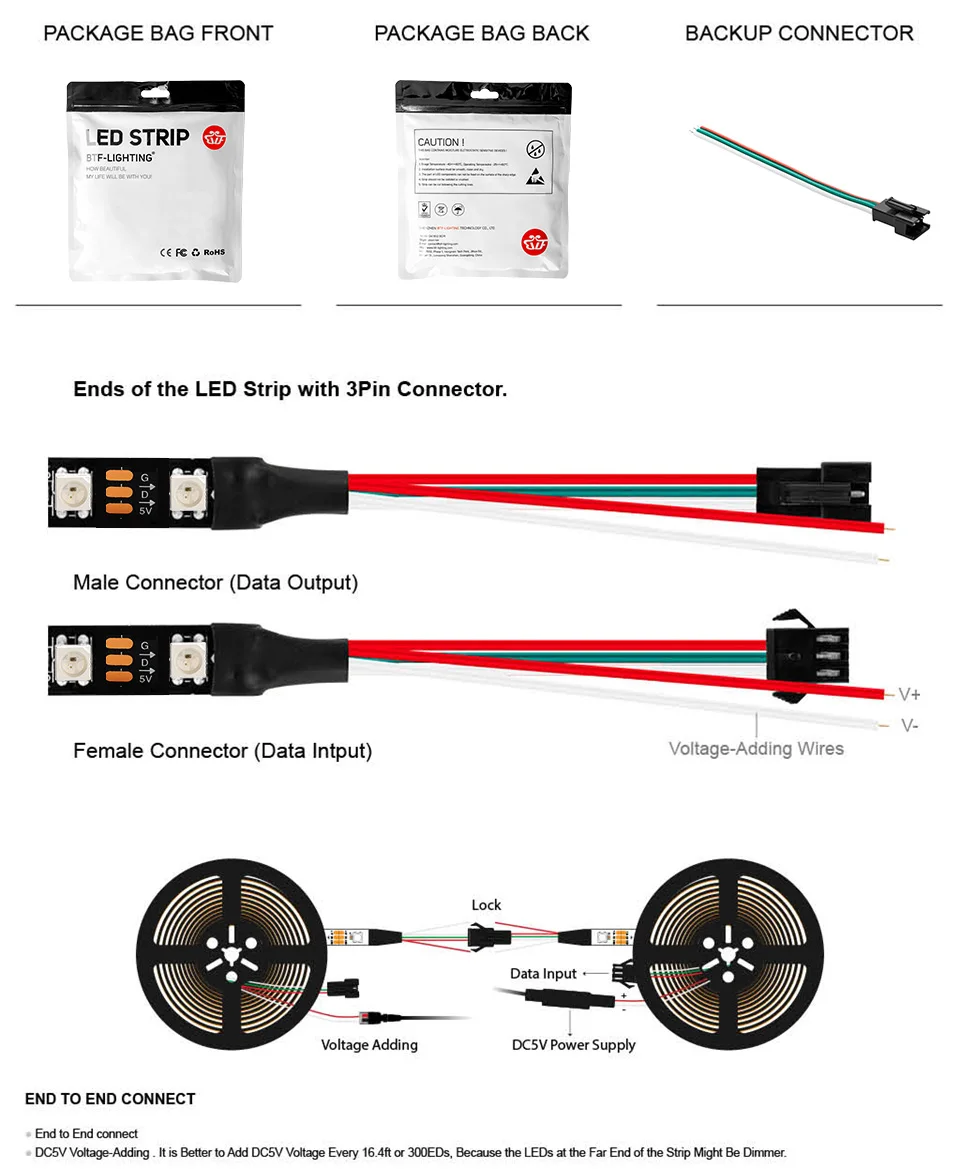

Each strip with one free male connector for connector
