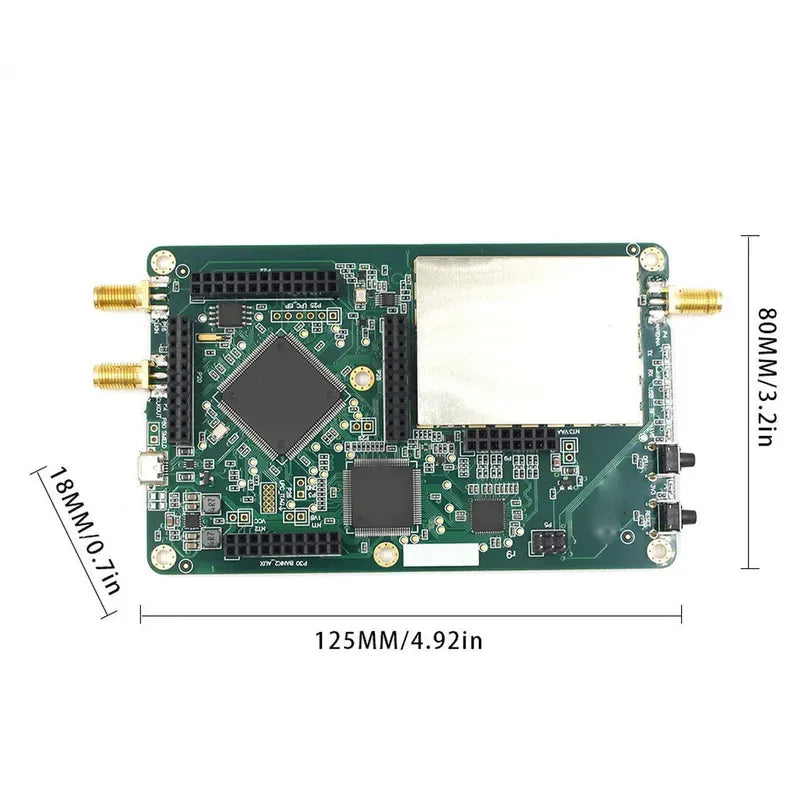

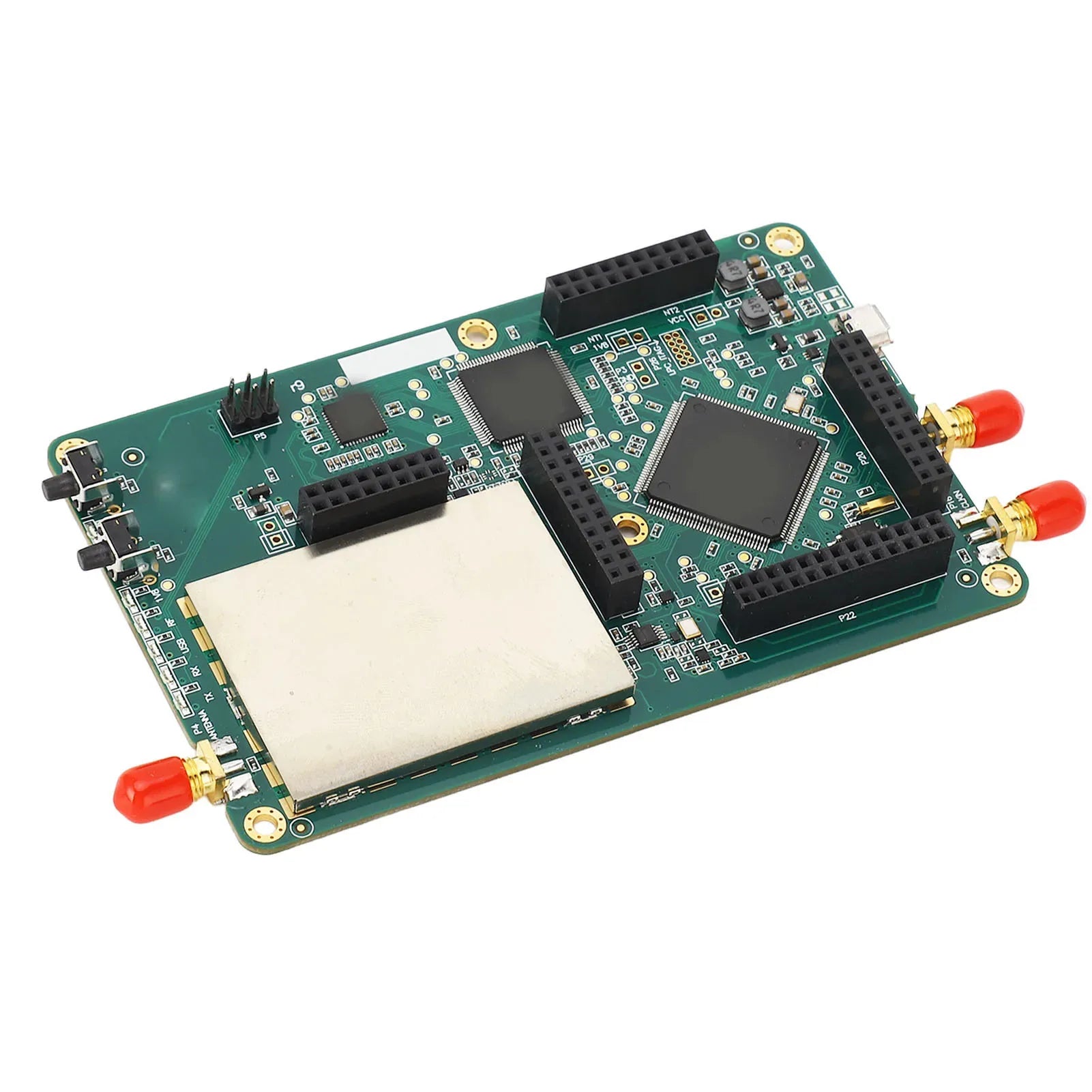

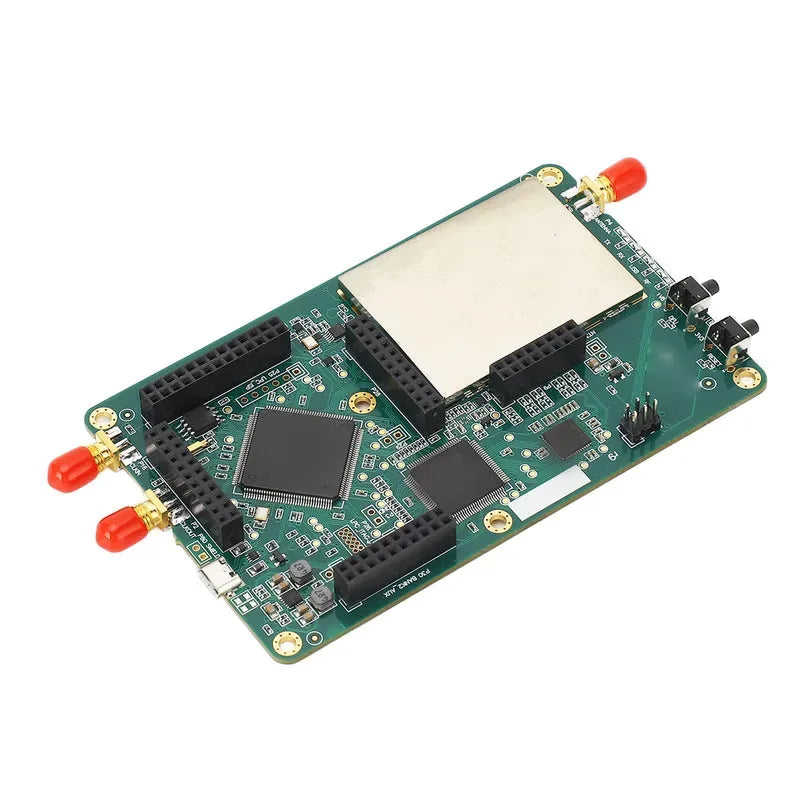

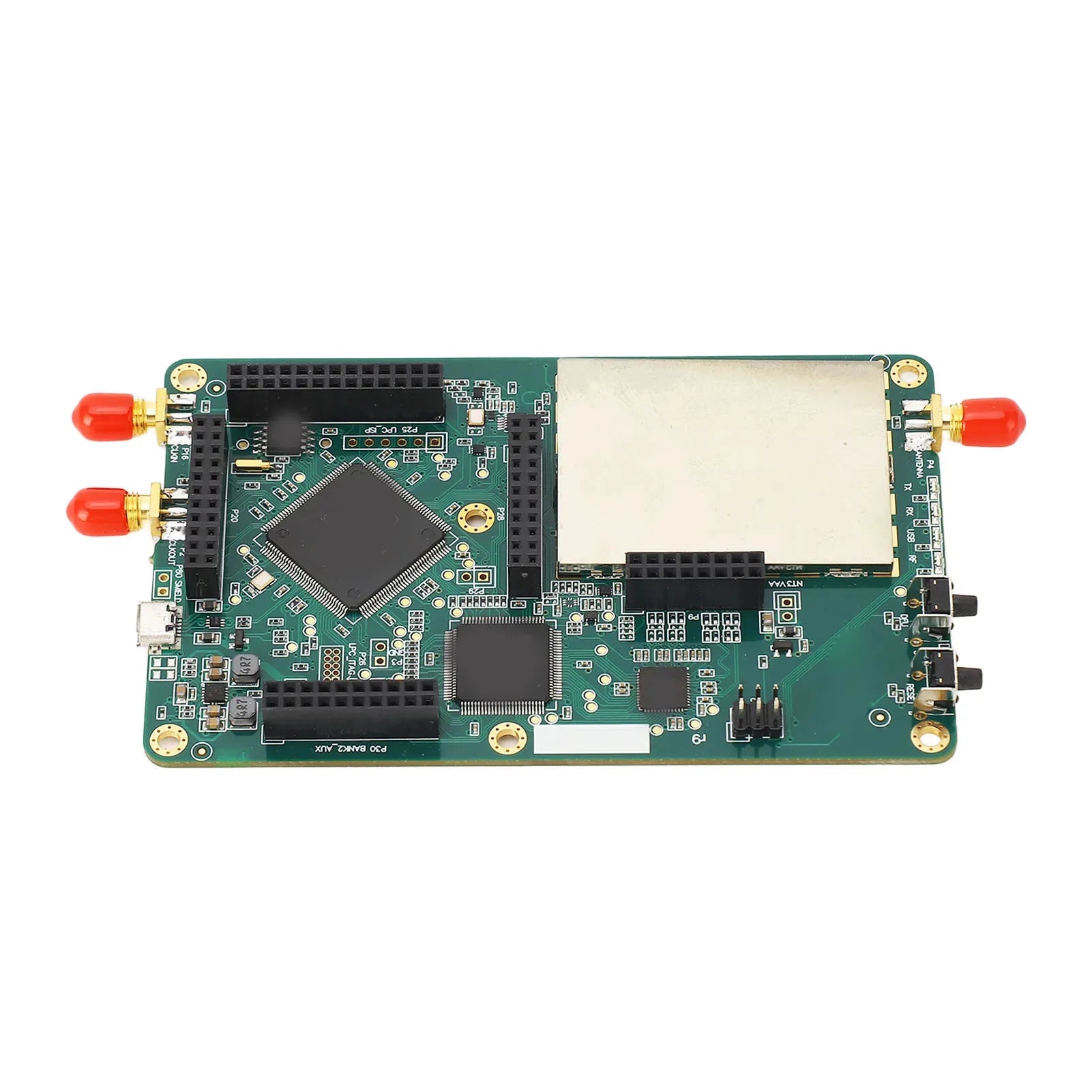

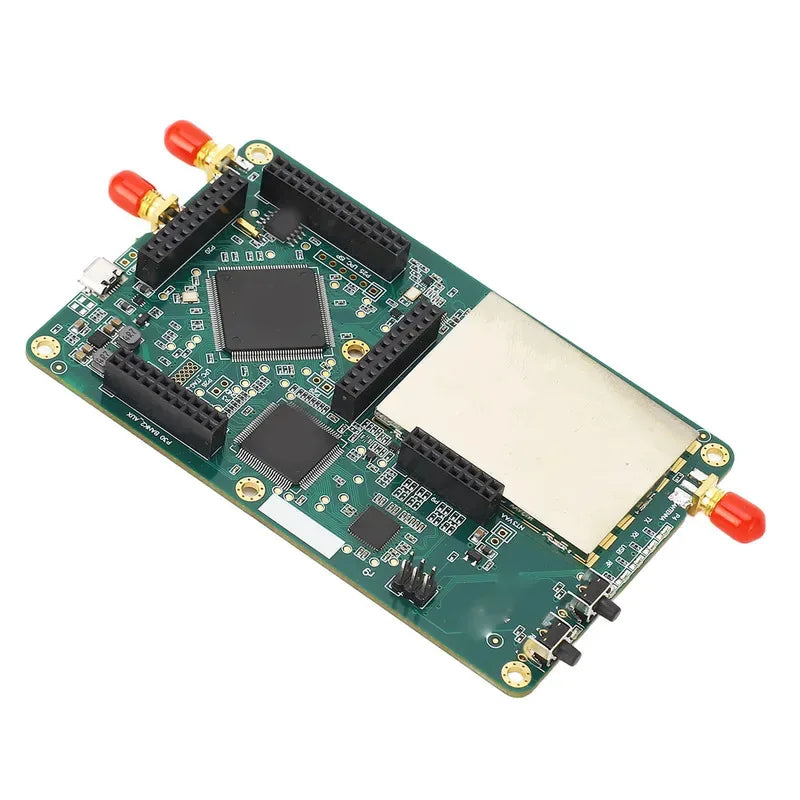

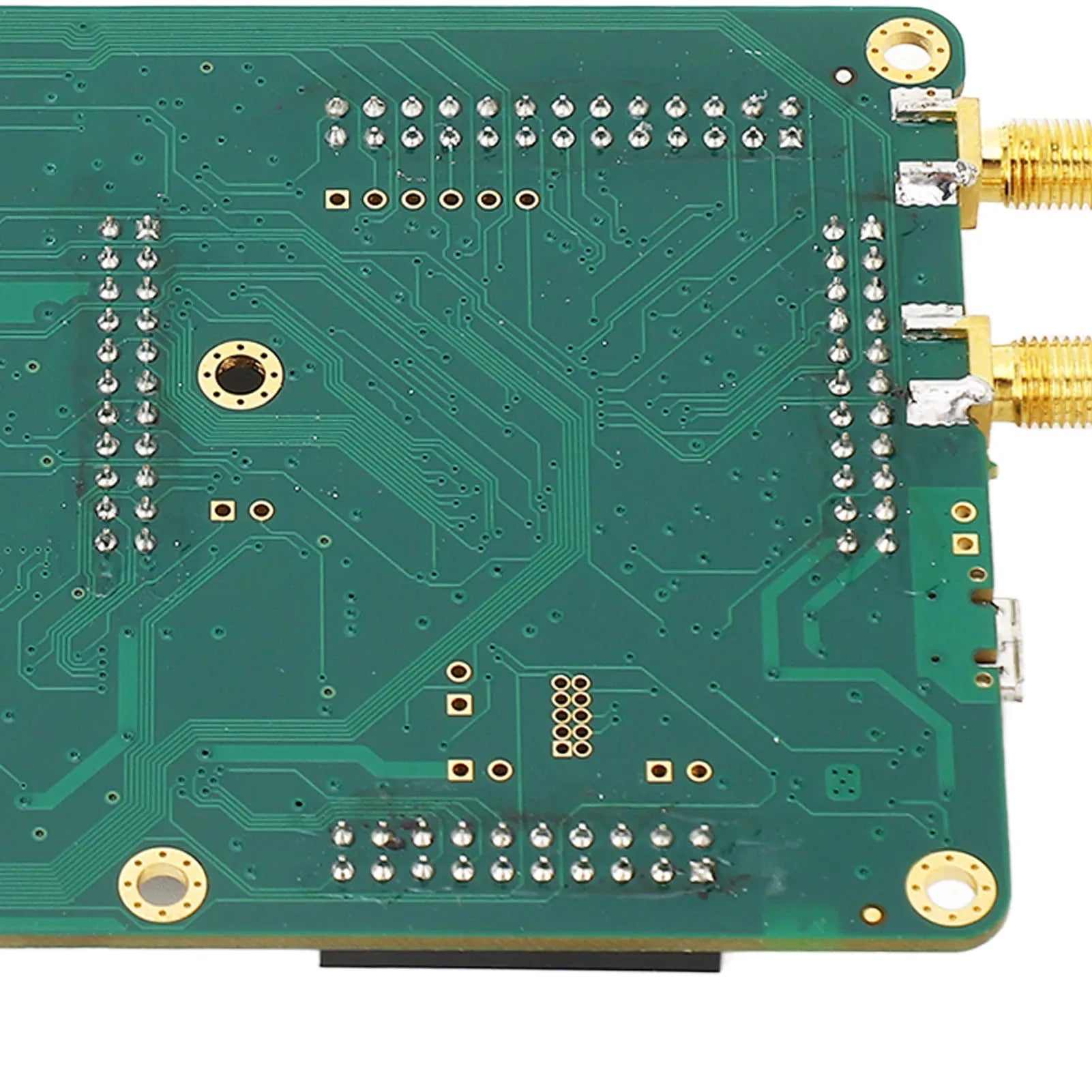

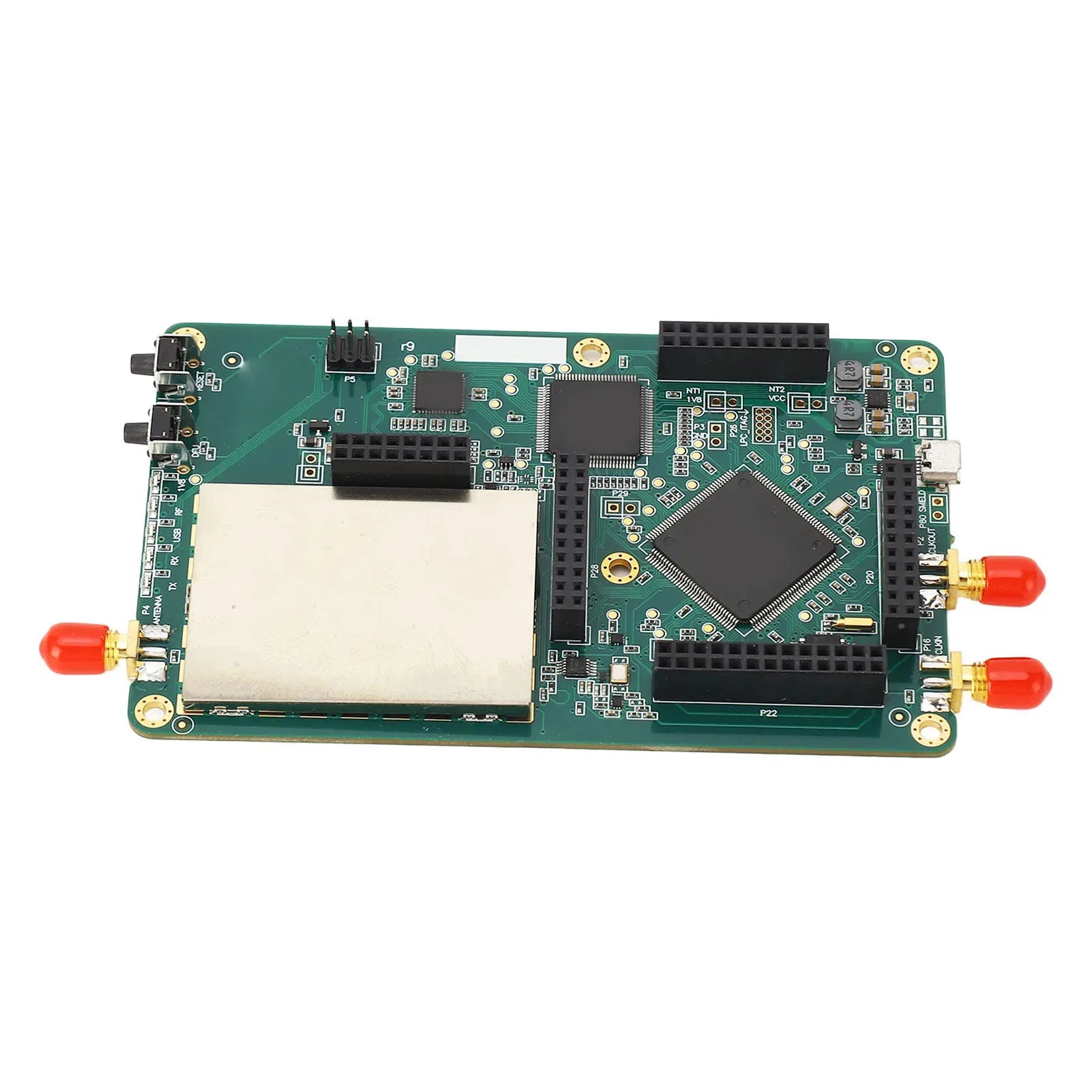

1mhz-6ghz Open Source Sdr Transceiver Dev Board || Ad9361 Fpga & Precision-tuned Rf Pcb, Usb3.0

1mhz-6ghz Open Source Sdr Transceiver Dev Board || Ad9361 Fpga & Precision-tuned Rf Pcb, Usb3.0

$839.07

$839.07 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Compatible Audio & Video Equipment Style: Digital-to-Analog Converter (DAC)

High-concerned chemical: none

Origin: Mainland China

1MHz to 6GHz Open Source Software Defined Radio Platform Accurate Tuning PCB SDR Development Board

Feature:

1.RADIO DEVELOPMENT BOARD: This product is a software defined radio peripheral that can transmit or receive radio signals from 1 MHz to 6 GHz.
2.MAIN FUNCTION: Designed to support the testing and development wireless technology, it is an open source hardware platform that can be used as a USB peripheral or programmed for independent operation.
3.ACCURATE TUNING: This USB SDR transceiver uses PPM calibration for more accurate tuning and stable performance, making it very easy to use.You can use it with confidence.
4.COMPACT AND CONVENIENT: This portable radio transceiver is small in size, lightweight, and easy to install and use.
5.ADDITION FUNCTIONS: For certain functions such as world maps, GPS simulators, etc., you need to prepare Micro storage cards(not included) in for H2 and 1G or above FAT32 format.

Specification:

Item Type: Software Defined Radio Platform
Material: PCB
1 MHz to 6 GHz operating frequency
Half duplex transceiver
Up to 20 million samples per second
8 bit orthogonal samples (8 bit I and 8 bit Q)
Suitable for GNU Radio, for SDR#, and for example
Software configurable RX and TX gains and baseband filters
Software controlled antenna port power supply (50 mA at 3.3 V)
SMA female antenna connector
SMA master clock input and output for synchronization
Convenient
Programming Button: Internal Pin Expansion
High speed USB 2.0
USB powered
Open source hardware
For One 1 MHz to 6 GHz for SDR Platform Software Defined Radio Development Board
High speed USB 2.0
USB powered

How to Use:

Upgrade for One R9:

For MAXIMUM2837. What replaced by for MAXIMUM2839. For Si5351C has been replaced by for Si5351A with additional clock allocation. Add a series diode to the antenna port power supply.

Package List:

1 x Development Board

1 x Antenna

1 x USB Cable

Note:

1.Supports the latest firmware, and the current firmware defaults to for Mayhem firmware v1.7.3.

2. For certain functions such as world maps, GPS simulators, etc., you need to prepare Micro storage cards(not included) in for H2 and 1G or above FAT32 format.
