SPECIFICATIONS

Features:

*100A 120A 150A 200A Optional,Providing flexibility for different power needs.

*Through Wall Type:Designed to be installed through the wall, this lithium battery connector allows for convenient and secure connection without the need for complex wiring.

*Lithium Battery Energy Storage Terminal:Specifically designed for use with lithium batteries, this terminal ensures efficient power transfer and reliable performance.

*High Current Capacity:With a high current rating, this connector is capable of handling heavy loads, making it suitable for various applications that require high power output.

*Copper Terminal:Made of high-quality copper material, this terminal ensures excellent conductivity and durability, minimizing power losses and maximizing efficiency.

*All copper lithium battery terminals, high current copper terminals, battery connectors, energy storage terminals

*Good electrical conductivity, made of pure copper, nickel plating process, conductive, wear-resistant, and anti-oxidation.

*Snap-on guard, dust cover, easily replaceable brass nose and crimp screws are standard components.

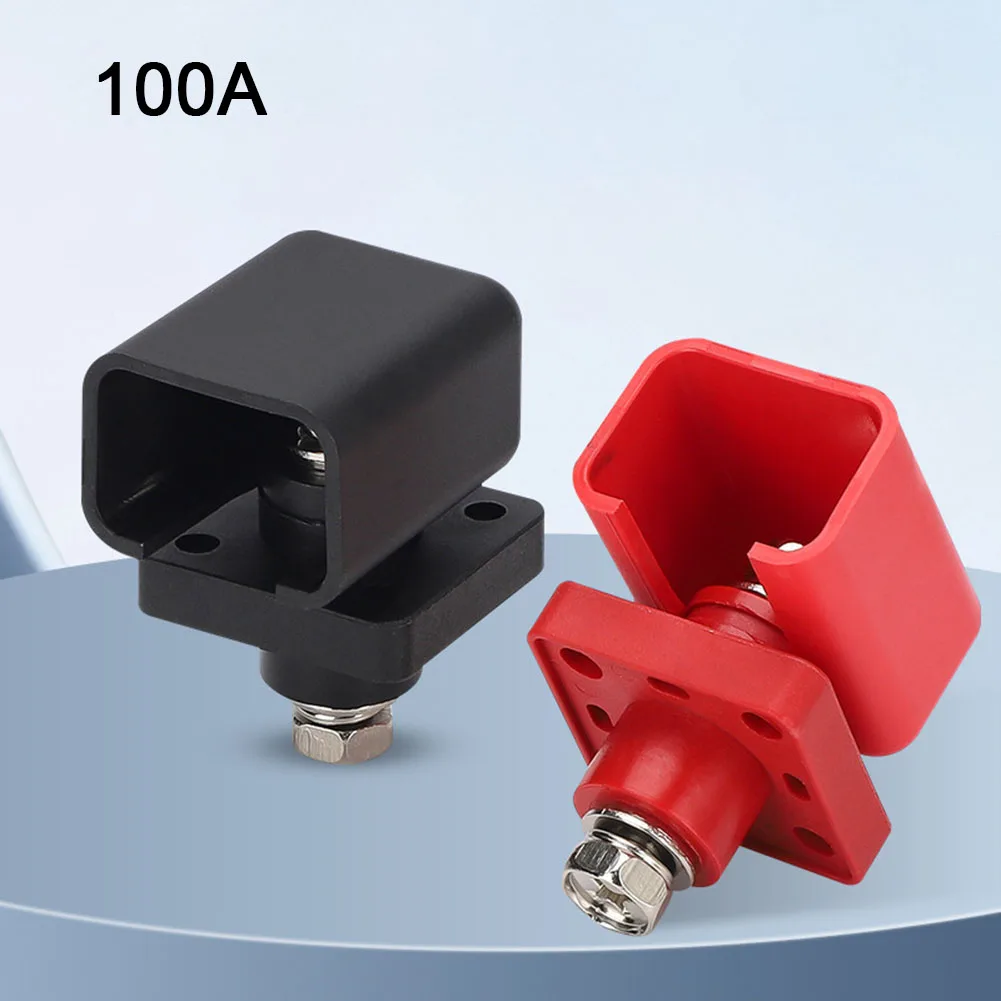

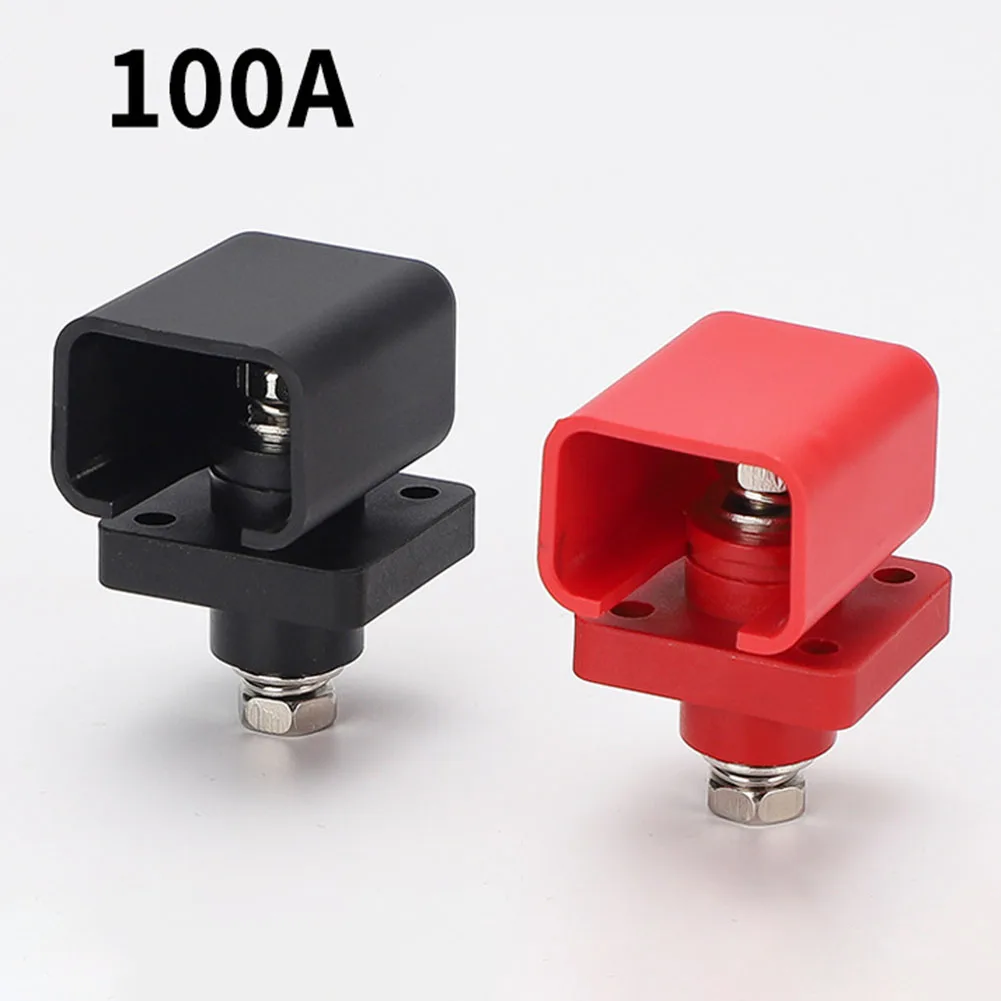

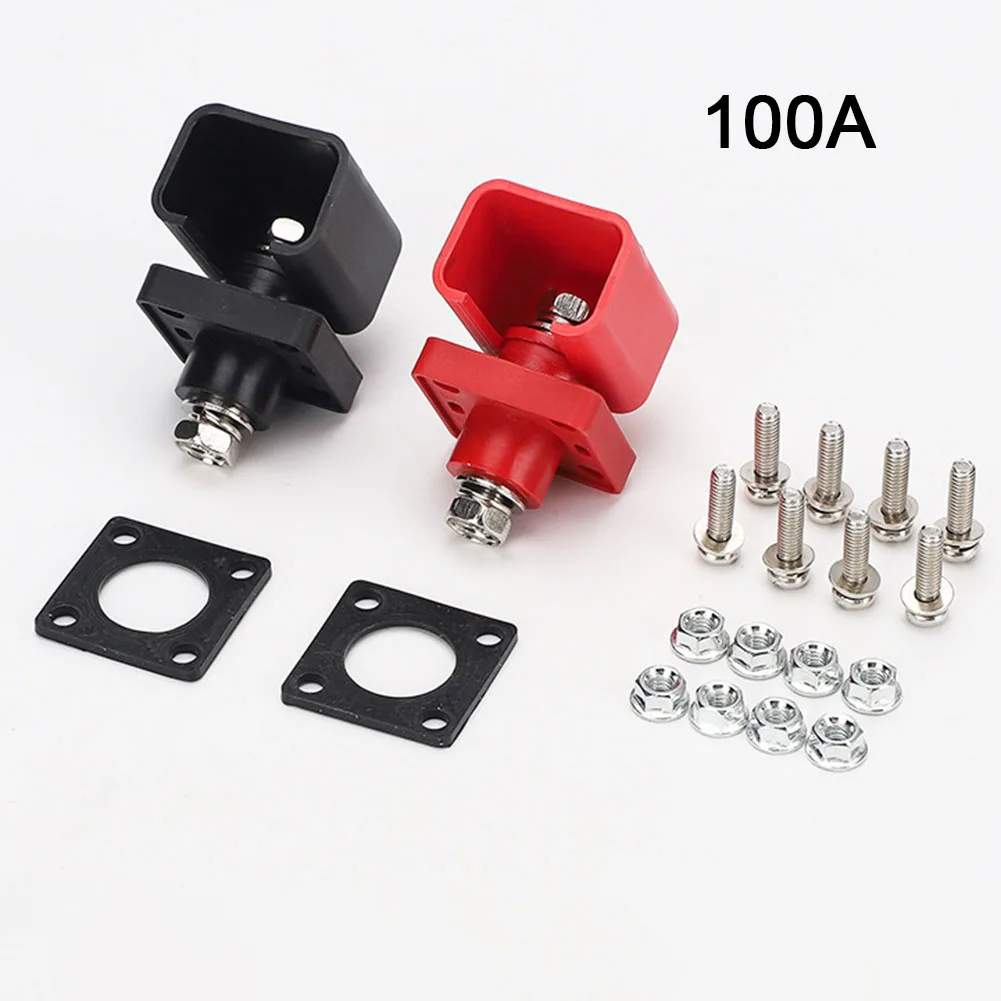

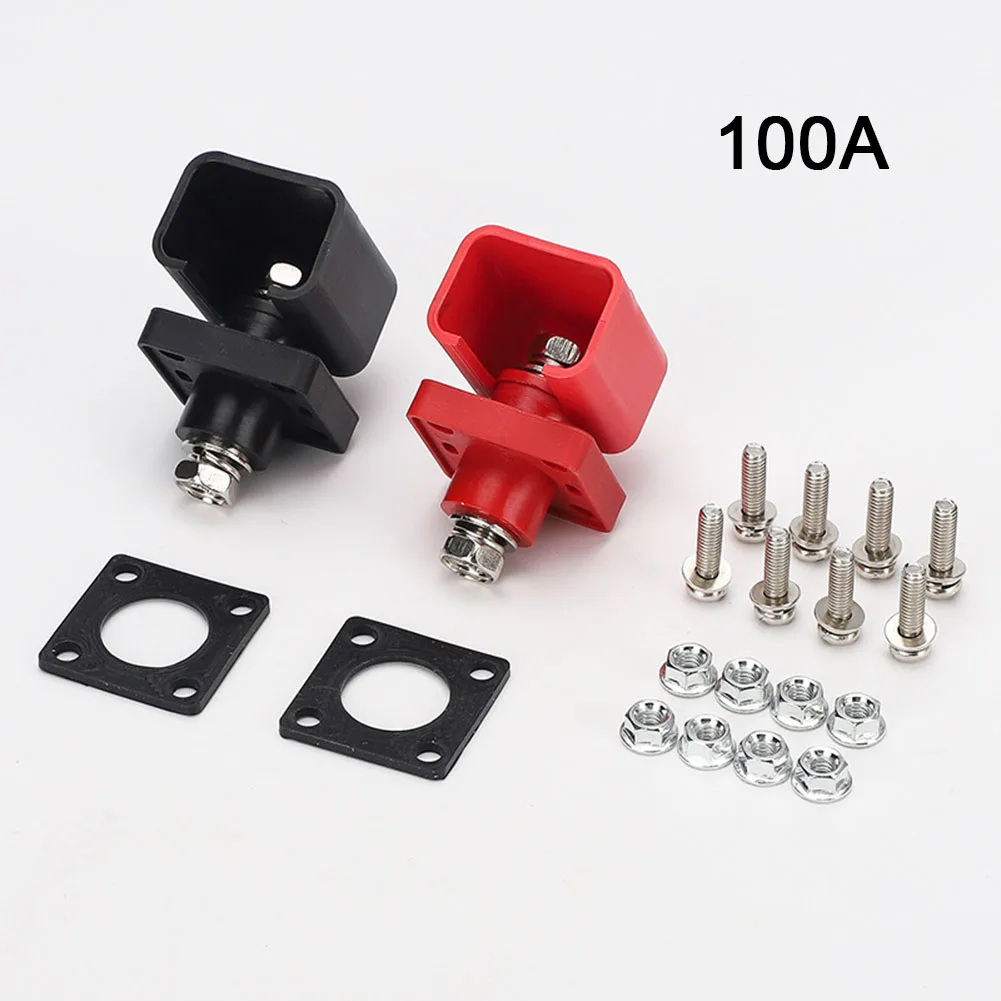

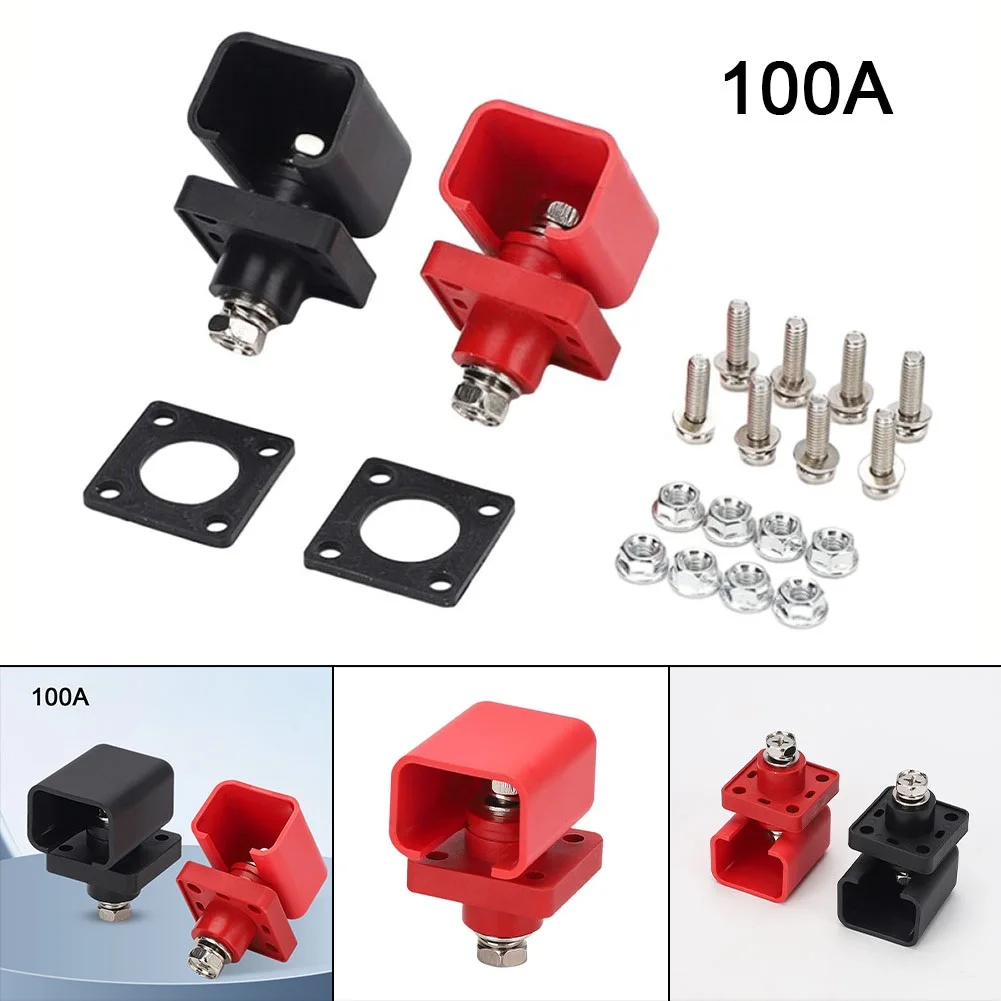

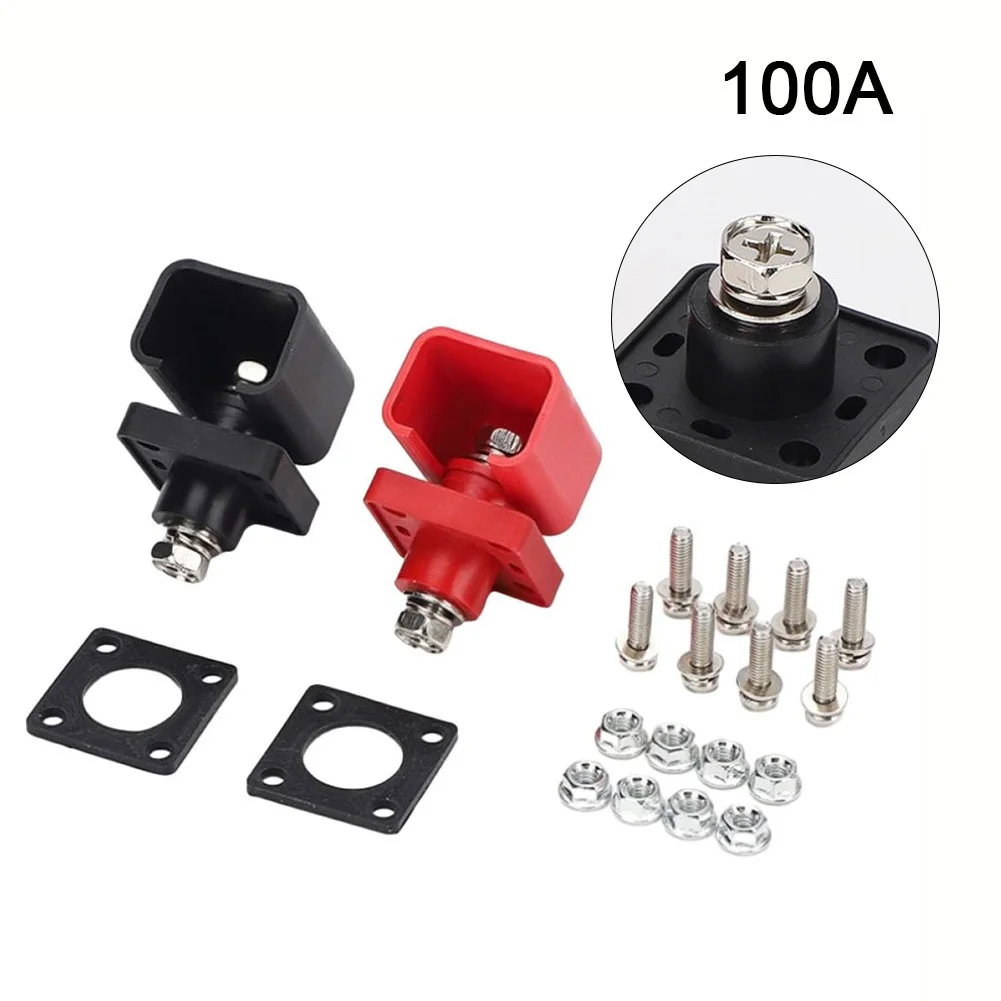

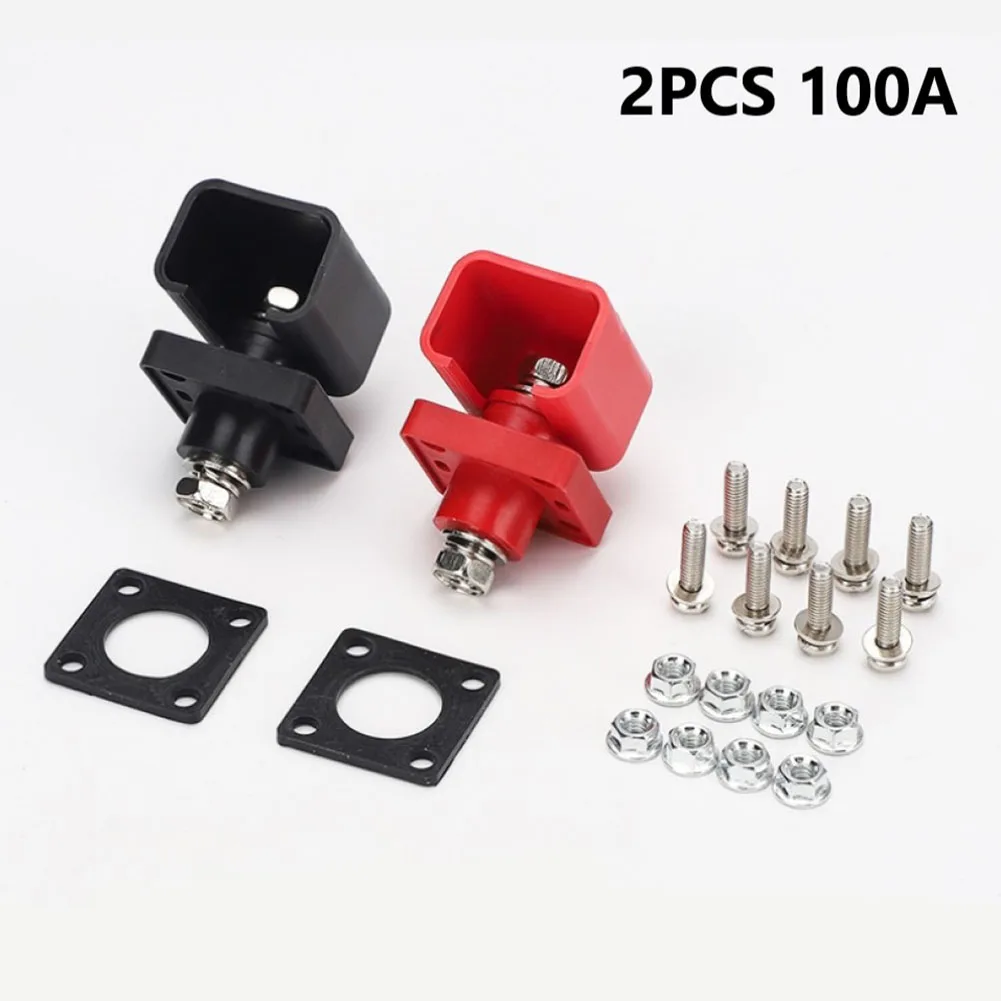

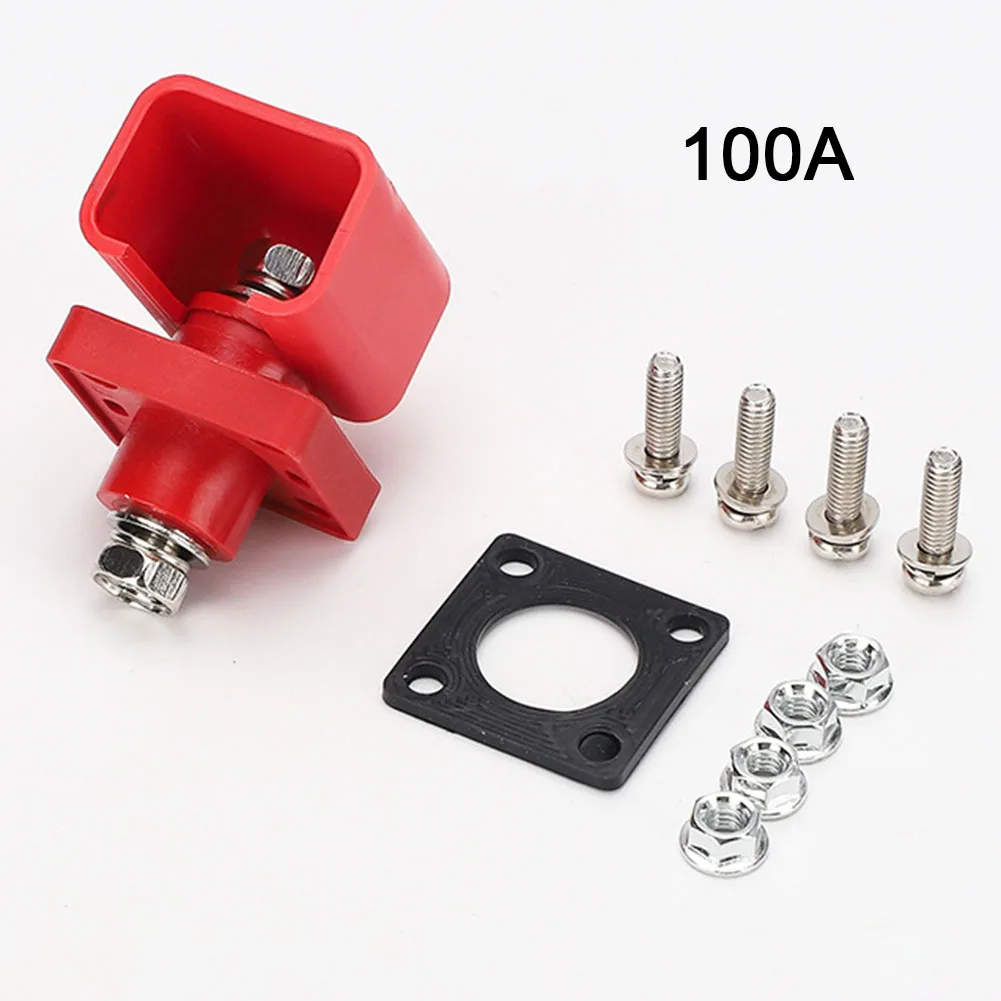

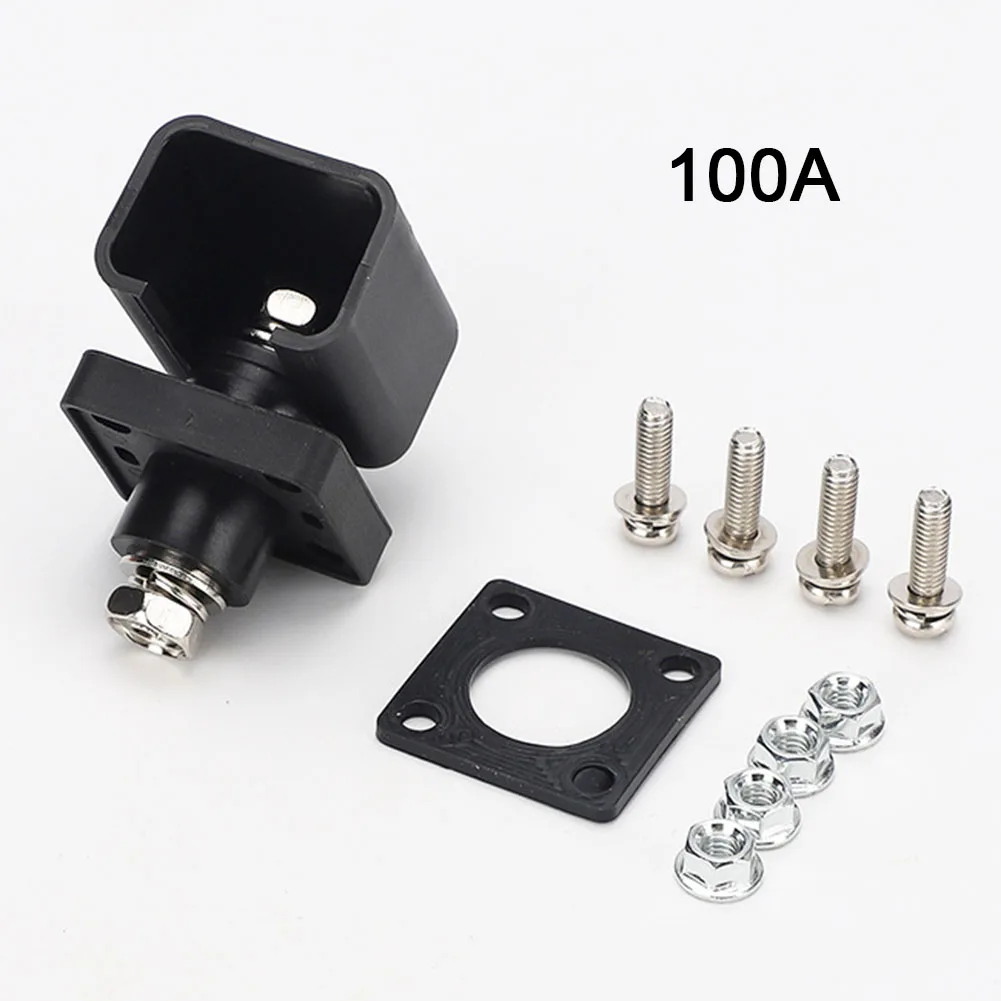

100A Square Specification:
*Product type: wall-mounted
*Rated current A: 100
*Rated voltage V: DC1000V
*Rated cross-sectional area mm²: 10
*Installation method: screw fixing
*Minimum contact voltage range: 4
*Maximum voltage range: 35
*Outline dimensions mm: 30*30
*Installation size mm: 20*20
*Flame retardant grade: UL-V0
*Electrical life: 15

120A/150A Square Specifications:

*Part Name:Battery Energy Storage Copper Terminal Connector

*Material:Copper

*Size:About 35.5*35.5 mm

*Color:Red+Black

*Styles:120A,150A(Rated current, optional)

*Waterproof rating:IP67

*Rated voltage:600V AC

*Operating temperature:-40~105℃

*Terminal material:Brass nickel plated

*Dielectric strength:>3000VAC/min

*Plastic shell material:PA66(flame retardant glass fiber reinforced)

*Mounting screw:M-four*16MM

*Thread size: M6 (120A), M8 (150A)

200A Square Specification:
*Product type: wall-mounted
*Rated current A: 200
*Rated voltage V: DC500V
*Installation method: screw fixing
*Plug and unplug life times: permanent use
*Protection level: IP67
*Product Series: Terminal Blocks
*3C rated voltage range V: 220-240
*Wire core diameter mm: M8
*Socket type: fixed terminal
*Shell material: flame retardant PA66
*Installation method: panel installation
*Scope of application: new energy lithium battery energy storage cabinet
*Color: black+red

Specification(WITHOUT COVER):
*Current: 120A, 150A, 200A (optional)
*Rated voltage V: AC500V
*Number of poles: 1P
*Number of needle cores: 1 core
*Plug life: permanent use
*Protection level: IP67
*Product Series: Terminal Blocks
*3C rated voltage range V: 200-250
*Connector material: copper
*Shell material: flame retardant PA66
*Wiring method: screw fixed
*Scope of application: New energy lithium battery energy storage cabinet
*Color: black+red
*Operating temperature: -20-105
*Flame retardant grade: V0

Package Included:
2x battery connectors (without cover)

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
