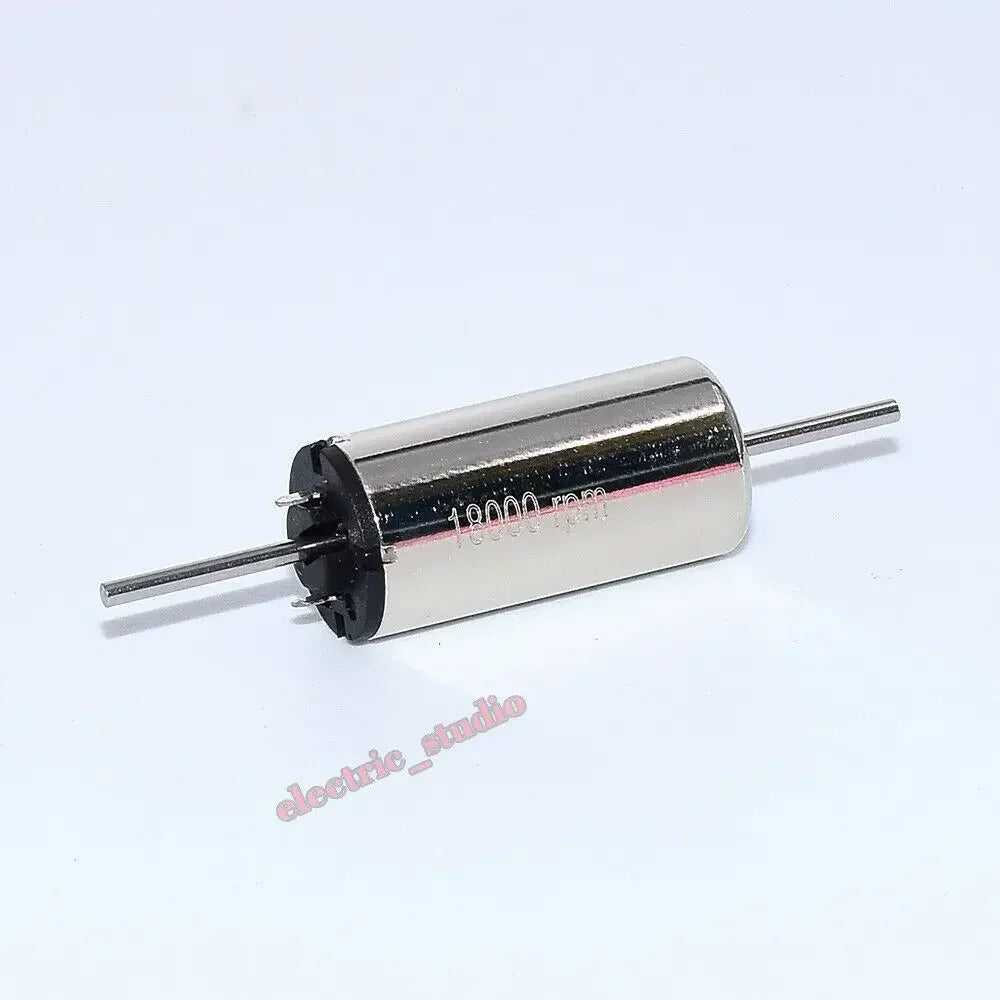

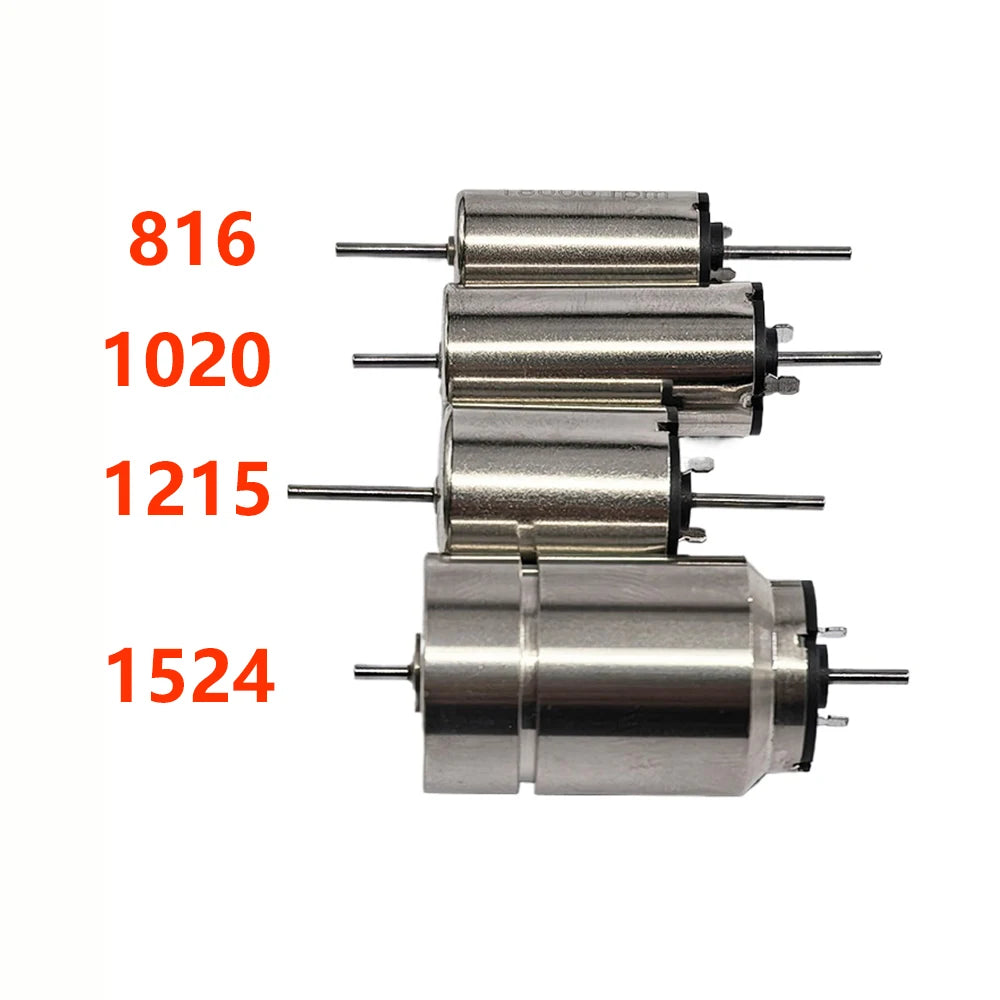

1PC DC 12V 816 1020 1215 1524 Coreless Motor Dual Shaft High Speed for Rail Train
1524 10500RPM / 12V / 0
$96.56
Sale price
$96.56
Regular price
$0.00
Skip to product information
1PC DC 12V 816 1020 1215 1524 Coreless Motor Dual Shaft High Speed for Rail Train
$96.56
Sale price
$96.56
Regular price
$0.00
Description
SPECIFICATIONS
Actual Rated Input Voltage: DC 6V-12V
Brand: Motorhouse
Brand Name: NONE
Certification: NONE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
DC Stator/Winding Type: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: none
Model: Dual shaft coreless motor
Model Number: Dual shaft coreless motor
Origin: Mainland China
Output Power: ＜18.65
Power Source: DC
Shaft Type: Straight
Special Motor Construction: Spindle Motor
Type: Micro Motor
Use: Home Appliance
semi_Choice: yes
Specification:

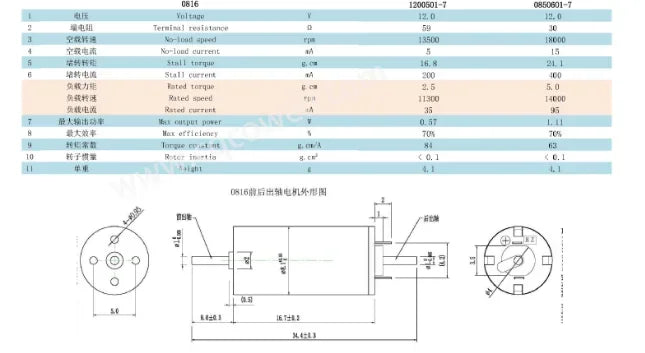

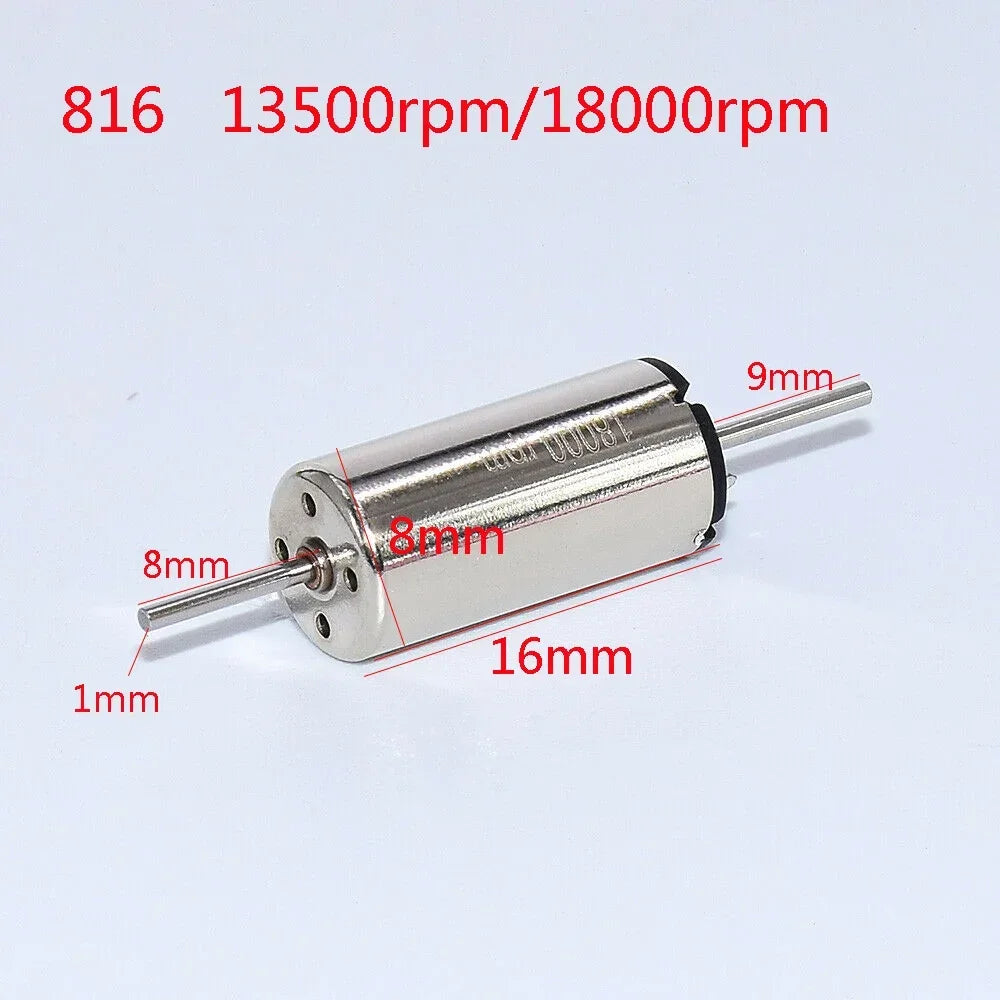

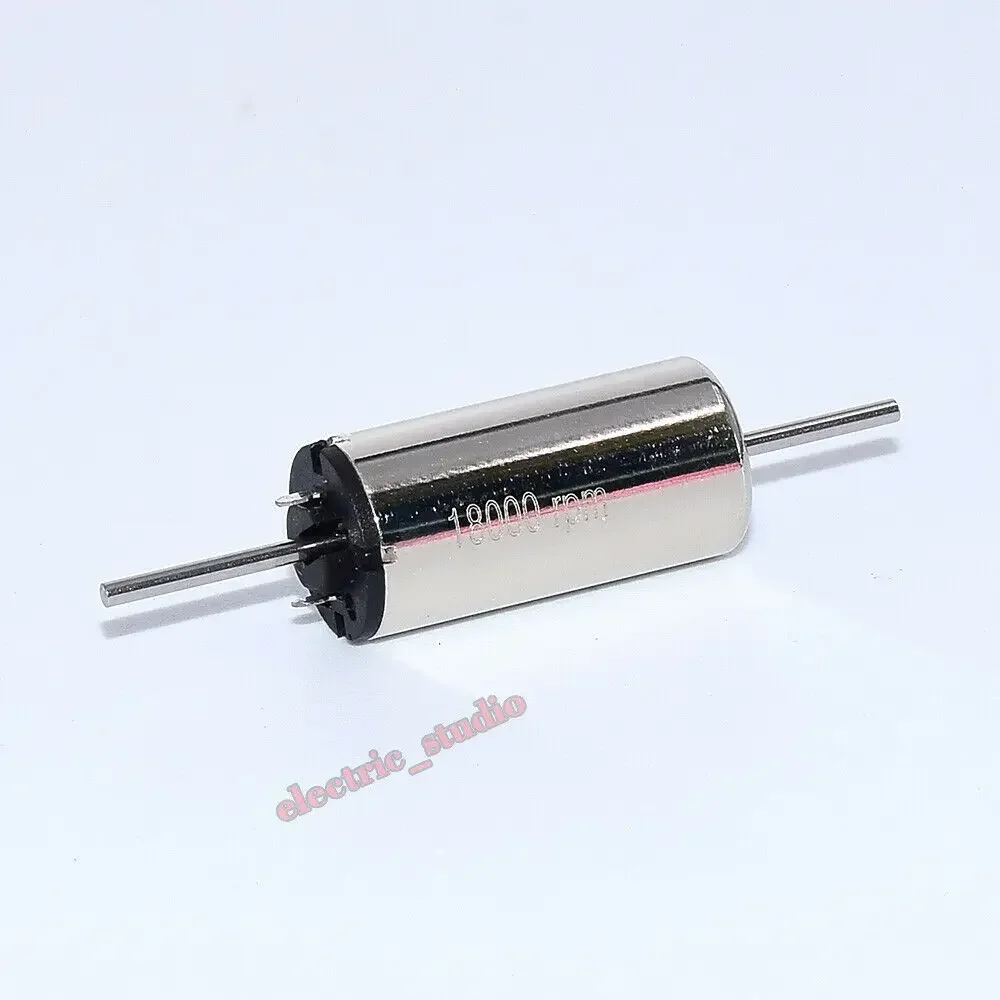

8mm*16mm coreless motor
1.Model: 816 mini coreless motor
2.Motor diameter: 8.1mm
3.Motor length: 16.7mm
4.Output shaft diameter: 1.0mm
5.Output shaft length: 8mm/9mm
6.Weight: About 4.1g
7.Voltage range: DC 6V-12V
8. Rated voltage: DC 12V
9. No-load speed: 13500RPM/ 18000RPM
10.Application: Mainly used for micro hobby toy model, toy rail train and other machines.
==============================================================================

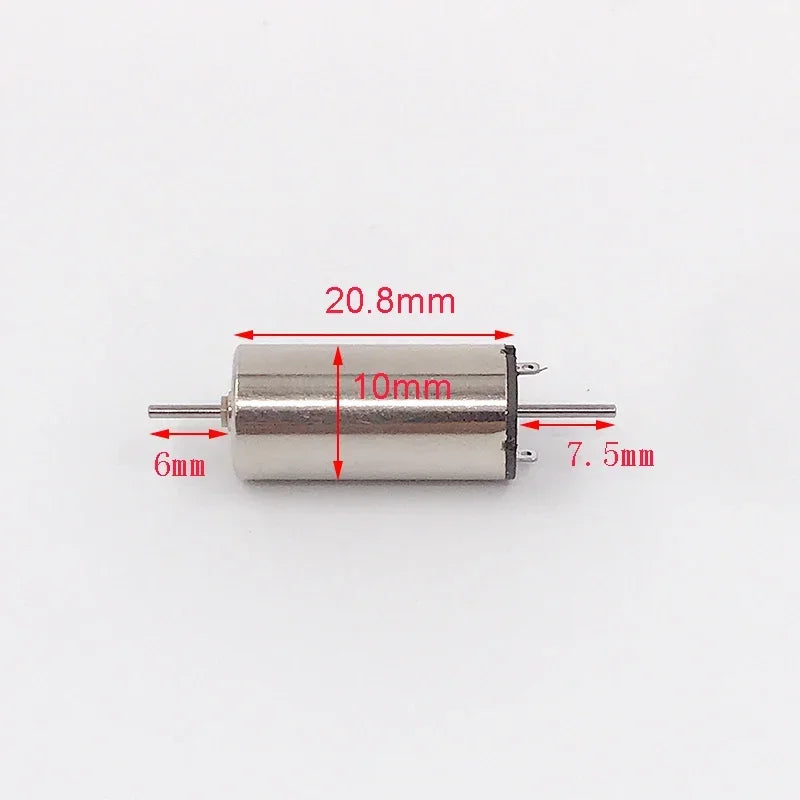

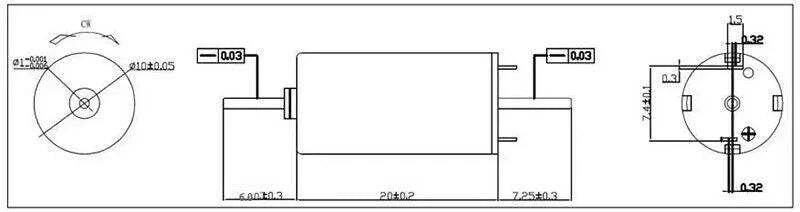

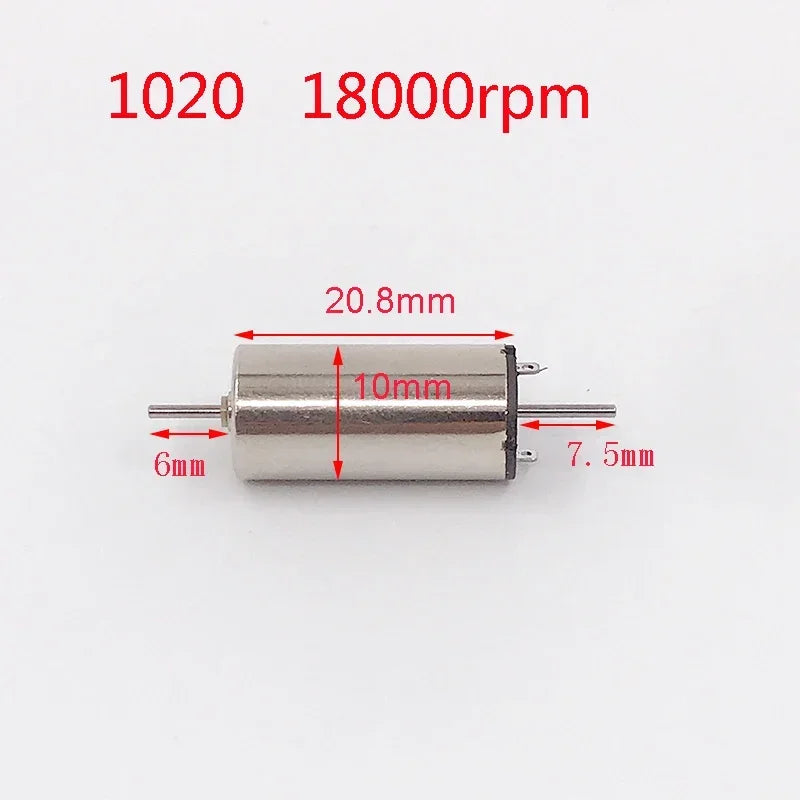

10mm*20mm coreless motor
1.Model: 10mm*20mm coreless motor
2.Motor diameter: 10mm
3.Motor length: 20mm
4.Output shaft diameter: 1.0mm
5.Output shaft length:6mm(Front output shaft)/7.25mm(Rear output shaft)
6.Weight: 7g
7.Voltage range: DC 6V-12V
8.Test data:
Voltage:6V No-load speed:9000RPM
Voltage:12V No-load speed:18000RPM
9.Application: Mainly used for micro hobby toy model, toy Rail train and other machines.
================================================================================

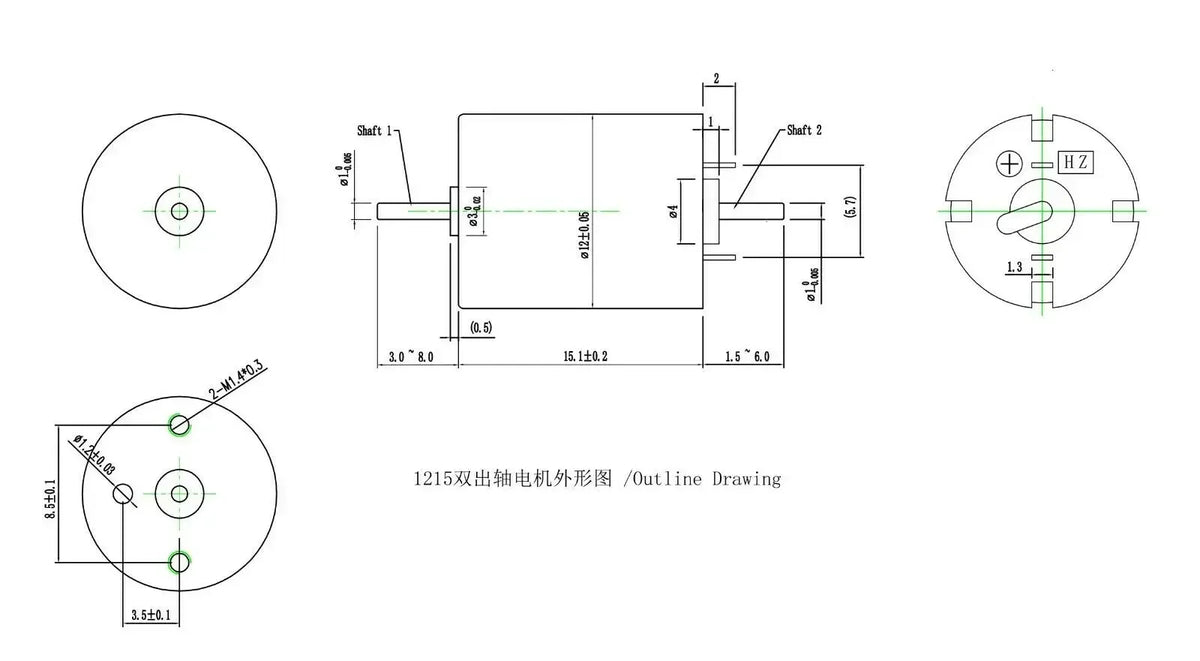

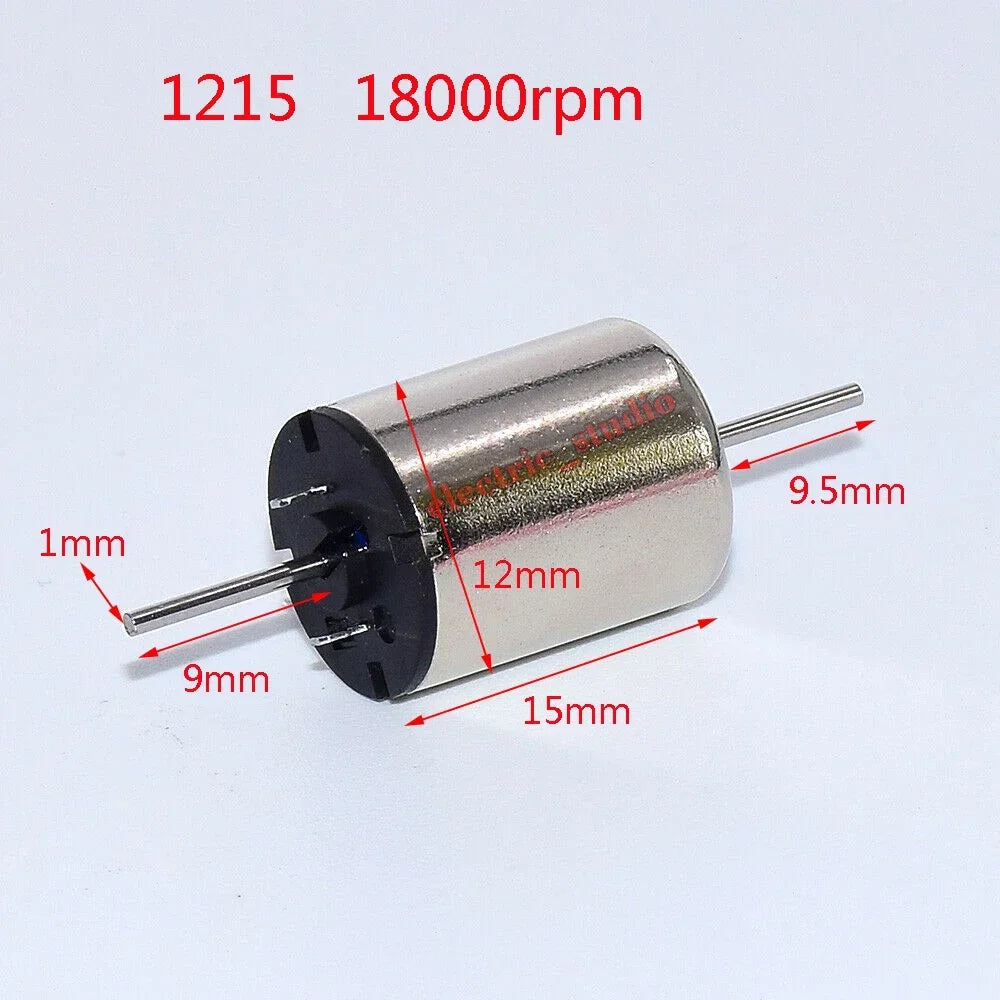

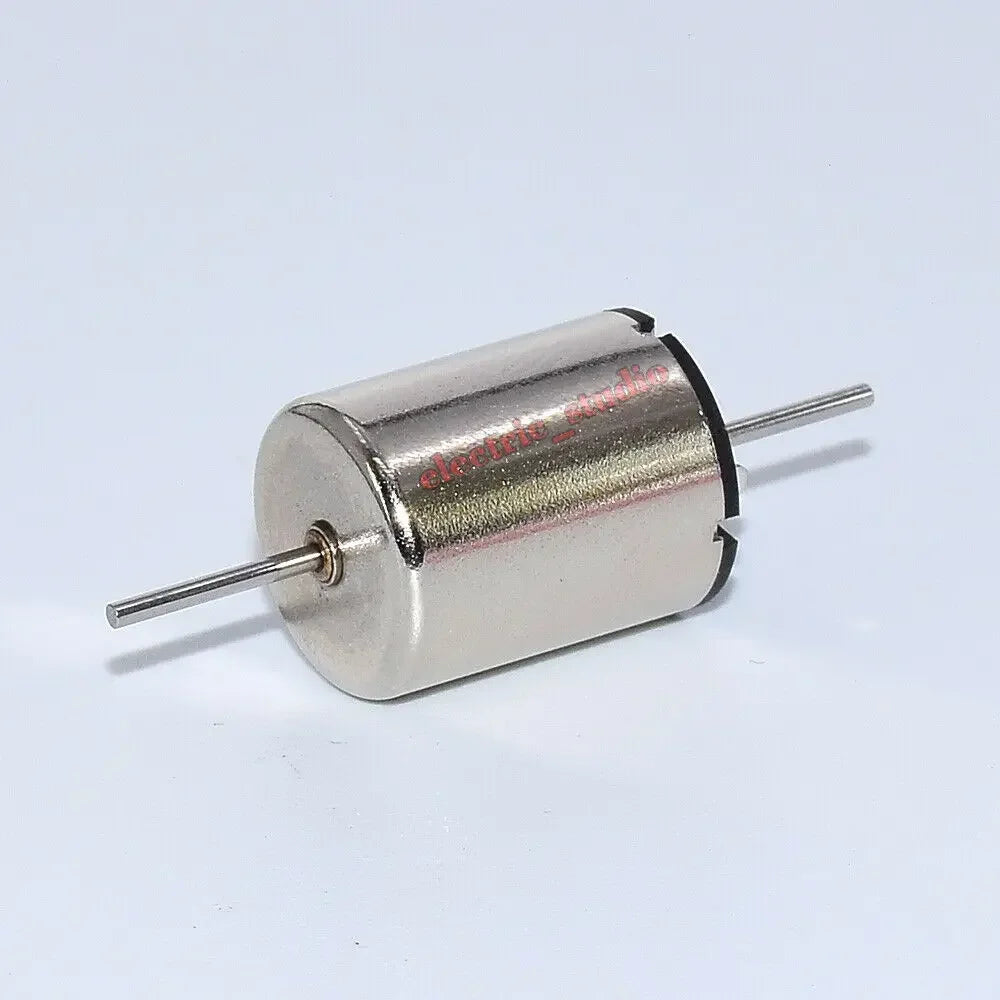

12mm*15mm coreless motor
1.Model: 1215 coreless motor
2.Motor diameter: 12mm
3.Motor length: 15mm
4.Output shaft diameter: 1.0mm
5.Output shaft length: 9.5mm/9.5mm
6.Weight: About 8g
7.Voltage range: DC 6V-12V

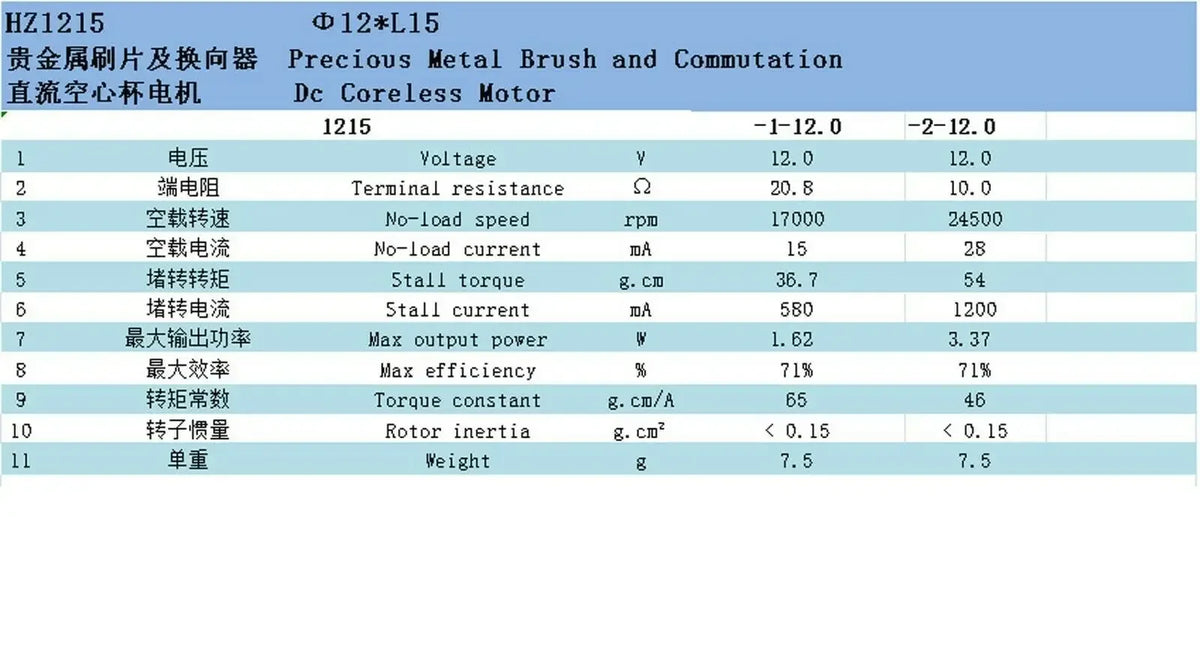

8.Test data:
Voltage:6V No-load speed:85000RPM
Voltage:12V No-load speed:17000RPM
9.Application: Mainly used for micro hobby toy model, toy Rail train andother machines.
====================================================================================

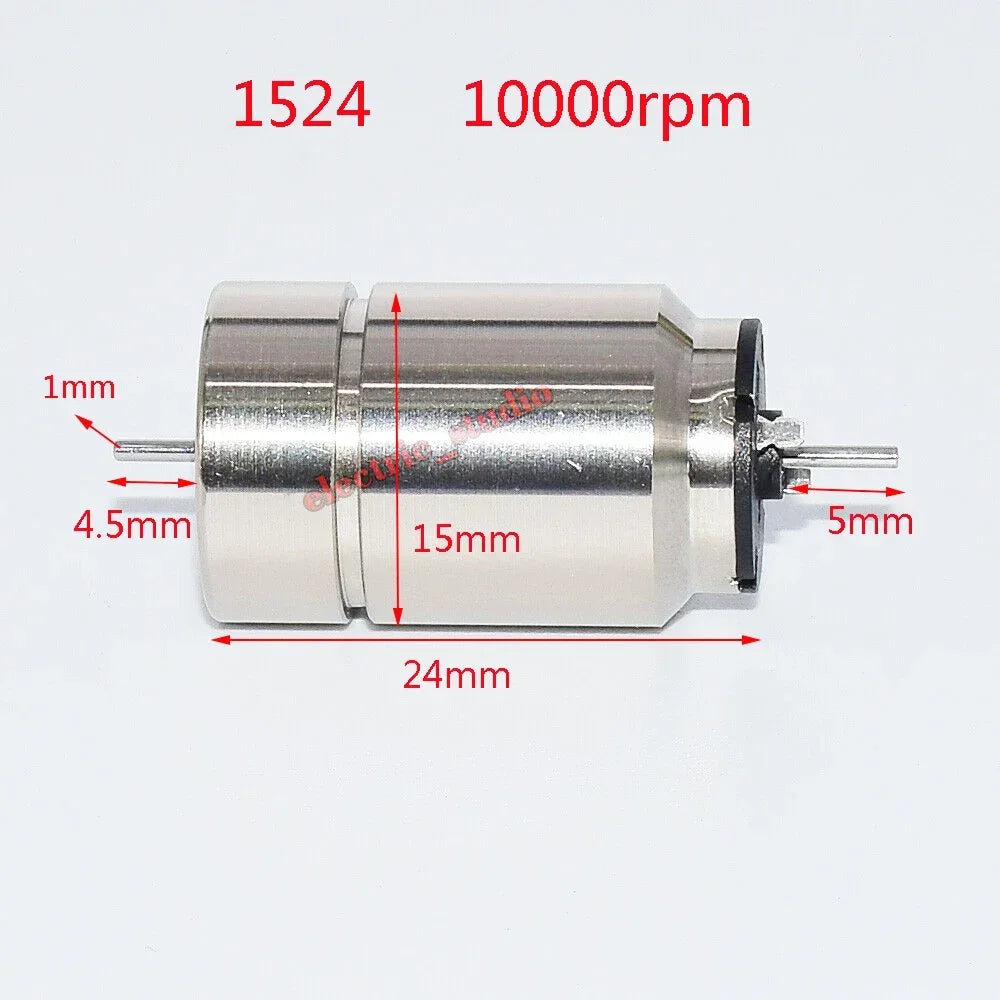

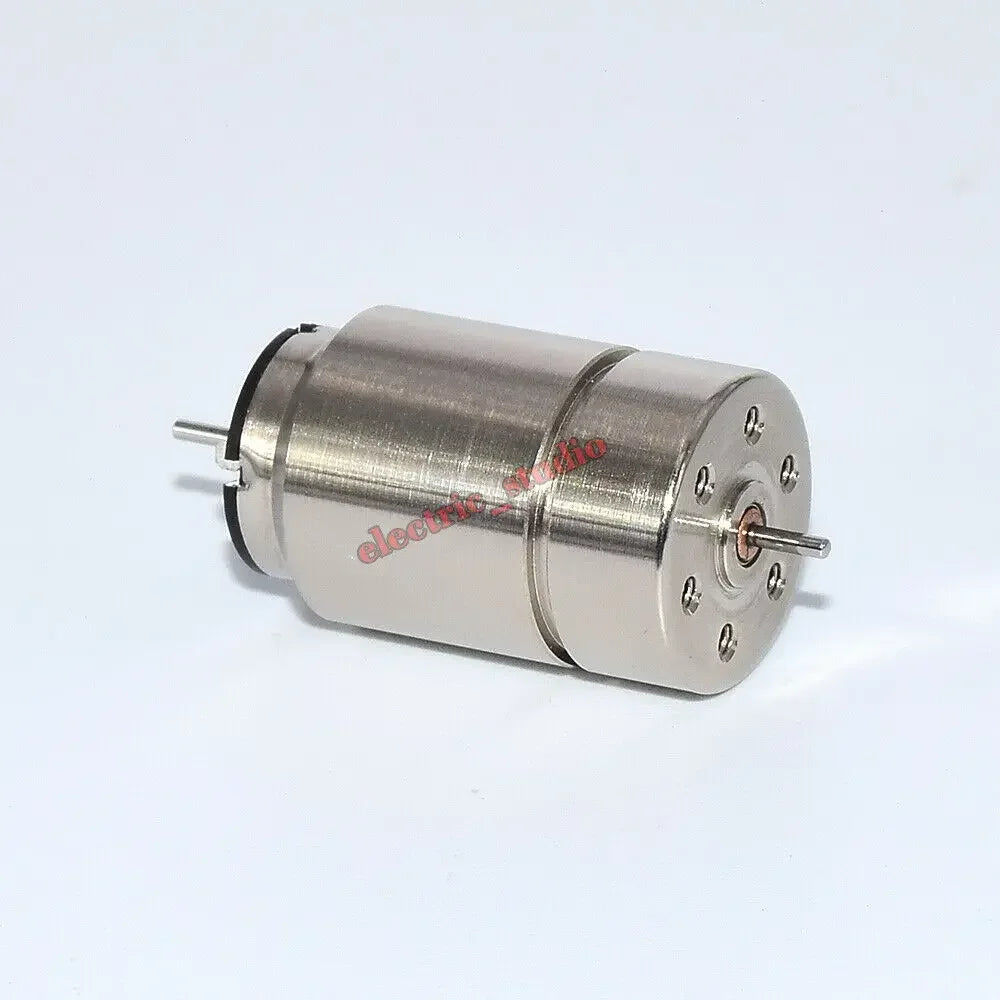

15mm*24mm coreless motor
1.Model: 15mm*24mm coreless motor
2.Weight: 22g
3.Voltage range: DC 6V-12V
4.Motor size: 15mm*24mm
5.Output shaft diameter: 1.0mm
6.Output shaft length: 4.5mm/6mm

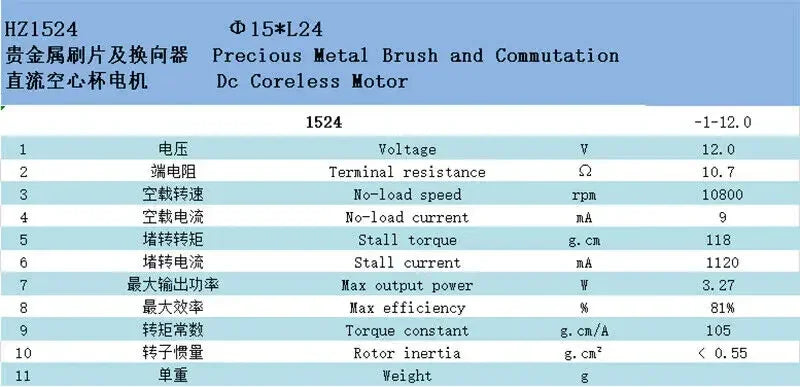

7.Test data:
Voltage:6.0V No-load speed:5400RPM Current:6mA
Voltage:12V No-load speed:10800RPM Current:9mA
=================================================================
================================================================
Package Include:
Motor x 1pc
