SPECIFICATIONS

Features:

1. These aviation connectors are widely used in data acquisition systems, inclinometers, computer-automated measurement and

control systems, machinery, audio/video, communications, automotive, and other industries.

2. Stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion-proof, and resistance.

Excellent electromagnetic and radio frequency interference protection. Multi-core design to meet diverse industrial needs.

Solderable or crimpable.

3. These connectors are widely used in signal and electronic connectors in aviation, aerospace, postal communications, computers,

navigation, various instruments, CNC machine tools, etc.

4. These connectors are very easy to use. The female connector has large, nickel-plated or chrome-plated terminals; simply heat the

terminals before connecting the wires and solder.

5. These aviation connectors are waterproof and leak-proof, making them an for ideal choice for your electronic equipment.

Specifications:

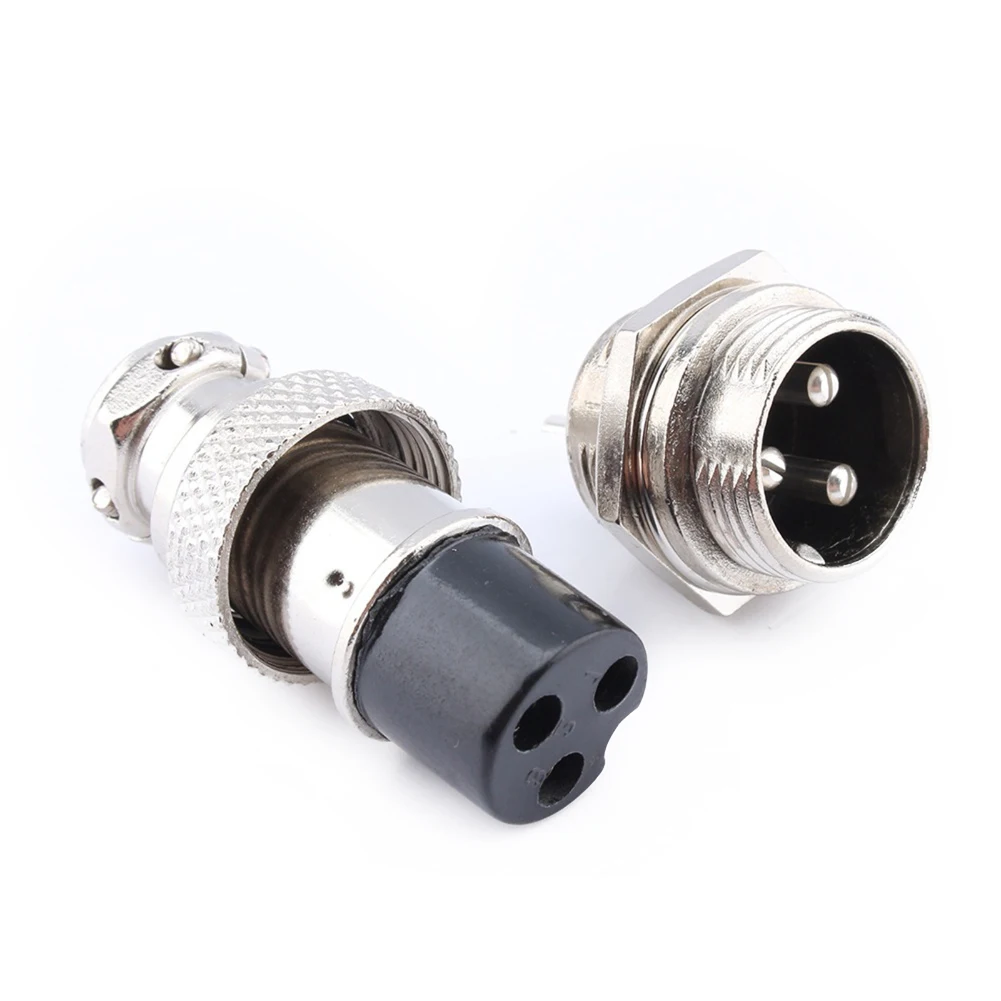

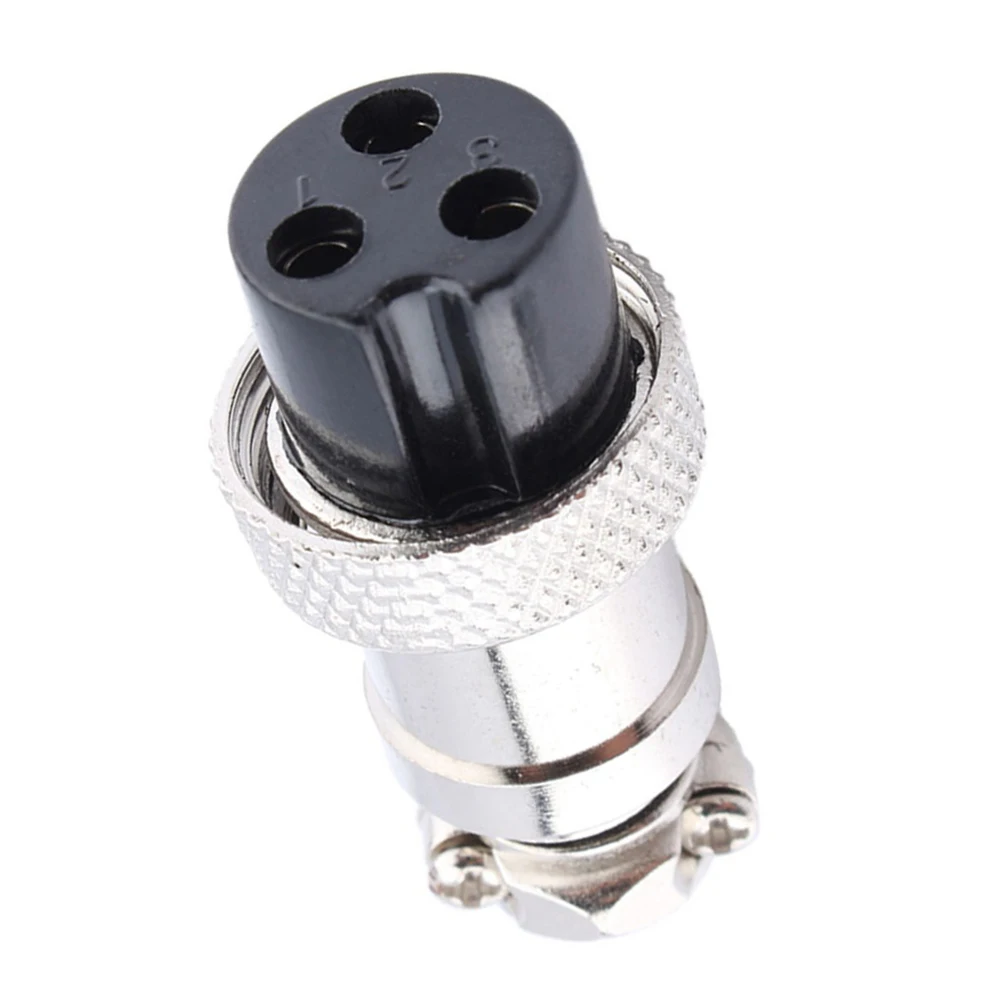

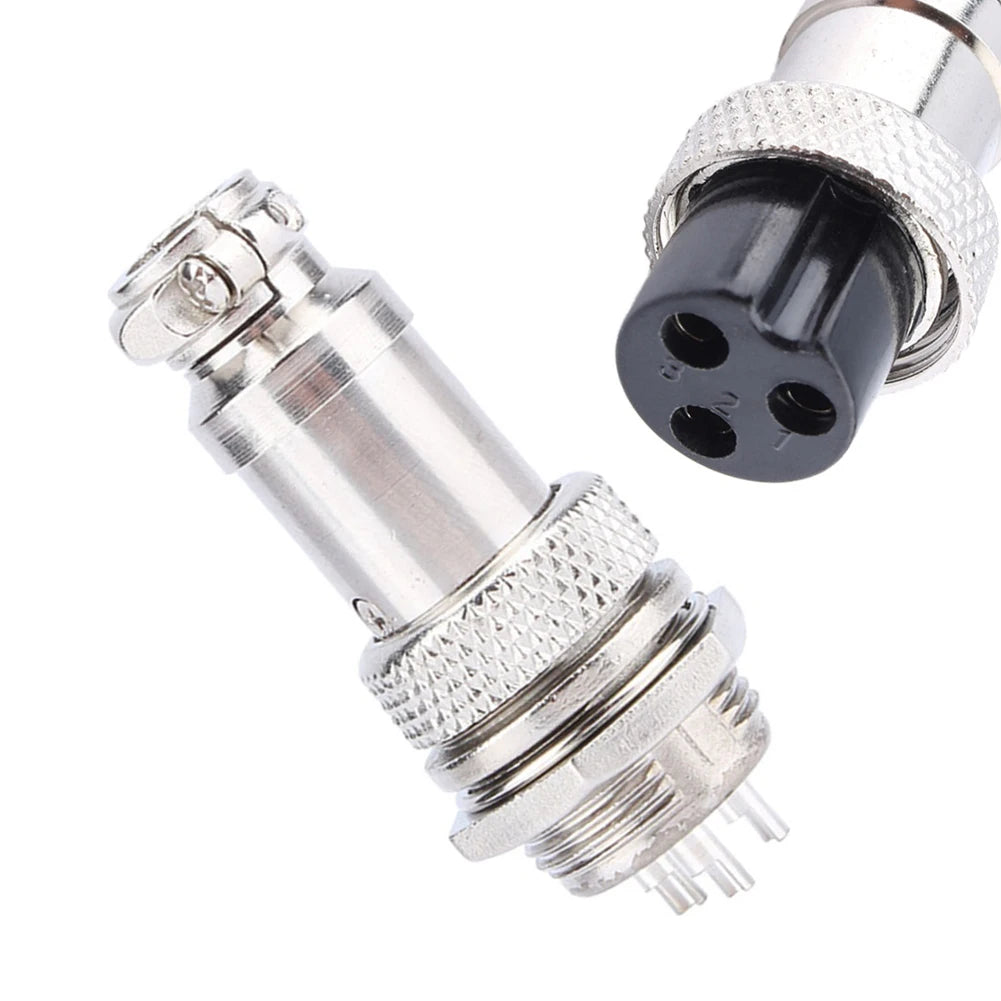

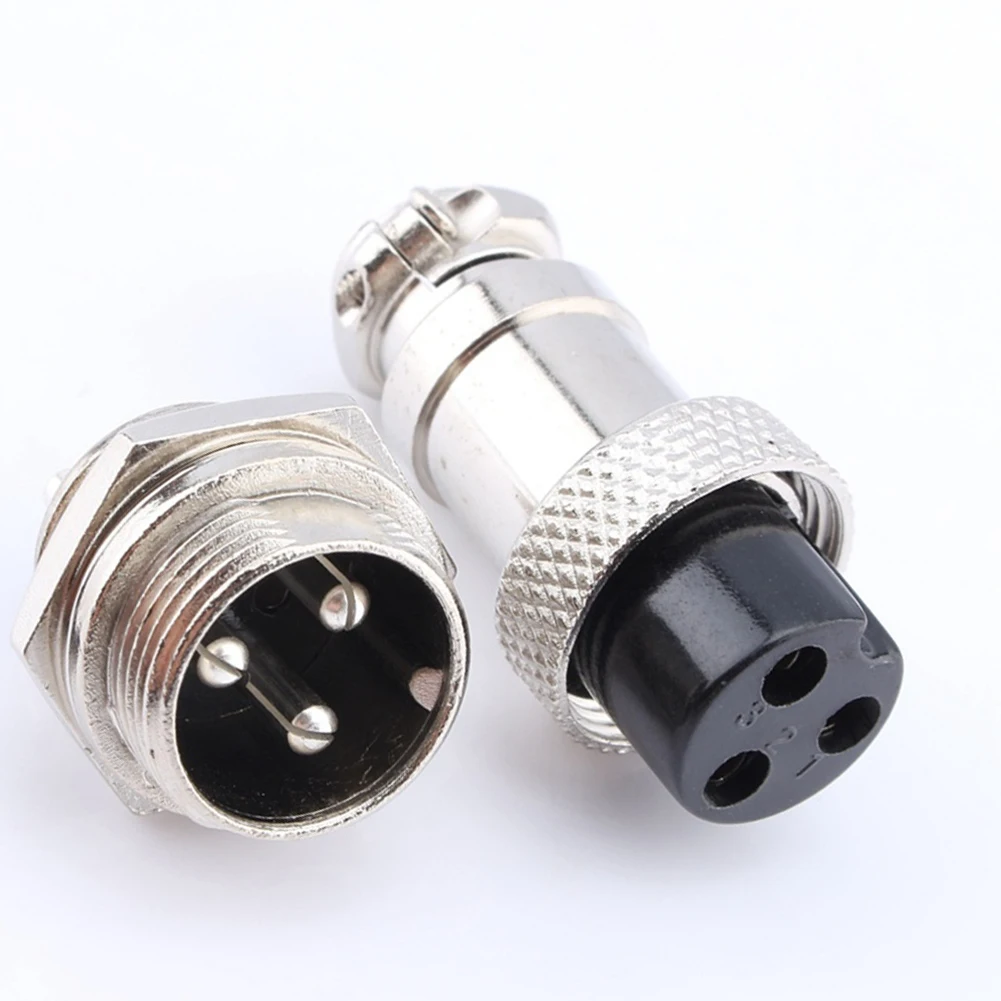

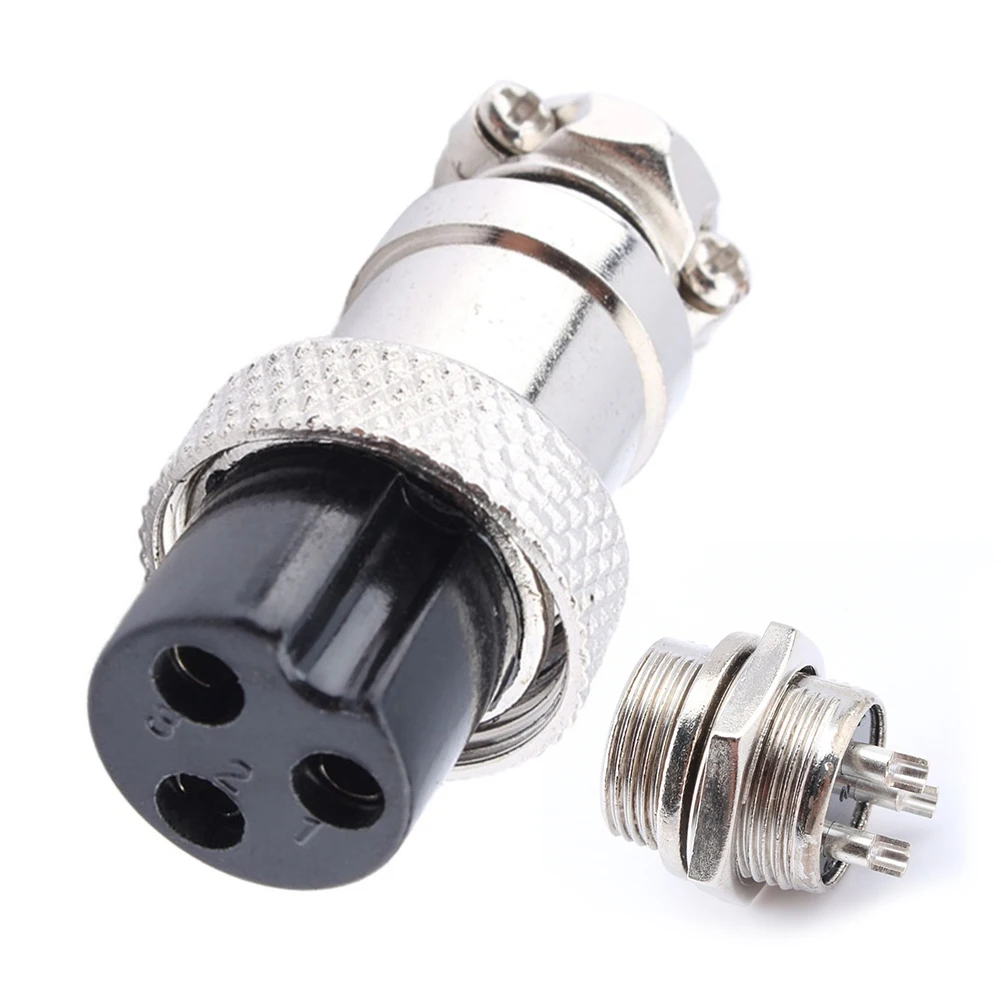

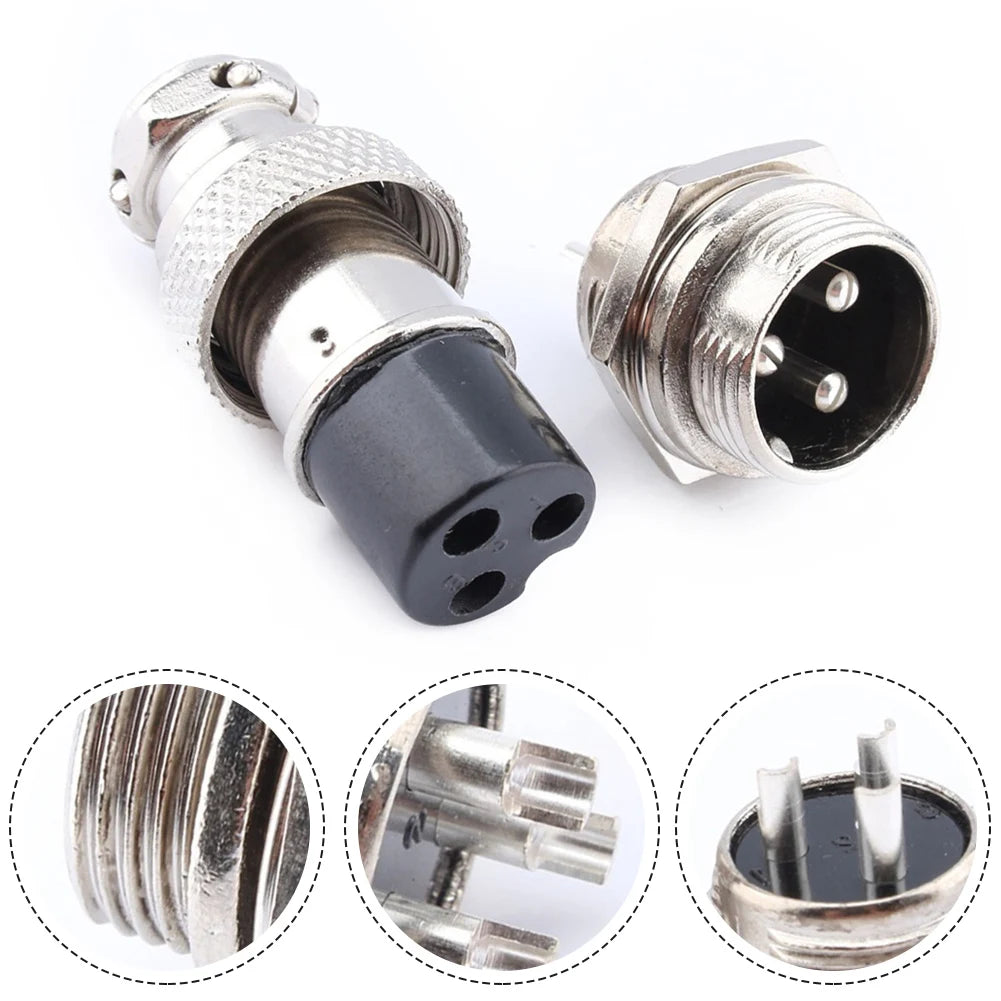

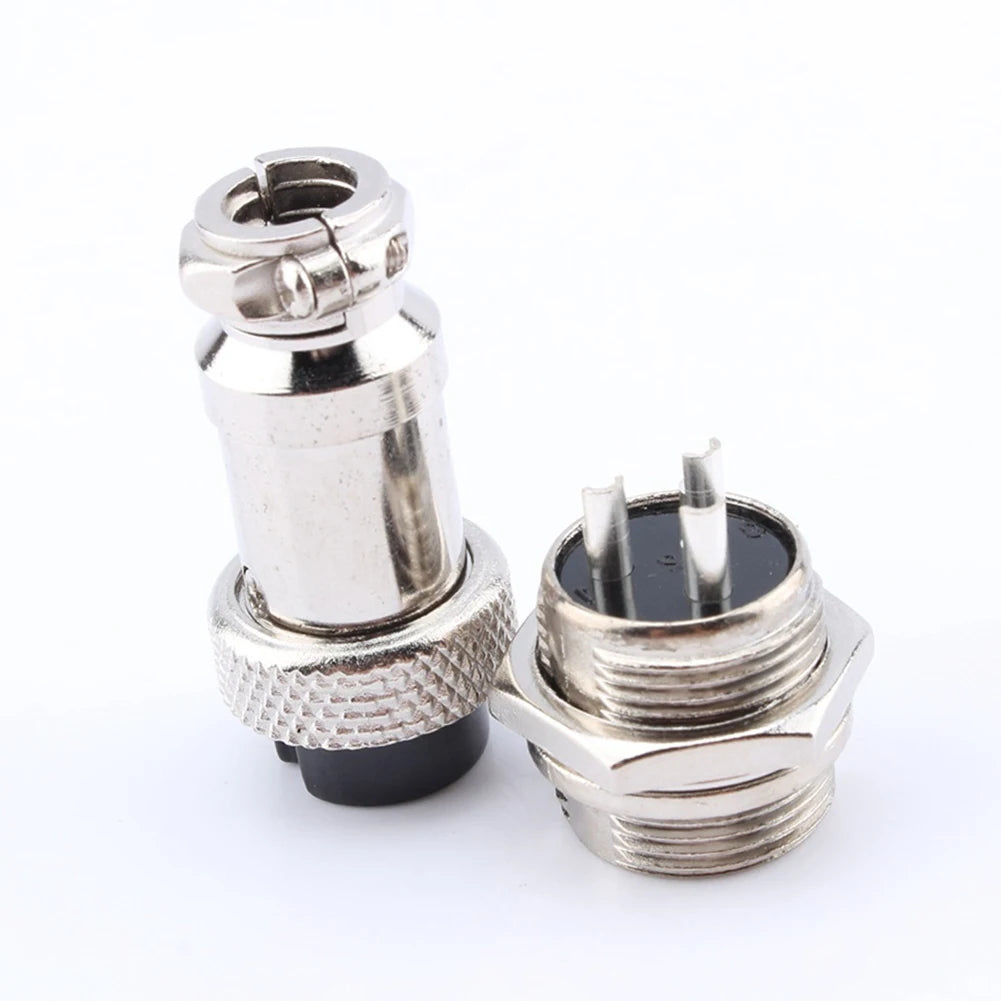

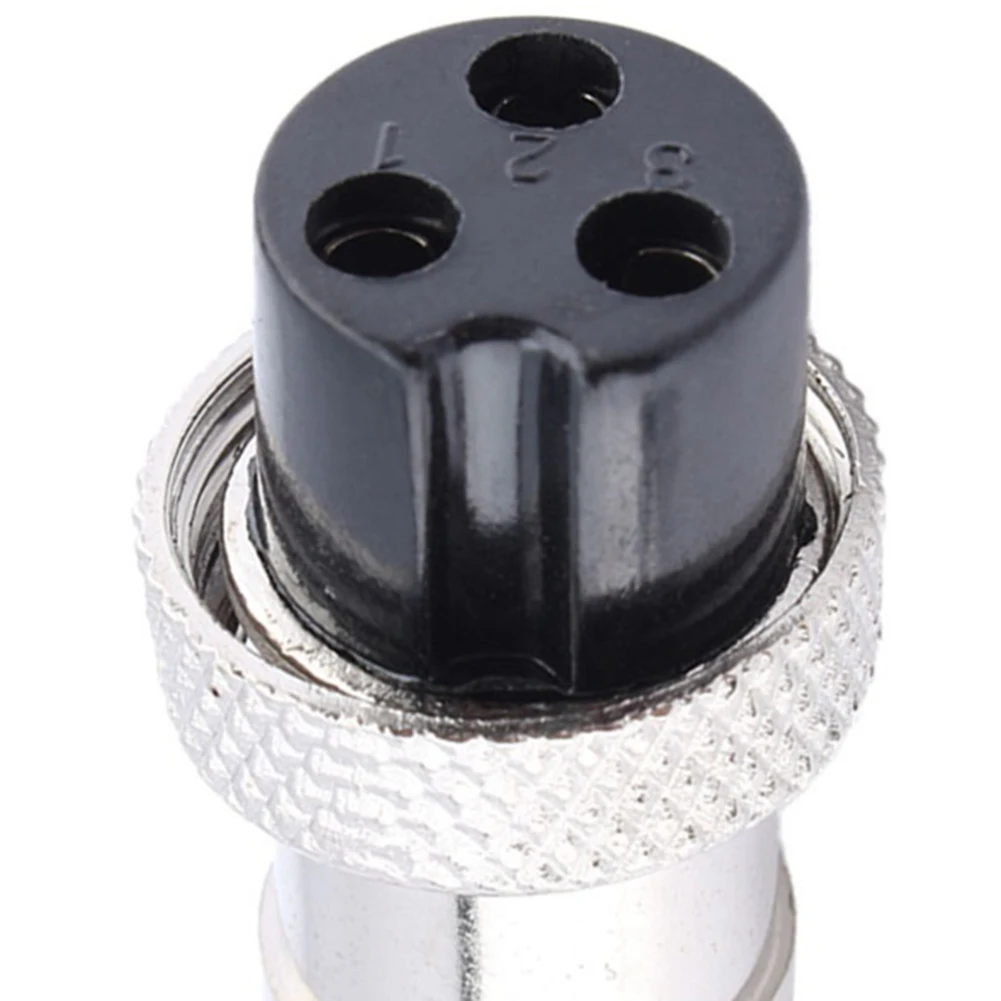

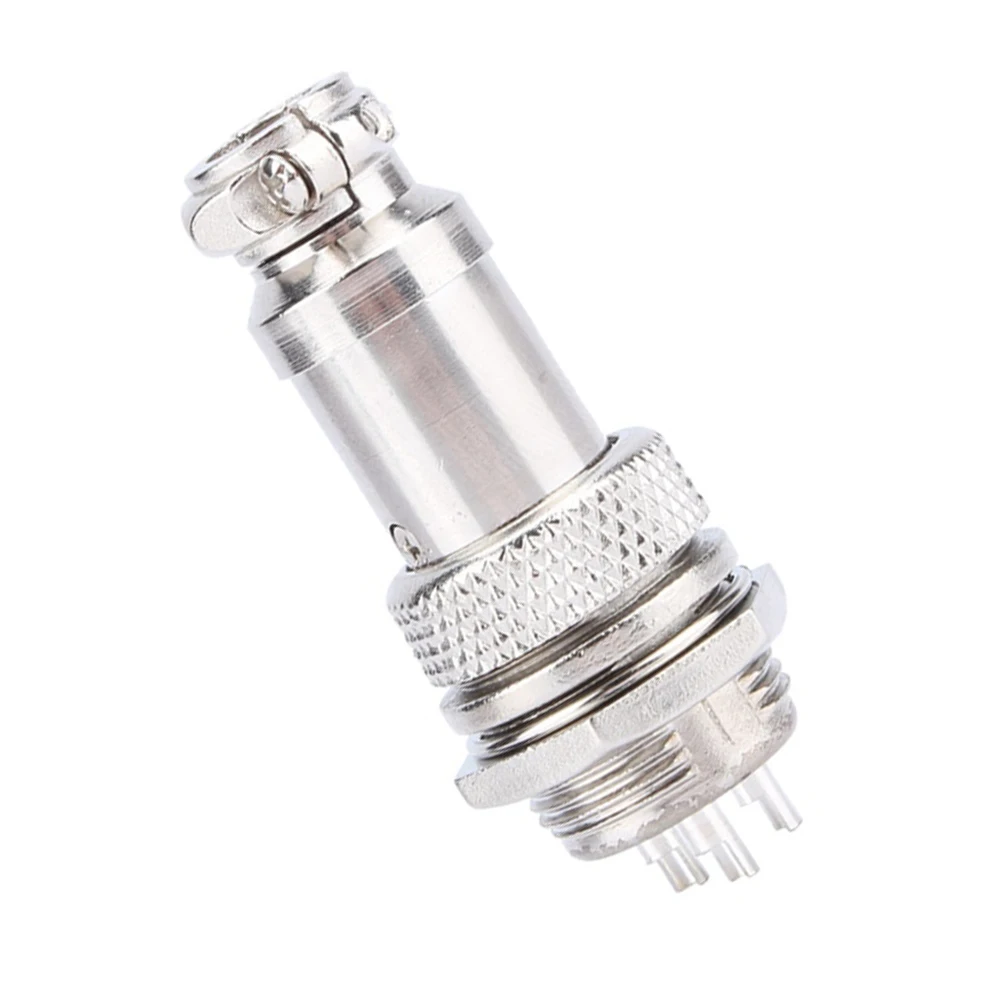

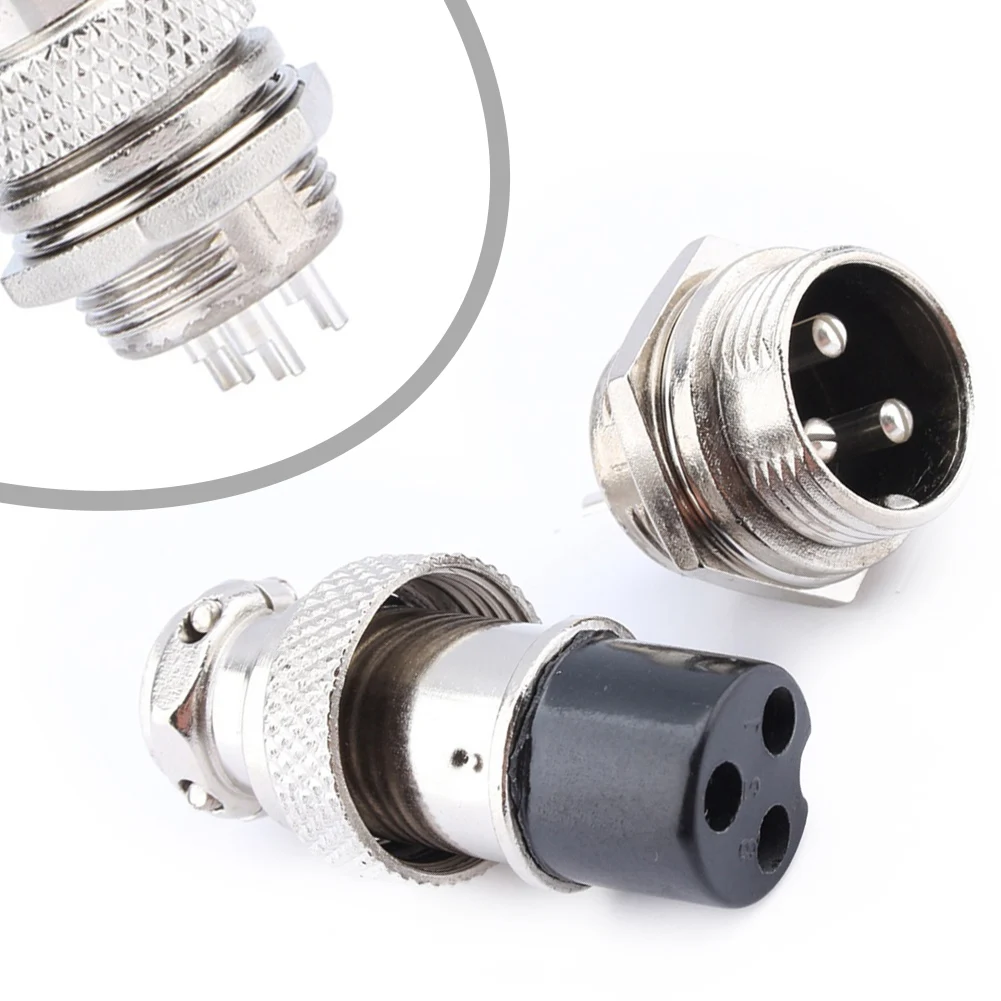

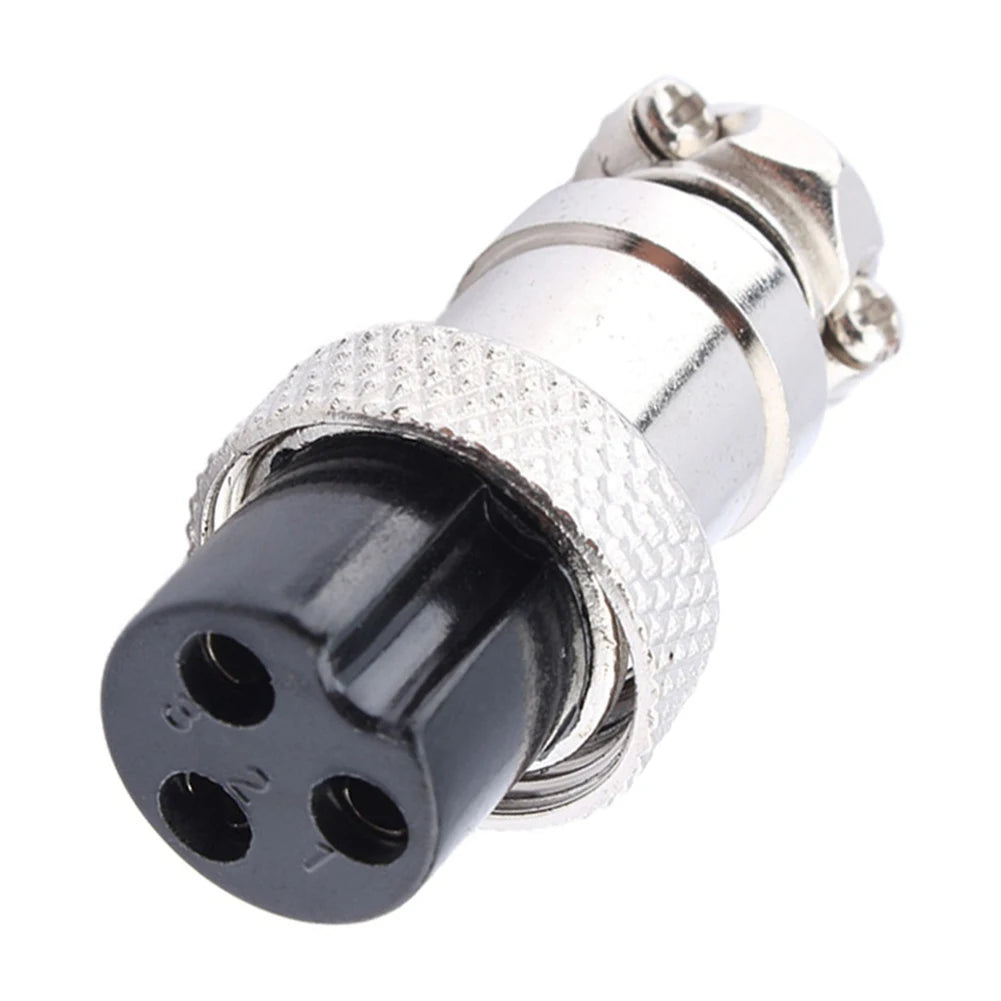

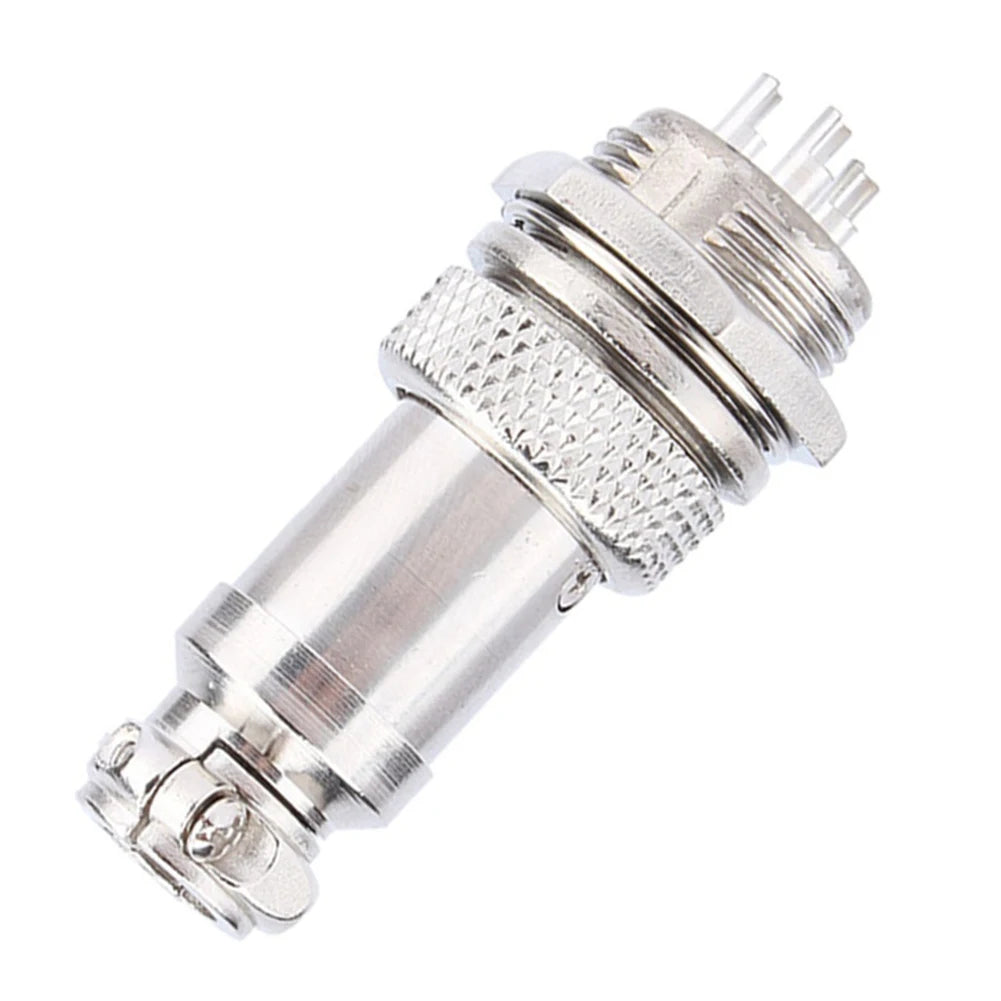

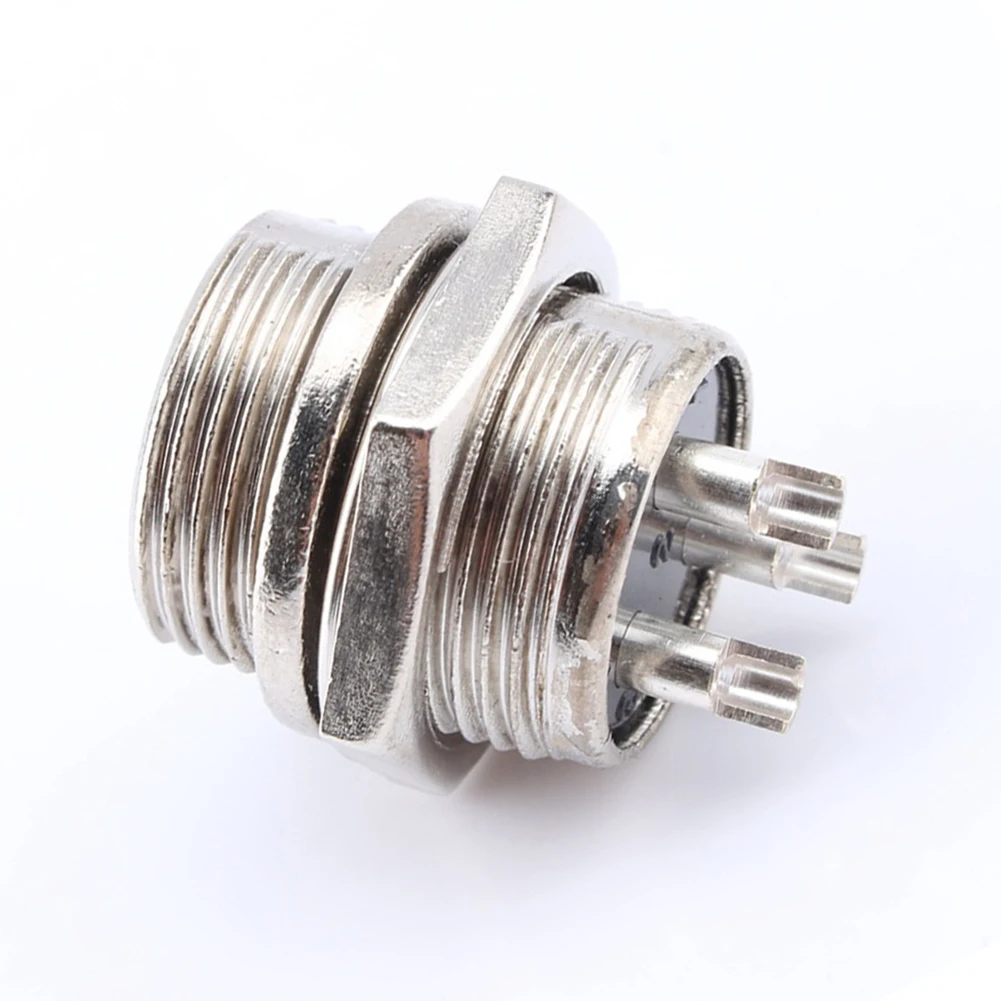

Part Name: GX16 3-Pin Screw Type Aviation Electrical and Socket Connector

Material: Zinc Alloy

Color: Silver

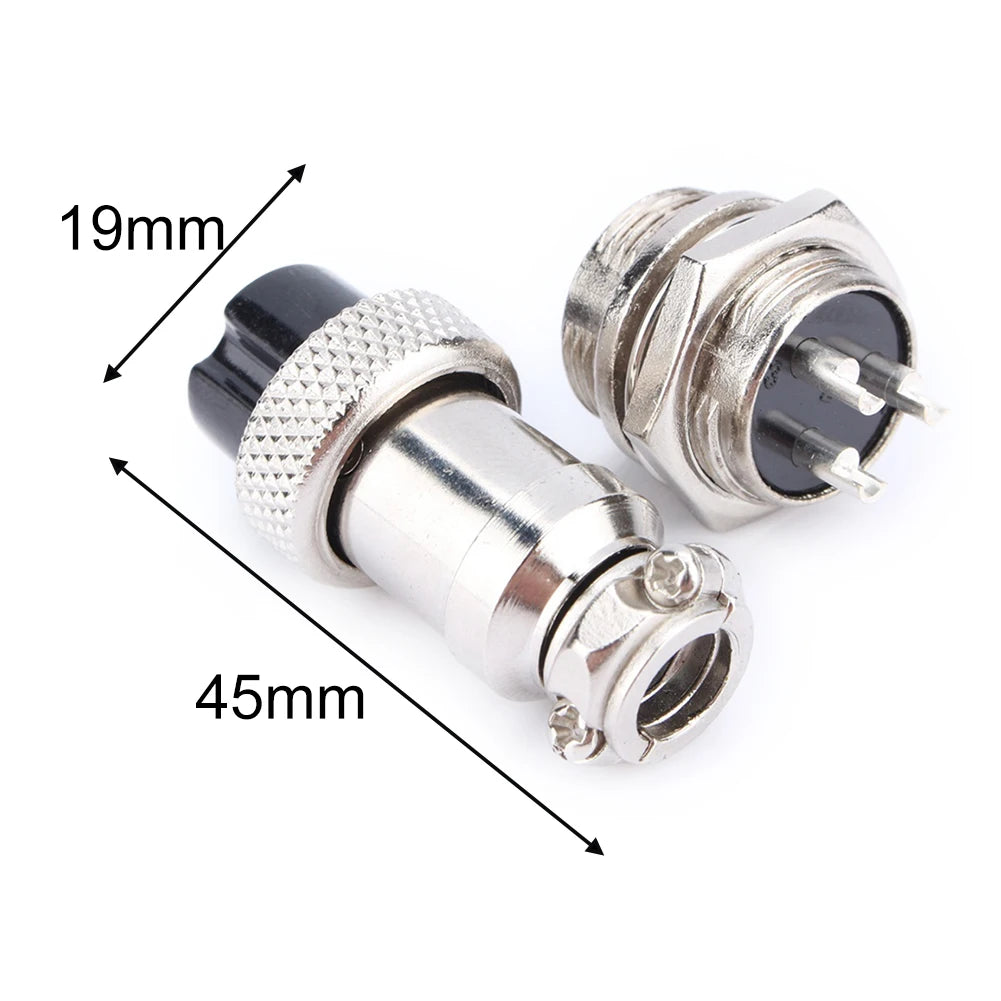

Size: 45mm x 19mm

Current: 5A

Ambient Temperature: -50~+70℃

Relative Humidity: Up to 98% at +40℃

Insulation Resistance: Not less than 1000mΩ under normal conditions, not less than 20mΩ after constant temperature testing

Test Voltage: (50Hz, RMS) 1500V under normal conditions, 1200V after constant temperature testing

Atmospheric Pressure: 4.4kPa

Vibration: Frequency 10~100Hz, Acceleration 100m/s²

Shock: Frequency 60~80 times/minute, Acceleration 250m/s²

Centrifugal: Acceleration 250m/s²

Package Contents:

1*Male/Female Metal Connector

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as

brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
