1PC N Type Male Female RF Coax Connector Straight Right Angle for RG316 RG58 RG405 Cable Brass Nickelplated NEW Wholesale
Type16
$15.40
Sale price
$15.40
Regular price
$0.00
Skip to product information
1PC N Type Male Female RF Coax Connector Straight Right Angle for RG316 RG58 RG405 Cable Brass Nickelplated NEW Wholesale
$15.40
Sale price
$15.40
Regular price
$0.00
Description
SPECIFICATIONS
Body Plating: Nickelplated
Brand Name: DexMRtiC
Cable Type: RG174 RG142 RG402 RG8
Certification: CE
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Impedance: 50 Ohm
Material: Brass
Model Number: N type RF coax Connector
Mounting: Cable mount
Origin: Mainland China
Product type: N male/female connector
Style: Straight/right angle
Voltage: none
1PC N Type Male Plug Female Jack RF Coax Connector Straight Right Angle for RG316 RG58 RG402 RG405 RG8 cable New Nickel 50 Ohm wholesale for WIFI
Description:
N Type is used in connection with RF coaxial cable in radio
instrument, communication equipment, microwave test and ground launch
system at vibration and inclement weather circumstance.
Applicable Standard:
MIL-C-39012
CECC 22210
IEC-60169-16
Major Technical Characteristics |
MATERIAL & PLATING |
|||
Temperature Range: |
-55~+155°C(PE Cable -40~+85°C) |
|||
Impedance: |
50Ω |
Body |
brass |
Nickel plated |
Frequency Range: |
DC~4GHz |
|||
Working Voltage: |
1000V r.m.s at sea level |
Resilient contact |
Beryllium-copper |
Gold plated |
Withstanding Voltage: |
2500V r.m.s at sea level |
|||
Contact resistance: |
a)Center Contact ≤1m Ω b)Outer Contact ≤1m Ω |
Pin contact |
brass |
Gold plated |
Insulation resistance: |
≥5000MΩ |
Socket contact |
Beryllium-copper |
Gold plated |
Center Conductor retention force: |
≥0.56N |
insulator |
PTFE |
|
Vibration |
100m/S2(10~500Hz),10g |
|||
Coupling nut retention force |
450 N |
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
Disengagement force |
8~63 N |
|||
Voltage Standing Wave Ratio: |
Straight ≤1.15/ 6GHz Right angle ≤1.25/6GHz |
O-ring sealing |
silicone rubber |
|
Durability(mating): |
≥500times(cycles) |
|||

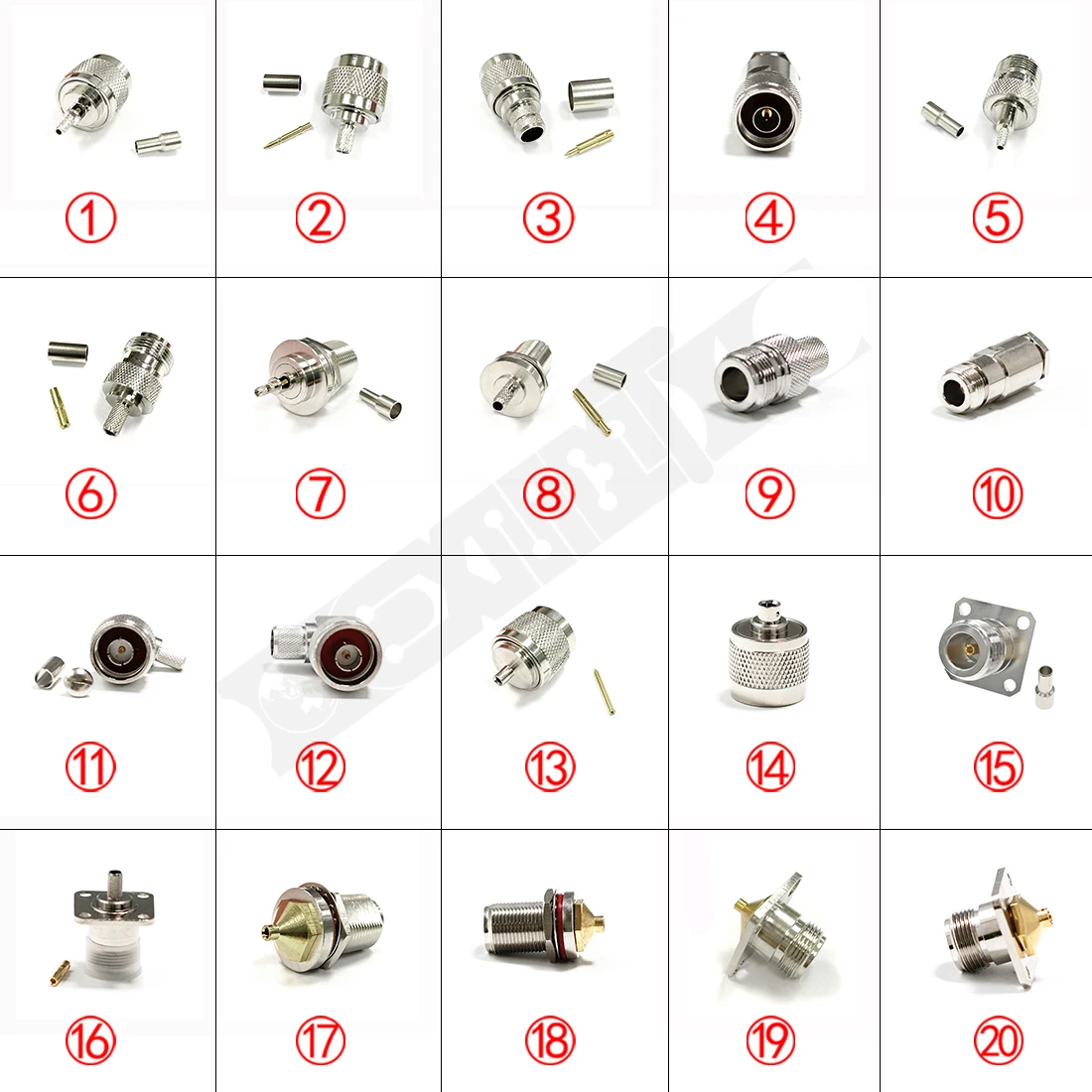

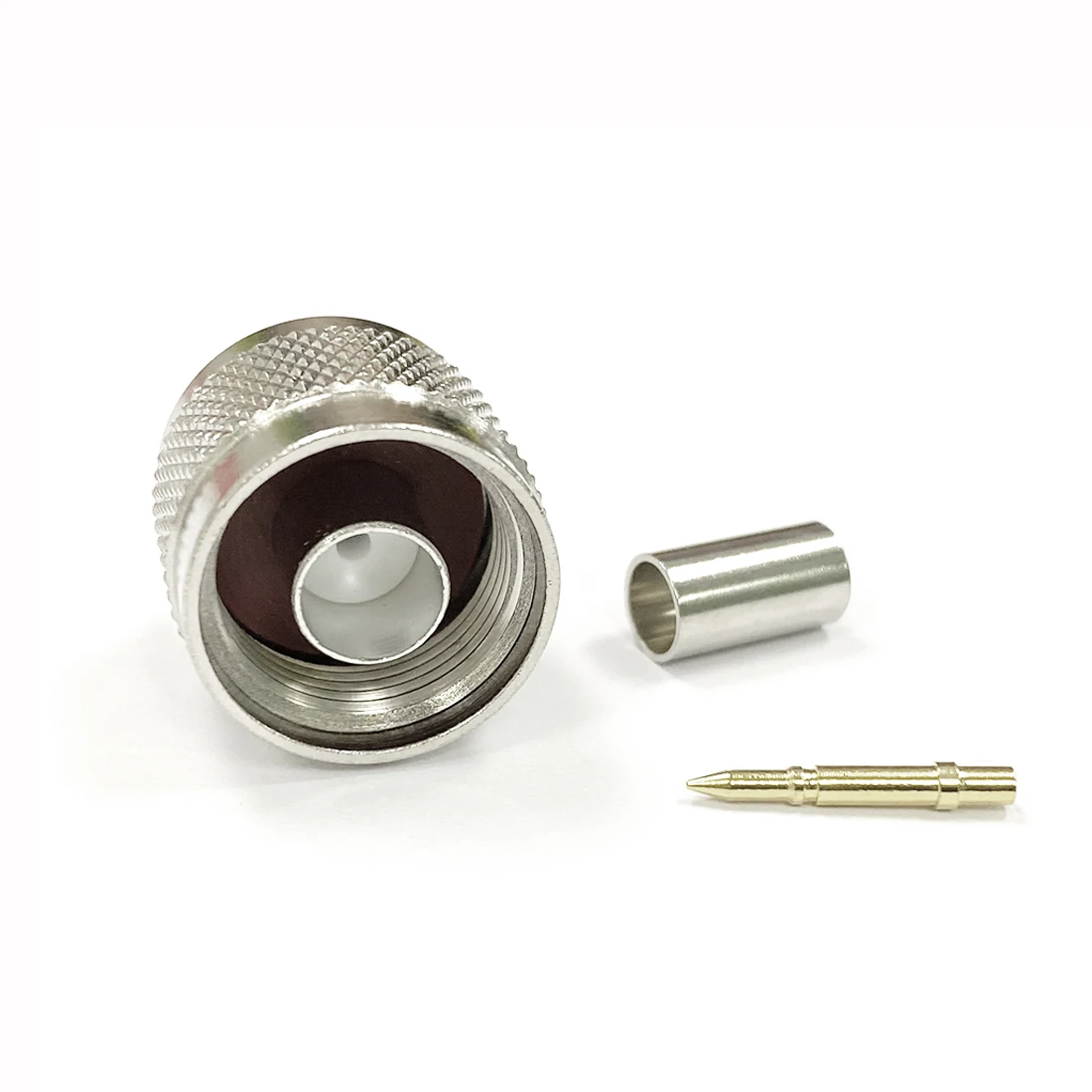

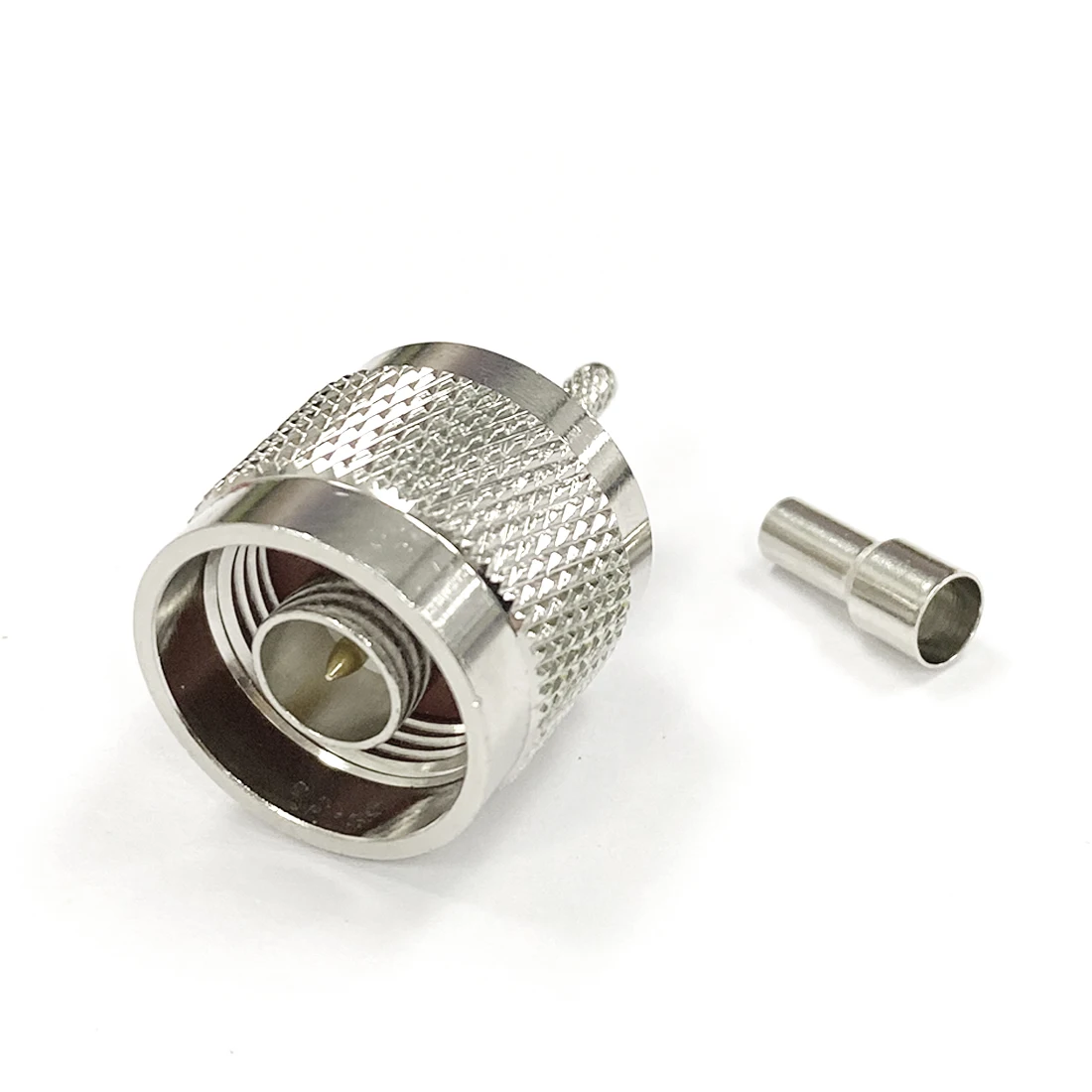

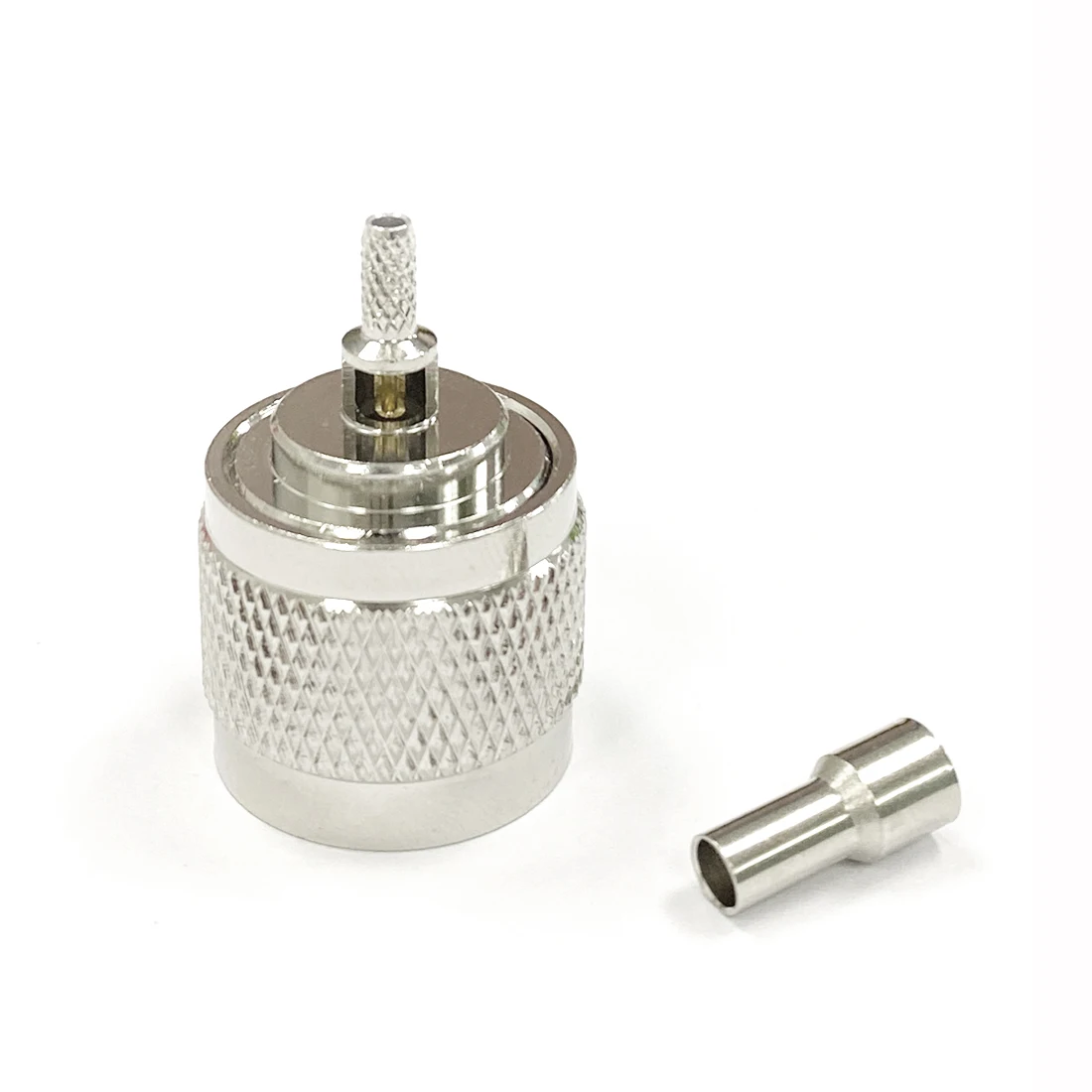

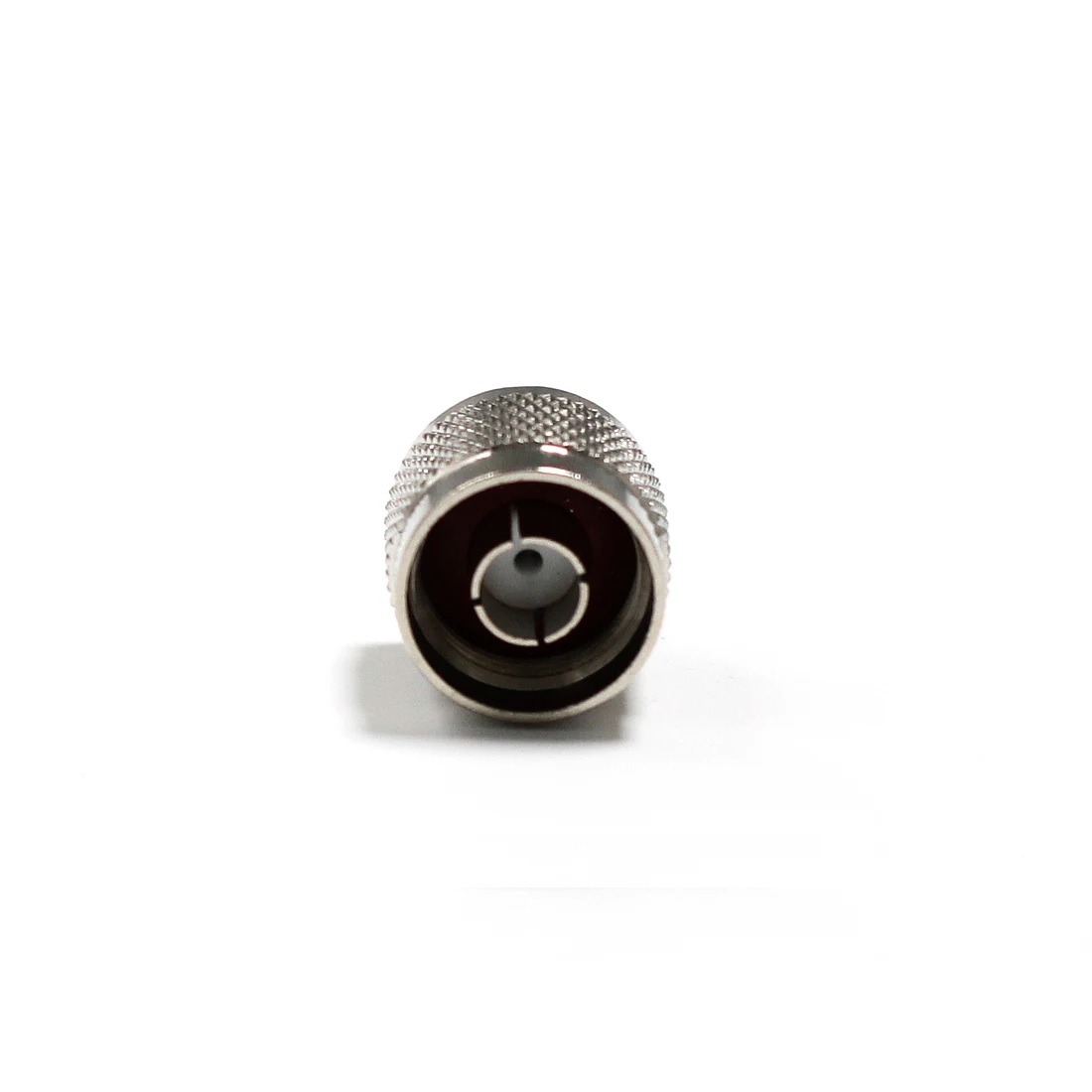

Type1:N Male Plug RF Coax Connector Crimp for RG316 RG174 Cable Straight Nickelplated NEW

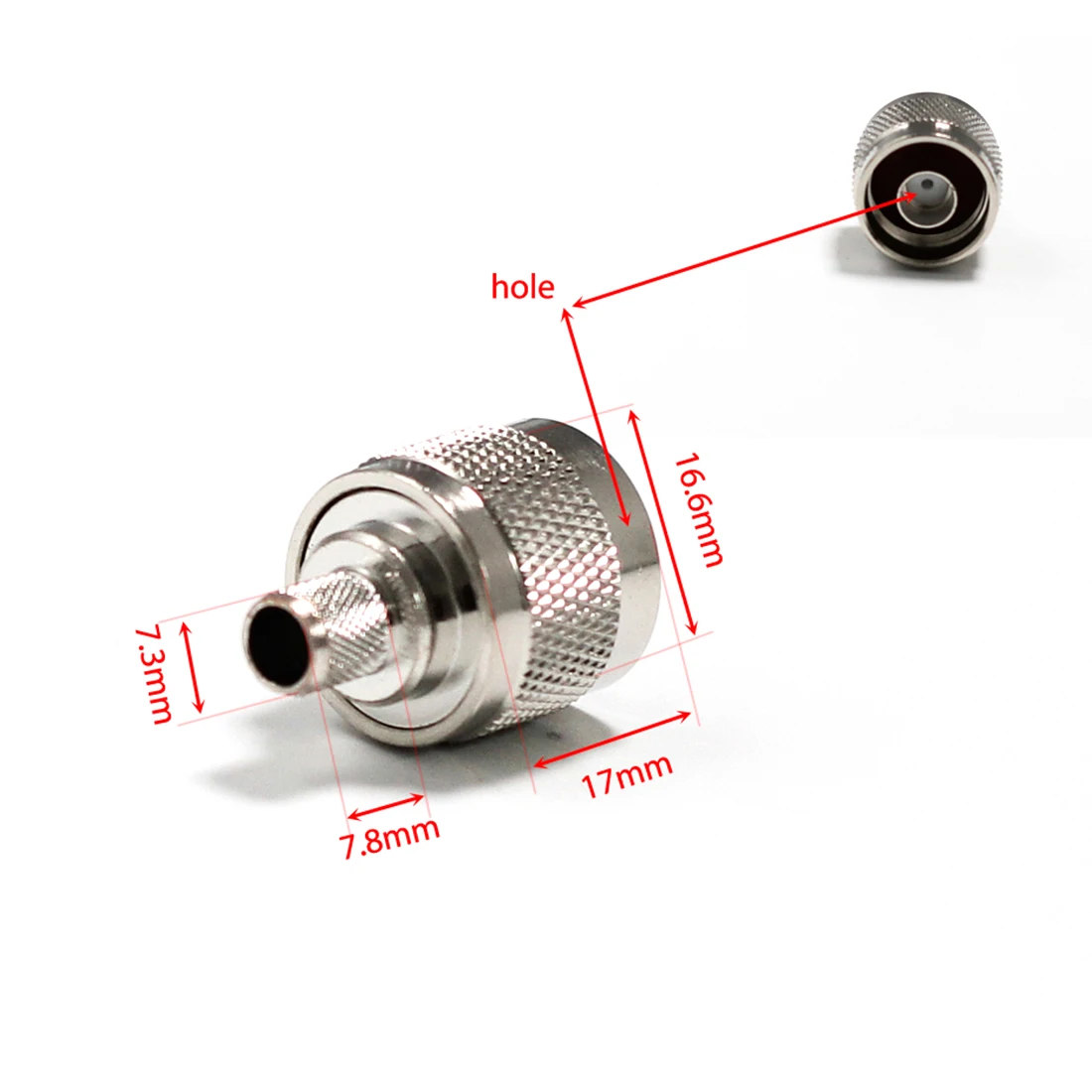

Type2: N Male Plug RF Coax Connector Crimp for RG58 RG142 RG400 Cable Straight Nickelplated NEW

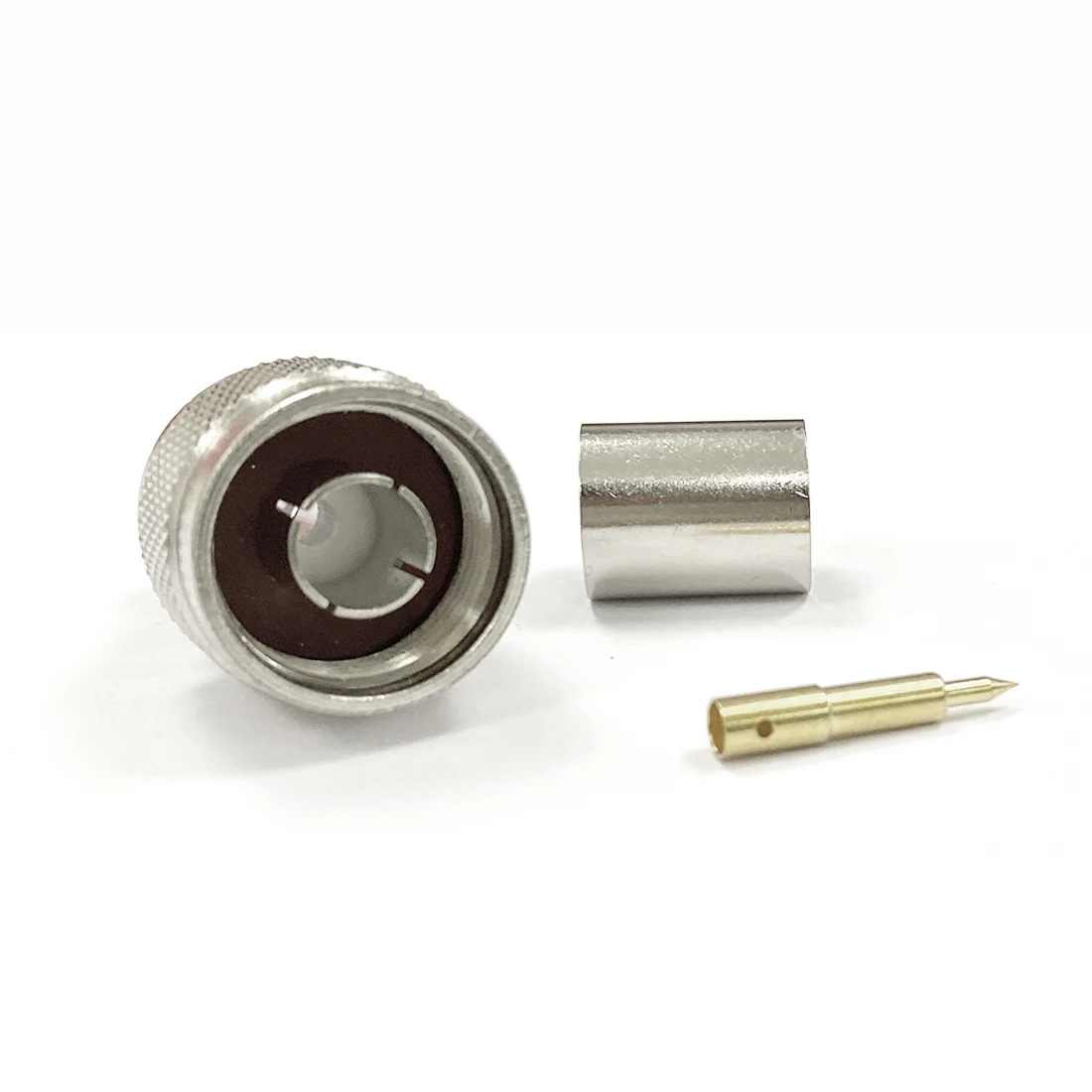

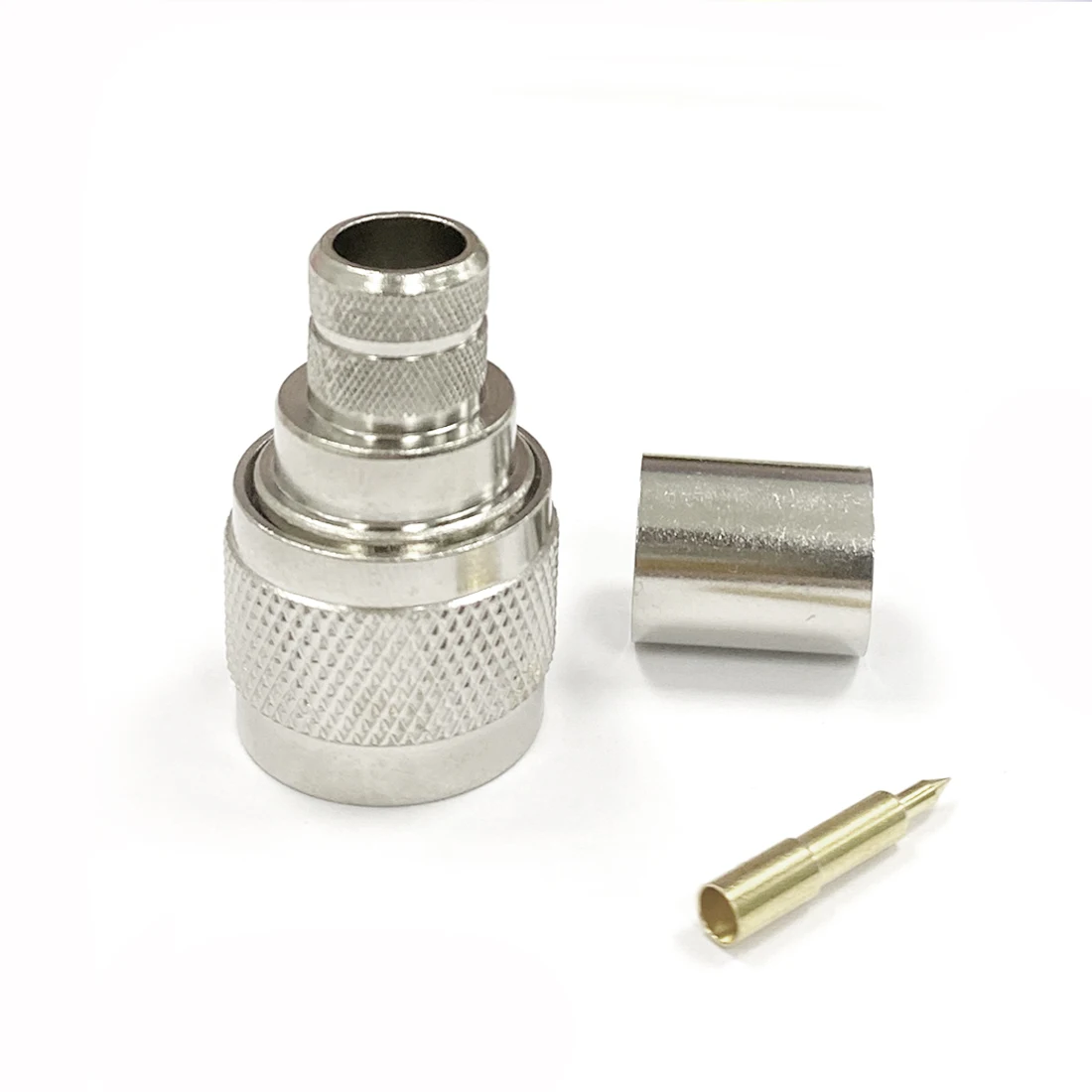

Type3: N Male Plug RF Coax Connector Crimp for RG8 RG213 LMR400 Cable Straight Nickelplated NEW

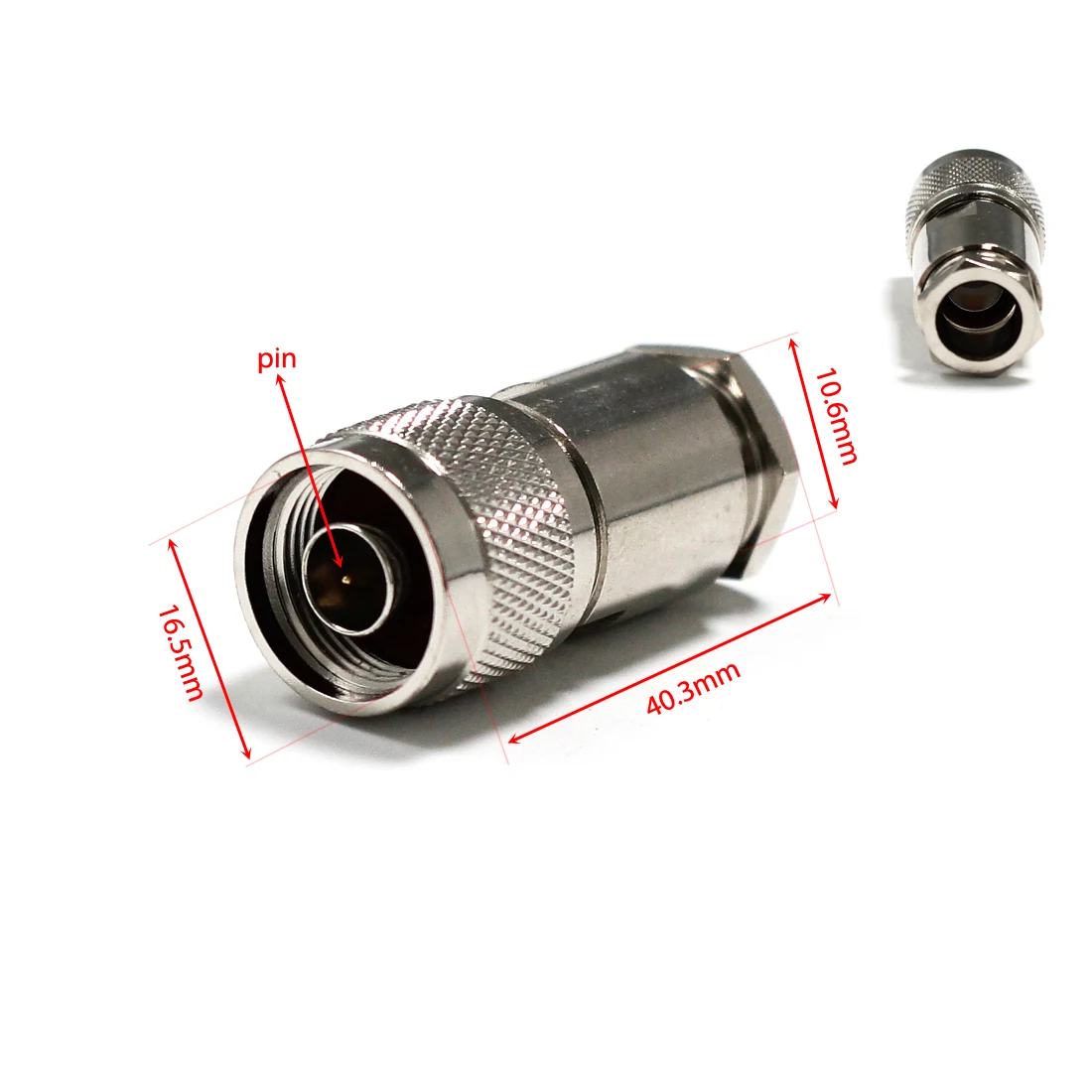

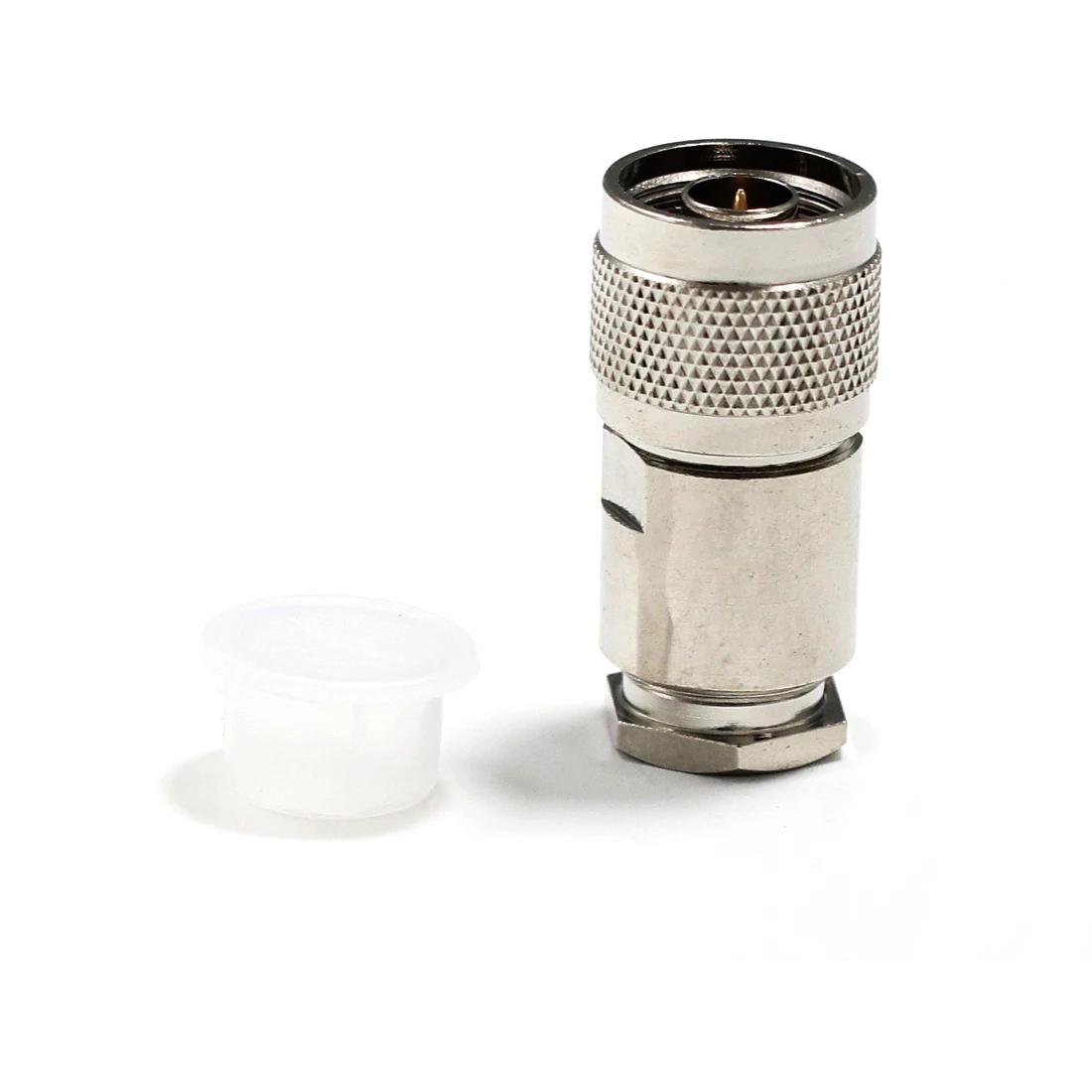

Type4: N Male Plug RF Coax Connector Clamp for RG8 RG213 LMR400 Cable Straight screw on terminal NEW

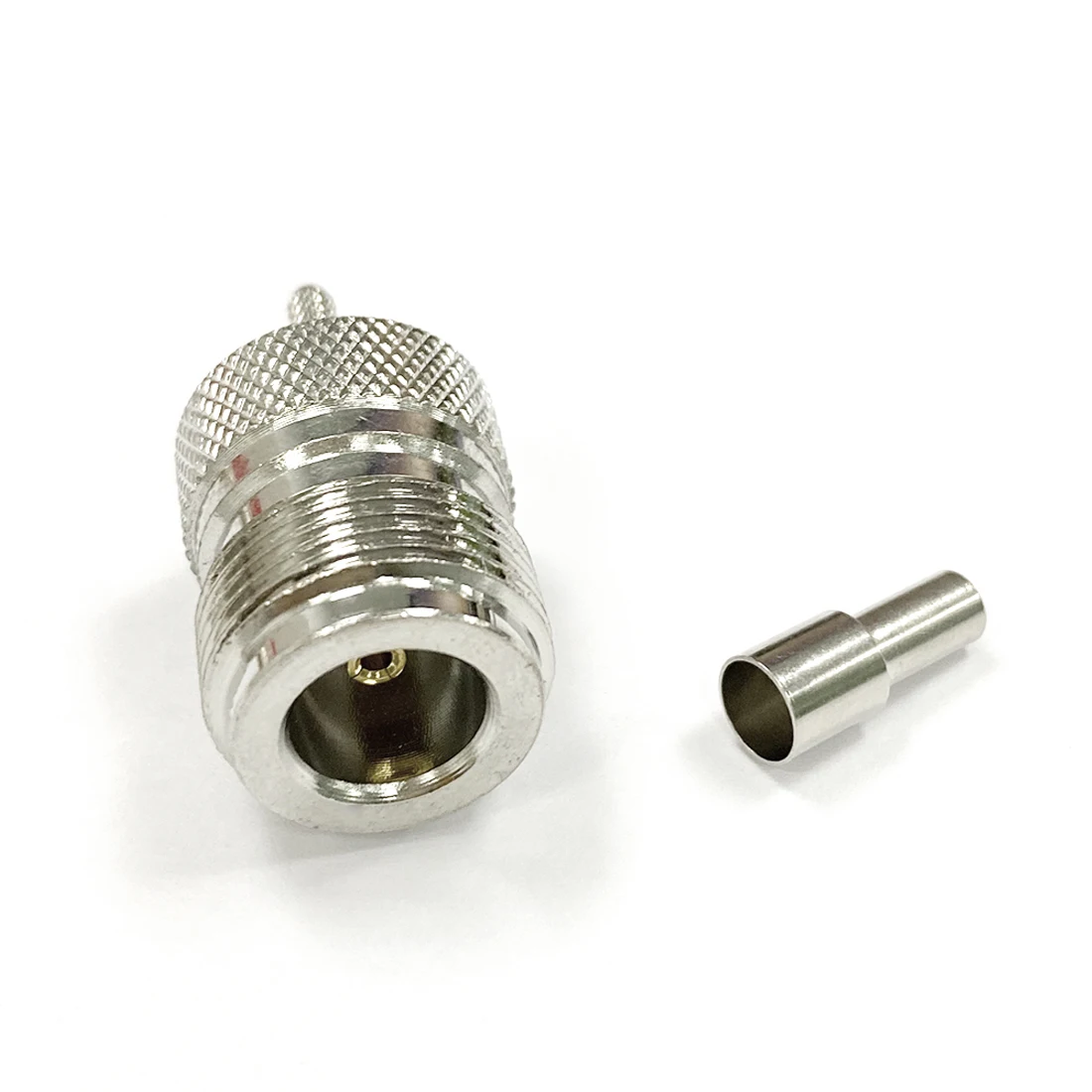

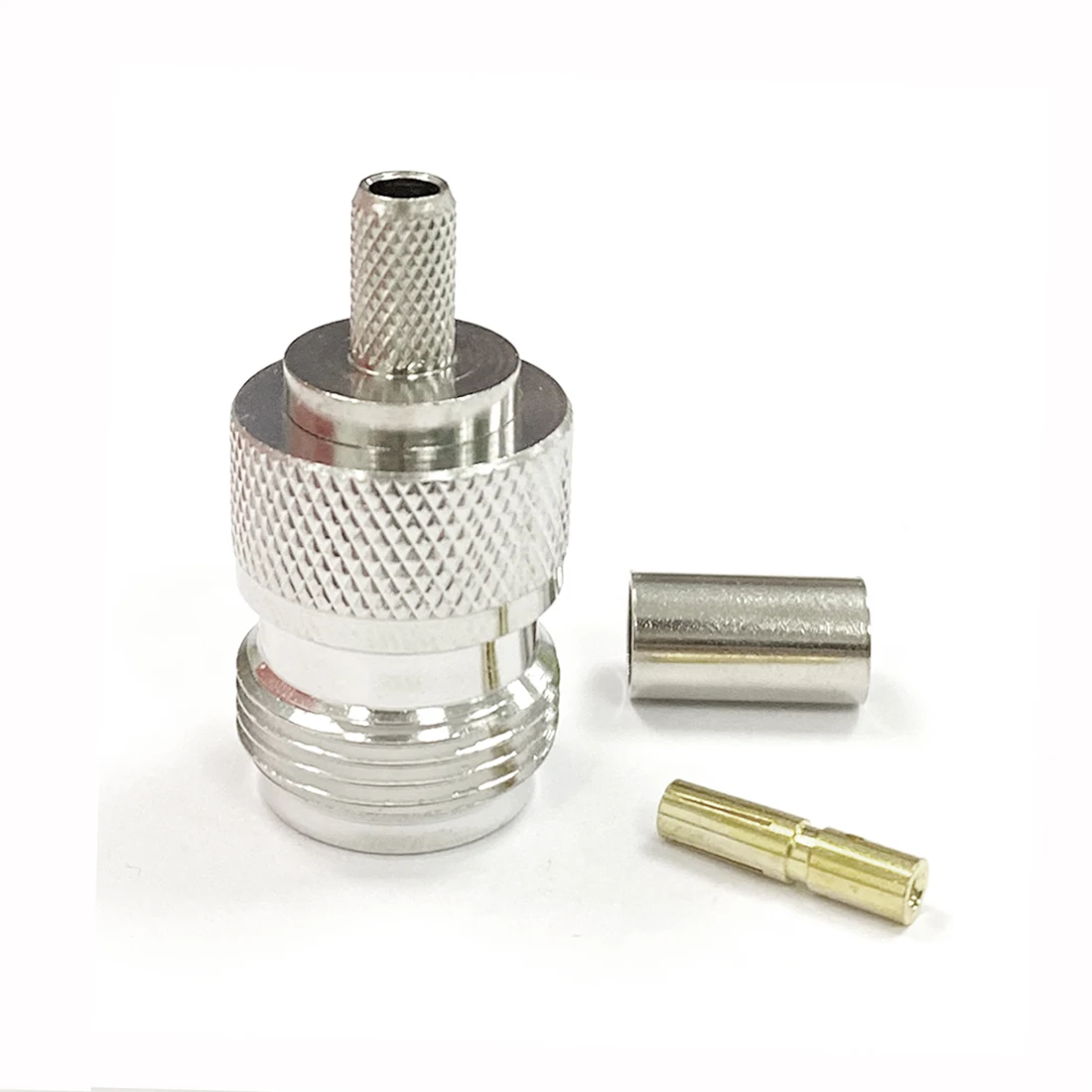

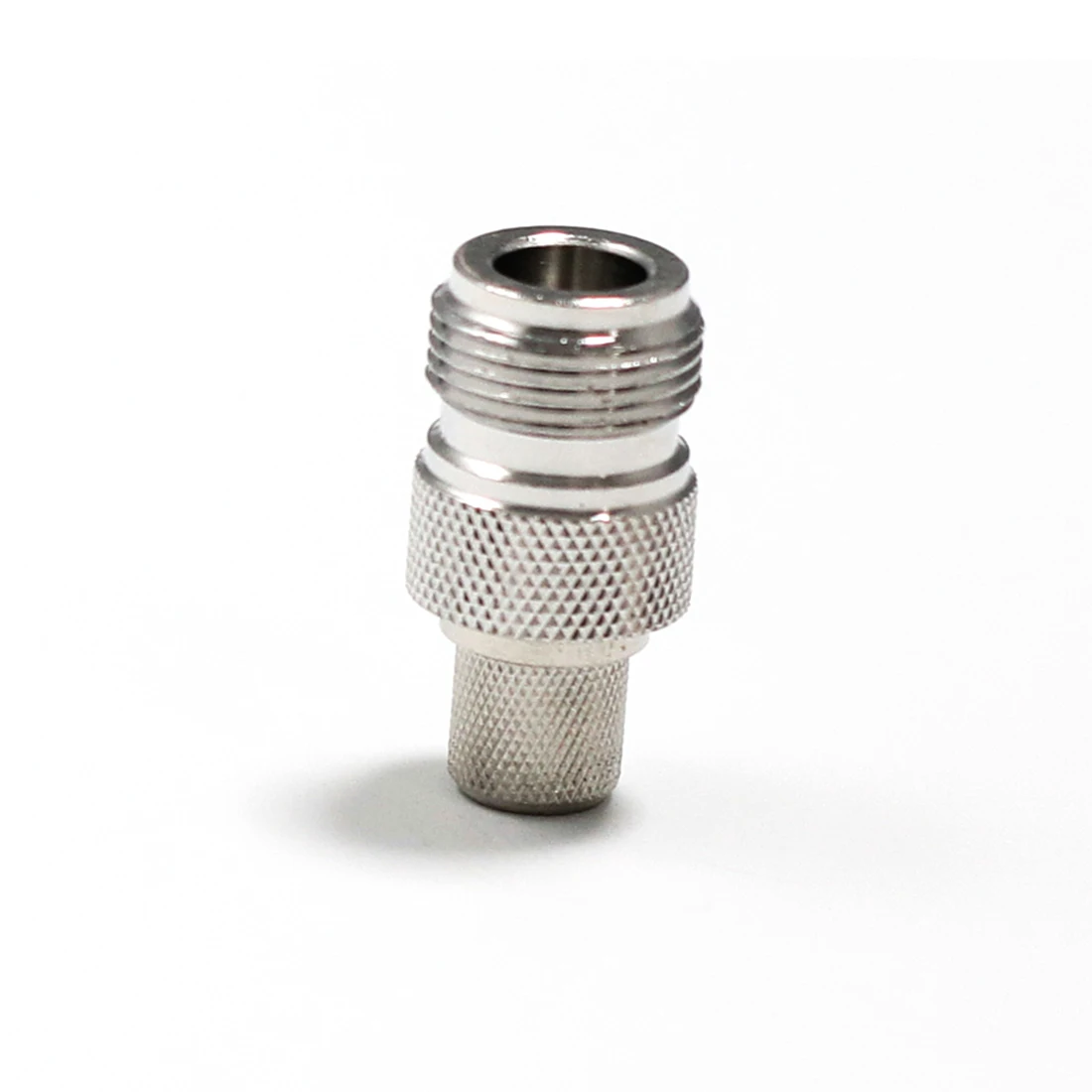

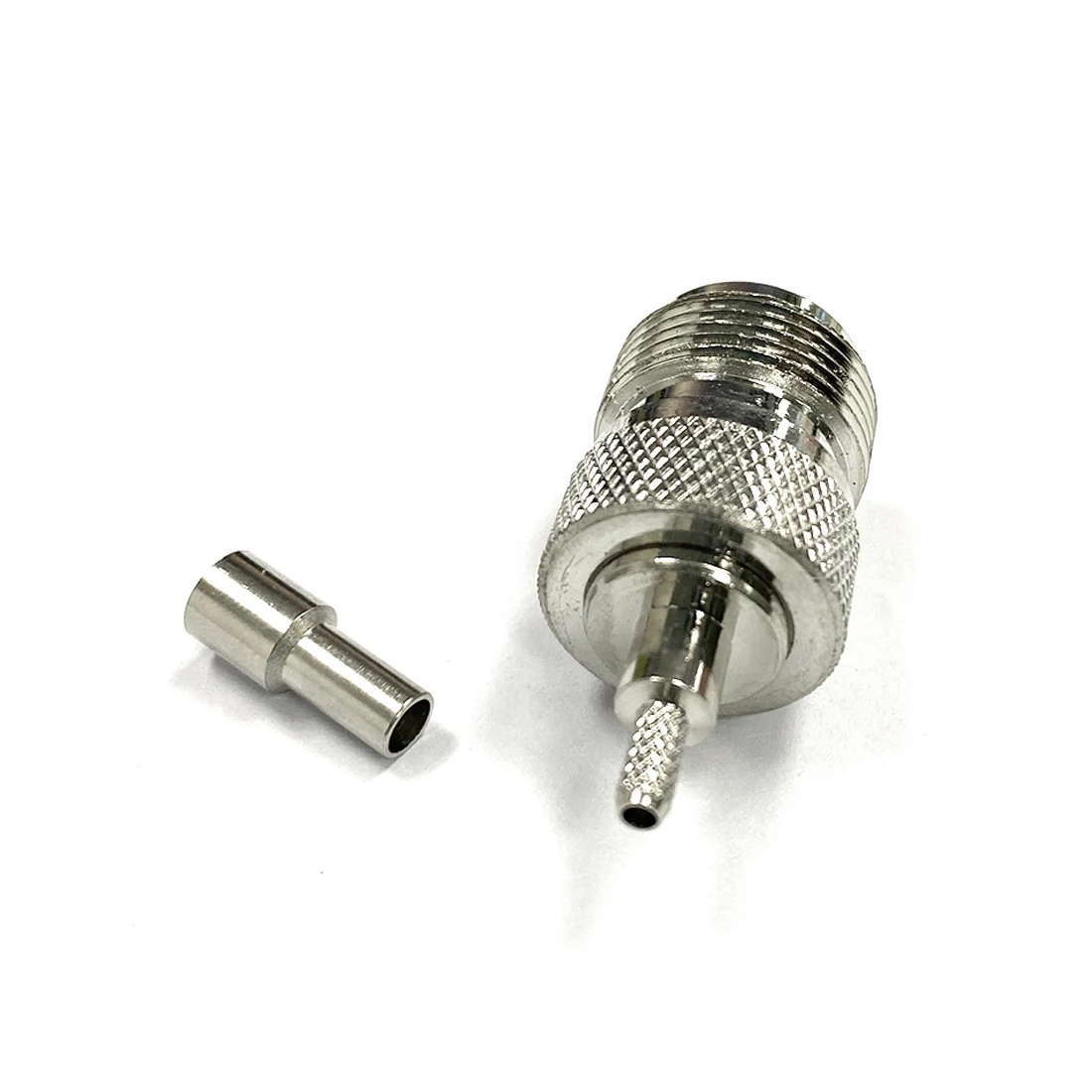

Type5:N Female Jack RF Coax Connector Crimp for RG316 RG174 Cable Straight Nickelplated NEW

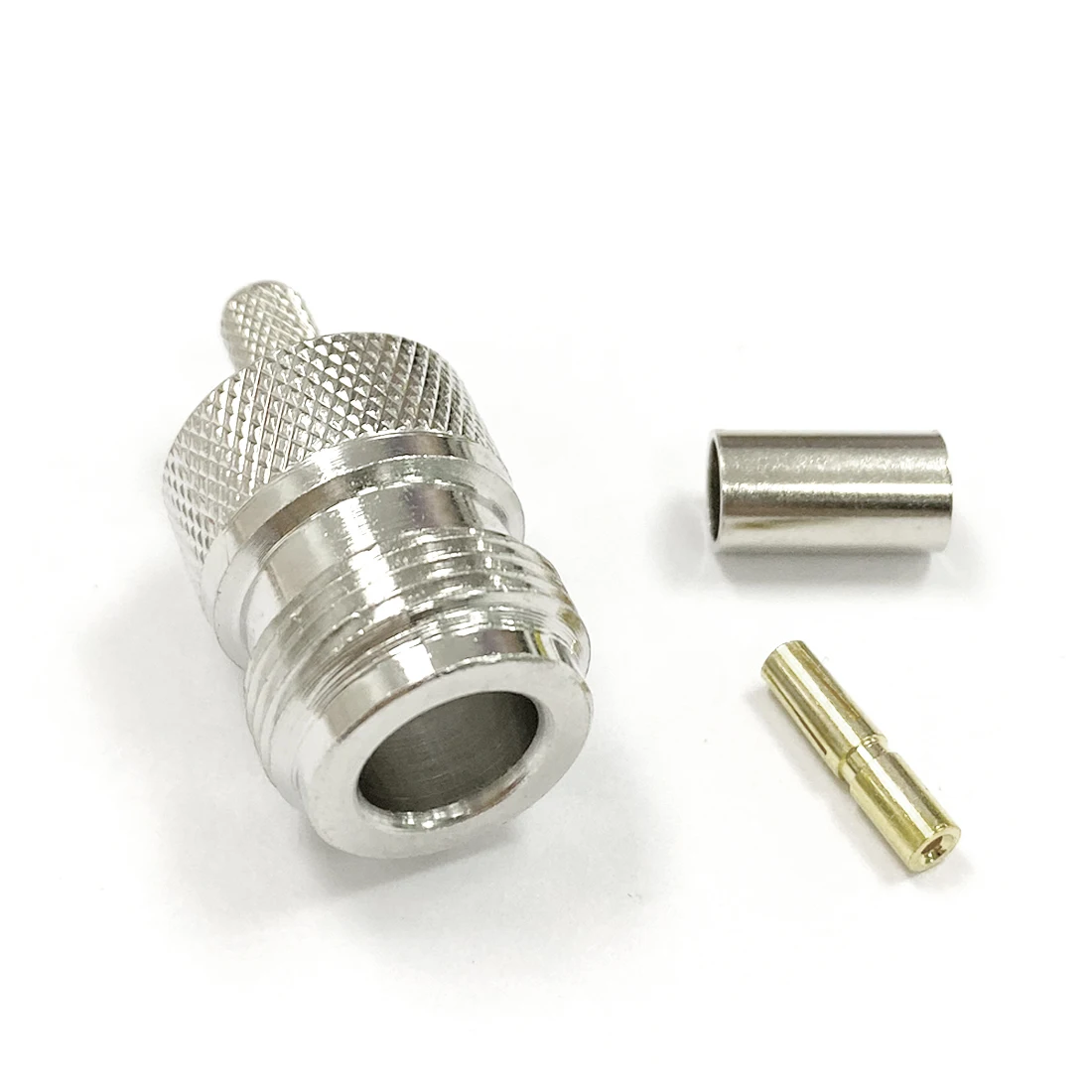

Type6: N Female Jack RF Coax Connector Crimp for RG58 RG142 RG400 Cable Straight Nickelplated NEW

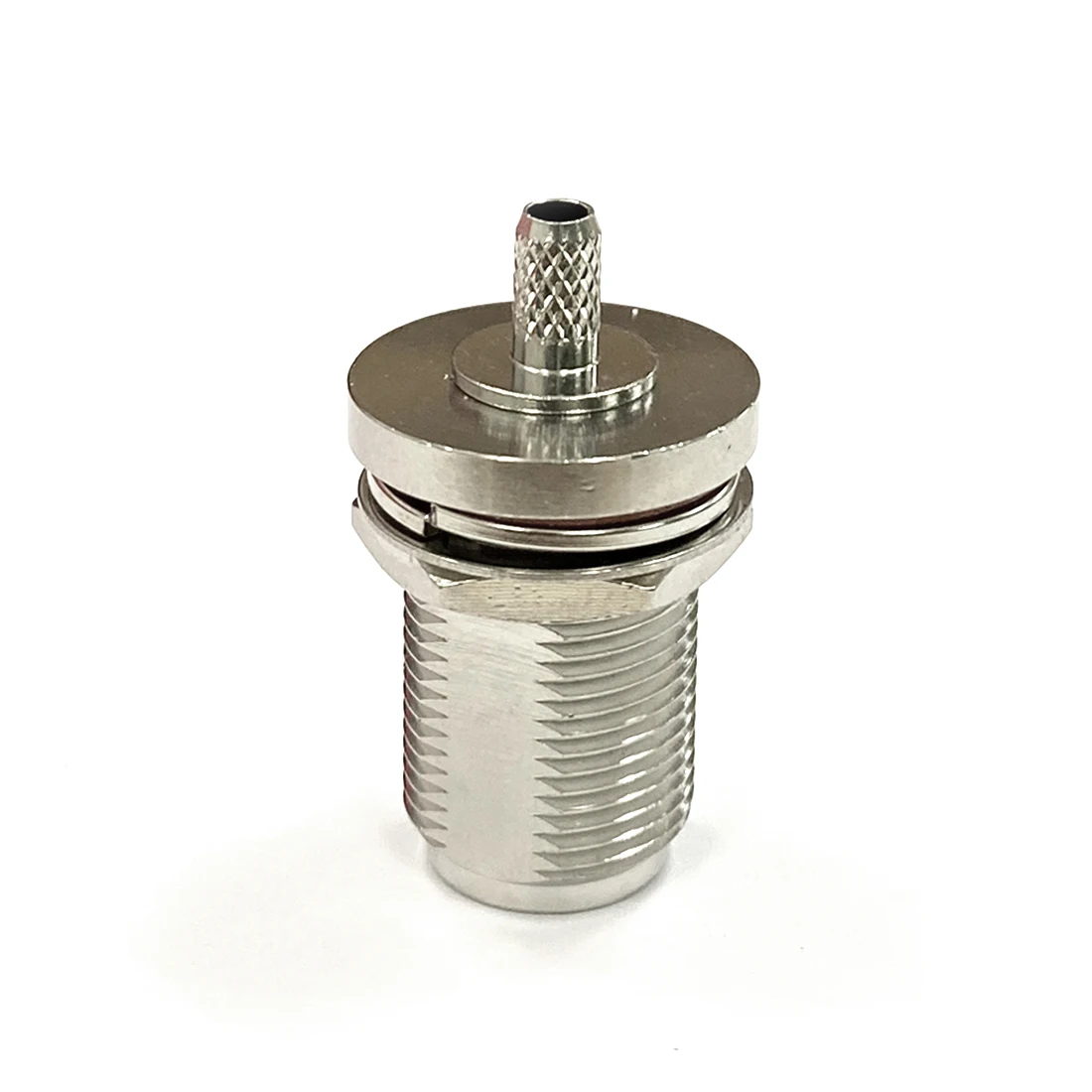

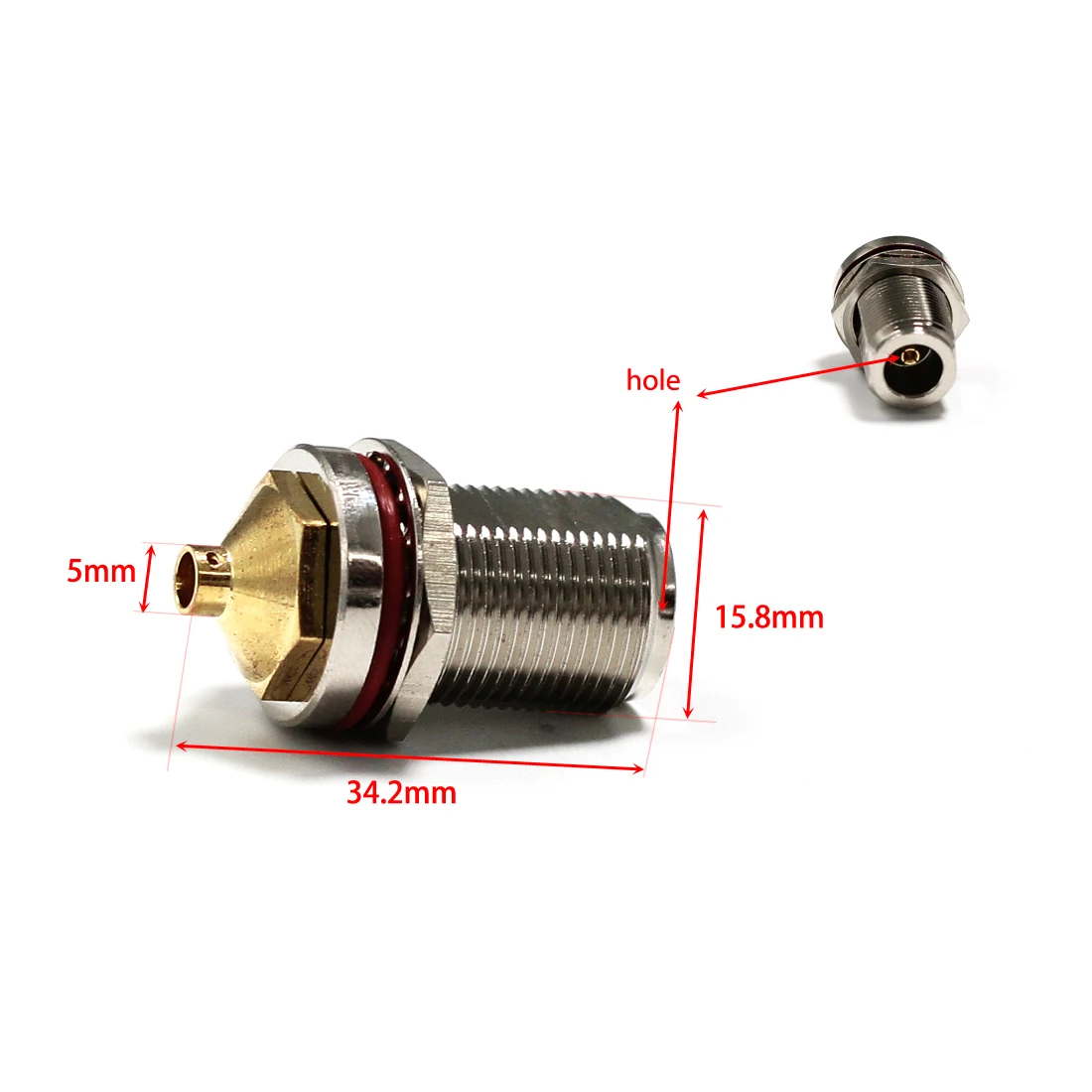

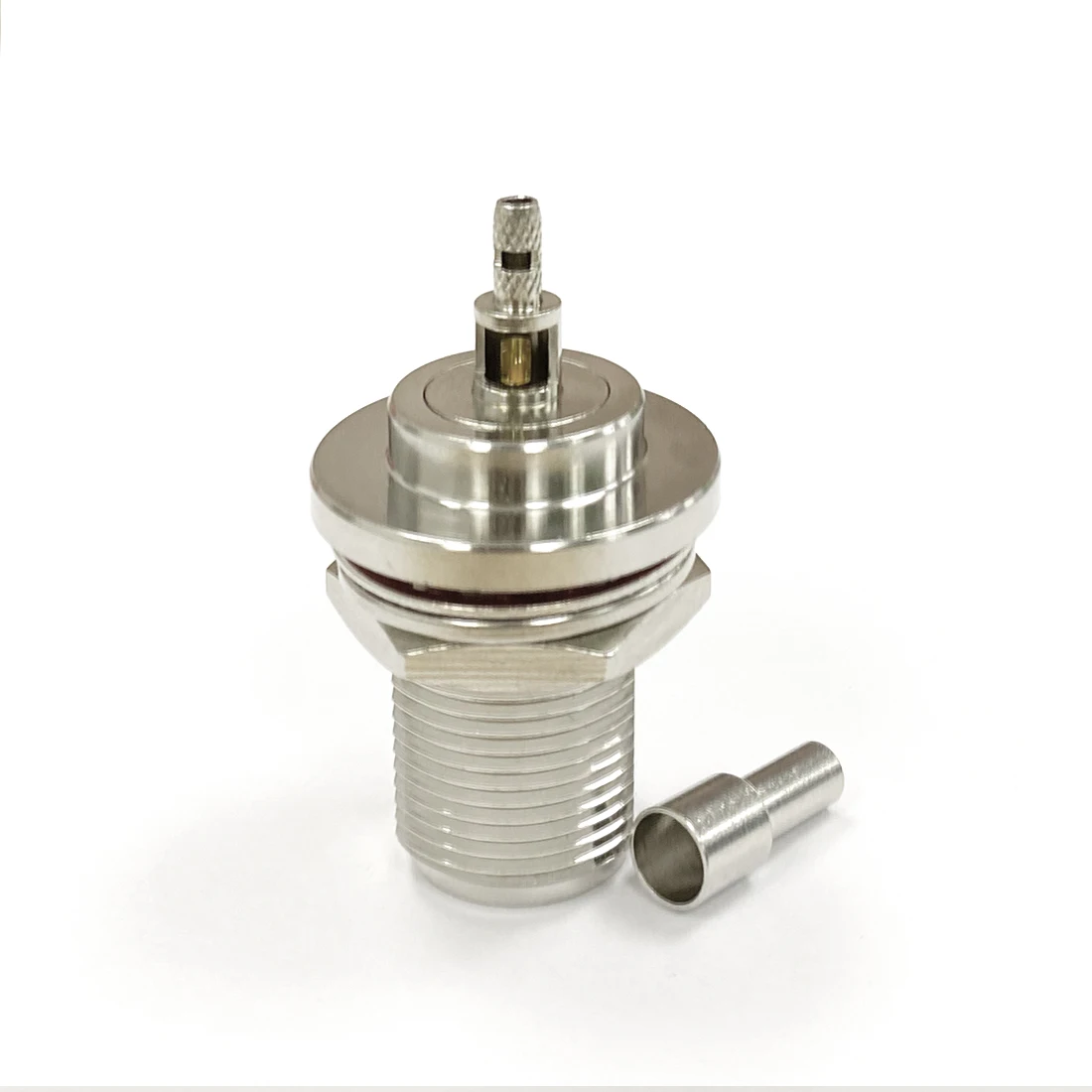

Type7: N Female Jack with Nut Bulkhead RF Coax Connector Crimp for RG316 RG174 Cable Straight Nickelplated NEW

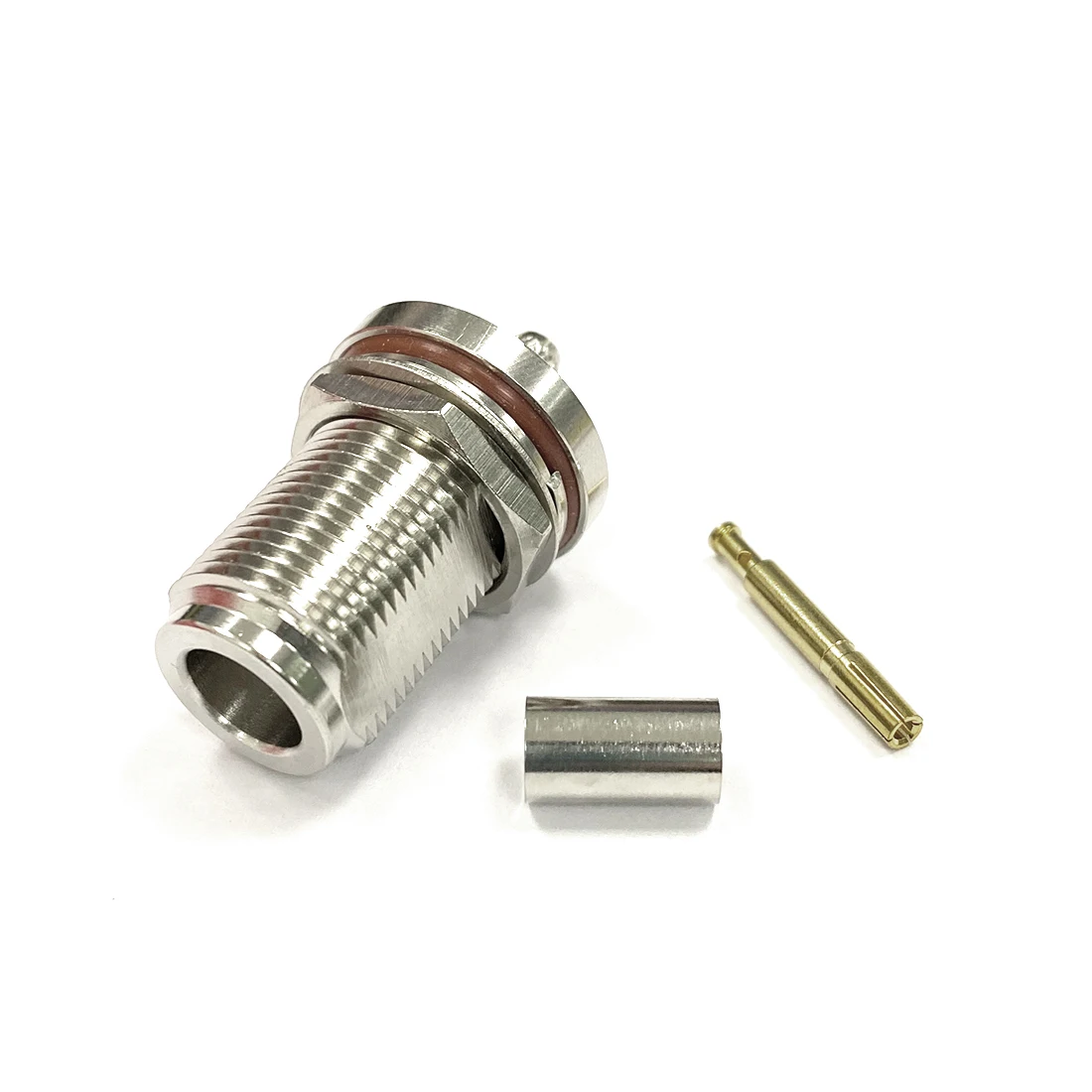

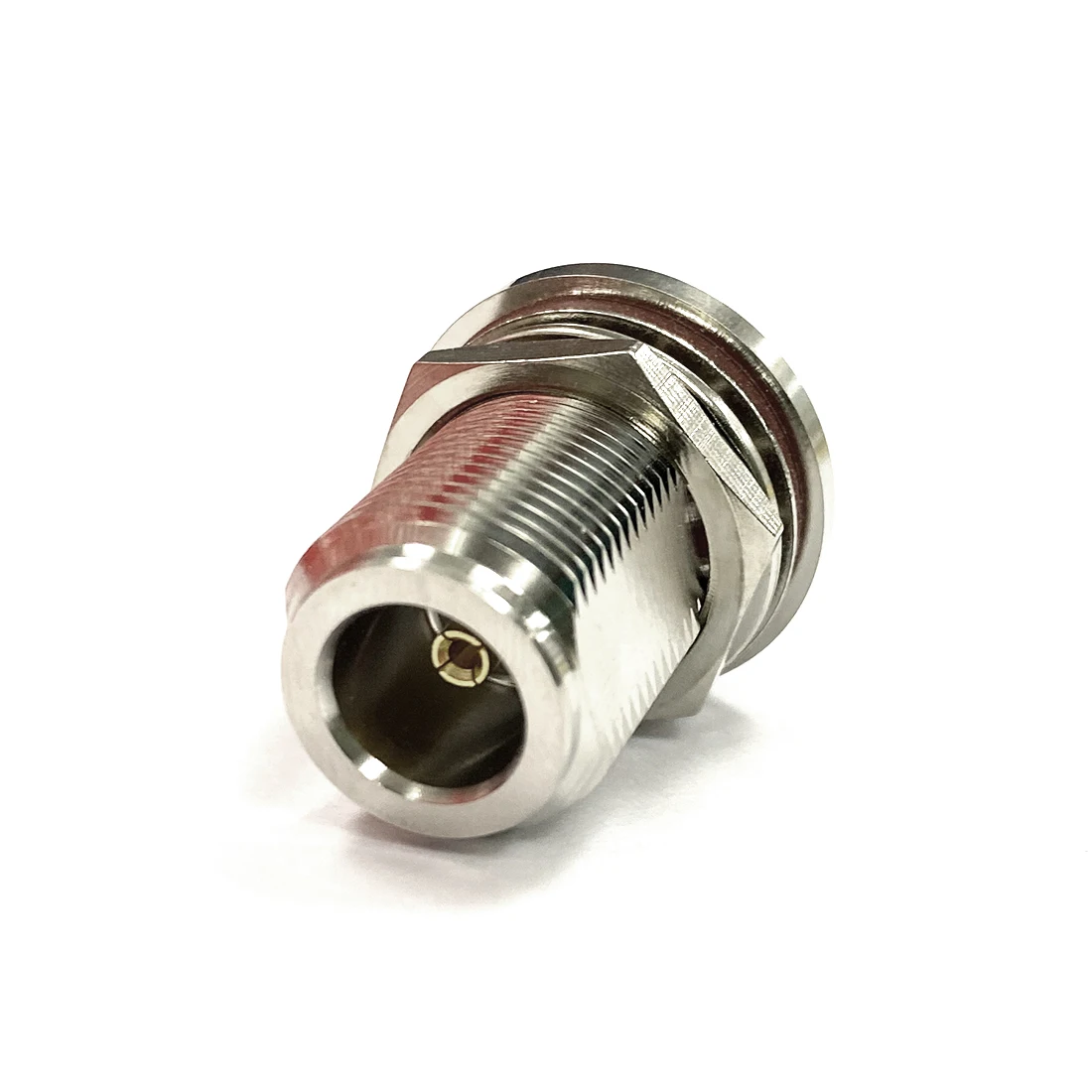

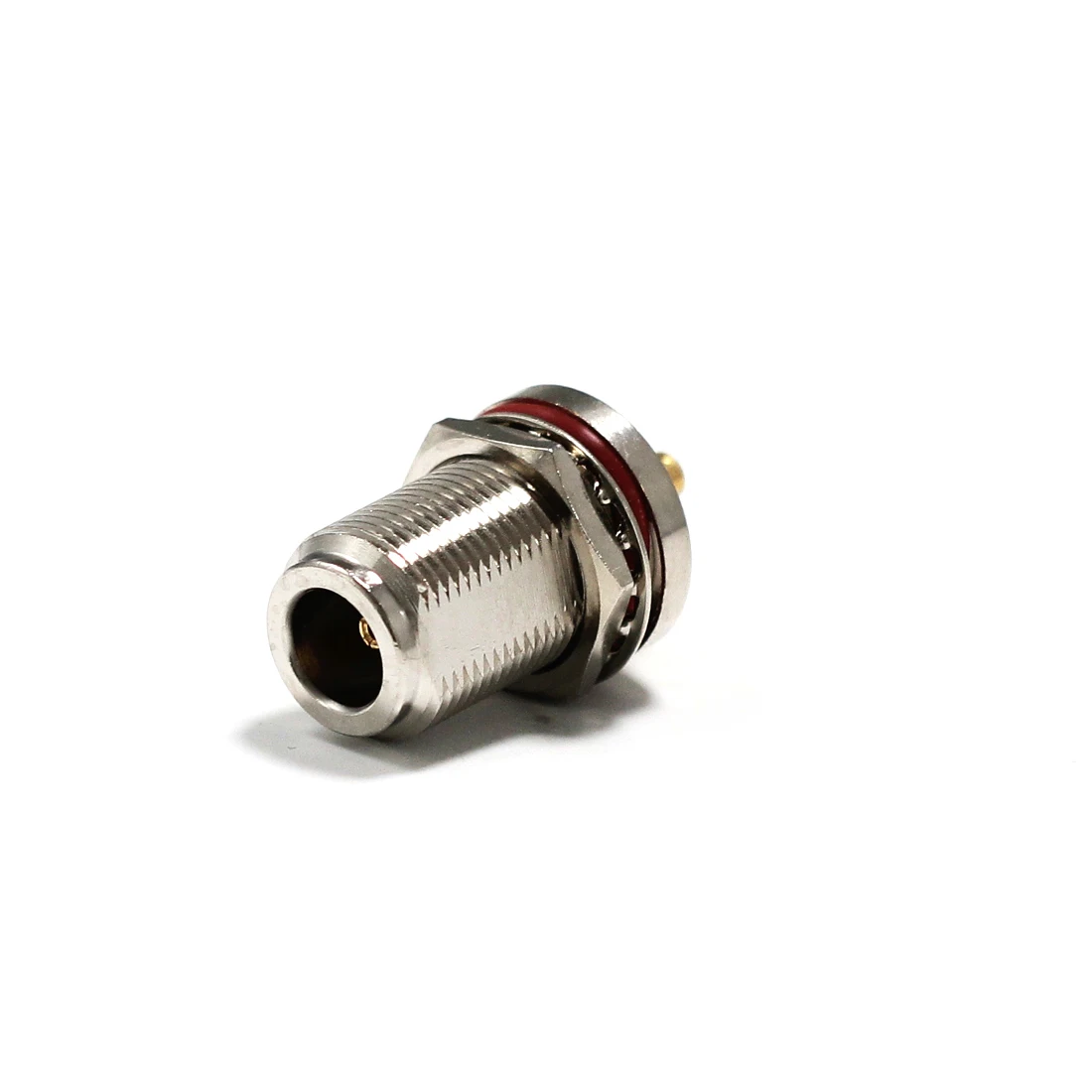

Type8: N Female Jack with Nut Bulkhead RF Coax Connector Crimp for RG58 RG142 Cable Straight Nickelplated NEW

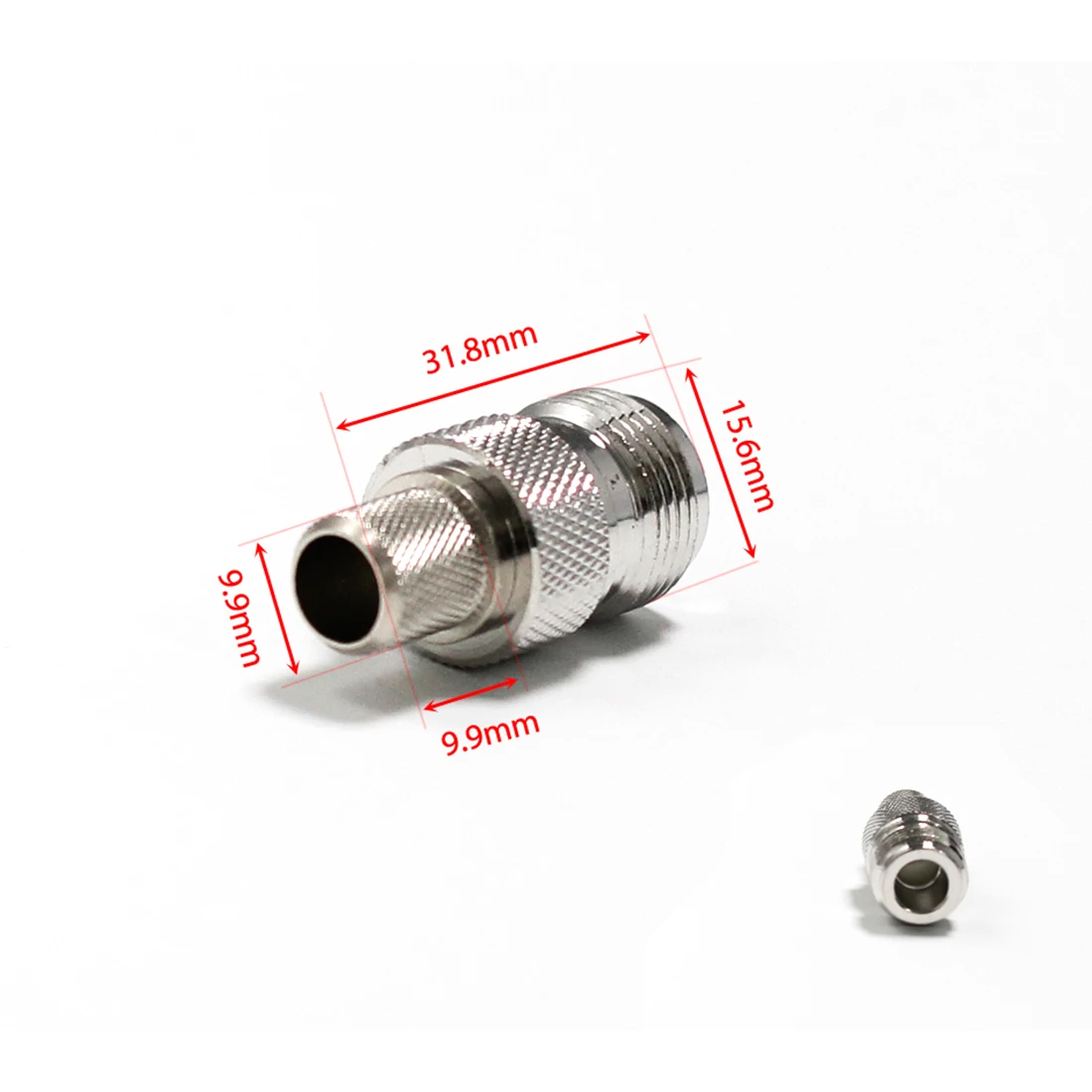

Type9: N Female Jack RF Coax Connector Crimp for RG8 RG213 LMR400 Cable Straight Nickelplated NEW

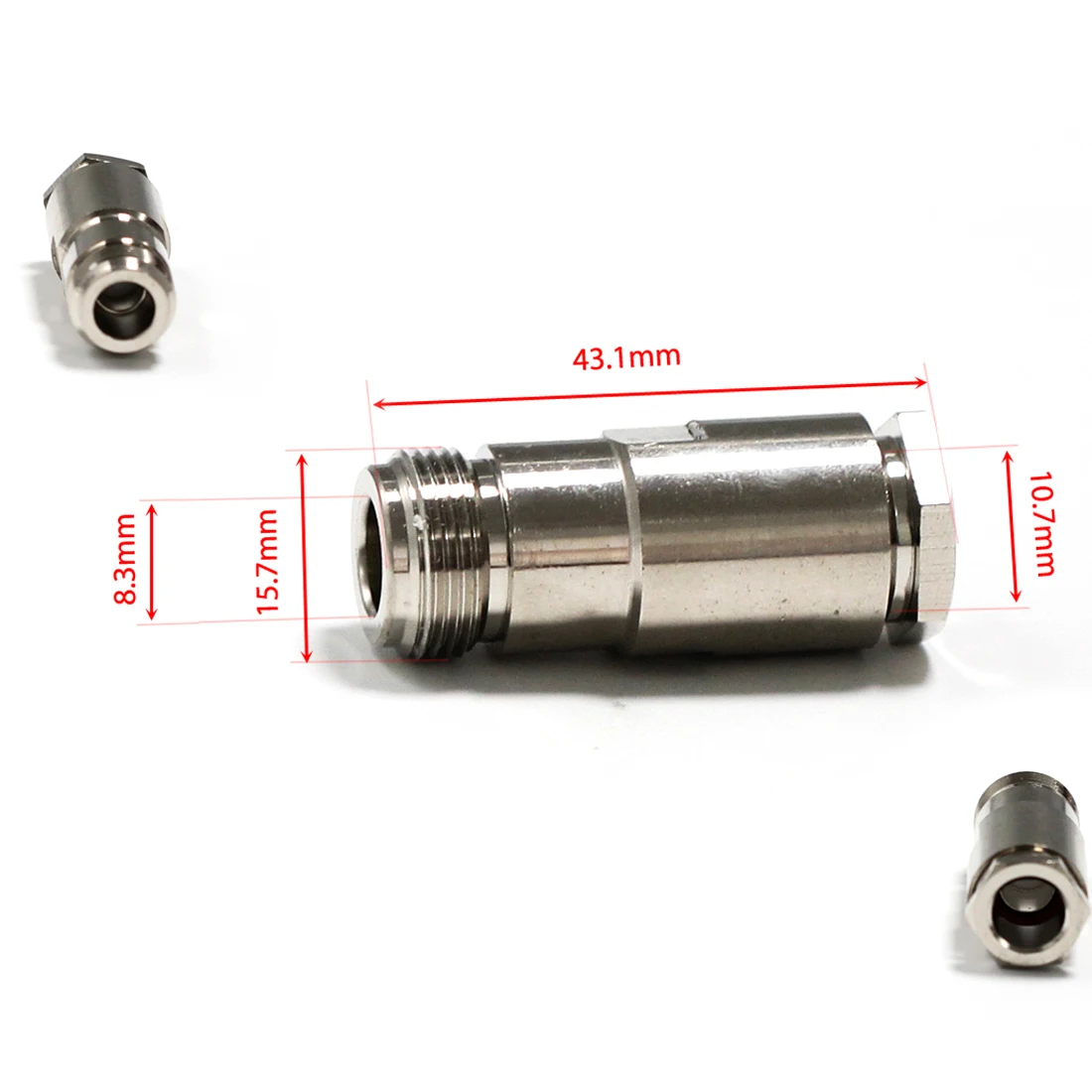

Type10: N Female Jack RF Coax Connector Clamp for RG8 RG213 LMR400 Cable Straight screw on terminal NEW

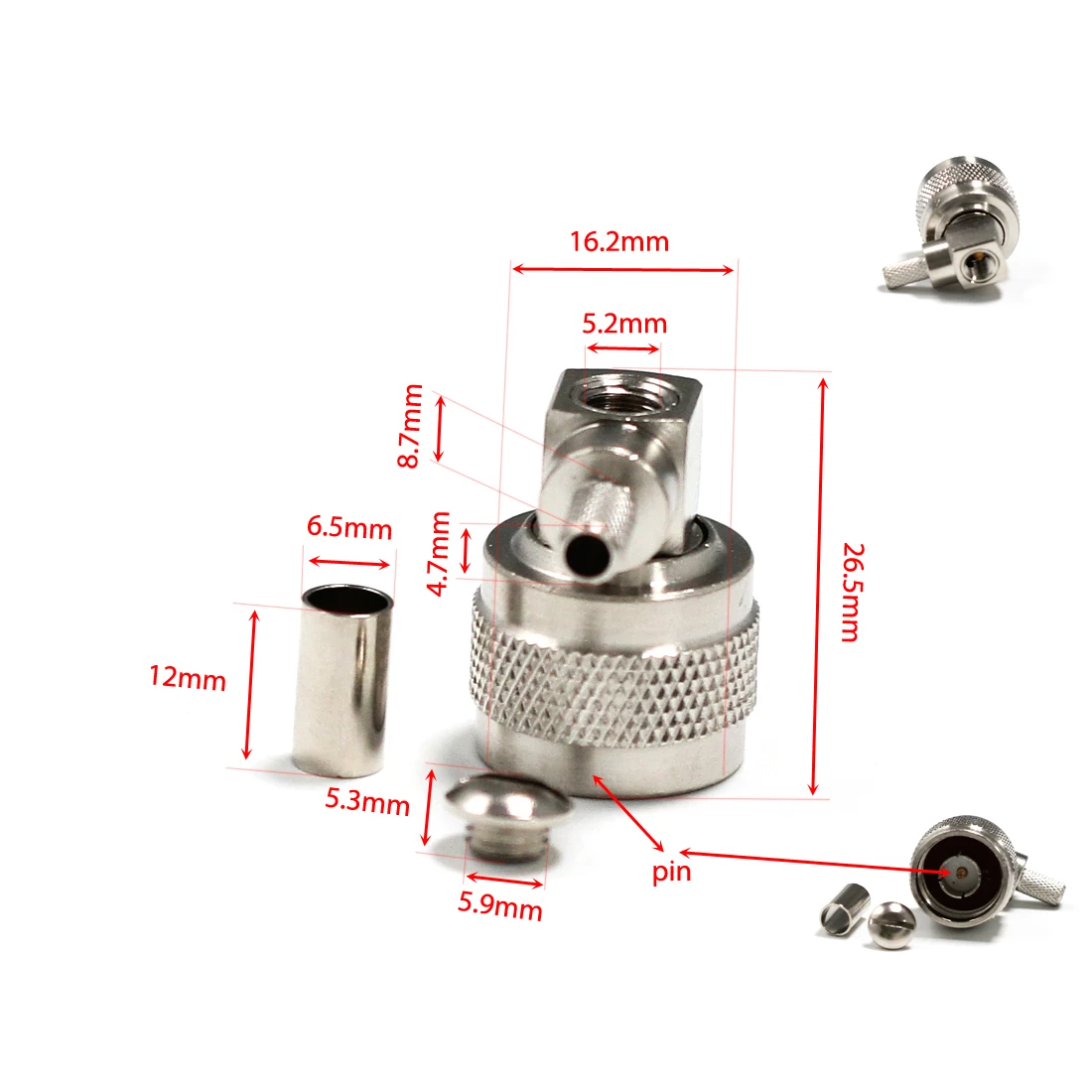

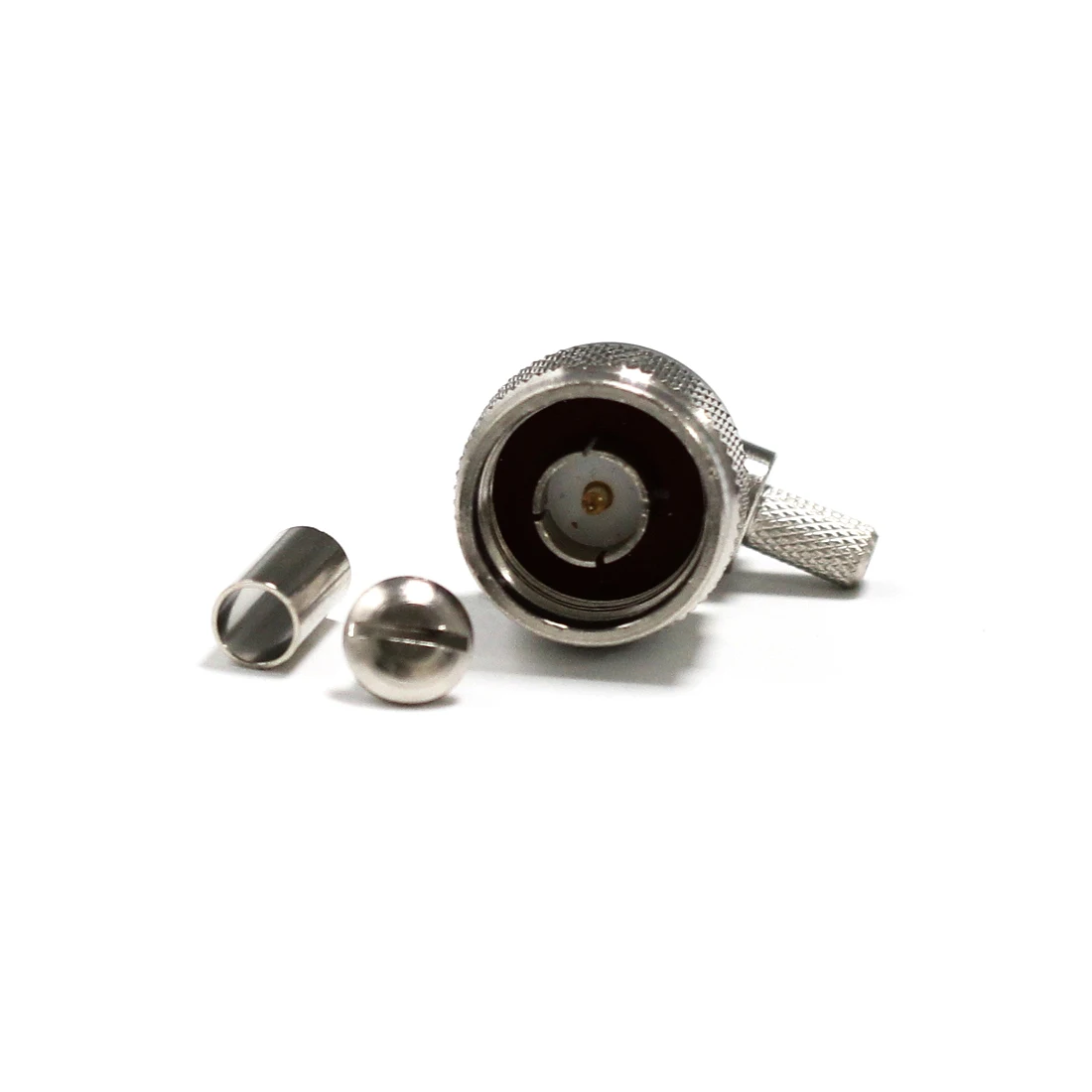

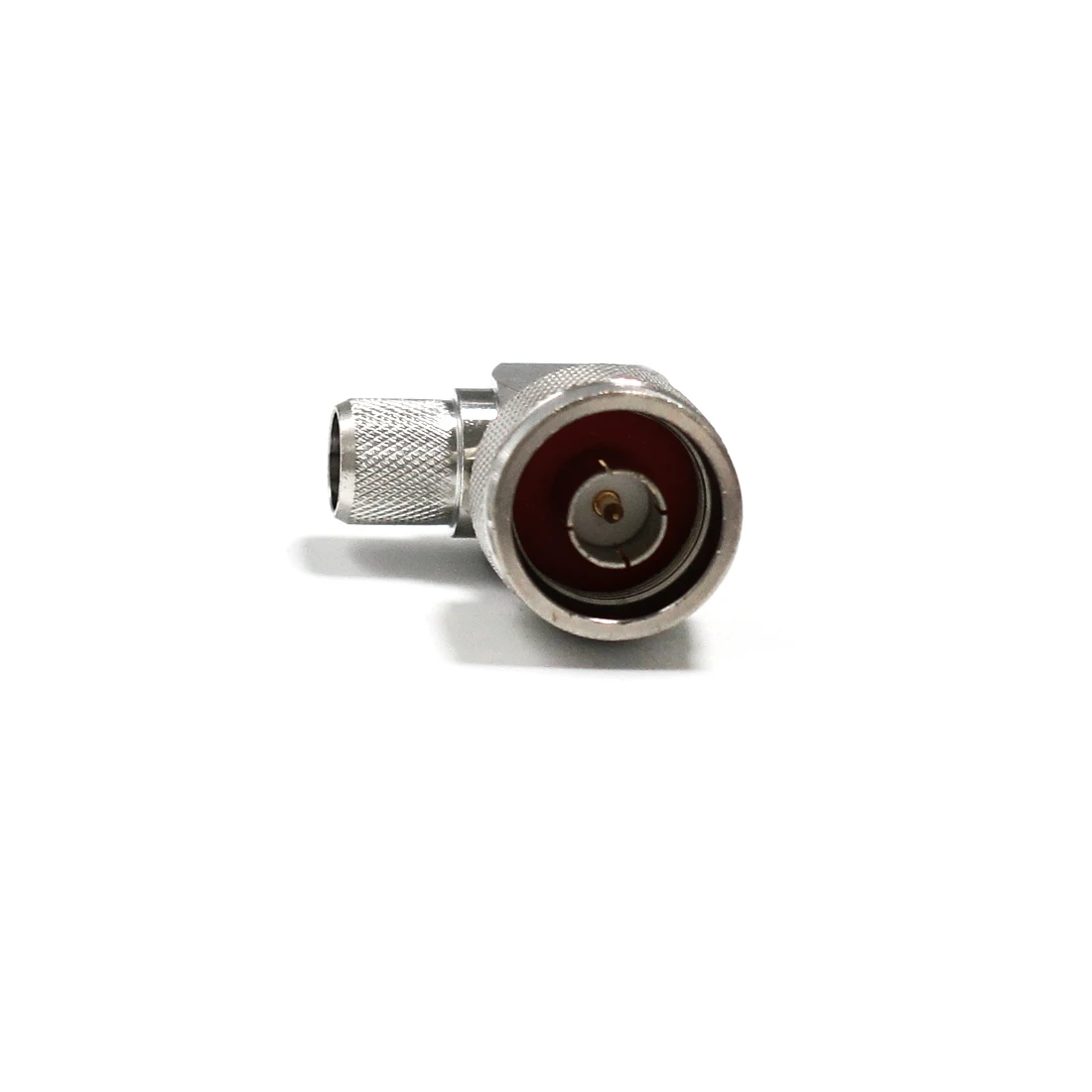

Type11:N Male Plug RF Coax Connector Crimp for RG58 RG142 RG400 Cable Right Angle Nickelplated NEW

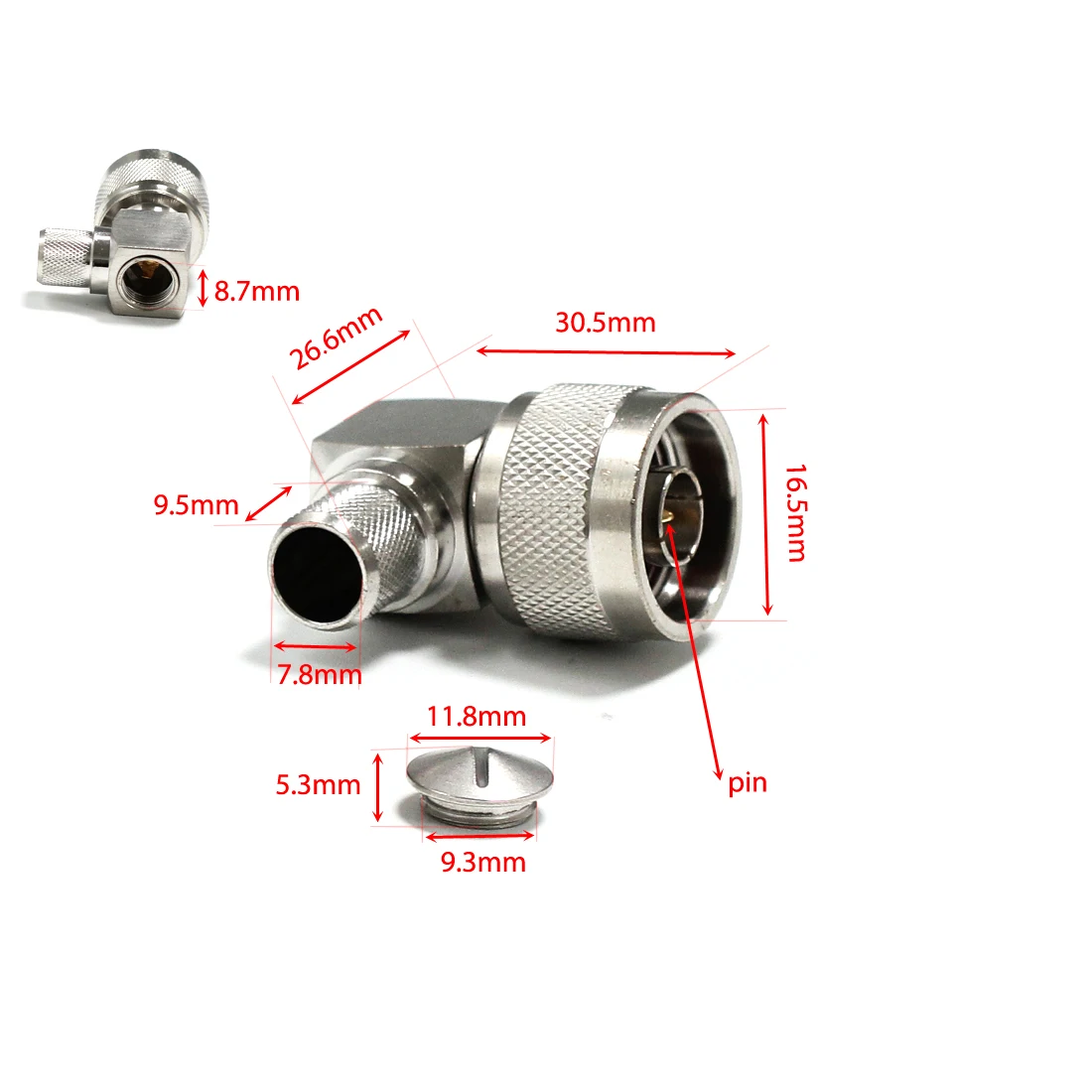

Type12: N Male Plug RF Coax Connector Crimp for RG8 RG213 LMR400 Cable Right Angle Nickelplated NEW

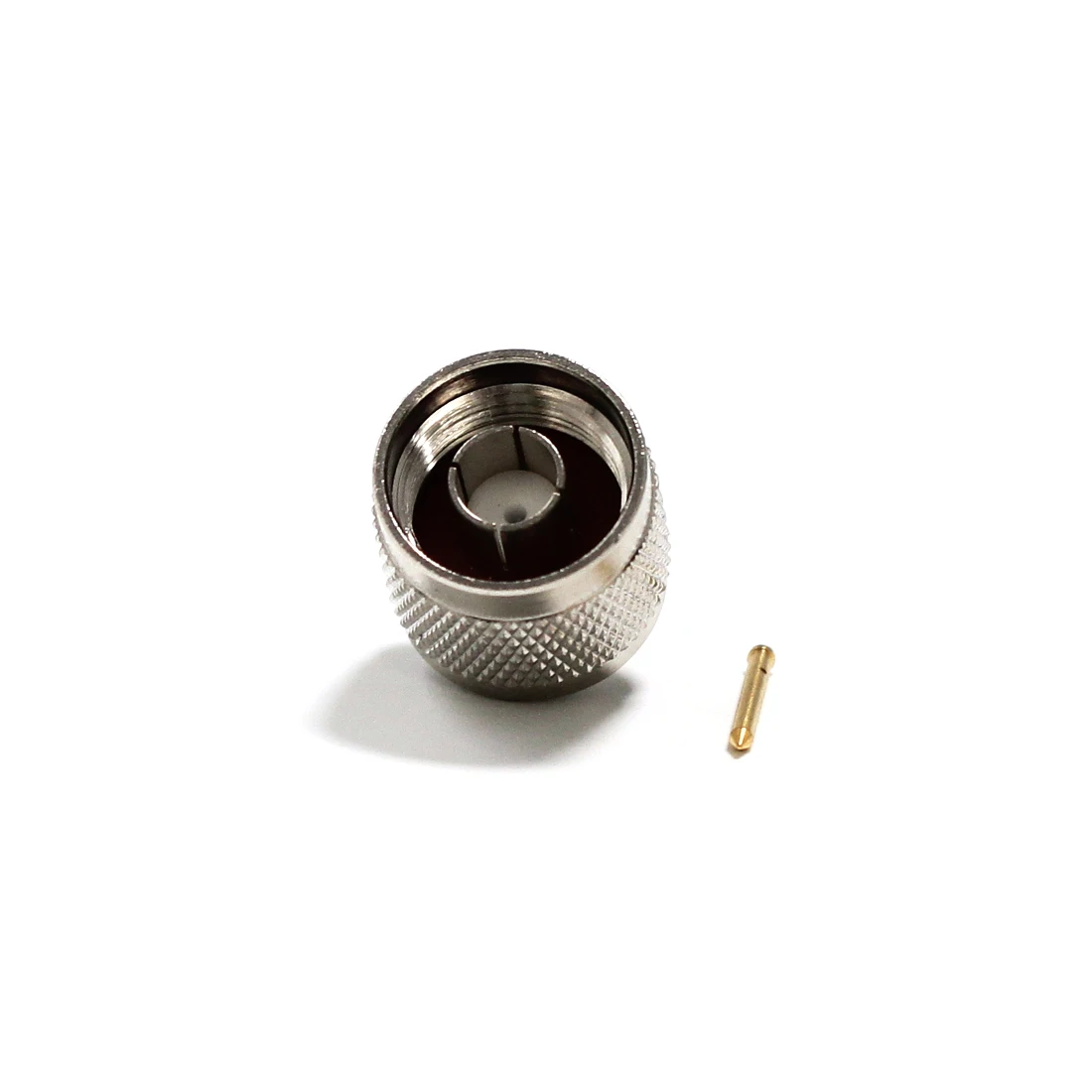

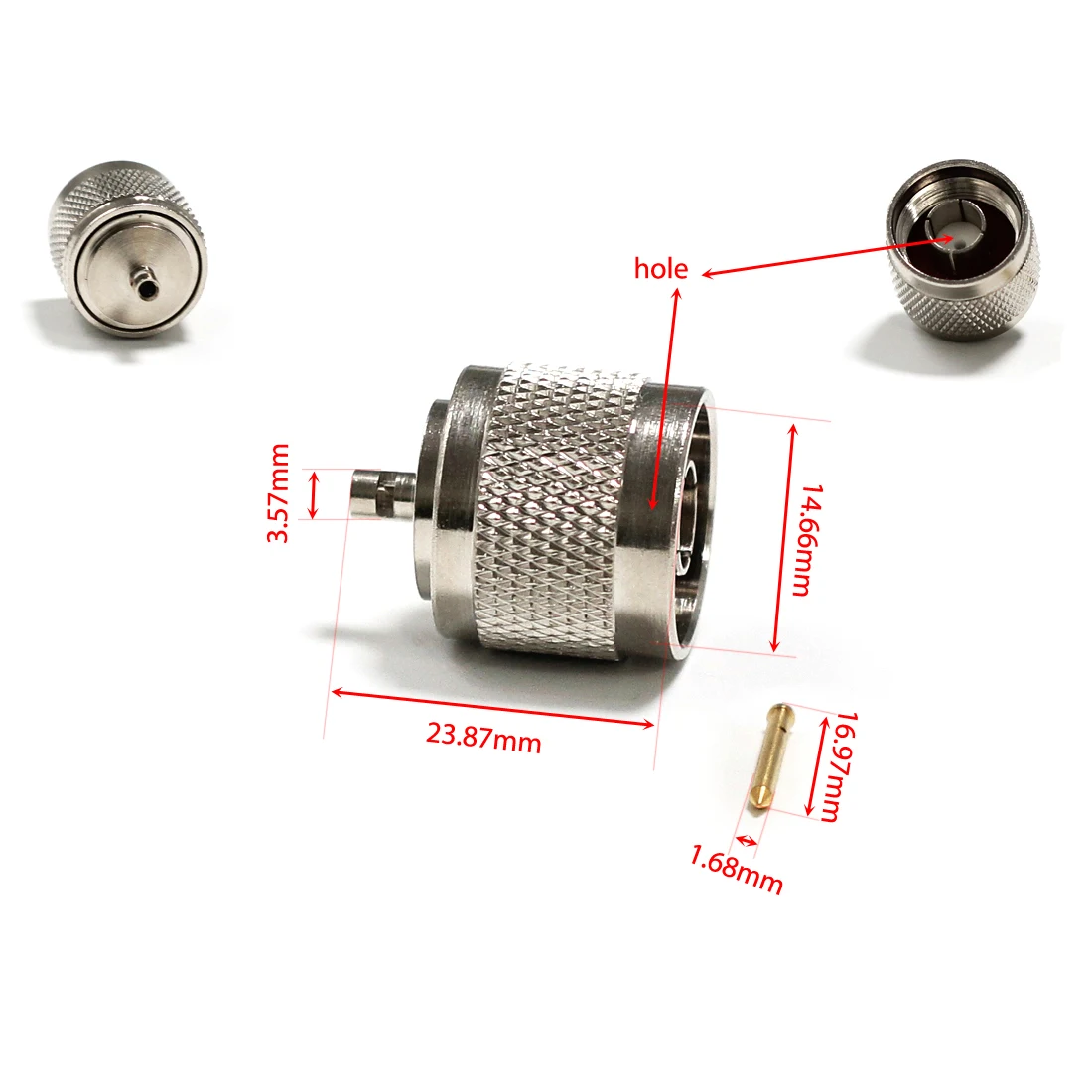

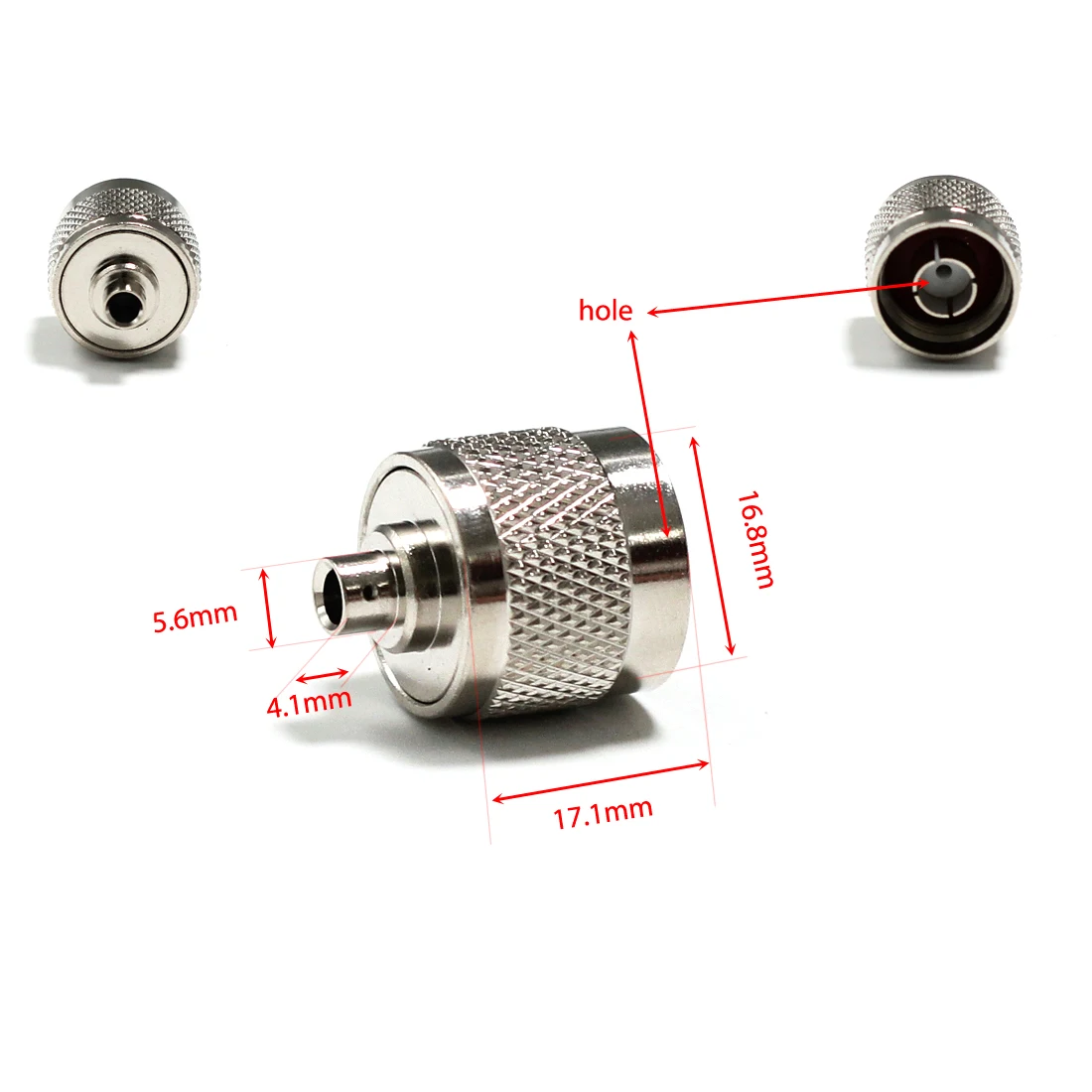

Type13: N Male Plug RF Coax Connector Solder for Semi-flexible Cable RG405.086" Welding NEW
Type14: N Male Plug RF Coax Connector Solder for Semi-flexible Cable RG402.141" Welding NEW

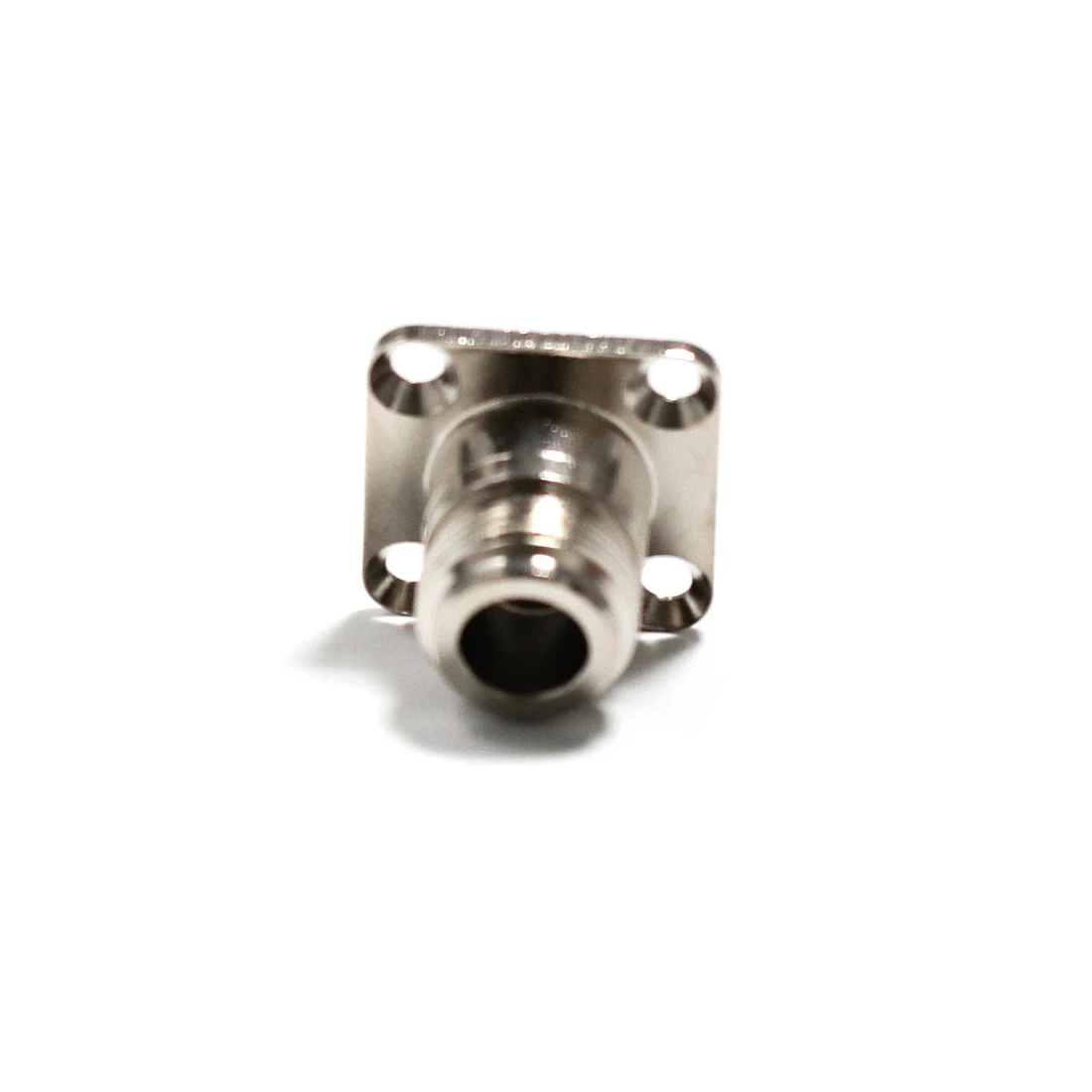

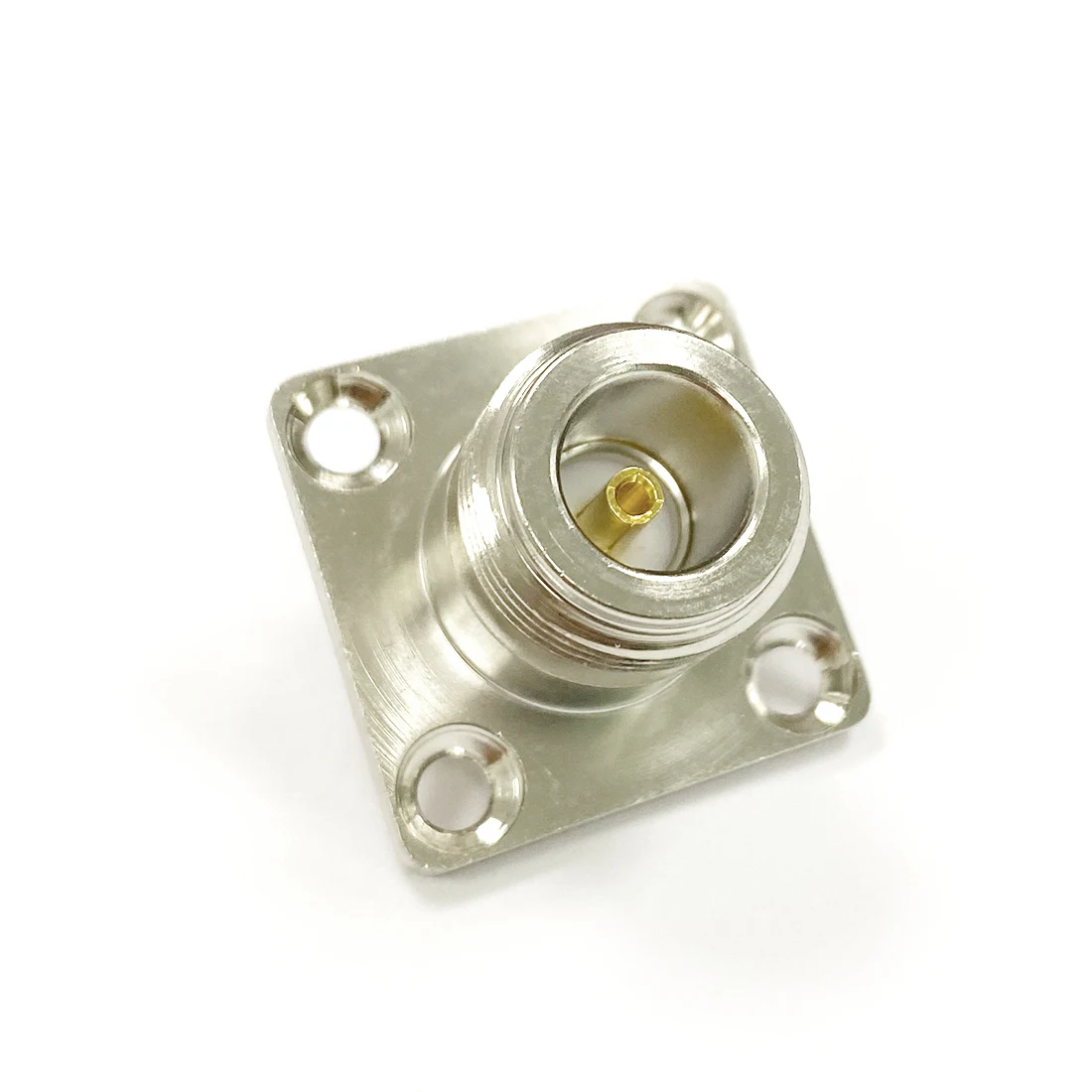

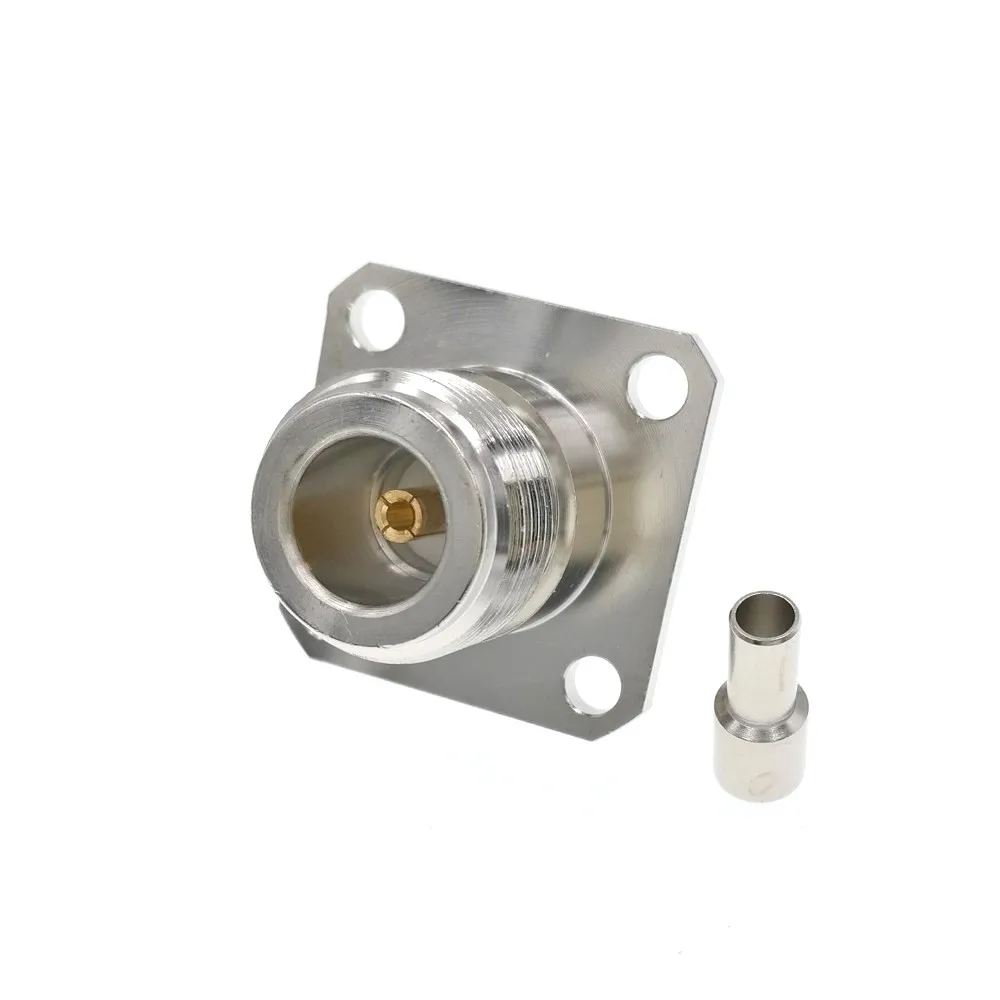

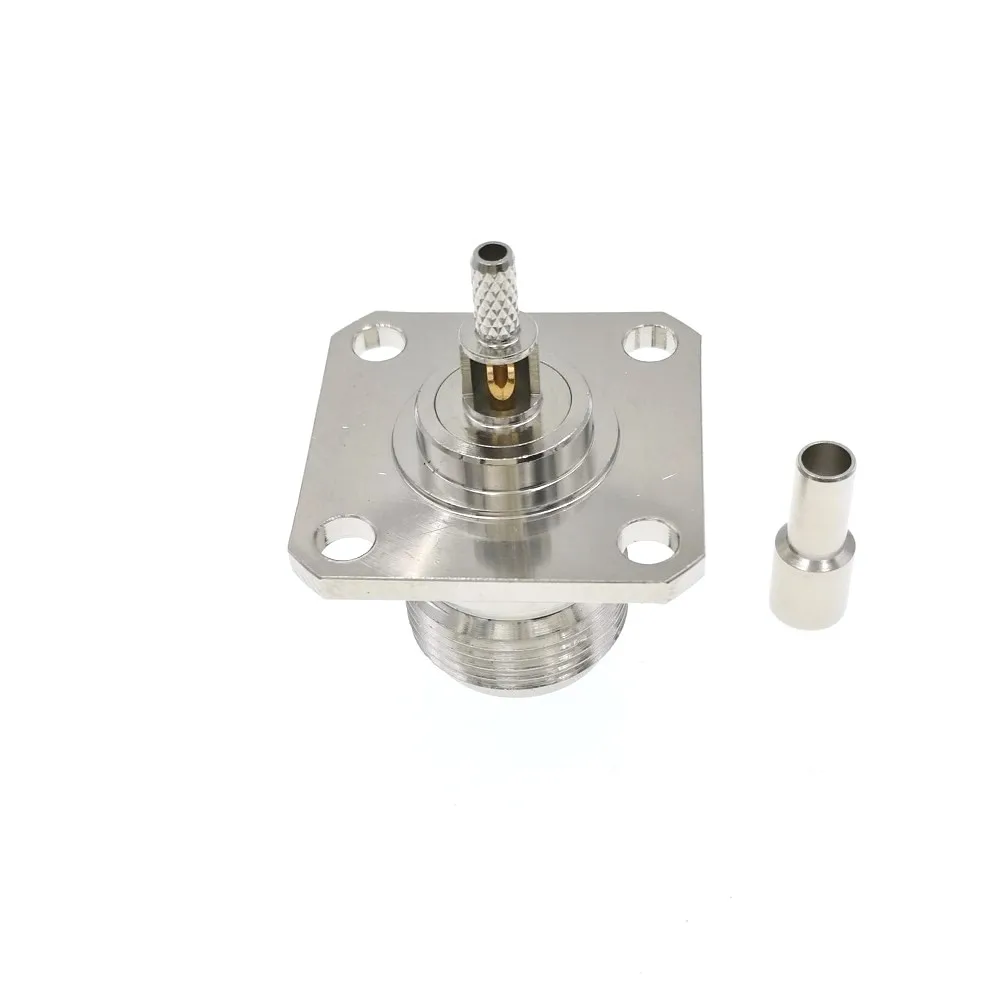

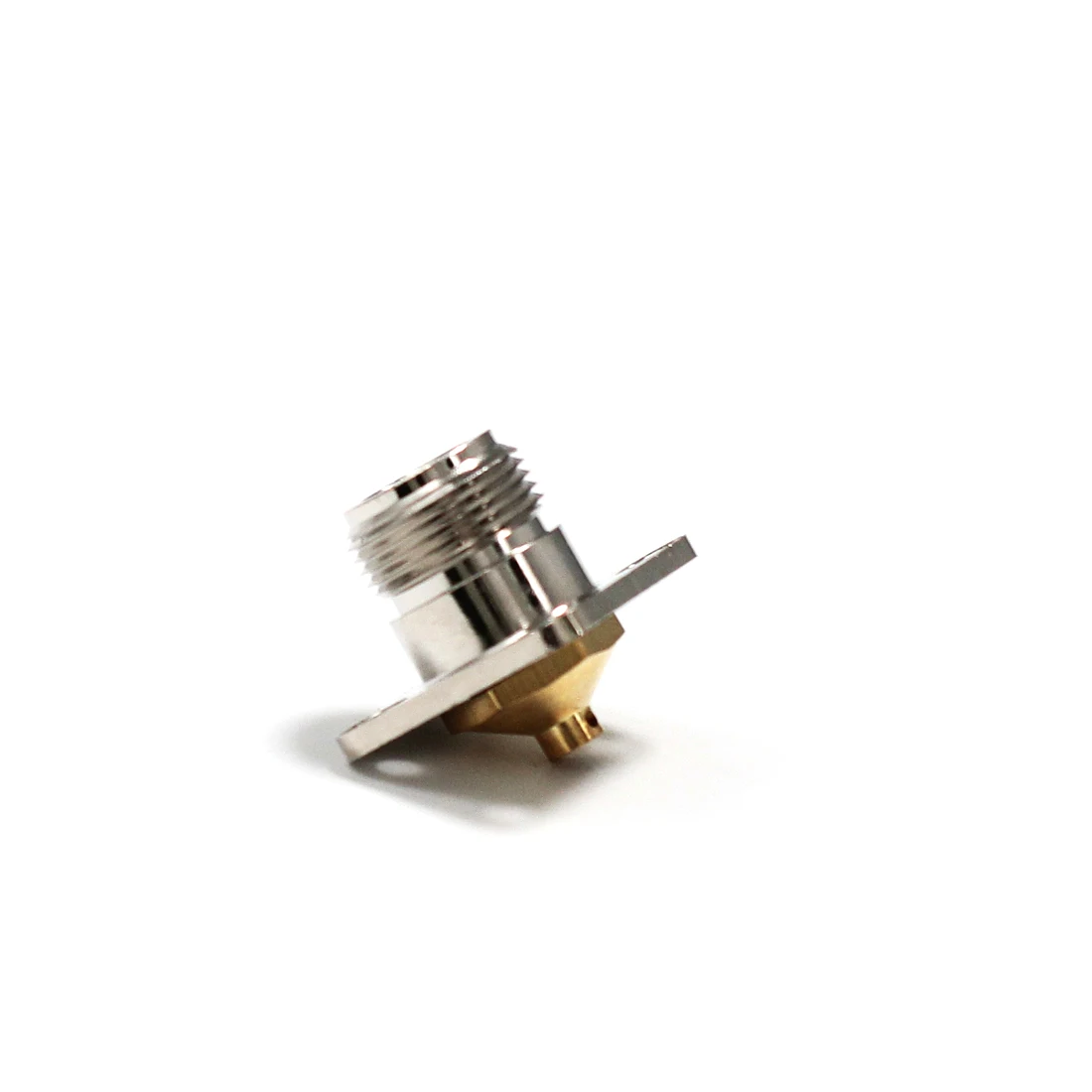

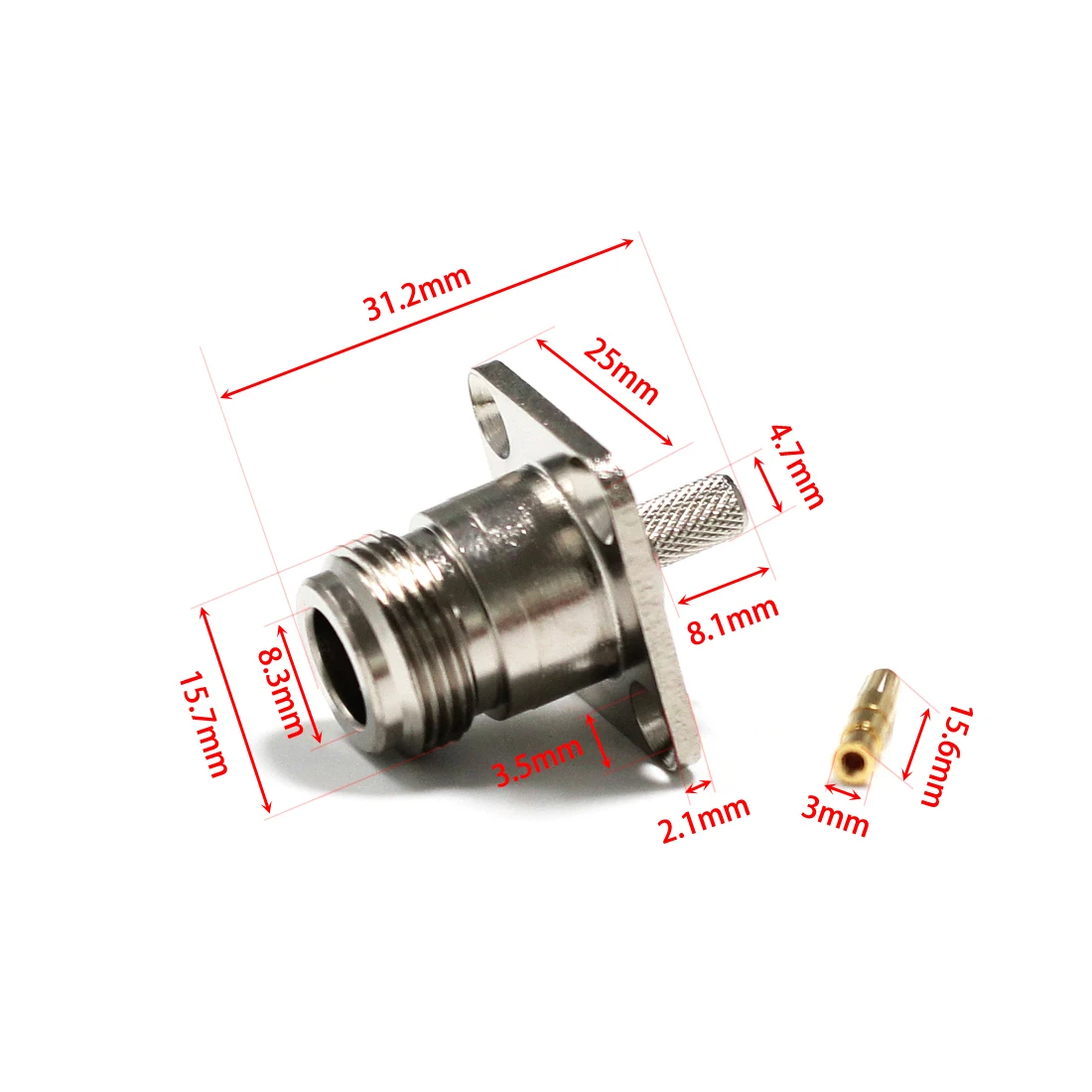

Type15: N Female Jack 4-Hole Panel RF Coax Connector Crimp for RG316 RG174 Cable Straight Nickelplated NEW
Type16: N Female Jack 4-Hole Panel RF Coax Connector Crimp for RG58 RG142 Cable Straight Nickelplated NEW

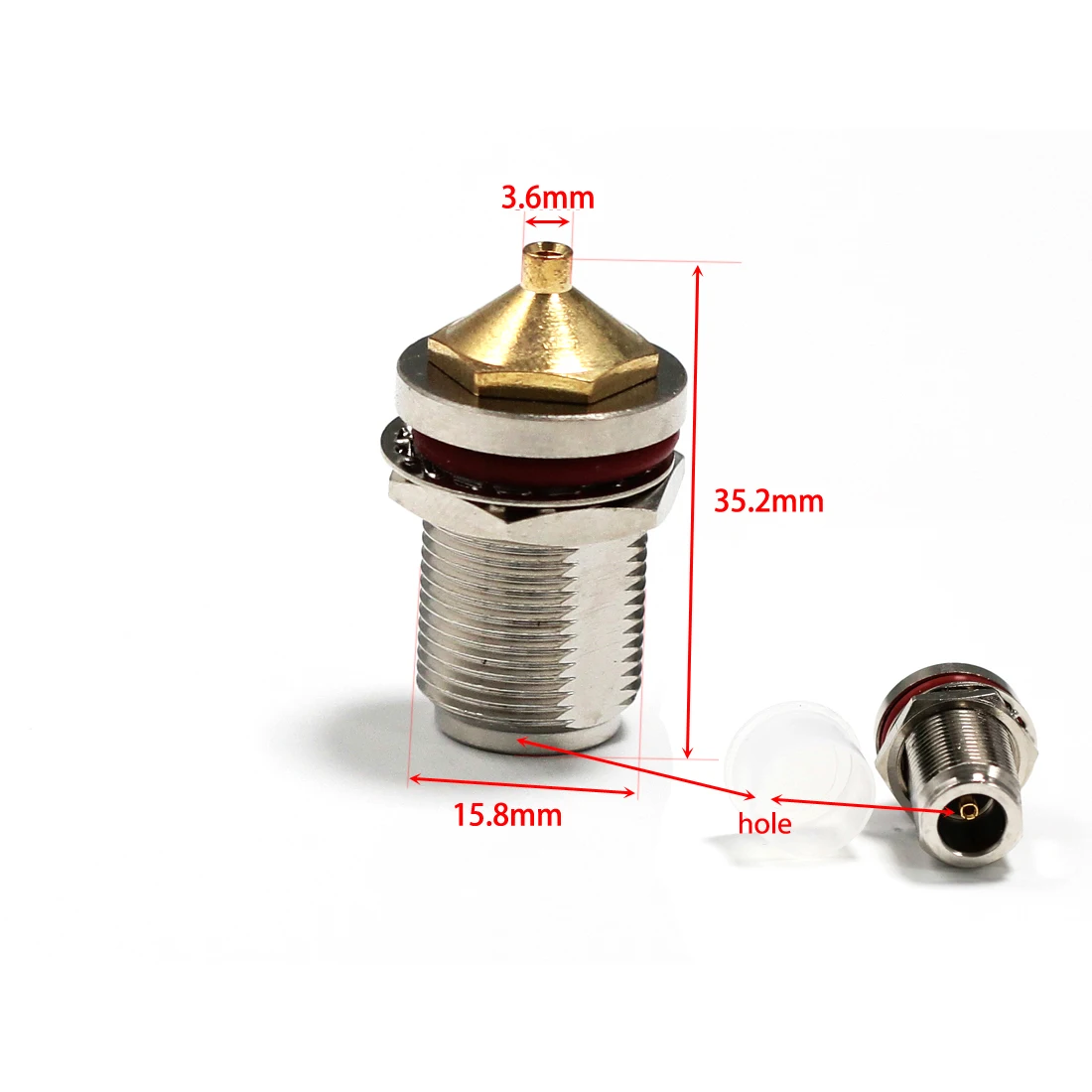

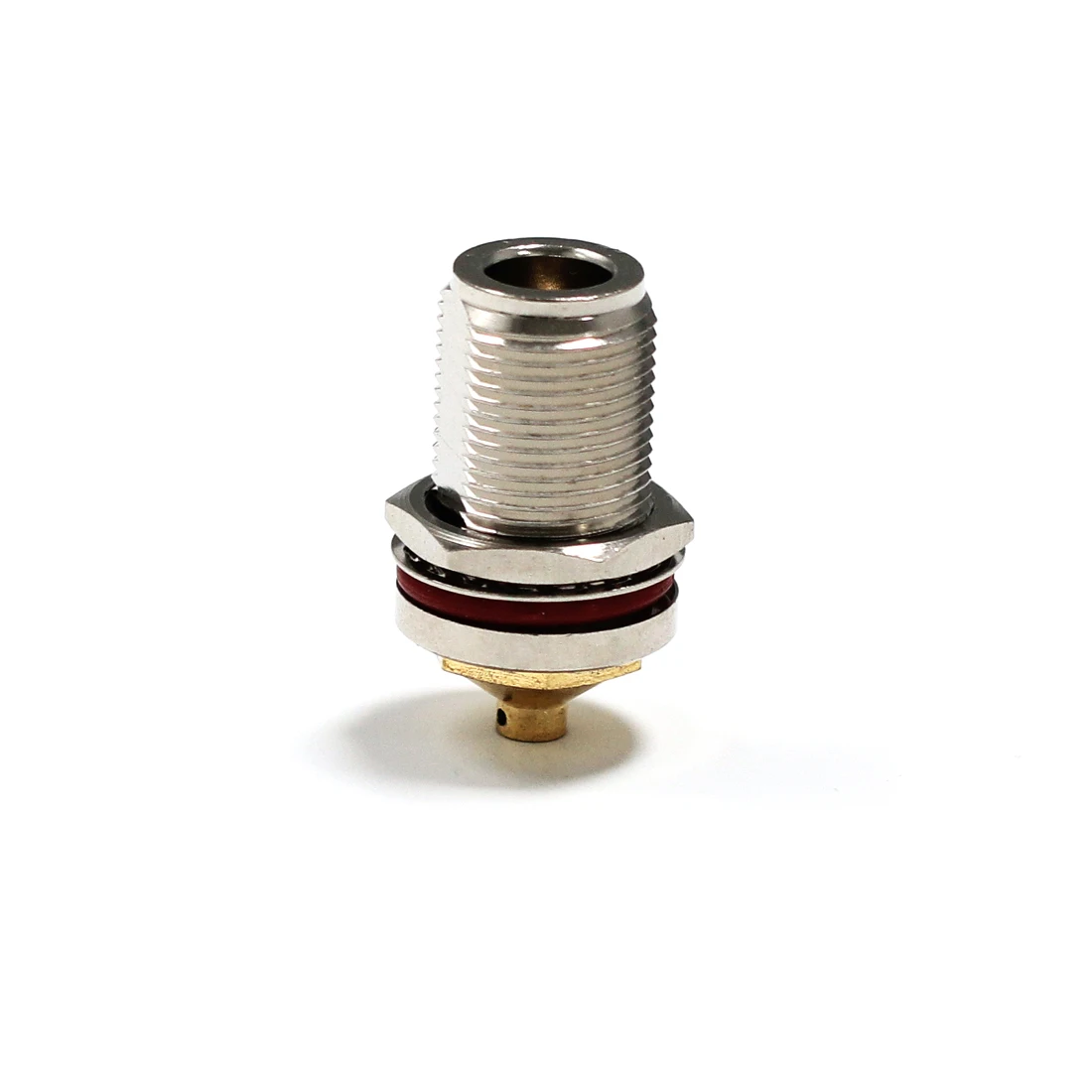

Type17: N Female with Nut RF Coax Connector Solder for Semi-flexible Cable RG405.086" Welding NEW
Type18: N Female with Nut RF Coax Connector Solder for Semi-flexible Cable RG402.141" Welding NEW

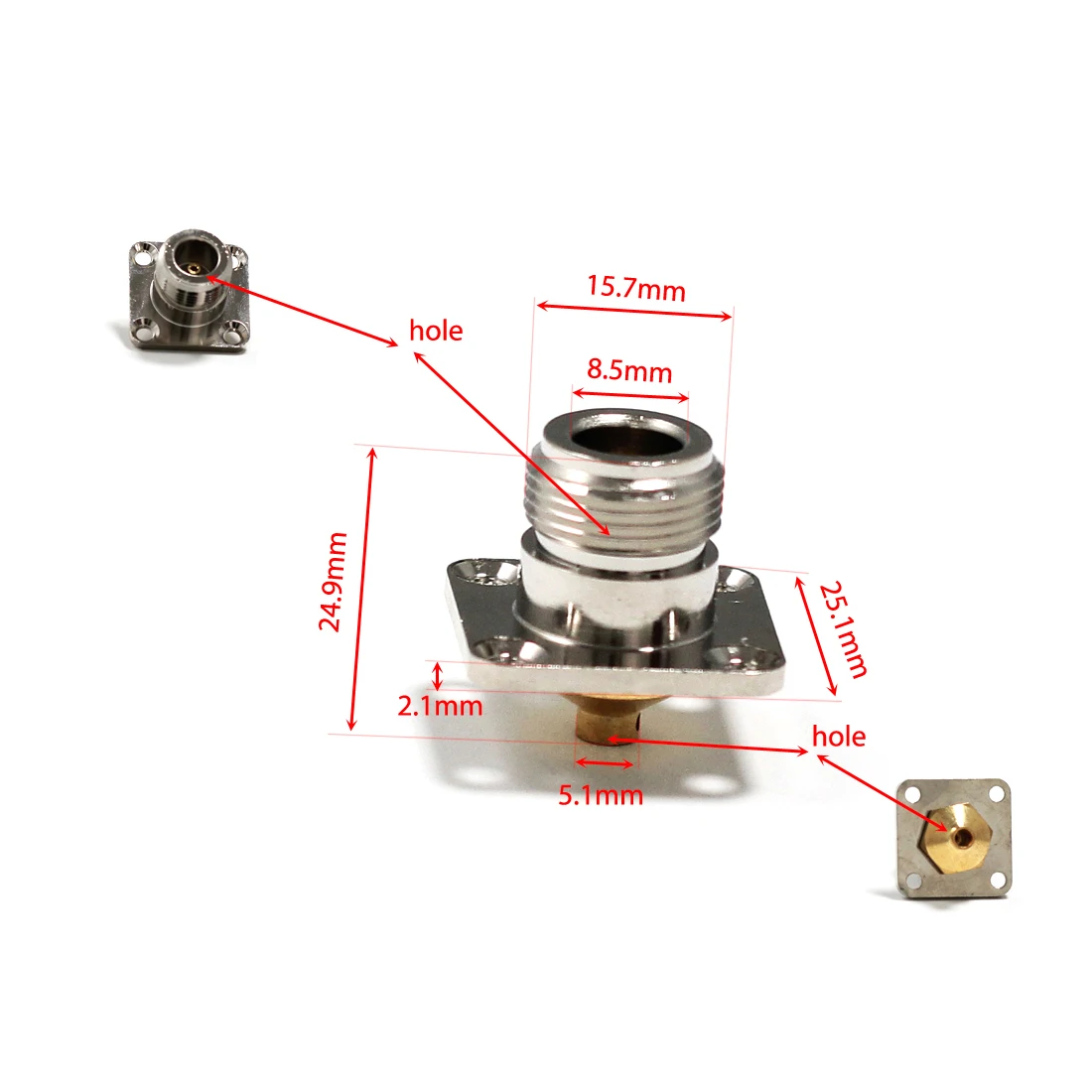

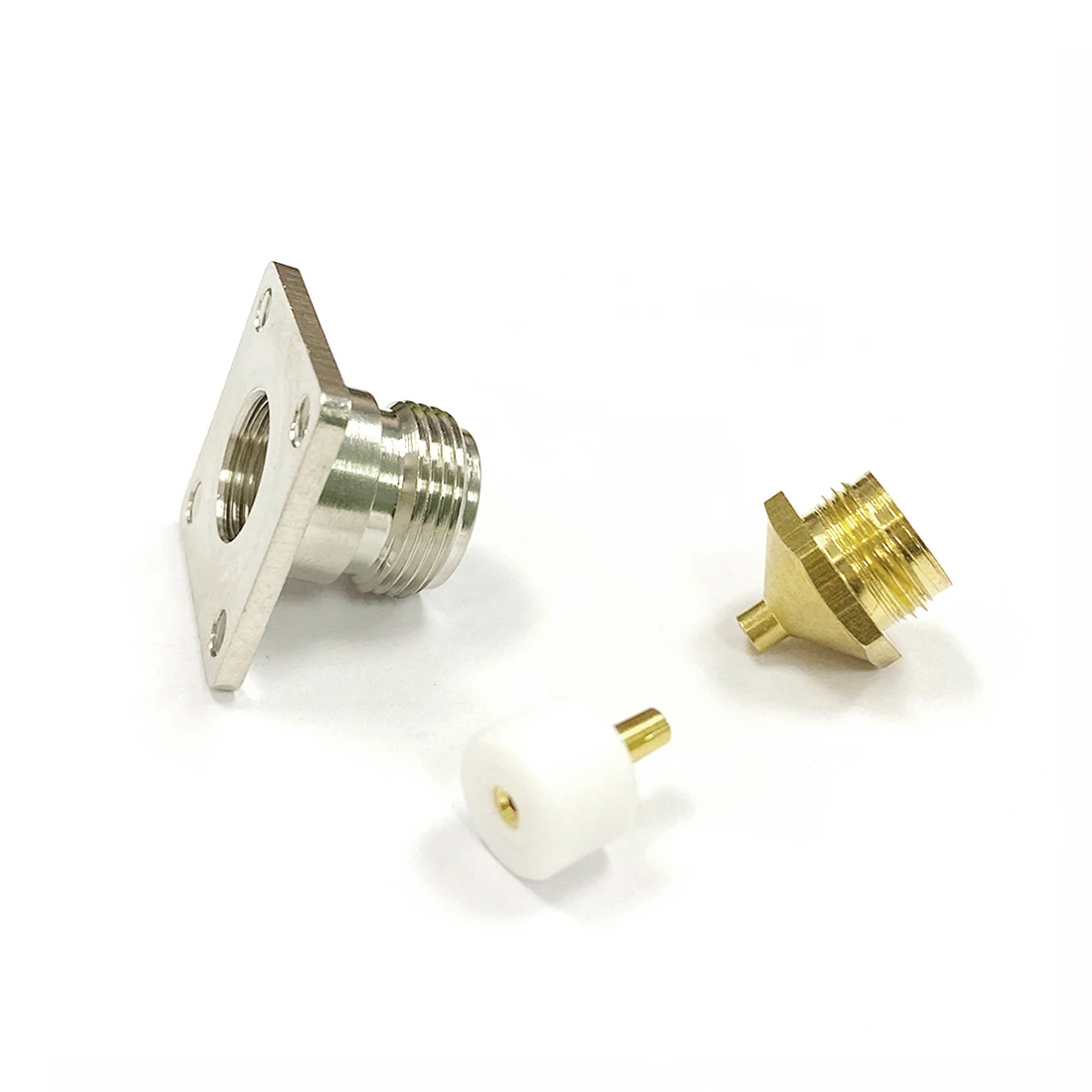

Type19: N Female with 4-Hole Panle Chassis RF Coax Connector Solder for Semi-flexible Cable RG405.086" Welding NEW
Type20: N Female with 4-Hole Panle Chassis RF Coax Connector Solder for Semi-flexible Cable RG402.141" Welding NEW
