SPECIFICATIONS

Brand Name: bytebattle

Certification: CE,RoHS

Choice: yes

Colour: Yellow

Conductor Material: Copper

Conductor Type: Stranded

Conductor material: Tinned Copper 0.08TS

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: none

Housing material: PA

Insulation Material: Rubber

Model Number: XT90H-F XT90H-M,XT90 Male/Female to O-ring Terminal Cable

Origin: Mainland China

Pin and socket material: Copper alloy (Plating: Gold-plated)

Rated Temperature: -60°C to 200°C

Structure: Without modular telephone connectors

Use: Not Telecommunication

Voltage: 81-600V（include600V）

Wire gauge: 10AWG Silicone cable

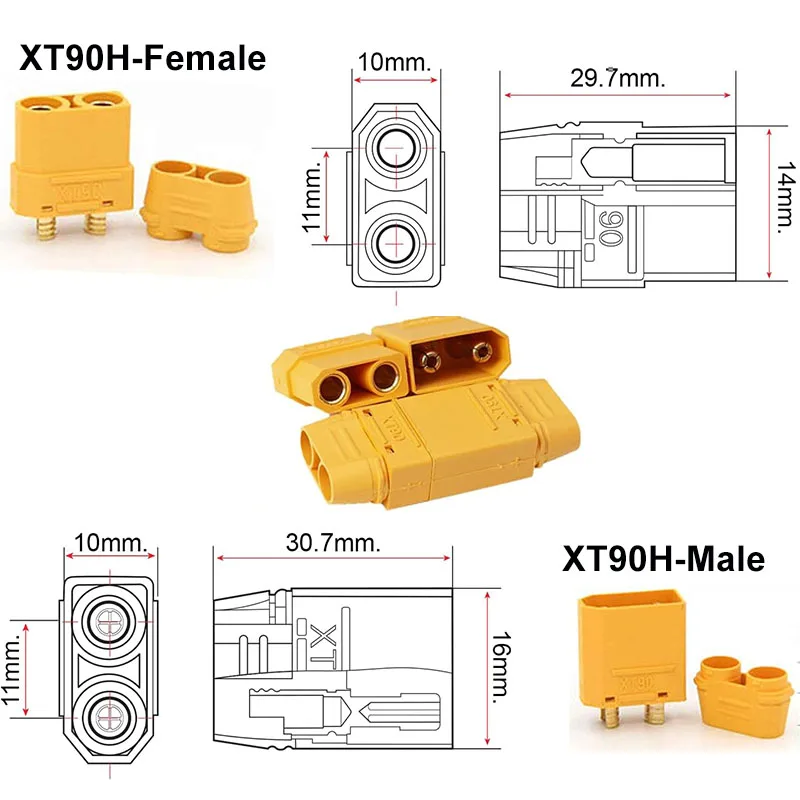

[Upgraded XT90H Connector] Features genuine nylon XT90U plugs that fit snugly, ensuring a secure connection and extremely low contact resistance.

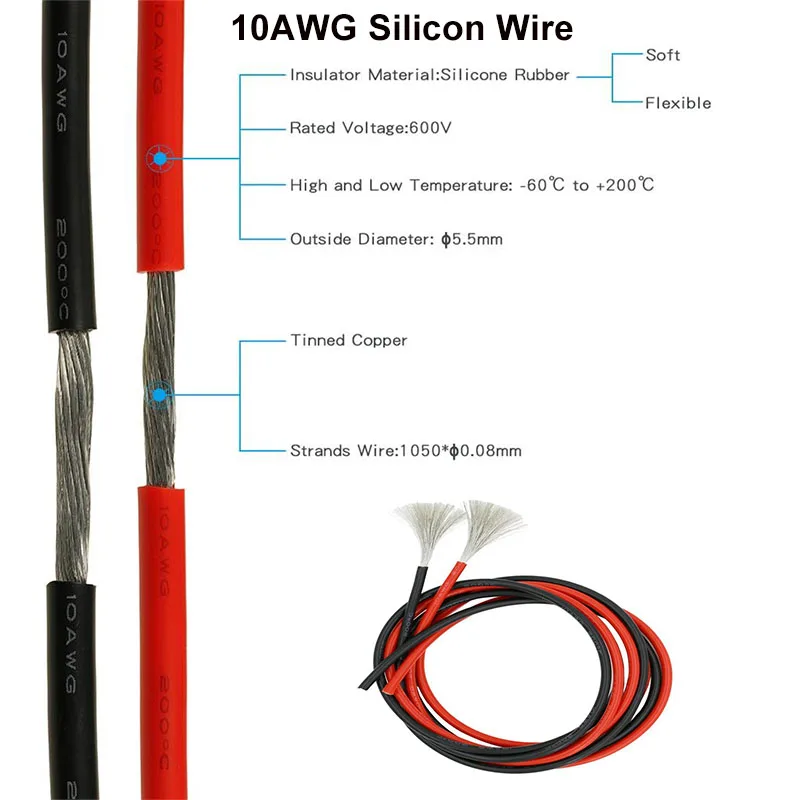

[XT90H to Ring Terminal Extension Cable] Made from 10 AWG silicone-coated wire (1050 strands) with 0.08 mm pure tinned copper. This enhances conductivity, provides excellent abrasion resistance, and offers long-lasting corrosion protection in harsh environments. Silicone sheath: ensures a neat installation and prevents tangling during use. Maintains flexibility and durability within a temperature range of -76°F to 392°F (-60°C to 200°C), ensuring stable year-round operation in extremely cold and hot conditions.

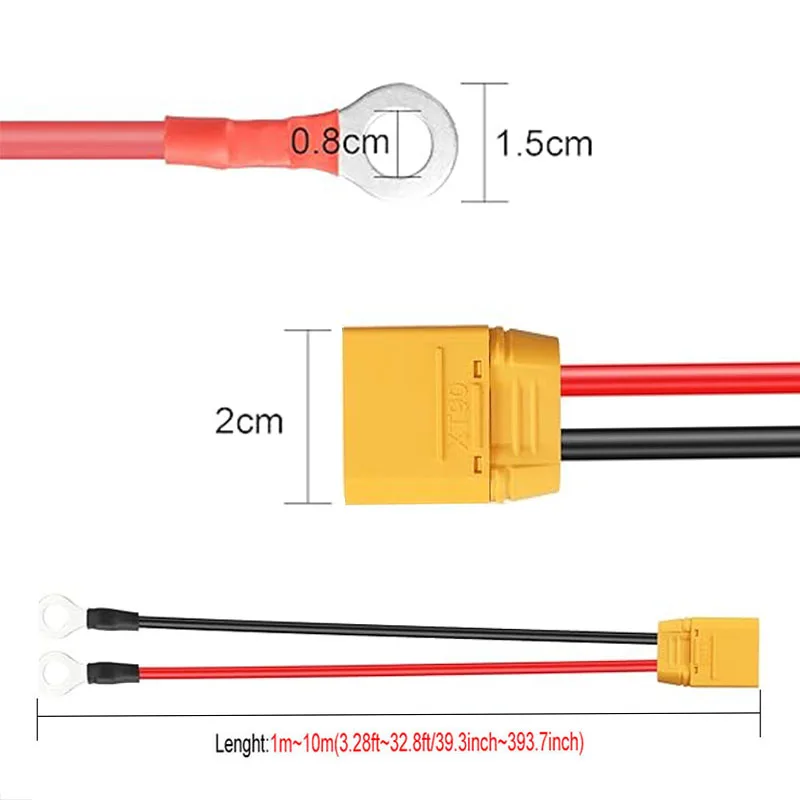

【Length】1 metre to 10 metres.

【Applications】Suitable for automotive electrical systems, vehicle emergency batteries and similar applications.

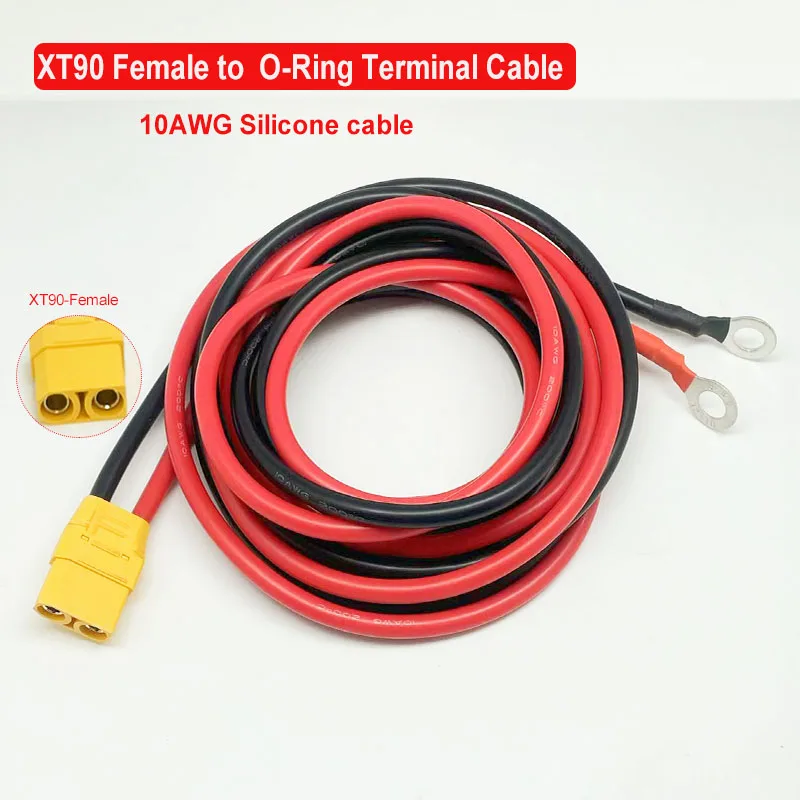

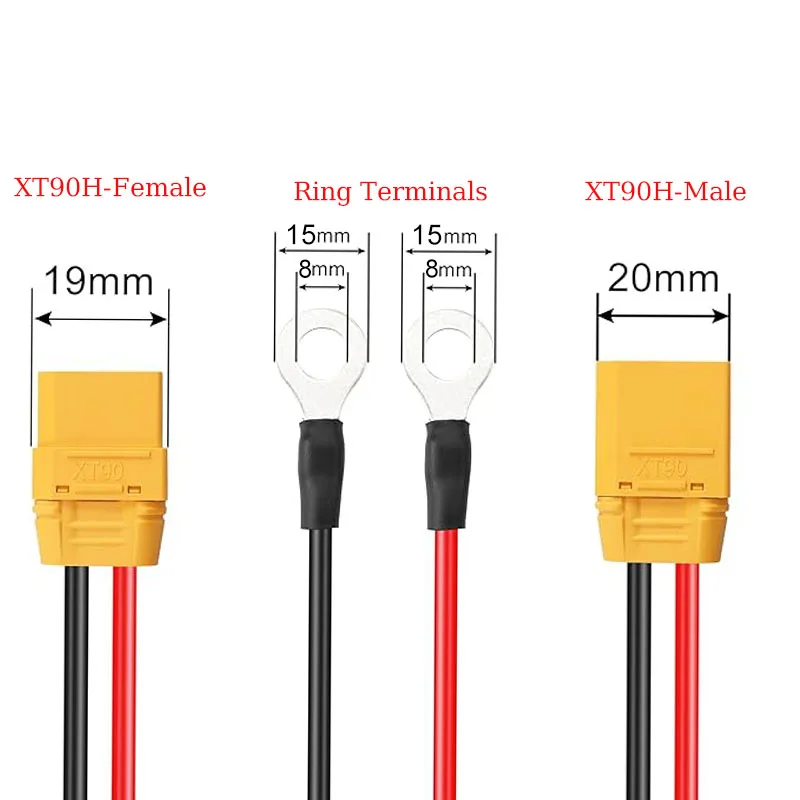

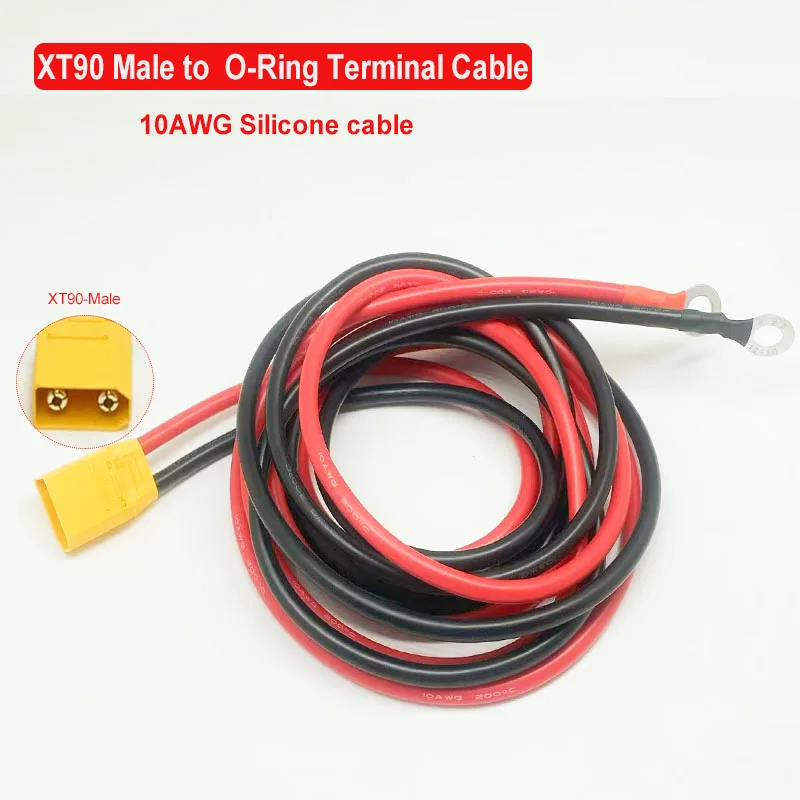

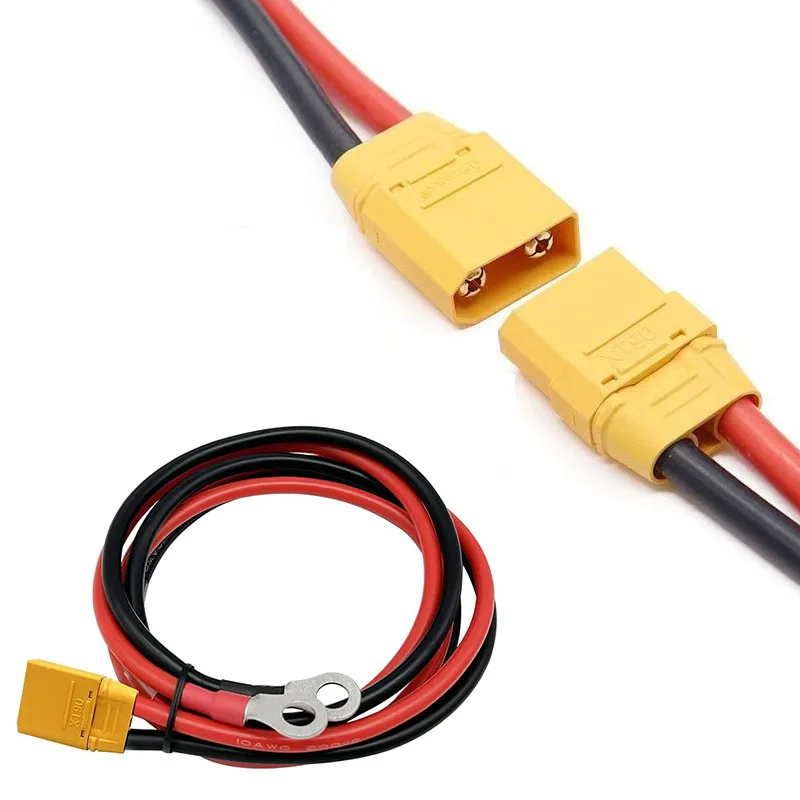

【Packaging】1 cable (red and black 10 AWG silicone-sheathed wire, with an XT90 female or male connector on one end and an O-ring terminal connector on the other)
