SPECIFICATIONS

Brand Name: QUANXINFA

Display Mode: *

High-concerned chemical: none

Origin: Mainland China

Resolution: 128*64

Features:

• High Resolution Display :Boasting a resolution of 128x64 SS, this OLED display module offers clear and vibrant visuals for your Arduino ESP32 ESP8266 projects.

• Versatile Color Options :With color options in Blue, Yellow, and White, you can customize the display to match your project's aesthetic or enhance visibility.

• I2C IIC Control :The module is controlled via I2C IIC, making it easy to integrate into your Arduino projects and enjoy a seamless user experience.

• Wide Voltage Range :Operating within a voltage range of 3.3V-5V, this display module is compatible with a variety of power sources, ensuring reliable performance.

• Animation Functionality :The display module supports animation functionality, allowing you to create engaging and interactive experiences for your users.

• Chinese Origin :Originating from Mainland China, this display module guarantees high-quality construction and reliable performance.

•0.96 inch,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W

•Embedded Driver IC: SSD1315. Communication: I2C/IIC Interface, only need two I / O ports

•It for Arduino Nano, R3 board and Mega, Raspberry pi, 51 MCU, STIM 32, etc.

•No backlight is required, and the display unit can be self-luminous. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts

•There are no fonts embedded in the OLED controller, users can create fonts through font generation software.

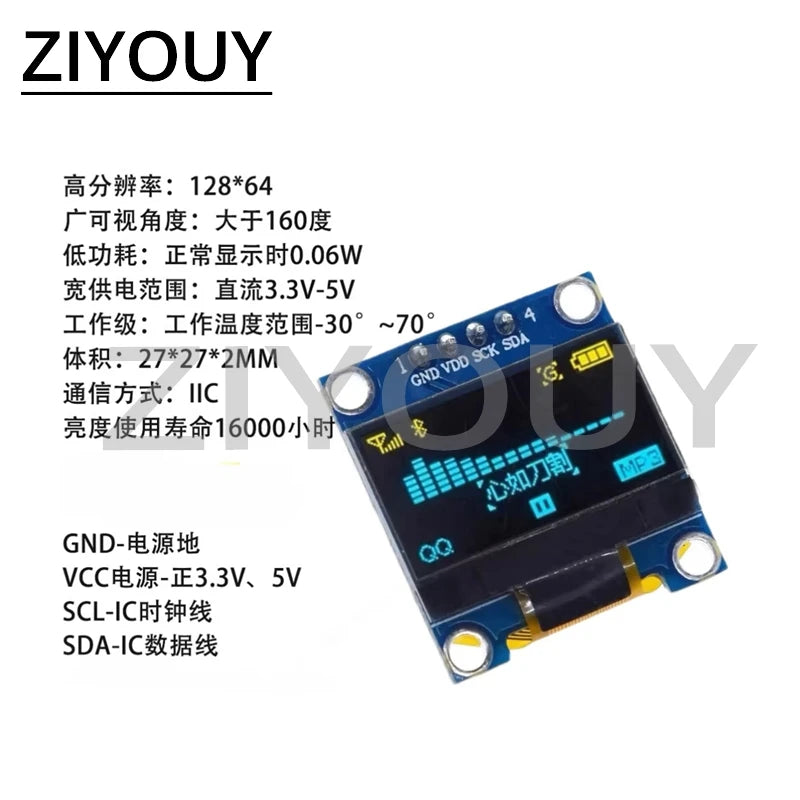

Product description：

OLED self-luminous, no backlight

High resolution: 128x64 (same resolution as 12864, high PPI)

Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display)

Ultra-low power consumption: normal display 0.06w (far lower than TFT display)

Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips

The IIC interface only needs 2 IOs to light up easily

Military-grade process standards, long-term stable work

Provide rich multi-platform routines and provide underlying driver technical support

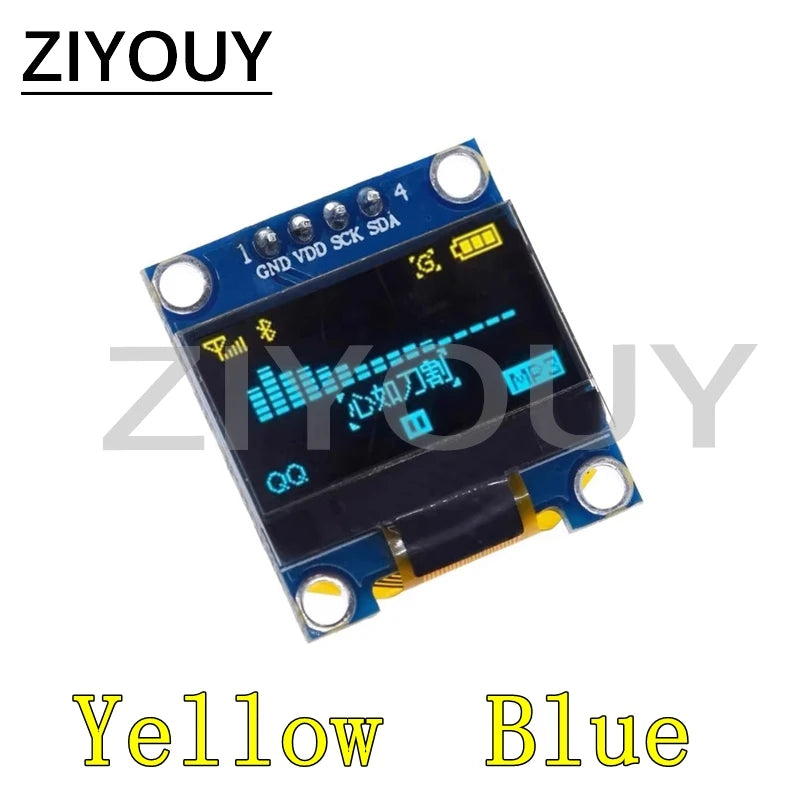

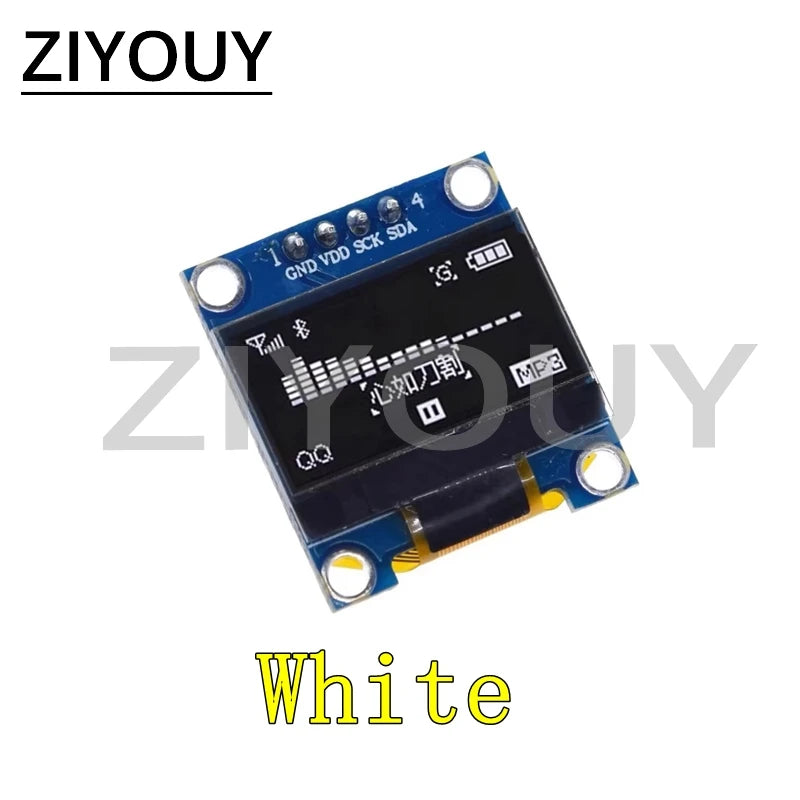

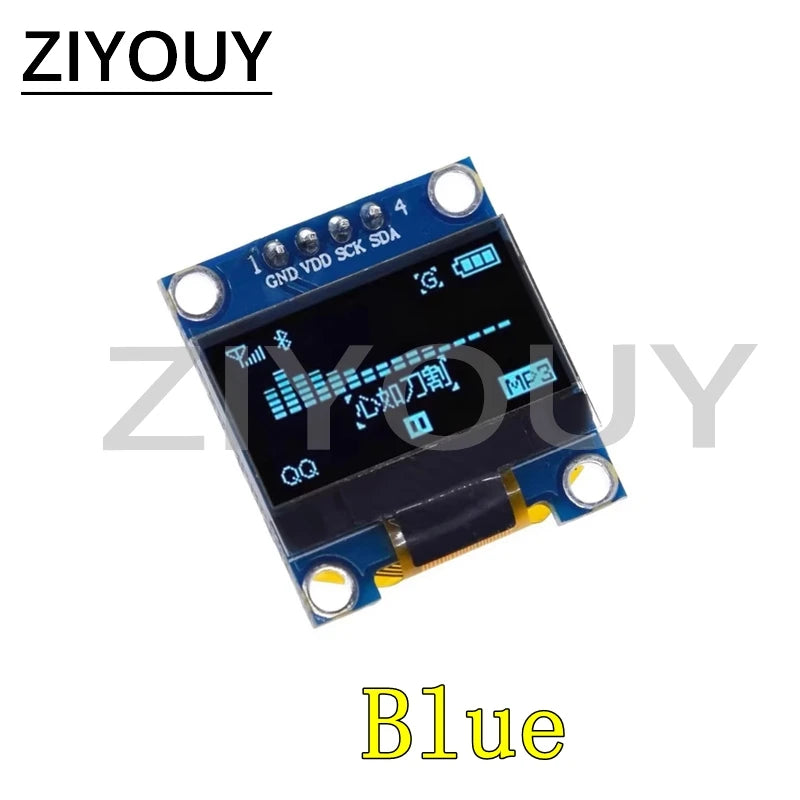

Yellow blue, white, blue three color display scheme optional

Applications:

MP3, MP4, watch. Head-mounted displays. Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices!
