SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: n/a

High-concerned chemical: none

Operating Temperature: .

Origin: Mainland China

Supply Voltage: 3.3v

Type: Module

is_customized: Yes

semi_Choice: yes

Description

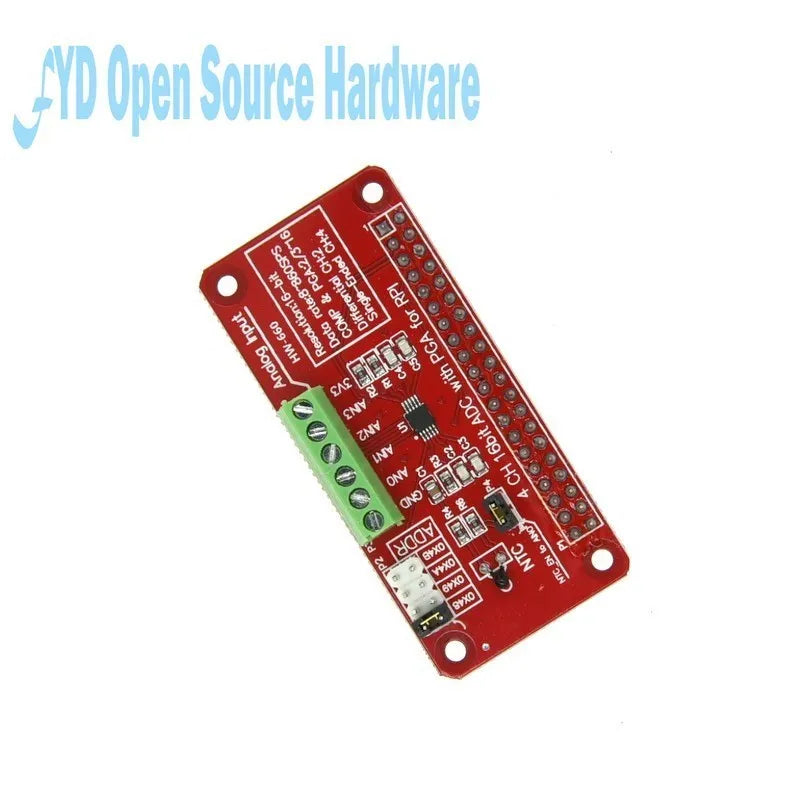

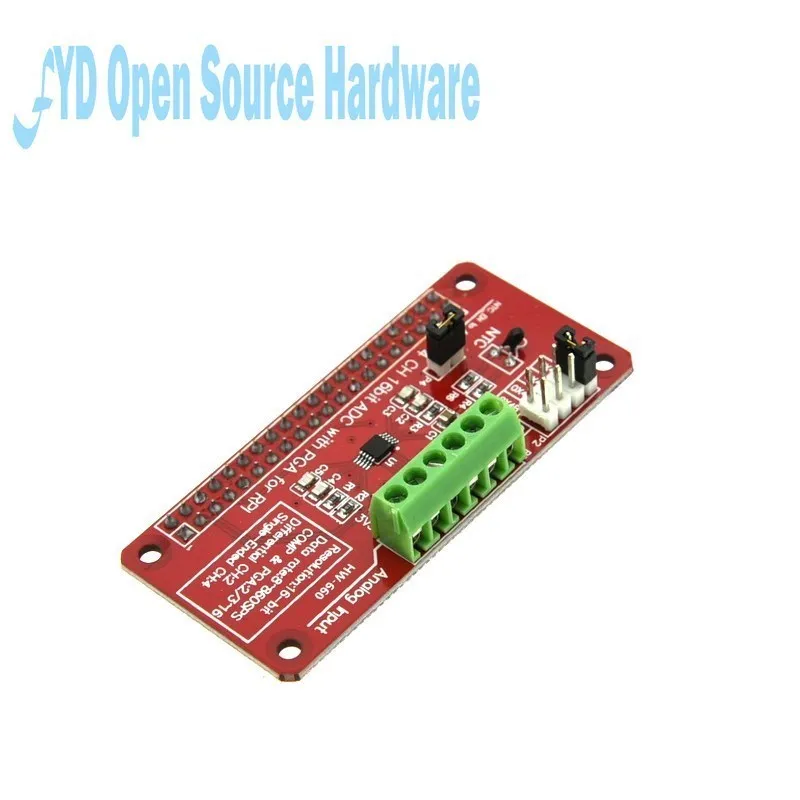

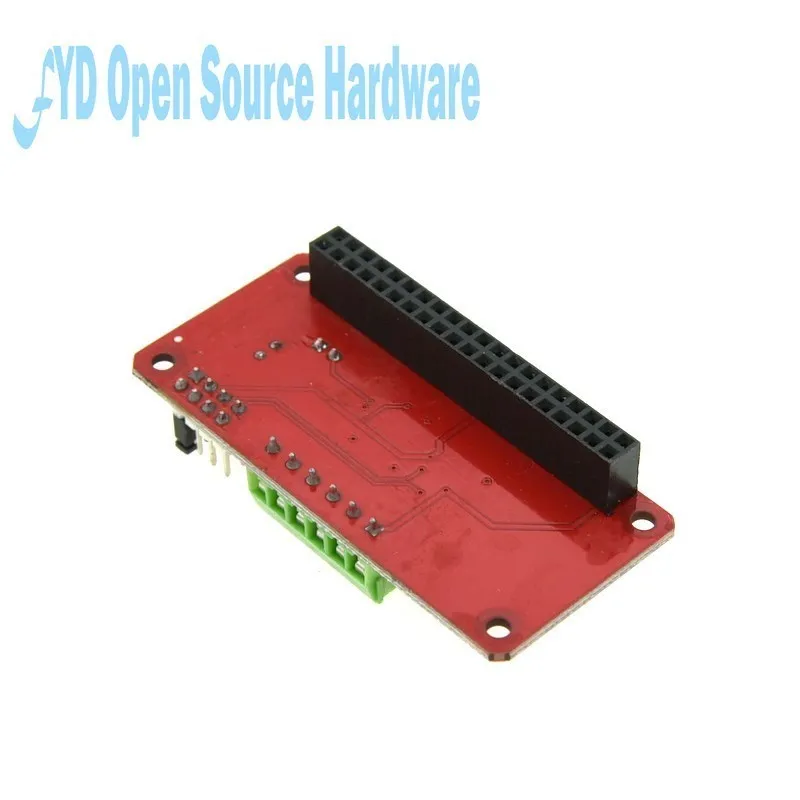

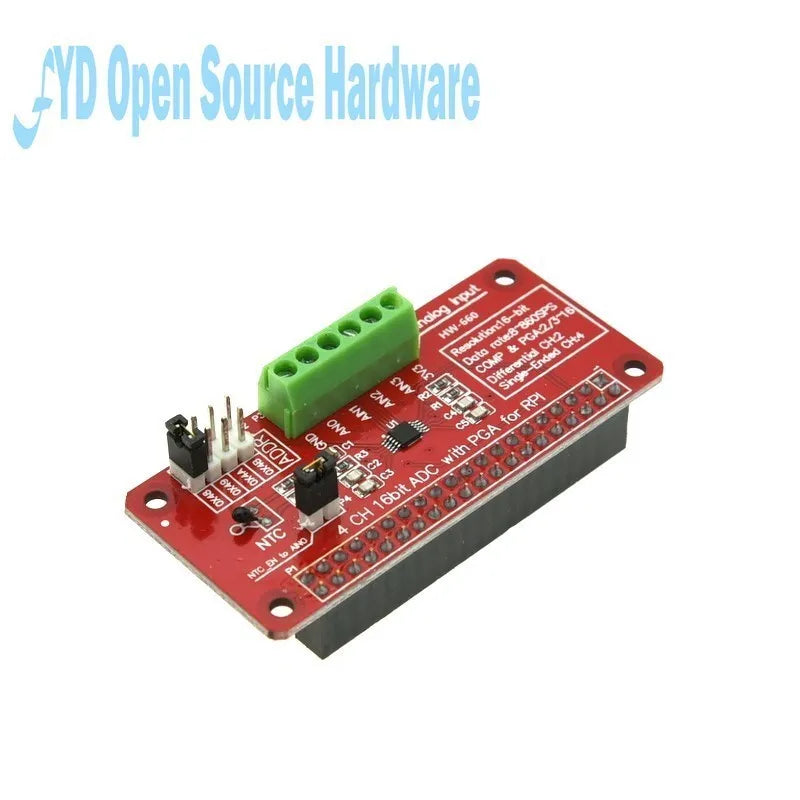

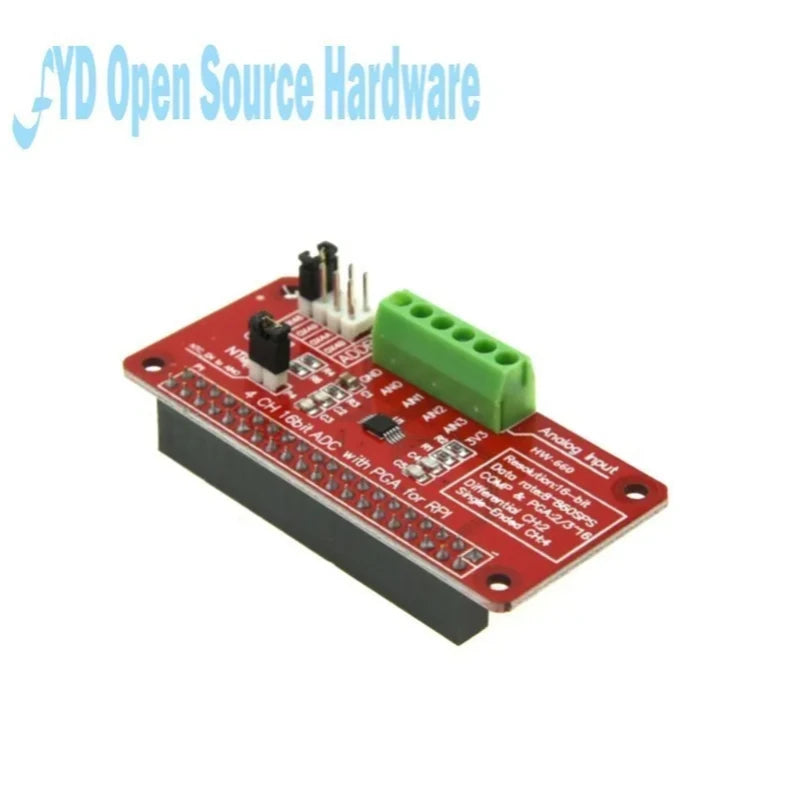

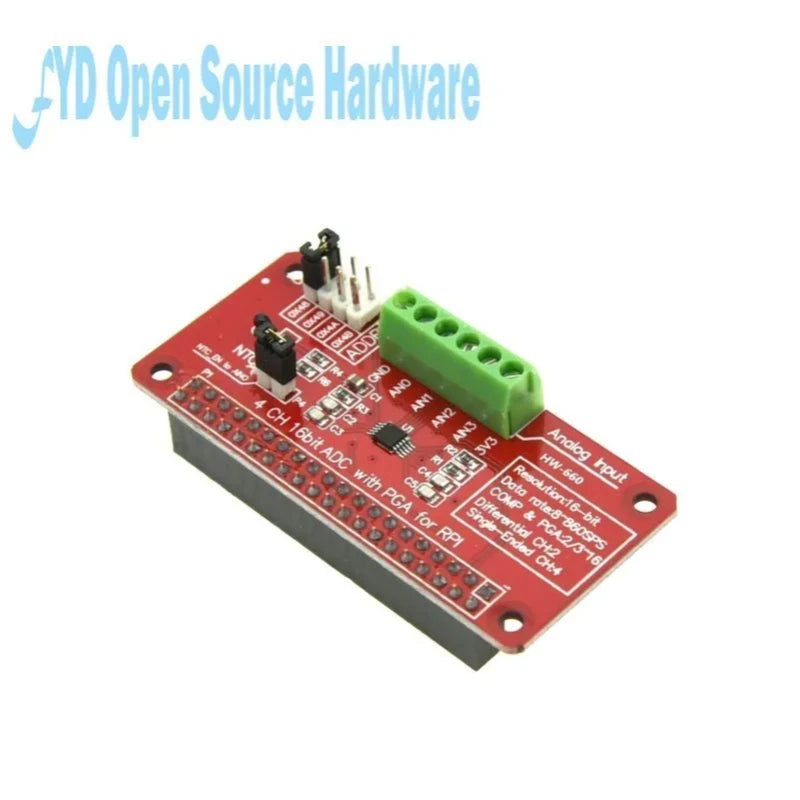

RPi-ADS1115-ADCModule is a precision analog-to-digital converterADC),one of themADS1115Is able to offer16Bit sampling accuracy of the chip, using a very small sizeMSOP - 10Package.

Data passedI2CCompatible serial interface for transmission, owned4roadI2CAddress can be selected, work power only need3.3VYou can. Its main function is that it can be used to detect analog signals and convert them to digital signals.

You can put analog signals on joysticks or other analog sensors such asNTC, Temperature, dust sensors and other equipment through thisRPi-ADS1115-ADCModule access raspberry faction, through the raspberry dispatch device to collect the analog signal.

parameter	value
size	65.0 mm 30.0 mm 18.0 mm
power supply	3.3V
Analog input voltage	VDD,GND
Programmable data rate	8spsTo860sps
internalPGA	stand by

Sampling accuracy	16Bit
I2cinterface	Select the address by pin
Number of channels	4Single-ended or2Differential input
Programmable Comparator(PGA)	2/3 ~ 16
internalNTC	stand by
