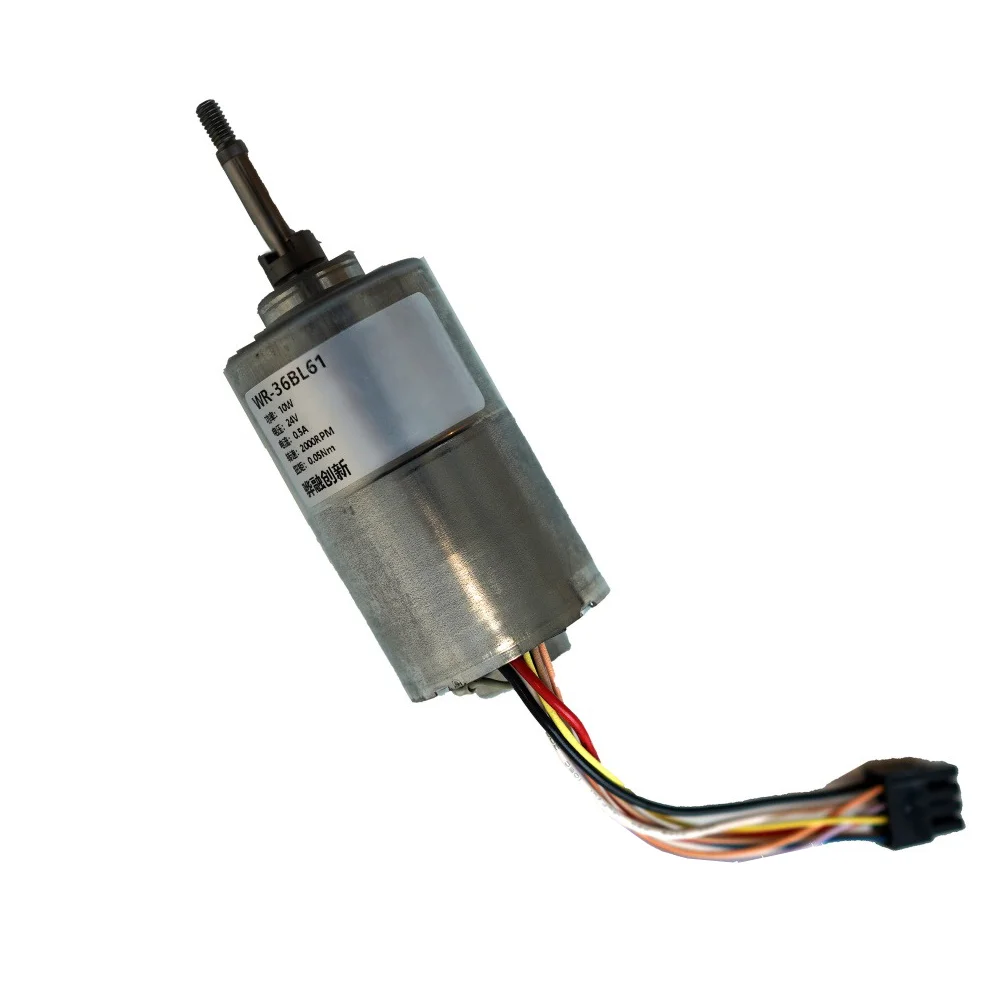

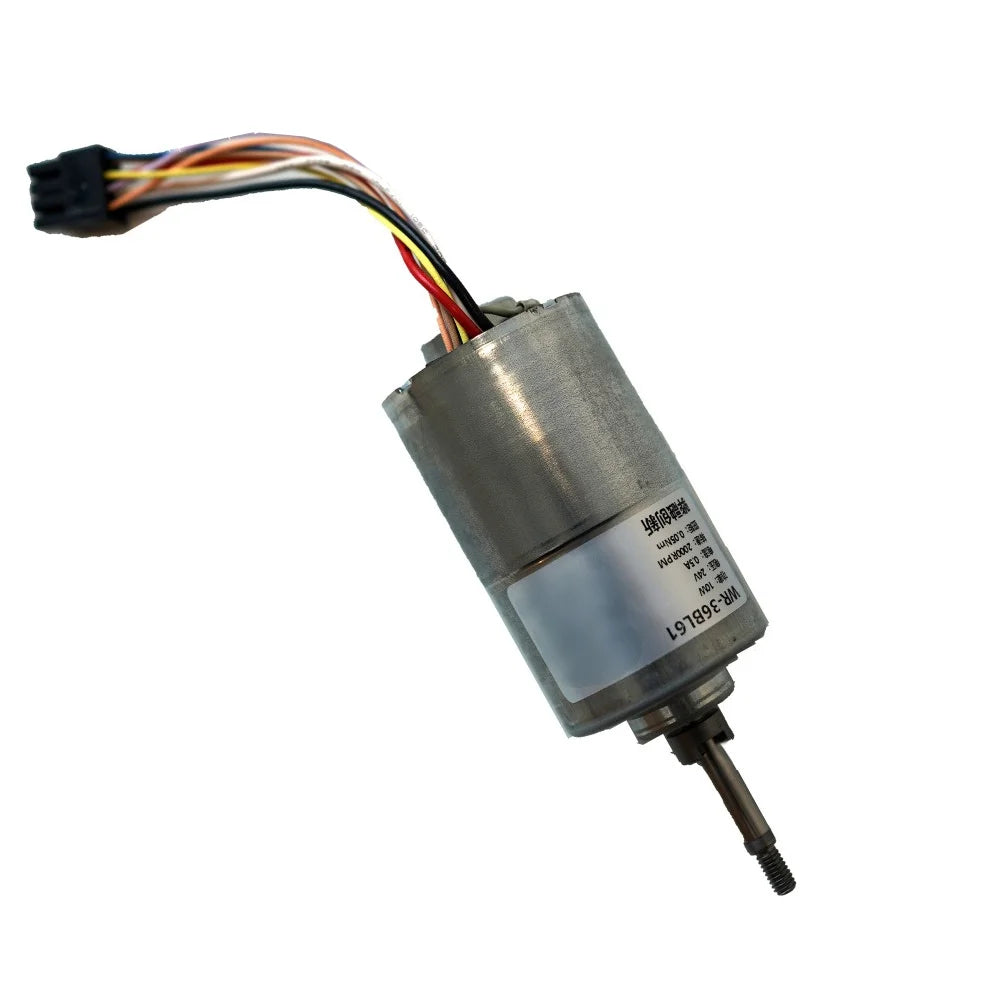

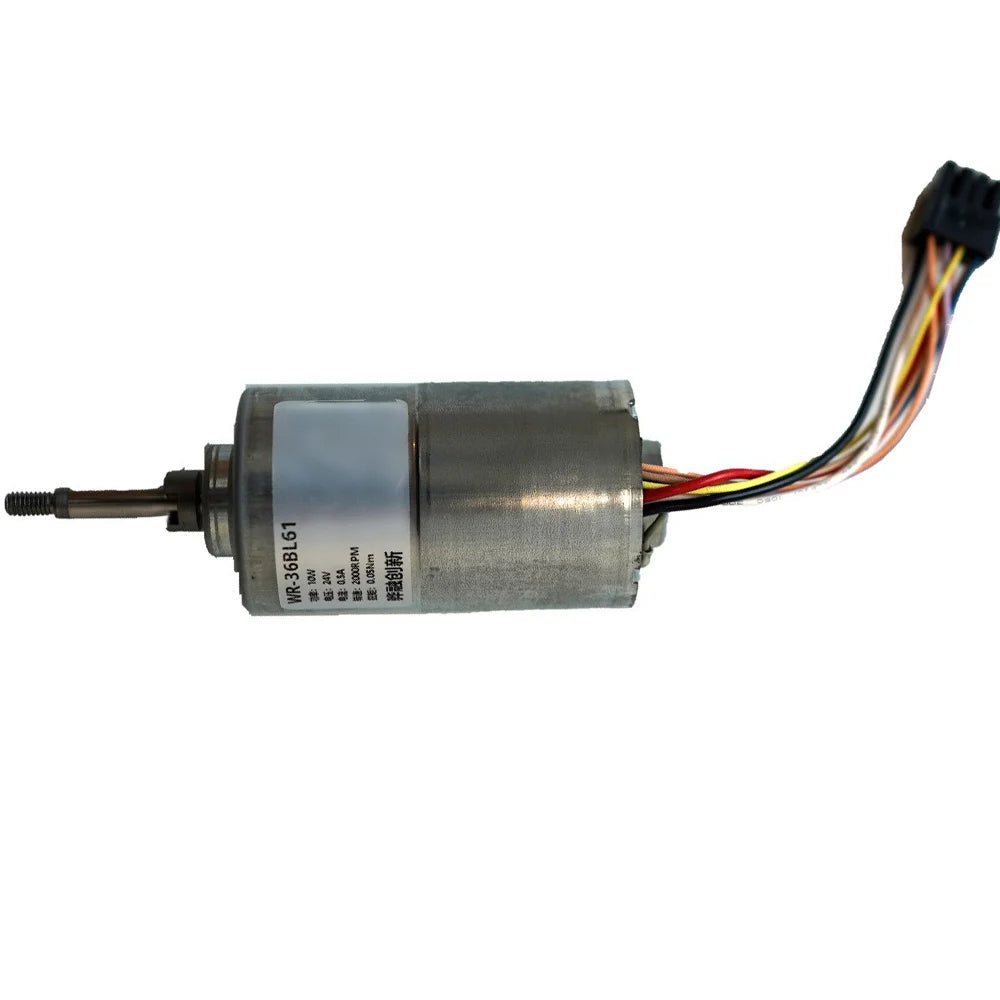

1PCS 36BL61 BLDC DC Brushless Motor 24V 36V 48V Three-phase Eight-wire with Hall Sensor 10W 2000RPM-3000RPM Brushless Motor
Without Bracket / 0
$104.09
Sale price
$104.09
Regular price
$0.00
Skip to product information
1PCS 36BL61 BLDC DC Brushless Motor 24V 36V 48V Three-phase Eight-wire with Hall Sensor 10W 2000RPM-3000RPM Brushless Motor
$104.09
Sale price
$104.09
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Does it include a Battery?: No
Does it include wireless functionality?: No
High-concerned chemical: none
Origin: Mainland China
Output Power: 735-746（include746）
1PCS 36BL61 BLDC DC Brushless Motor 24V 36V 48V Three-phase Eight-wire with Hall Sensor 10W 2000RPM-3000RPM Brushless Motor
Specifications:
Specifications:
Rated power: 10W
Pole pairs: 2 pole pairs
Phase resistance: 15Ω Single-phase DC resistance (at 20℃)
Phase inductance: 13mH Single-phase inductance value (tested at 1kHz)
Reverse electromotive force: 10V/krpm No-load reverse electromotive force constant
Hall installation angle: 120° mechanical angle
Drive voltage/no-load speed
24V 2000rpm
36V 3000rpm
48V 4000rpm
Cable color/function definitions
Red: U phase
White: V phase
Black: W phase
Hall sensor cable
Cable color/function definitions
Brown: +5V power supply
Blue: GND
Orange: Hall_U signal
Purple: Hall_V signal
Yellow: Hall_W signal
Terminal model: MX3.0 2x4P
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1mm-1cm differences due to manual measurement.
Package Included:
1x Brushless Motor
or
1x Brushless Motor

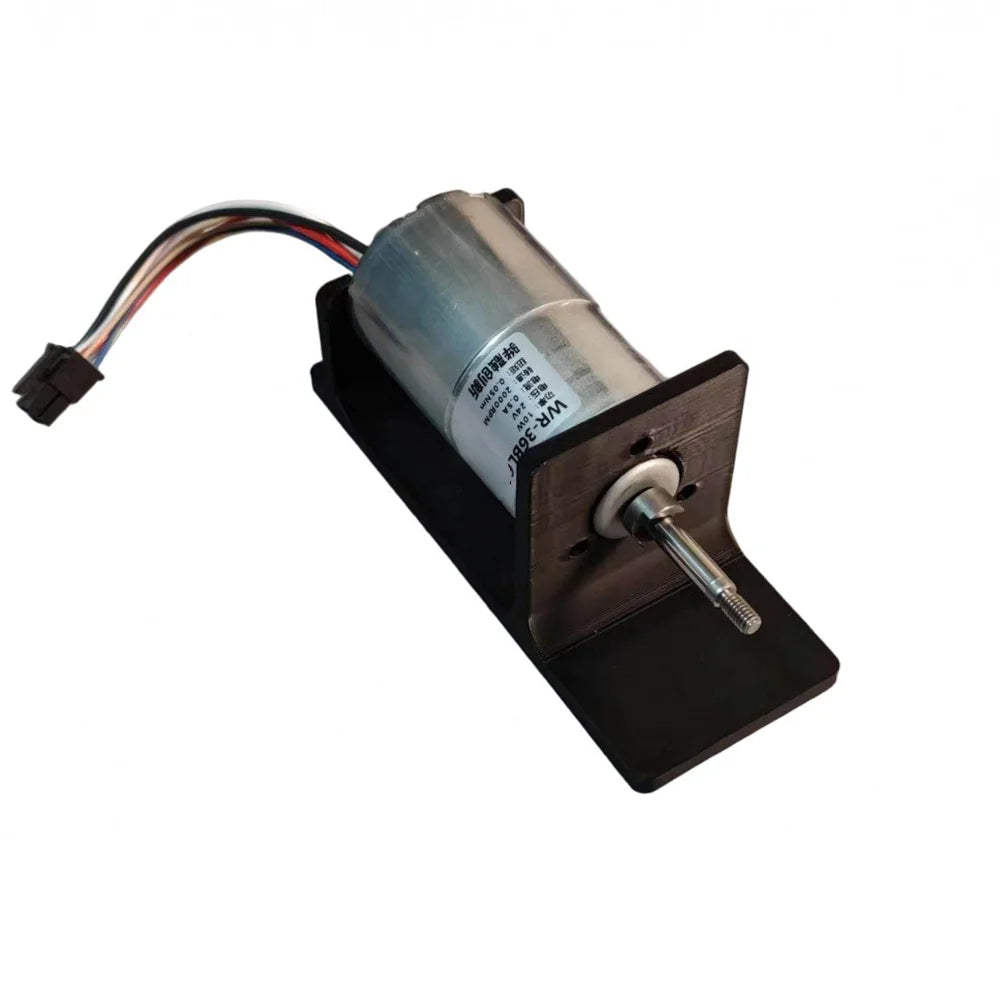

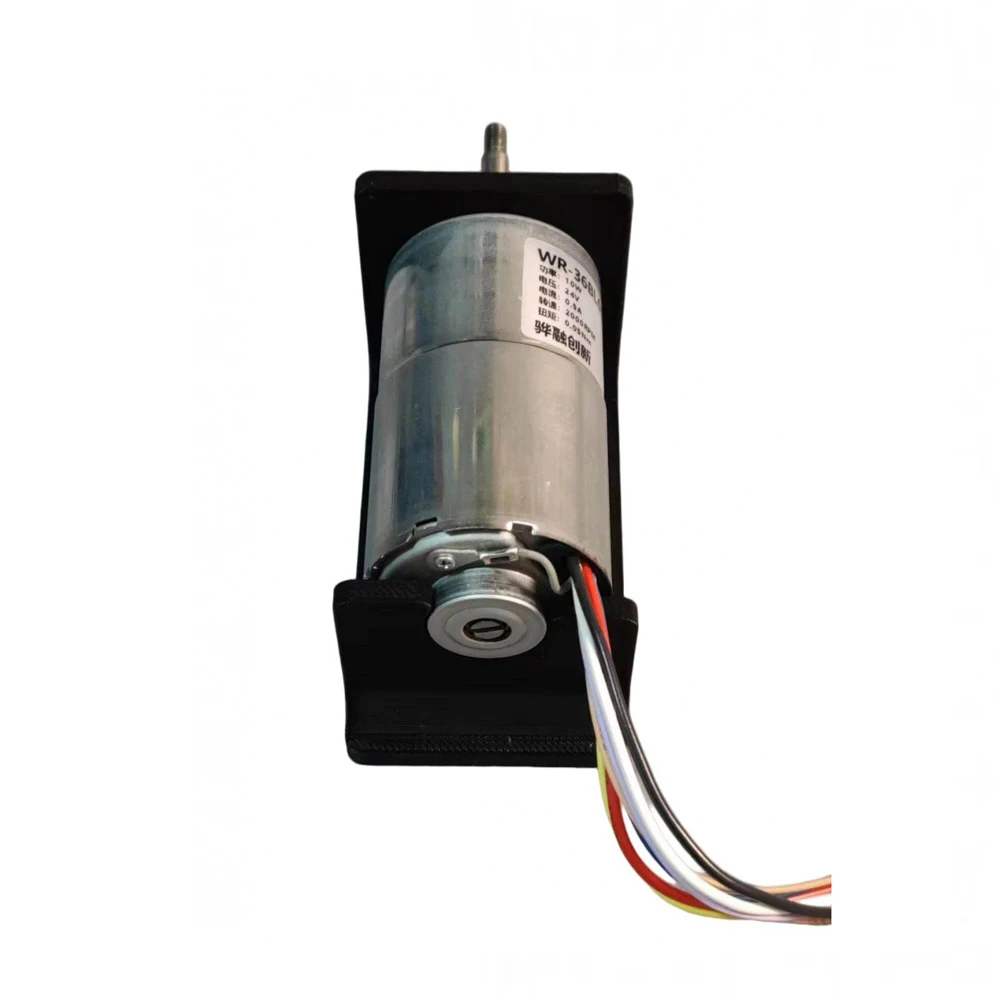

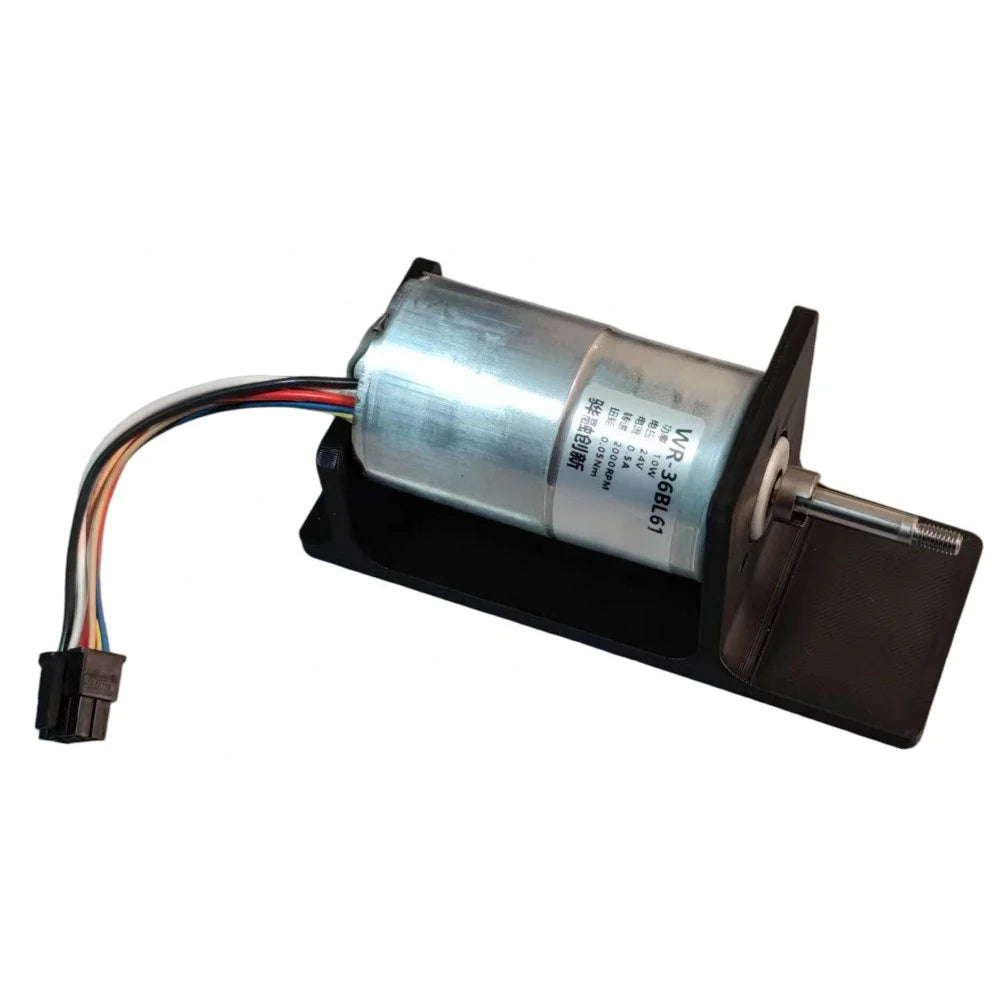

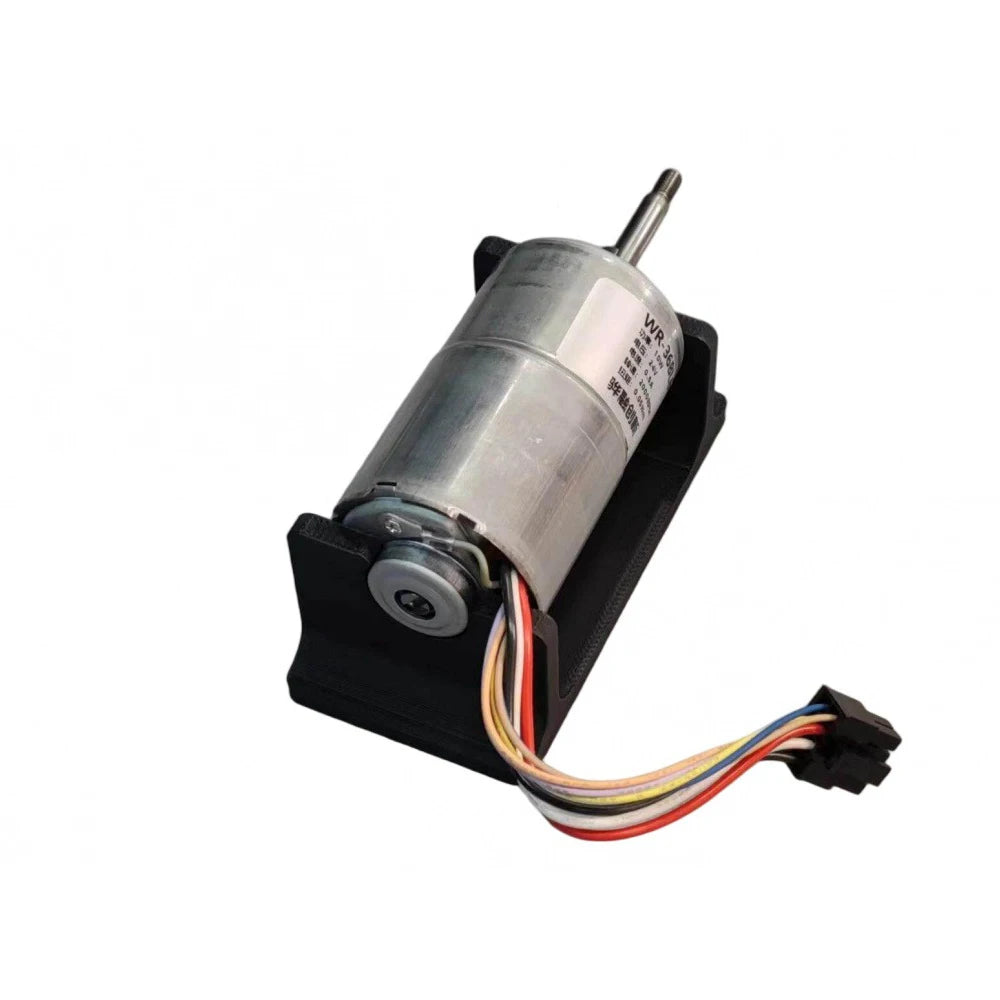

1x Bracket
