1PCS 3PCS ADS1115 16-Bit 4-Channel ADC PGA Module, STEMMA QT/Qwiic Compatible

1PCS 3PCS ADS1115 16-Bit 4-Channel ADC PGA Module, STEMMA QT/Qwiic Compatible

3PCS / ADS1115
$77.94
Sale price  $77.94 Regular price  $0.00
Skip to product information
1PCS 3PCS ADS1115 16-Bit 4-Channel ADC PGA Module, STEMMA QT/Qwiic Compatible
1PCS 3PCS ADS1115 16-Bit 4-Channel ADC PGA Module, STEMMA QT/Qwiic Compatible
$77.94
Sale price  $77.94 Regular price  $0.00
Color
Model NumberADS1115
Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

semi_Choice: yes

Product details:

1PCS 3PCS ADS1115 16-Bit 4-Channel ADC PGA Module, STEMMA QT/Qwiic Compatible


Product Introduction

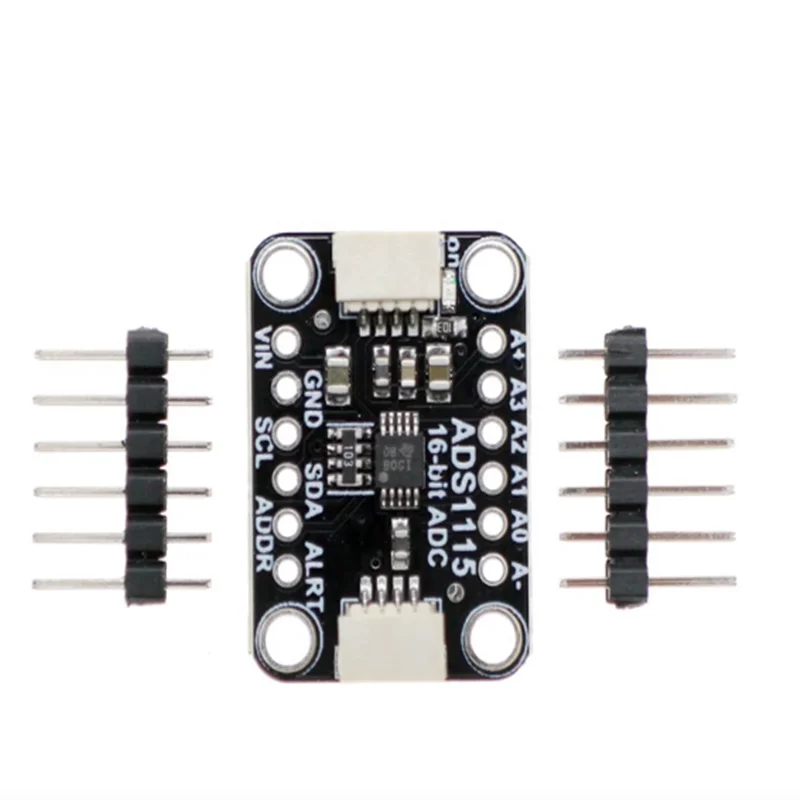

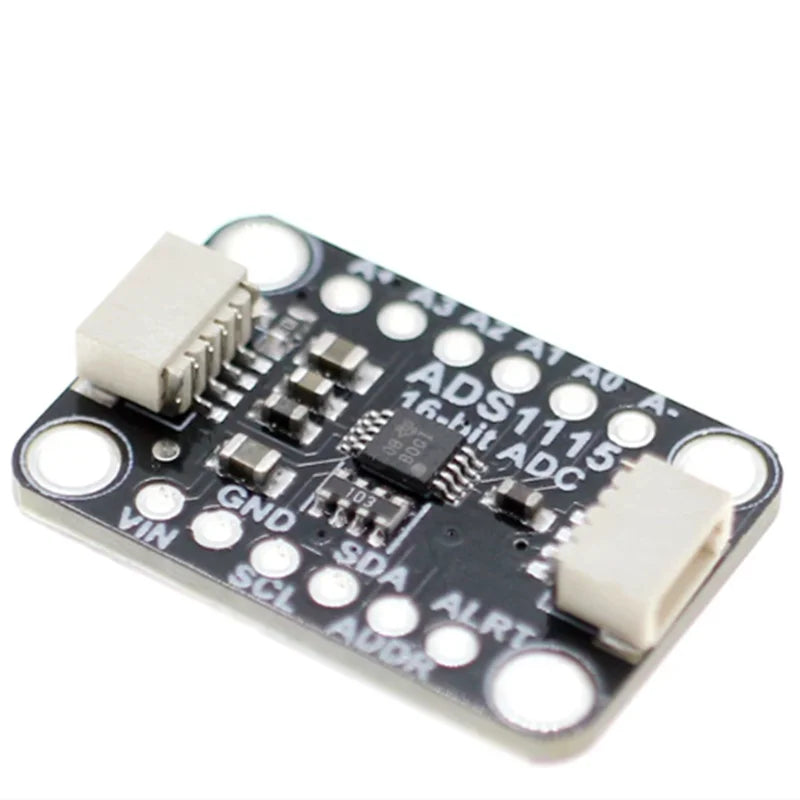

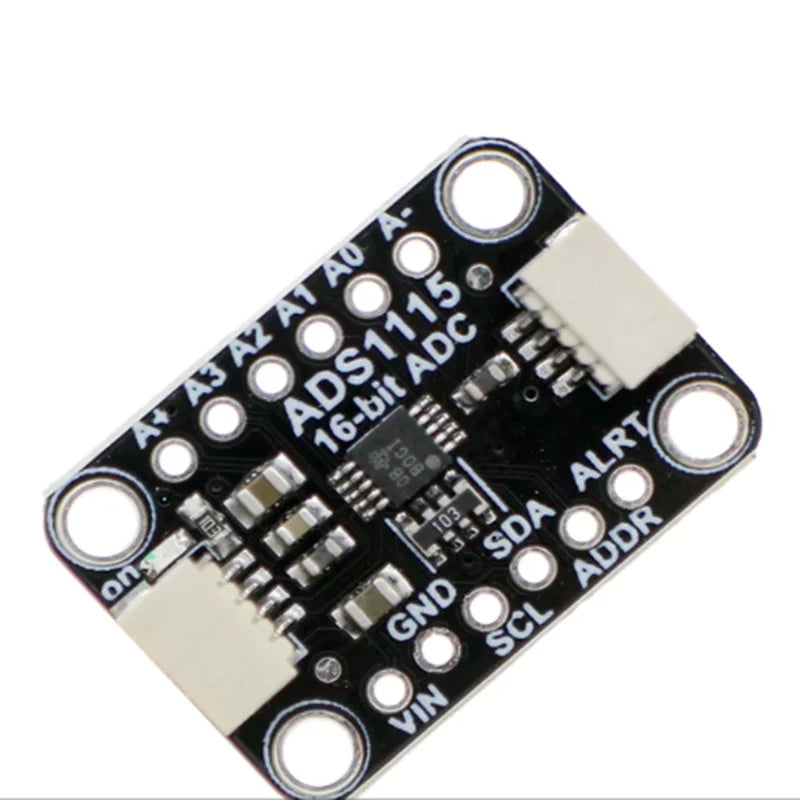

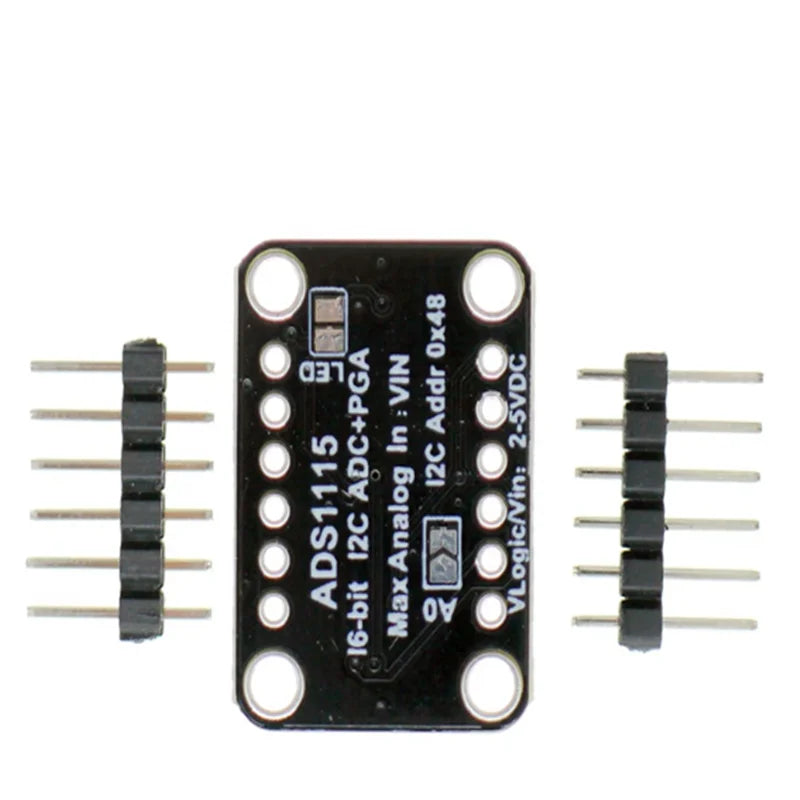

This module is a high-precision 4-channel analog-to-digital conversion module based on ADS1115. It is equipped with a built-in PGA to amplify tiny analog signals, effectively improving detection sensitivity. Widely used for voltage monitoring, analog sensor data collection, industrial control, Arduino/Raspberry Pi development projects and other fields.


Product Features

  1. Adopts ADS1115 high-performance 16-bit ADC chip, with excellent sampling accuracy and stability.

  2. Integrated programmable gain amplifier (PGA), multiple gain options to adapt to different weak signal collection.

  3. 4 independent analog input channels, which can collect multiple analog signals at the same time.

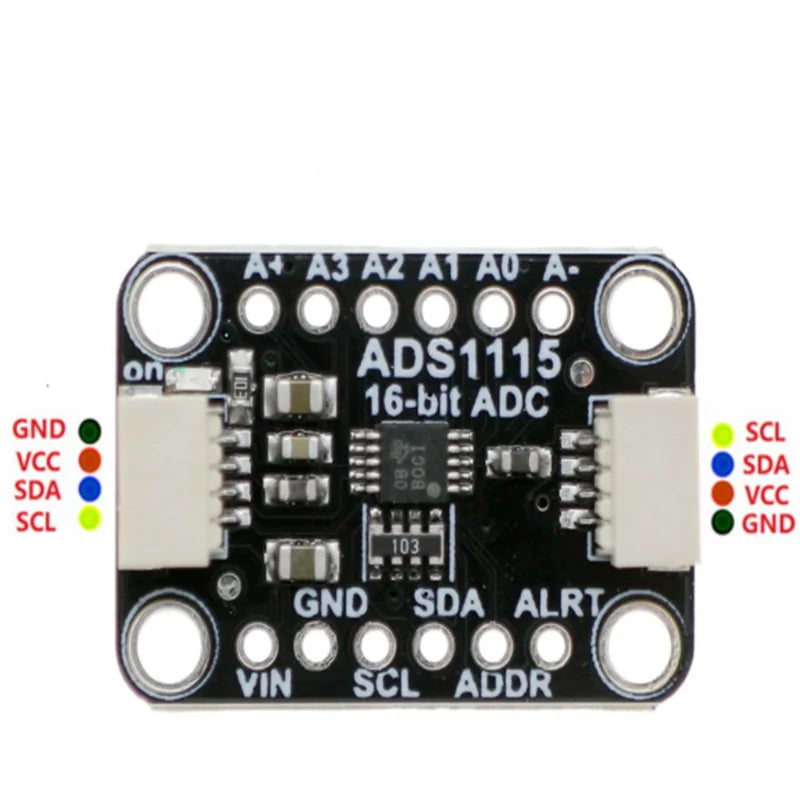

  4. Standard I2C communication, simple wiring, easy to use and expand.

  5. Fully compatible with STEMMA QT and Qwiic interfaces, plug-and-play, convenient for rapid prototyping.

  6. Wide supply voltage range, low power consumption, suitable for battery-powered equipment.


Technical Specifications

  • Core IC: ADS1115

  • Resolution: 16 Bits

  • Input Channels: 4 Single-Ended Inputs

  • Programmable Gain Amplifier: Configurable gain (2, 4, 8, 16 V/V)

  • Data Rate: Programmable up to 860 samples per second

  • Interface: I2C (Compatible with STEMMA QT / Qwiic)

  • Operating Voltage: 2.0 V to 5.5 V

  • Operating Temperature: -40 °C to 125 °C

  • Low power consumption design, ideal for portable and industrial applications
