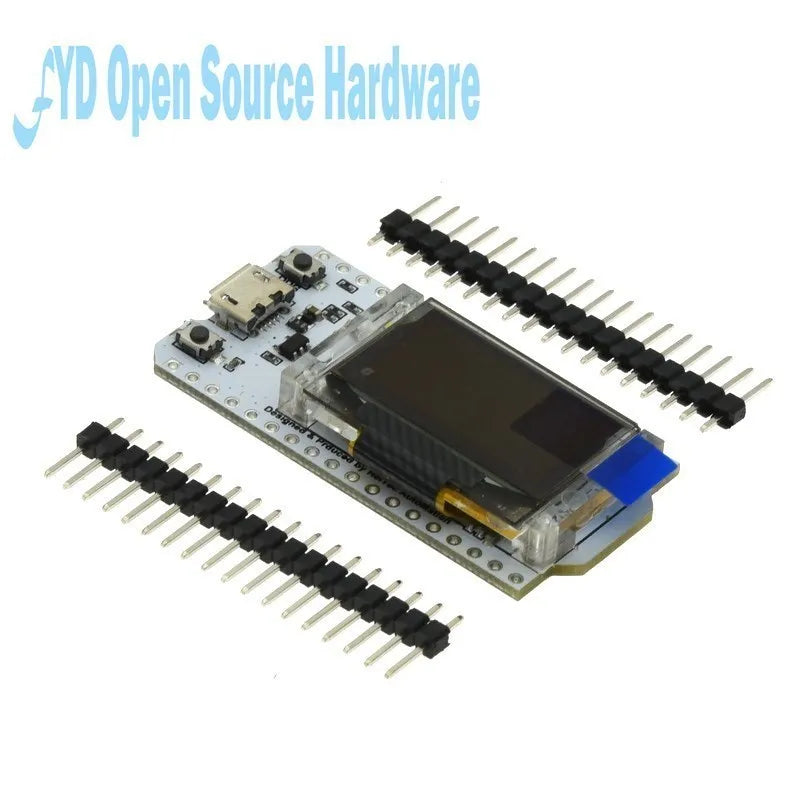

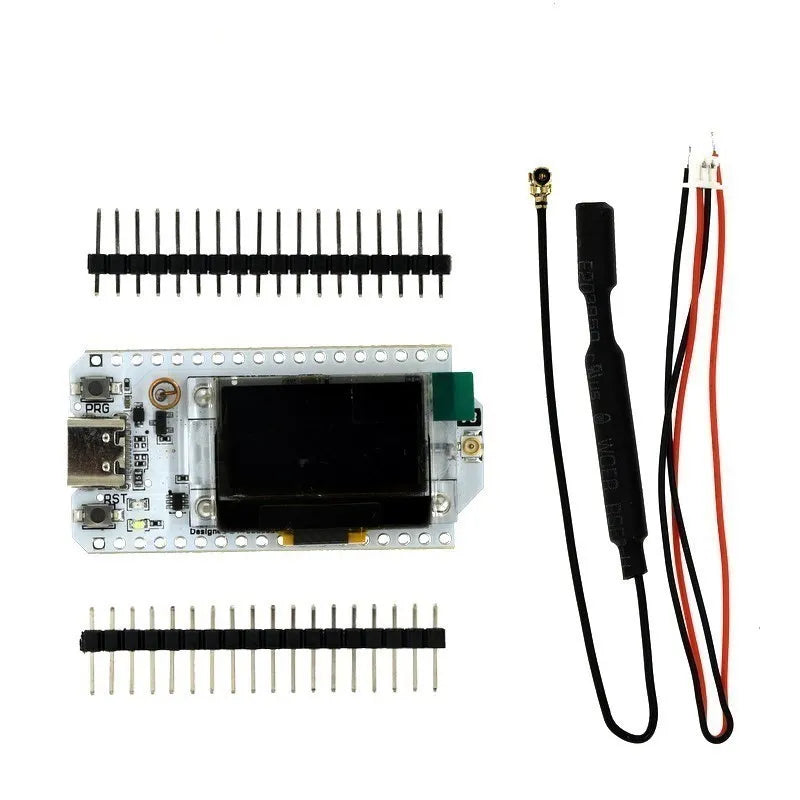

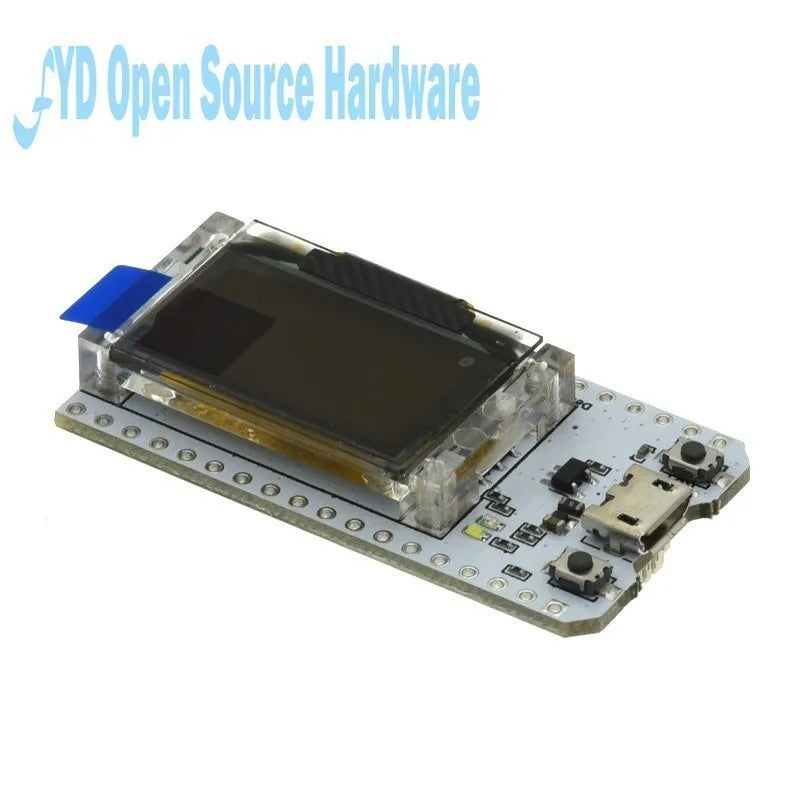

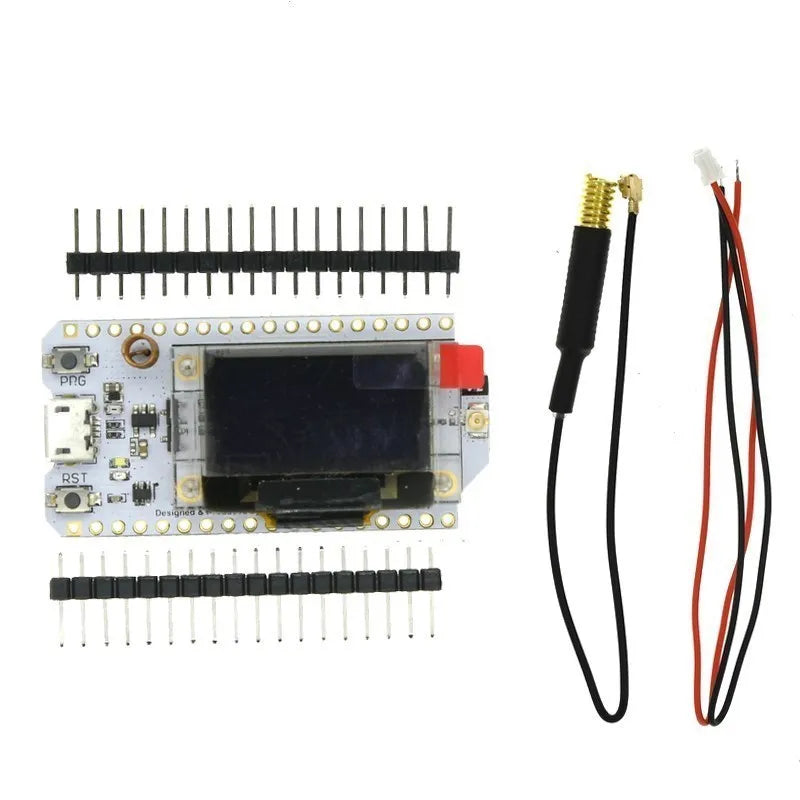

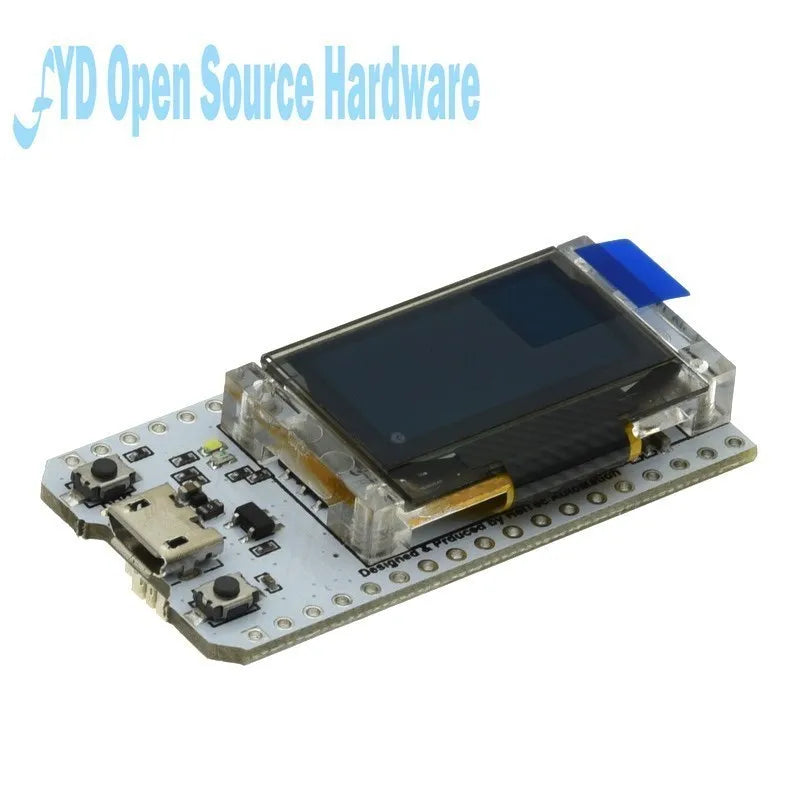

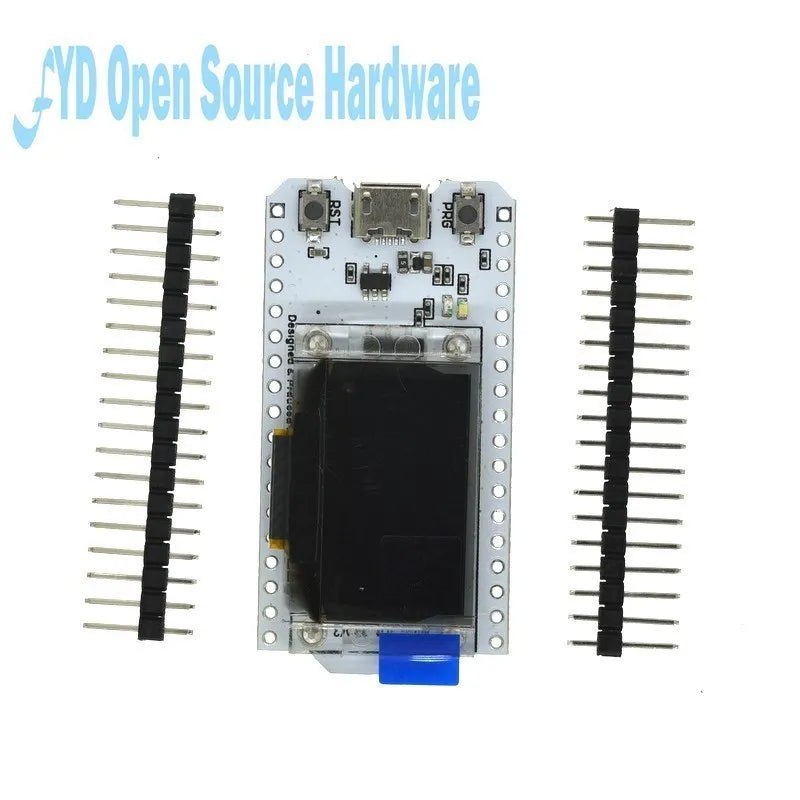

1PCS 433-510 LoRa Blue Oled Wifi SX1276 Module IOT Development Board With Antenna For ESP32 Electronic Diy Kit
NO ROLA TYPE-C
$83.52
Sale price
$83.52
Regular price
$0.00
Skip to product information
1PCS 433-510 LoRa Blue Oled Wifi SX1276 Module IOT Development Board With Antenna For ESP32 Electronic Diy Kit
$83.52
Sale price
$83.52
Regular price
$0.00
Description
SPECIFICATIONS
Application: Other
Brand Name: SZFYDOSH
Condition: New
Dissipation Power: N/A
High-concerned chemical: none
Operating Temperature: N/A
Origin: Mainland China
Package: Other
Supply Voltage: N/A
Type: Module
Description
Dominant Frequency: 240MHZ
Flash: 32M-Bits
Processor: Tensilica LX6 Dual Core
Master chip: ESP32
LoRa chip: SX1276
Support frequency band: 868-915MHZ
Open communication distance: 2.8KM
Computing capacity: up to 600DMIPS
Dual-mode Bluetooth-compatible : traditional Bluetooth-compatible and BLE low-power Bluetooth-compatible
Development environment: perfect support for
Operating voltage: 3.3-7V
Operating temperature range: -40-90 °
Receiver sensitivity: -139dBm (SF12, 125KHZ)
UDP continuous throughput: 135Mbps
USB adapter chip: CP2102
Support mode: Sniffer, Station, softAP and Wi-Fi Direct
Transmit power: 19.5dBm@11b, 16.5dBm@11g, 15.5dBm@11n
Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20,
54Mbps @ 11g, 11Mbps @ 11b
Flash: 32M-Bits
Processor: Tensilica LX6 Dual Core
Master chip: ESP32
LoRa chip: SX1276
Support frequency band: 868-915MHZ
Open communication distance: 2.8KM
Computing capacity: up to 600DMIPS
Dual-mode Bluetooth-compatible : traditional Bluetooth-compatible and BLE low-power Bluetooth-compatible
Development environment: perfect support for
Operating voltage: 3.3-7V
Operating temperature range: -40-90 °
Receiver sensitivity: -139dBm (SF12, 125KHZ)
UDP continuous throughput: 135Mbps
USB adapter chip: CP2102
Support mode: Sniffer, Station, softAP and Wi-Fi Direct
Transmit power: 19.5dBm@11b, 16.5dBm@11g, 15.5dBm@11n
Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20,
54Mbps @ 11g, 11Mbps @ 11b

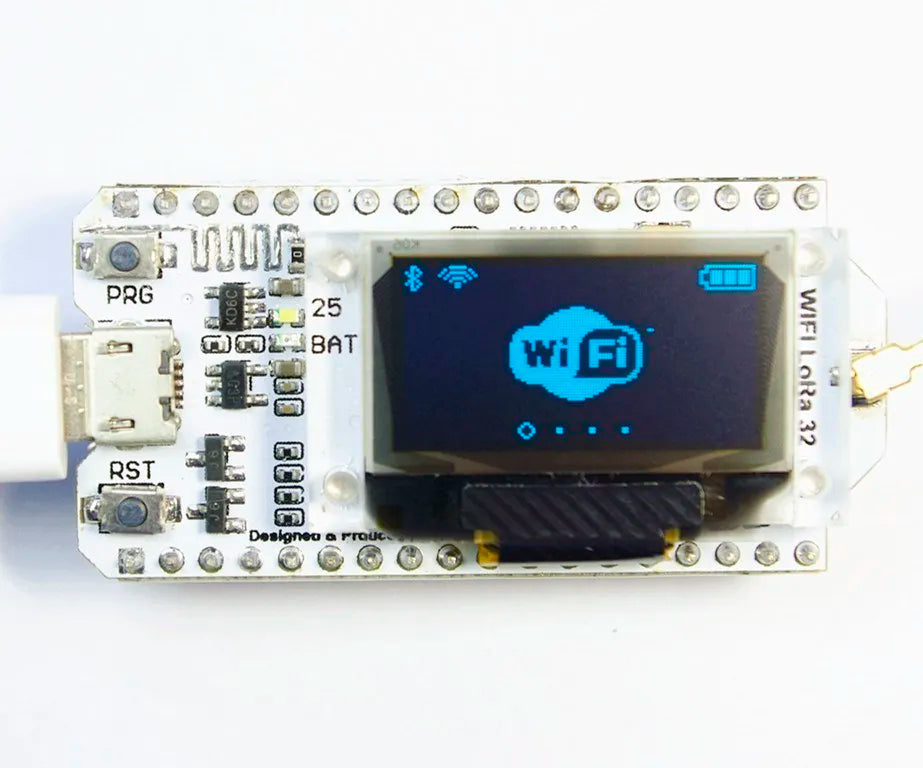

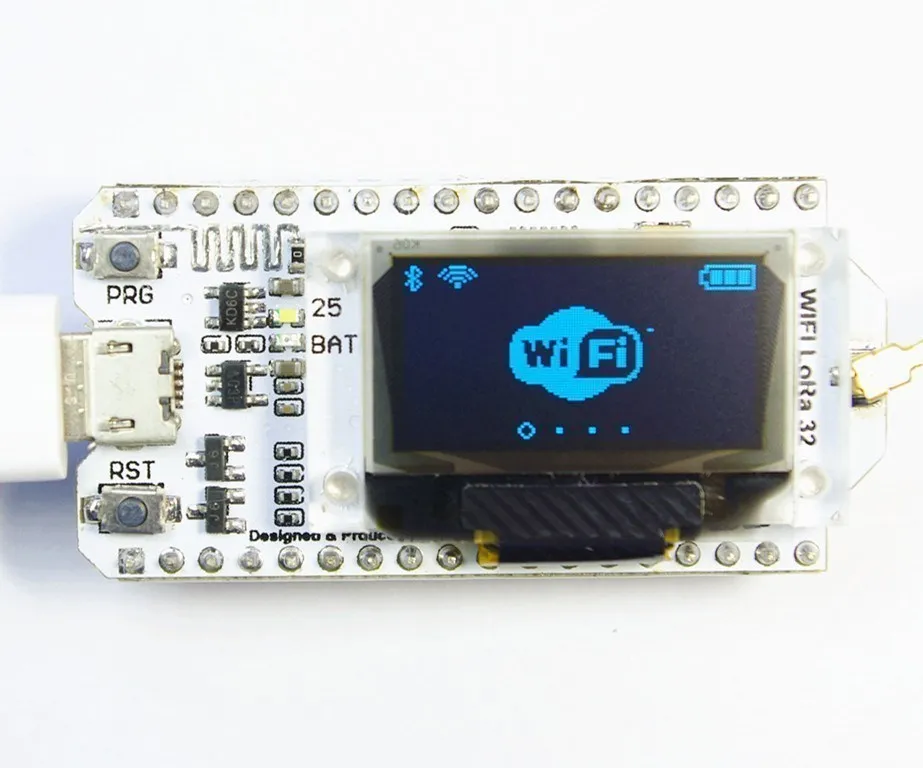

Onboard WIFI function

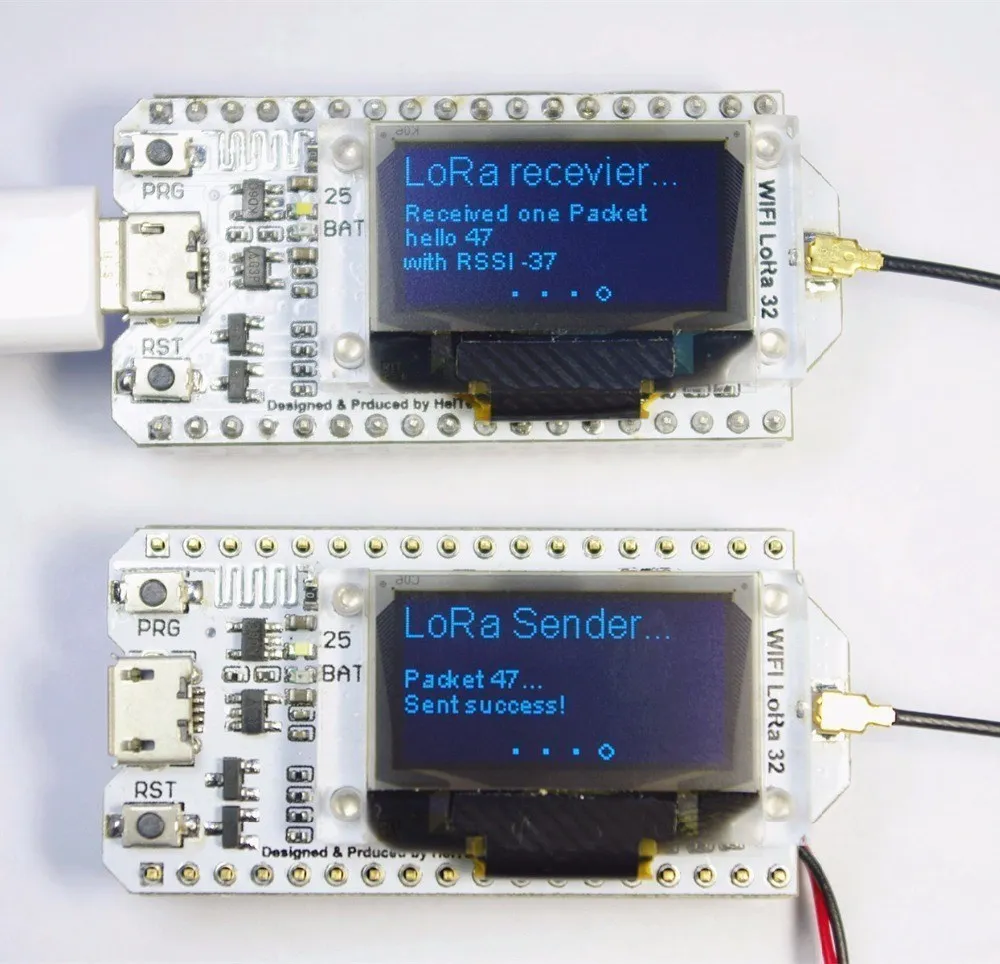

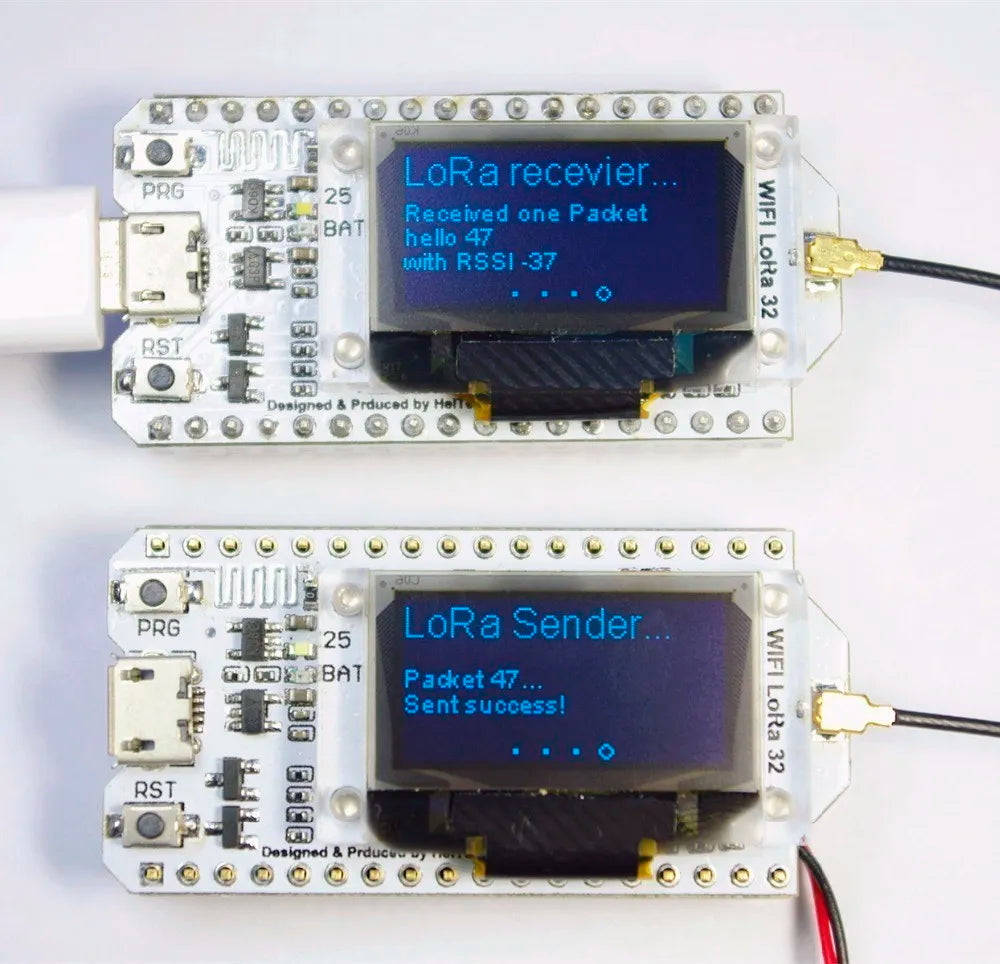

LoRa send and receive test

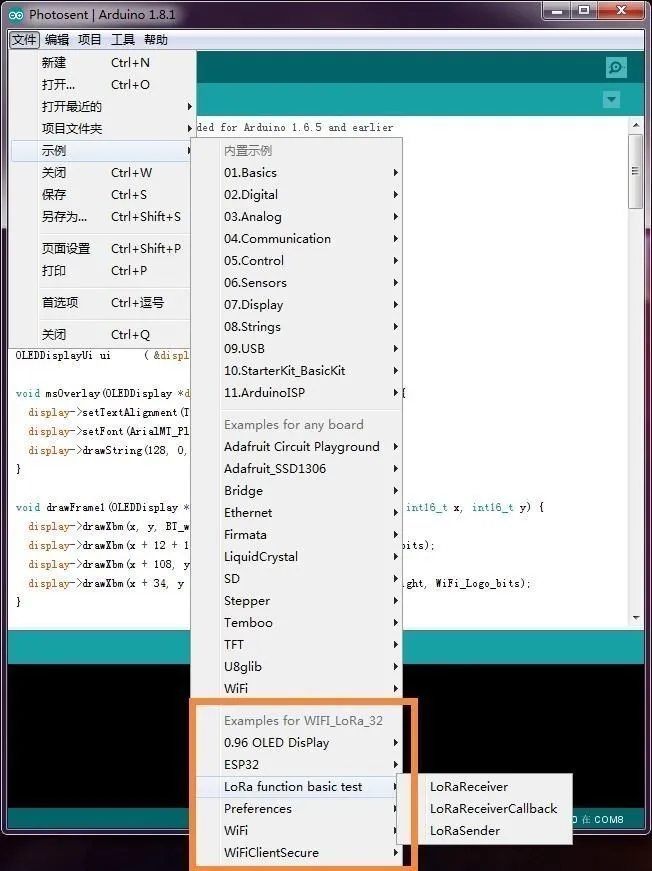

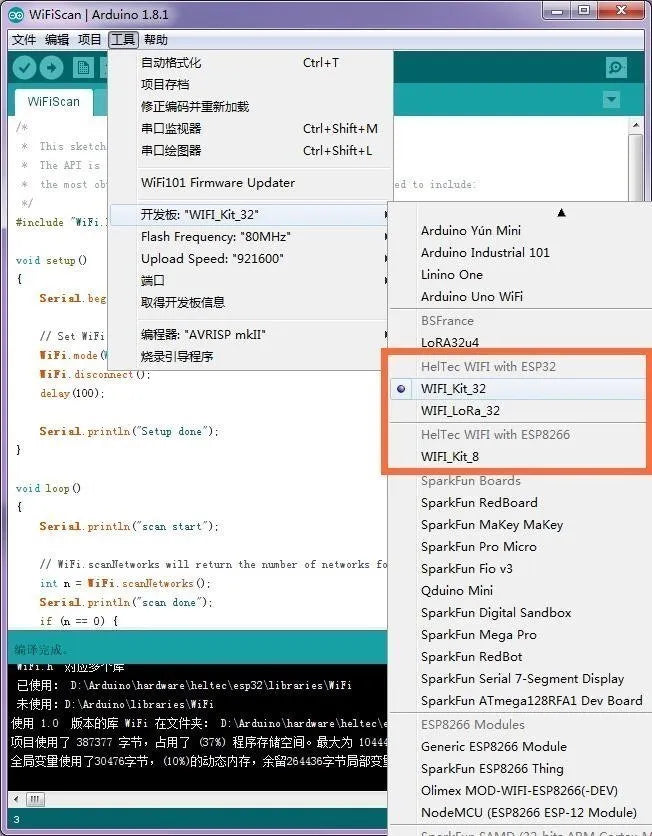

Perfect support development environment, Win 7 above operating system without manual installation of the driver, you can brush NodeMCU firmware, a lot of technical information and routines, please submit the order to the customer service request.
