SPECIFICATIONS

Description:

XL6019 IC Powered DC-DC Adjustable Step-Up Power Module, Delivers Reliable Adjustable Voltage Boost Performance for Electronic DIY, Industrial Control and Low-Voltage Device Power Supply Scenarios

Features:

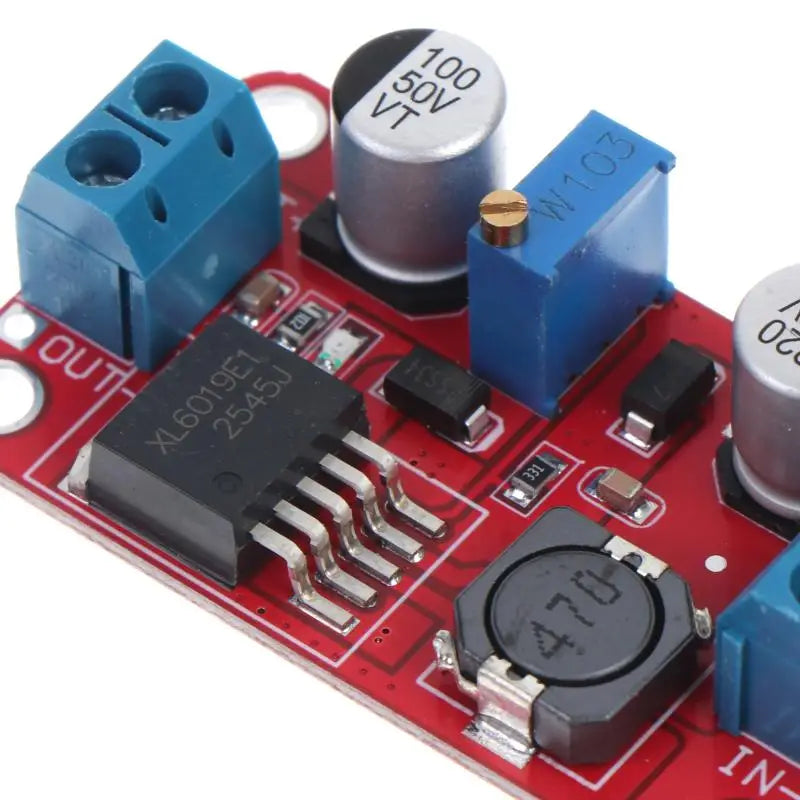

1. High Conversion Efficiency: Adopts original XL6019E1 main control integrated circuit, realizes up to 94% power conversion efficiency, reduces extra heat generation during operation, brings users low energy loss and long-term stable circuit operation performance.

2. Flexible Voltage Adjustment: Equipped with high-precision multi-turn adjustable potentiometer, supports 3V-35V DC input and 5V-38V adjustable DC output, users can freely adjust output voltage to match power requirements of different connected loads.

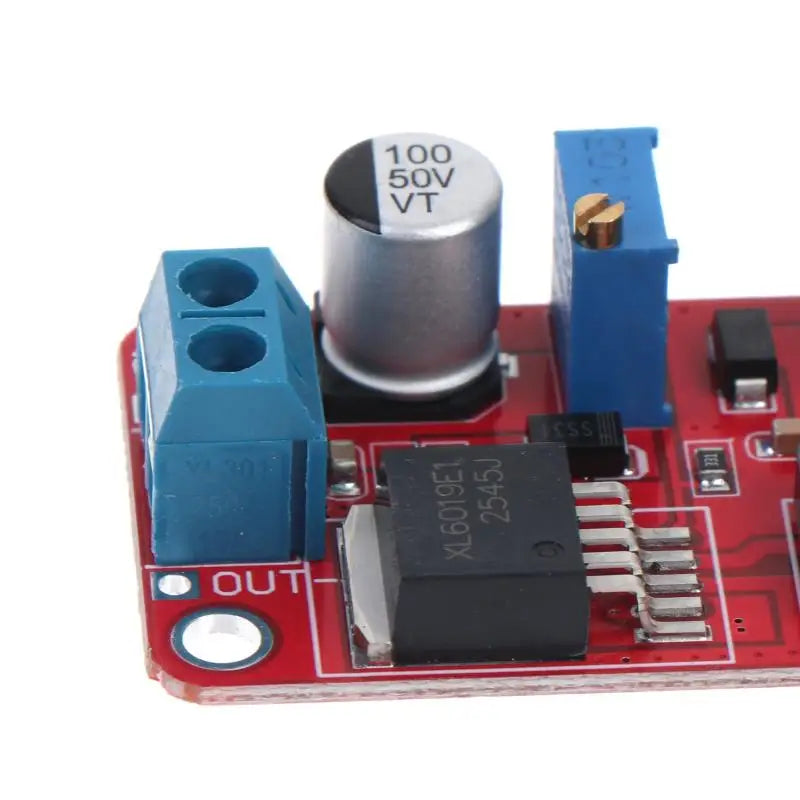

3. Stable Low-Ripple Output: Built-in aluminum electrolytic capacitors and H high-power inductor, effectively filters output voltage ripple and restrains voltage fluctuation, protects downstream connected electronic devices from voltage surge damage.

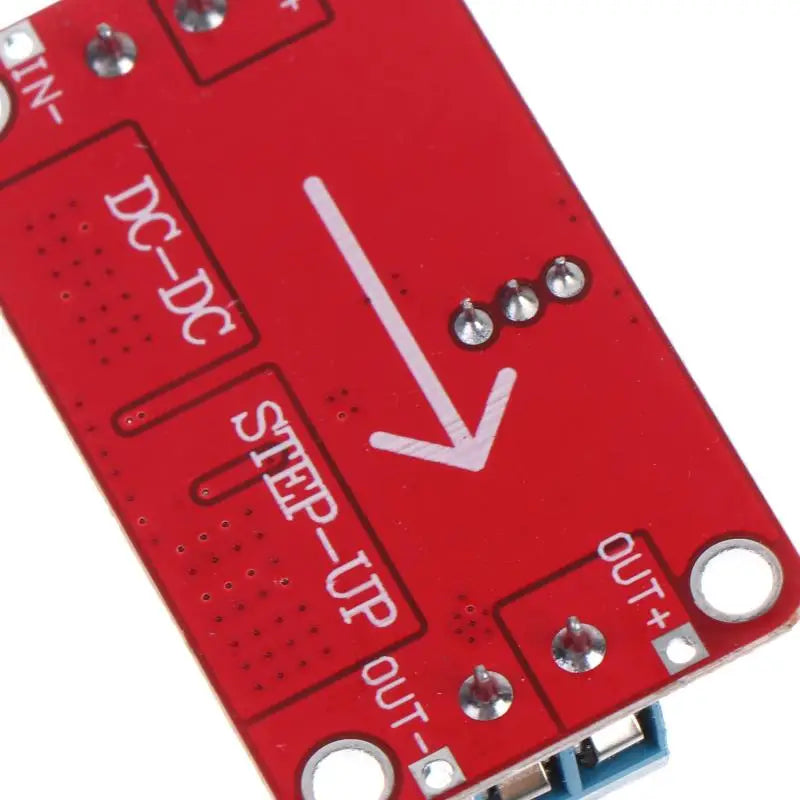

4. Durable Board Structure: Uses thickened flame-retardant FR4 fiberglass PCB as the substrate, features high temperature resistance and firm solder joint adhesion, not easy to deform or have solder falling off after long-time use, adapts to various harsh working environments.

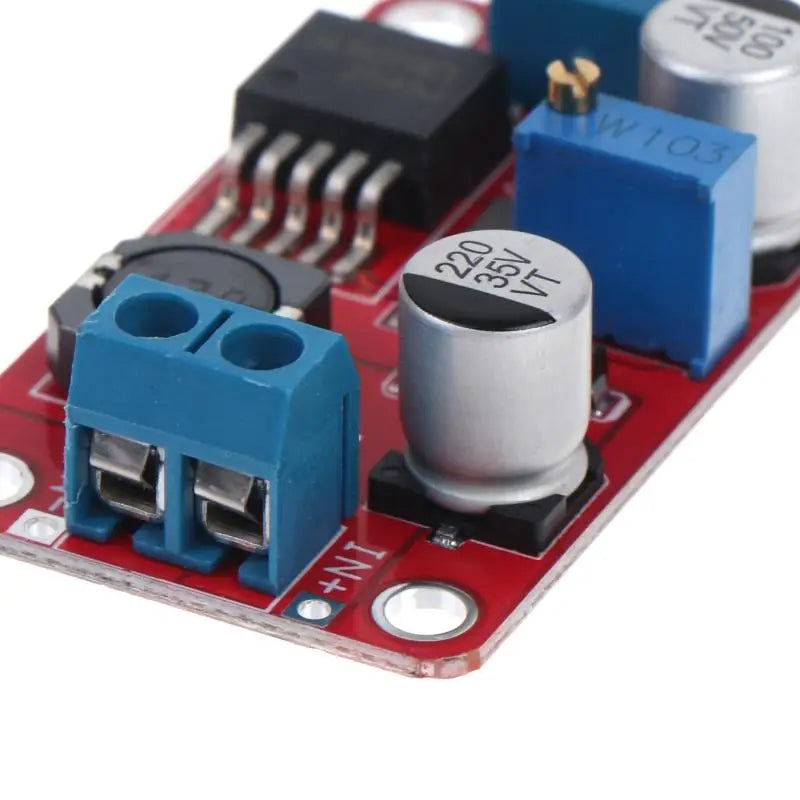

5. Tool-Free Easy Installation: Configured with pluggable flame-retardant blue terminal blocks and pre-reserved mounting fixing holes, no soldering is required for wiring, users can complete wiring and fixed installation quickly even without rich professional electronic operation experience.

Specifications:

Category: DC-DC Adjustable Step-Up Power Module

Material: FR4 Fiberglass PCB, XL6019 Main Control IC, Aluminum Electrolytic Capacitors, High-Power Inductor, High-Precision Adjustable Potentiometer, Flame-Retardant PC Terminal Blocks

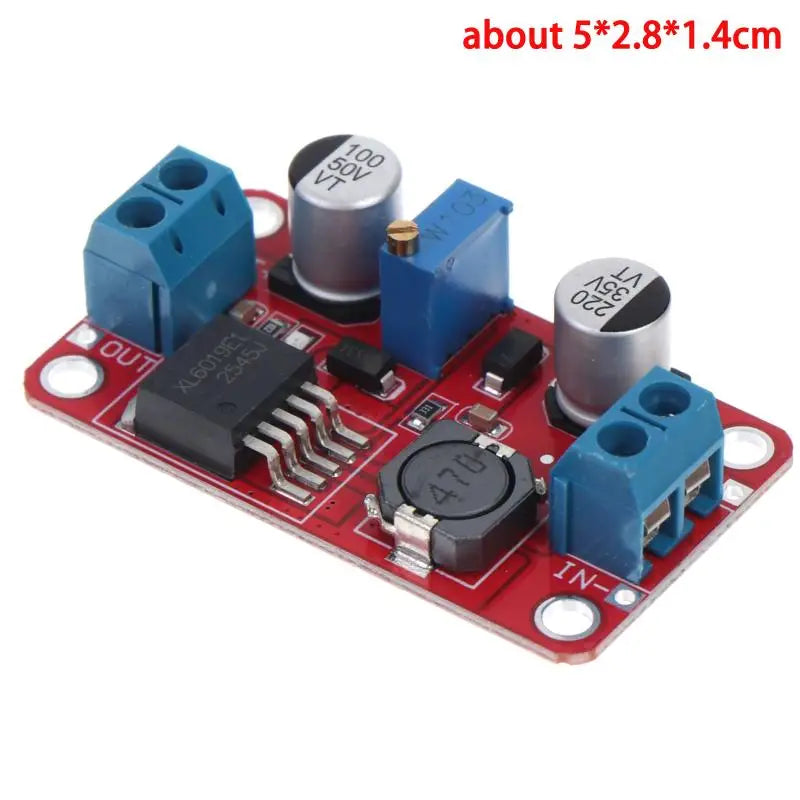

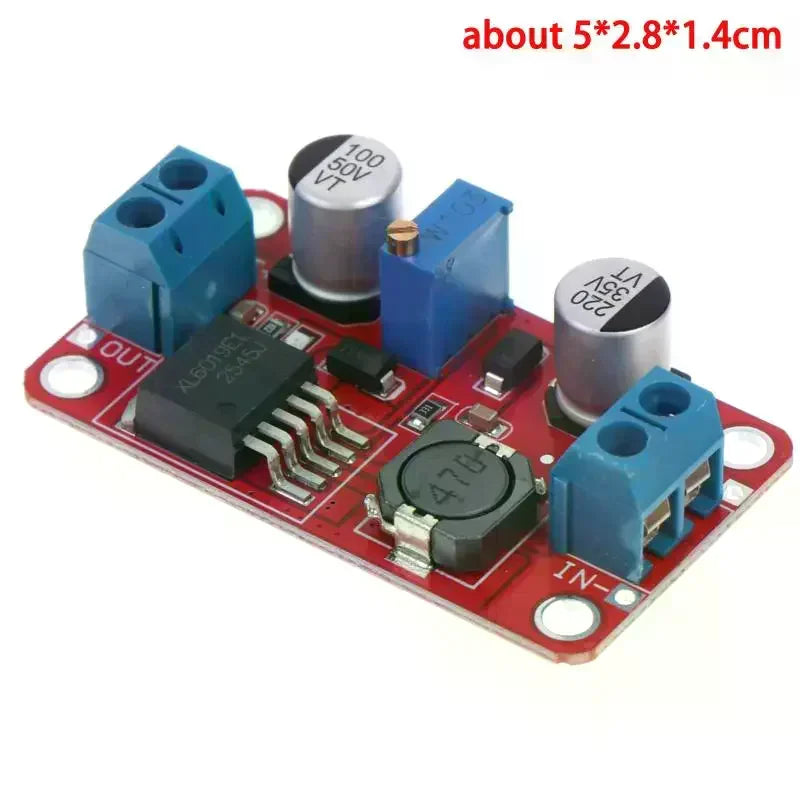

Size: (as shown in the picture)

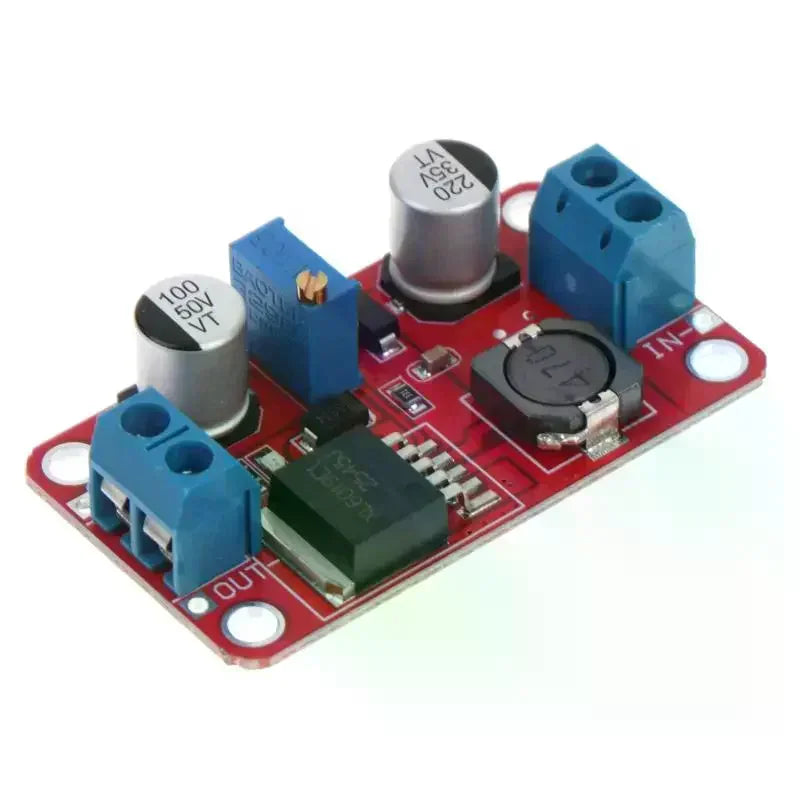

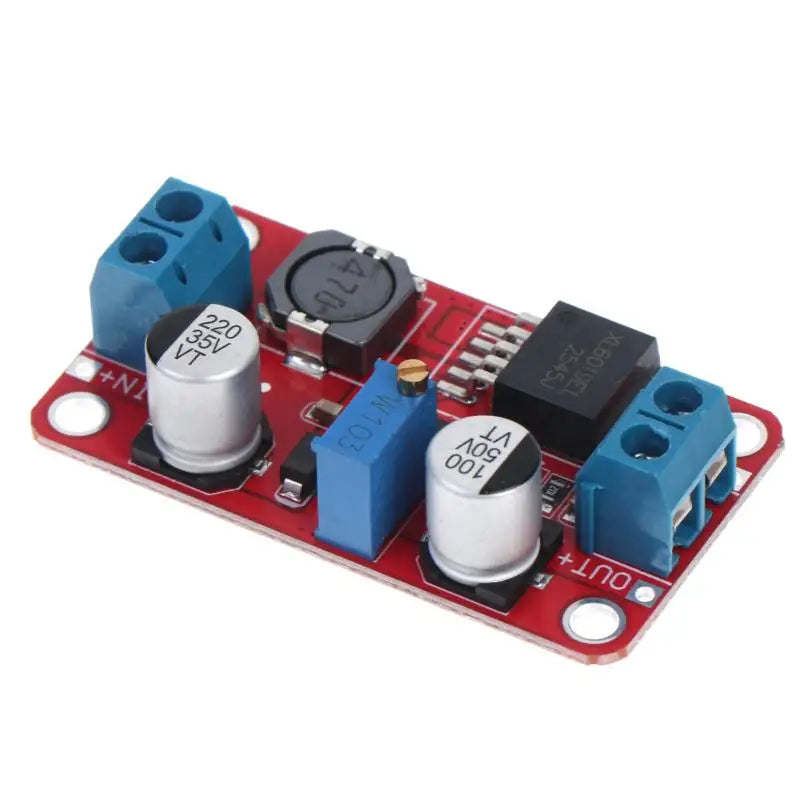

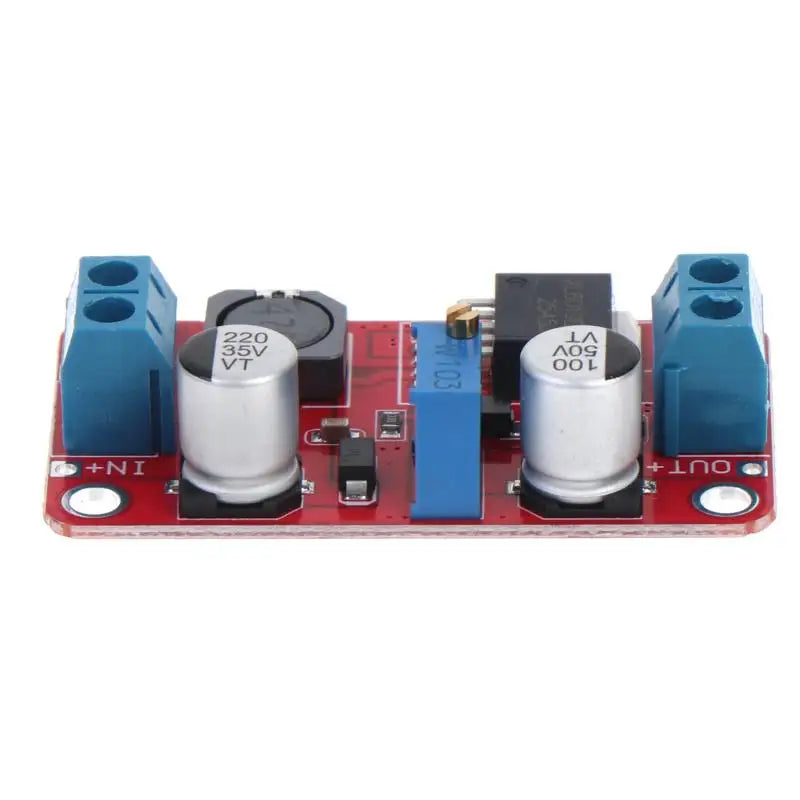

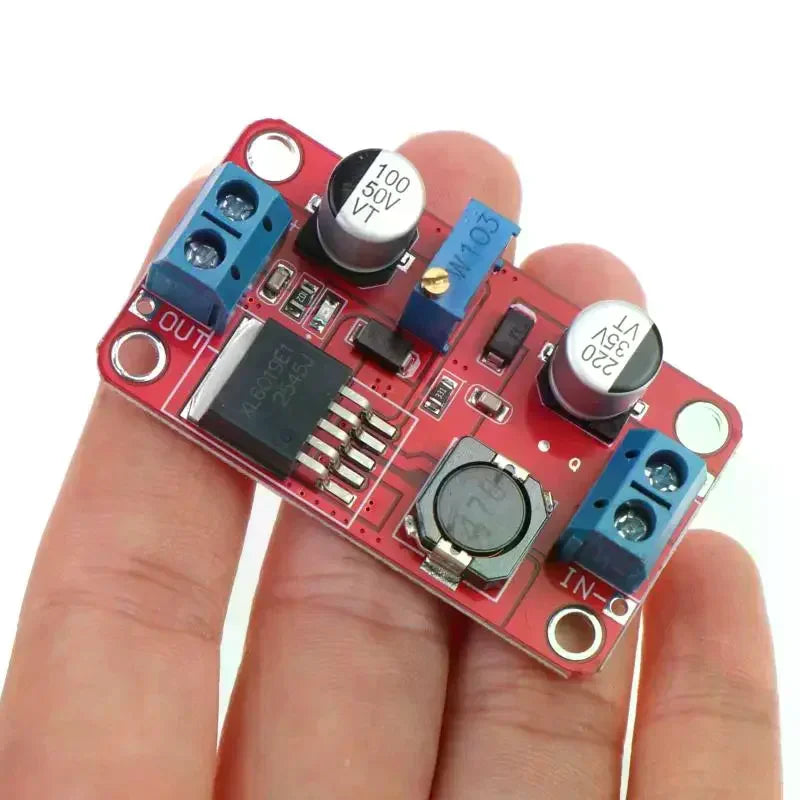

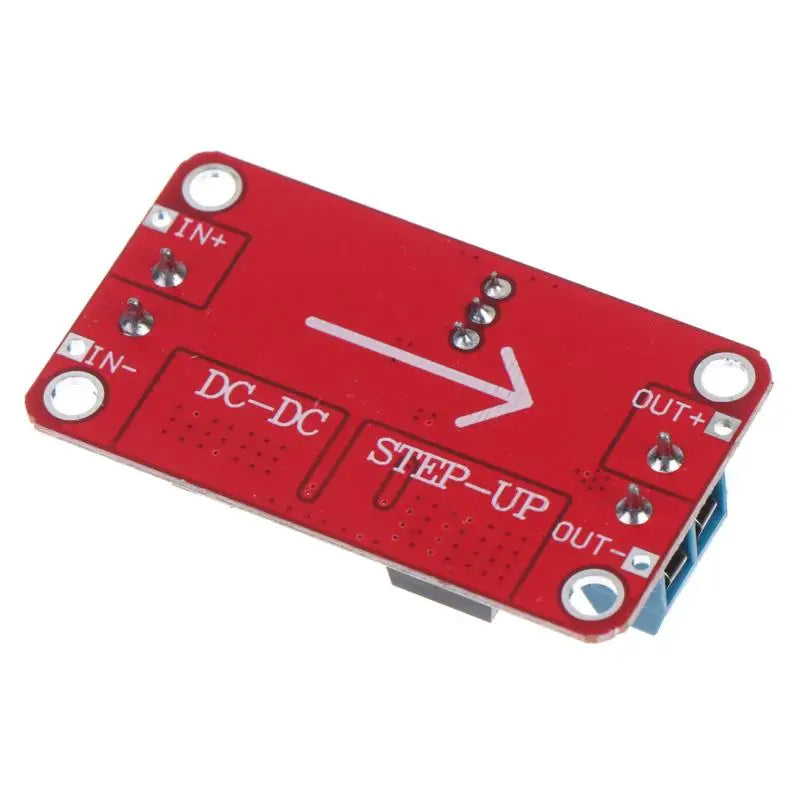

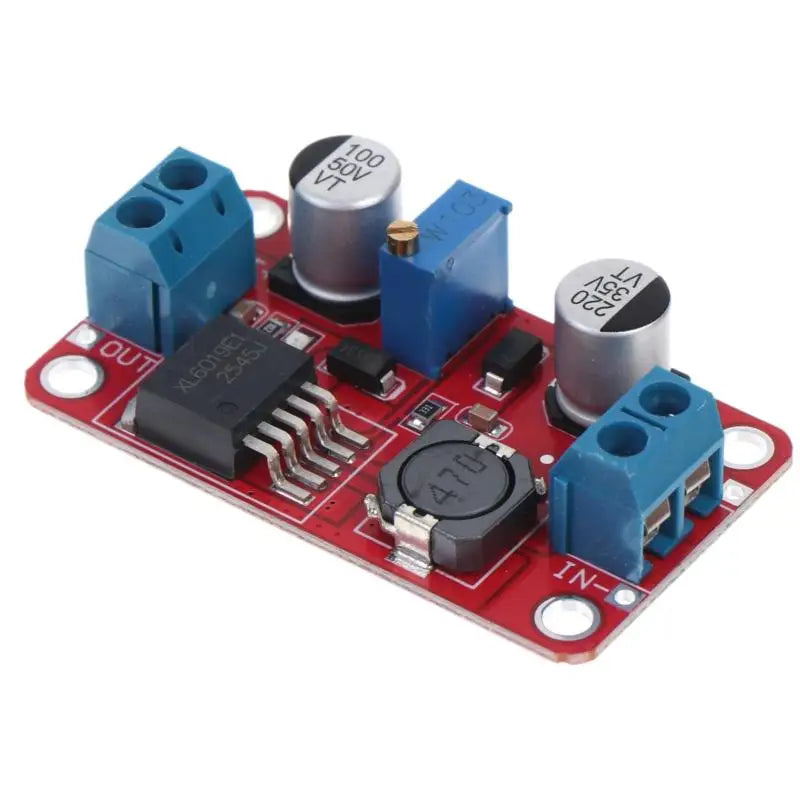

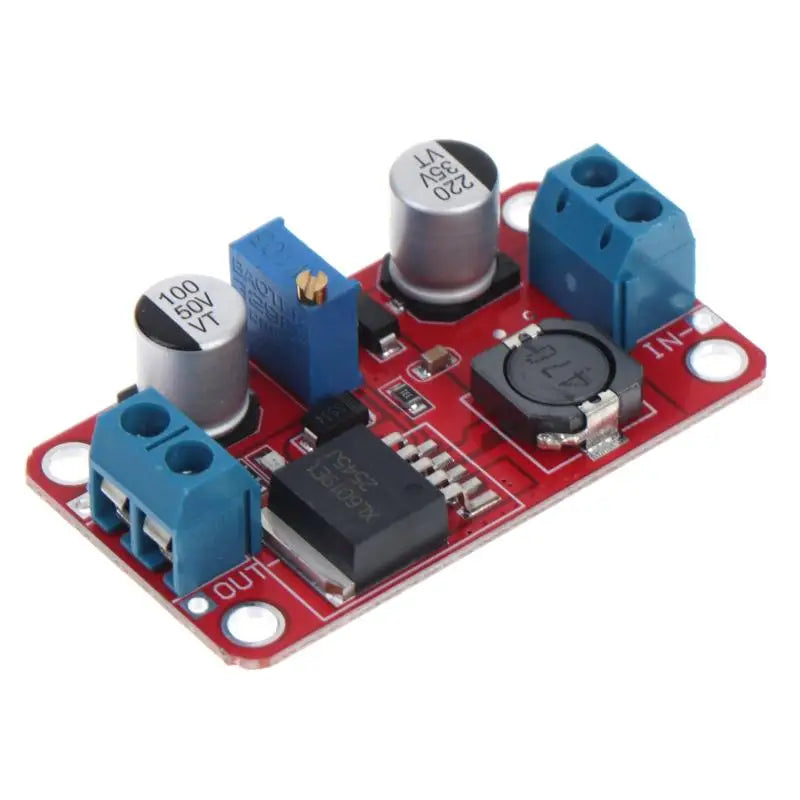

Color: Red PCB main body, blue terminal blocks, silver-gray electrolytic capacitors (as shown in the picture)

Application: Electronic DIY projects, robotics power supply, automotive electronic modification, IoT device power supply, laboratory voltage adjustment, small low-voltage equipment power supply

Quantity: 1 Piece

Note:

1. Please note that the photo does not show actual size, please refer to Description for size details.

2. Please allow differences due to manual measurement, thanks.

3. Due to the difference between different monitors, the image may not reflect the actual color of the item.
