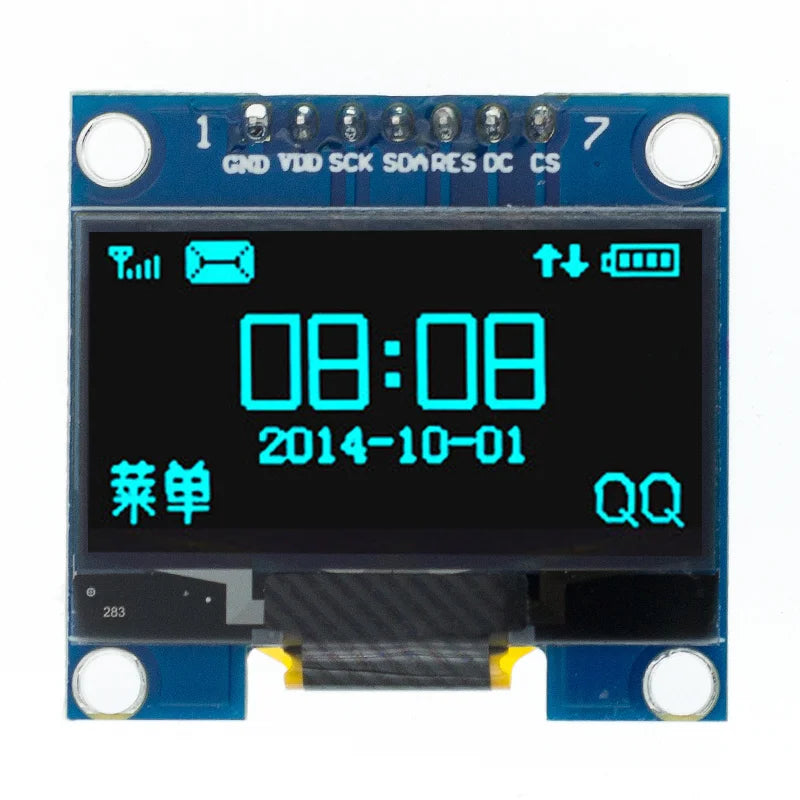

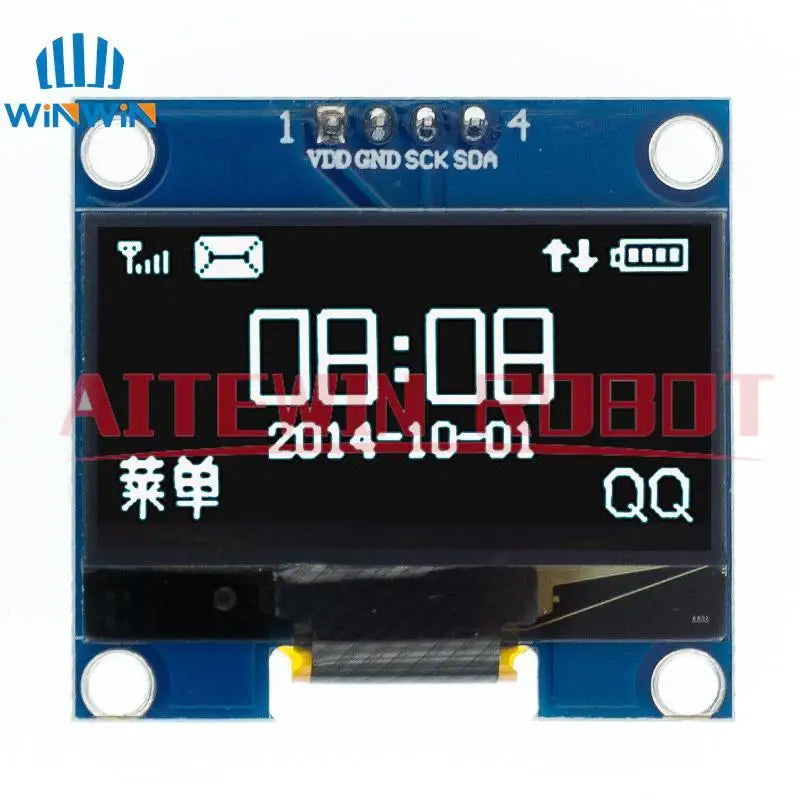

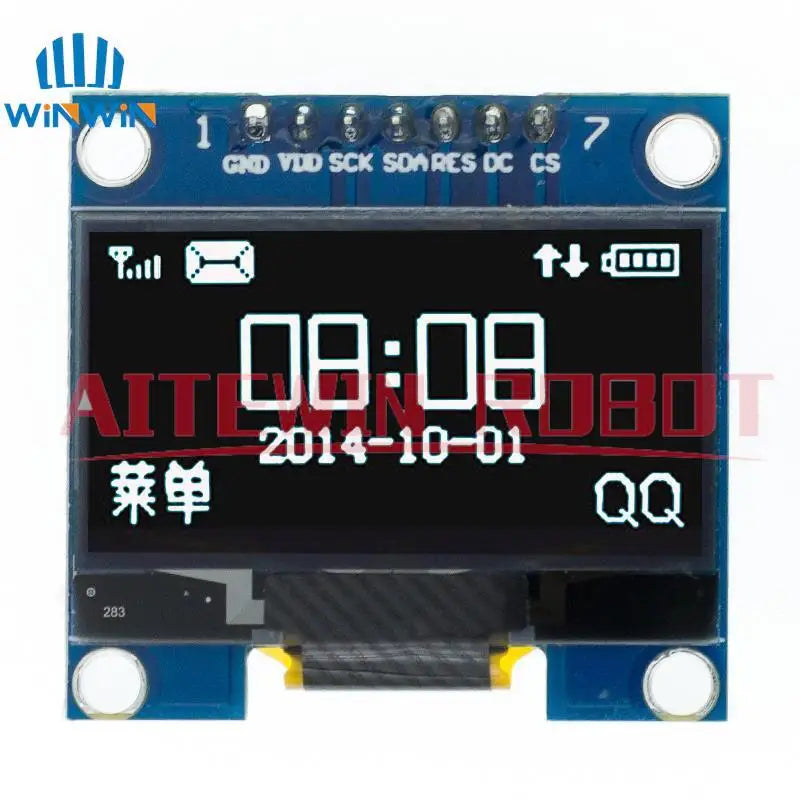

1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module

1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module

4pinIIC-White
$10.17
$10.17 $0.00
Skip to product information
1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
  • 1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
1PCS/5PCS 1.3 inch OLED module SPI/IIC Communicate white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" OLED module
$10.17
$10.17 $0.00
Color
Description

SPECIFICATIONS

Brand Name: AITEWIN ROBOT

Display Mode: 128*64

High-concerned chemical: none

Model Number: 1.3 inch OLED module

Origin: Mainland China

Resolution: 128*64

Type: Graphic

is_customized: Yes


Module Features:

1, resolution: 128X64

2, super wide viewing angle: more than 160 ° (maximum viewing angle display a screen)

3, ultra-low power consumption: normal display 0.08W (far below the TFT display)

4, wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)

5, industrial grade: Operating temperature range -30 degree~ 70 degree

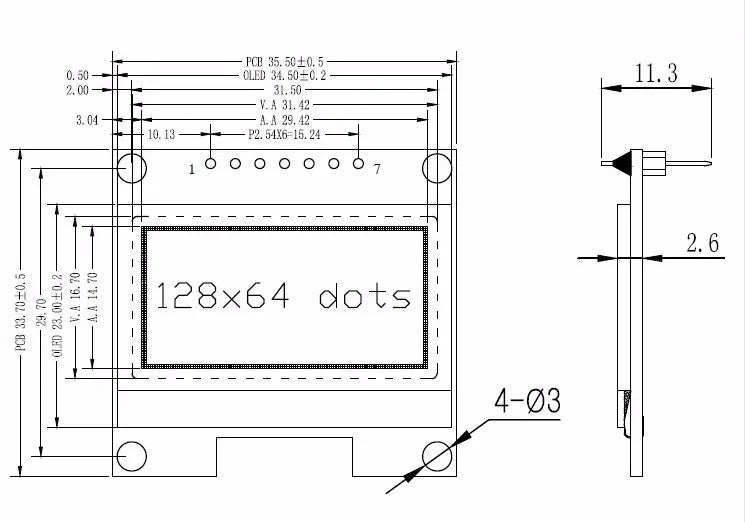

6, the ultra-small size: (length) 35.4MM * (W) 33.5MM * (thickness) 4.3MM

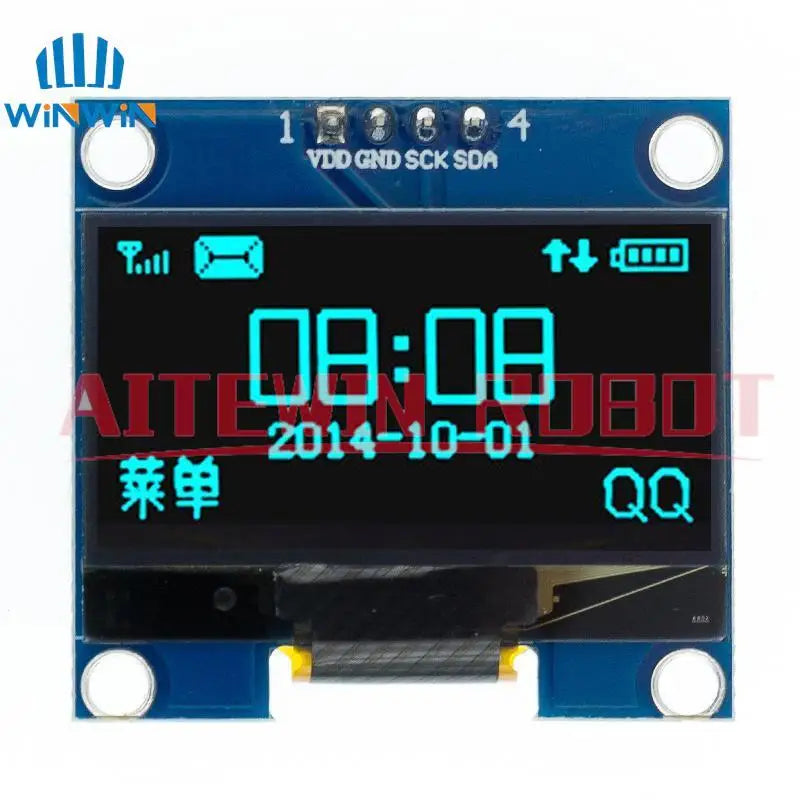

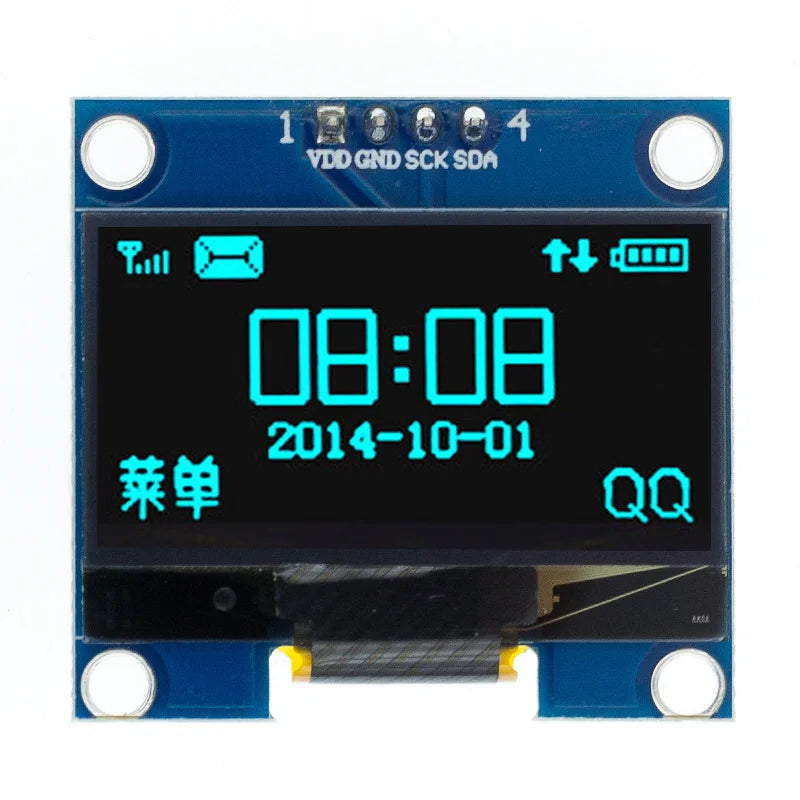

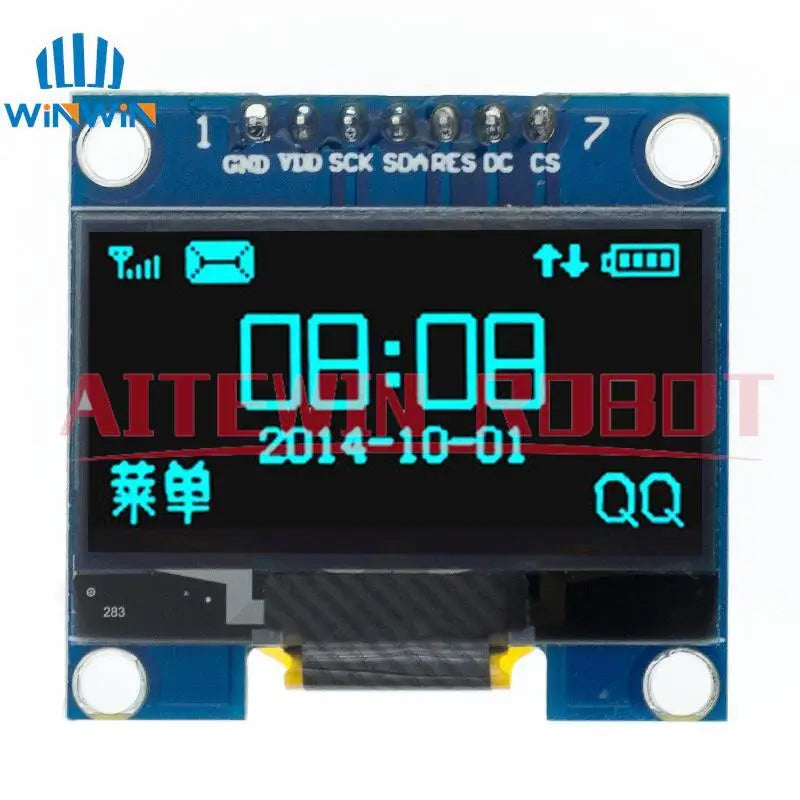

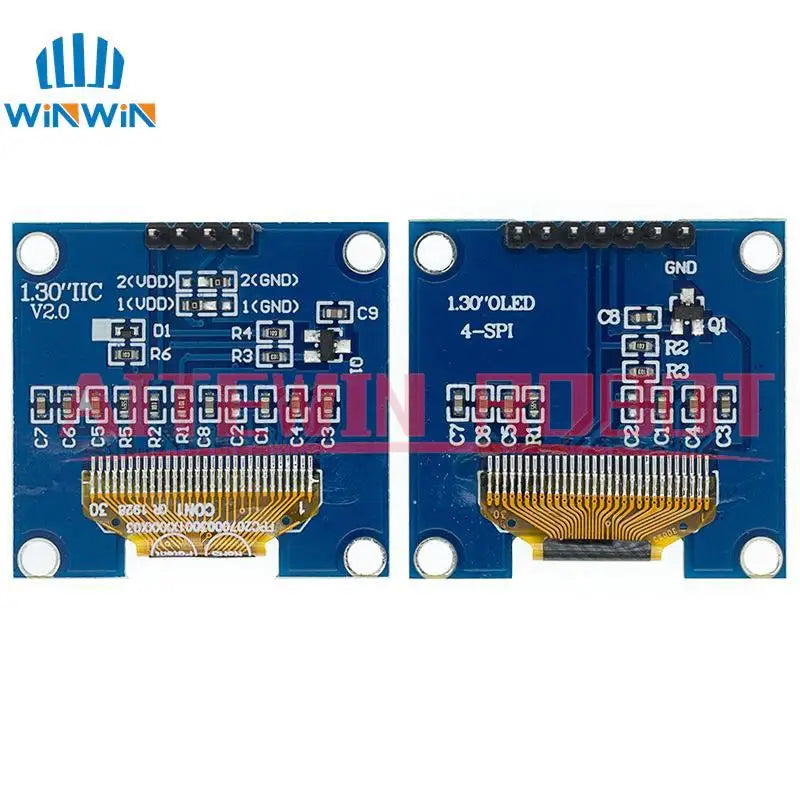

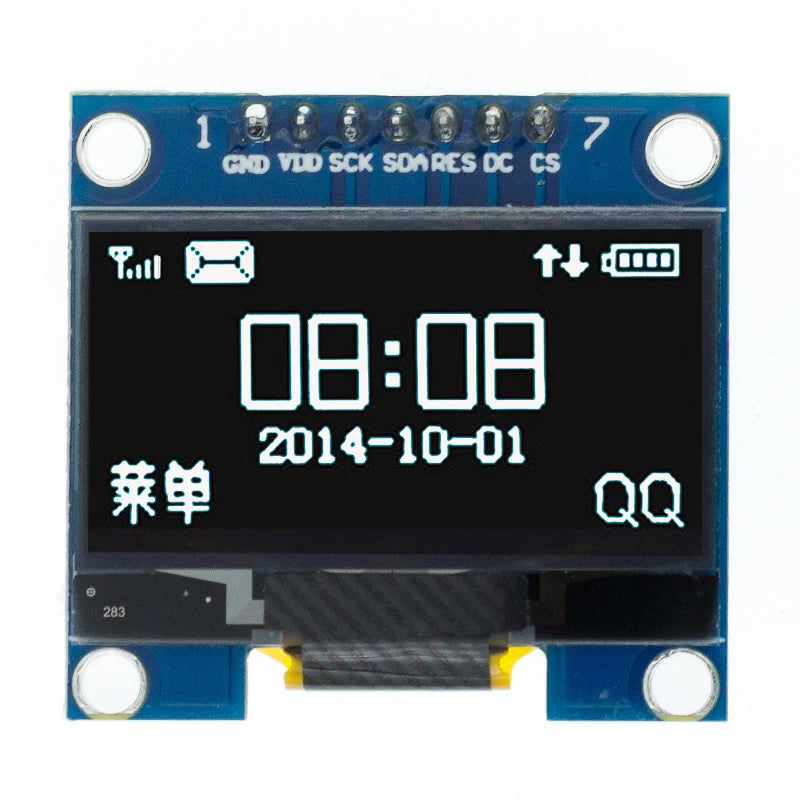

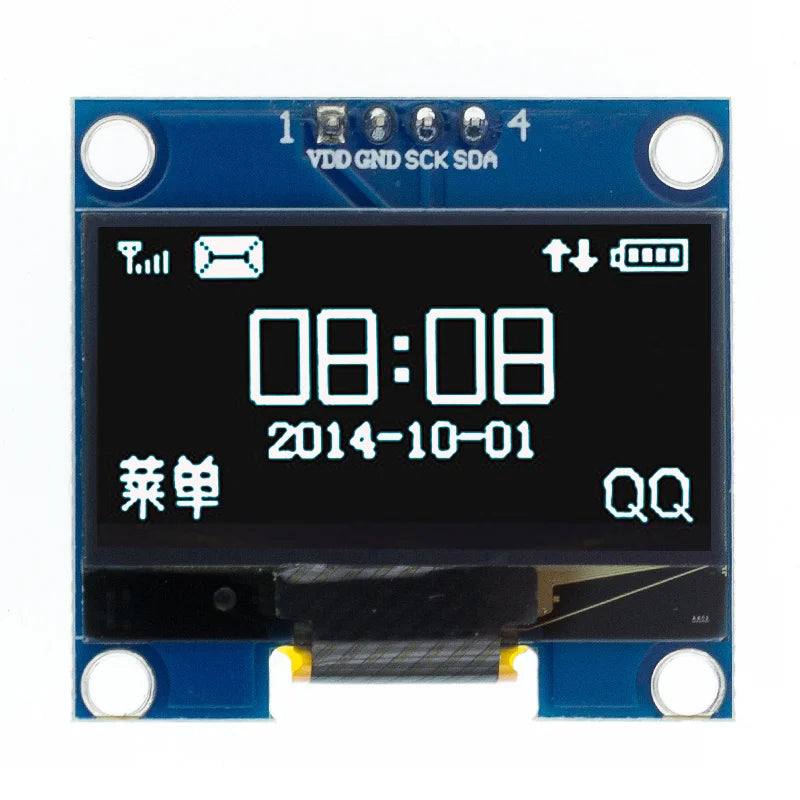

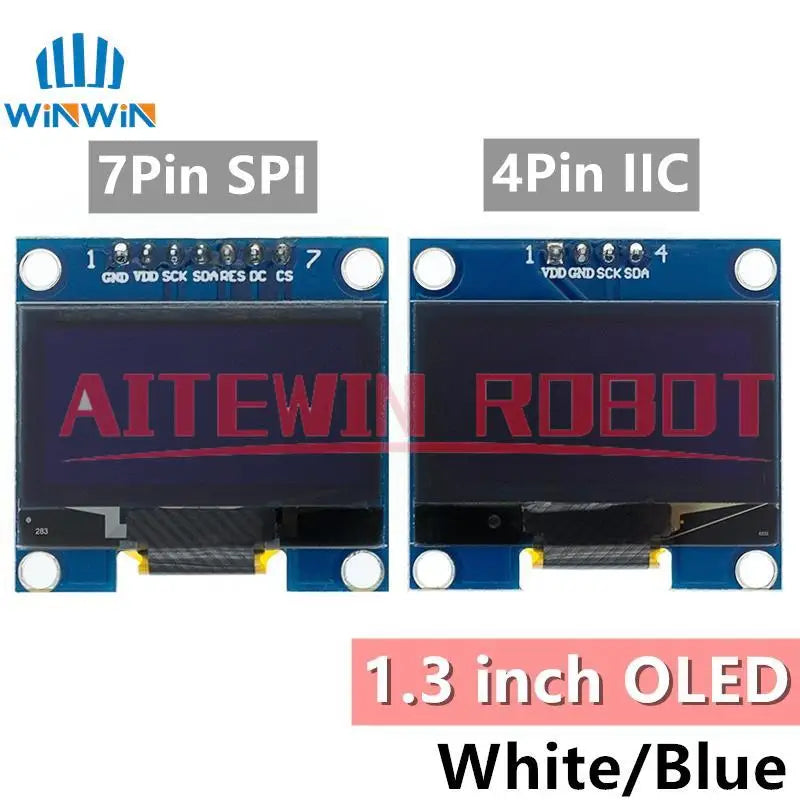

7, support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC

8, with chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work

9, compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)

10, OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)
