SPECIFICATIONS

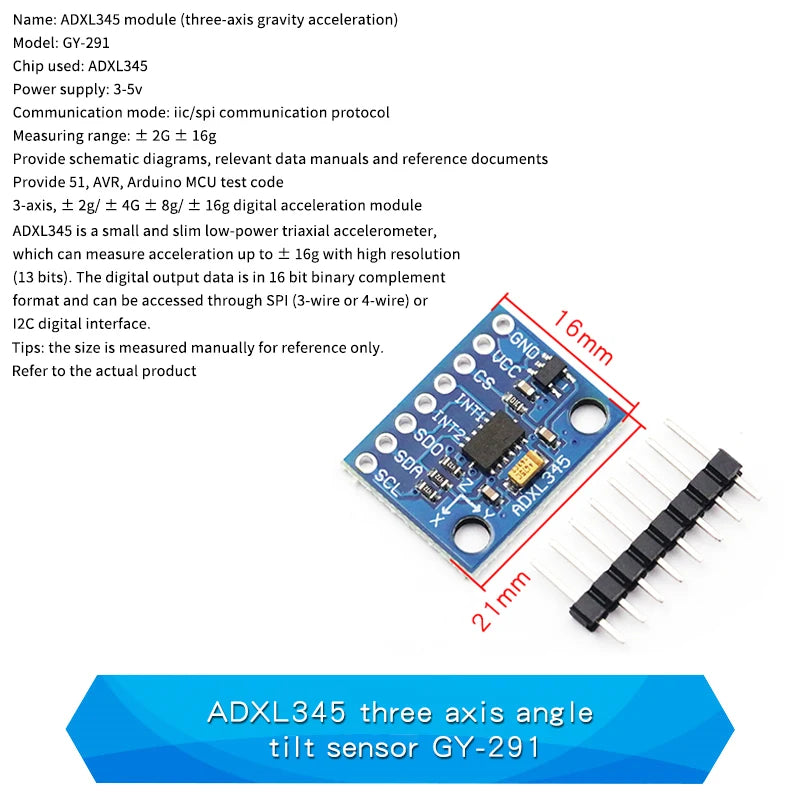

Name: adxl345 module (three-axis gravity acceleration)
Model: gy-291
Chip used: adxl345
Power supply: 3-5v
Communication mode: icc/spi communication protocol
Measuring range: ± 2G ± 16g
Provide schematic diagrams, relevant data manuals and reference documents
Provide 51, AVR, Arduino MCU test code
3-axis, ± 2g/ ± 4g/ ± 8g/ ± 16g digital acceleration module

Adxl345 three axis angle tilt sensor gy-291
1, Adxl345 is a small and slim low-power triaxial accelerometer, which can measure acceleration up to ± 16g with high resolution (13 bits).
The digital output data is in 16 bit binary complement format and can be accessed through SPI (3-wire or 4-wire) or 12C digital interface.
2, Adxl345 is very suitable for mobile device applications. It can measure the static acceleration of gravity in tilt detection applications, and can also
measure the dynamic acceleration caused by motion or impact.
It has high resolution (4 mg/lsb) and can measure inclination changes of about 0.25 °. Using digital output accelerometers such as adxl345, there is no
need for analog-to-digital conversion, which can save system cost and circuit board area
3, Adxl345 is a small and thin ultra-low power 3-axis accelerometer with high resolution (13 bits) and a measurement range of ± 16g. The digital
output data is in 16 bit binary complement format and can be accessed through SPI (3-wire or 4-wire) or 12C digital interface.
Adxl345 is very suitable for mobile device applications. It can measure the static acceleration of gravity in tilt detection applications, and can also
measure the dynamic acceleration caused by motion or impact. Its high resolution (3.9mg/lsb) can measure tilt angle changes of less than 1.0 °.
The device provides a variety of special detection functions. The active and inactive detection function detects whether there is movement by
comparing the acceleration on any axis with the threshold set by the user. The knock detection function can detect single vibration and double
vibration actions in any direction.
The free fall detection function can detect whether the device is falling. These functions can be independently mapped to one of the two interrupt
output pins. The patent pending integrated memory management system uses a 32 level first in first out (FIFO) buffer,
It can be used to store data, so as to reduce the host processor load to a minimum and reduce the overall system power consumption. Low power
mode supports intelligent power management based on motion, so that threshold sensing and motion acceleration measurement can be carried
out with extremely low power consumption.
3mm for adxl345 × 5mm × 1mm, 14 pin small ultra-thin plastic package.

Power supply: 3-5v
Power supply current: 400ua
10. Y, Z: output
Operating temperature: -40 ° -85 °
Size: (length, width and height) 15.7mm20.3mm × 11.6mm

Adxl335 triaxial acceleration tilt angle sensor welding row needle

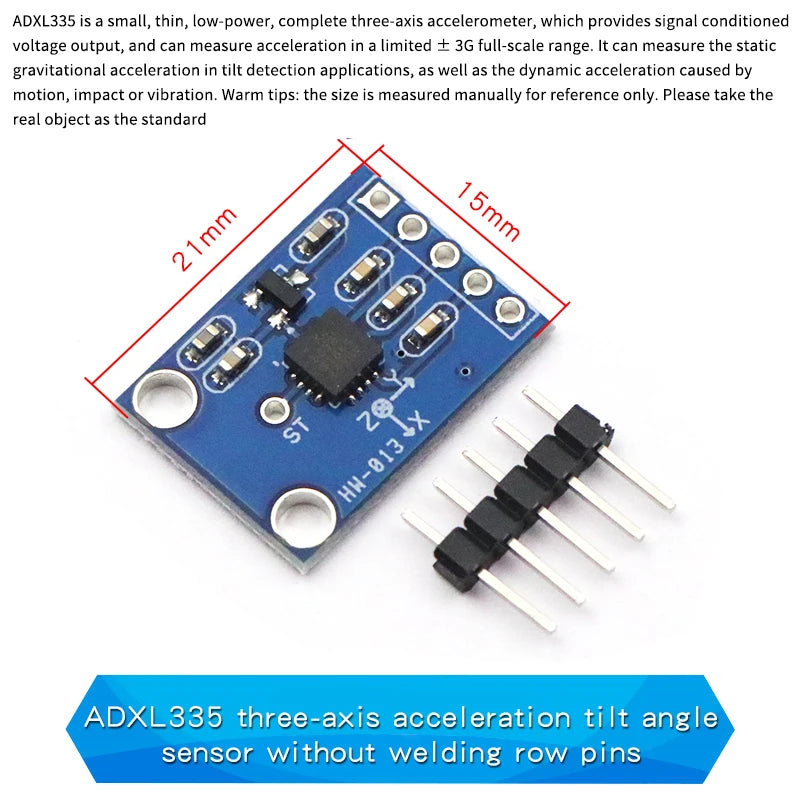

Adxl35 is a small-size, thin, low-power, complete three-axis accelerometer, which provides signal conditioned voltage output and can
measure acceleration in a limited ± 3G full-scale range.
It can measure the static gravitational acceleration in tilt detection applications, as well as the dynamic acceleration caused by motion,
impact or vibration.
The user selects the bandwidth of the accelerometer by using the capacitors x out, you and zout on CX, cy and CZ pins. You can
choose the appropriate broadband according to the application,
The bandwidth of x-axis and y-axis ranges from 0.5Hz to 1600hz, and the bandwidth of axis ranges from 0.5Hz to 550hz.
Adxl335 is available in small size, thin, 16 pin
4mm × 4mm × 1.45MM plastic pin architecture chip level package (lfcsp_lq)

Adxl335 three-axis acceleration tilt angle sensor without welding row pins

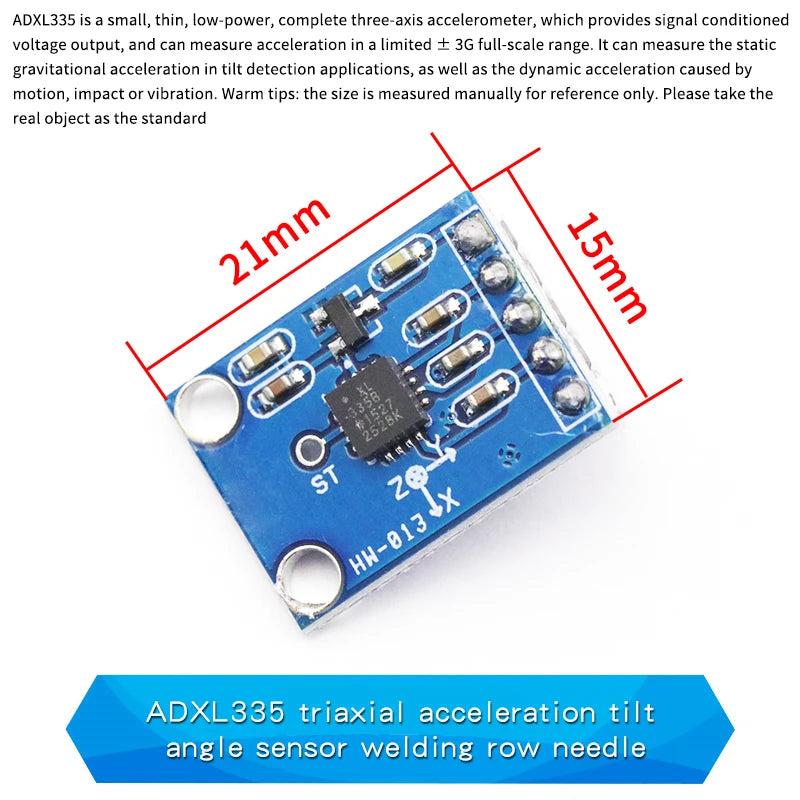

Adxl335 is a small, thin, low-power, complete three-axis accelerometer, which provides signal conditioned voltage output and can
measure acceleration in a limited ± 3G full-scale range.
It can measure the static gravitational acceleration in tilt detection applications, as well as the dynamic acceleration
caused by motion, impact or vibration.
The user selects the bandwidth of the accelerometer by using the capacitors xout, yout and zout on CX, cy and CZ pins.
You can choose the appropriate bandwidth according to the application,
The bandwidth range of x-axis and y-axis is 0.5Hz to 1600hz, and the bandwidth range of z-axis is 05hz to 550hza
adxl335 provides small size, thin, 16 pin
4mmx4mmx1.45mm plastic pin architecture chip level package (lfcsp- LQ)
