$15.93

$15.93 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: 1

High-concerned chemical: none

Operating Temperature: -40-+85

Origin: Mainland China

Package: DIP

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

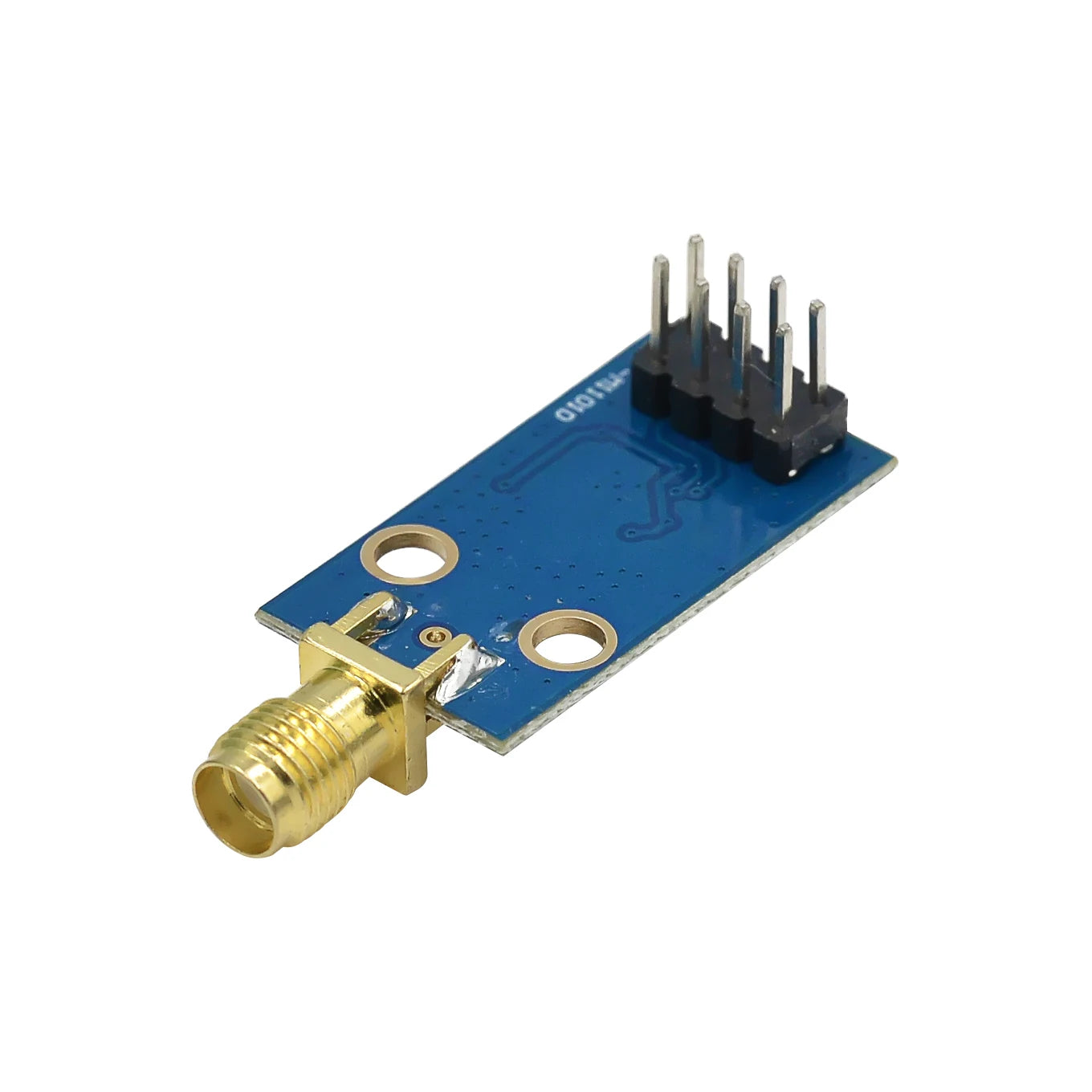

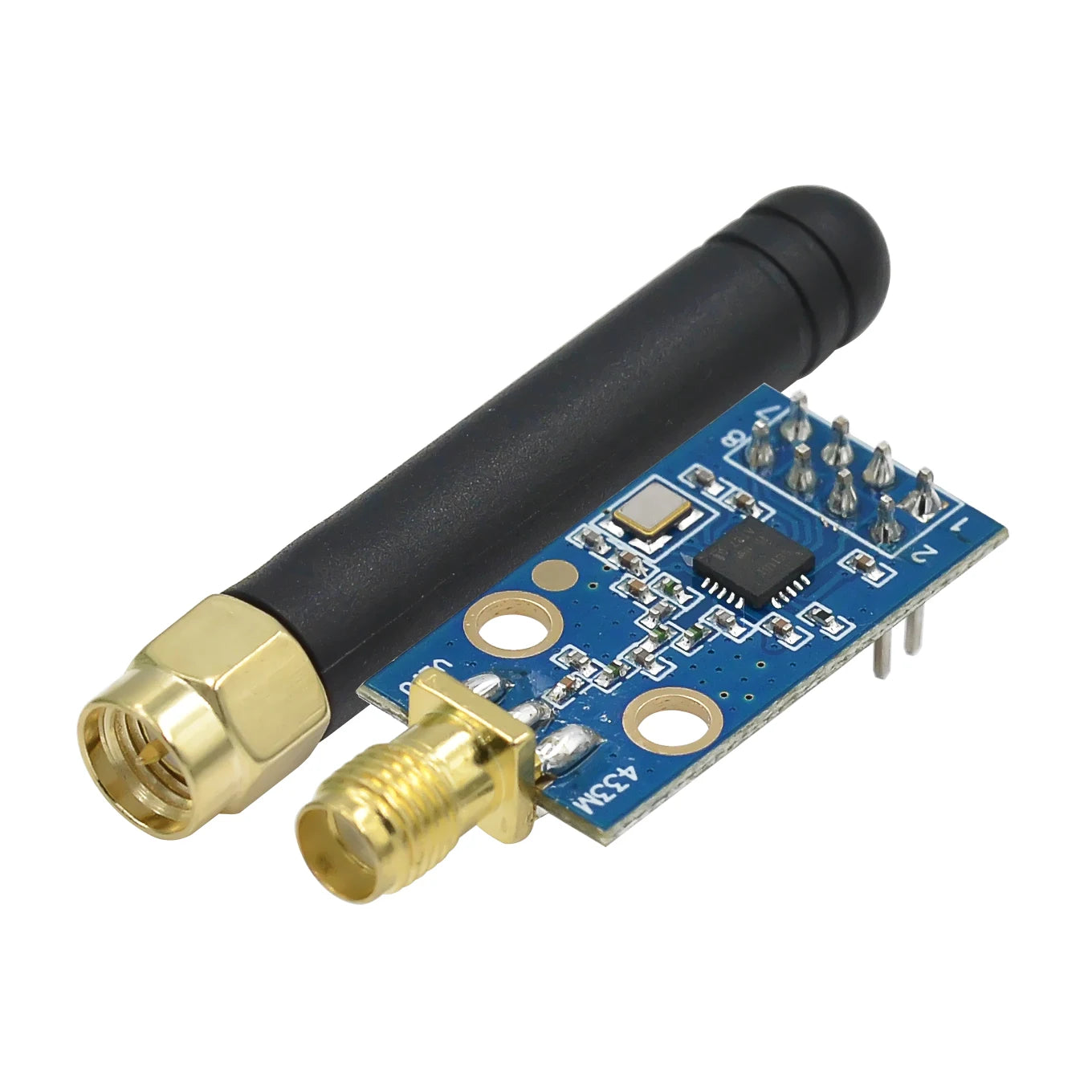

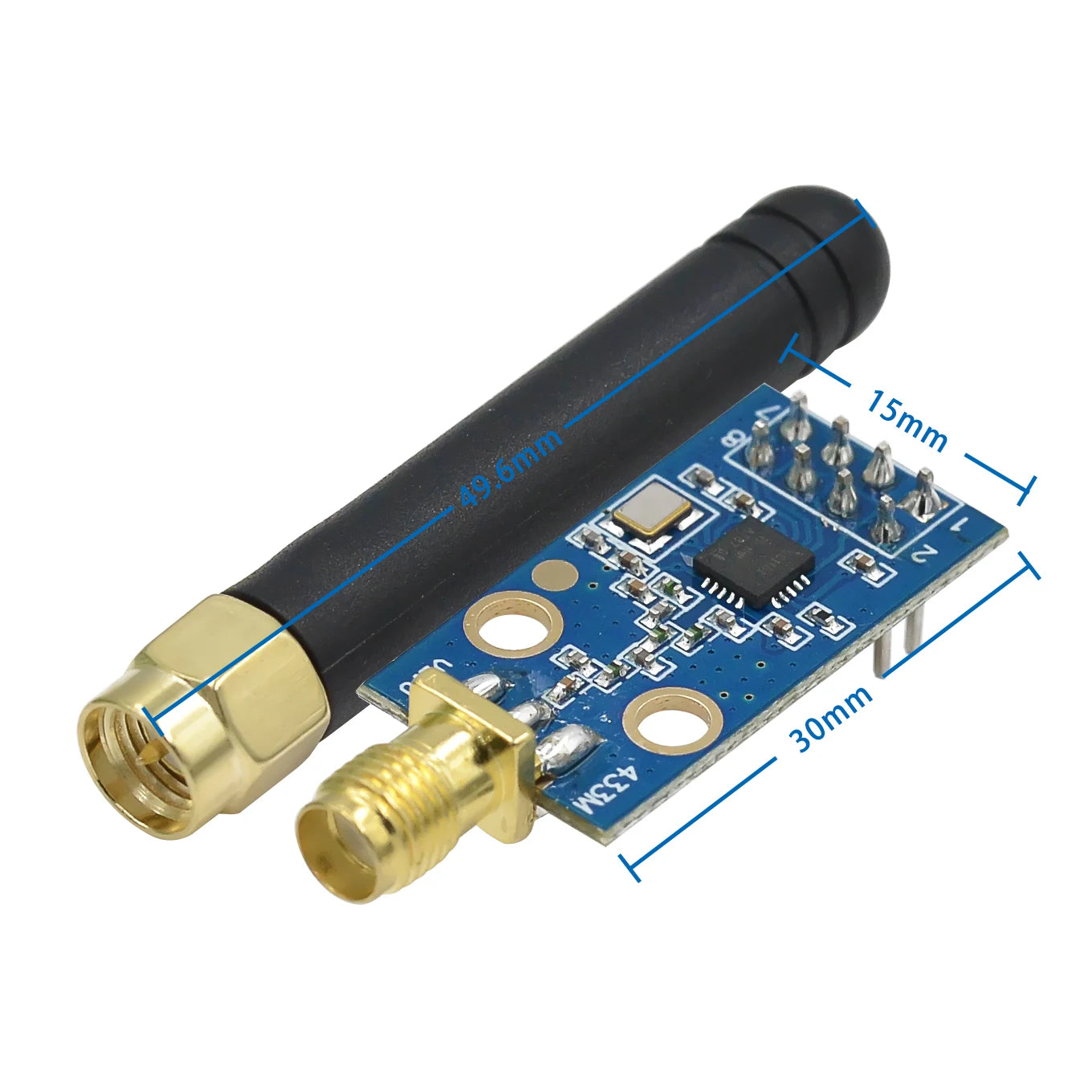

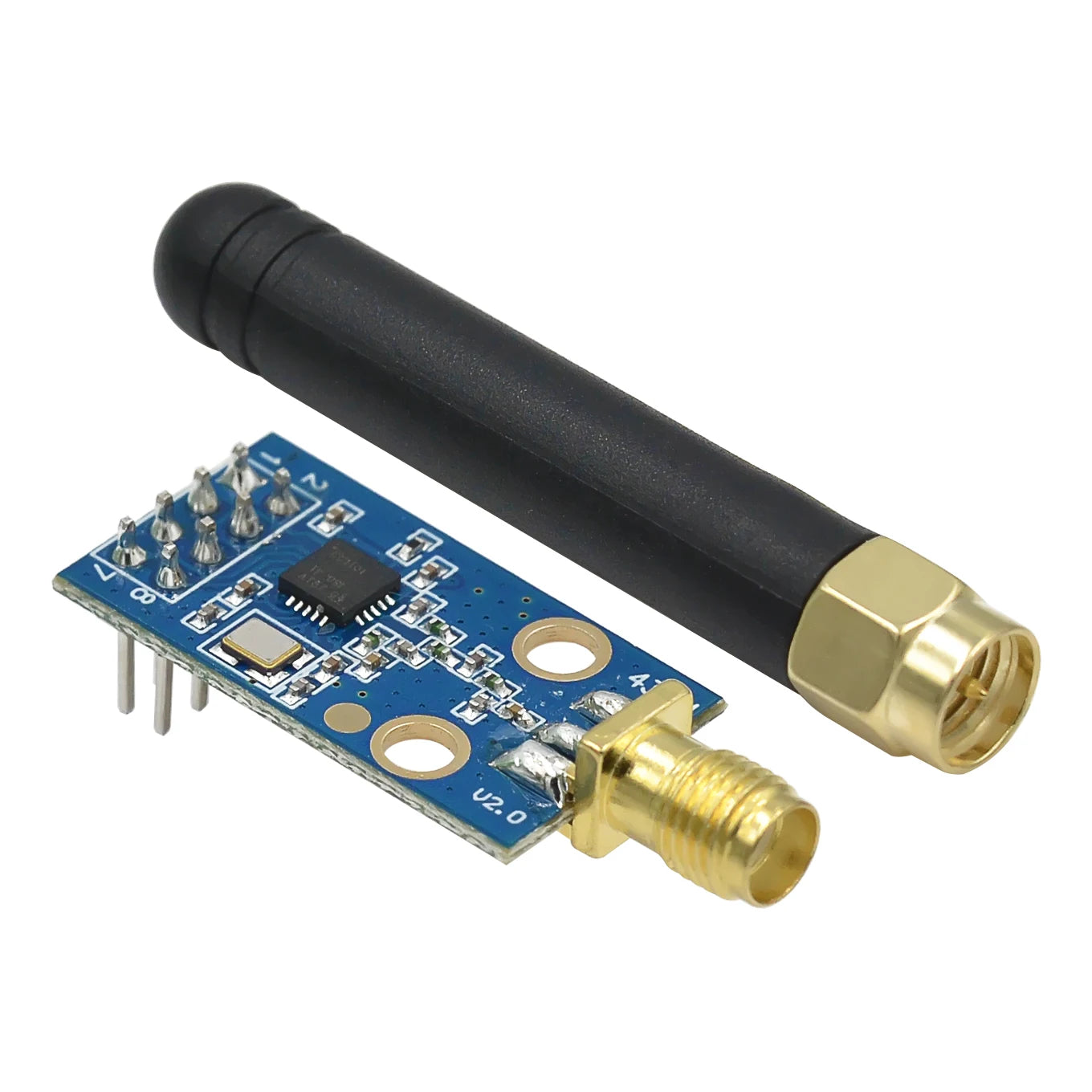

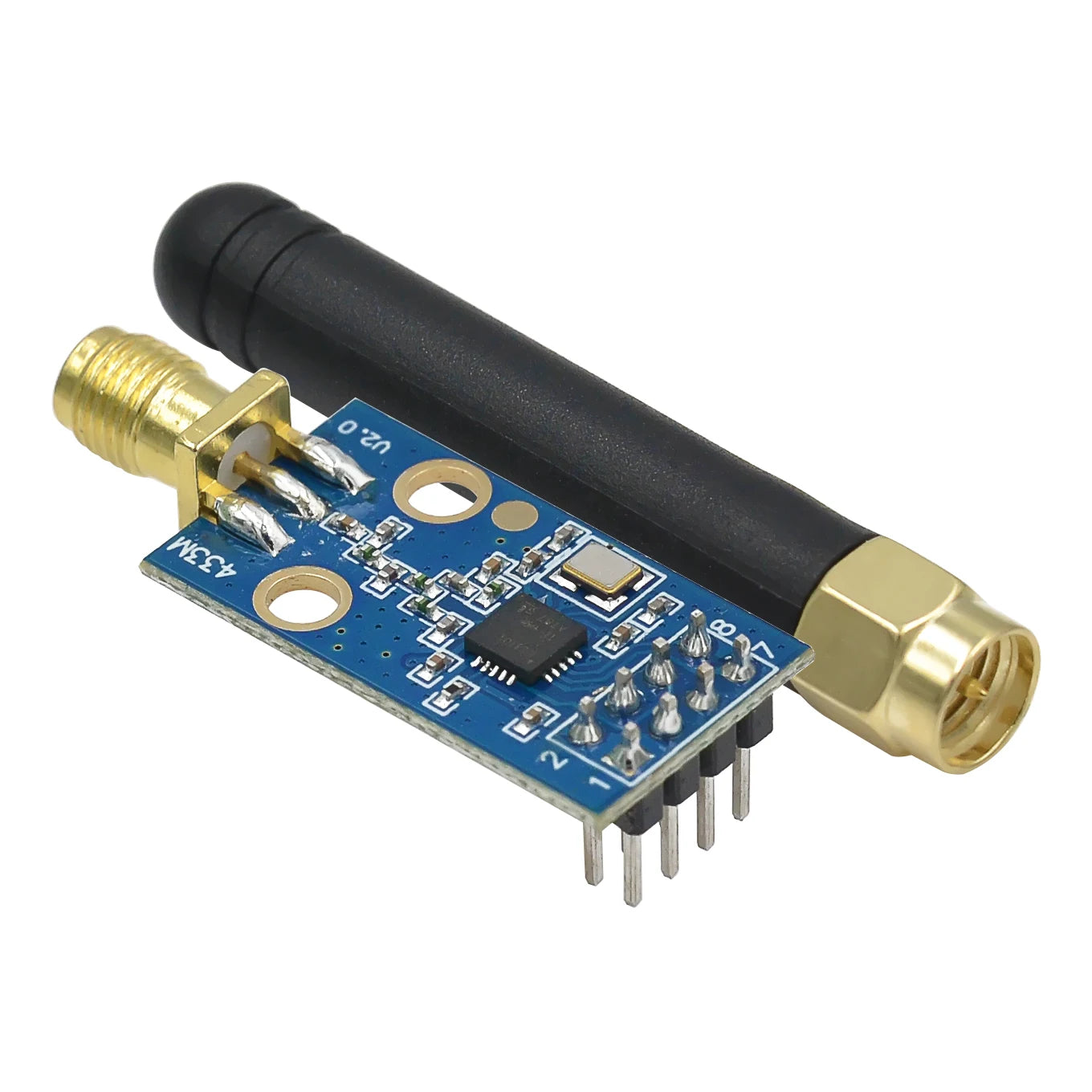

Industrial-grade CC1101 wireless module 433M digital transmission transceiver class NRF905 SI4432 SMA interface

Wireless Module
Condition: New
Operating frequency:(Module:387-464MHZ)
Working voltage :1.8-3.6V
Instantaneous maximum working current: <30ma>
Maximum transmit power: 10mW (+10dBm)
Features:
315/433/868/915MHZ ISM band
Support 2-FSK, GFSK and MSK modulation
Receiver sensitivity -110dBm at 1200 baud
Minimum operating speed 1.2kbps, the highest 500kbps
Separate 64-byte RX and TX data FIFO buffer
Built-in hardware CRC error detection ensures reliable data transmission
Support RSSI signal strength detection and carrier sense function
Low power consumption
Mailing Address (256) Operating frequency can be programmed via SPI
Programmable output power, for all the support frequencies up to +10 dBm
WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption
Fast frequency synthesizer with proper frequency hopping system
Color: show as pictures
PLS NOTE that due to lighting effects, monitor\\\'s brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item!

1 x Wireless Module
