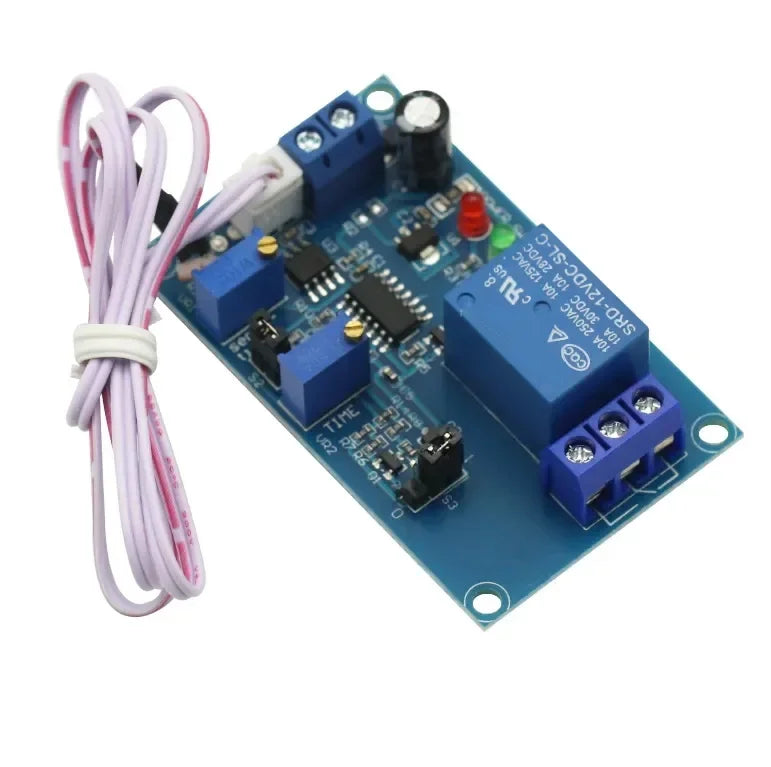

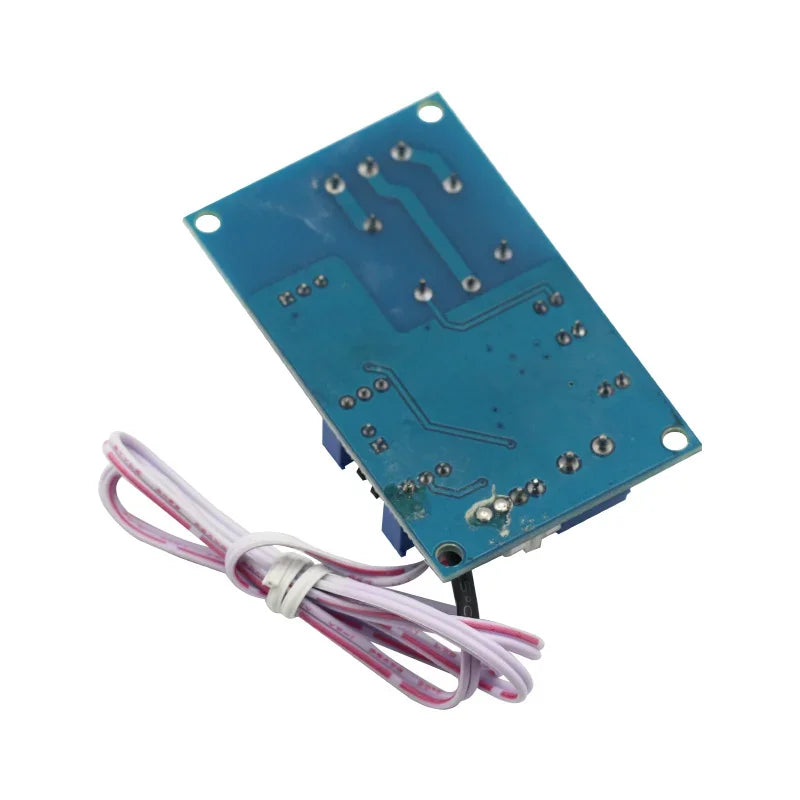

1PCS DC 12V Photoresistor R elay Module Board Light Brightness Sensor Timer Detection Controller Switch On/Off With Wire for Car
Default Title
$18.77
Sale price
$18.77
Regular price
$0.00
Skip to product information
1PCS DC 12V Photoresistor R elay Module Board Light Brightness Sensor Timer Detection Controller Switch On/Off With Wire for Car
$18.77
Sale price
$18.77
Regular price
$0.00
Description
SPECIFICATIONS
Accessory Type: Extension Board
Brand Name: SHANGSIMOUDLECX
Choice: yes
Compatible With: all
High-concerned chemical: none
Origin: Mainland China
semi_Choice: yes
Description:
1.100% brand new
2.Color: Blue
3.Supply voltage:12V
4.Size:63.5*38.5*18.5mm
5.Net Weight:28g
Feature:
1.Products imported chip control, stable and reliable quality
2.The power section is provided with diode protection, filter capacitor and anti-interference capacitor and 7805 voltage stabilizing chip
3.Providing stable voltage, When the power supply is reversed, the burned out module is avoided
4.The product is equipped with precise adjustable potentiometer, which can adjust sensitivity and delay time better
5.There is power indication and relay pull in indication
6.The module is equipped with high-power relay, which can control the 10A current load
7.Module comes with30cm long photosensitive resistor sensor
8.The module has time delay and can adjust the delay time to solve the flashing problem of the relay at the critical point of the light
Performance Parameter:
1.Power supply: DC12V
2.Quiescent current: 15mA
3.Maximum power consumption: 45mA
4.Relay load capacity: 250V, 10A (AC), 30V, 10A (DC)
5.Ambient temperature: <80 degrees
6.Delay range: plug in S2., delay 1-20 seconds adjustable, do not plug S2, 1-200 seconds adjustable
