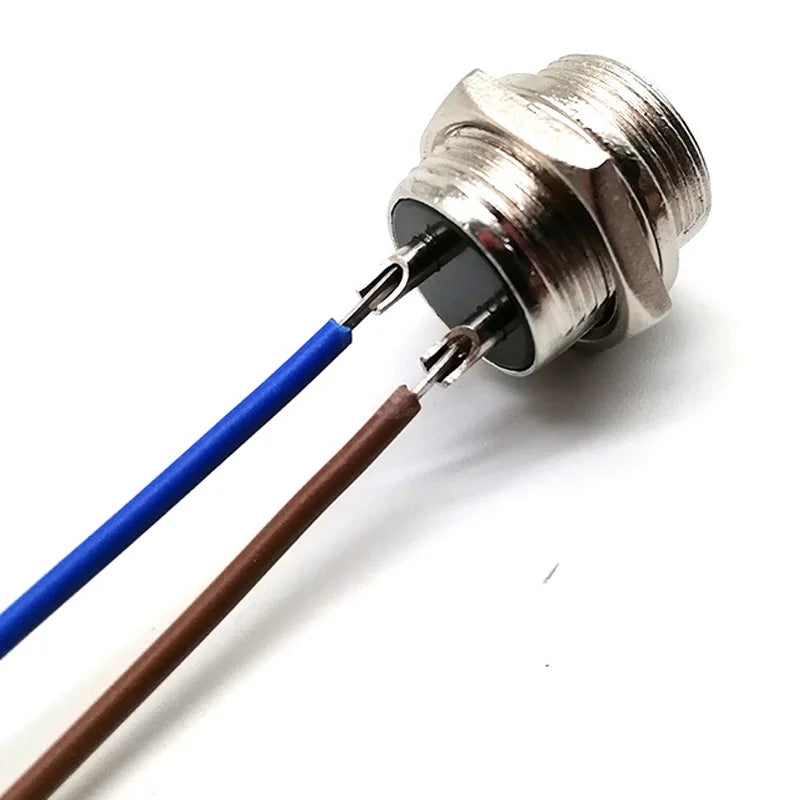

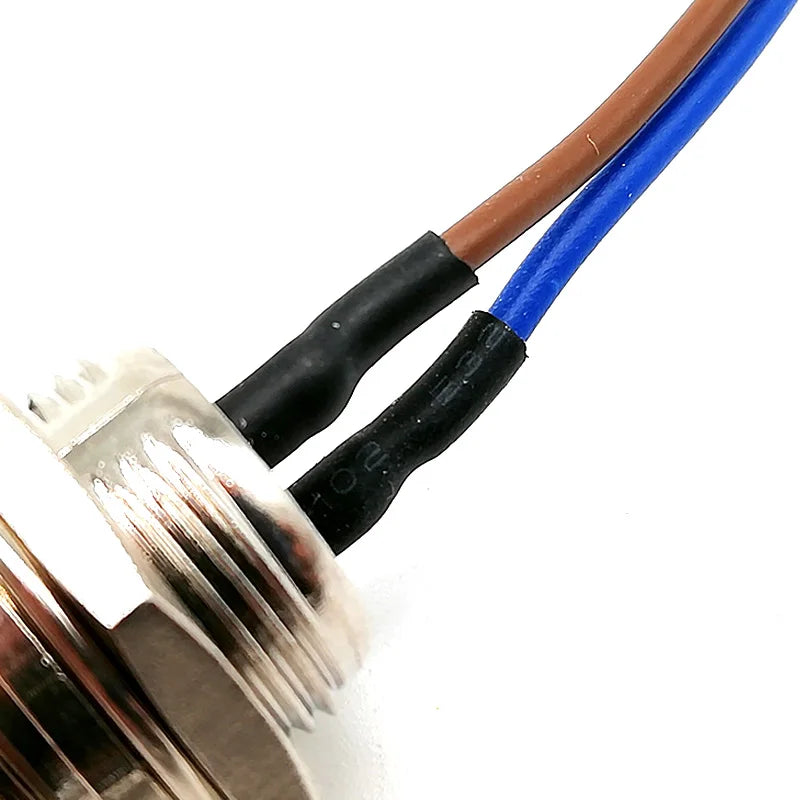

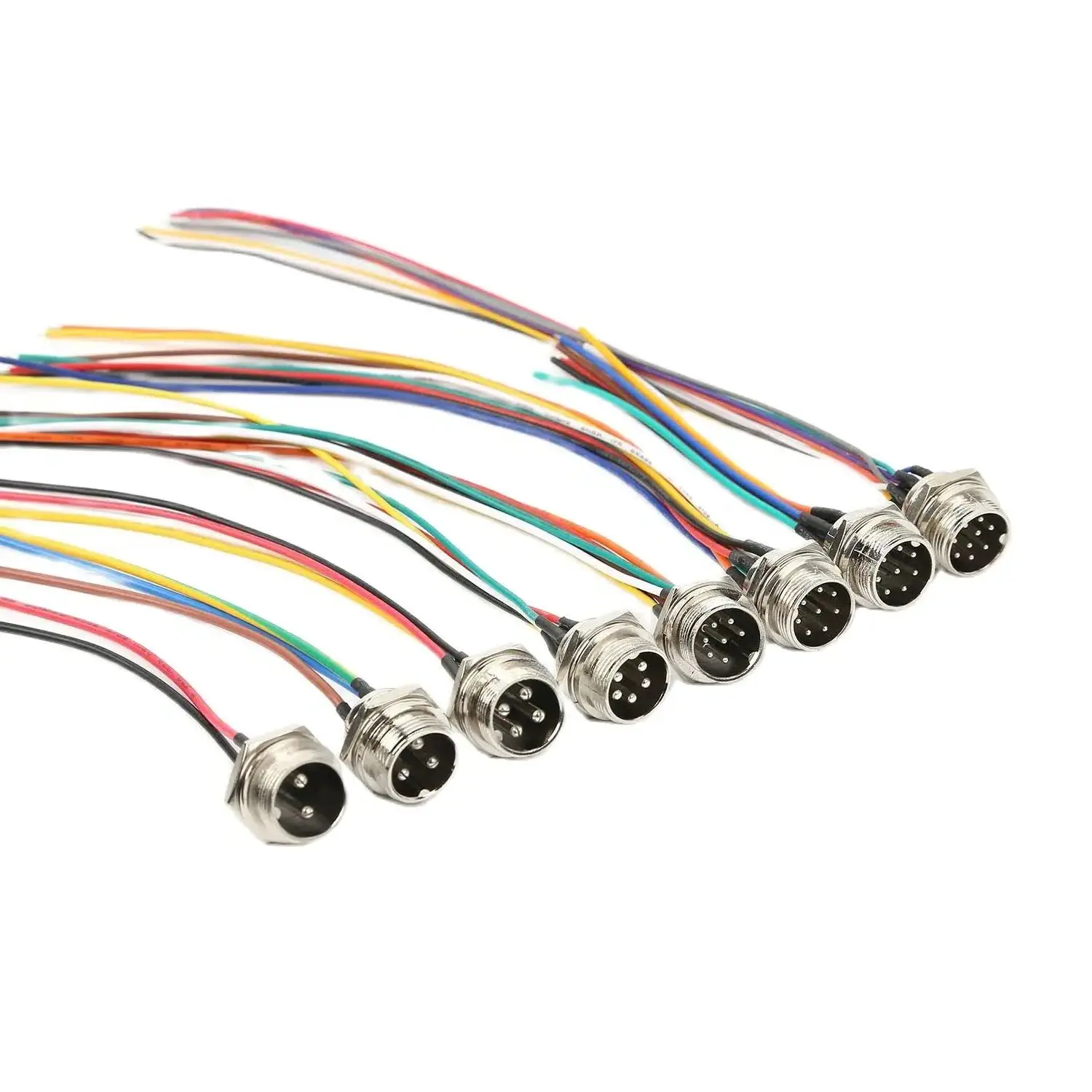

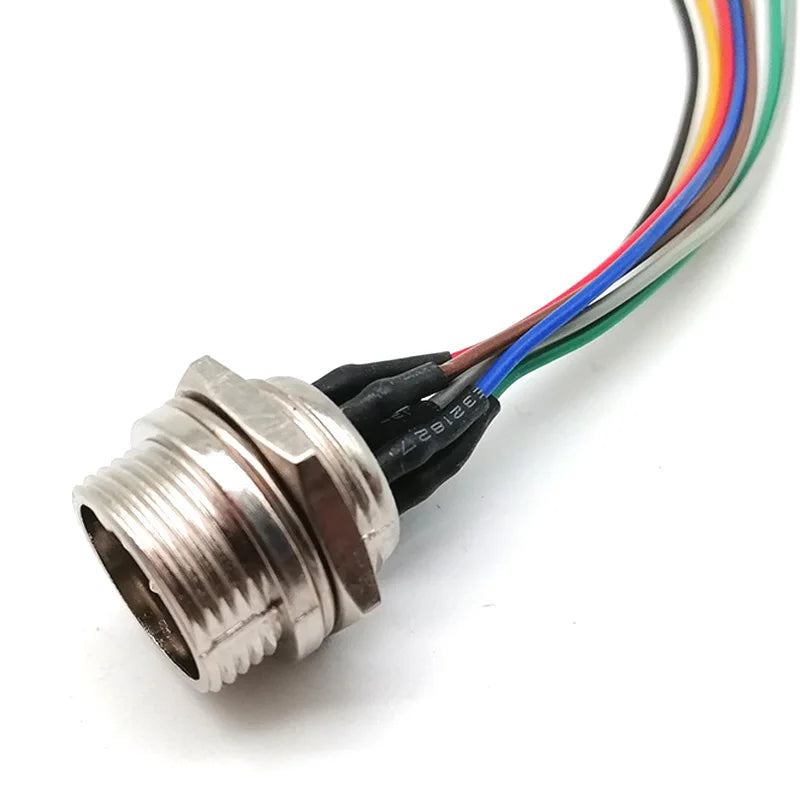

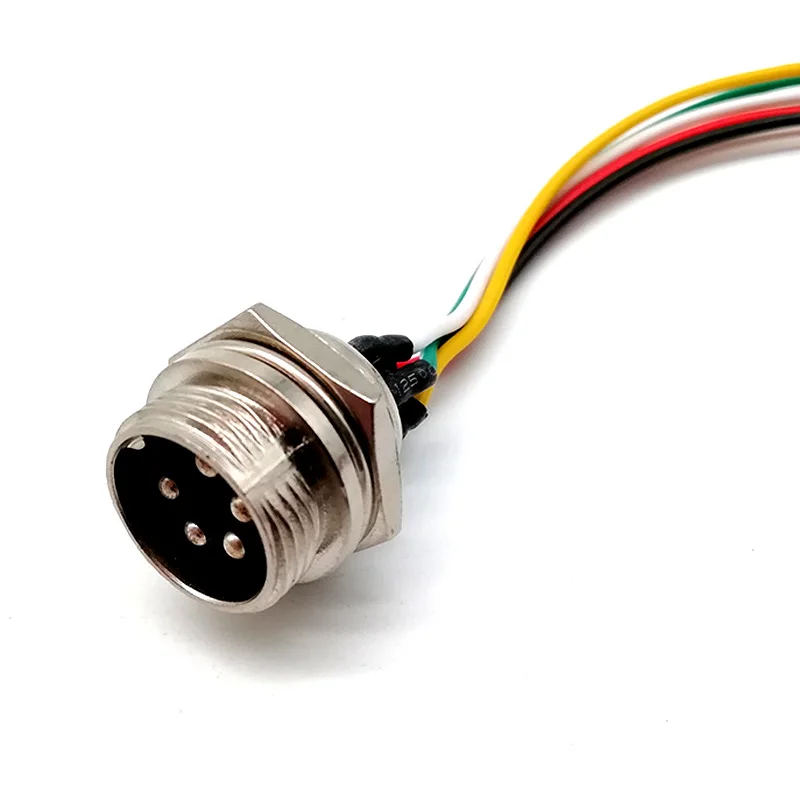

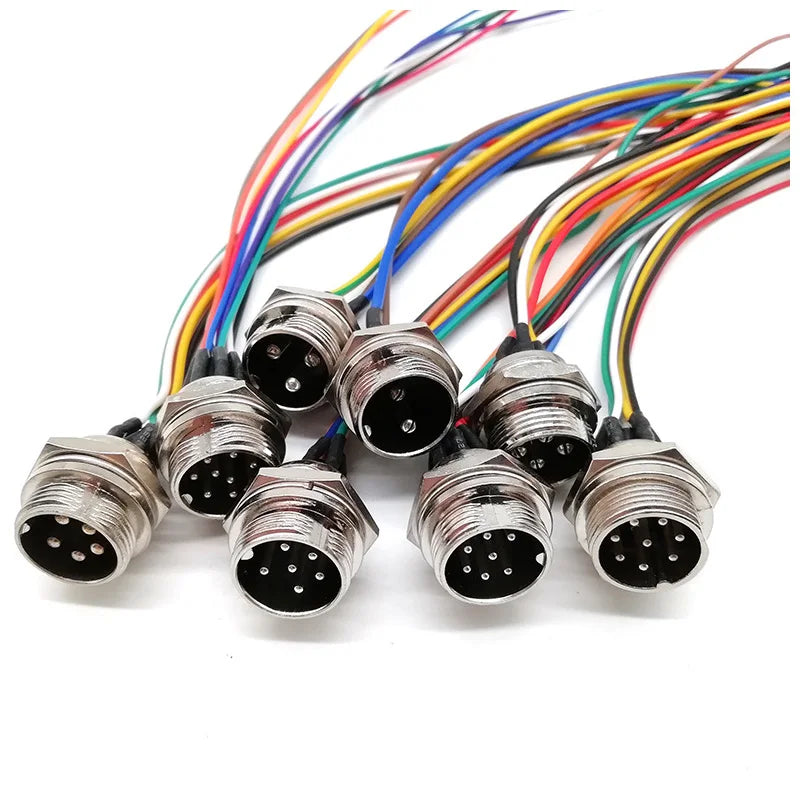

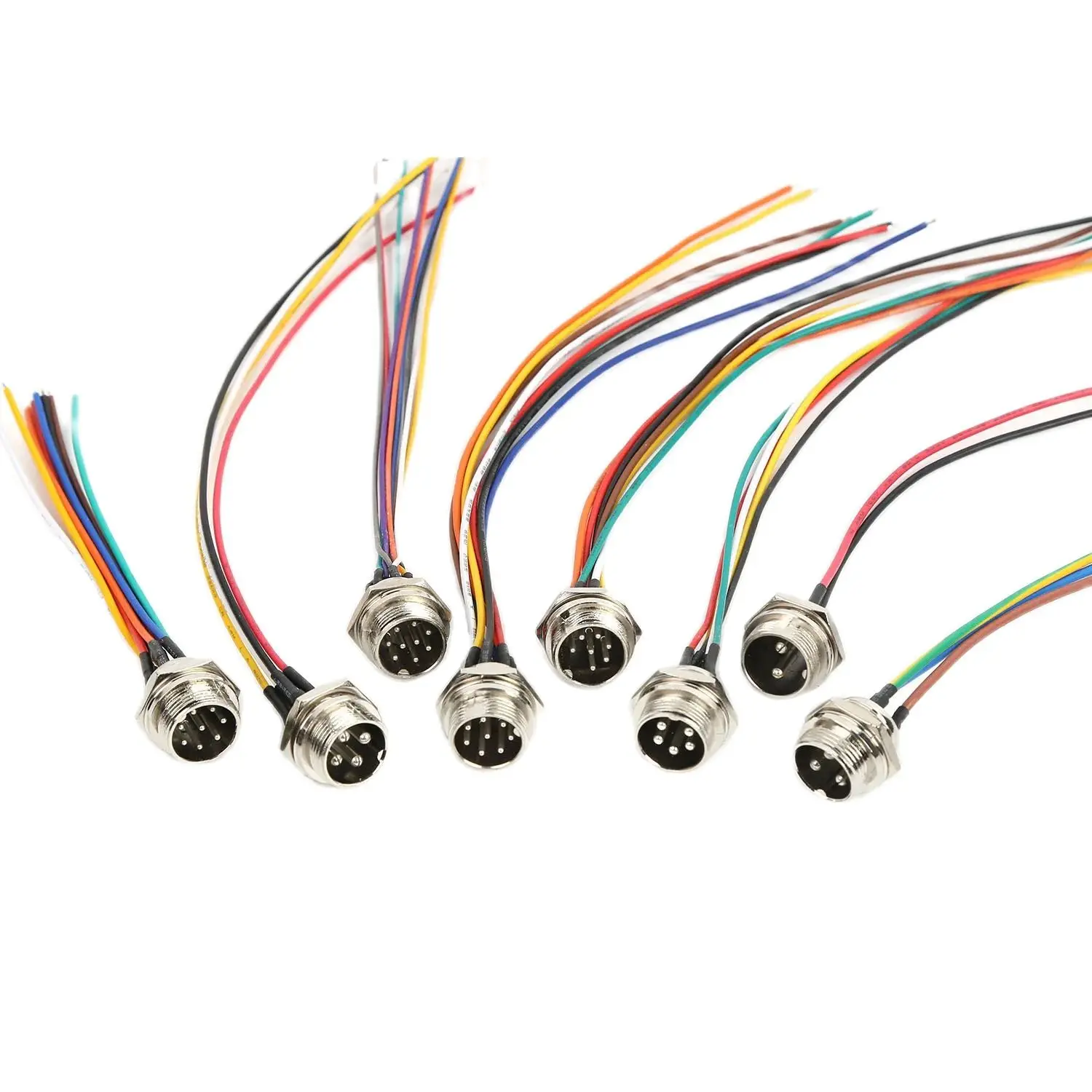

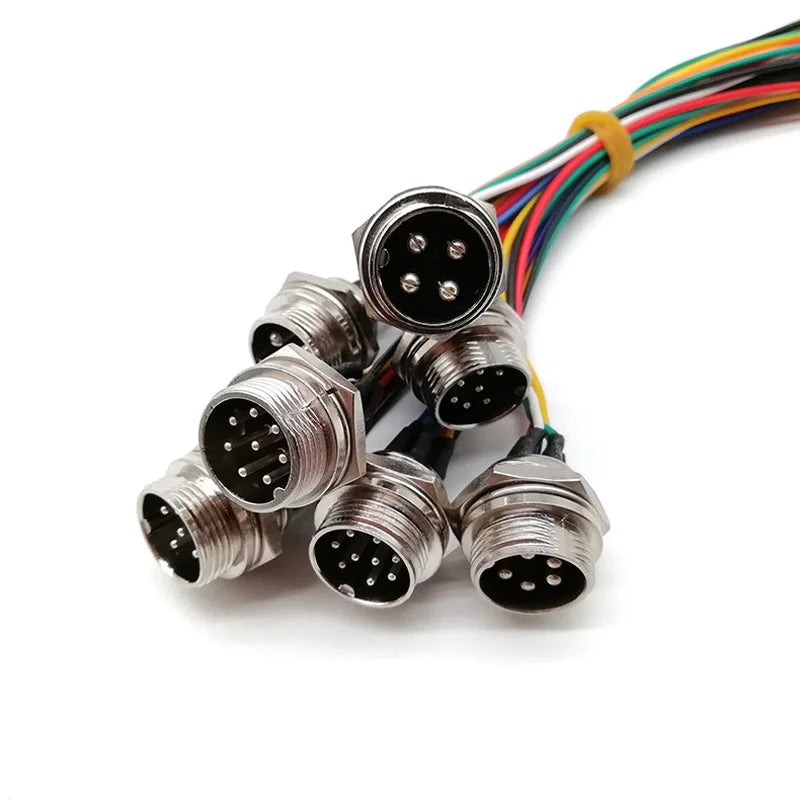

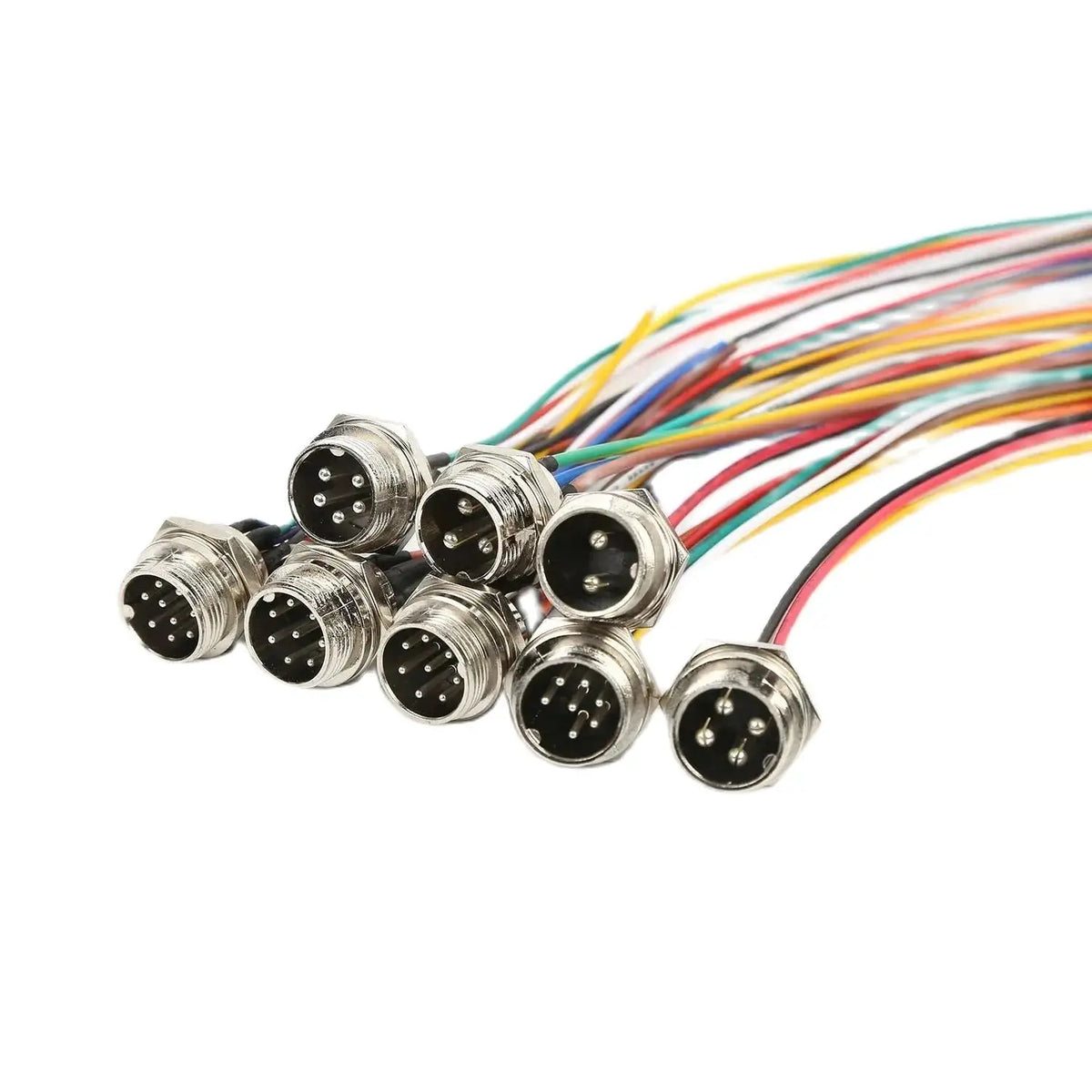

1pcs GX12 GX16 Butt Joint 2/3/4/5/6/7/8/9/10 Pin Waterproof Aviation Plug Connector With 18cm Wire Cable Connector Air Plug
One Piece / 3P / China Mainland|GX16|Male Insert
$5.24
Sale price
$5.24
Regular price
$0.00
Skip to product information
1pcs GX12 GX16 Butt Joint 2/3/4/5/6/7/8/9/10 Pin Waterproof Aviation Plug Connector With 18cm Wire Cable Connector Air Plug
$5.24
Sale price
$5.24
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: USBO
Certification: CE
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: Aviation plug
Origin: Mainland China
Socket: male connector
Voltage: 127V
cable: with cable 18cm
contact pins: 2/3/4/5/6/7/8/9/10 Pins
material: metal
style: Aviation connector
type: GX16 GX12

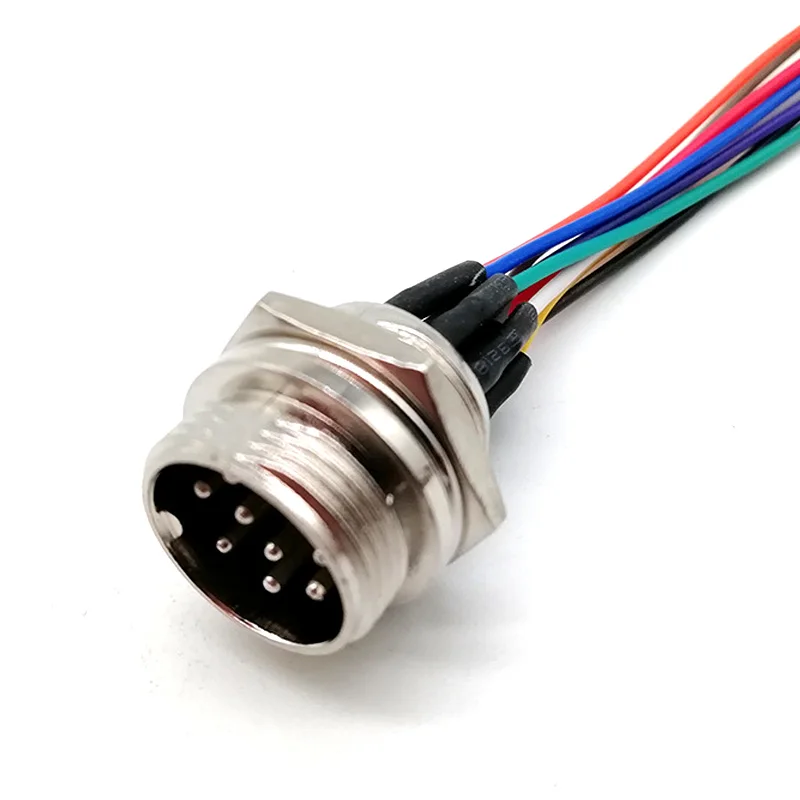

1pcs GX12 GX16 Butt Joint 2/3/4/5/6/7/8/9/10 Pins Waterproof Aviation Plug Socket Connector With 18cm Wire Core Cable Connector Air Plug
Description:

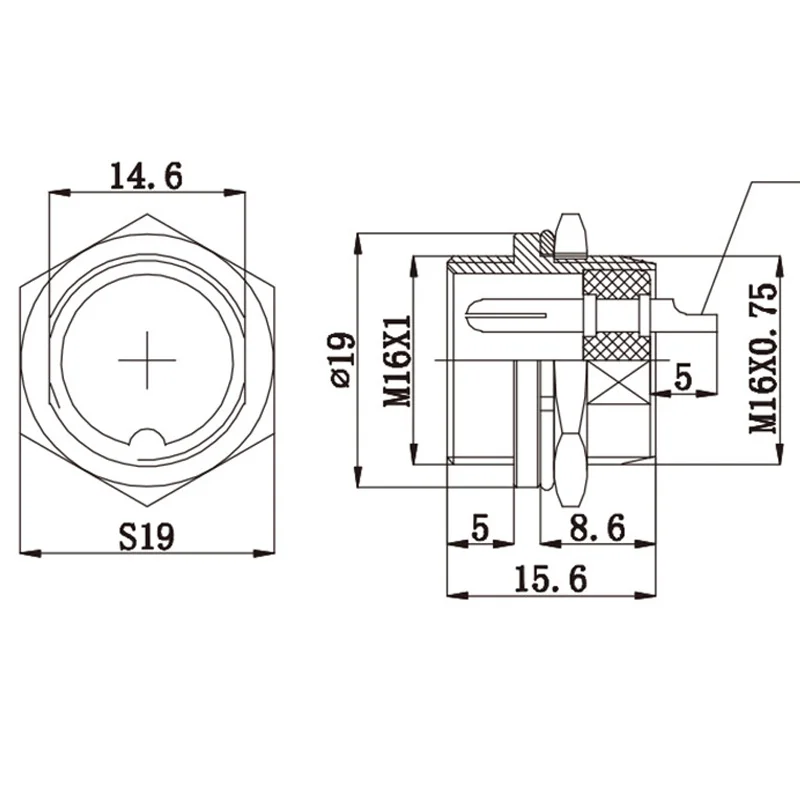

Diameter :16mm or 12mm
Pacakge:one piece
Environmental conditions
Ambient temperature: -50 ~ +70 C
Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2
Centrifugal: acceleration 250m/s2
Main technical characteristics
Rated voltage: 2 core /3 core/ 4 core- 400V, 5 pin /6 pin /7 pin /8pin- 250V Rated current: 5A
Contact resistance: (each contact pair)Less than 0.005 Ω
Insulation resistance: In normal conditions, not less than 1000MΩ; after constant warm tests, not less than 20MΩ.
Test voltage: (50Hz, RMS) In normal conditions, 2 core /3 core/ 4 core-1500V, 5pin/ 7pin -1200V,
After constant warm test, 2 pin/ 3 pin /4 pin -1200V, 5pin /7pin- 1000V
Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single
foot separation Force
Temperature Rise: at rated load, the contact of the temperature rise should not exceed +50 C ambient temperature
Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged.
