Color
Pins
Ships From|Connector Type|Package Quantity|Insert Type
Description

SPECIFICATIONS

Ambient temperature: -50 ~ +70 C

Brand Name: USBO

Certification: NONE

Choice: yes

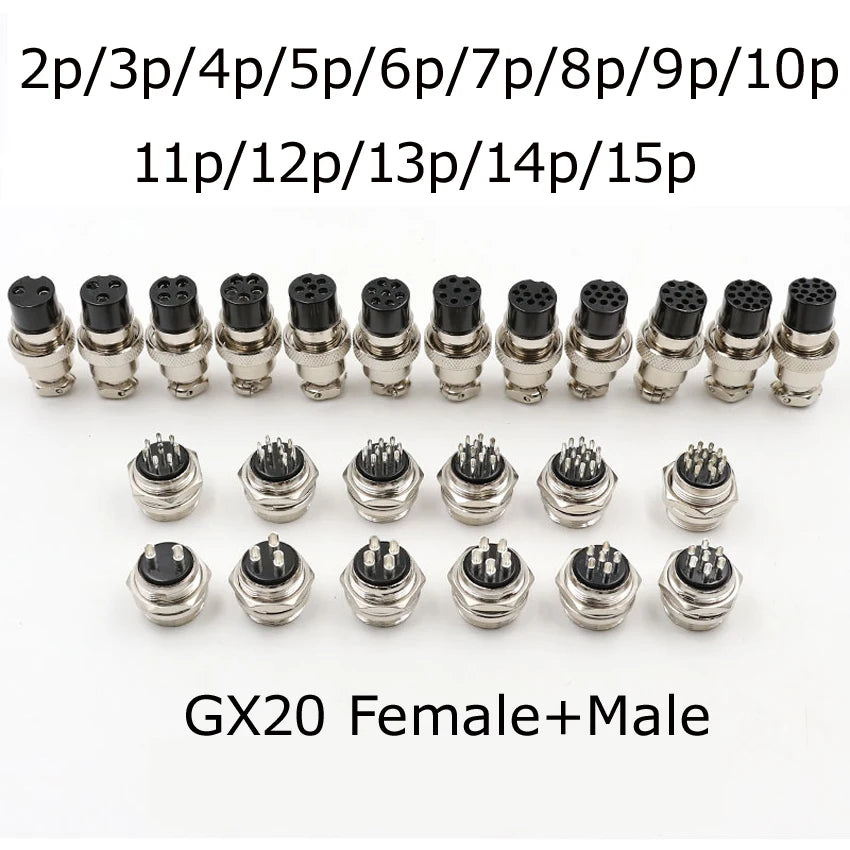

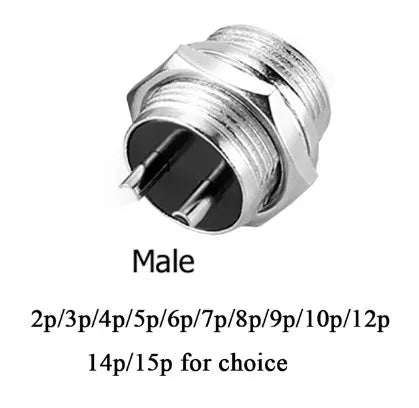

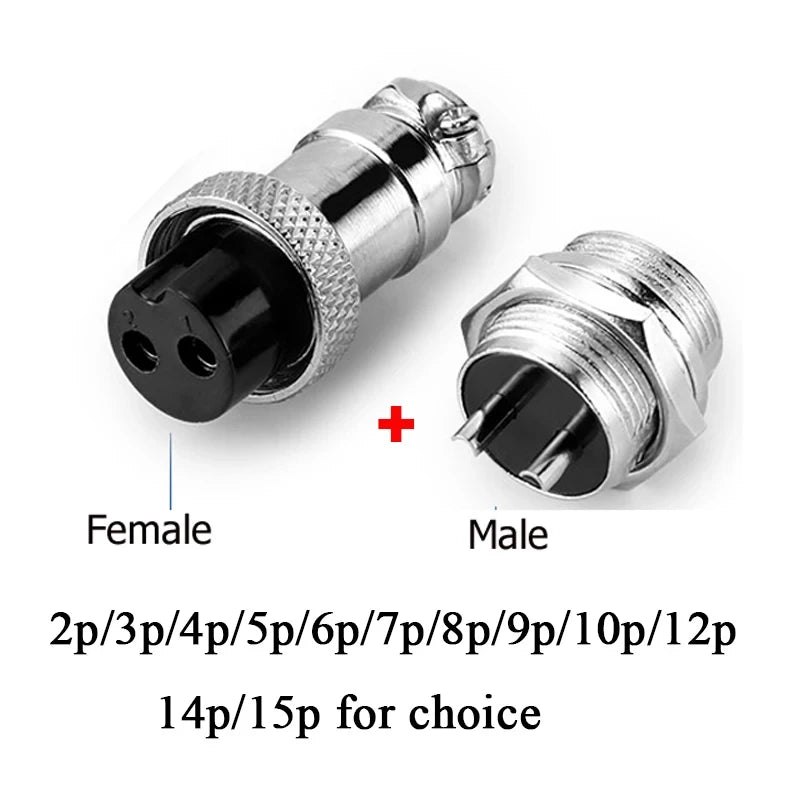

Contact pins: 2/3/4/5/6/7/8/9/10/11/12/13/14/15P

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

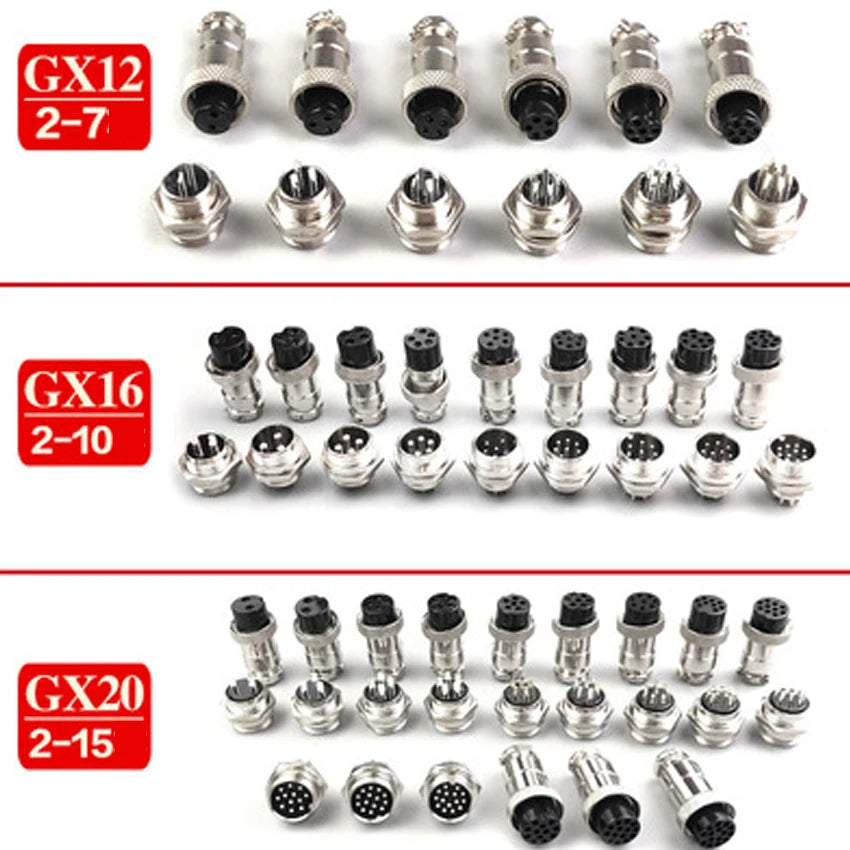

Model Number: GX12 GX16 GX20

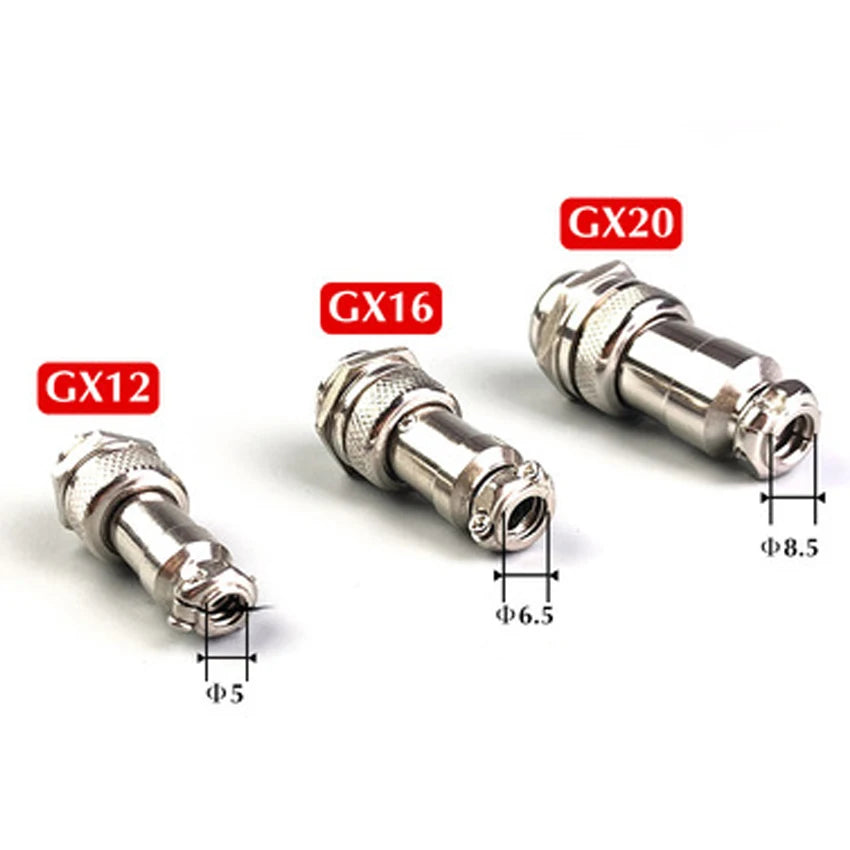

Mount size: 12mm 16mm 20mm

Origin: Mainland China

Voltage: none

color: Silver Black

semi_Choice: yes

style: Aviation connector

type: Aviation plug socket

1pcs GX12 GX16 GX20 Air Aviation Connector 2/3/4/5/6/7/8/9/10/11/12/14/15Pin Core Wire Panel Circular Air Plug Socket Connector


Pls notice when you choice "Only Waterproof Cover *make order ,the price only for waterproof cover without any connector .


Description:

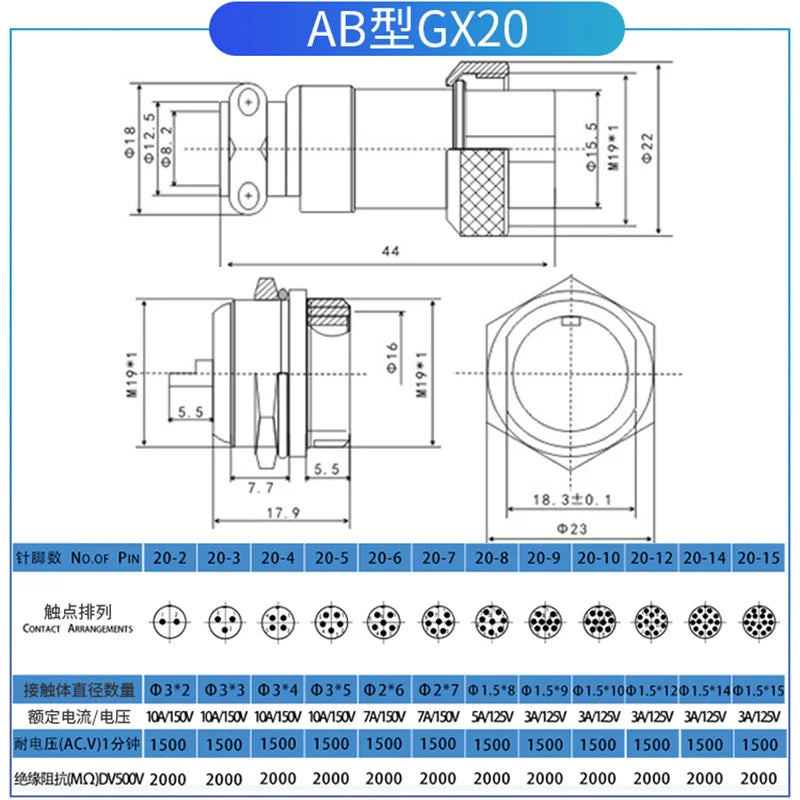

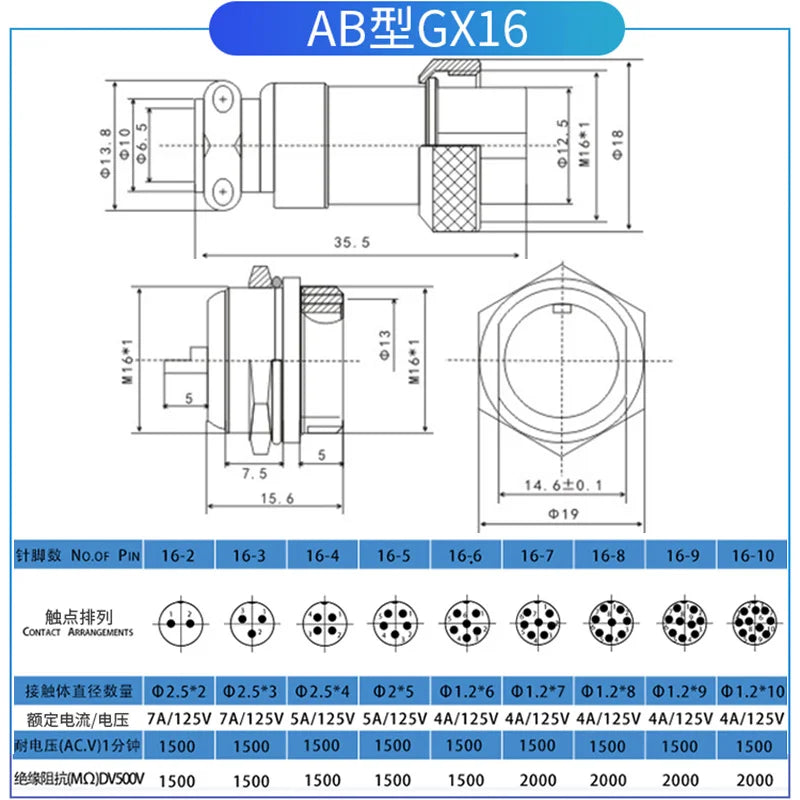

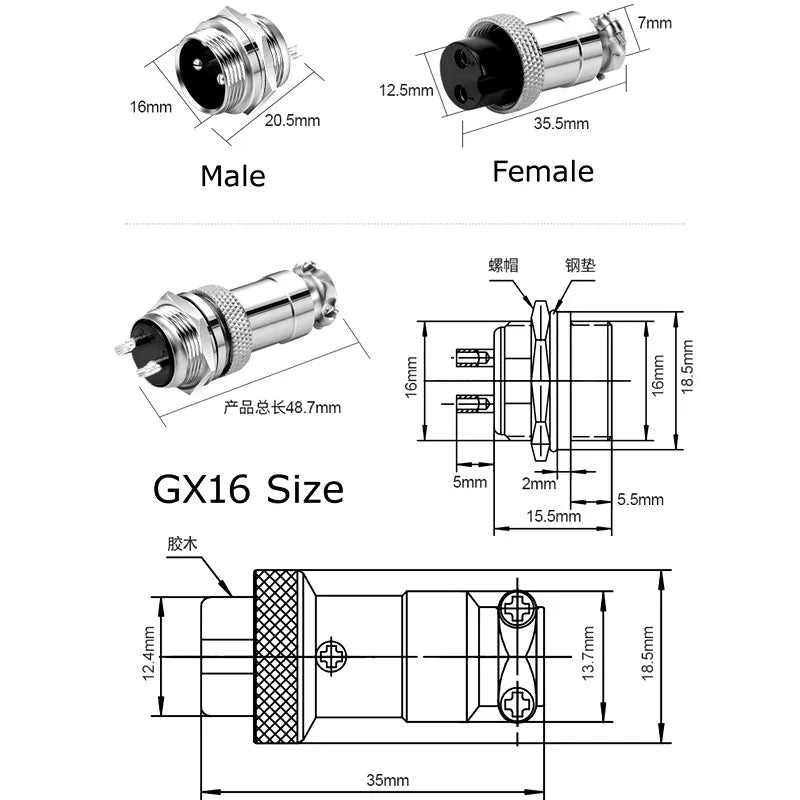

Diameter :12mm/16MM/20MM
Environmental conditions
Ambient temperature: -50 ~ +70 C
Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2
Centrifugal: acceleration 250m/s2

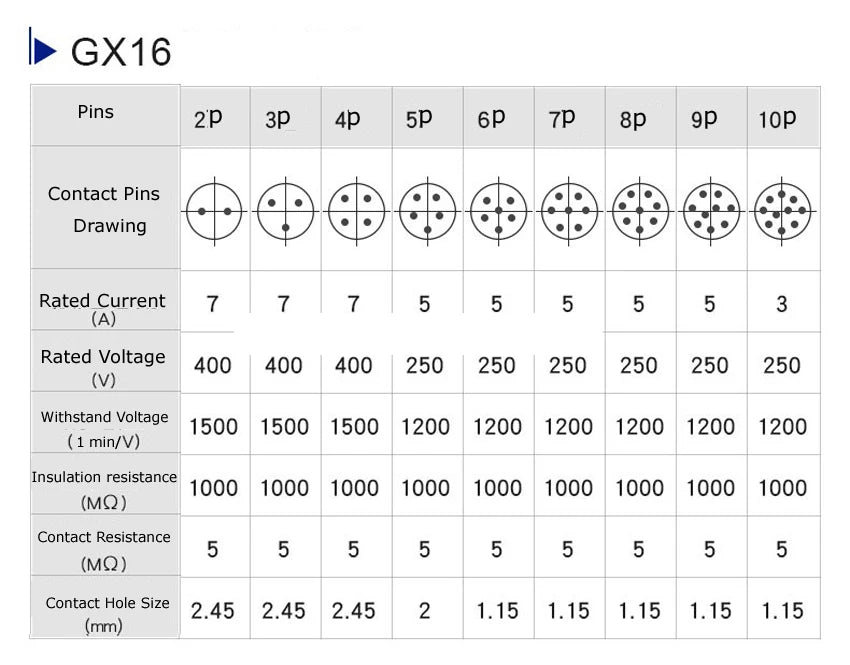

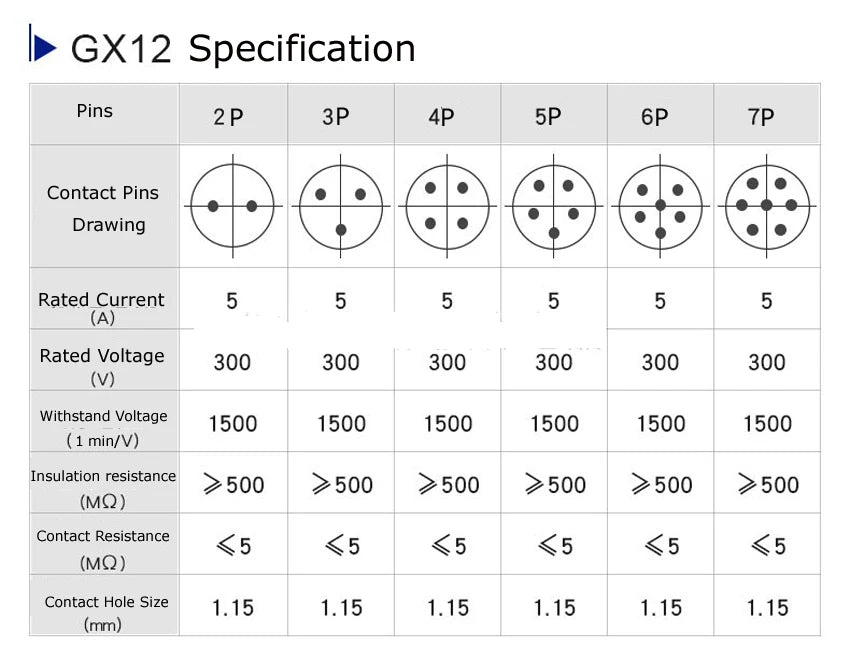

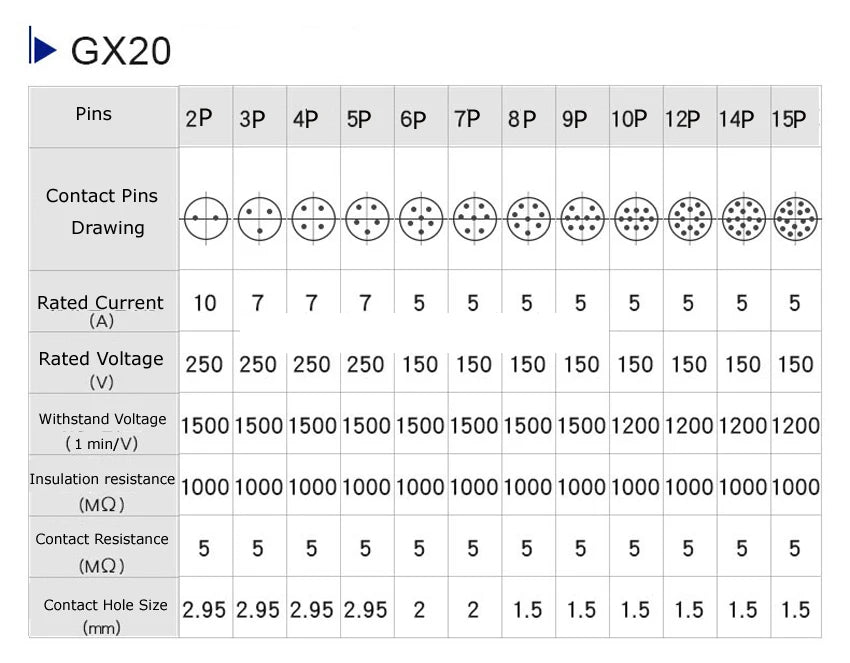

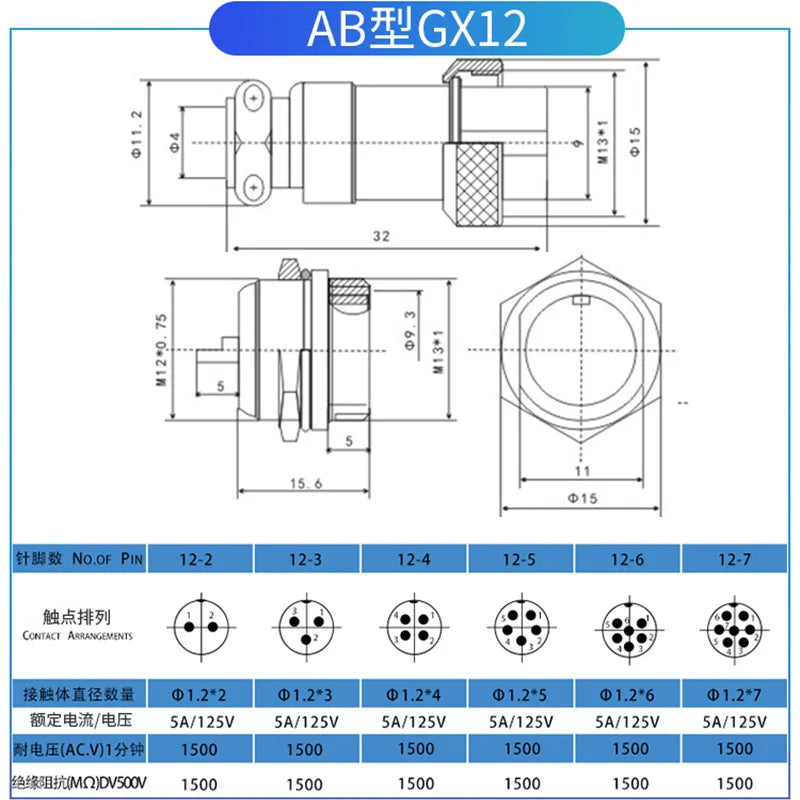

Main technical characteristics
Rated voltage: 2 core /3 core/ 4 core- 400V, 5 pin /6 pin /7 pin /8pin- 250V Rated current: 5A
Contact resistance: (each contact pair)Less than 0.005 Ω
Insulation resistance: In normal conditions, not less than 1000MΩ; after constant warm tests, not less than 20MΩ.
Test voltage: (50Hz, RMS) In normal conditions, 2 core /3 core/ 4 core-1500V,  5pin/ 7pin -1200V,
After constant warm test, 2 pin/ 3 pin /4 pin -1200V, 5pin /7pin- 1000V
Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single
foot separation Force
Temperature Rise: at rated load, the contact of the temperature rise should not exceed  +50 C ambient temperature
Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged.
