Description

SPECIFICATIONS

Application: Video

Brand Name: BEVOTOP

Can be Customized: Yes

Certification: NONE

Connector Plating: Nickel Plated

Connector Type A: Micro BNC Male Plug

Connector Type B: Micro BNC Male Plug

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Impedance: 75 Ohm

Length: 10CM~20M or customized

Name: Micro BNC Cable

Origin: Mainland China

RF Cable Type: RG179 RF Coaxial Cable

Voltage: none

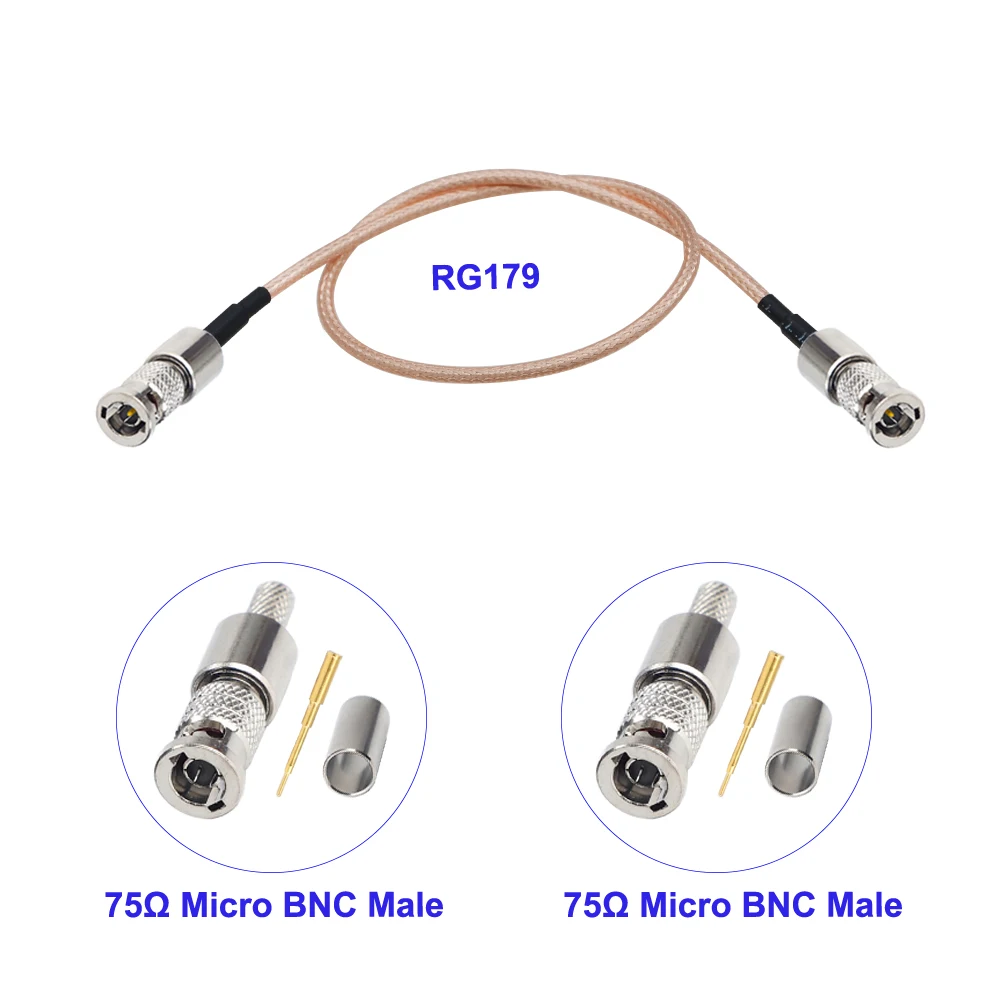

New HD BNC RG179 Cable 75 Ohm Micro BNC Male to Micro BNC Male Plug Mini BNC Connector Cable Adapter for HD Video Camera

1. Product Name: BNC to BNC RF Coaxial Cable Assembly

2. Connector A: Micro BNC Male Plug 75Ohm

3. Connector B: Micro BNC Male Plug 75Ohm

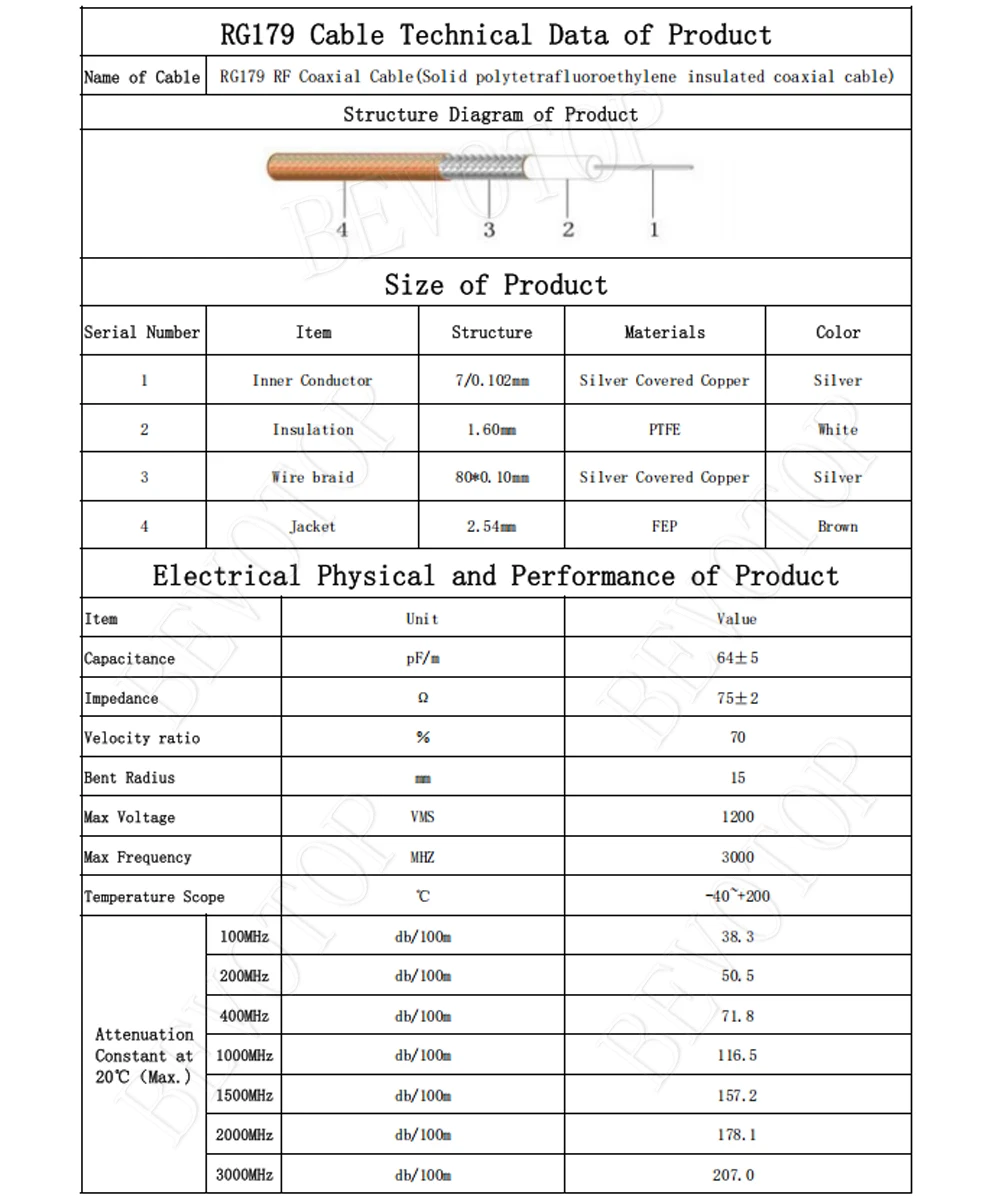

4. Cable Type: 75 Ohm RG179 RF Coaxial Cable

5. Cable Length: 10cm ~20M customized

6. Impedance: 75 Ohm

7. Packing: PP Bag

8. Applications: GSM system,GPS navigation system,Wireless communication system,Antennas.Car radio,Test equipment Microwave components,Data transmission,LAN system,Satellite transmission,Aviation equipment,etc.

9. Custom-Made: We can customize any types of connectors and cable at any length for you. Welcome to contact us if any need. Thank you. :）

1pcs

Q2: I need the cable 200cm, can you make it?

A: Yes,we can customized any length for you.

Q3: Can the connector make with another type connector?

A: Yes. We can customize connectors for you, such as SMA serials ,MCX, Fakra, TS9, CRC9 and so on.

BEVOTOP provides a full range of RF coaxial connectors,from MMCX, MCX ,SMA, SMB, SMC, TS9,CRC9, FME, MS156, BNC,TNC, N, UHF,Fakra, Mini Fakra, HSD, LVDS etc, to standard products ODM and custom-made products with OEM Service. Our main products include high speed cable assemblies, RF coaxial cable assemblies, low frequencycable assemblies, RF coaxial connectors, RF coaxial adapters. These products are mainlyused in data storage, networking, communications, automotive, medical,aerospace, etc.

We offer OEM & ODM Custom-made service.
