SPECIFICATIONS

Application: Other

Brand Name: CazenOveyi

Choice: yes

Condition: New

Dissipation Power: International standard

Electronic Components & Supplies: ESP32

Electronic Components & Supplies 1: ESP8266

Electronic Components & Supplies 2: DIY KIT

Electronic Components & Supplies 3: DC-DC

Electronic Components & Supplies 4: STM32

High-concerned chemical: none

Model Number: LM2596 DC-DC

Operating Temperature: International standard

Origin: Mainland China

Supply Voltage: International standard

Type: Other

is_customized: Yes

semi_Choice: yes

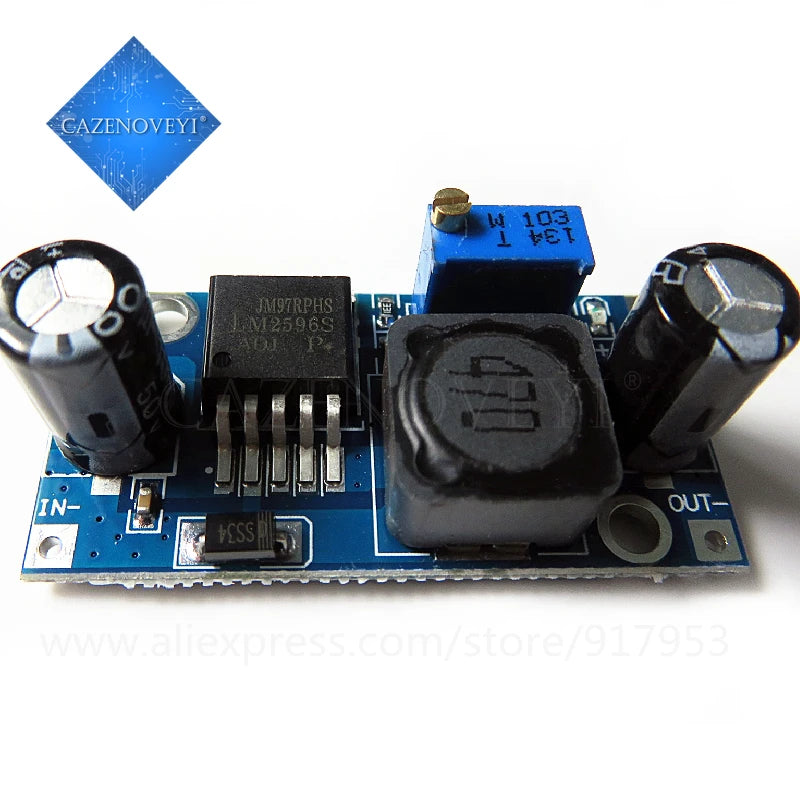

Name : LM2596 DC-DC Buck module
Input voltage :4V ~ 35V
The output voltage : 1.23V ~ 30V
Output Current :3A( Max)
Conversion efficiency:92%( MAX )
Output ripple: <30mV
Switching frequency: 150KHz
Working temperature: -forty Five~ +85
Size :43mm * 21mm * 14mm(Long*Width*Hight)
Features:

1. the range of input voltage: 3.2 V to 40 V dc (input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)

2. the range of output voltage: 1.25 V dc to 35 V voltage adjustable, high efficiency (92%) largest maximum output current is 3A.

Instructions:

1. Power (3-40V), power indicator light, the module is working properly.

2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.

Note:

Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.
